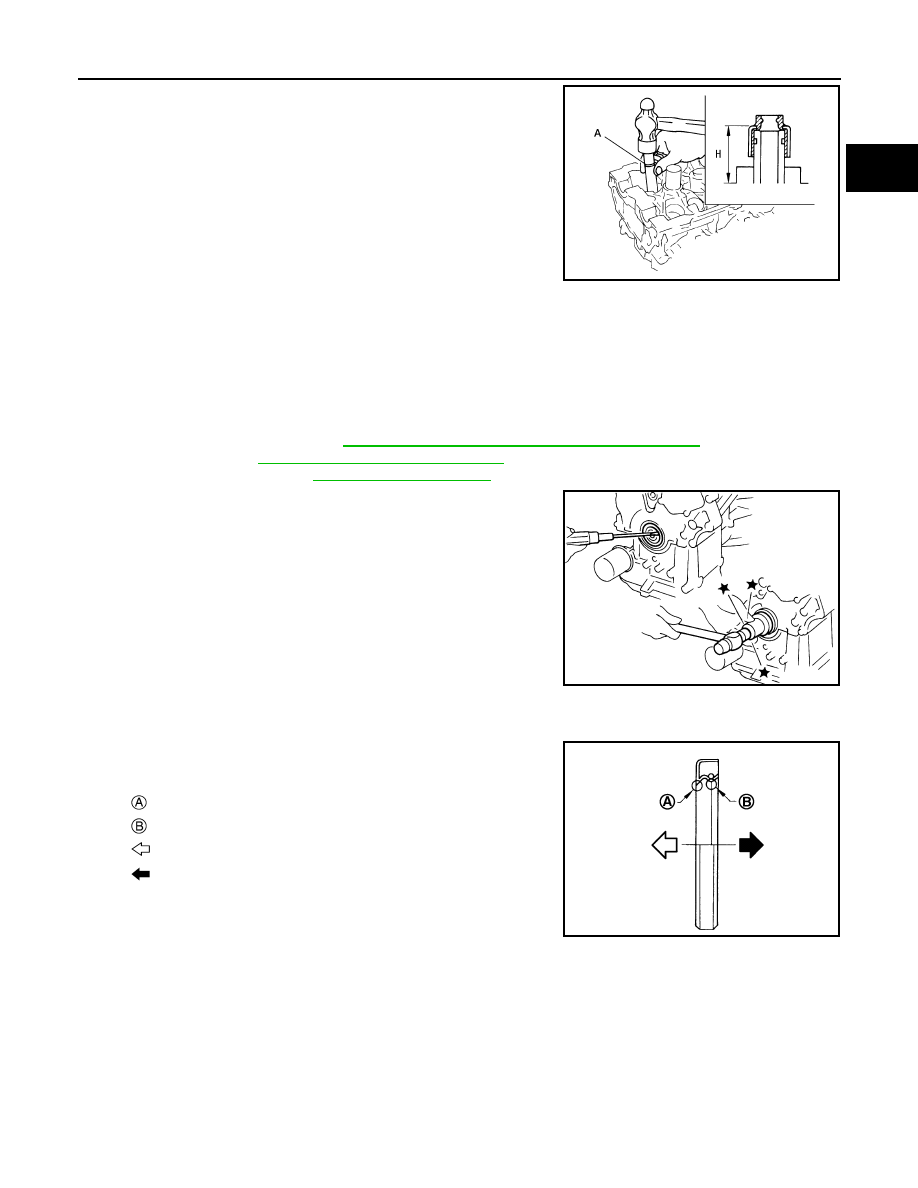

Nissan X-Trail 32. Manual - part 1075

OIL SEAL

EM-197

< REMOVAL AND INSTALLATION >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

2.

Press in valve oil seal to the height “H” shown in the figure with a
valve oil seal drift [SST: KV10115600] (A).

3.

Install in the reverse order of removal after this step.

FRONT OIL SEAL

FRONT OIL SEAL : Removal and Installation

INFOID:0000000010783800

REMOVAL

1.

Remove the following parts.
• Front fender protector: Refer to

EXT-35, "FENDER PROTECTOR : Exploded View"

.

• Drive belt: Refer to

EM-166, "Removal and Installation"

.

• Crankshaft pulley: Refer to

EM-210, "Exploded View"

.

2.

Remove front oil seal with a suitable tool.

CAUTION:

Be careful not to damage front cover and crankshaft.

INSTALLATION

1.

Apply new engine oil to seal lip.

2.

Install front oil seal so that each seal lip is oriented as shown in
the figure.

Height “H”

: 11.8 - 12.4 mm (0.465 - 0.488 in)

ALBIA0864GB

SEM829E

: Dust seal lip

: Oil seal lip

: Engine outside

: Engine inside

PBIC3485J

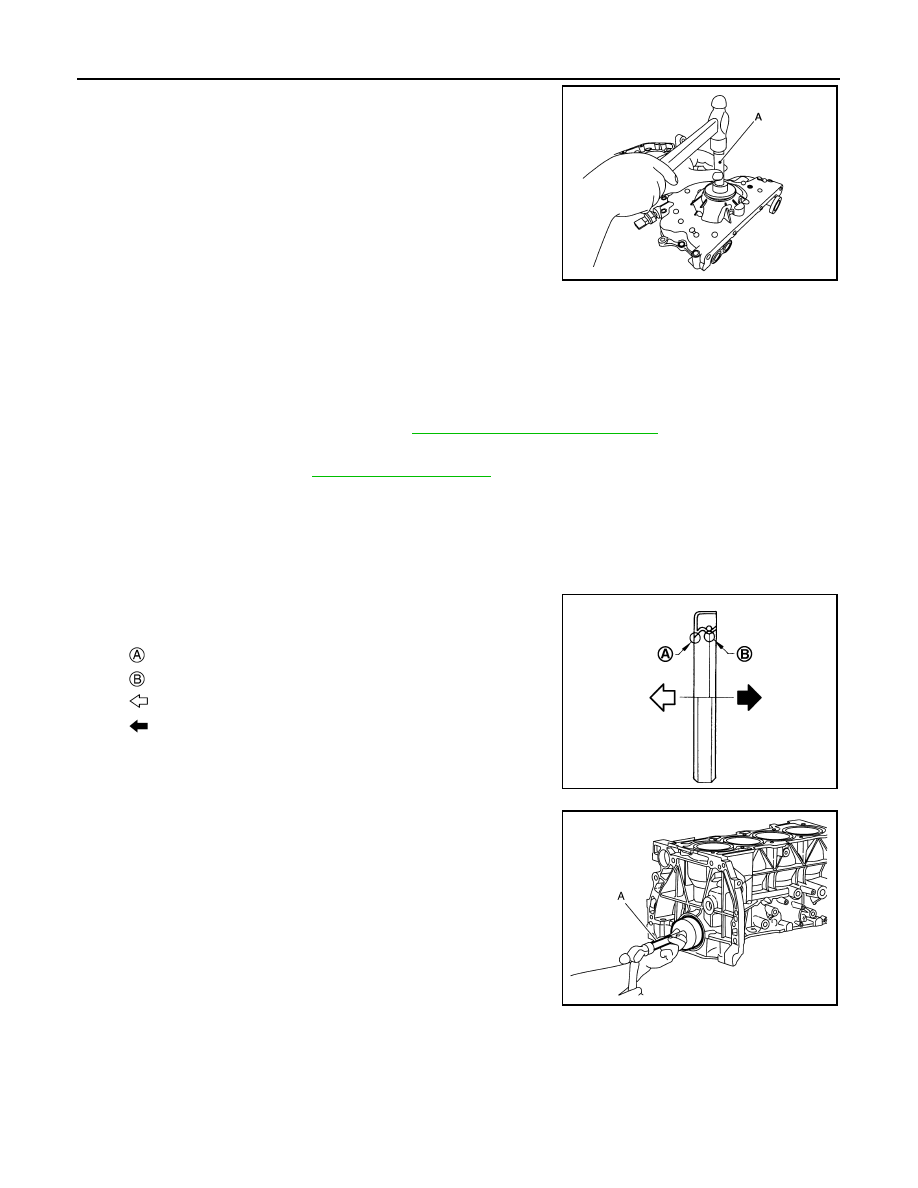

EM-198

< REMOVAL AND INSTALLATION >

[QR25DE]

OIL SEAL

• Press-fit front oil seal until it is flush with front end surface of

front cover using a suitable drift (A) with outer diameter 56 mm
(2.20 in) and inner diameter 48 mm (1.89 in).

CAUTION:

• Be careful not to damage front cover and crankshaft.
• Press-fit oil seal straight to avoid causing burrs or tilt-

ing.

• Never touch the grease applied to the oil seal lip.

3.

Install in the reverse order of removal after this step.

REAR OIL SEAL

REAR OIL SEAL : Removal and Installation

INFOID:0000000010783801

REMOVAL

1.

Remove the engine and transaxle. Refer to

EM-200, "Removal and Installation"

.

2.

Separate engine from transaxle.

3.

Remove drive plate. Refer to

EM-208, "Exploded View"

.

4.

Remove rear oil seal with a suitable tool.

CAUTION:

Be careful not to damage crankshaft and cylinder block.

INSTALLATION

1.

Apply new engine oil to seal lip.

2.

Install rear oil seal so that each seal lip is oriented as shown in
the figure.

• Press-fit rear oil seal with a suitable drift (A) [outer diameter

102 mm (4.02 in), inner diameter 86 mm (3.39 in)].

CAUTION:

• Be careful not to damage crankshaft and cylinder block.
• Press-fit oil seal straight to avoid causing burrs or tilt-

ing.

ALBIA0865GB

: Dust seal lip

: Oil seal lip

: Drive plate side

: Engine front

PBIC3485J

JSBIA3341ZZ

OIL SEAL

EM-199

< REMOVAL AND INSTALLATION >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

• Press in the new rear oil seal

 to the position

 shown in the

figure.

3.

Install in the reverse order of removal after this step.

: Rear surface of cylinder block

: 0 - 0.5 mm (0 - 0.020 in)

JPBIA3011ZZ

EM-200

< UNIT REMOVAL AND INSTALLATION >

[QR25DE]

ENGINE ASSEMBLY

UNIT REMOVAL AND INSTALLATION

ENGINE ASSEMBLY

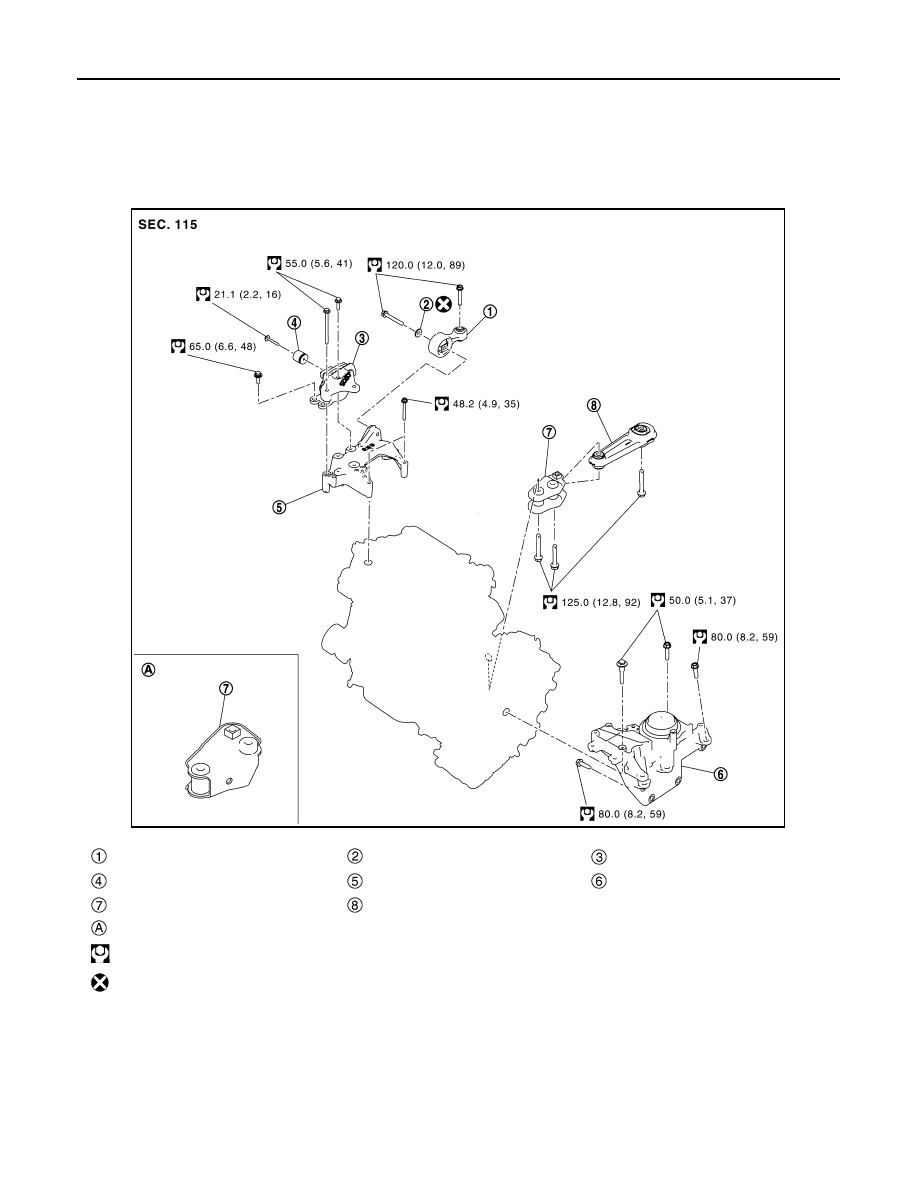

Exploded View

INFOID:0000000010783802

Removal and Installation

INFOID:0000000010783803

WARNING:

• Situate the vehicle on a flat and solid surface.
• Place chocks at front and back of rear wheels.
• Attach proper slingers and bolts described in PARTS CATALOG if engine slingers are not equipped.

CAUTION:

Torque rod (RH)

Washer

Engine mounting insulator (RH)

Dynamic damper

Engine mounting brock bracket

Engine mounting insulator (LH)

Torque rod bracket (RR)

Torque rod (RR)

4WD models

: N·m (kg-m, ft-lb)

: Always replace after every disassembly.

JSBIA4509GB
