TIMING CHAIN

EM-77

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

d.

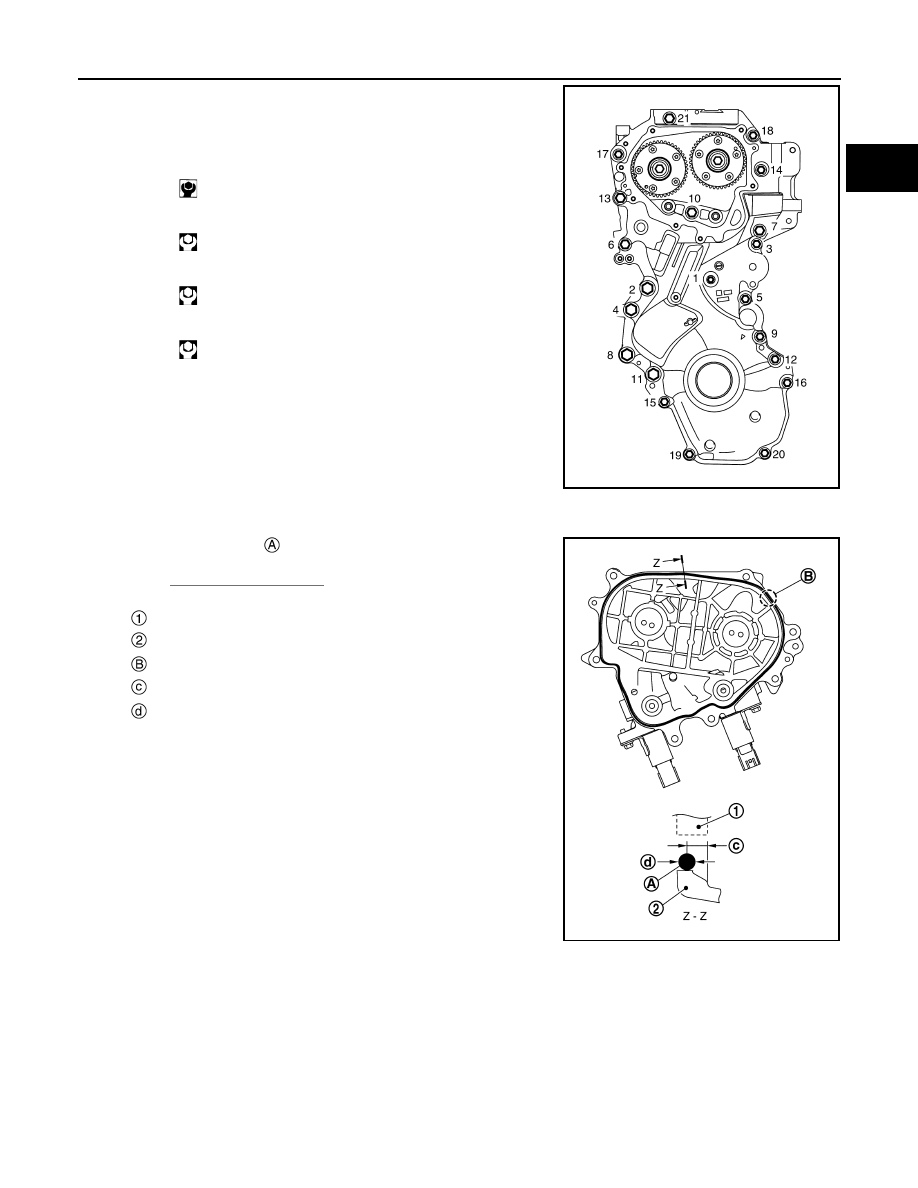

Install front cover, and tighten mounting bolts in the order from 1
to 22 as shown in the figure.
• Refer to the following for the installation position of bolts.

CAUTION:

Attaching should be done within 5 minutes after liquid gas-
ket application.

e.

After all bolts are tightened, retighten them to specified torque in
numerical order as shown in the figure.

CAUTION:

Be sure to wipe off any excessive liquid gasket leaking.

12. Install VTC cover according to the following instructions:

a.

a.Apply liquid gasket

 (Three Bond 1217H or an equivalent)

evenly (no break, no overlap) to the position shown in the figure.
Refer to

EM-9, "Liquid Gasket"

.

CAUTION:

Install within 5 minutes after applying liquid gasket.
NOTE:
Overlap the start and end of liquid gasket application positions
at least 5 mm.

M6 bolt

: No. 1

: 6.6 N·m (0.67 kg-m, 58 in-lb)

M10 bolts

: No. 6, 7, 10, 13, 21

: 55.0 N·m (5.6 kg-m, 41 ft-lb)

M12 bolts

: No. 2, 4, 8, 11

: 75.0 N·m (7.7 kg-m, 55 ft-lb)

M8 bolts

: Except the above

: 25.0 N·m (2.6 kg-m, 19 ft-lb)

JPBIA6821ZZ

: Front cover

: VTC cover

: Start/End of liquid gasket application

:  4.0 – 5.6 mm

φ

3.4 – 4.4 mm

JPBIA6823ZZ

EM-78

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR20DD]

TIMING CHAIN

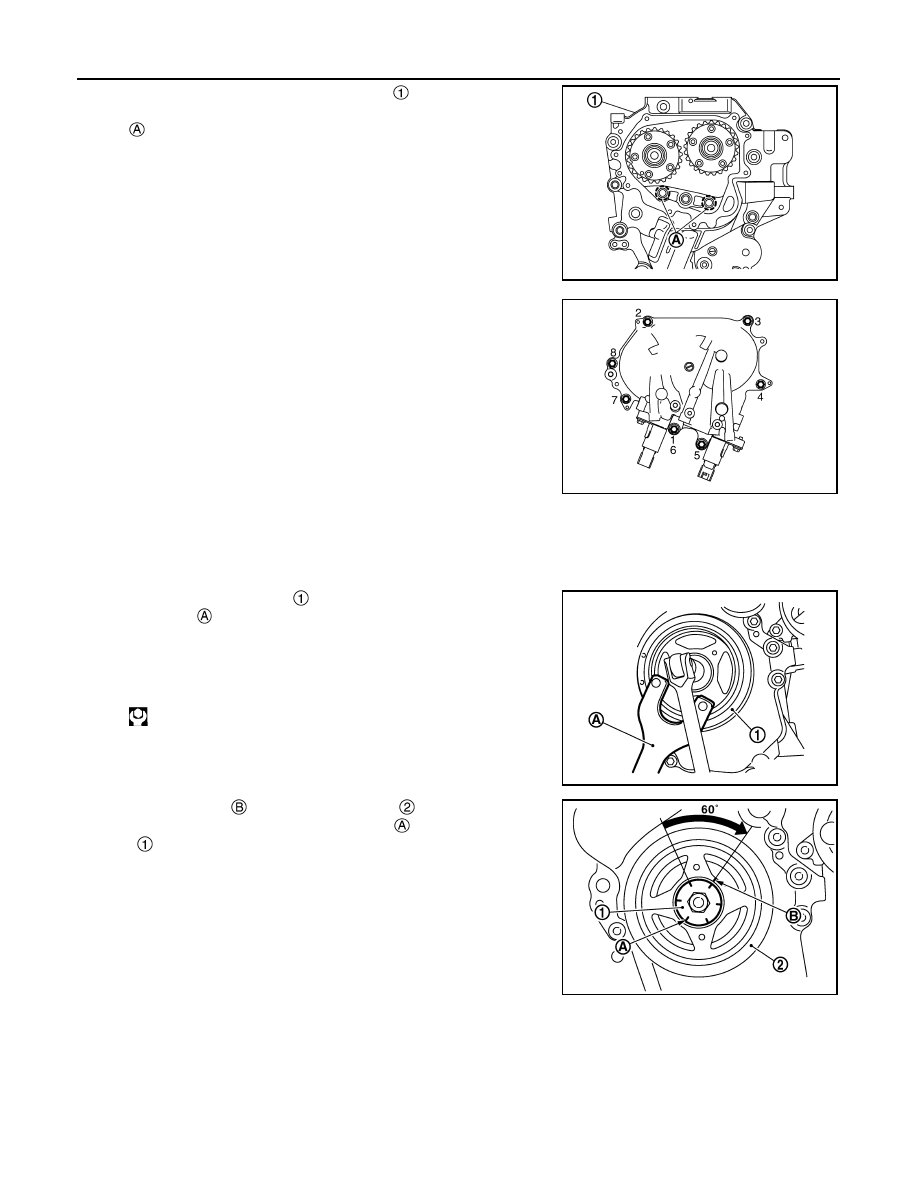

b.

Install O-ring to the groove of front cover

.

CAUTION:

Oil filter must be inserted to the end of O-ring installation
part.

c.

Tighten mounting bolts to the specified torque in the order from
1 to 8 as shown in the figure.

CAUTION:

After tightening mounting bolts, wipe out extra liquid gas-
ket.
NOTE:
Bolt 1 must be tightened twice, the second tightening is shown
by 6.

13. Install crankshaft pulley with the following procedure:

a.

When inserting crankshaft pulley with a plastic hammer, tap on its center portion (not circumference).

CAUTION:

Never damage front oil seal lip portion.

b.

Secure crankshaft pulley

 with a pulley holder (commercial

service tool)

.

c.

Apply new engine oil to thread and seat surfaces of crankshaft
pulley bolt.

d.

Tighten crankshaft pulley bolt.

e.

Put a paint mark

 on crankshaft pulley

, matching with any

one of six easy to recognize angle marks

 on crankshaft pulley

bolt

flange.

f.

Turn another 60 degrees clockwise (angle tightening).
• Check the tightening angle with movement of one angle mark.

g.

Check that crankshaft rotates clockwise smoothly.

14. Install remaining parts in the reverse order of removal.

Inspection

INFOID:0000000010783718

INSPECTION AFTER REMOVAL

Timing Chain

: O-ring installation position

JPBIA6824ZZ

JPBIA6820ZZ

: 29.4 N·m (3.0 kg-m, 22 ft-lb)

PBIC3961E

PBIC3963E

TIMING CHAIN

EM-79

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

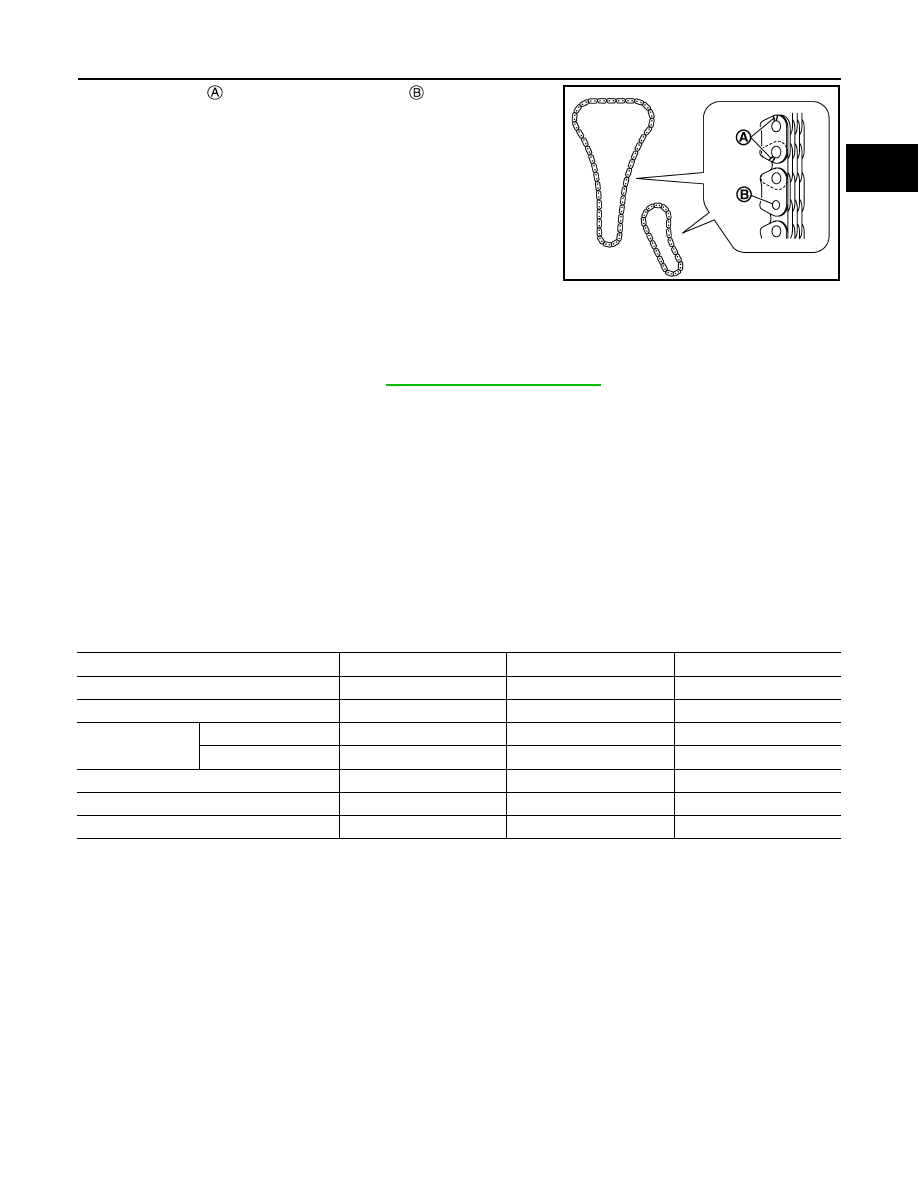

Check for cracks

 and any excessive wear

 at link plates and

roller links of timing chain. Replace timing chain if necessary.

INSPECTION AFTER INSTALLATION

Inspection for Leakage

The following are procedures for checking fluids leakage, lubricates leakage, and exhaust gases leakage.
• Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required

quantity, fill to the specified level. Refer to

MA-23, "Fluids and Lubricants"

.

• Use procedure below to check for fuel leakage.
- Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel leak-

age at connection points.

- Start engine. With engine speed increased, check again for fuel leakage at connection points.
• Run engine to check for unusual noise and vibration.

NOTE:
If hydraulic pressure inside chain tensioner drops after removal/installation, slack in guide may generate a
pounding noise during and just after the engine start. However, this does not indicate an unusualness. Noise
will stop after hydraulic pressure rises.

• Warm up engine thoroughly to check there is no leakage of fuel, or any oil/fluids including engine oil and

engine coolant.

• Bleed air from lines and hoses of applicable lines, such as in cooling system.
• After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the

specified level, if necessary.

Summary of the inspection items:

*: Power steering fluid, brake fluid, etc.

PBIC3169J

Items

Before starting engine

Engine running

After engine stopped

Engine coolant

Level

Leakage

Level

Engine oil

Level

Leakage

Level

Transmission /
transaxle fluid

AT & CVT Models

Leakage

Level / Leakage

Leakage

MT Models

Level / Leakage

Leakage

Level / Leakage

Other oils and fluids*

Level

Leakage

Level

Fuel

Leakage

Leakage

Leakage

Exhaust gases

Leakage

EM-80

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR20DD]

CAMSHAFT

CAMSHAFT

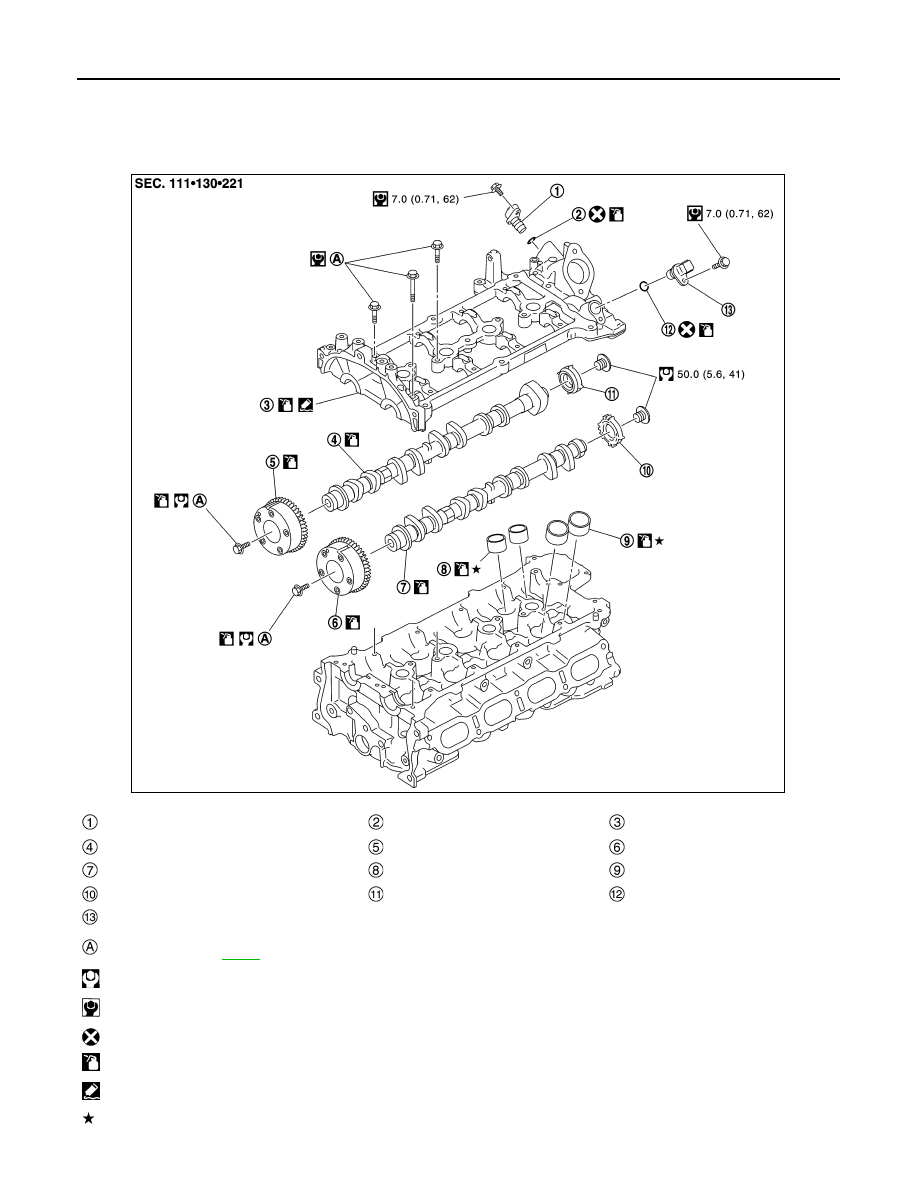

Exploded View

INFOID:0000000010783719

JSBIA1181GB

Exhaust valve timing control position sensor

O-ring

Camshaft bracket

Camshaft (EXH)

Camshaft sprocket (EXH)

Camshaft sprocket (INT)

Camshaft (INT)

Valve lifter (EXH)

Valve lifter (INT)

Signal plate (INT)

Signal plate (EXH)

O-ring

Camshaft position sensor (PHASE)

Comply with the assembly procedure when
tightening. Refer to

EM-81

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

: Always replace after every disassembly.

: Should be lubricated with oil.

: Sealing point

: Select with proper thickness.
