EXHAUST MANIFOLD

EM-37

< REMOVAL AND INSTALLATION >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

EXHAUST MANIFOLD

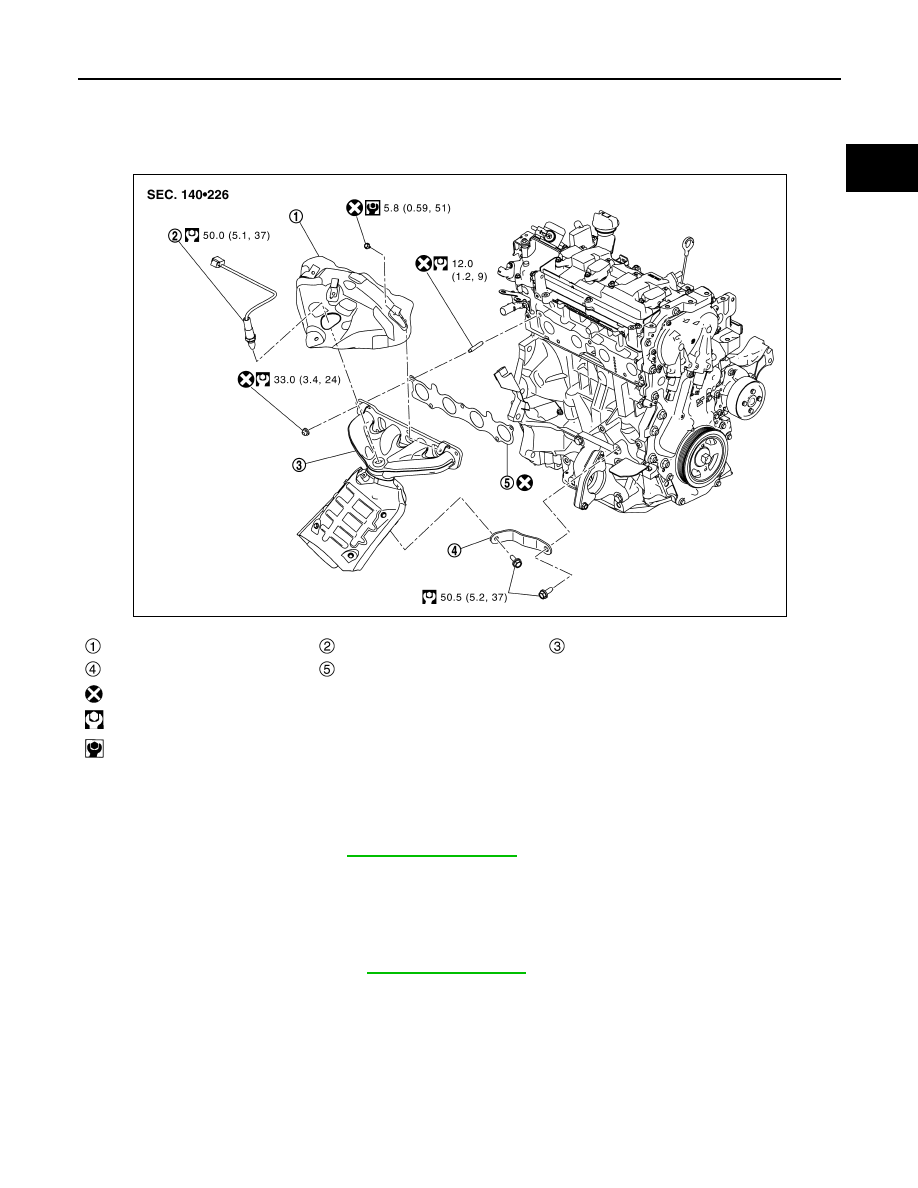

Exploded View

INFOID:0000000010783692

Removal and Installation

INFOID:0000000010783693

REMOVAL

1.

Remove intake manifold. Refer to

EM-33, "Exploded View"

.

2.

Remove the air fuel ratio sensor 1.
• Using heated oxygen sensor wrench [SST: KV10117100], remove air fuel ratio sensor 1.

CAUTION:

Handle air fuel ratio sensor 1 carefully and avoid impacts.

3.

Remove exhaust manifold cover.

4.

Remove exhaust front tube. Refer to

EX-6, "Exploded View"

.

Exhaust manifold cover

Air fuel ratio sensor 1

Exhaust manifold

Exhaust manifold stay

Gasket

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

JPBIA6814GB

EM-38

< REMOVAL AND INSTALLATION >

[MR20DD]

EXHAUST MANIFOLD

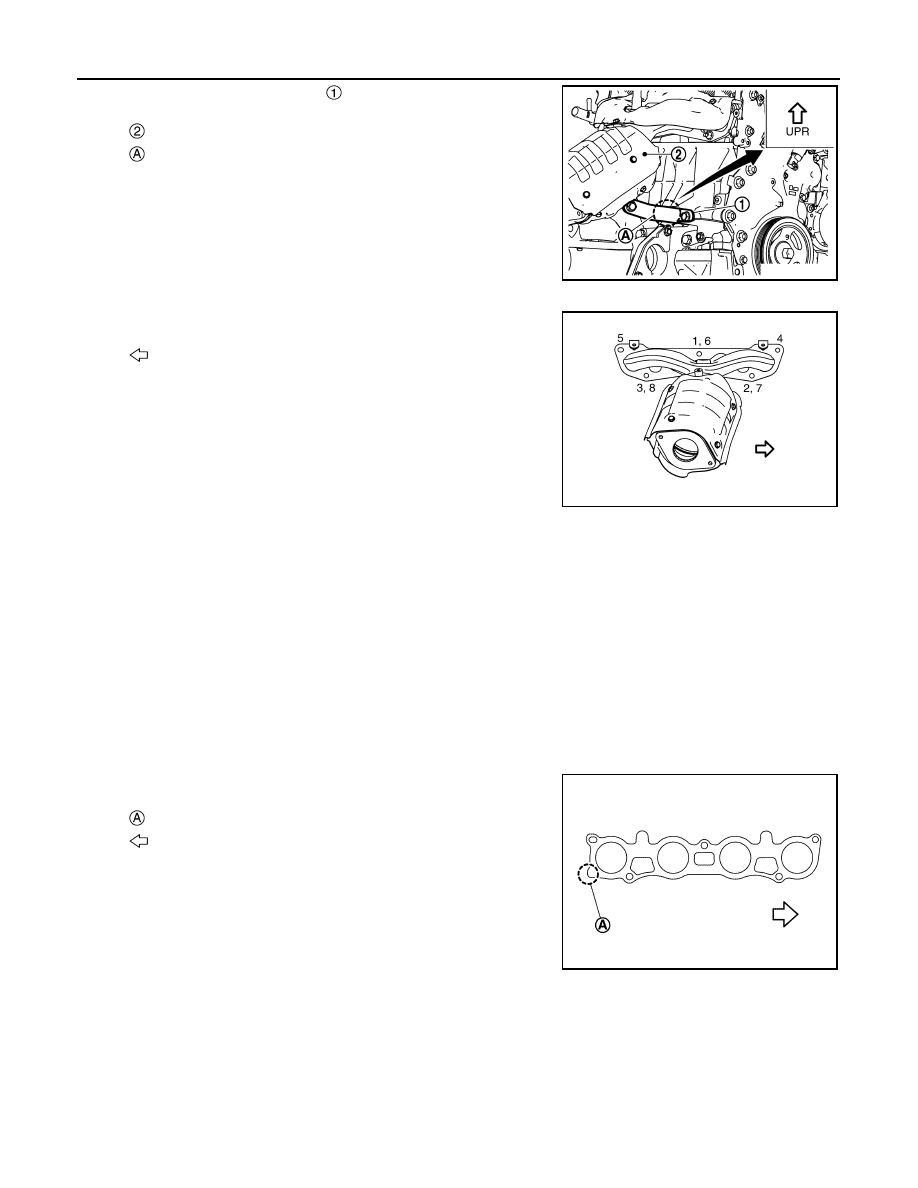

5.

Remove exhaust manifold stay

.

6.

Remove exhaust manifold.
• Loosen nuts in the order from 5 to 1 as shown in the figure.

NOTE:
Disregard No. 6 to 8 when loosening.

7.

Remove gasket.

CAUTION:

Cover engine openings to avoid entry of foreign materials.

8.

Remove stud bolts from cylinder head.

INSTALLATION

CAUTION:

Never reuse stud bolts, mounting nuts, and gasket. Always replace them with new ones.

1.

Install stud bolts to cylinder head.

2.

Install gasket to cylinder head as shown in the figure.

3.

Install exhaust manifold with the following procedure:

: Exhaust manifold

: Upper mark

JPBIA6835ZZ

: Engine front

JPBIA6799ZZ

Torx

: Size E8

Torx

: Size E8

: Identification

: Engine front

JPBIA5141ZZ

EXHAUST MANIFOLD

EM-39

< REMOVAL AND INSTALLATION >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

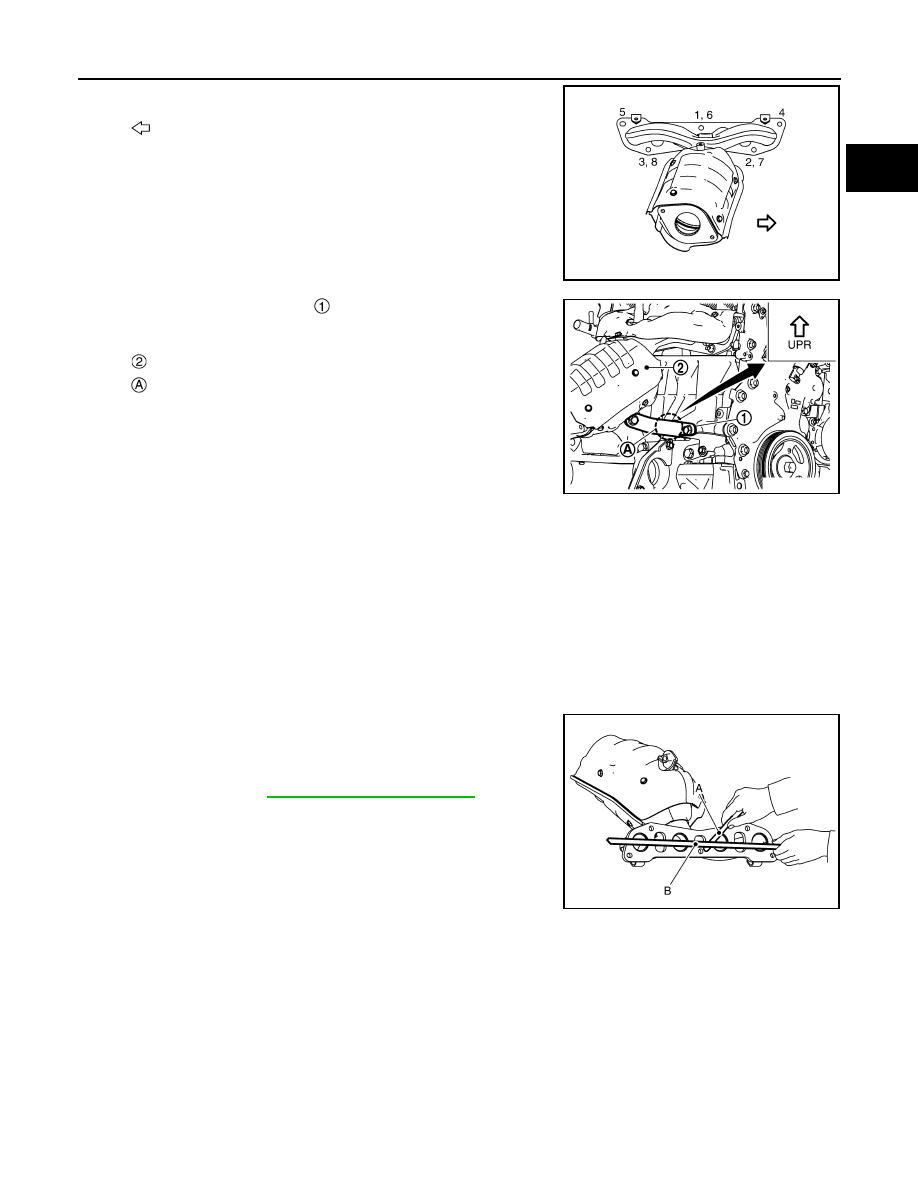

a.

Tighten nuts in the order from 1 to 8 as shown in the figure.

NOTE:
No. 6 to 8 mean double of nuts No. 1 to 3.

b.

Retighten nuts in the order from 1 to 8 as shown in the figure.

4.

Install exhaust manifold stay

 in the direction as shown in the

figure.

5.

Install remaining parts in the reverse order of removal.
• Air fuel ratio sensor 1

CAUTION:

Prevent rust preventives from adhering to the sensor body.

NOTE:
If a stud bolt on the exhaust front tube side comes off, install it with a torque socket (E7).

Inspection

INFOID:0000000010783694

INSPECTION AFTER REMOVAL

Surface Distortion

• Using feeler gauge (A) and straightedge (B), check the surface dis-

tortion of exhaust manifold mating surface in each exhaust port
and entire part.

• If it exceeds the limit, replace exhaust manifold.

INSPECTION AFTER INSTALLATION

Check the joint of parts with the engine in running state. Check that there is no leakage of exhaust gas and
abnormal sound.

: Engine front

JPBIA6799ZZ

: Exhaust manifold

: Upper mark

JPBIA6835ZZ

Limit

: Refer to

EM-133, "Exhaust Manifold"

.

JPBIA6800ZZ

EM-40

< REMOVAL AND INSTALLATION >

[MR20DD]

OIL PAN (LOWER)

OIL PAN (LOWER)

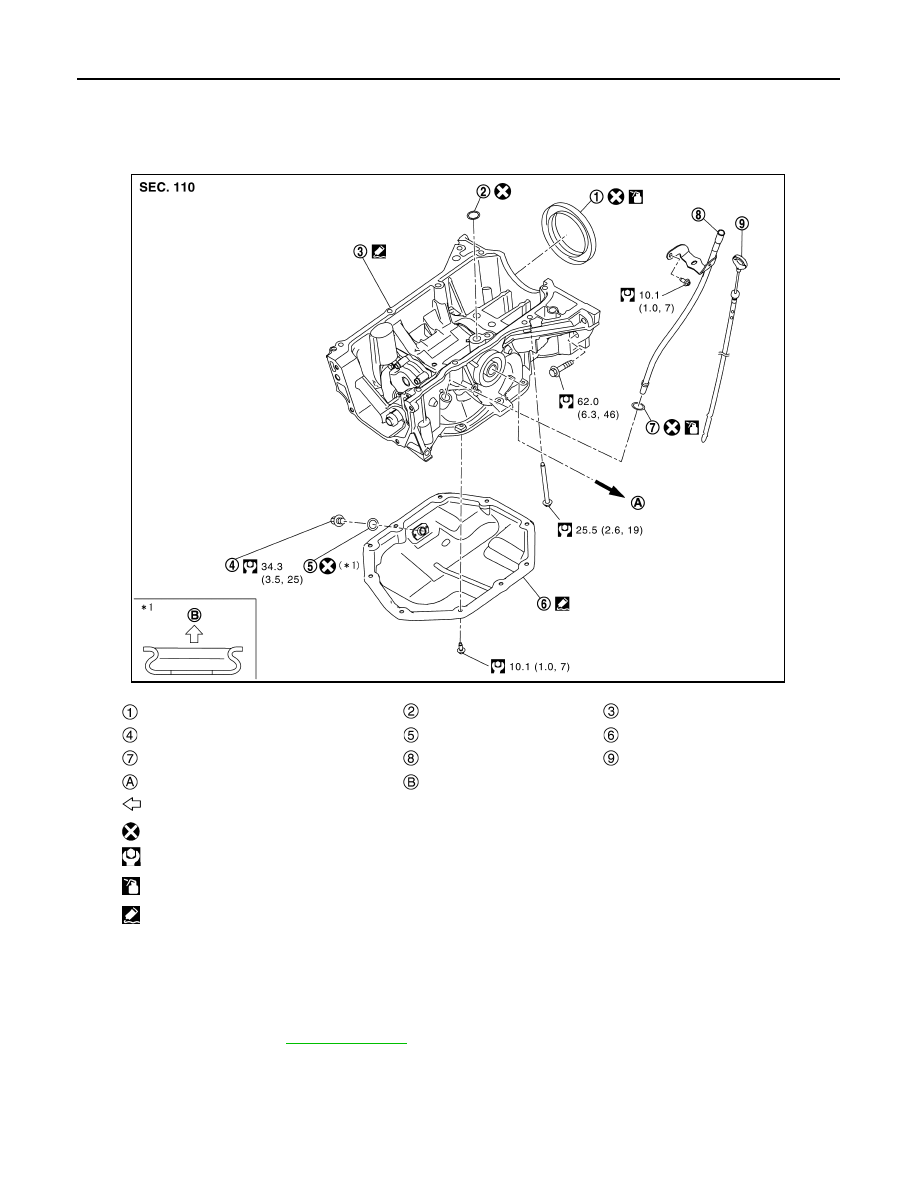

Exploded View

INFOID:0000000010783695

Removal and Installation

INFOID:0000000010783696

REMOVAL

1.

Remove engine under cover.

2.

Drain engine oil. Refer to

LU-10, "Draining"

.

3.

Remove oil pan (lower) with the following procedure:

Rear oil seal

O-ring

Oil pan (upper)

Drain plug

Drain plug washer

Oil pan (lower)

O-ring

Oil level gauge guide

Oil level gauge

To oil cooler

Oil pan (lower) side

: Oil pan side

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: Should be lubricated with oil.

: Sealing point

JPBIA6893GB
