Nissan X-Trail 32. Manual - part 103





BR-6

< PRECAUTION >

[LHD]

PRECAUTIONS

• The auto acc function is adapted to this vehicle. For this reason, even when the ignition switch is turned

to OFF position, the accessory power source does not turned OFF and continues to be supplied for a
certain amount of time.

6.

Disconnect both battery cables. The steering lock will remain released with both battery cables discon-
nected and the steering wheel can be turned.

7.

Perform the necessary repair operation.

8.

When the repair work is completed, re-connect both battery cables. With the brake pedal released, turn
the ignition switch from OFF position to ON position, then to LOCK position. (The steering wheel will lock
when the ignition switch is turned to LOCK position.)

9.

Perform self-diagnosis check of all control units using CONSULT.

Precaution for Procedure without Cowl Top Cover

INFOID:0000000011022307

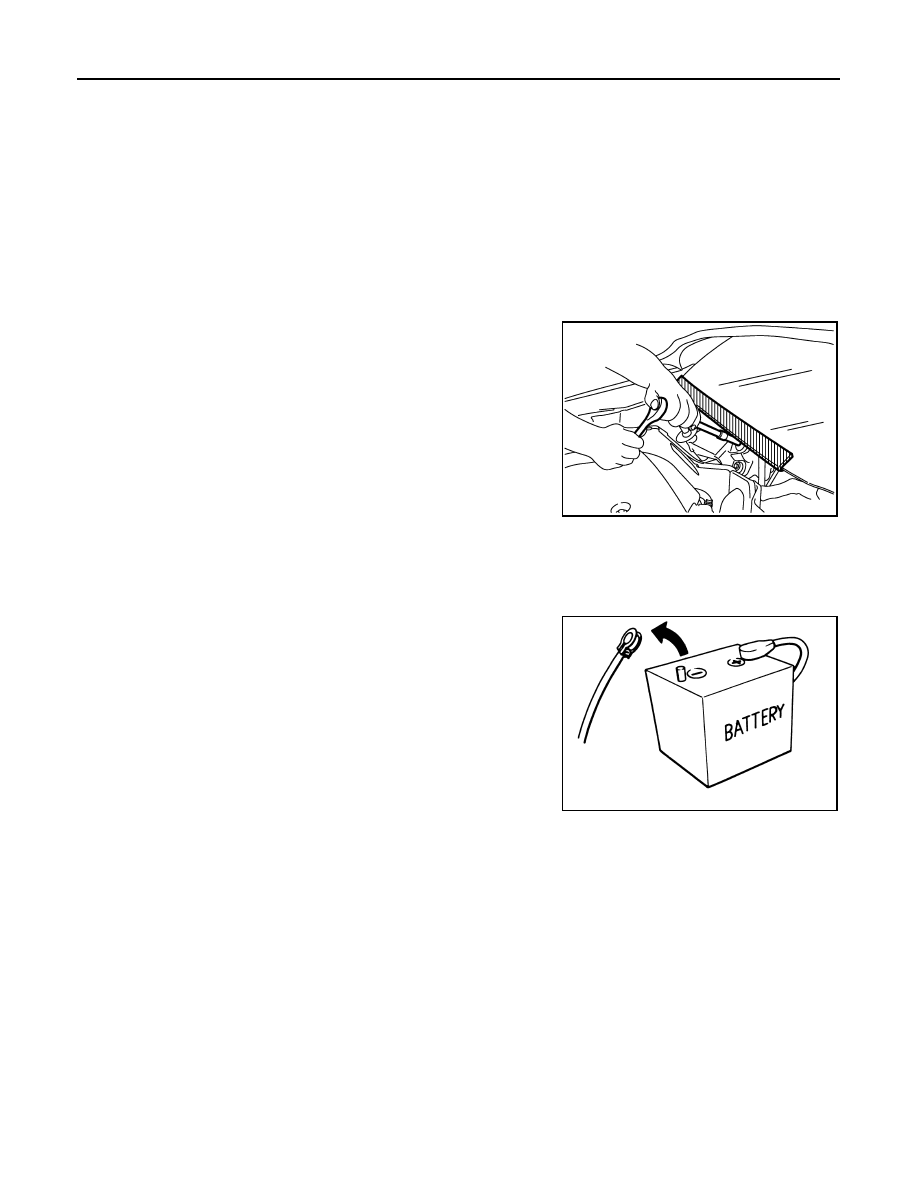

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc to prevent damage to
windshield.

Precautions for Removing Battery Terminal

INFOID:0000000011062349

• With the adoption of Auto ACC function, ACC power is automatically supplied by operating the intelligent key

or remote keyless entry or by opening/closing the driver side door. In addition, ACC power is supplied even
after the ignition switch is turned to the OFF position, i.e. ACC power is supplied for a certain fixed time.

• When disconnecting the 12V battery terminal, turn off the ACC

power before disconnecting the 12V battery terminal, observing
“How to disconnect 12V battery terminal” described below.
NOTE:
Some ECUs operate for a certain fixed time even after ignition
switch is turned OFF and ignition power supply is stopped. If the
battery terminal is disconnected before ECU stops, accidental DTC
detection or ECU data damage may occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

HOW TO DISCONNECT 12V BATTERY TERMINAL

Disconnect 12V battery terminal according to Instruction 1 or Instruction 2 described below.
For vehicles parked by ignition switch OFF, refer to Instruction 2.

INSTRUCTION 1

1.

Open the hood.

2.

Turn key switch to the OFF position with the driver side door opened.

3.

Get out of the vehicle and close the driver side door.

4.

Wait at least 3 minutes. For vehicle with the engine listed below, remove the battery terminal after a lapse
of the specified time.

PIIB3706J

SEF289H

D4D engine

: 20 minutes

HRA2DDT

: 12 minutes

PRECAUTIONS

BR-7

< PRECAUTION >

[LHD]

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

5.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

INSTRUCTION 2 (FOR VEHICLES PARKED BY IGNITION SWITCH OFF)

1.

Unlock the door with intelligent key or remote keyless entry.
NOTE:
At this moment, ACC power is supplied.

2.

Open the driver side door.

3.

Open the hood.

4.

Close the driver side door.

5.

Wait at least 3 minutes.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

6.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

Precaution for Brake System

INFOID:0000000010838491

WARNING:

Since dust covering the front and rear brakes has an affect on human body, the dust must be removed
with a dust collector. Never splatter the dust with an air blow gun.
• Brake fluid use refer to

MA-6, "General Maintenance"

.

• Never reuse drained brake fluid.
• Never spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe it off

immediately and wash with water if it gets on a painted surface. For brake component parts, never wash
them with water.

• Always confirm the specified tightening torque when installing the brake pipes.
• After pressing the brake pedal more deeply or harder than normal driving, such as air bleeding, check each

item of brake pedal.

• Always clean with new brake fluid when cleaning the master cylinder, brake caliper and other components.
• Never use mineral oils such as gasoline or light oil to clean. They may damage rubber parts and cause

improper operation.

• Always loosen the brake tube flare nut with a flare nut wrench.

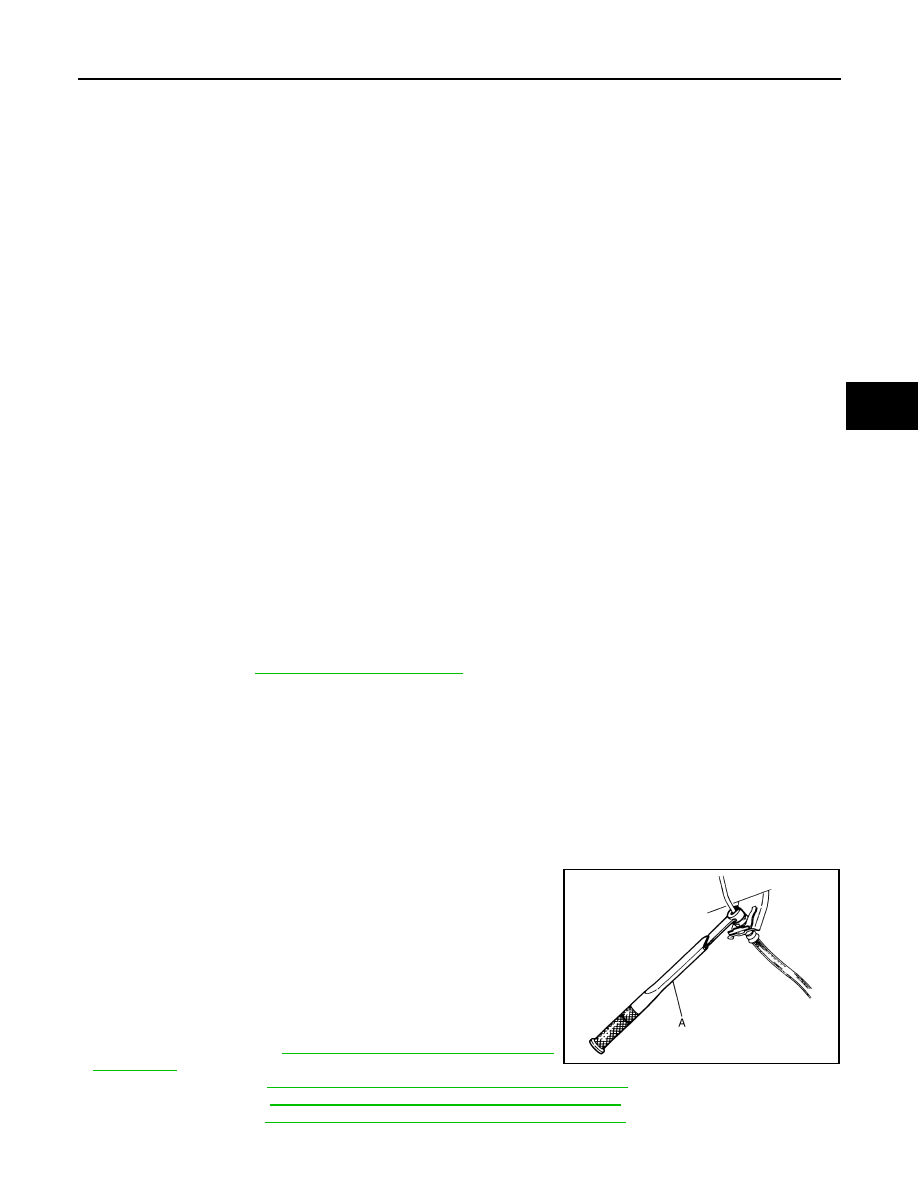

• Tighten the brake tube flare nut to the specified torque with a flare

nut torque wrench (A).

• Turn the ignition switch OFF and disconnect the ABS actuator and

electric unit (control unit) harness connector or the battery negative
terminal before performing the work.

• Check that no brake fluid leakage is present after replacing the

parts.

• Burnish the brake contact surfaces after refinishing or replacing

rotors, after replacing pads, or if a soft pedal occurs at very low
mileage.

- Front brake pad: Refer to

BR-17, "BRAKE PAD : Inspection and

Adjustment"

.

- Front disc rotor: Refer to

BR-17, "DISC ROTOR : Inspection and Adjustment"

.

- Rear brake pad: Refer to

BR-19, "BRAKE PAD : Inspection and Adjustment"

.

- Rear disc rotor: Refer to

BR-19, "DISC ROTOR : Inspection and Adjustment"

.

K9K engine

: 4 minutes

M9R engine

: 4 minutes

R9M engine

: 4 minutes

V9X engine

: 4 minutes

JPFIA0061ZZ

BR-8

< PREPARATION >

[LHD]

PREPARATION

PREPARATION

PREPARATION

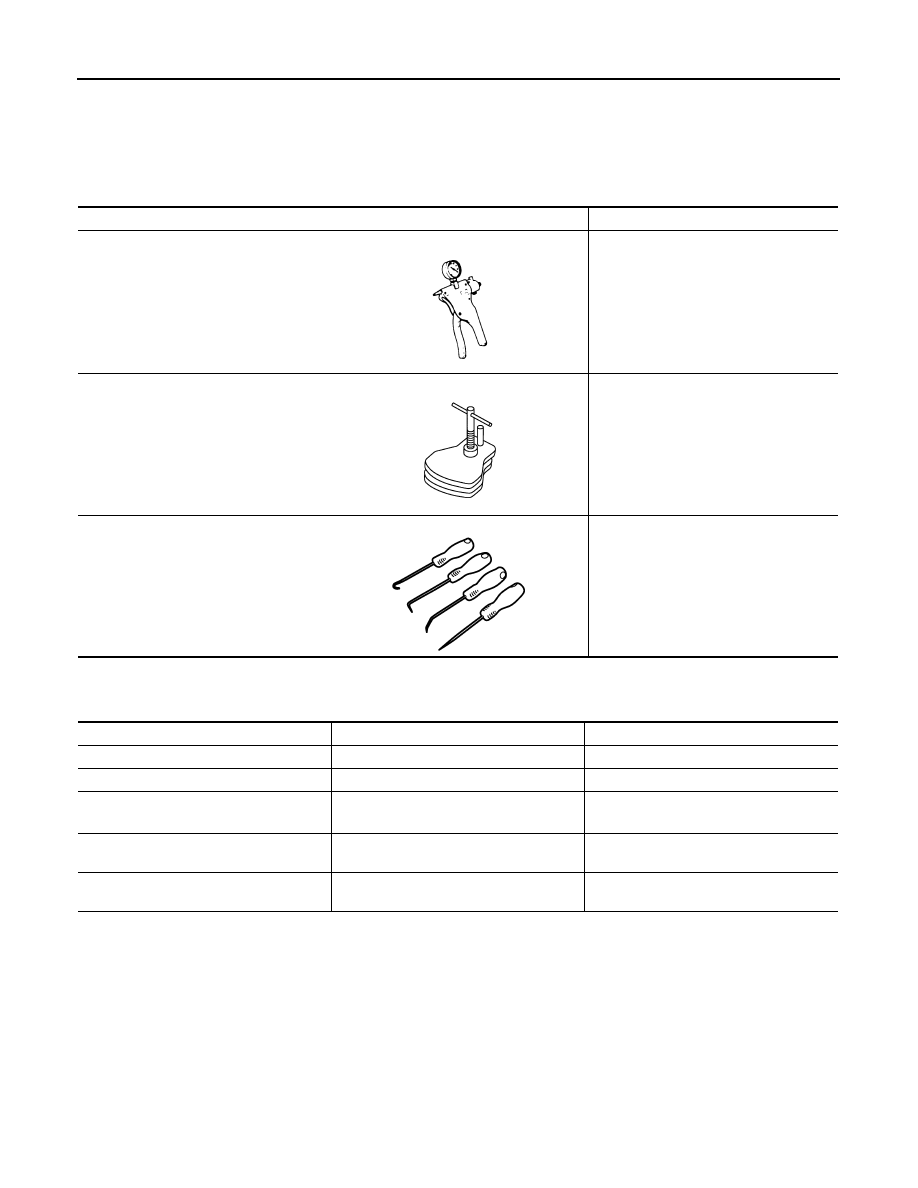

Commercial Service Tool

INFOID:0000000010838492

Lubricant or/and Sealant

INFOID:0000000010838493

Tool name

Description

Handy vacuum pump

• Air  tight
• Inspection of check valve

Brake caliper wrench

Return the piston

Pick tool

Removing piston seal and piston boot

ZZC1313D

NNFIA0040ZZ

JMJIA0490ZZ

Name

Description

Note

Multi-purpose grease

Clevis pin of brake pedal

Polyglycol ether based lubricant

• Master cylinder assembly

MOLYKOTE

®

 AS880N or silicone-based

grease

• Front brake

Molykote is a registered of Dow Corning
Corporation

MOLYKOTE

®

 7439 or equivalent

• Front brake
• Rear brake

Molykote is a registered of Dow Corning
Corporation

Rubber grease

• Front brake
• Rear brake

SYSTEM

BR-9

< SYSTEM DESCRIPTION >

[LHD]

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

SYSTEM DESCRIPTION

SYSTEM

WARNING/INDICATOR/CHIME LIST

WARNING/INDICATOR/CHIME LIST : Warning Lamp/Indicator Lamp

INFOID:0000000010838494

Name

Design

Layout/Function

Brake warning
lamp

For layout: Refer to

MWI-10, "METER SYSTEM : Design"

.

For function: Refer to

MWI-26, "WARNING LAMPS/INDICATOR LAMPS : Brake Warning

Lamp (Red)"

.
