< SYMPTOM DIAGNOSIS >

NORMAL OPERATING CONDITION

NORMAL OPERATING CONDITION

Description

INFOID:0000000010688629

SHIPPING MODE

• Shipping mode inhibits battery power consumption during transportation or storage of the vehicle. Vehicle is

set to shipping mode before being shipped from the factory.

• When ignition switch is OFF, BCM operates shipping mode.
• BCM control function is limited in shipping mode. Remote keyless entry function is not operated during the

shipping mode.

• For shipping mode cancel operation, refer to

BCS-109, "Work Procedure"

.

NOTE:
Do not cancel shipping mode during storage of the vehicle. Always cancel shipping mode before delivery of
the vehicle to customer.

BCS

BCM

BCS-121

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

REMOVAL AND INSTALLATION

BCM

Removal and Installation

INFOID:0000000010688630

NOTE:
Before replacing BCM, perform “Before Replace ECU” of “Read / Write Configuration” to save or print current
vehicle specification. Refer to

BCS-106, "Description"

.

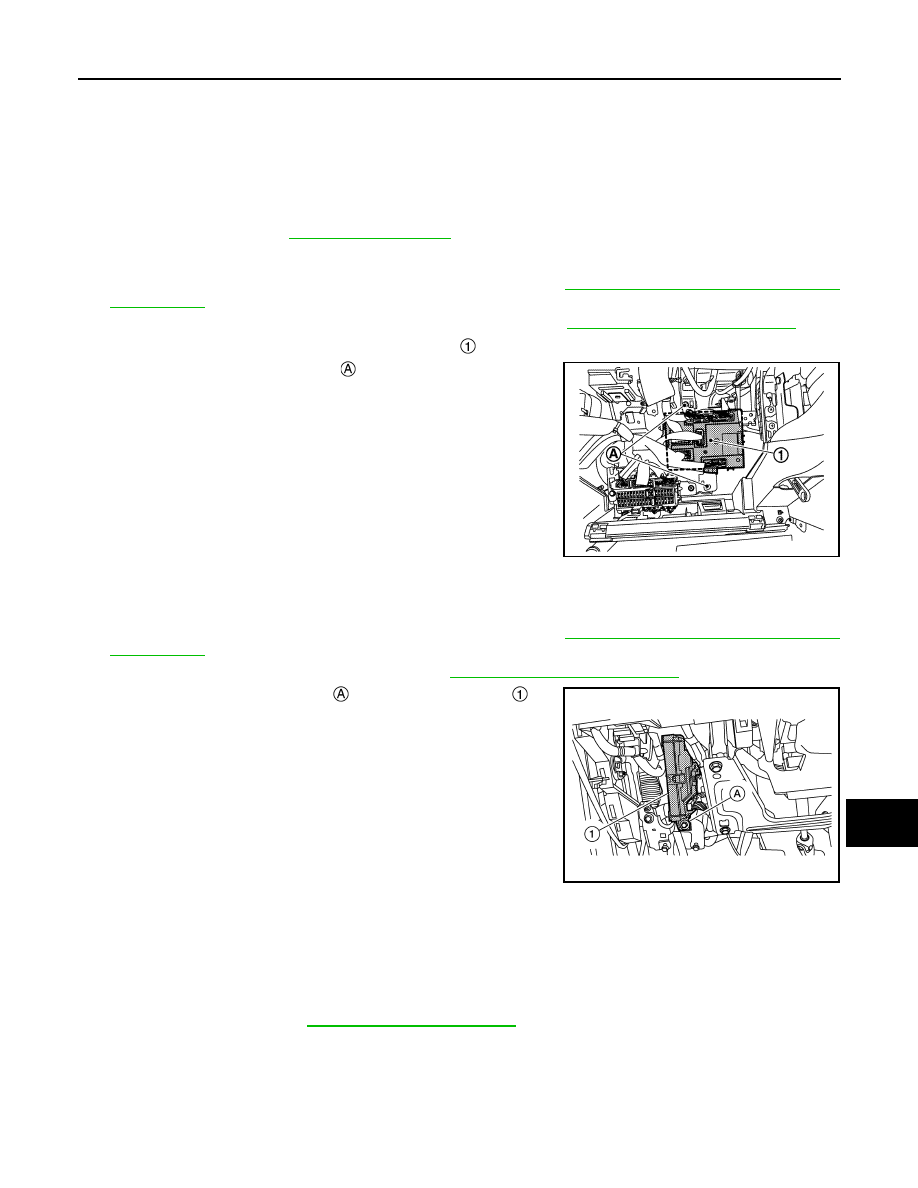

REMOVAL (RHD MODELS)

1.

Disconnect the battery cable from the negative terminal. Refer to

BCS-3, "Precautions for Removing Bat-

tery Terminal"

.

2.

Remove the glove box assembly and glove box housing, Refer to

IP-41, "Removal and Installation"

.

3.

Disconnect the harness connectors from the BCM

.

4.

Remove the BCM mounting nuts

.

5.

Remove the BCM.

REMOVAL (LHD MODELS)

1.

Disconnect the battery cable from the negative terminal. Refer to

BCS-3, "Precautions for Removing Bat-

tery Terminal"

.

2.

Remove the instrument lower panel LH. Refer to

IP-14, "Removal and Installation"

.

3.

Remove the BCM mounting nut

, then pull out the BCM

.

4.

Disconnect the harness connectors from the BCM and remove.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Be sure to perform “After Replace ECU” of “Read / Write Configuration” or “Manual Configuration”
when replacing BCM. Refer to

BCS-104, "Work Procedure"

.

NOTE:
• Be sure to perform the system initialization (NATS) when replacing BCM.
• Be sure to perform the system initialization (CAN gateway) when replacing BCM.

JMMIA1655ZZ

ALMIA0690ZZ

BCS-122

< REMOVAL AND INSTALLATION >

COMBINATION SWITCH

COMBINATION SWITCH

Removal and Installation

INFOID:0000000010688631

REMOVAL

1.

Remove steering column cover. Refer to

IP-41, "Removal and Installation"

 (RHD models) or

IP-14,

"Removal and Installation"

 (LHD models).

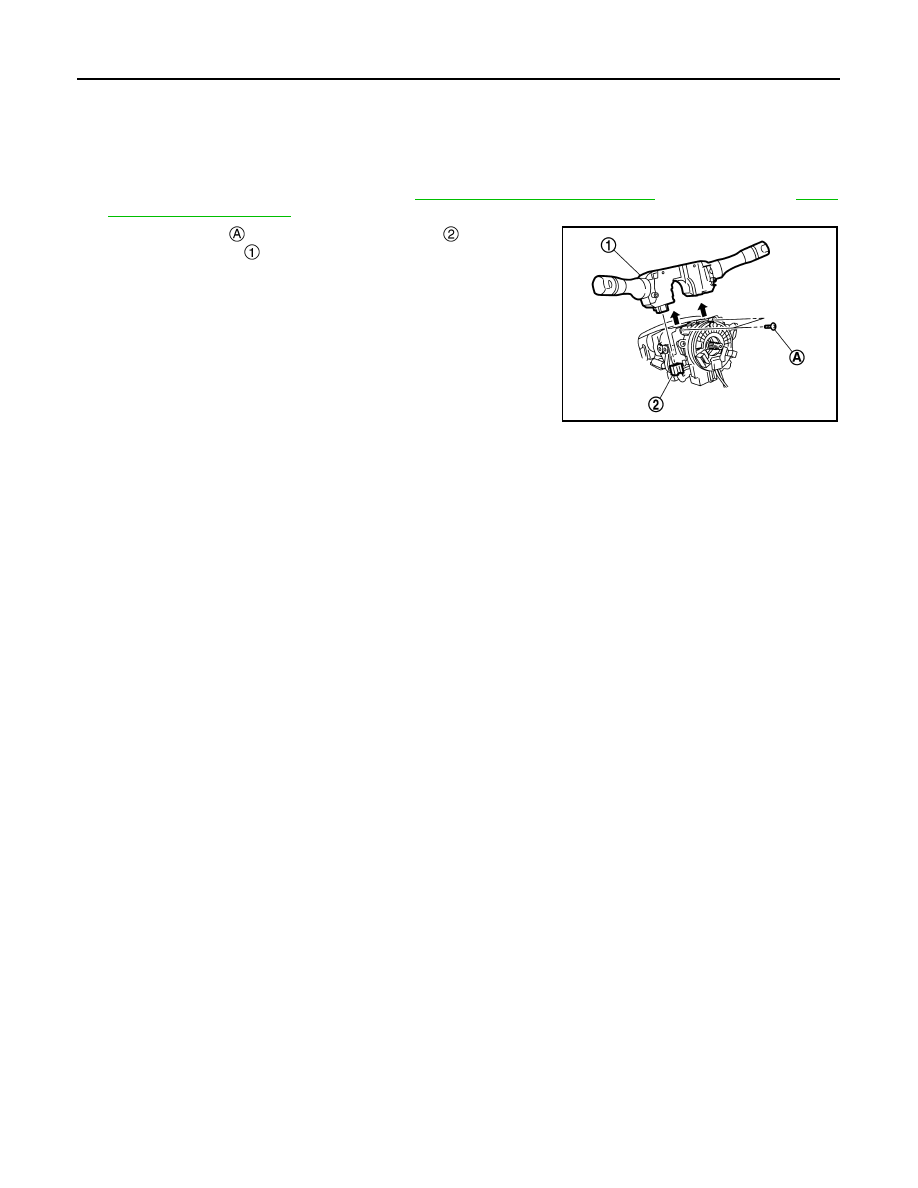

2.

Remove screws

 and disconnect connector

 then pull up

combination switch

 to remove it.

INSTALLATION

Install in the reverse order of removal.

JMMIA1168ZZ
