AV-268

< REMOVAL AND INSTALLATION >

[WITH NAVIGATION]

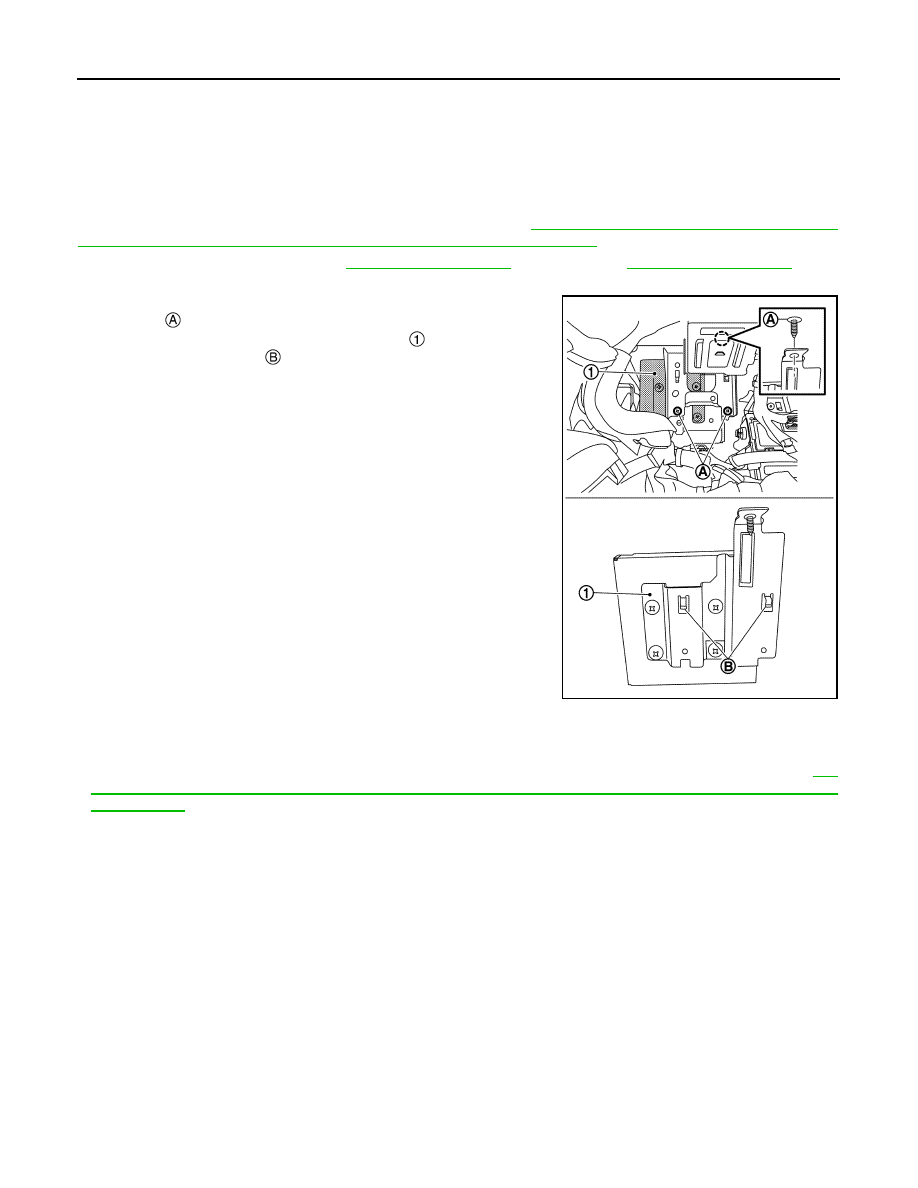

AROUND VIEW MONITOR CONTROL UNIT

AROUND VIEW MONITOR CONTROL UNIT

Removal and Installation

INFOID:0000000010714923

REMOVAL

CAUTION:

Before replacing around view monitor control unit, perform “Read/Write Configuration” to save or
print current vehicle specification. For details, refer to

AV-158, "ADDITIONAL SERVICE WHEN

REPLACING AROUND VIEW MONITOR CONTROL UNIT : Description"

.

1.

Remove the glove box. Refer to

IP-13, "Exploded View"

 (LHD models),

IP-40, "Exploded View"

 (RHD

models).

2.

Remove the around view monitor control unit bracket mounting
screws

, and disconnect the harness connector, And then

around view monitor control unit assembly

 is raised upwards

and remove the pawls

.

3.

Remove the around view monitor control unit assembly from the
vehicle.

4.

Remove the around view monitor control unit mounting screws,
And then remove the around view monitor control unit from
bracket.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Must be perform additional service when replacing around view monitor control unit. Refer to

AV-

158, "ADDITIONAL SERVICE WHEN REPLACING AROUND VIEW MONITOR CONTROL UNIT :
Description"

.

• Perform the calibration and perform the writing to the around view monitor control unit when remov-

ing and replacing each camera, removing the camera mounting parts (front grille, door mirror, etc.).

JSNIA6758ZZ

AV

FRONT CAMERA

AV-269

< REMOVAL AND INSTALLATION >

[WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

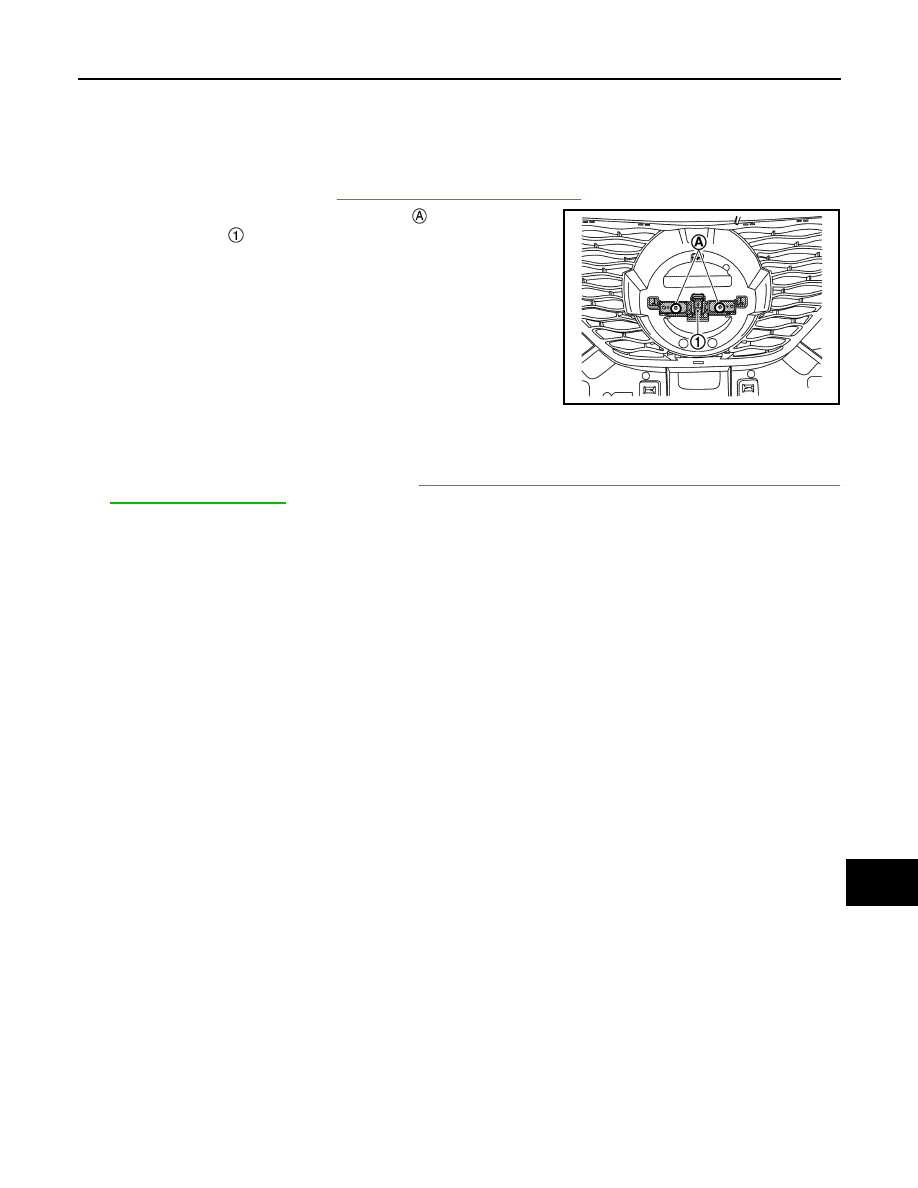

FRONT CAMERA

Removal and Installation

INFOID:0000000010714924

REMOVAL

1.

Remove the front grille. Refer to

EXT-22, "Removal and Installation"

.

2.

Remove the front camera mounting screws

, And then remove

the front camera

 from the front grille.

INSTALLATION

1.

Install in the reverse order of removal.

2.

Perform camera image calibration. Refer to

AV-161, "CALIBRATING CAMERA IMAGE (AROUND VIEW

MONITOR) : Description"

.

CAUTION:

Perform the calibration and perform the writing to the around view monitor control unit when remov-
ing and replacing each camera, removing the camera mounting parts (front grille, door mirror, etc.).

JSNIA6759ZZ

AV-270

< REMOVAL AND INSTALLATION >

[WITH NAVIGATION]

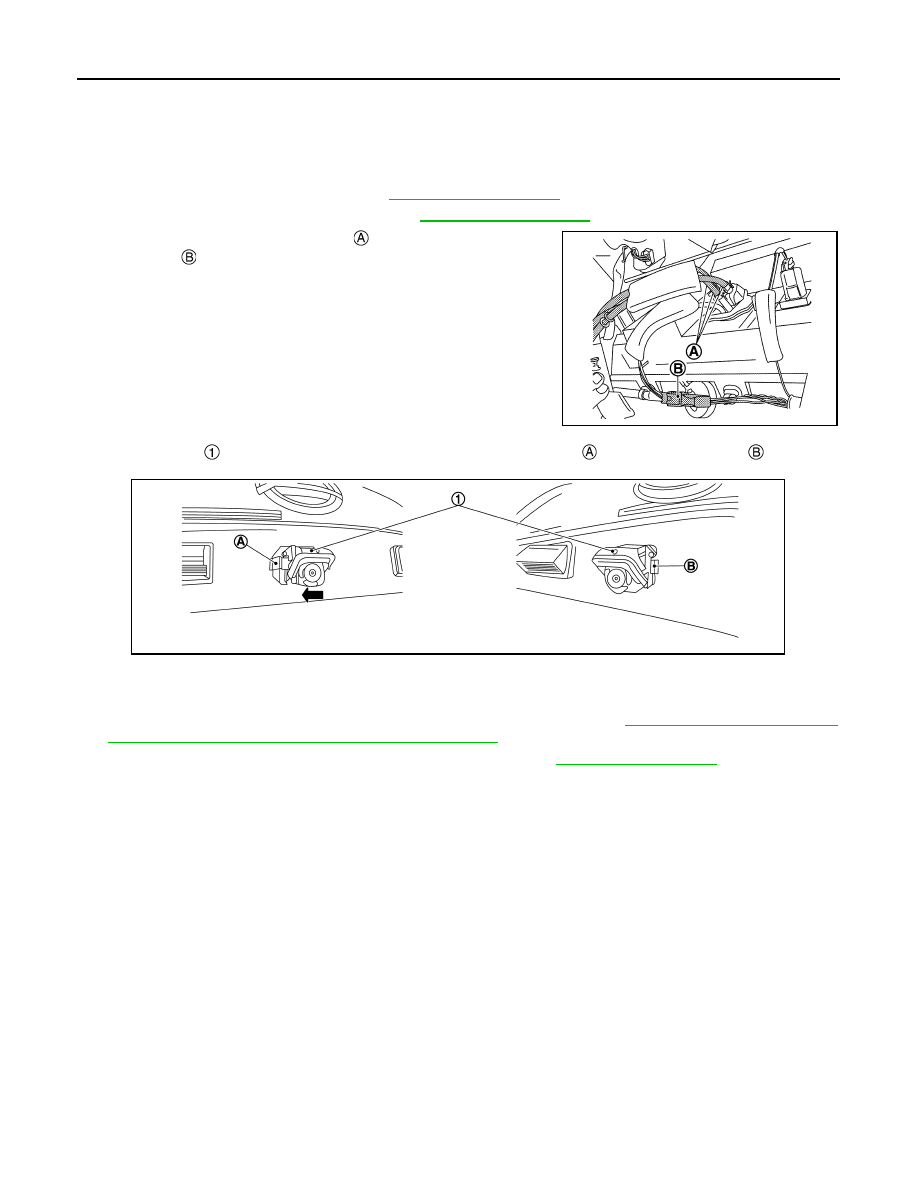

REAR CAMERA

REAR CAMERA

Removal and Installation

INFOID:0000000010714925

REMOVAL

1.

Remove the back door finisher. Refer to

INT-47, "Exploded View"

.

2.

Remove the back door finisher cap. Refer to

INT-47, "Exploded View"

.

3.

Remove the air tube, washer tube

 and rear camera harness

connector .

4.

Push camera

 in the direction shown by arrow, compress the pawl

, and disengage pawl

 to remove

rear camera from the back door.

INSTALLATION

1.

Install in the reverse order of removal.

2.

Perform camera image calibration (around view monitor system). Refer to

AV-161, "CALIBRATING CAM-

ERA IMAGE (AROUND VIEW MONITOR) : Description"

.

3.

Perform calibrating camera image (LDW/BSW system). Refer to

DAS-110, "Description"

.

CAUTION:

Perform the calibration and perform the writing to the around view monitor control unit when remov-
ing and replacing each camera, removing the camera mounting parts (front grille, door mirror, etc.).

JSNIA6761ZZ

JSNIA6762ZZ

AV

SIDE CAMERA

AV-271

< REMOVAL AND INSTALLATION >

[WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

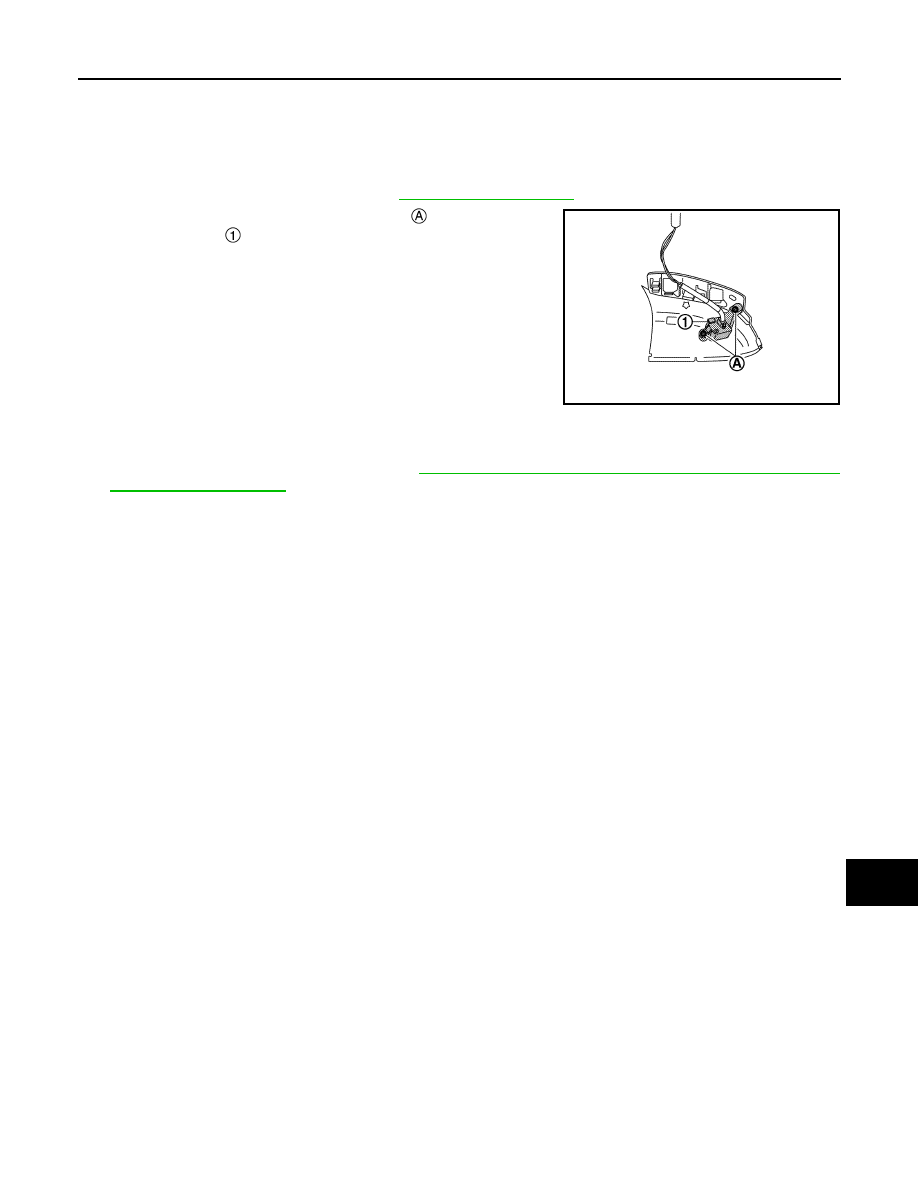

SIDE CAMERA

Removal and Installation

INFOID:0000000010714926

REMOVAL

1.

Remove the door mirror finisher. Refer to

MIR-27, "Exploded View"

.

2.

Remove the side camera mounting screws

, And than remove

the side camera

 from the door mirror finisher.

INSTALLATION

1.

Install in the reverse order of removal.

2.

Perform camera image calibration. Refer to

AV-161, "CALIBRATING CAMERA IMAGE (AROUND VIEW

MONITOR) : Description"

.

CAUTION:

Perform the calibration and perform the writing to the around view monitor control unit when remov-
ing and replacing each camera, removing the camera mounting parts (front grille, door mirror, etc.).

JSNIA6760ZZ
