MICROPHONE

MICROPHONE

Removal and Installation

INFOID:0000000010714927

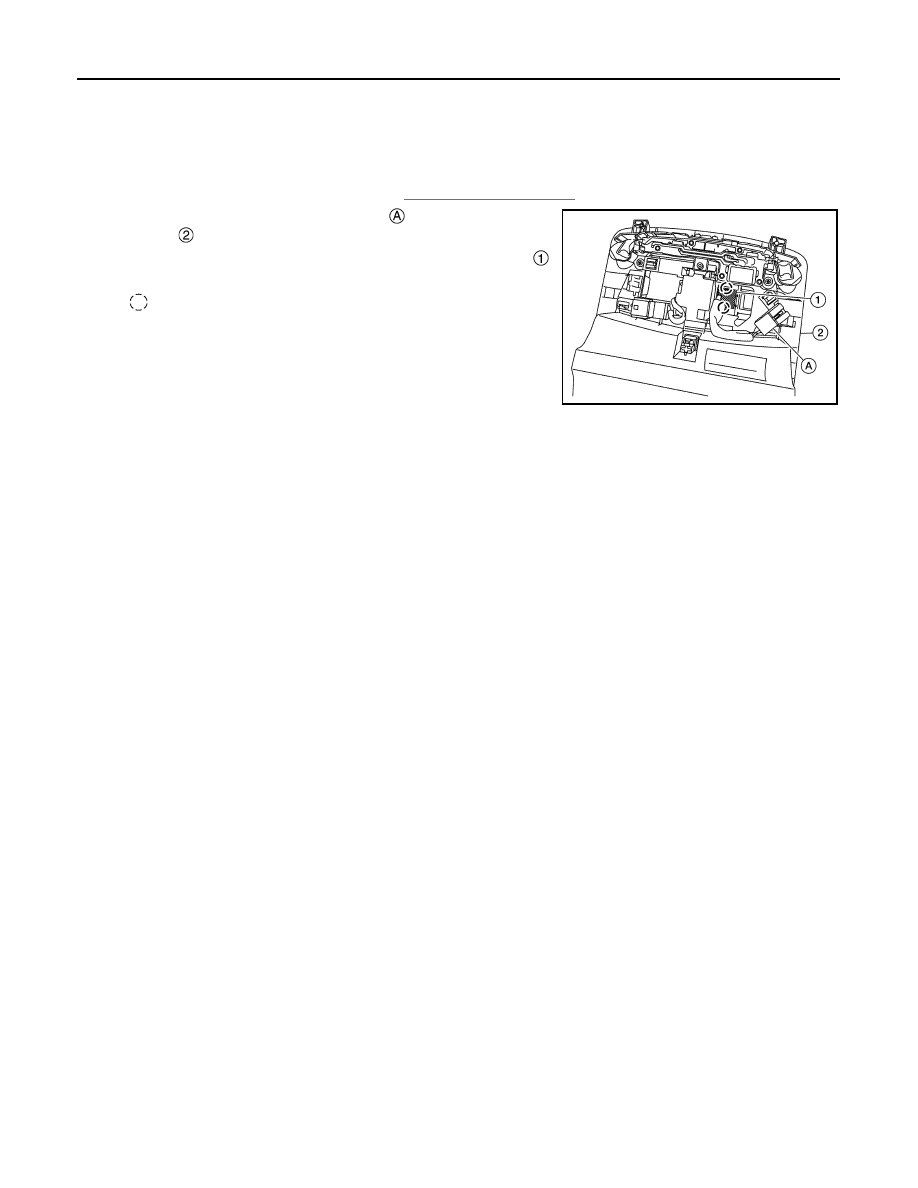

REMOVAL

1.

Remove the map lamp assembly. Refer to

INL-76, "Exploded View"

.

2.

Disconnect the microphone connector

 from the map lamp

assembly .

3.

Release the microphone pawls, then remove the microphone

.

INSTALLATION

Installation is in the reverse order of removal.

: Pawl

ALNIA1366ZZ

AV

STEERING SWITCH

AV-273

< REMOVAL AND INSTALLATION >

[WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

STEERING SWITCH

Removal and Installation

INFOID:0000000010714928

Refer to

ST-12, "Exploded View"

.

NOTE:
Always remove steering switch together with steering wheel.

AV-274

< REMOVAL AND INSTALLATION >

[WITH NAVIGATION]

STEERING ANGLE SENSOR

STEERING ANGLE SENSOR

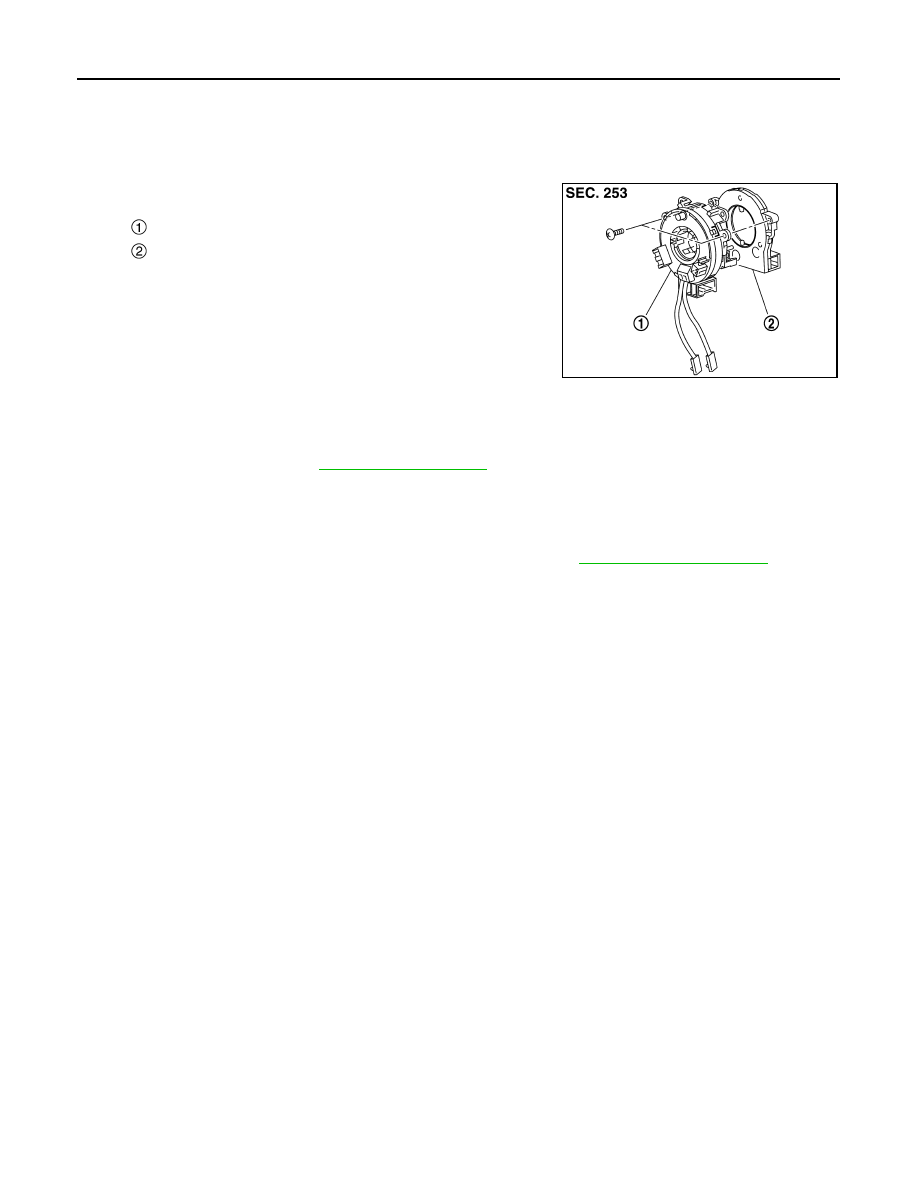

Exploded View

INFOID:0000000010714929

DISASSEMBLY

Removal and Installation

INFOID:0000000010714930

REMOVAL

1.

Remove spiral cable. Refer to

SR-23, "Exploded View"

.

2.

Remove steering angle sensor from spiral cable.

INSTALLATION

1.

Install in the reverse order of removal.

2.

Perform steering angle sensor neutral position adjustment. Refer to

BRC-99, "Work Procedure"

.

Spiral cable

Steering angle sensor

JSNIA0135ZZ

AV

ROOF ANTENNA

AV-275

< REMOVAL AND INSTALLATION >

[WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ROOF ANTENNA

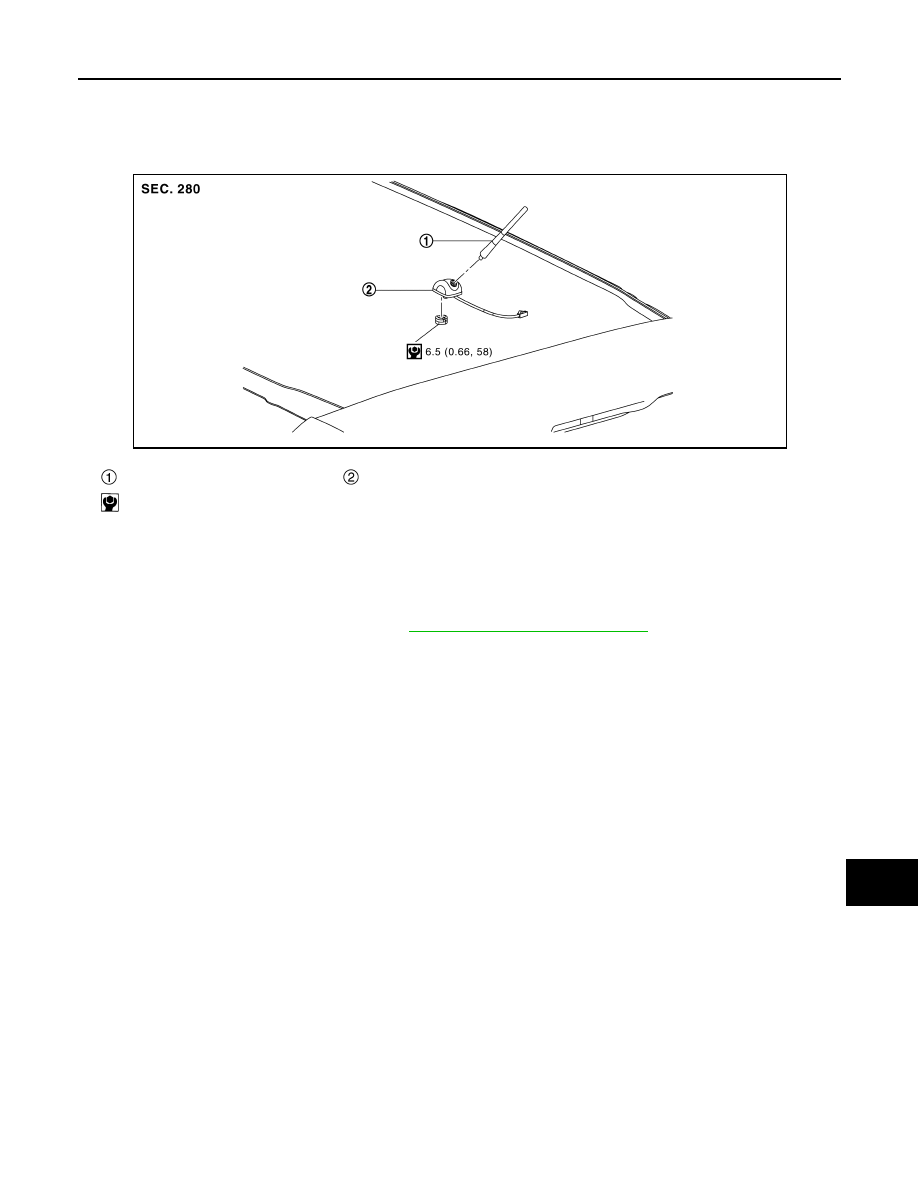

Exploded View

INFOID:0000000010714931

Removal and Installation

INFOID:0000000010714932

REMOVAL

1.

Remove the antenna rod.

2.

Remove the headlining assembly. Refer to

INT-37, "Removal and Installation"

.

3.

Remove the mounting nut to remove the antenna base from the roof panel.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

If the antenna base mounting nut is tightened looser than the specified torque, then this will lower the
sensitivity of the antenna. On the other hand, if the nut is tightened tighter than the specified torque,
then this will deform the roof panel.

Antenna rod

Antenna base

: N·m (kg-m, in-lb)

JSNIA6913ZZ
