AV-52

< REMOVAL AND INSTALLATION >

[BASE AUDIO]

FRONT DOOR SPEAKER

FRONT DOOR SPEAKER

Removal and Installation

INFOID:0000000011010046

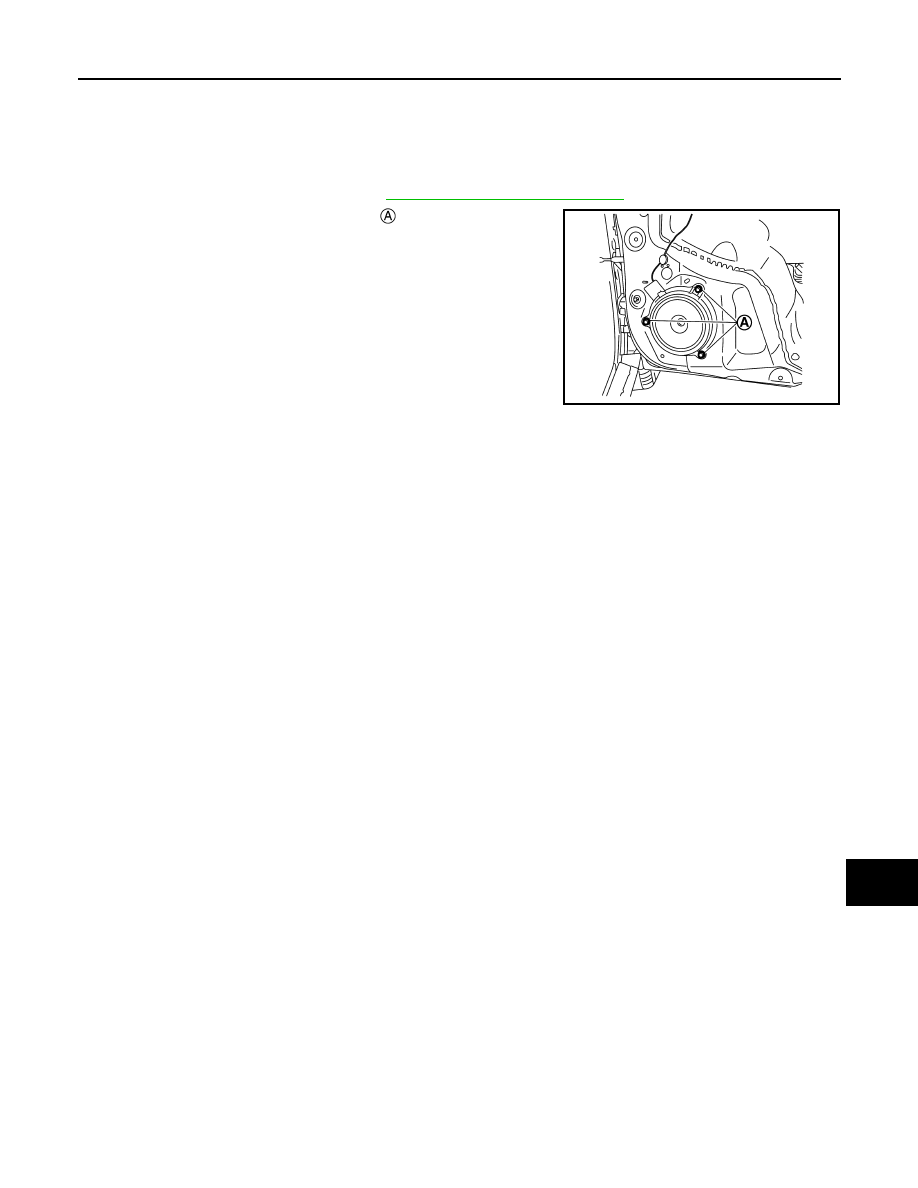

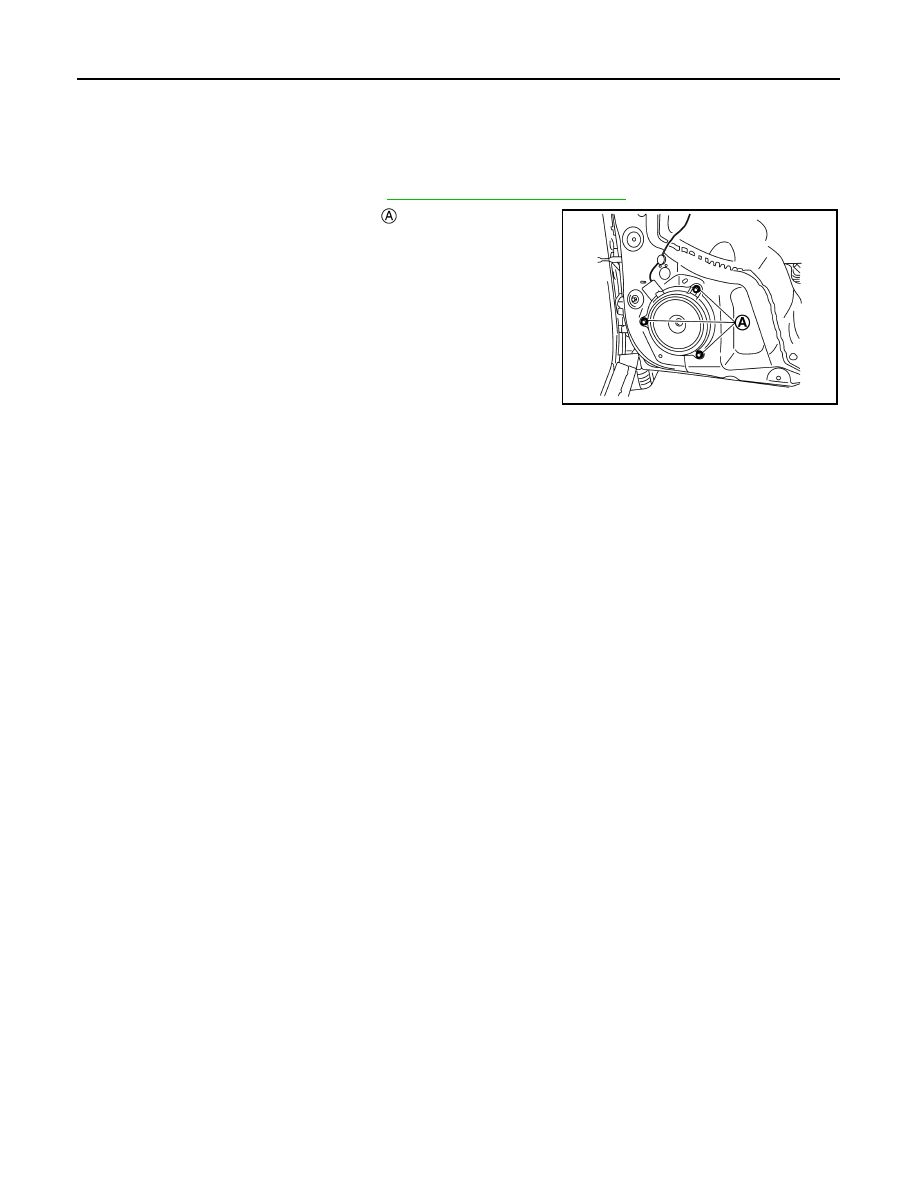

REMOVAL

1.

Remove the front door finisher. Refer to

INT-14, "Removal and Installation"

.

2.

Remove the front door speaker screws

.

3.

Disconnect the harness connector from the front door speaker
and remove.

INSTALLATION

Install in the reverse order of removal.

JSNIA6727ZZ

AV

REAR DOOR SPEAKER

AV-53

< REMOVAL AND INSTALLATION >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR DOOR SPEAKER

Removal and Installation

INFOID:0000000011010047

REMOVAL

1.

Remove the rear door finisher. Refer to

INT-19, "Removal and Installation"

.

2.

Remove the rear door speaker screws

.

3.

Disconnect the harness connector from the rear door speaker
and remove.

INSTALLATION

Install in the reverse order of removal.

JSNIA6727ZZ

AV-54

< REMOVAL AND INSTALLATION >

[BASE AUDIO]

FRONT SQUAWKER

FRONT SQUAWKER

Removal and Installation

INFOID:0000000011066765

REMOVAL

1.

Remove the front pillar garnish. Refer to

INT-23, "FRONT PILLAR GARNISH : Removal and Installation"

.

2.

Remove the front squawker grille using a suitable tool. Refer to

IP-13, "Exploded View"

 (LHD models),

IP-

40, "Exploded View"

 (RHD models).

3.

Pull out the front squawker, disconnect the harness connector from front squawker and remove.

INSTALLATION

Installation is in the reverse order of removal.

AV

USB CONNECTOR AND AUX JACK

AV-55

< REMOVAL AND INSTALLATION >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

USB CONNECTOR AND AUX JACK

Removal and Installation

INFOID:0000000011010048

REMOVAL

1.

Remove the instrument lower panel. Refer to

IP-13, "Exploded View"

 (LHD models),

IP-40, "Exploded

View"

 (RHD models).

2.

Release the pawls

 and remove the USB connector AUX jack

 from the instrument lower panel

.

INSTALLATION

Installation is in the reverse order of removal.

JSNIA6728ZZ
