Nissan X-Trail 32. Manual - part 6





AV-16

< SYSTEM DESCRIPTION >

[BASE AUDIO]

COMPONENT PARTS

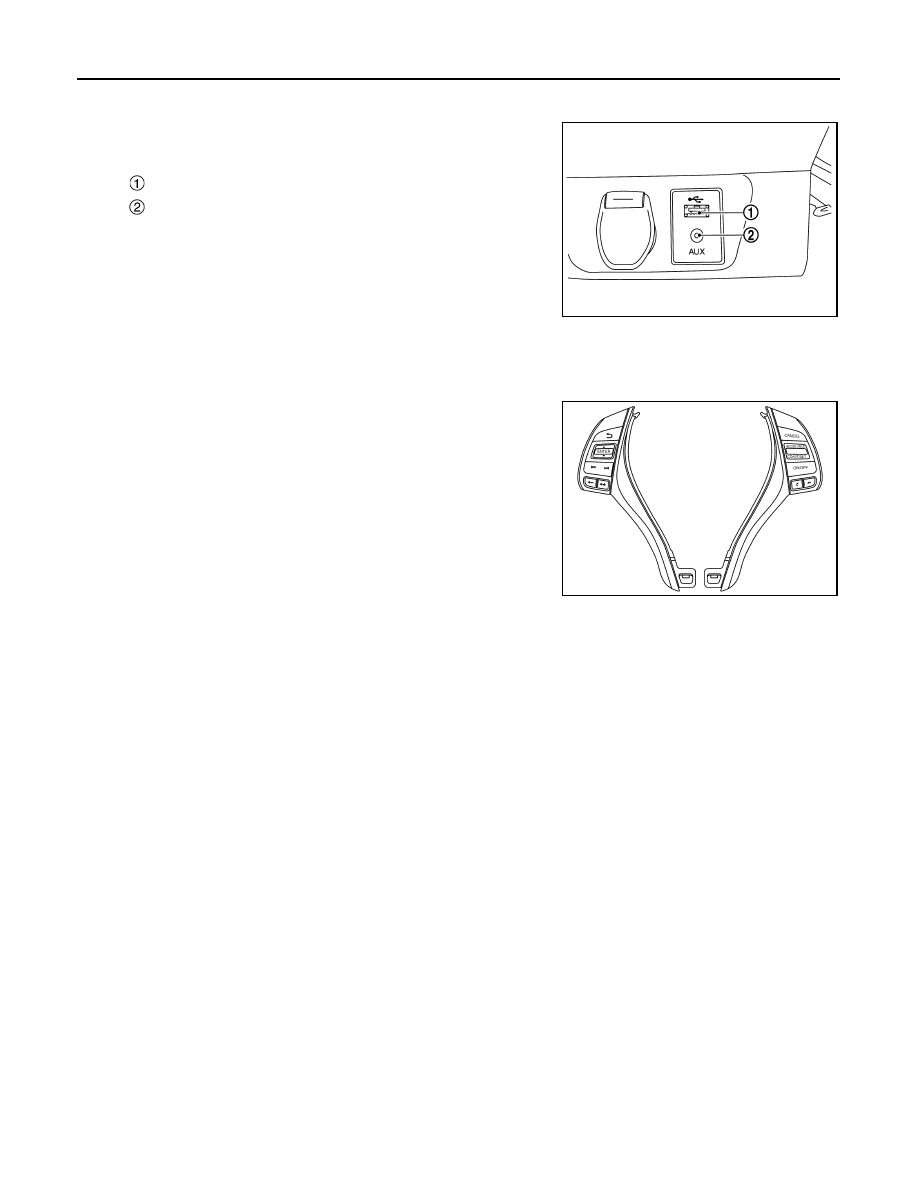

USB Connector and AUX Jack

INFOID:0000000010714751

• USB connector and AUX jack is installed on the instrument lower

panel center.

• iPod and USB memory can be connected to the audio unit.
• Connection to an external audio device can provide sound output.

NOTE:
When connected to monaural mini-jack plug cable, sound may not
be output.

Steering Switch

INFOID:0000000010714752

• Hands-free phone and audio operations can be performed.
• This switch is connected to combination meter, and switch opera-

tion signal is transmitted to combination meter.

• Combination meter transmits steering switch signal to audio unit

via AV communication.

USB connector

AUX jack

External input terminal for connection

φ

3.5 mm stereo mini-jack

JSNIA6736ZZ

JSNIA7234ZZ

AV

SYSTEM

AV-17

< SYSTEM DESCRIPTION >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SYSTEM

AUDIO SYSTEM

AUDIO SYSTEM : System Description

INFOID:0000000010714753

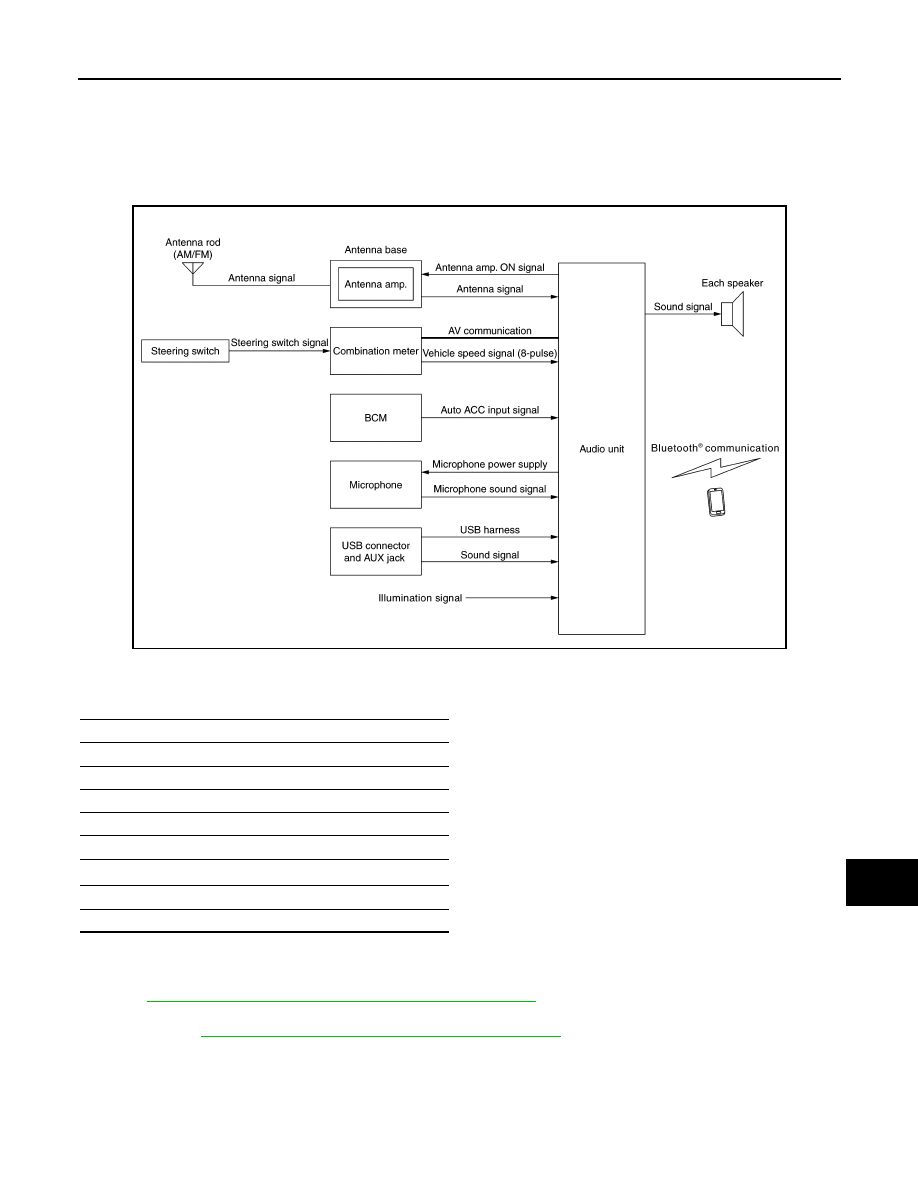

SYSTEM DIAGRAM

AUDIO SYSTEM

The audio system is equipped with following functions.

NOTE:
• The auto ACC function allows the operation of audio without operating the ignition switch. In addition, even

after the ignition switch is turned OFF, audio can be operated for 10 minutes. For the auto ACC function,
refer to

PCS-68, "AUTO ACC FUNCTION : System Description"

.

• The settings of the auto ACC function can be changed with the CONSULT (work support of BCM). For

details, refer to

BCS-47, "BCM : CONSULT Function (BCM - BCM)"

.

FUNCTION DESCRIPTION

The MP3/WMA playback function enables music to play for a long time: the user need not change the CD dur-
ing a long trip. The text display function is also adopted so that the title name and artist name of the ID3 tag/
WMA tag can be displayed.

Operating signal

JSNIA7351GB

Functions

AM/FM radio

CD playback

AUX connection

USB connection

Speed sensitive volume

Bluetooth

®

 audio

Hands-free phone function

Meter display

AV-18

< SYSTEM DESCRIPTION >

[BASE AUDIO]

SYSTEM

Audio system operation can be performed with audio fascia switch and steering switch.

AM/FM Radio Function

• AM/FM radio tuner is built into audio unit.
• The radio signal received by the window antenna is input to the antenna amp. and sent to the audio unit.
• Audio unit outputs the sound signal to each speaker.

CD Playback Function

• CD function is built into audio unit.
• Audio unit outputs sound signal to each speaker when CD is inserted to audio unit.

AUX Connection Function

• When the external device is connected to the AUX (auxiliary) input jack, the external device inputs a sound

signal to the audio unit.

• When AUX mode is selected, audio unit outputs sound signal to each speaker.

USB Connection Function

• Music files in USB memory can be played.
• Sound signals are transmitted from USB connector to the audio unit and each speaker.

Speed Sensitive Volume Function

• The audio unit receives the vehicle speed signal from the combination meter and changes the sound volume

in conjunction with the vehicle speed.

• The control level can be selected by the customer.

Bluetooth

®

 Audio Mode

• Bluetooth

®

 audio function is built into audio unit.

• Bluetooth

®

 audio can play music data in the portable audio by means of Bluetooth

®

 communications

between the portable audio and the audio unit.

• When Bluetooth

®

 audio mode is selected, audio unit outputs sound signal to each speaker.

Hands-Free Phone function

• Hands-free communication can be operated by connecting to cellular phone using Bluetooth

®

.

• Operation is performed by steering switch.

Meter Display

Audio Indicator

• The steering switch is connected to the combination meter.
• The combination meter transmits a steering switch signal to the audio unit via AV communication when the

user operates the audio with the steering switch.

• The audio unit changes the status of function according to the steering switch operation when receiving a

steering switch signal.

• The audio unit transmits an audio indicator signal to the combination meter via AV communication and dis-

plays the status of audio on the combination meter (in the information display) when the function is changed
by an operation (including the operation of audio unit switch).

Hands-free Phone Indicator

• When a cell phone that is connected with the audio unit via Bluetooth

®

 communication receives a phone

call, the incoming call is displayed on the information display in combination meter.

• When audio unit recognizes an incoming call from a cell phone via Bluetooth

®

 communication, it transmits

the meter display signal to combination meter via AV communication.

• When combination meter receives the meter display signal, it displays the incoming call of cell phone on

information display.

• When an incoming call is received, the driver can operate the steering switch to answer the phone.
• When steering switch is operated, the combination meter receives the steering switch signal, and then com-

bination meter transmits the steering switch signal to the audio unit via AV communication.

• When audio unit receives the steering switch signal, it activates the hands-free phone.

AV

SYSTEM

AV-19

< SYSTEM DESCRIPTION >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

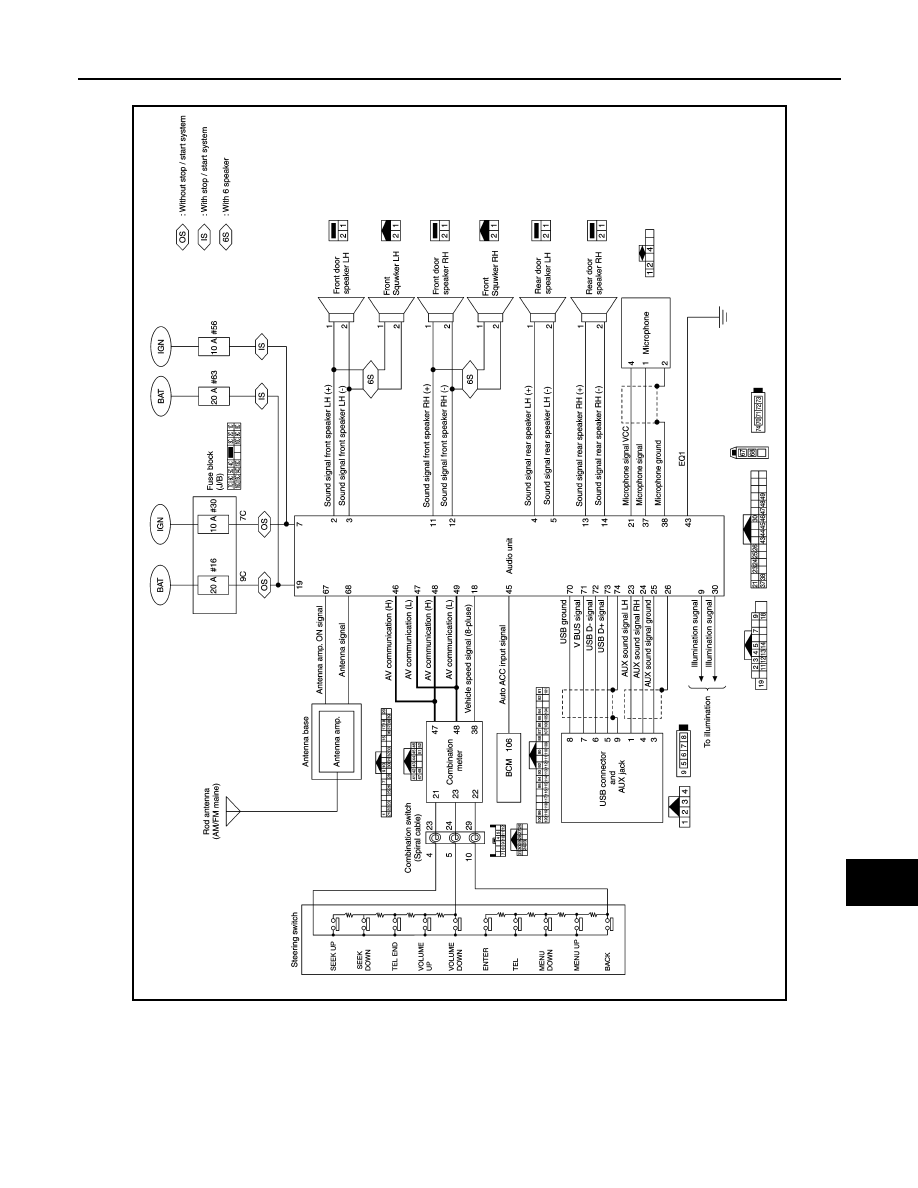

AUDIO SYSTEM : Circuit Diagram

INFOID:0000000010714754

JSNIA7352GB
