Nissan X-Trail 32. Manual - part 5





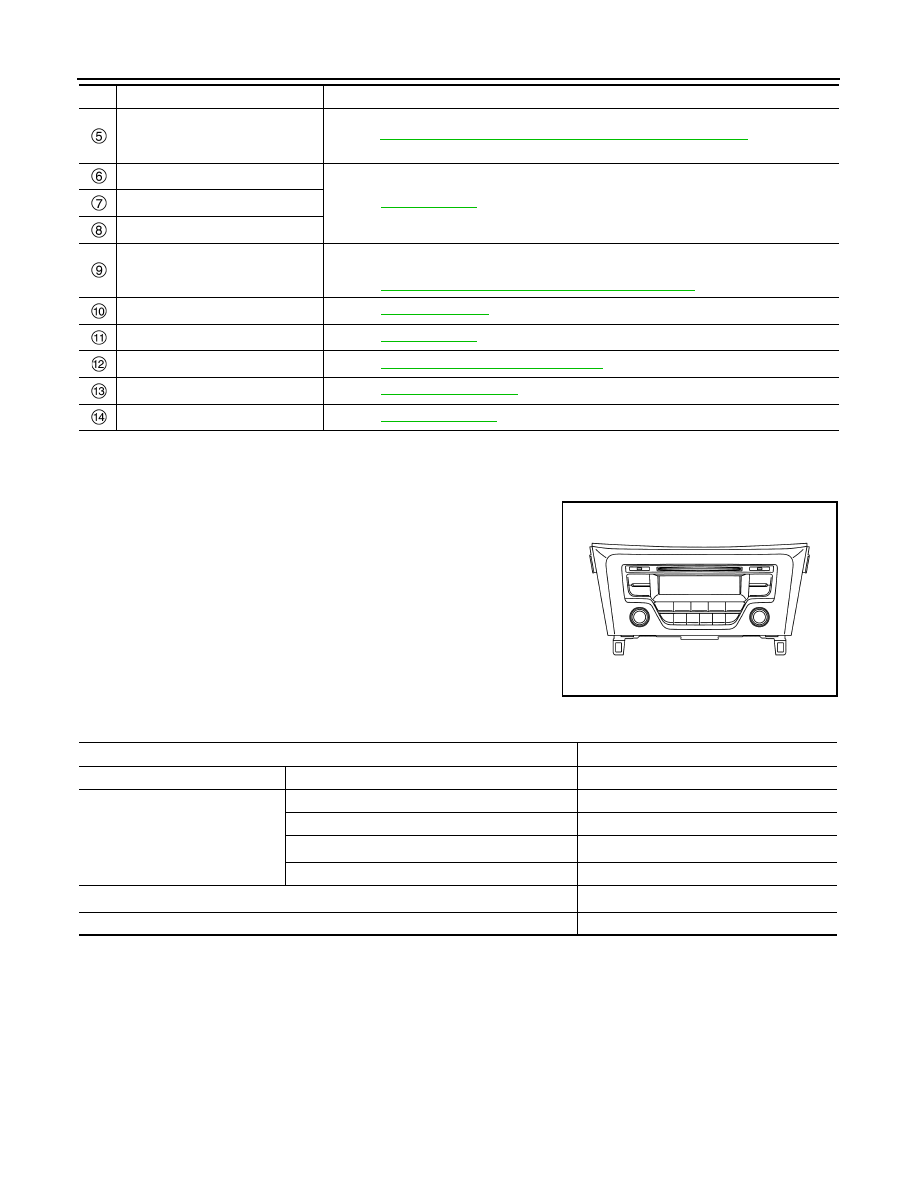

AV-12

< SYSTEM DESCRIPTION >

[BASE AUDIO]

COMPONENT PARTS

Audio Unit

INFOID:0000000010714748

Description

• AM/FM electronic tuner radio and CD player are integrated into the

audio unit.

• The audio unit supports CD-R/CD-RW and provides the playback

of MP3/WMA music files.

Specification

*: If the reflectance of the surface of the media is low, the data may not be read.

Speaker

INFOID:0000000010714749

FRONT DOOR SPEAKER

φ

 16 cm speaker is installed to the bottom of the front door.

BCM

Transmits the auto ACC input signal to the audio unit.
Refer to

BCS-6, "BODY CONTROL SYSTEM : Component Parts Location"

, for detailed in-

stallation.

Front door speaker LH

Refer to

AV-12, "Speaker"

.

Rear door speaker LH

Front squawker RH

Combination meter

• Transmits the vehicle speed signal to the audio unit.
• Transmits the steering switch signal to the audio unit via AV communication.
Refer to

MWI-7, "METER SYSTEM : Component Parts Location"

, for detailed installation.

Audio unit

Refer to

AV-12, "Audio Unit"

.

Front squawker LH

Refer to

AV-12, "Speaker"

.

USB connector and AUX jack

Refer to

AV-16, "USB Connector and AUX Jack"

.

Steering switch

Refer to

AV-16, "Steering Switch"

.

Microphone

Refer to

AV-13, "Microphone"

.

No.

Component

Function

JSNIA7347ZZ

Audio amplifier

16 W

×

 4

AM/FM electric tuner

FM diversity function

Without

CD drive

CD changer

Without

Used disc

φ

 12 cm (4.7 in)

CD-R/CD-RW playback function

With

*

MP3 / WMA playback function

With

Bluetooth

®

 module

With

Steering switch

With

AV

COMPONENT PARTS

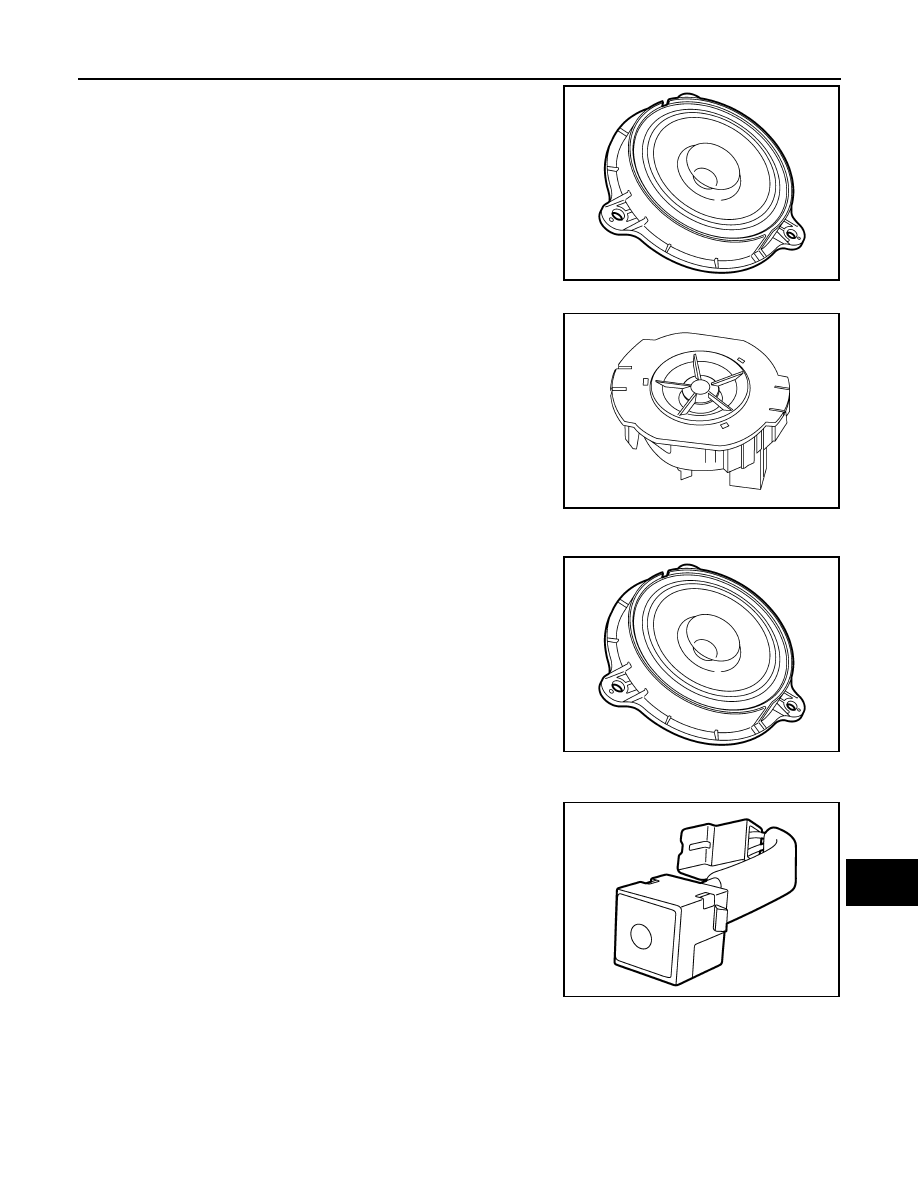

AV-13

< SYSTEM DESCRIPTION >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

• Sound signal is input from the audio unit to output high, mid, and

low range sounds.

FRONT SQUAWKER

φ

8.0 cm squawker for high-range sounds is installed in the instru-

ment panel assembly.

• Sound signal is input from the audio unit to output high range

sounds.

REAR DOOR SPEAKER

φ

 16 cm speaker is installed to the bottom of the rear door.

• Sound signal is input from the audio unit to output high, mid, and

low range sounds.

Microphone

INFOID:0000000010957681

• The microphone is installed on the map lamp assembly.
• The power is supplied from the audio unit to the microphone, trans-

mitting sound signals to the audio unit at the during hands-free
phone communication.

Antenna and Antenna Feeder

INFOID:0000000010714750

ANTENNA AMP. AND RADIO ANTENNA

• AM/FM radio rod antenna and antenna base are located on the rear of the roof.
• The antenna amp. is built into the antenna base.

Rated input

: 20 W

Maximum
input

: 40 W

Impedance

: 4

JSNIA5958ZZ

ALNIA1593ZZ

Rated input

: 20 W

Maximum
input

: 40 W

Impedance

: 4

JSNIA5958ZZ

JPNIA1448ZZ

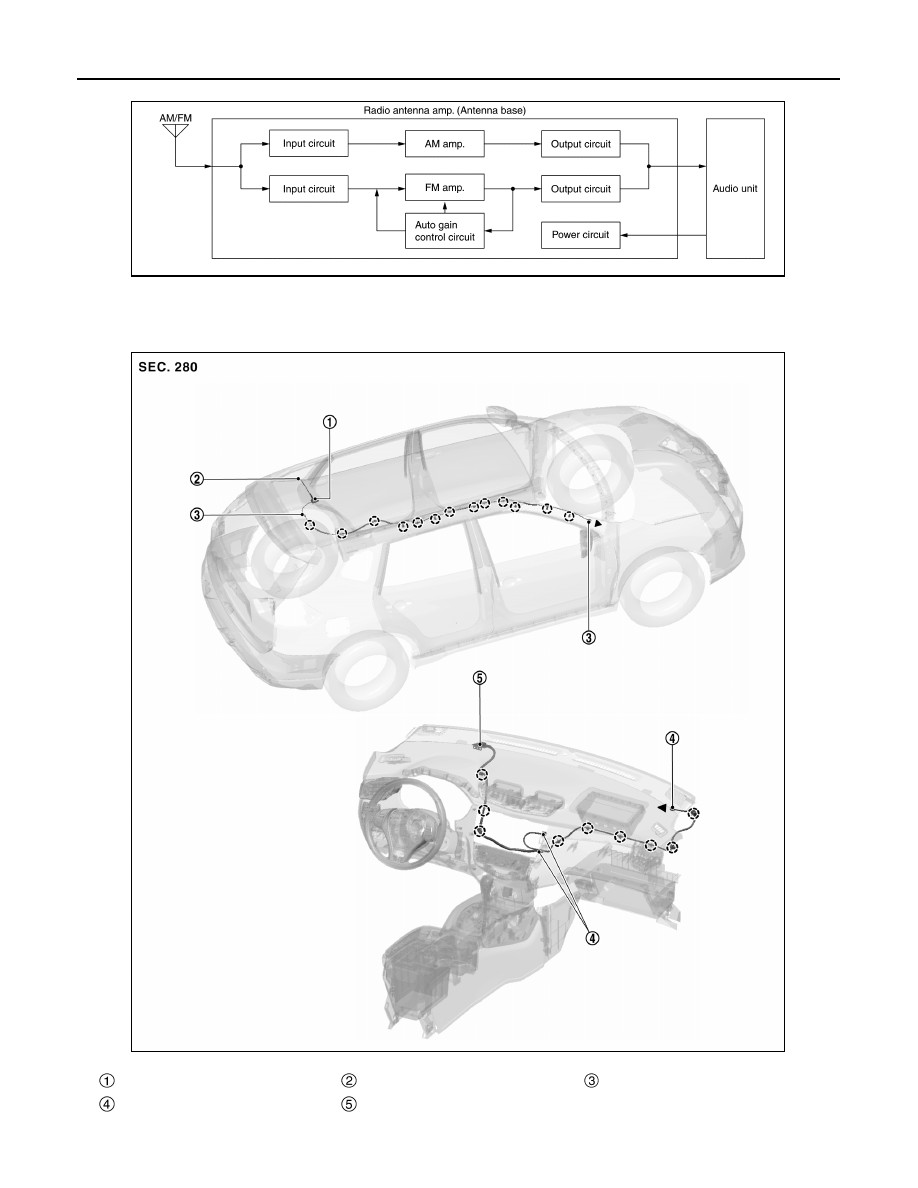

AV-14

< SYSTEM DESCRIPTION >

[BASE AUDIO]

COMPONENT PARTS

• The AM/FM radio main antenna path has an antenna amp. to obtain sufficient reception power.

ANTENNA FEEDER LAYOUT

LHD Models

JSNIA7229GB

Antenna base

Antenna rod

With clip connector

Connector

GPS antenna

*

JSNIA7348ZZ

AV

COMPONENT PARTS

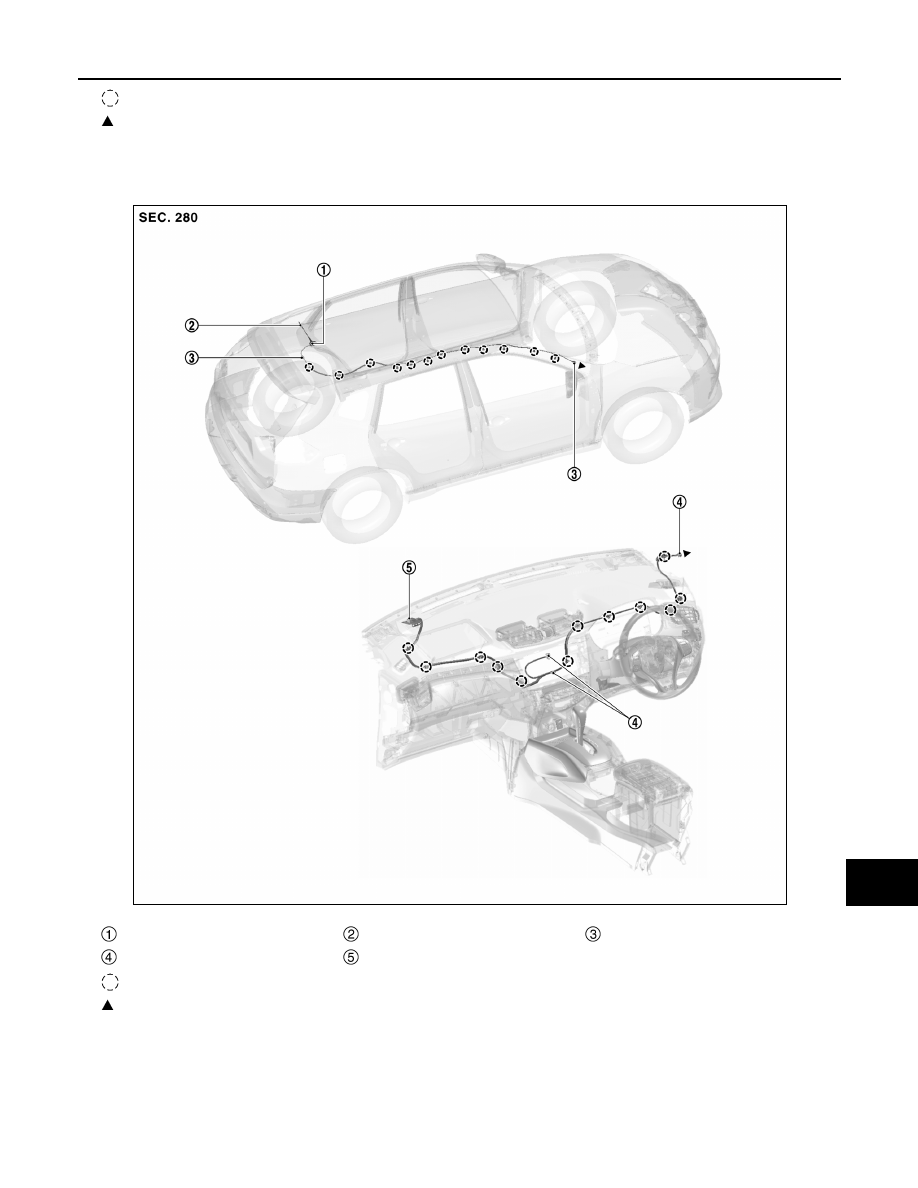

AV-15

< SYSTEM DESCRIPTION >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

*: Not applicable

RHD Models

*: Not applicable

: Clips

: Indicates that the part is connected at points with same symbol in actual vehicle.

Antenna base

Antenna rod

With clip connector

Connector

GPS antenna

*

: Clips

: Indicates that the part is connected at points with same symbol in actual vehicle.

JSNIA7349ZZ
