AV-8

< PRECAUTION >

[BASE AUDIO]

PRECAUTIONS

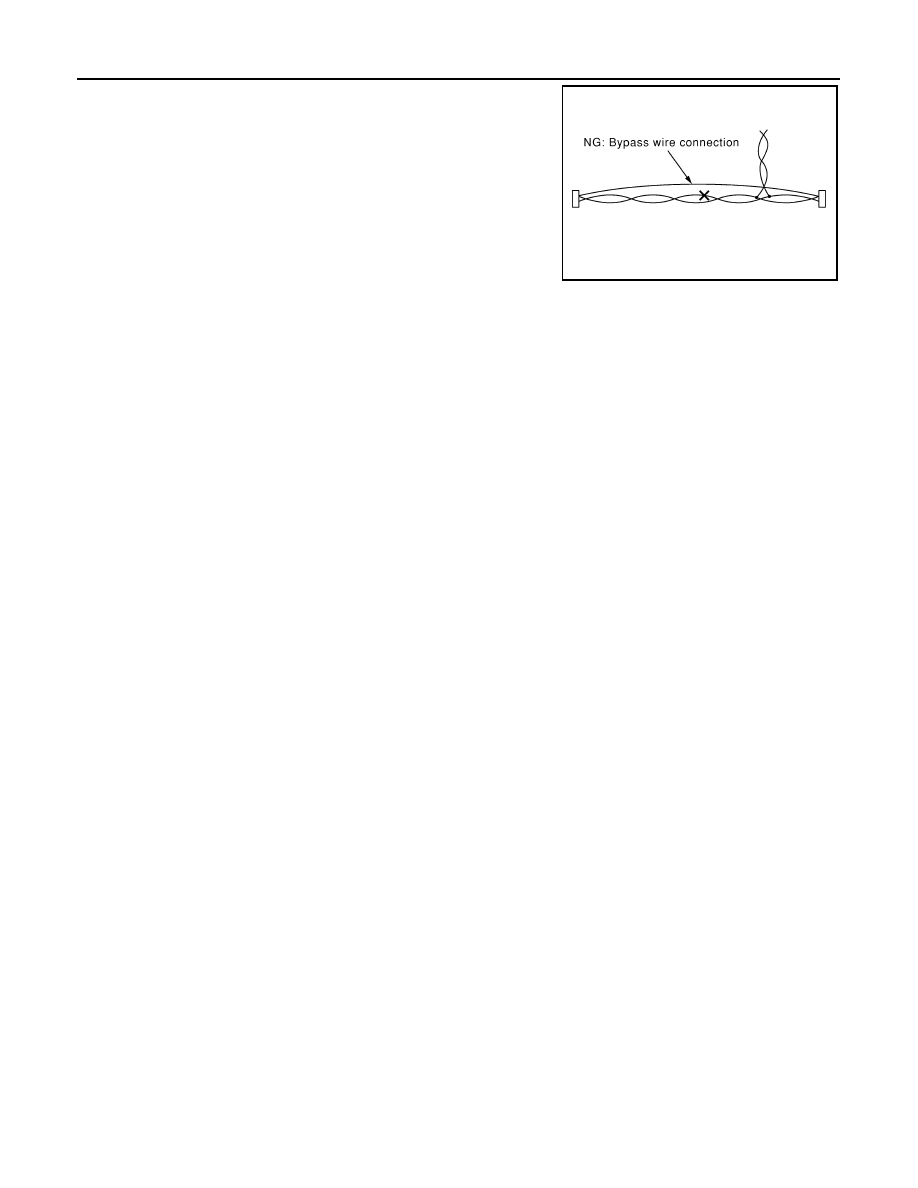

• Do not perform bypass wire connections for the repair parts. (The

spliced wire will become separated and the characteristics of
twisted line will be lost.)

PKIA0307E

AV

COMPONENT PARTS

AV-9

< SYSTEM DESCRIPTION >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

Component Parts Location

INFOID:0000000010714747

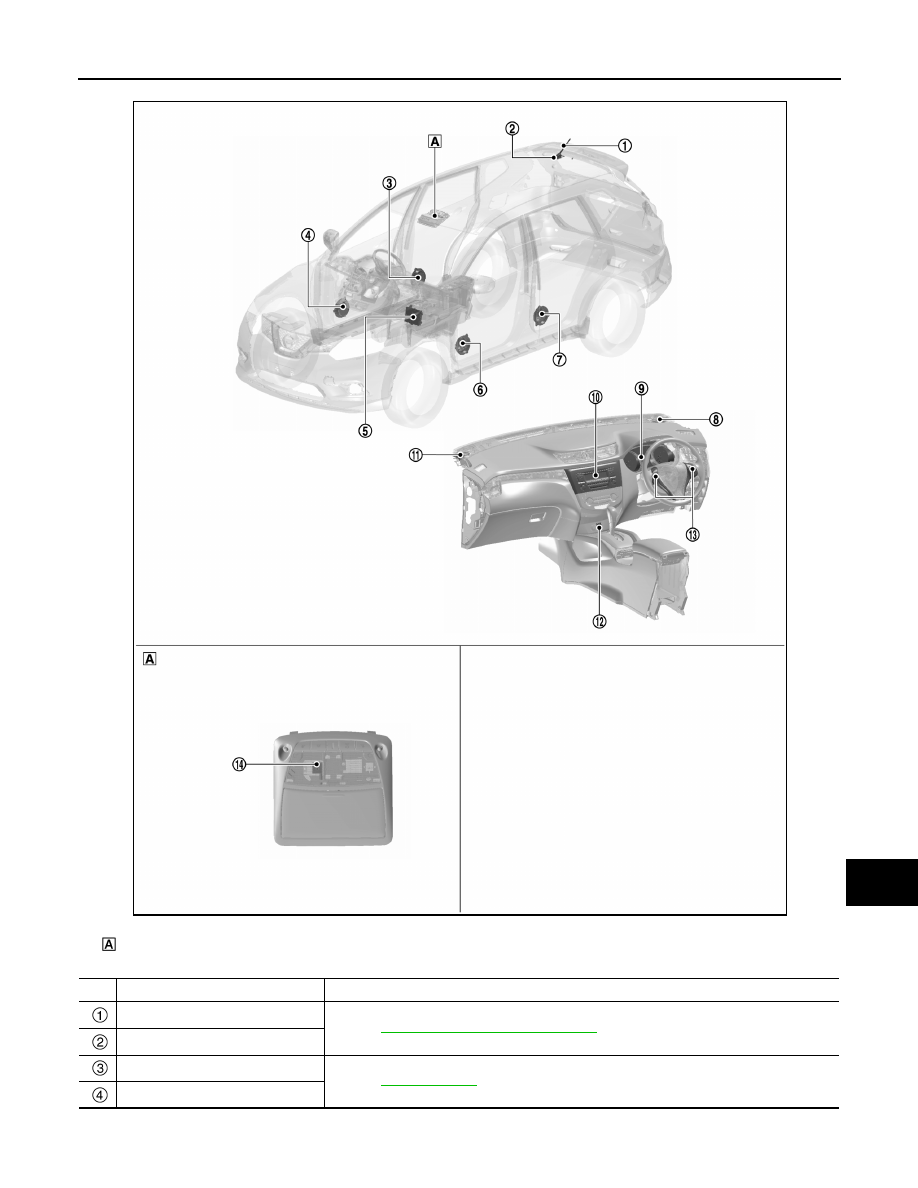

LHD MODELS

Map lamp

JSNIA7345ZZ

AV-10

< SYSTEM DESCRIPTION >

[BASE AUDIO]

COMPONENT PARTS

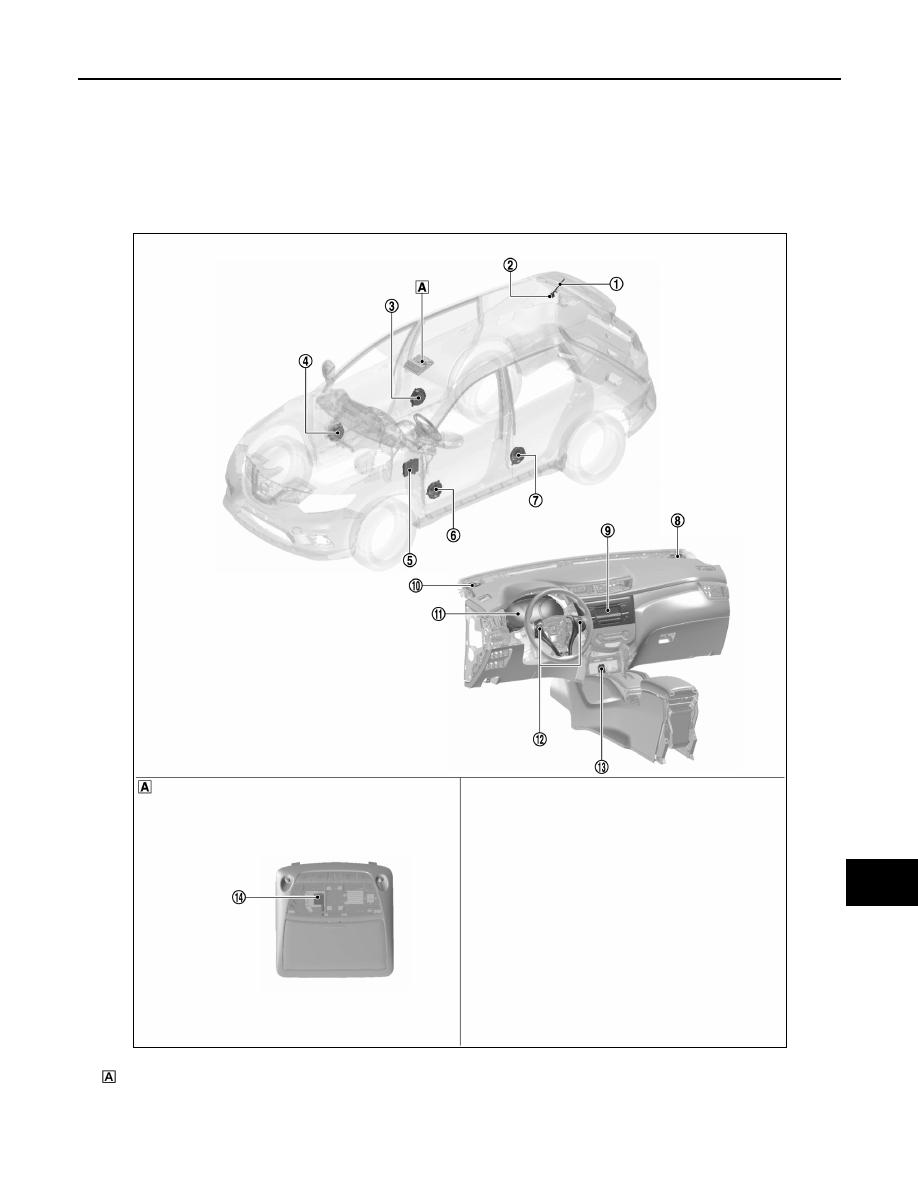

RHD MODELS

No.

Component

Function

Antenna rod

Refer to

AV-13, "Antenna and Antenna Feeder"

.

Antenna base

Rear door speaker RH

Refer to

AV-12, "Speaker"

.

Front door speaker RH

BCM

Transmits the auto ACC input signal to the audio unit.
Refer to

BCS-6, "BODY CONTROL SYSTEM : Component Parts Location"

, for detailed in-

stallation.

Front door speaker LH

Refer to

AV-12, "Speaker"

.

Rear door speaker LH

Front squawker RH

Audio unit

Refer to

AV-12, "Audio Unit"

.

Front squawker LH

Refer to

AV-12, "Speaker"

.

Combination meter

• Transmits the vehicle speed signal to the audio unit.
• Transmits the steering switch signal to the audio unit via AV communication.
Refer to

MWI-7, "METER SYSTEM : Component Parts Location"

, for detailed installation.

Steering switch

Refer to

AV-16, "Steering Switch"

.

USB connector and AUX jack

Refer to

AV-16, "USB Connector and AUX Jack"

.

Microphone

Refer to

AV-13, "Microphone"

.

AV

COMPONENT PARTS

AV-11

< SYSTEM DESCRIPTION >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Map lamp

JSNIA7346ZZ

No.

Component

Function

Antenna rod

Refer to

AV-13, "Antenna and Antenna Feeder"

.

Antenna base

Rear door speaker RH

Refer to

AV-12, "Speaker"

.

Front door speaker RH
