Nissan Primera P12. Manual - part 695





SC-26

STARTING SYSTEM

Inspection

EKS009LE

MAGNETIC SWITCH CHECK

Before starting to check, disconnect battery ground cable.

Disconnect “M” terminal of starter motor.

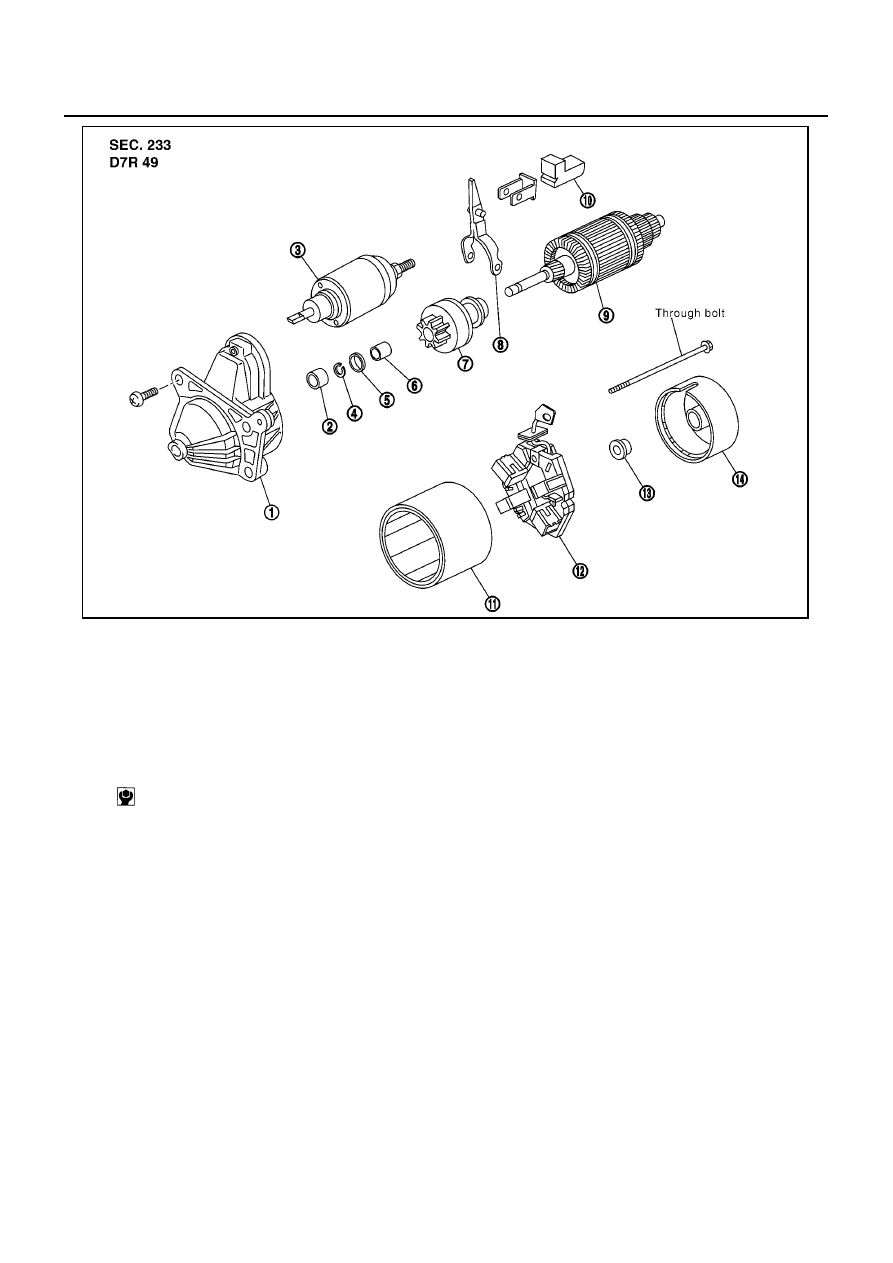

1.

Gear case

2.

Bushing

3.

Magnetic switch assembly

4.

Stopper clip

5.

Pinion stopper

6.

Bushing

7.

Pinion assembly

8.

Shift lever

9.

Armature

10. Packing

11. Yoke

12. Brush holder

13. Bushing

14. Rear cover

Through-bolt:

M8T71471

: 5.6 - 10.4 N·m (0.57 - 1.06 kg-m, 49.5 - 92.0 in-lb)

MKIA0096E

STARTING SYSTEM

SC-27

C

D

E

F

G

H

I

J

L

M

A

B

SC

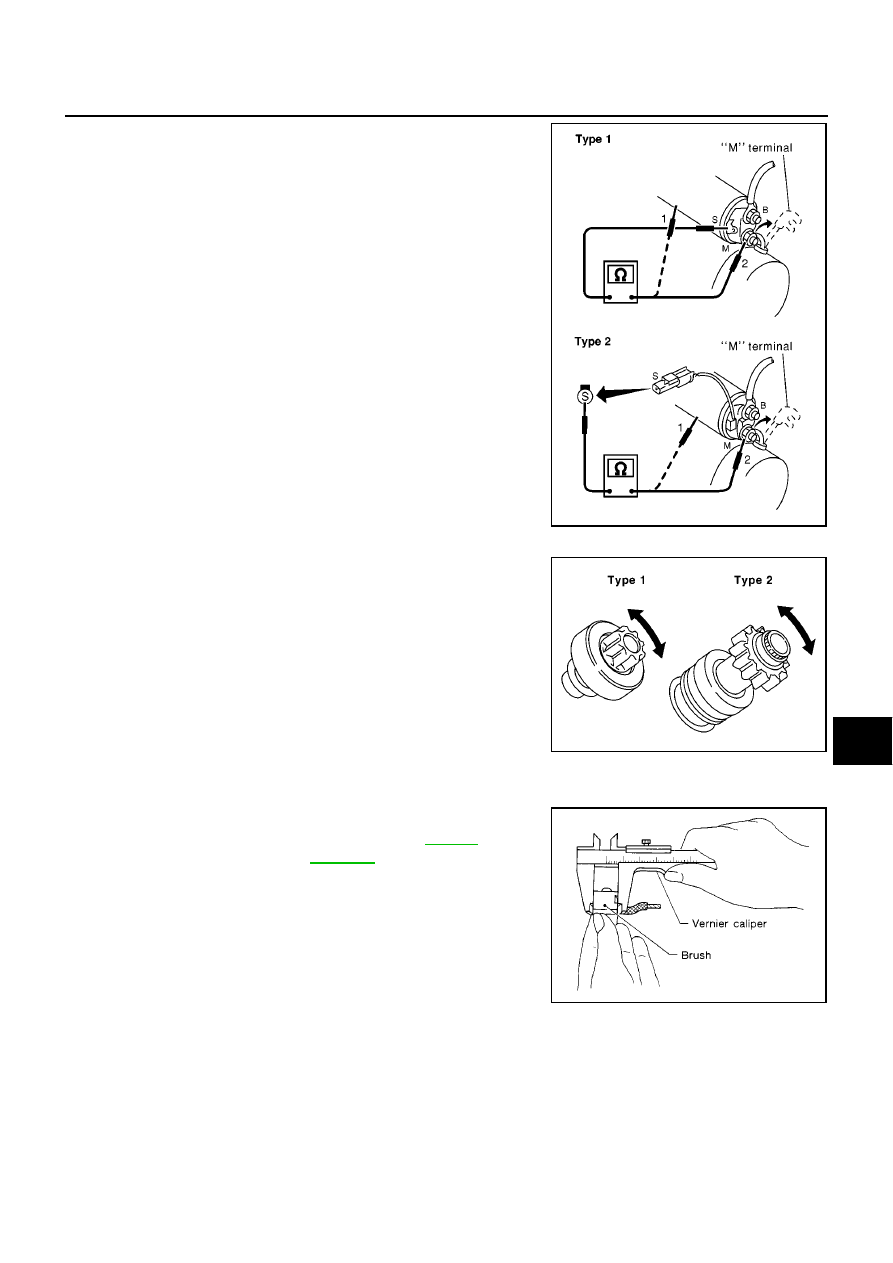

1.

Continuity test (between “S” terminal and switch body).

No continuity ... Replace.

2.

Continuity test (between “S” terminal and “M” terminal).

No continuity ... Replace.

PINION/CLUTCH CHECK

1.

Inspect pinion teeth.

Replace pinion if teeth are worn or damaged. (Also check
condition of ring gear teeth.)

2.

Inspect reduction gear teeth (If equipped).

Replace reduction gear if teeth are worn or damaged. (Also
check condition of armature shaft gear teeth.)

3.

Check to see if pinion locks in one direction and rotates
smoothly in the opposite direction.

If it locks or rotates in both directions, or unusual resistance is
evident. ... Replace.

BRUSH CHECK
Brush

Check wear of brush.

Excessive wear ... Replace.

MKIA0011E

MEL139L

Wear limit length

: Refer to SDS.

SC-32,

"Starter"

.

SEL014Z

SC-28

STARTING SYSTEM

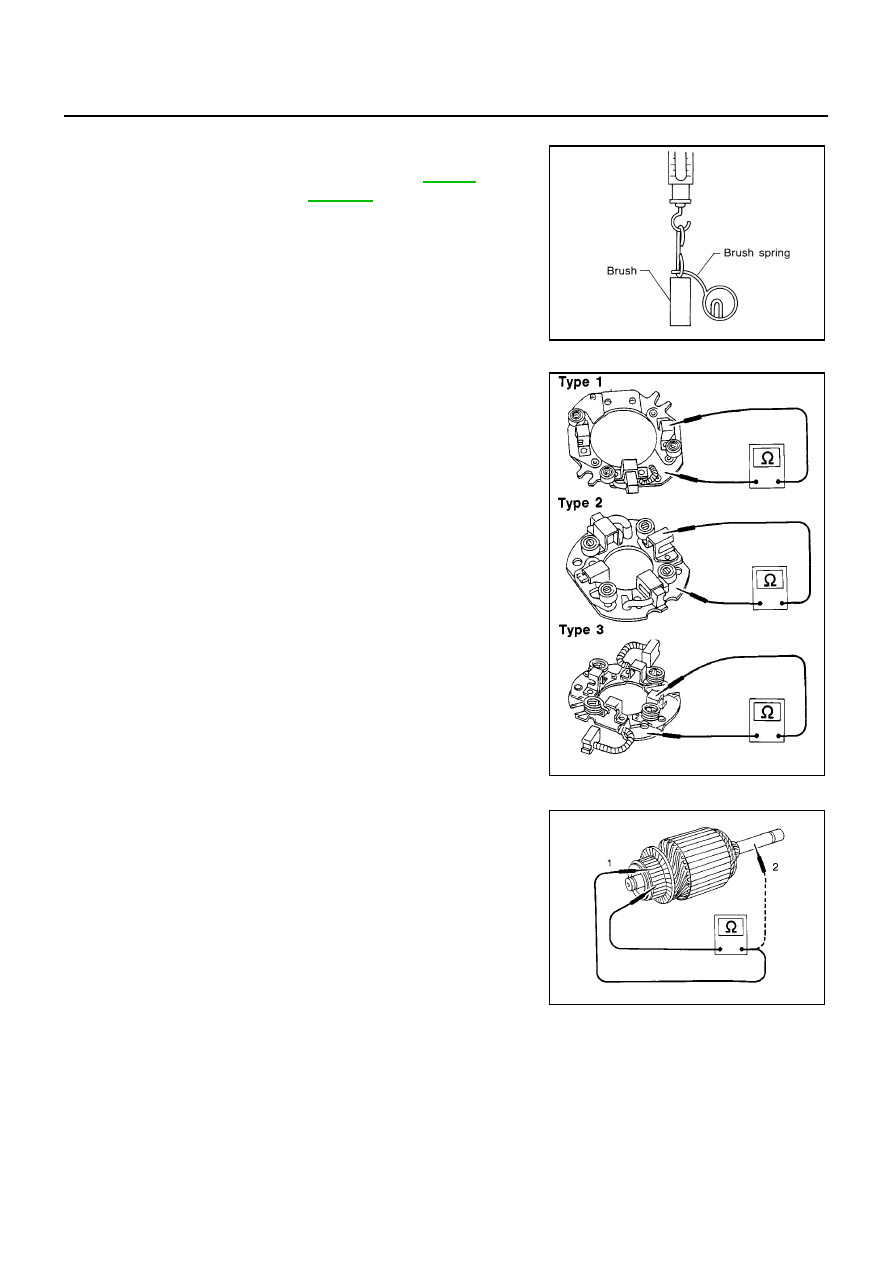

Brush Spring Check

Check brush spring pressure with brush spring detached from brush.

Not within the specified values ... Replace.

Brush Holder

1.

Perform insulation test between brush holder (positive side) and
its base (negative side).

Continuity exists. ... Replace.

2.

Check brush to see if it moves smoothly.

If brush holder is bent, replace it; if sliding surface is dirty,
clean.

YOKE CHECK

Magnet is secured to yoke by bonding agent. Check magnet to see
that it is secured to yoke and for any cracks. Replace malfunctioning
parts as an assembly.

CAUTION:

Do not clamp yoke in a vice or strike it with a hammer.

Spring pressure (with
new brush)

: Refer to SDS.

SC-32,

"Starter"

.

SEL015Z

SEL016Z

SEL019Z

STARTING SYSTEM

SC-29

C

D

E

F

G

H

I

J

L

M

A

B

SC

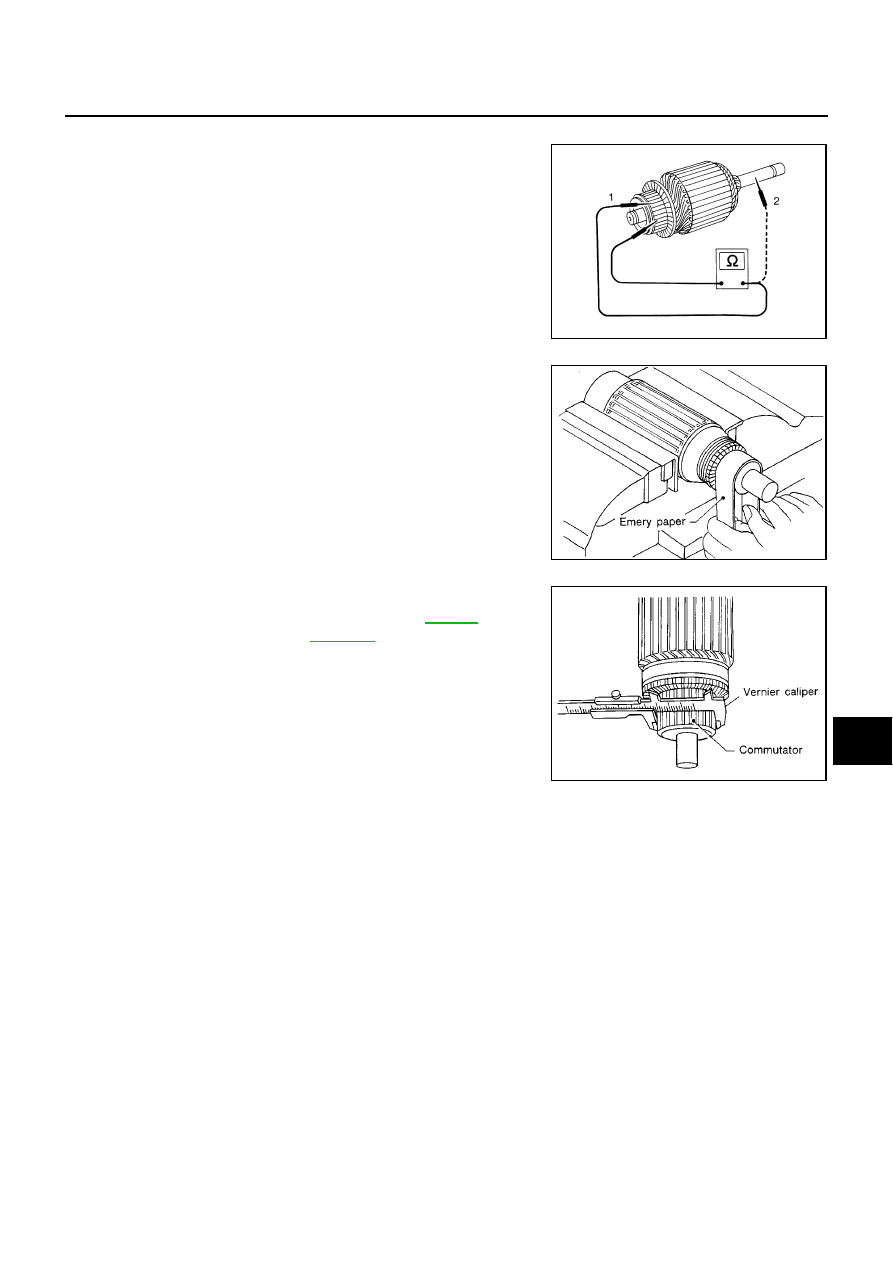

ARMATURE CHECK

1.

Continuity test (between two segments side by side).

No continuity ... Replace.

2.

Insulation test (between each commutator bar and shaft).

Continuity exists. ... Replace.

3.

Check commutator surface.

Rough ... Sand lightly with No. 500 - 600 emery paper.

4.

Check diameter of commutator.

Less than specified value ... Replace.

5.

Check depth of insulating mold from commutator surface.

SEL019Z

SEL020Z

Commutator minimum
diameter

: Refer to SDS.

SC-32,

"Starter"

.

SEL021Z
