Nissan Primera P12. Manual - part 576





LT-14

HEADLAMP - XENON TYPE -

WARNING:

The xenon headlamp has a high-tension current generating area. Be extremely careful when
removing and installing. Be certain to disconnect the battery negative cable prior to removing or
installing.

When the xenon headlamp is lit, do not touch the harness (covered with red or amber insulation),
bulb itself or the bulb socket with your bare hands.

Never service a xenon headlamp with wet hands.

When checking body side harness with a circuit tester, be certain to disconnect the harness con-
nector from the xenon headlamp.

When the xenon headlamp is lit, the xenon bulb must be installed in the headlamp housing. (Never
turn on xenon headlamp, if the bulb is out of the headlamp housing.)

CAUTION:

Make sure to install the bulb securely; if the xenon bulb is improperly installed in its socket, high-ten-
sion current leaks occur. This may lead to a melted bulb and/or bulb socket.

Trouble Diagnosis

EKS009LU

Symptom

Possible cause

Repair order

LH or RH xenon headlamp (low beam)
blinks, lacks brightness or does not illumi-
nate.

1. 20A fuse

2. Relay

3. Power supply circuit to headlamp low

beam

4. Xenon bulb

5. HID control unit and booster

1. Check 15A fuse [No. 37: LH, No. 36: RH,

located in fuse and fusible link box].
Verify battery positive voltage present at
terminal 5 (R/Y) or (R/L) of headlamp LH
or RH.

2. Check Headlamp relay.

3. Verify battery positive voltage is present

at terminal 5 of headlamp harness with
lighting switch in “2nd” and “Low” posi-
tions. (Before inspecting headlamp ter-
minal, disconnect headlamp connector
with lighting switch in “OFF” position.)

4. Replace the xenon bulb with the other

side bulb or new one. (If headlamps illu-
minate correctly, replace the bulb.)

5. Replace the HID control unit and booster

as a headlamp assembly.

LH or RH [both headlamp high and xenon
(low) beam] do not illuminate.

1. Bulb

2. 15A fuse

3. Ground circuit

4. Lighting switch

1. Check bulb.

2. Check 15A fuse [No. 41: LH, No. 42: RH

located in fuse and fusible link box].

3. Check continuity between headlamp ter-

minal 2 or 3 and body ground. (Before
inspecting headlamp terminal, discon-
nect headlamp connector with lighting
switch in “OFF” position.)

4. Check lighting switch.

HEADLAMP - XENON TYPE -

LT-15

C

D

E

F

G

H

I

J

L

M

A

B

LT

HID: High Intensity Discharge

Aiming Adjustment

EKS009LV

When performing headlamp aiming adjustment, use an aiming machine, aiming wall screen or headlamp
tester. Aimers should be in good repair, calibrated and operated in accordance with respective operation man-
uals.
If any aimer is not available, aiming adjustment can be done as follows:
For details, refer to the regulations in your own country.

Keep all tires inflated to correct pressures.

Place vehicle and tester on one and same flat surface.

See that there is no-load in vehicle (coolant, engine oil filled up to correct level and full fuel tank) other
than the driver (or equivalent weight placed in driver

s position).

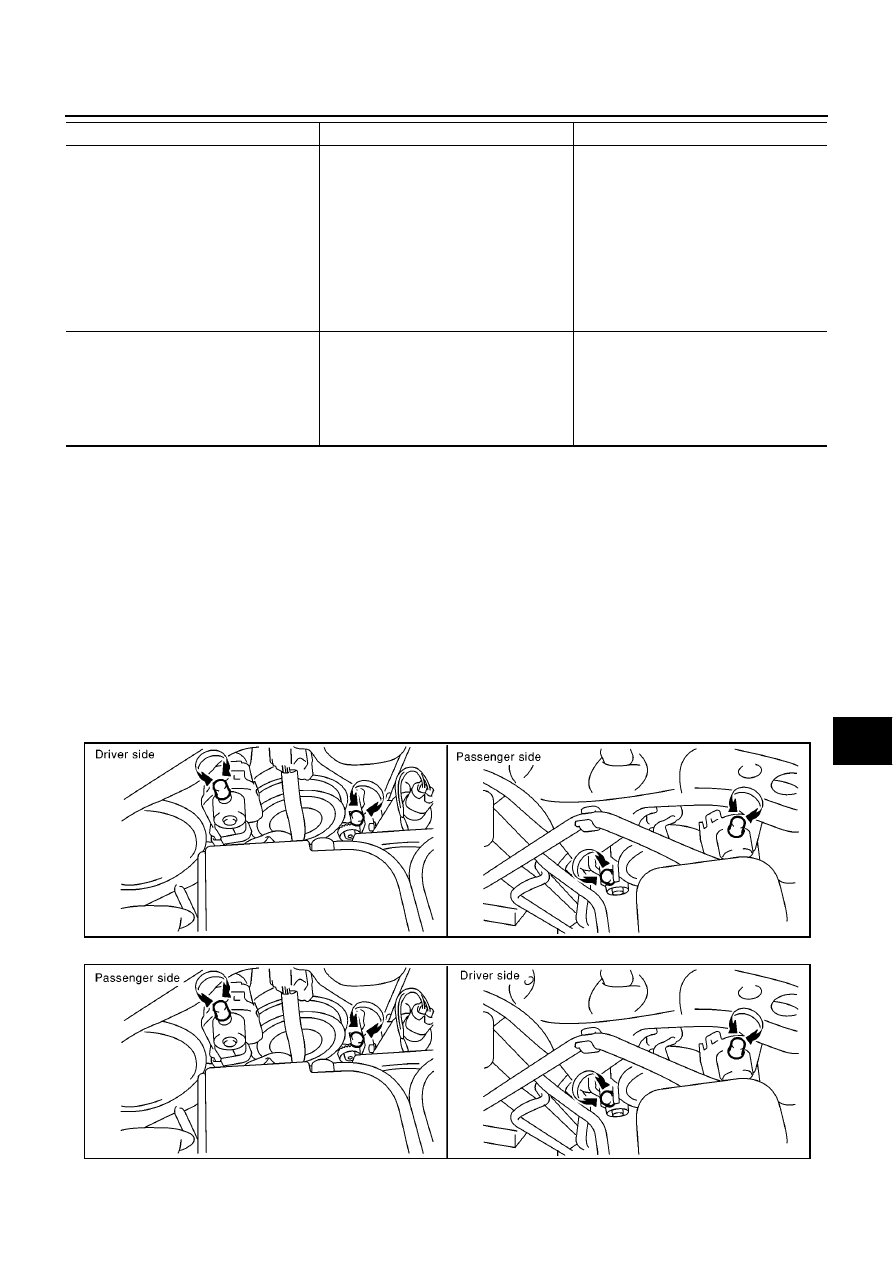

LOW BEAM

1.

Turn headlamp low beam on.
LHD models

RHD models

2.

Use adjusting pots to perform aiming adjustment.

LH or RH headlamp high beam does not
illuminate.

1. Bulb

2. Power supply circuit to headlamp high

beam

3. Ground circuit

4. Lighting switch

1. Check bulb.

2. Verify battery positive voltage is present

at terminal 4 of headlamp harness with
lighting switch in “2nd” and “HIGH” posi-
tion. (Before inspecting headlamp termi-
nal, disconnect headlamp connector with
lighting switch in “OFF” position.)

3. Check continuity between headlamp ter-

minal 2 and ground circuit.

4. Check lighting switch.

High beam indicator does not work.

1. Grounds M16, M50 and M70

2. Open in high beam circuit

3. Combination meter

1. Check grounds M16, M50 and M70

2. Check continuity between lighting switch

terminal 9 (BR/R) and combination
meter terminal 20 (BR/R) LHD or 7 (BR/
R) RHD for an open circuit.

3. Check combination meter.

Symptom

Possible cause

Repair order

MKIA0048E

MKIA0049E

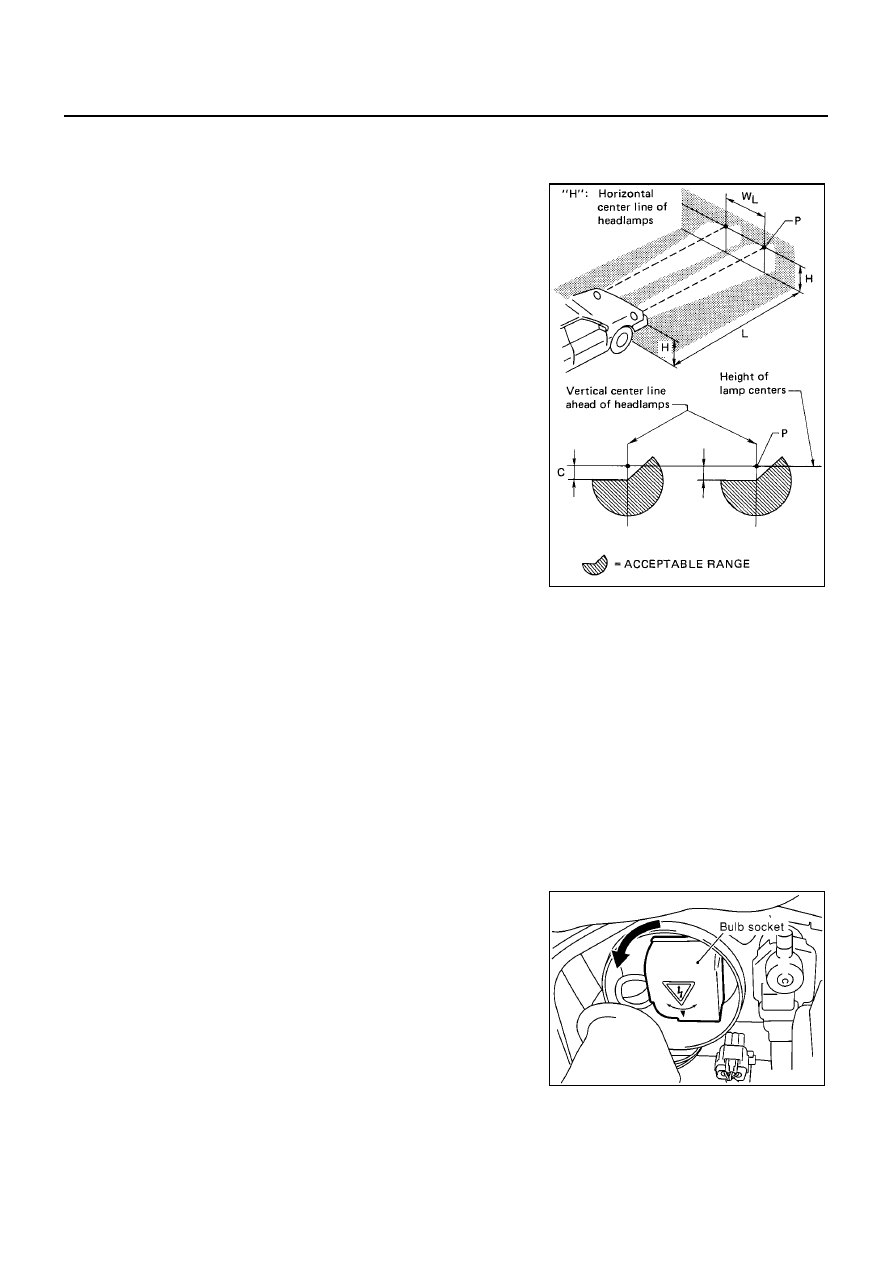

LT-16

HEADLAMP - XENON TYPE -

First tighten the adjusting pot all the way and then make adjustment by loosening the pot.

If the vehicle front body has been repaired and/or the headlamp assembly has been replaced, check aim-
ing. Use the aiming chart shown in the figure.

Adjust headlamps so that main axis of light is parallel to cen-
ter line of body and is aligned with point P shown in illustra-
tion.

Figure shows headlamp aiming pattern for driving on right
side of road; for driving on left side of road, aiming pattern is
reversed.

Dotted lines to point P in illustration show center of headlamp.

Basic illuminating area for adjustment should be within the
range shown in the figure. Adjust headlamps accordingly.

Bulb Replacement

EKS009LW

CAUTION:

After replacing a new xenon bulb, be sure to make aiming adjustments.

Hold only the plastic base when handling the bulb. Never touch the glass envelope.

Do not leave headlamp reflector without bulb for a long period of time. Dust, moisture, smoke, etc.
entering headlamp body may affect the performance of the headlamp. Remove headlamp bulb
from the headlamp reflector just before a replacement bulb is installed.

1.

Disconnect negative battery cable.

2.

Disconnect headlamp connector.

WARNING:

Never service a xenon headlamp with wet hands.

XENON BULB (LOW BEAM)

1.

Remove washer inlet. (RH bulb)

2.

Remove headlamp seal cover.
Turn bulb socket counterclockwise and unlock it.

3.

Release retaining pin.

4.

Remove the xenon bulb.

5.

Install in the reverse order of removal.

CAUTION:

When disposing of the xenon bulb, do not break it;
always dispose of it as is.

Make sure to install the bulb securely; if the xenon bulb is
improperly installed in its socket, high-tension current
leaks occur. This may lead to a melted bulb and/or bulb socket.

HIGH BEAM

1.

Pull off headlamp seal cover.

“H”

: Horizontal center line of headlamps

“W

L

: Distance between each headlamp center

“L”

: 25 m (98.43 in)

“C”

: 250 mm (9.84 in)

SEL254L

Headlamp (LOW)

: 12V - 35W (D2R)

MKIB0118E

HEADLAMP - XENON TYPE -

LT-17

C

D

E

F

G

H

I

J

L

M

A

B

LT

2.

Disconnect bulb connector.

3.

Release retaining pin.

4.

Remove the bulb.

5.

Install in the reverse order of removal.

CLEARANCE LAMP, FRONT TURN SIGNAL LAMP

Refer to

LT-9, "CLEARANCE LAMP, FRONT TURN SIGNAL LAMP"

.

CAUTION:

Do not touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
Do not touch bulb by hand while it is lit or right after being turned off. Burning may result.

Do not leave bulb out of headlamp reflector for a long time because dust, moisture smoke, etc.
may affect the performance of headlamp. When replacing bulb, be sure to replace it with new one.

When bulb is installed, be sure to lock rubber cap to ensure watertightness.

Removal and Installation

EKS009LX

REMOVAL

Refer to

LT-9, "REMOVAL"

.

INSTALLATION

Refer to

LT-9, "INSTALLATION"

.

Headlamp (HIGH)

: 12V - 55W (H7)
