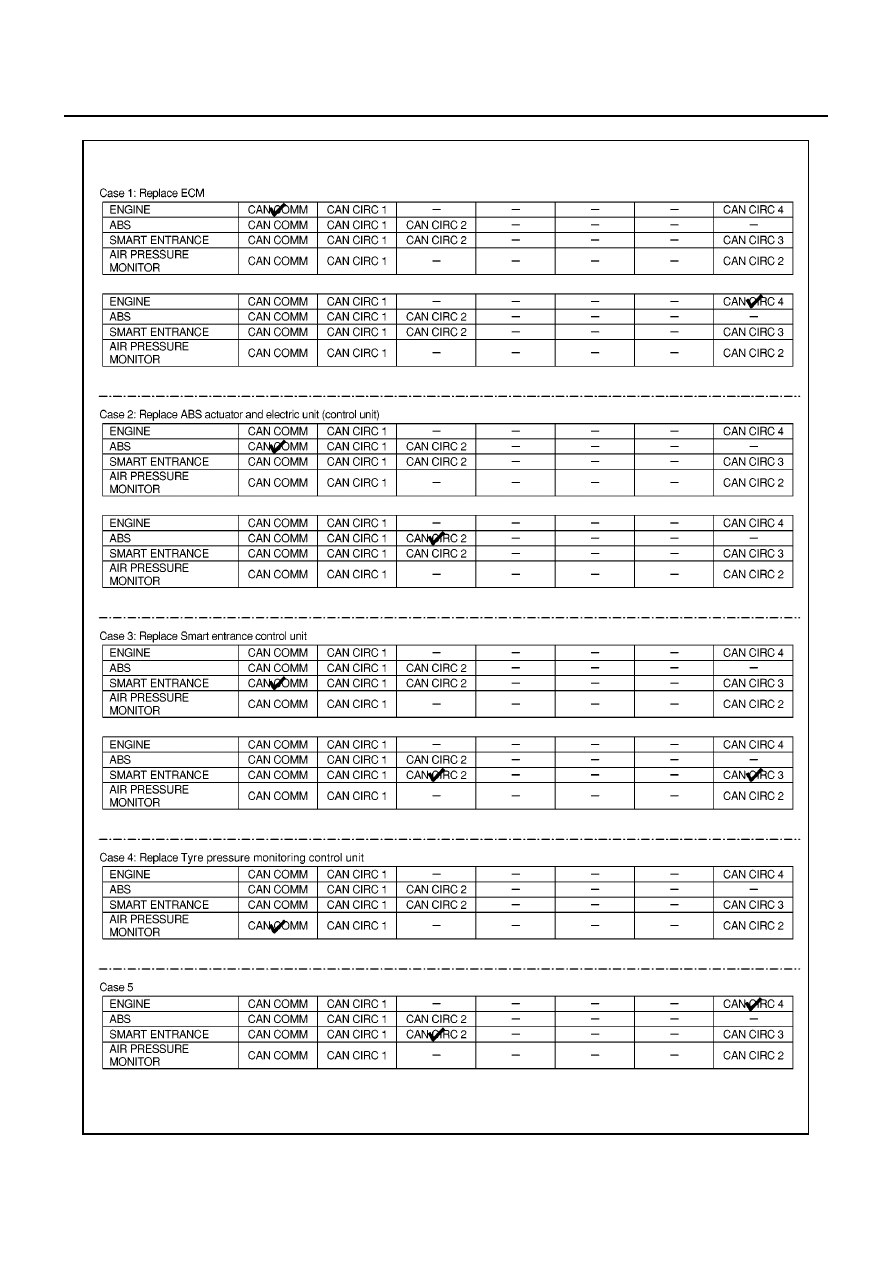

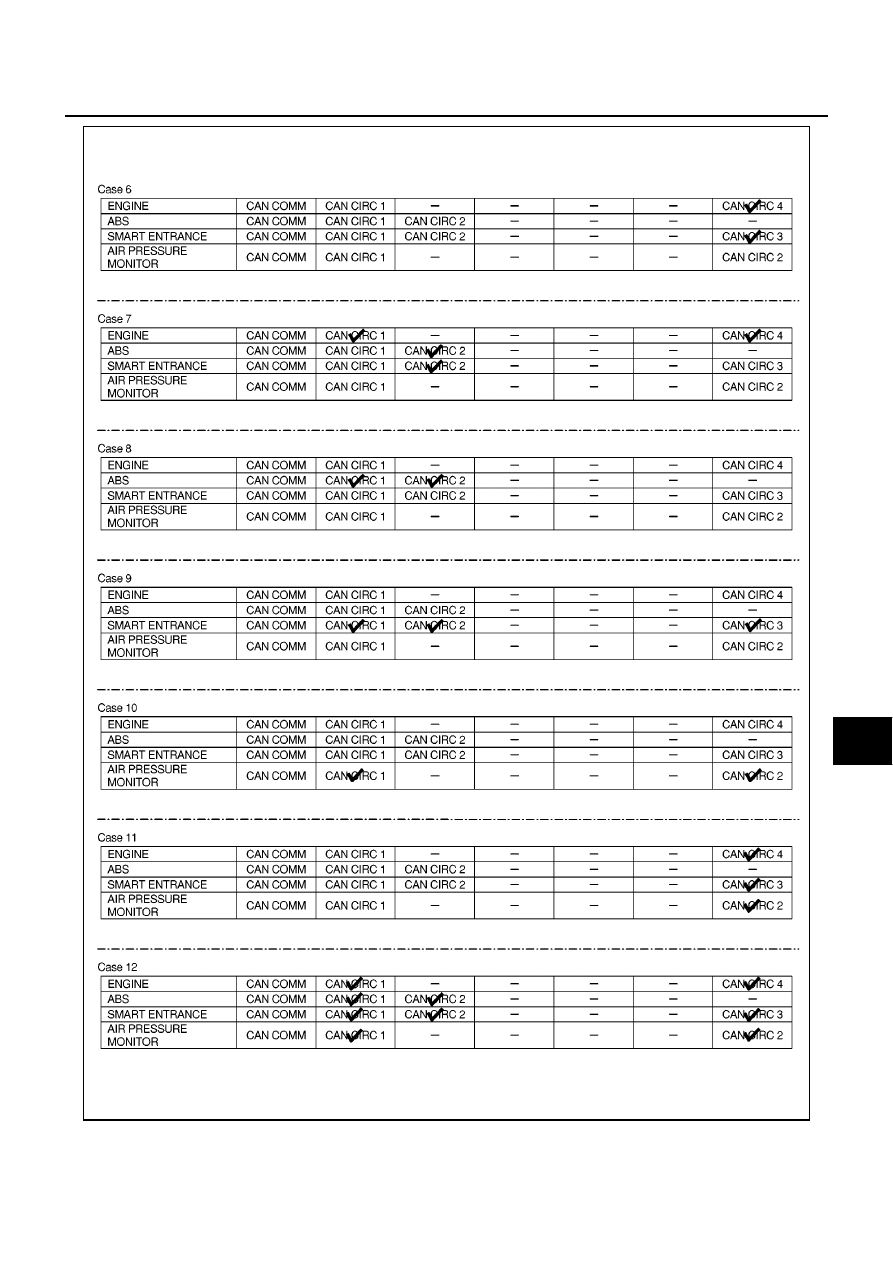

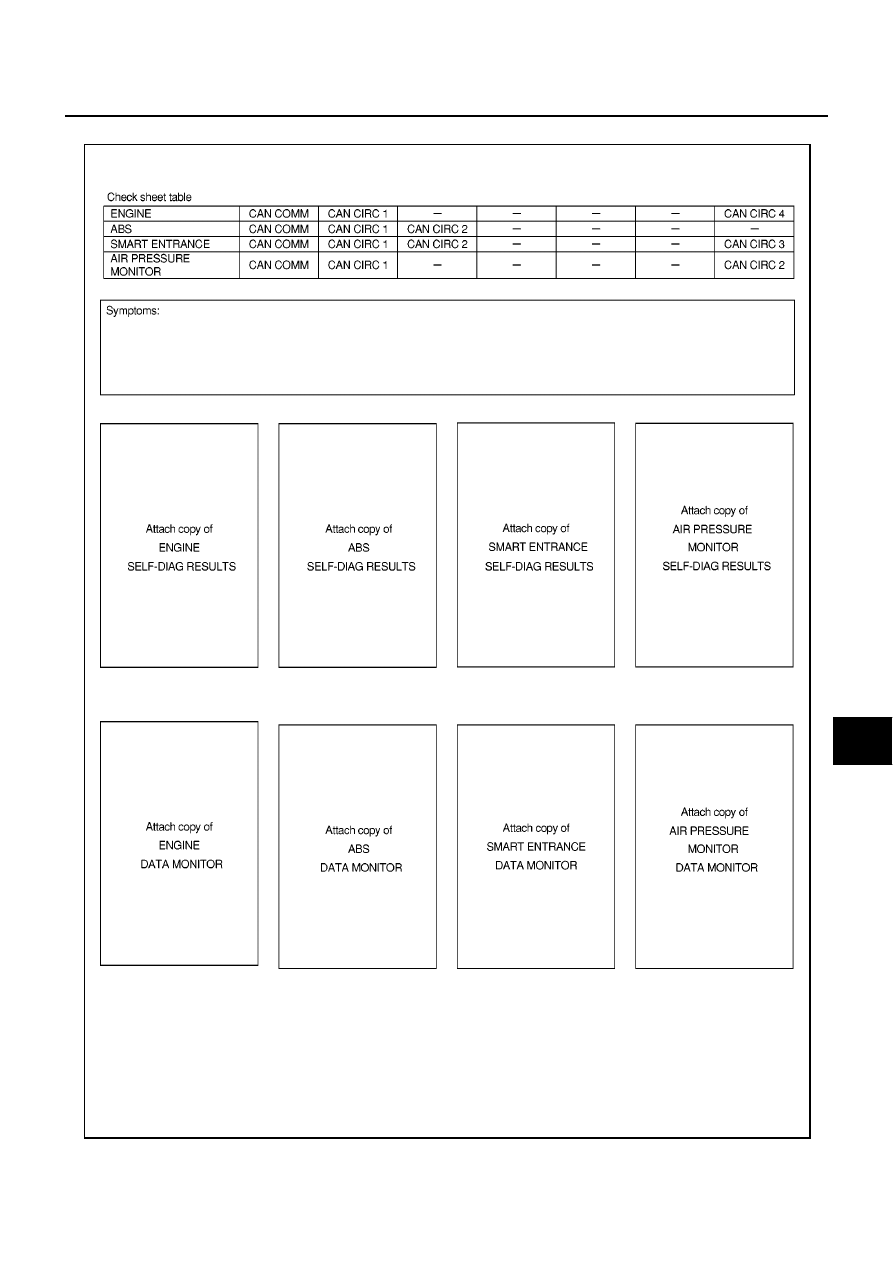

LAN-44 [CAN] CAN SYSTEM (TYPE 23) Work Flow EKS00AQU 1. Print all the data of “SELF-DIAG RESULTS” and “DATA MONITOR” for “ENGINE”, “ABS”, “SMART ● EC-83, "DTC U1000 CAN COMMUNICATION LINE" for “ENGINE” ● BRC-25, "CAN Communication Circuit" for “ABS” ● BCS-23, "CAN Communication Line Check" for “SMART ENTRANCE” ● WT-23, "Inspection 4: CAN Communication Line" for “AIR PRESSURE MONITOR” 2. Attach the printed sheet of “SELF-DIAG RESULTS” and “DATA MONITOR” onto the check sheet. Refer to 3. Based on the data monitor results, put “v” marks onto the items with “UNKWN” or “NG” in the check sheet NOTE: 4. According to the check sheet results (example), start inspection. Refer to |
