Nissan Primera P12. Manual - part 525





LAN-12

[CAN]

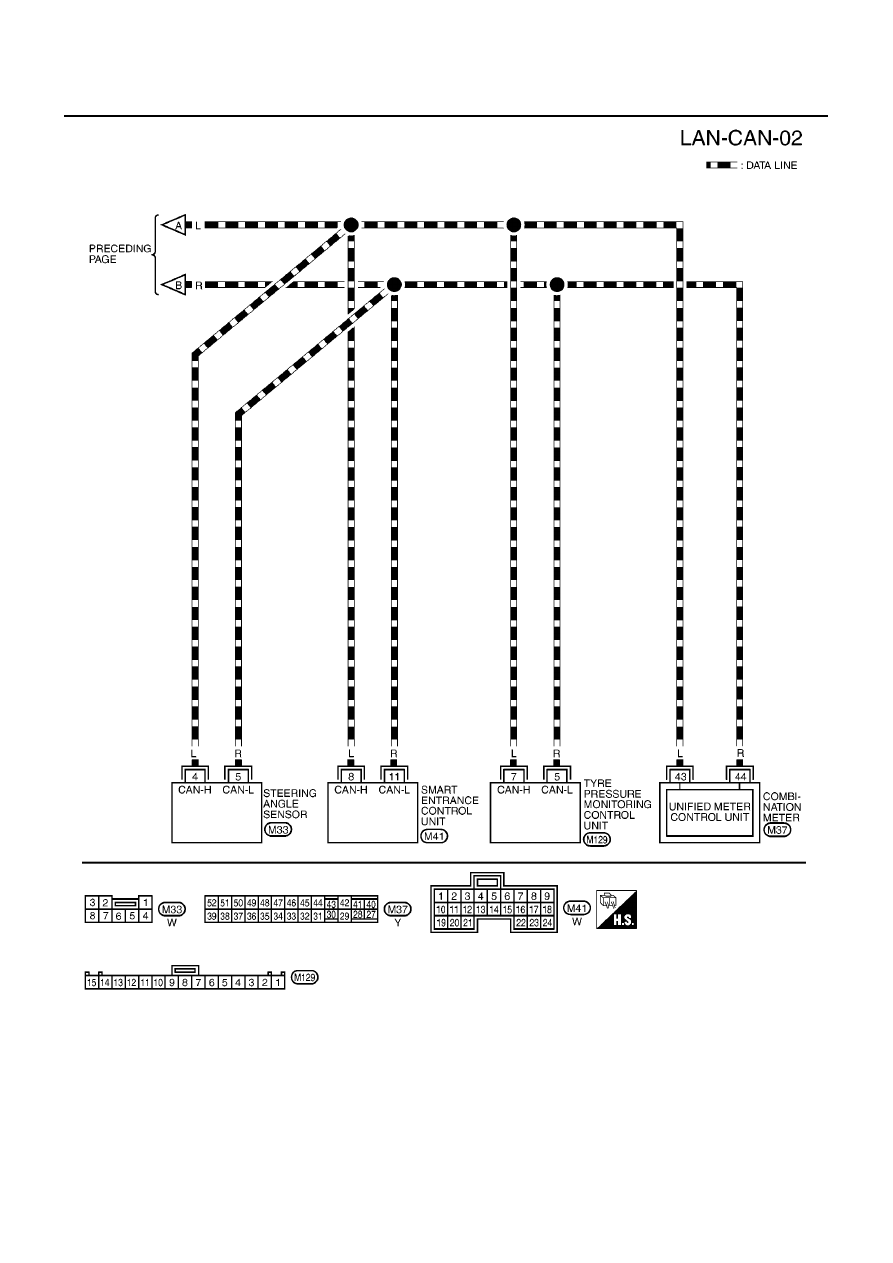

CAN SYSTEM (TYPE 21)

MKWA1716E

CAN SYSTEM (TYPE 21)

LAN-13

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

Work Flow

EKS00AQ4

1.

Print all the data of “SELF-DIAG RESULTS” and “DATA MONITOR” for “ENGINE”, “ABS”, “SMART
ENTRANCE”, and “AIR PRESSURE MONITOR” displayed on CONSULT-II. Refer to the following:

EC-83, "DTC U1000 CAN COMMUNICATION LINE"

for “ENGINE”

BRC-94, "Inspection 15 CAN Communication Circuit, ESP/TCS/ABS Control Unit and Steering Angle
Sensor"

for “ABS”

BCS-23, "CAN Communication Line Check"

for “SMART ENTRANCE”

WT-23, "Inspection 4: CAN Communication Line"

for “AIR PRESSURE MONITOR”.

2.

Attach the printed sheet of “SELF-DIAG RESULTS” and “DATA MONITOR” onto the check sheet. Refer to

LAN-14, "CHECK SHEET"

3.

Based on the data monitor results, put “v” marks onto the items with “UNKWN” or “NG” in the check sheet
table. Refer to

LAN-14, "CHECK SHEET"

NOTE:
If “NG” is displayed on “CAN COMM” for the diagnosed control unit, replace the control unit.

4.

According to the check sheet results (example), start inspection. Refer to

LAN-15, "CHECK SHEET

RESULTS (EXAMPLE)"

LAN-14

[CAN]

CAN SYSTEM (TYPE 21)

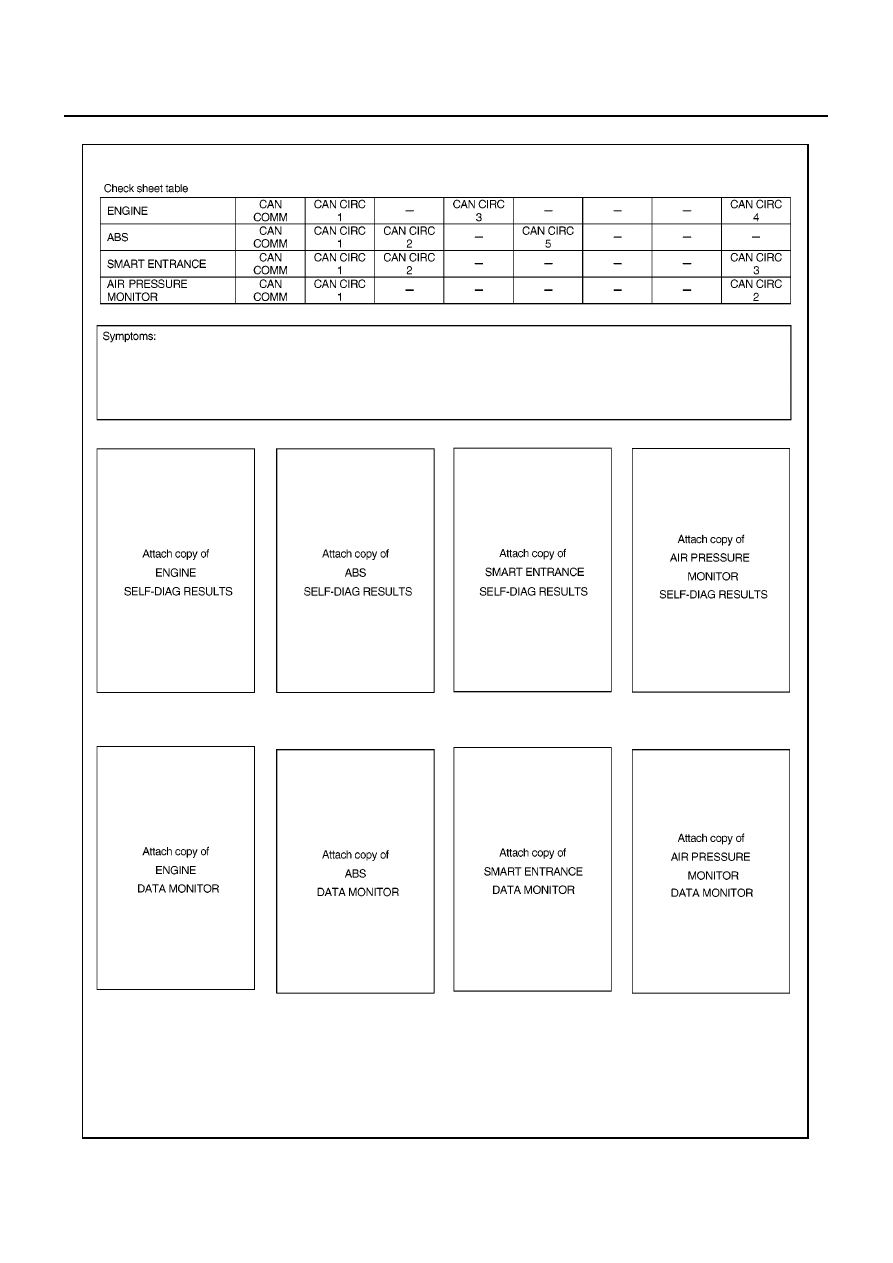

CHECK SHEET

MKIB0604E

CAN SYSTEM (TYPE 21)

LAN-15

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

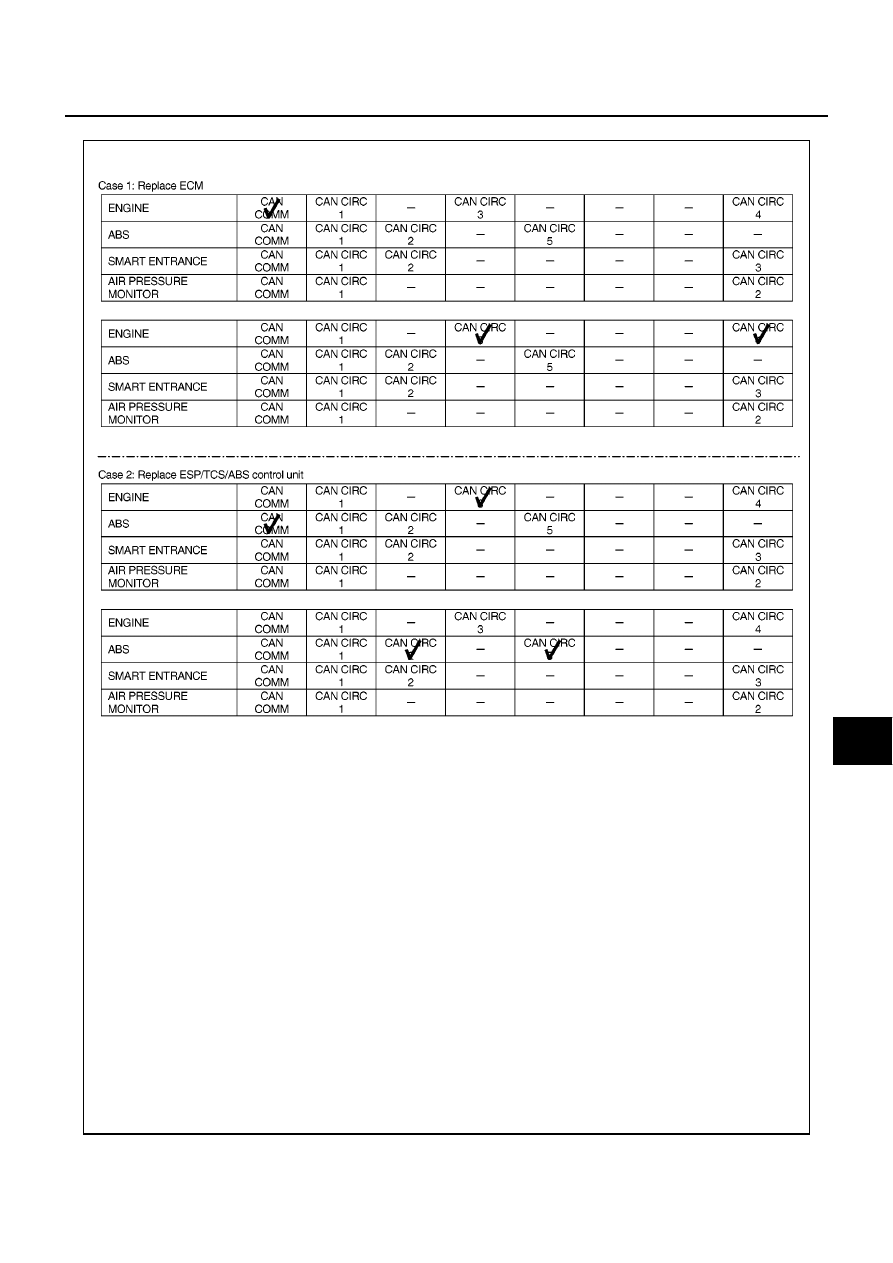

CHECK SHEET RESULTS (EXAMPLE)

MKIB0605E
