Nissan Primera P12. Manual - part 478





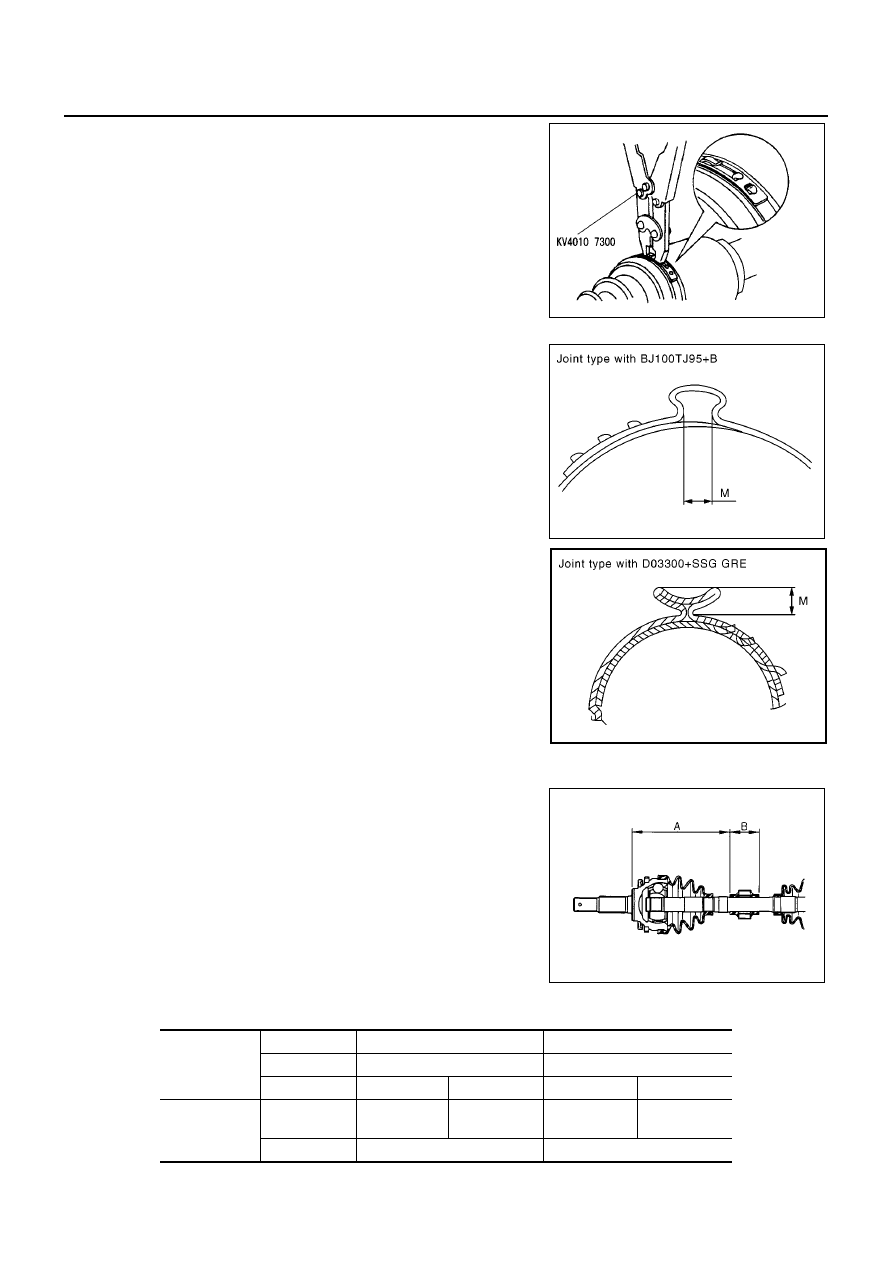

FAX-22

FRONT DRIVE SHAFT

8.

As shown in the figure, secure the big and small ends of the
boot with new boot bands.

9.

Rotate joint part and confirm that mounting position of boot does
not deviate. When it deviates, mount a new boot band again.

CAUTION:

When fixing boot band, fix so that the M diameter on the
drawing becomes as follows.

Dynamic Damper

When dynamic damper has been removed, secure with bands
as shown in the figure so that measurements from fixed-joint
side are as listed below.

CAUTION:

Discard the old dynamic damper: replace with a new one.

Mounting Dimensions

SDIA0876J

M diameter (small ends)

D03300+SSG GRE

: 5mm (0.20 in)

BJ100TJ95+B

: 1.0 - 4.0 (0.04 - 0.16 in)

MDIA0071E

MDIA0072E

FAC0156D

Applied model

Engine

YD22DDTi

F9Q

Transaxle

6-MT

6-MT

Drive shaft

RH

LH

RH

LH

Dimension
mm (in)

“A”

227 - 233

(8.94 - 9.17)

177 - 183

(6.97 - 7.20)

227 - 233

(8.94 - 9.17)

207 - 213

(8.15 - 8.39)

“B”

70 (2.76)

70 (2.76)

SERVICE DATA AND SPECIFICATIONS (SDS)

FAX-23

C

E

F

G

H

I

J

K

L

M

A

B

FAX

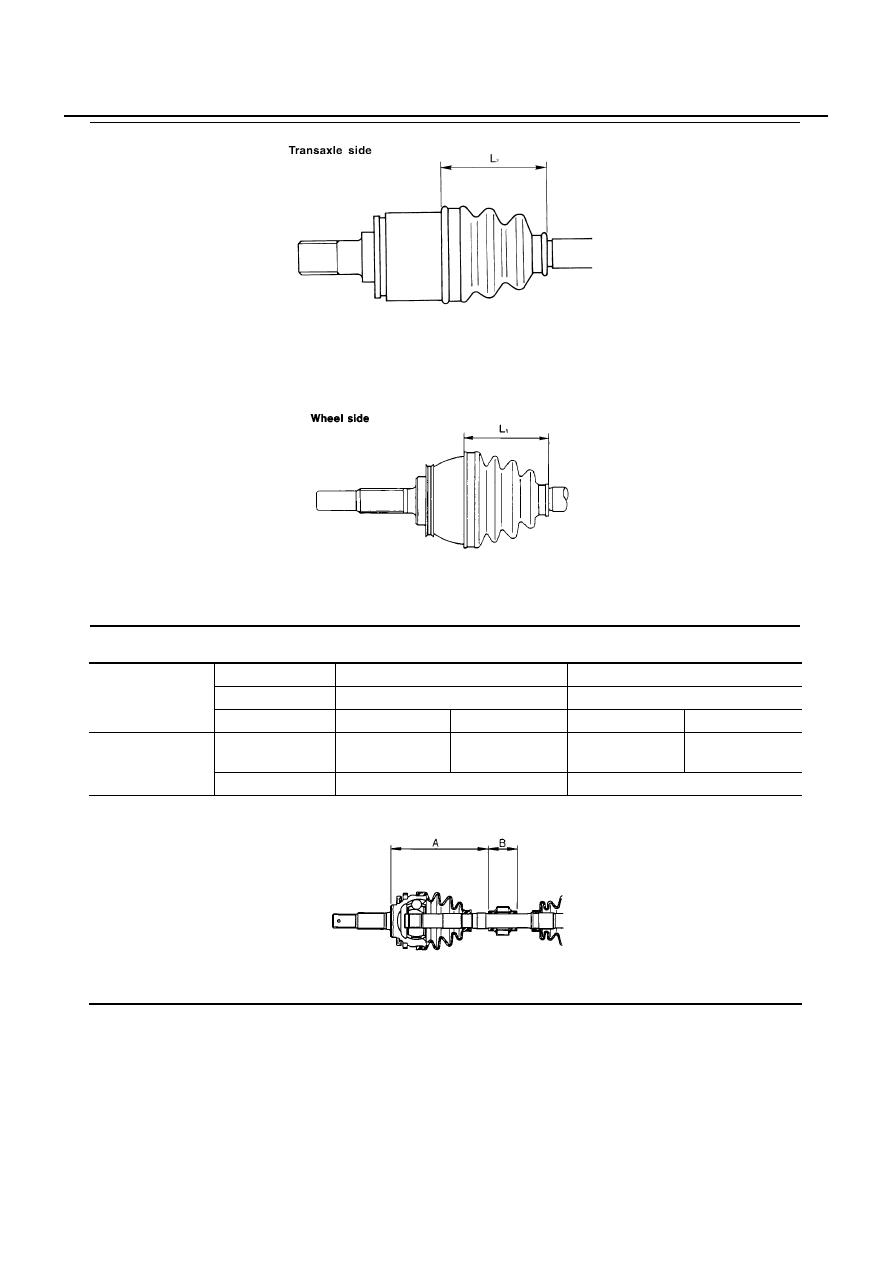

SERVICE DATA AND SPECIFICATIONS (SDS)

PFP:00030

Wheel Bearing

EDS0015R

Drive Shaft

EDS0015S

Drive type

2WD

Rotation torque

1.645 N·m (0.168 kg-m,15 in-lb) or less

Spring balance reading

10.3 N (1.05 kg, 2.3 lb) or less

Installation location of spring scale

Axial end play

0.045 - 0.065 mm (0.0018 - 0.0026 in) or less

SDIA0221J

Applied
model

Engine

YD22DDTi

F9Q

Transaxle

6-MT

6-MT

Joint type

Transaxle side

39711-AV610
39711-AV615

(D03300+SSG)

39771-AW312

39711-AW312

(TJ95B0230)

Wheel side

39211-AV610

(D03300+SSG)

39211-AW300

(BJ100LACB0258)

Grease
capacity
g (oz)

Transaxle side

215.0 - 225.0

(7.58 - 7.94)
SSG grease

160 - 180

(5.64 - 6.35)

Wheel side

Joint

40 - 50 (1.41 - 1.76)

130 - 150

(4.59 - 5.29)

Boot

70 - 80 (2.47 - 2.82)

Boot length
mm (in)

Transaxle side “L

2

105 (4.13)

Wheel side “L

1

105 - 106 (4.13 - 4.17)

FAX-24

SERVICE DATA AND SPECIFICATIONS (SDS)

Dynamic Damper

EDS0015T

SFA961AA

SFA962A

Applied model

Engine

YD22DDTi

F9Q

Transaxle

6-MT

6-MT

Drive shaft

RH

LH

RH

LH

Dimension
mm (in)

“A”

227 - 233

(8.94 - 9.17)

177 - 183

(6.97 - 7.20)

227 - 233

(8.94 - 9.17)

207 - 213

(8.15 - 8.39)

“B”

70 (2.76)

70 (2.76)

FAC0156D

FL-1

FUEL SYSTEM

B ENGINE

CONTENTS

C

D

E

F

G

H

I

J

K

L

M

SECTION

A

FL

FUEL SYSTEM

PREPARATION ........................................................... 2

Commercial Service Tools ........................................ 2

FUEL SYSTEM ........................................................... 3

Checking Fuel Lines ................................................. 3
General Precautions ................................................ 3

FUEL FILTER (YD22DDTI) ......................................... 4

Removal and Installation .......................................... 4

REMOVAL ............................................................. 4
INSTALLATION ..................................................... 4
INSPECTION AFTER INSTALLATION ................. 4

Air Bleeding .............................................................. 5
Draining Water ......................................................... 5

FUEL FILTER (F9Q) ................................................... 6

Removal and Installation .......................................... 6

REMOVAL ............................................................. 6
INSTALLATION ..................................................... 6
INSPECTION AFTER INSTALLATION ................. 6

Draining Water ......................................................... 7

FUEL FILTER CHECK .......................................... 7

Air Bleeding .............................................................. 7

FUEL LEVEL SENSOR UNIT (YD22DDTI) ................ 8

Removal and Installation .......................................... 8

REMOVAL ............................................................. 8
INSTALLATION ................................................... 10
INSPECTION AFTER INSTALLATION ................ 10

FUEL LEVEL SENSOR UNIT (F9Q) ......................... 11

Removal and Installation ........................................ 11

REMOVAL ........................................................... 11
INSTALLATION ................................................... 13

FUEL TANK (YD22DDTI) .......................................... 14

Removal and Installation ........................................ 14

REMOVAL ........................................................... 14
INSTALLATION ................................................... 15
INSPECTION AFTER INSTALLATION ................ 16

FUEL TANK (F9Q) .................................................... 17

Removal and Installation ........................................ 17

REMOVAL ........................................................... 17
INSTALLATION ................................................... 19

SERVICE DATA AND SPECIFICATIONS (SDS) ...... 20

Standard and Limit .................................................. 20
Tightening Torque ................................................... 20
