Nissan Primera P12. Manual - part 465





EM-206

[F9Q]

OVERHAUL

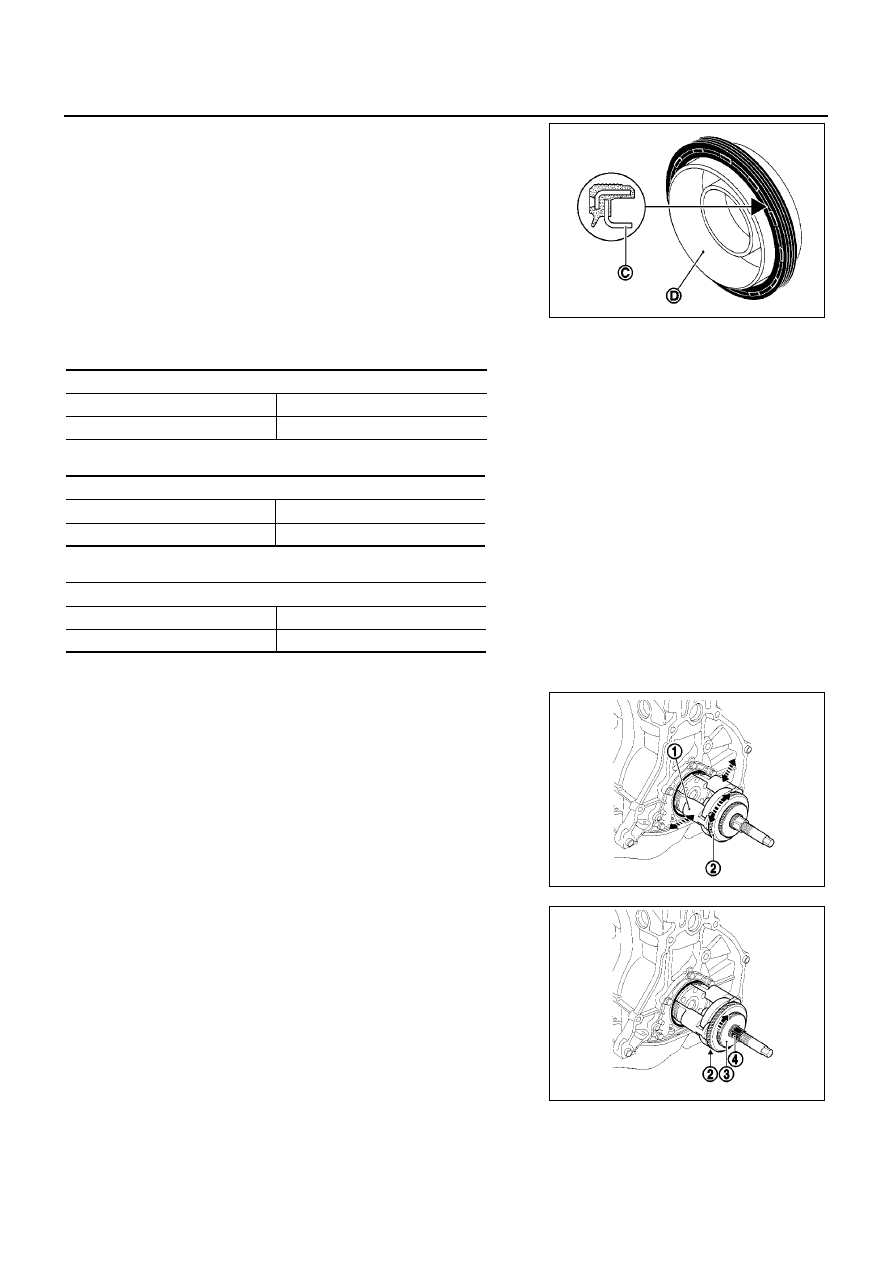

The new elastomer seal has a flat sealing lip (C) and a protector
(D) which also assists in installing the seal to the engine.

Tool for installing old type elastomer seal

Tool for installing new type elastomer seal

Tool for removing new type elastomer seal

Removal of Crankshaft Seal

1.

This procedure is applicable for crankshaft seal.

2.

Install the extractor tool onto the shaft by adjusting plungers (1)
to the shaft diameter with knurled back-plate (2).

3.

Tighten knurled back-plate (3) until it locks on knurled back-plate
(2) to keep the plungers correctly adjusted on the shaft.

4.

Screw extractor tool into the seal using hexagon bar (4).

MBIB0429E

Tool for the crankshaft seal

Timing end

Flywheel end

KV113B0260 (Mot. 990-03)

KV113B0270 (Mot. 991-01)

Tool for the crankshaft seal

Timing end

Flywheel end

KV113B0480 (Mot. 1636)

KV113B0470 (Mot. 1635)

Tool for the crankshaft seal

Timing end

Flywheel end

KV113B0440 (Mot. 1577)

KV113B0460 (Mot. 1579)

MBIB0822E

MBIB0823E

OVERHAUL

EM-207

[F9Q]

C

D

E

F

G

H

I

J

K

L

M

A

EM

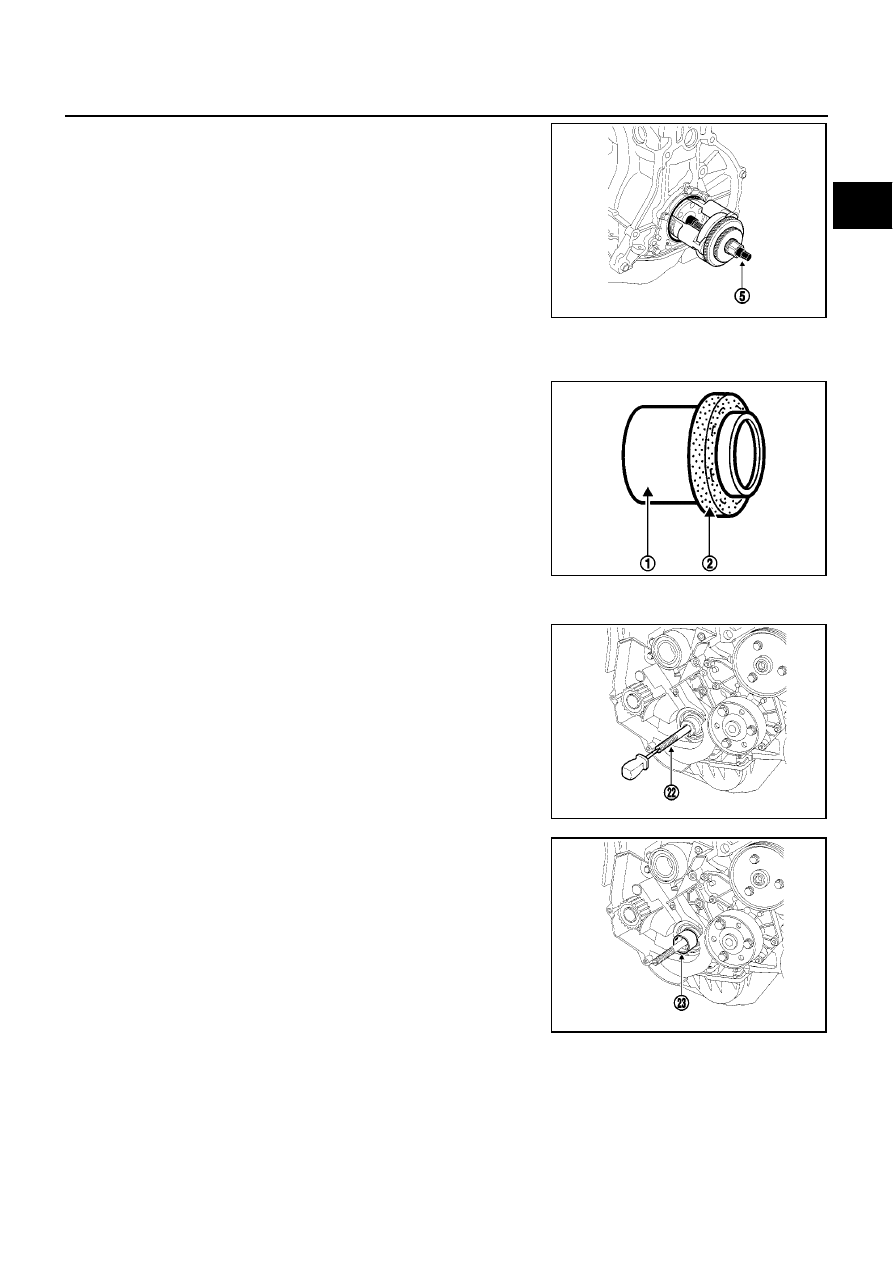

5.

Extract the seal by tightening threaded rod (5).

Installation of New Type Crankshaft Seal

CAUTION:

This type of seal is extremely fragile. Only touch the protector
part (1) when handling the gasket. It is strictly forbidden to
touch the seal (2). This is to ensure that there will be no oil
leaks once the gasket is installed on the engine.

NOTE:
This new seal must be installed using the tooling mentioned previ-
ously.

Crankshaft Seal (Timing End)

1.

Screw the threaded rod (22) of Tool KV113B0480 (Mot. 1636)
into the crankshaft.

2.

Install spacer (23) of Tool KV113B0480 (Mot. 1636) to the crank-
shaft.

MBIB0824E

MBIB0825E

MBIB0826E

MBIB0827E

EM-208

[F9Q]

OVERHAUL

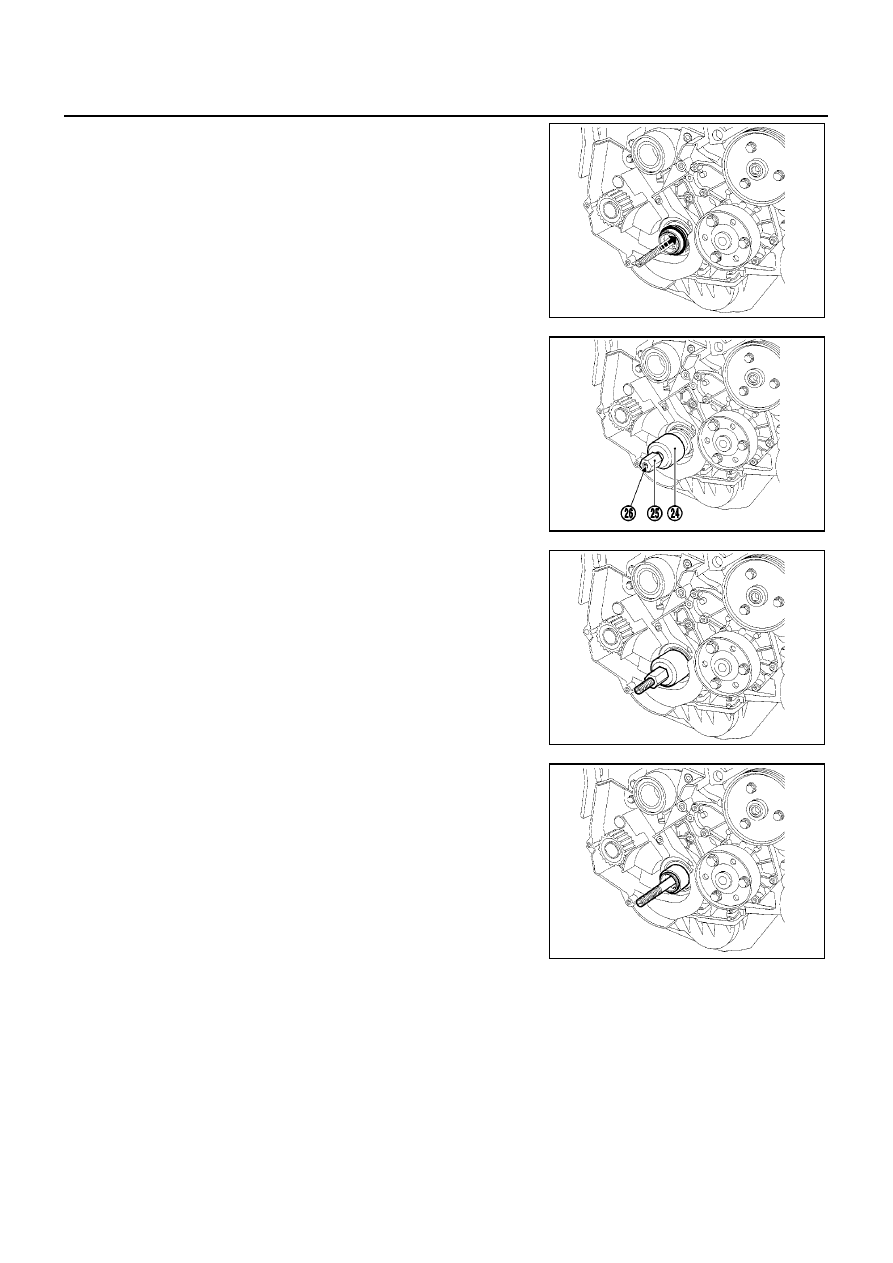

3.

Install the protector complete with the seal onto the spacer, tak-
ing care not to touch the seal.

4.

Install cup (24) and nut (25) (putting threaded hole (26) of the
nut on the side facing away from the engine) of Tool
KV113B0480 (Mot. 1636).

5.

Tighten the nut until the cover touches the spacer.

6.

Remove the nut, the cup, the protector, the spacer and the
threaded rod.

Crankshaft Seal (Flywheel End)

MBIB0828E

MBIB0829E

MBIB0830E

MBIB0831E

OVERHAUL

EM-209

[F9Q]

C

D

E

F

G

H

I

J

K

L

M

A

EM

7.

Install Tool KV113B0470 (Mot. 1635) on the crankshaft, attach-
ing it with bolts (27).

8.

Install

the

protector

complete

with

the

seal

onto

Tool

KV113B0470 (Mot. 1635), being careful not to touch the seal.

9.

Install cup (28) and nut (29) [putting the threaded hole (30) of
the nut on the side facing away from the engine] of Tool
KV113B0470 (Mot. 1635).

10. Tighten the nut until the cup makes contact with the base plate

of Tool KV113B0470 (Mot. 1635).

MBIB0832E

MBIB0833E

MBIB0834E

MBIB0835E
