EM-166

[F9Q]

ENGINE ASSEMBLY

Use a manual lift table caddy (commercial service tool) or equiv-
alently rigid tool such as a jack or trestle. Securely support bot-
tom of engine and transaxle.

CAUTION:

Put a piece of wood or something similar as the supporting
surface, secure a completely stable condition.

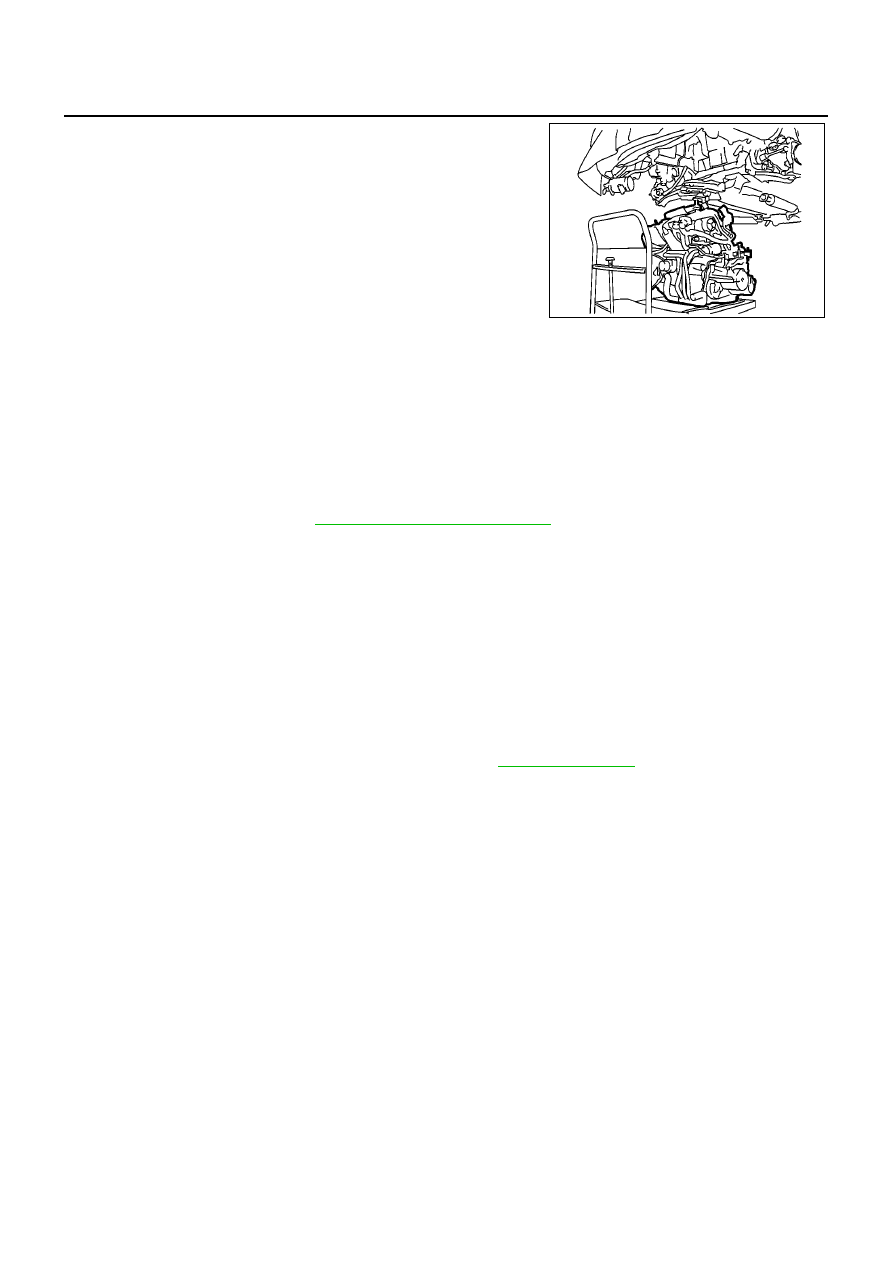

26. Remove RH and LH engine mounting bolts.

27. Remove engine and transaxle assembly from vehicle downward

by carefully operating supporting tools.

CAUTION:

During the operation, make sure that no part interferes
with body side.

Before and during this lifting, always check if any harnesses are left connected.

During the removal operation, always be careful to prevent vehicle from falling off the lift due to
changes in the center of gravity.

If necessary, support vehicle by setting a jack or equivalent tool at the rear.

Separation Work

CAUTION:

During the operation, secure support the engine by placing a piece of wood under the engine oil pan,
transaxle oil pan and suspended the engine slinger by baby crane (movable hoist) etc.

28. Remove starter motor. Refer to

SC-24, "Removal and Installation"

.

29. Separate engine and transaxle.

INSTALLATION

Install in the reverse order of removal.

Do not allow oil to get on mounting insulator. Be careful not to damage mounting insulator.

When installation directions are specified, install parts according to the direction marks on them referring
to components illustration.

Make sure that each mounting insulator is seated properly, and tighten mounting bolts and nuts.

INSPECTION AFTER INSTALLATION

Before starting engine check the levels of coolant, lubrications and working oils. If less than required
quantity, fill to the specified level.

Before starting engine, bleed air from fuel piping. Refer to

FL-7, "Air Bleeding"

.

Run engine to check for unusual noise and vibration.

Warm up engine thoroughly to make sure there is no leakage of coolant, lubricants, working oil, fuel and
exhaust gas.

Bleed air from passages in pipes and tubes of applicable lines.

MBIB0974E

OVERHAUL

EM-167

[F9Q]

C

D

E

F

G

H

I

J

K

L

M

A

EM

OVERHAUL

PFP:00000

Tightening Torque

EBS00SBJ

UPPER ENGINE

Unit: N·m (kg-m, ft-lb)
Unit: N·m (kg-m, in-lb)*

2

*1: Refer to tightening procedure in the text.

LOWER ENGINE

Unit: N·m (kg-m, ft-lb)
Unit: N·m (kg-m, in-lb)*

2

Description

Tightening torques

Rocker cover bolt

*1

Camshaft bearing beam bolt

20 (2.0, 15)

Camshaft pulley bolt

60 (6.1, 44)

Cylinder head bolt

*1

Glow plug

15 (1.5, 11)

Front engine slinger

20 (2.0, 15)

Rear engine slinger

13 (1.3, 10)

Injector clamp bolt

30 (3.1, 22)

Vacuum pump mounting bolt

23 (2.3, 17)

Water outlet mounting bolt

8 (0.8, 71)*

2

Camshaft position sensor bolt

9 (0.9, 80)*

2

EGR control valve mounting bolt

9 (0.9, 80)*

2

Intake and exhaust manifold nut

28 (2.9, 21)

Thermal unit mounting bolt

8 (0.8, 71)*

2

Description

Tightening torques

Oil pressure switch

38 (3.9, 28)

Oil level sensor

30 (3.1, 22)

Crankshaft pulley bolt

20 (2.0, 15) + 115

°±

15

°

(Angle tightening)

Bolts on crankshaft bearing cap (tightening order: 3-4-2-5-1)

20 (2.0, 15) + 62

°±

4

°

(Angle tightening)

Connecting rod cap bolt

20 (2.0, 15) + 40

°±

6

°

(Angle tightening)

Oil pump bolt

24 (2.4, 18)

Front cover bolt

14 (1.4, 10)

Oil pan bolt

*1

Double mass flywheel bolt

30 (3.1, 22) + 56

°±

6

°

(Angle tightening)

Clutch bolt

20 (2.0, 15)

Bolt of water pump driven by the timing belt

10 (1.0, 87)*

2

Timing belt tensioner plate bolt

10 (1.0, 87)*

2

Timing belt tensioner nut

50 (5.1, 37)

Engine coolant inlet pipe mounting bolt

10 (1.0, 87)*

2

Engine coolant pipe mounting bolt

40 (4.1, 30)

Alternator bracket bolt

50 (5.1, 37)

Power steering oil pump bolt

25 (2.6, 18)

A/C compressor bolt

25 (2.6, 18)

Alternator bolt

25 (2.6, 18)

TDC plug

20 (2.0, 15)

Turbocharger mounting nut

24 (2.4, 18)

EM-168

[F9Q]

OVERHAUL

*1: Refer to tightening procedure in the text.

Standard Replacement

EBS00SBK

PREPARING USED ENGINE

The engine should be cleaned and drained (oil and water).
Leave on the used engine or include in the return box:

Oil filter

Oil pressure switch

Water pump

High pressure pump

Rail

Injector

Glow plug

Oil trap

Oil level gauge (with oil filler cap)

Vacuum pump

Flywheel

Clutch

Remember to remove:

Coolant pipe

Intake and exhaust manifold

Alternator

Power steering pump

A/C compressor

A/C compressor bracket

Oil level sensor

Cylinder head coolant outlet unit

The used engine should be secured to the base under the same conditions as the overhauled engine:

Plastic plug and cover installed

Cardboard cover over the assembly

Turbocharger oil inlet union (cylinder block end)

23 (2.3, 17)

Turbocharger oil inlet union (pipe end)

24 (2.4, 18)

Turbocharger oil inlet union (turbocharger end)

26 (2.7, 19)

Mounting bolts on turbocharger oil return pipe (turbocharger end)

12 (1.2, 9)

Exhaust stay bolt:
— M8
— M10

24 (2.4, 18)
43 (4.4, 32)

Baffle plate mounting bolt

24 (2.4, 18)

Auto-tensioner mounting bolt

43 (4.4, 32)

Description

Tightening torques

OVERHAUL

EM-169

[F9Q]

C

D

E

F

G

H

I

J

K

L

M

A

EM

Disassembly of Upper Engine

EBS00SBL

DISASSEMBLY

1.

Engine installed with a water pump driven by the timing belt.

2.

Remove the EGR tube.

3.

Remove the front engine slinger.

4.

Remove the intake and exhaust manifold.

5.

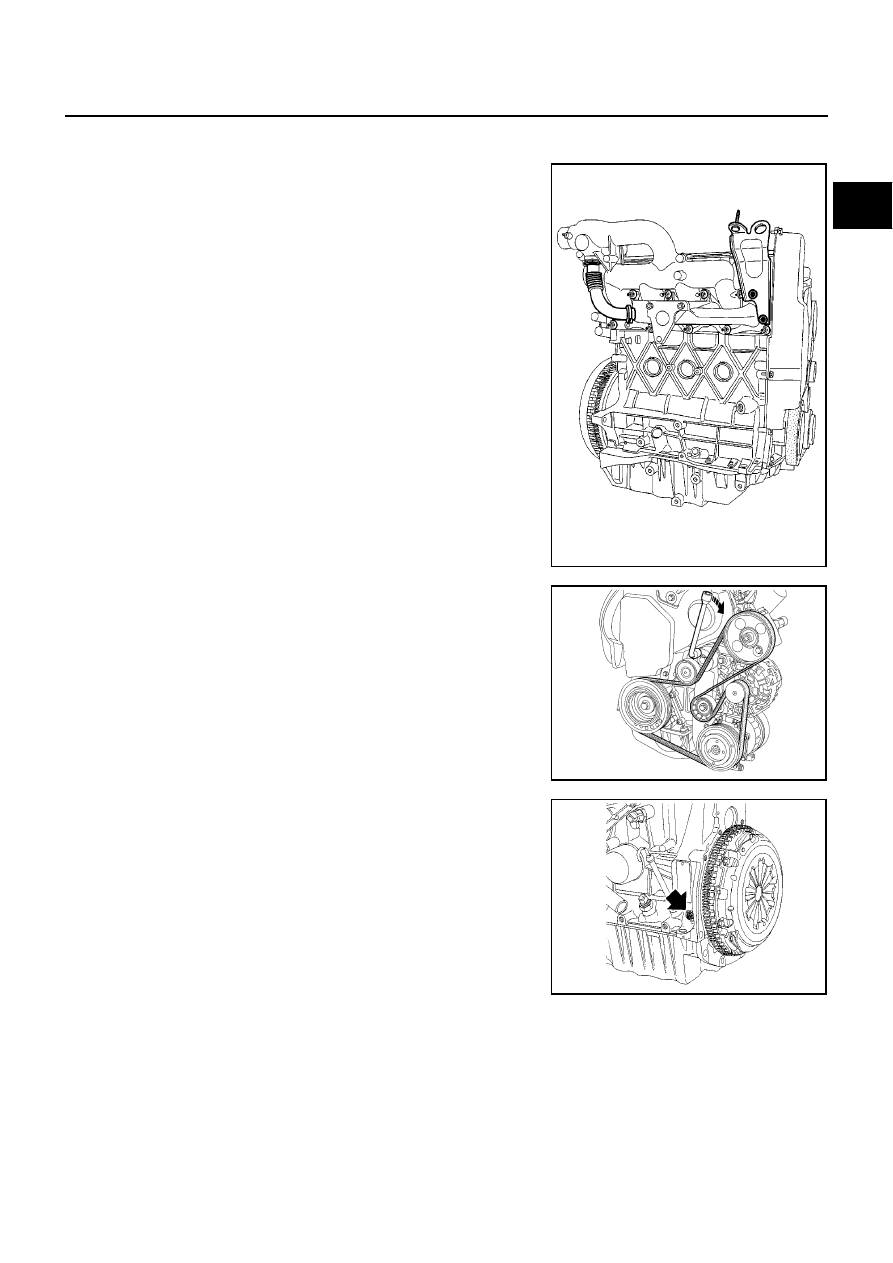

Remove the drive belt by turning the spanner to the right to
loosen the belt as shown.

6.

Remove the TDC plug.

TIMING ADJUSTMENT

1.

Rotate the crankshaft in clockwise direction at the timing end.

2.

Once the mark on the camshaft pulley is located half a cog before the protecting metal sheet push on the
TDC setting and Tool KV113B0280 (Mot. 1054) until camshaft is lifted.

MBIB0713E

MBIB0714E

MBIB0715E
