Nissan Primera P12. Manual - part 342





DTC P0652, P0653 SENSOR POWER SUPPLY

EC-553

[YD (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

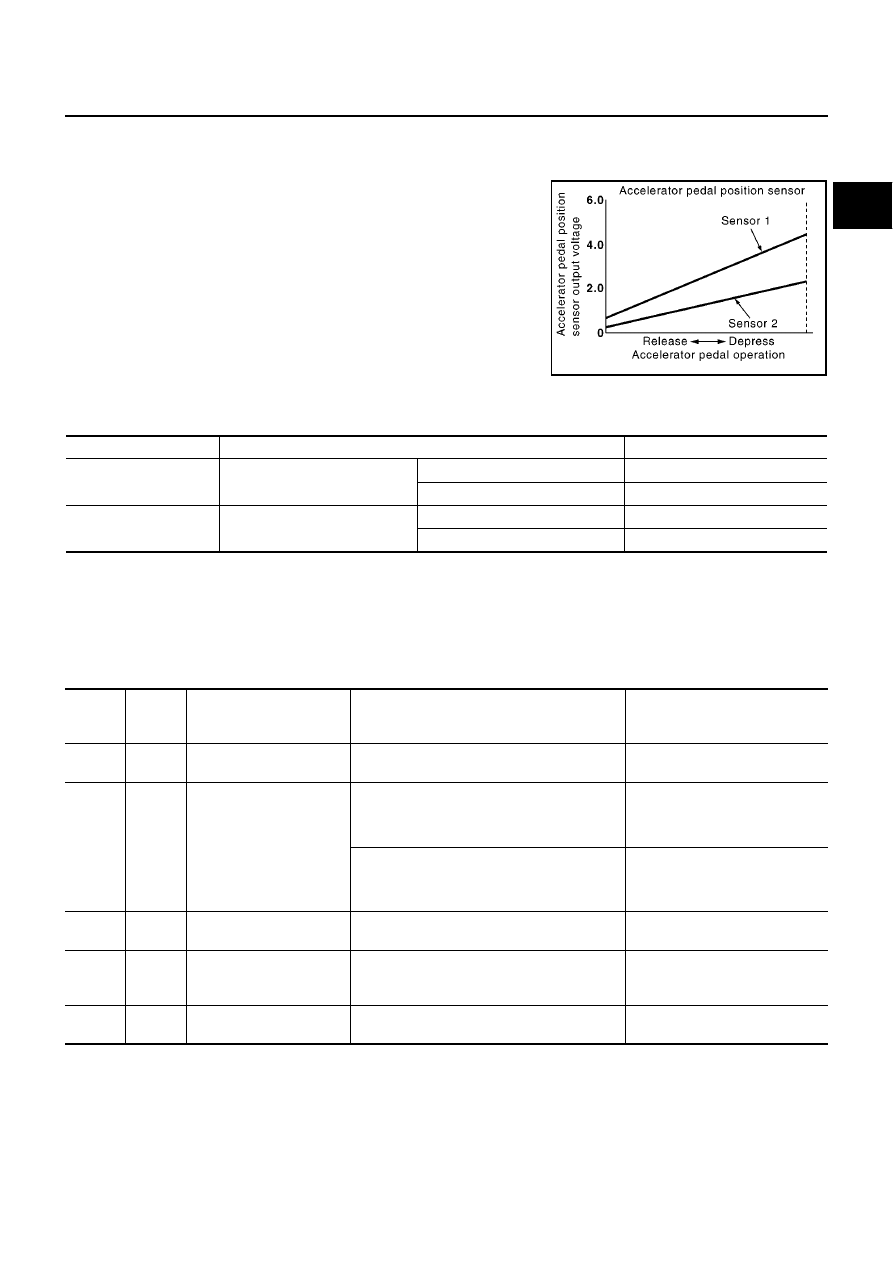

DTC P0652, P0653 SENSOR POWER SUPPLY

PFP:18002

Description

EBS0159H

The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensors detect the accelera-
tor pedal position and sends a signal to the ECM. The ECM uses the
signal to determine the amount of fuel to be injected.

CONSULT-II Reference Value in Data Monitor Mode

EBS0159I

Specification data are reference values.

*: This signal is converted by ECM internally. Thus, it differs from ECM terminal voltage.

ECM Terminals and Reference Value

EBS0159J

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

PBIB1741E

MONITOR ITEM

CONDITION

SPECIFICATION

ACCEL POS SEN*

Ignition switch: ON
(Engine stopped)

Accelerator pedal: fully released

0.2 - 0.7V

Accelerator pedal: fully depressed

3.9 - 4.9V

ACCEL SEN 2*

Ignition switch: ON
(Engine stopped)

Accelerator pedal: fully released

0.1 - 0.4V

Accelerator pedal: fully depressed

1.9 - 2.4V

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA

(DC Voltage)

82

L/R

Accelerator pedal position
sensor 1 power supply

[Ignition switch ON]

Approximately 5.3V

83

L/W

Accelerator pedal position
sensor 1

[Ignition switch ON]

Engine stopped

Accelerator pedal fully released

0.5 - 1.0V

[Ignition switch ON]

Engine stopped

Accelerator pedal fully depressed

4.2 - 5.2V

84

L

Accelerator pedal position
sensor 1 ground

[Ignition switch ON]

Approximately 0.3V

85

Sensor ground
(Accelerator pedal posi-
tion sensor shield circuit)

[Ignition switch ON]

Approximately 0.3V

90

R

Accelerator pedal position
sensor 2 power supply

[Ignition switch ON]

Approximately 5.3V

EC-554

[YD (WITHOUT EURO-OBD)]

DTC P0652, P0653 SENSOR POWER SUPPLY

On Board Diagnosis Logic

EBS0159K

The MI will not light up for these self-diagnoses.

DTC Confirmation Procedure

EBS0159L

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

WITH CONSULT-II

1.

Turn ignition switch ON.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Wait at least 5 seconds.

4.

If DTC is detected, go to

EC-556, "Diagnostic Procedure"

.

91

W

Accelerator pedal position
sensor 2

[Ignition switch ON]

Engine stopped

Accelerator pedal fully released

0.4 - 0.7V

[Ignition switch ON]

Engine stopped

Accelerator pedal fully depressed

2.2 - 2.7V

92

B

Accelerator pedal position
sensor 2 ground

[Ignition switch ON]

Approximately 0.3V

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA

(DC Voltage)

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0652

Accelerator pedal position
sensor 2 power supply cir-
cuit low

ECM detects a voltage of power source for the
APP sensor 2 is excessively low.

Harness or connectors
(The APP sensor 2 power supply cir-
cuit is open or shorted.)

Accelerator pedal position sensor
(Accelerator pedal position sensor 2)

P0653

Accelerator pedal position
sensor 2 power supply cir-
cuit high

ECM detects a voltage of power source for the
APP sensor 2 is excessively high.

SEF817Y

DTC P0652, P0653 SENSOR POWER SUPPLY

EC-555

[YD (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

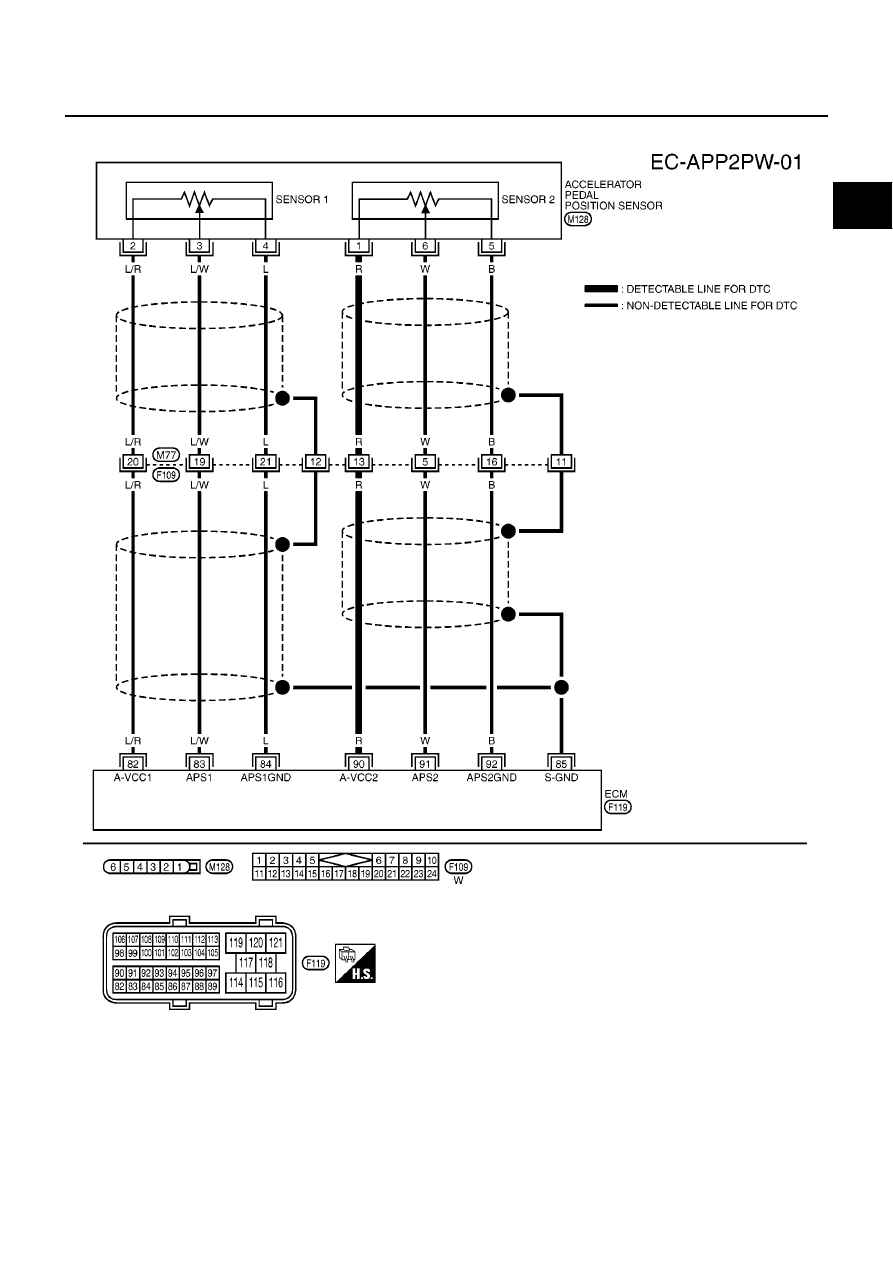

Wiring Diagram

EBS0159M

MBWA0435E

EC-556

[YD (WITHOUT EURO-OBD)]

DTC P0652, P0653 SENSOR POWER SUPPLY

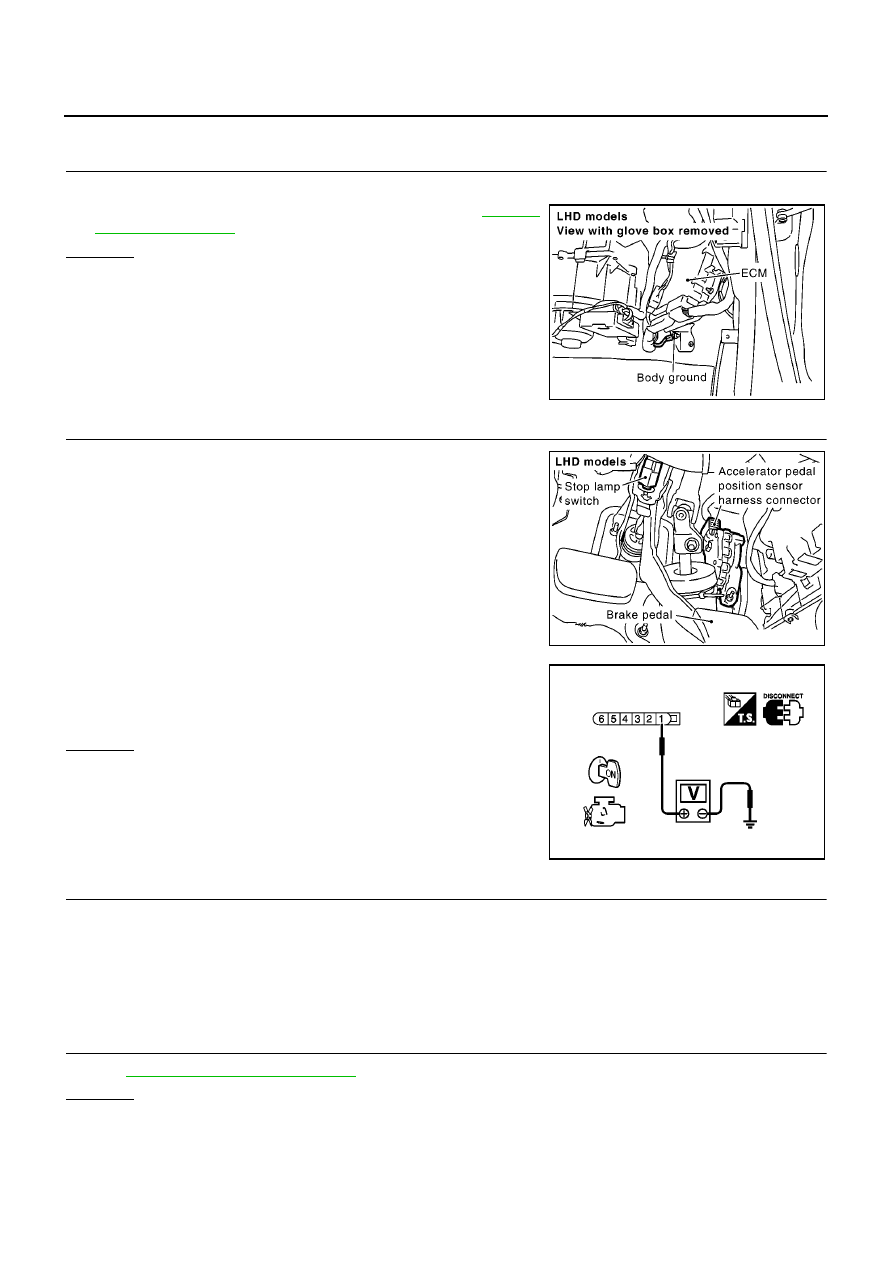

Diagnostic Procedure

EBS0159N

1.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

Loosen and retighten engine ground screws. Refer to

EC-415,

"Ground Inspection"

.

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace ground connections.

2.

CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT

1.

Disconnect accelerator pedal position (APP) sensor harness
connector.

2.

Turn ignition switch ON.

3.

Check voltage between APP sensor terminal 1 and ground with
CONSULT-II or tester.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 3.

3.

DETECT MALFUNCTIONING PART

Check the following.

Harness connectors M77, F109

Harness for open or short between ECM and APP sensor

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK APP SENSOR

Refer to

EC-557, "Component Inspection"

.

OK or NG

OK

>> GO TO 5.

NG

>> Replace accelerator pedal assembly.

MBIB0915E

MBIB0903E

Voltage: Approximately 5.3V

PBIB0812E
