DTC P0642, P0643 SENSOR POWER SUPPLY

EC-549

[YD (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

On Board Diagnosis Logic

EBS0159B

The MI will not light up for these self-diagnoses.

DTC Confirmation Procedure

EBS0159C

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

WITH CONSULT-II

1.

Turn ignition switch ON.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Wait at least 5 seconds.

4.

If DTC is detected, go to

EC-551, "Diagnostic Procedure"

.

91

W

Accelerator pedal position
sensor 2

[Ignition switch ON]

Engine stopped

Accelerator pedal fully released

0.4 - 0.7V

[Ignition switch ON]

Engine stopped

Accelerator pedal fully depressed

2.2 - 2.7V

92

B

Accelerator pedal position
sensor 2 ground

[Ignition switch ON]

Approximately 0.3V

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA

(DC Voltage)

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0642

Accelerator pedal position
sensor 1 power supply cir-
cuit low

ECM detects a voltage of power source for the
APP sensor 1 is excessively low.

Harness or connectors
(The APP sensor 1 power supply cir-
cuit is open or shorted.)

Accelerator pedal position sensor
(Accelerator pedal position sensor 1)

P0643

Accelerator pedal position
sensor 1 power supply cir-
cuit high

ECM detects a voltage of power source for the
APP sensor 1 is excessively high.

SEF817Y

EC-550

[YD (WITHOUT EURO-OBD)]

DTC P0642, P0643 SENSOR POWER SUPPLY

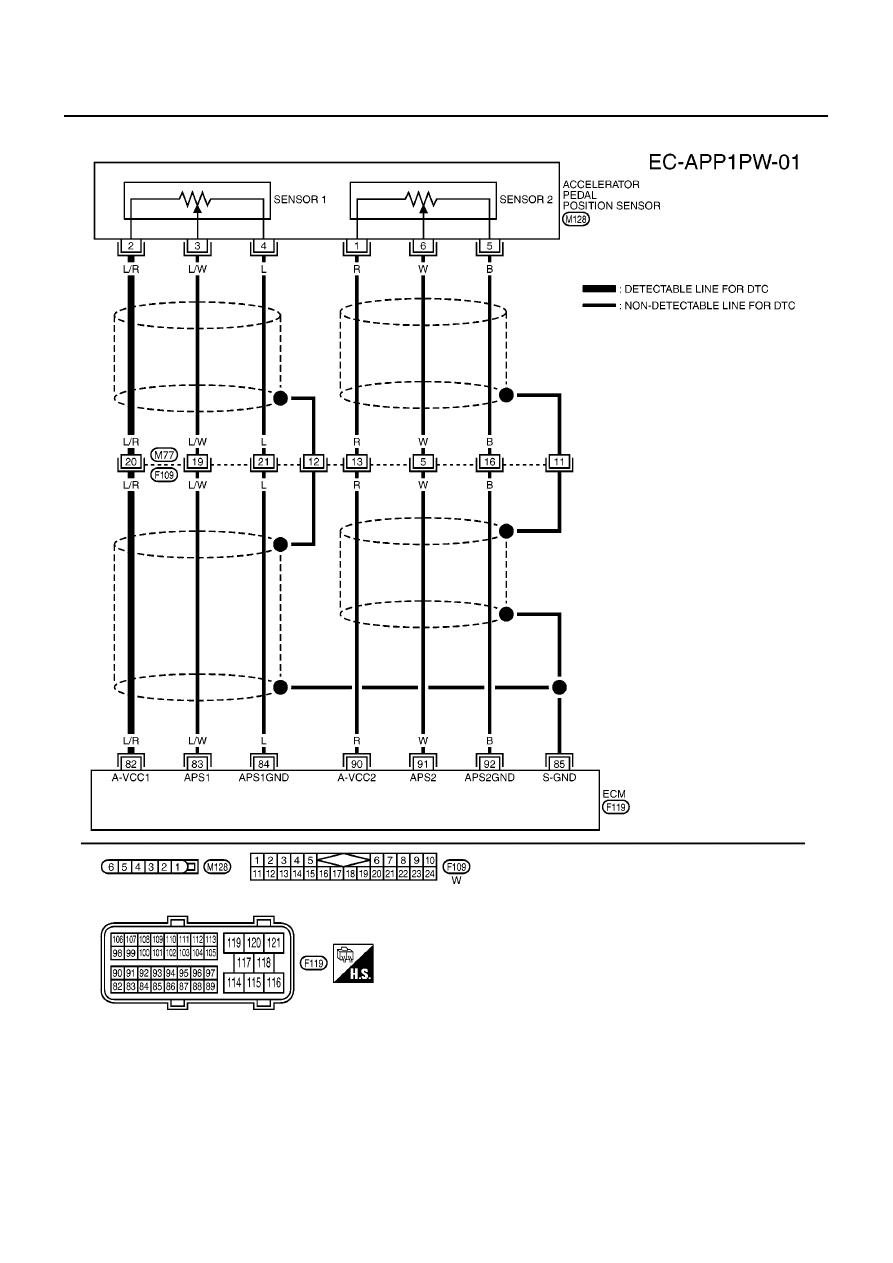

Wiring Diagram

EBS0159D

MBWA0434E

DTC P0642, P0643 SENSOR POWER SUPPLY

EC-551

[YD (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

Diagnostic Procedure

EBS0159E

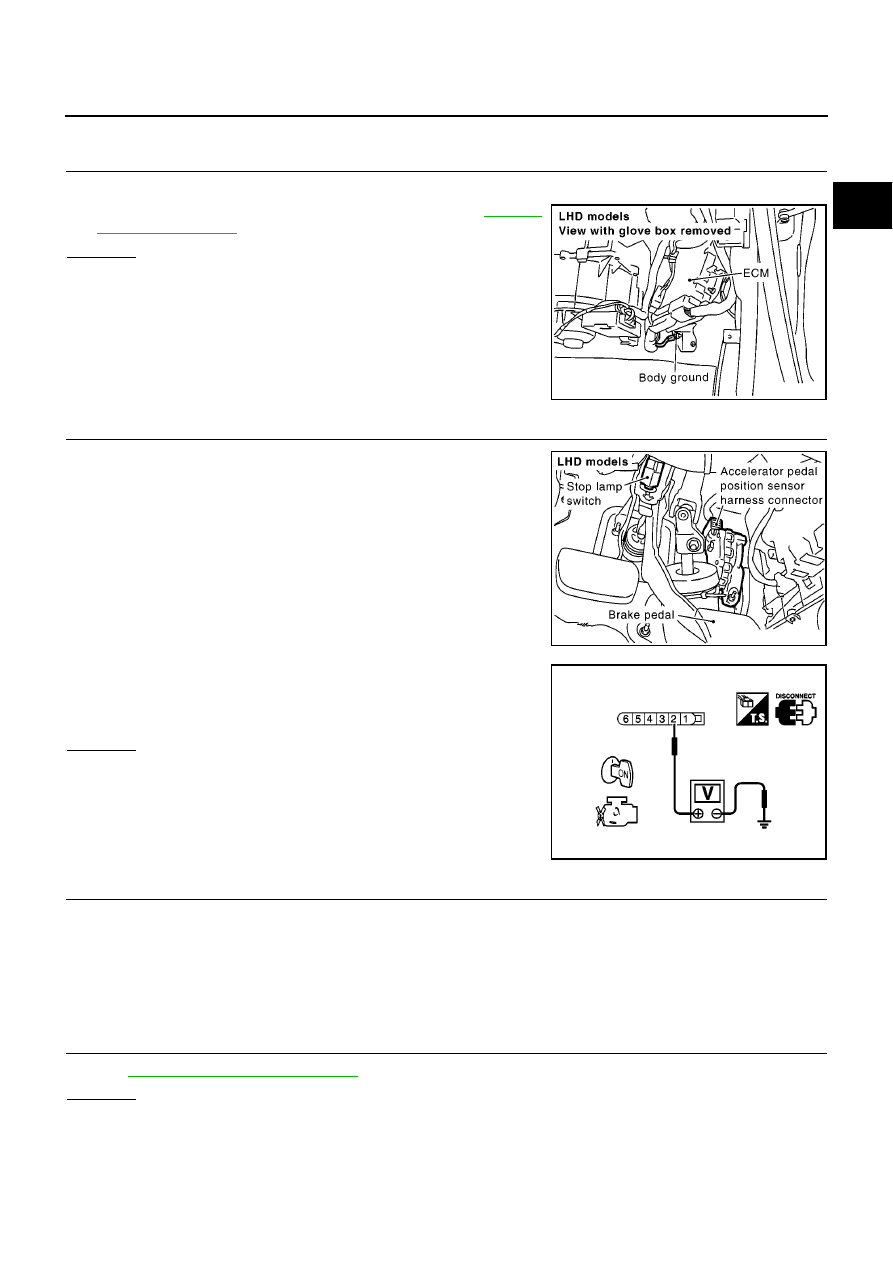

1.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

Loosen and retighten engine ground screws. Refer to

EC-415,

"Ground Inspection"

.

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace ground connections.

2.

CHECK APP SENSOR 1 POWER SUPPLY CIRCUIT

1.

Disconnect accelerator pedal position (APP) sensor harness
connector.

2.

Turn ignition switch ON.

3.

Check voltage between APP sensor terminal 2 and ground with
CONSULT-II or tester.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 3.

3.

DETECT MALFUNCTIONING PART

Check the following.

Harness connectors M77, F109

Harness for open or short between ECM and APP sensor

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK APP SENSOR

Refer to

EC-552, "Component Inspection"

.

OK or NG

OK

>> GO TO 5.

NG

>> Replace accelerator pedal assembly.

MBIB0915E

MBIB0903E

Voltage: Approximately 5.3V

PBIB0811E

EC-552

[YD (WITHOUT EURO-OBD)]

DTC P0642, P0643 SENSOR POWER SUPPLY

5.

CHECK INTERMITTENT INCIDENT

Refer to

EC-408, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

.

>> INSPECTION END

Component Inspection

EBS0159F

ACCELERATOR PEDAL POSITION SENSOR

1.

Reconnect all harness connectors disconnected.

2.

Turn ignition switch ON.

3.

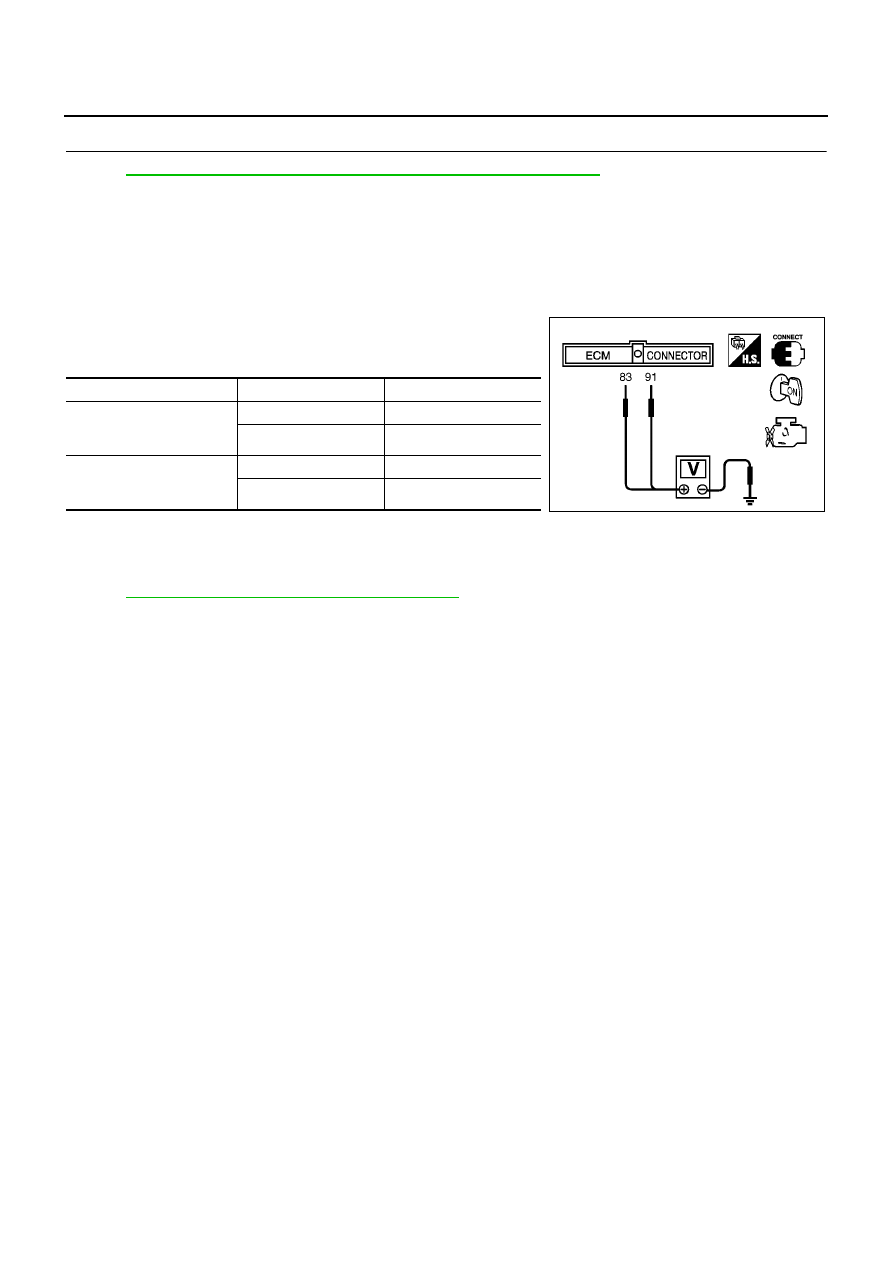

Check voltage between ECM terminals 83 (APP sensor 1 sig-
nal), 91 (APP sensor 2 signal) and body ground under the fol-
lowing conditions.

4.

If NG, replace accelerator pedal assembly.

Removal and Installation

EBS0159G

ACCELERATOR PEDAL

Refer to

ACC-2, "ACCELERATOR CONTROL SYSTEM"

.

Terminal

Accelerator pedal

Voltage

83

(Accelerator pedal position

sensor 1)

Fully released

0.5 - 1.0V

Fully depressed

4.2 - 5.2V

91
(Accelerator pedal position
sensor 2)

Fully released

0.4 - 0.7V

Fully depressed

2.2 - 2.7V

MBIB0615E
