Nissan Primera P12. Manual - part 287





PNP SWITCH

EC-333

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

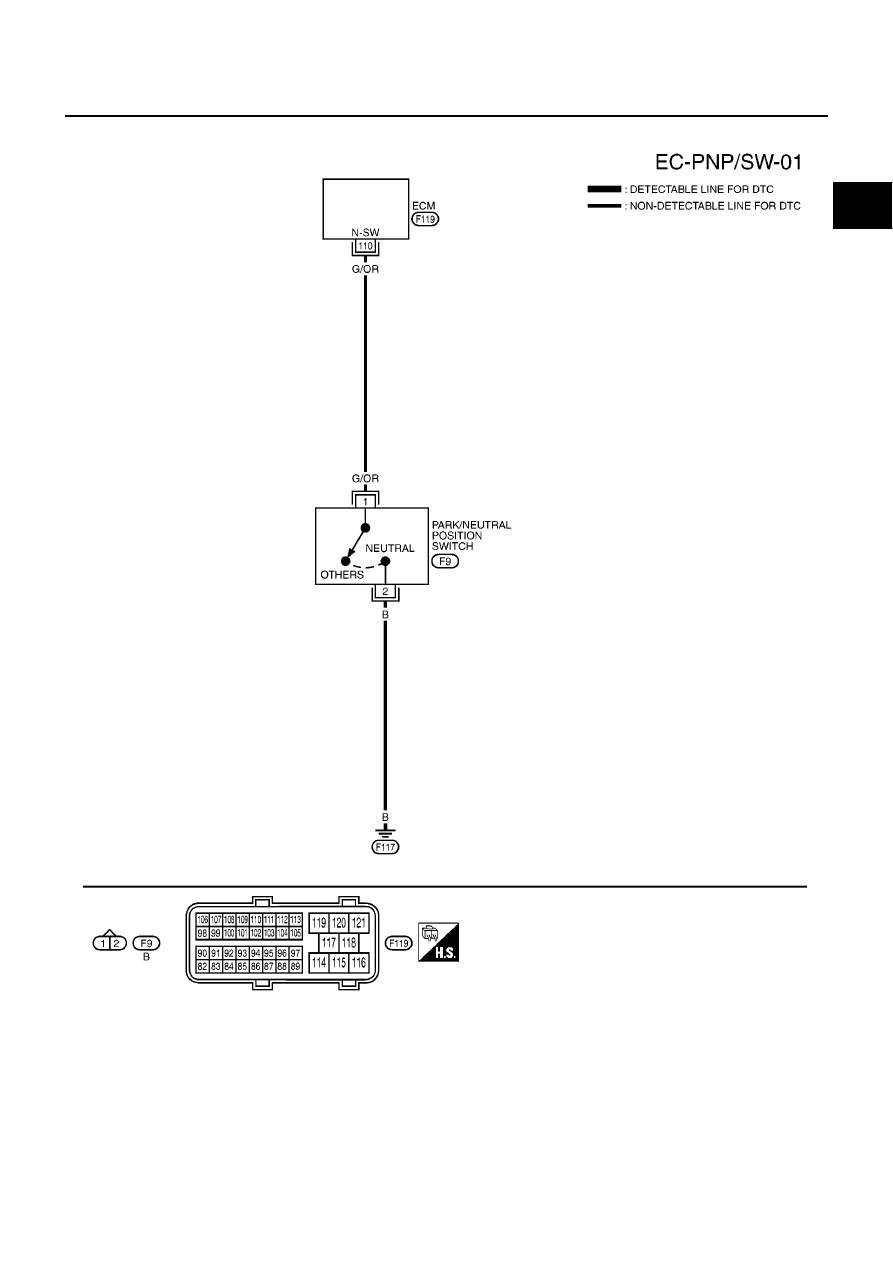

Wiring Diagram

EBS013TF

MBWA0389E

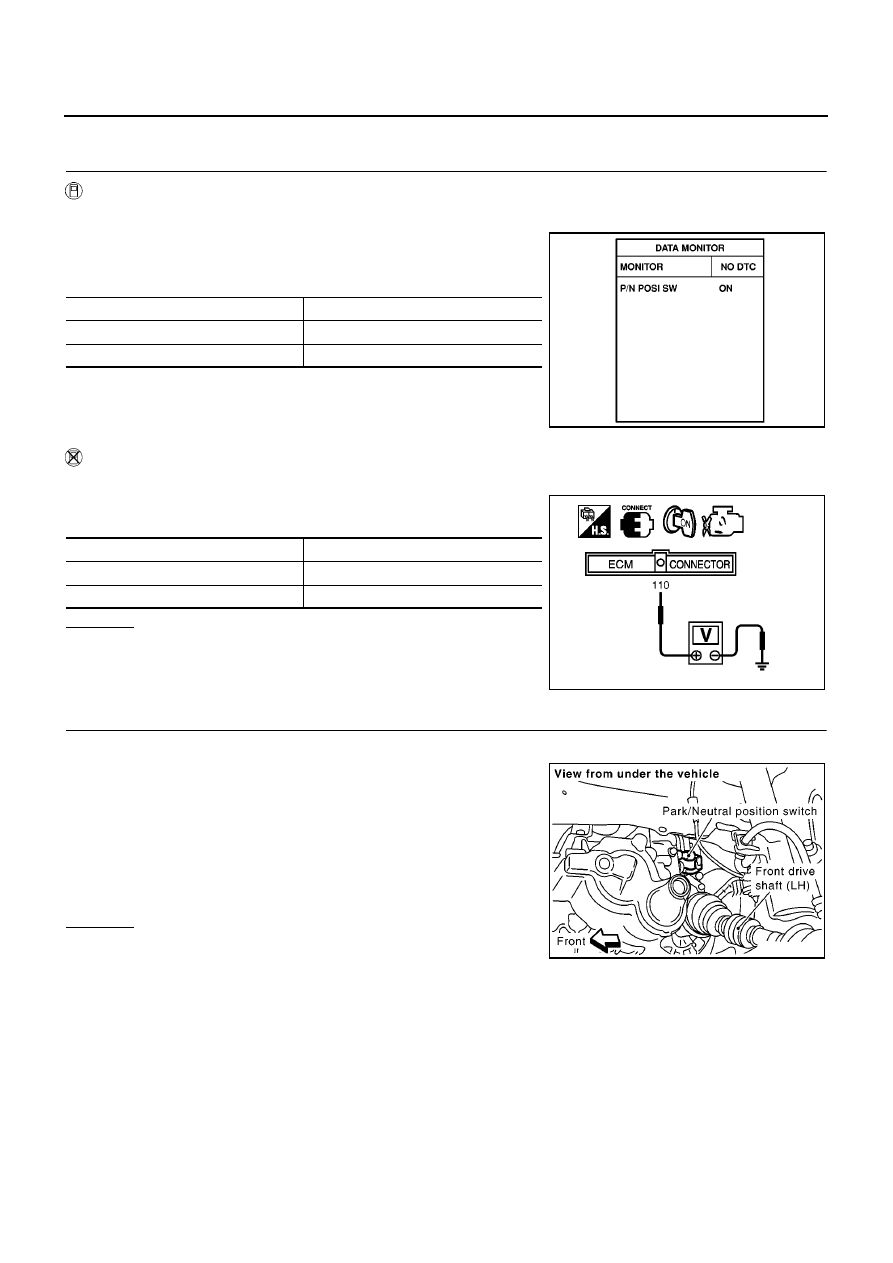

EC-334

[YD (WITH EURO-OBD)]

PNP SWITCH

Diagnostic Procedure

EBS013TG

1.

CHECK OVERALL FUNCTION

With CONSULT-II

1.

Turn ignition switch ON.

2.

Select “P/N POSI SW” in “DATA MONITOR” mode with CON-
SULT-II.

3.

Check “P/N POSI SW” signal under the following conditions.

Without CONSULT-II

1.

Turn ignition switch ON.

2.

Check voltage between ECM terminal 110 and ground under the
following conditions.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 2.

2.

CHECK PNP SWITCH GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect park/neutral position (PNP) switch harness connec-
tor.

3.

Check harness continuity between PNP switch terminal 2 and
ground.
Refer to Wiring Diagram.

4.

Also check harness for short to power.

OK or NG

OK

>> GO TO 3.

NG

>> Repair open circuit or short to power in harness or con-

nectors.

Shift lever position

P/N POSI SW

Neutral position

ON

Except the above position

OFF

SEF212Y

Shift lever position

Voltage

Neutral position

Approximately 0V

Except the above position

Battery voltage

PBIB1947E

Continuity should exist.

MBIB1088E

PNP SWITCH

EC-335

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

3.

CHECK PNP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Disconnect ECM harness connector.

2.

Check harness continuity between ECM terminal 110 and PNP switch terminal 1.
Refer to Wiring Diagram.

3.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 4.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK PARK/NEUTRAL POSITION SWITCH

Refer to

MT-12, "POSITION SWITCH"

.

OK or NG

OK

>> GO TO 5.

NG

>> Replace park/neutral position switch.

5.

CHECK INTERMITTENT INCIDENT

Refer to

EC-75, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

.

>> INSPECTION END

Continuity should exist.

EC-336

[YD (WITH EURO-OBD)]

PSP SWITCH

PSP SWITCH

PFP:49761

Component Description

EBS013TH

The power steering pressure switch is attached to the power steer-
ing high-pressure tube and detects a power steering load.
When a power steering load is detected, it signals the ECM. The
ECM adjusts the fuel injector pulse width to increase the idle speed
and adjust for the increased load.

CONSULT-II Reference Value in Data Monitor Mode

EBS013TI

Specification data are reference values.

ECM Terminals and Reference Value

EBS013TJ

Specification data are reference values, and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

MBIB1019E

MONITOR ITEM

CONDITION

SPECIFICATION

PW/ST SIGNAL

Engine: After warming up, idle the
engine

Steering wheel is in neutral position.
(Forward direction)

OFF

Steering wheel is turned.

ON

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA

(DC Voltage)

111

R/B

Power steering pressure
switch

[Engine is running]

Steering wheel is being turned

Approximately 0V

[Engine is running]

Steering wheel is not being turned

BATTERY VOLTAGE
(11 - 14V)
