Nissan Primera P12. Manual - part 272





DTC P1268 - P1271 FUEL INJECTOR

EC-273

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

DTC Confirmation Procedure

EBS013R3

CAUTION:

Always drive vehicle in safe manner according to traffic conditions and obey all traffic laws when driv-
ing.

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

WITH CONSULT-II

1.

Turn ignition switch ON, and select “DATA MONITOR” mode
with CONSULT-II.

2.

Restart engine and let it idle for about 15 minutes.

3.

If DTC is detected, go to

EC-275, "Diagnostic Procedure"

.

If DTC is not detected, go to next step.

4.

Drive vehicle and maintain the following conditions for at least
60 seconds.

5.

If DTC is detected, go to

EC-275, "Diagnostic Procedure"

.

WITHOUT CONSULT-II

Follow the procedure “WITH CONSULT-II” above.

CKPS·RPM

700 - 2000 rpm (A constant rotation is maintained)

COOLAN TEMP/S

Less than 75

°

C (167

°

F)

Shift lever

Suitable position

Accelerator pedal

Hold the accelerator pedal as steady as possible.

PBIB2156E

EC-274

[YD (WITH EURO-OBD)]

DTC P1268 - P1271 FUEL INJECTOR

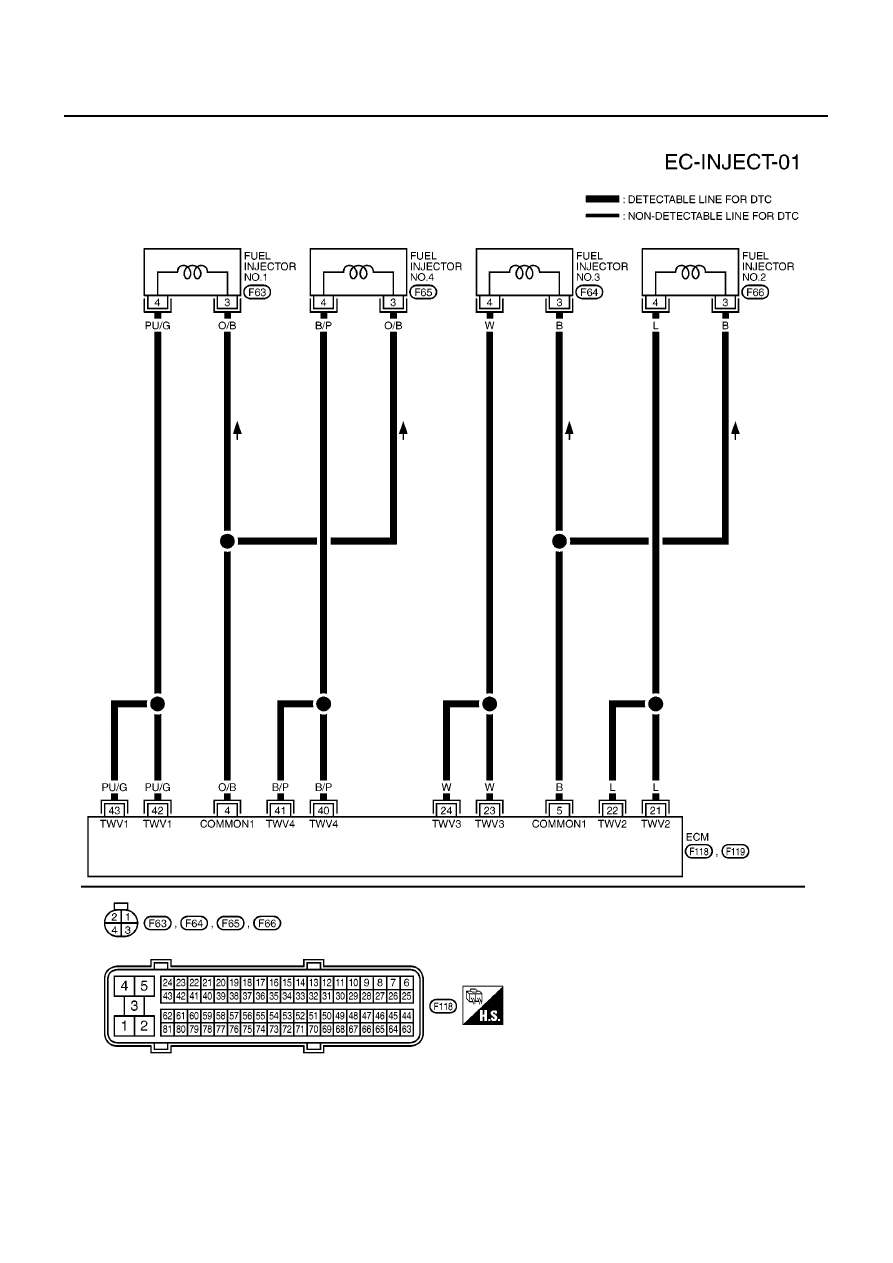

Wiring Diagram

EBS013R4

MBWA0634E

DTC P1268 - P1271 FUEL INJECTOR

EC-275

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

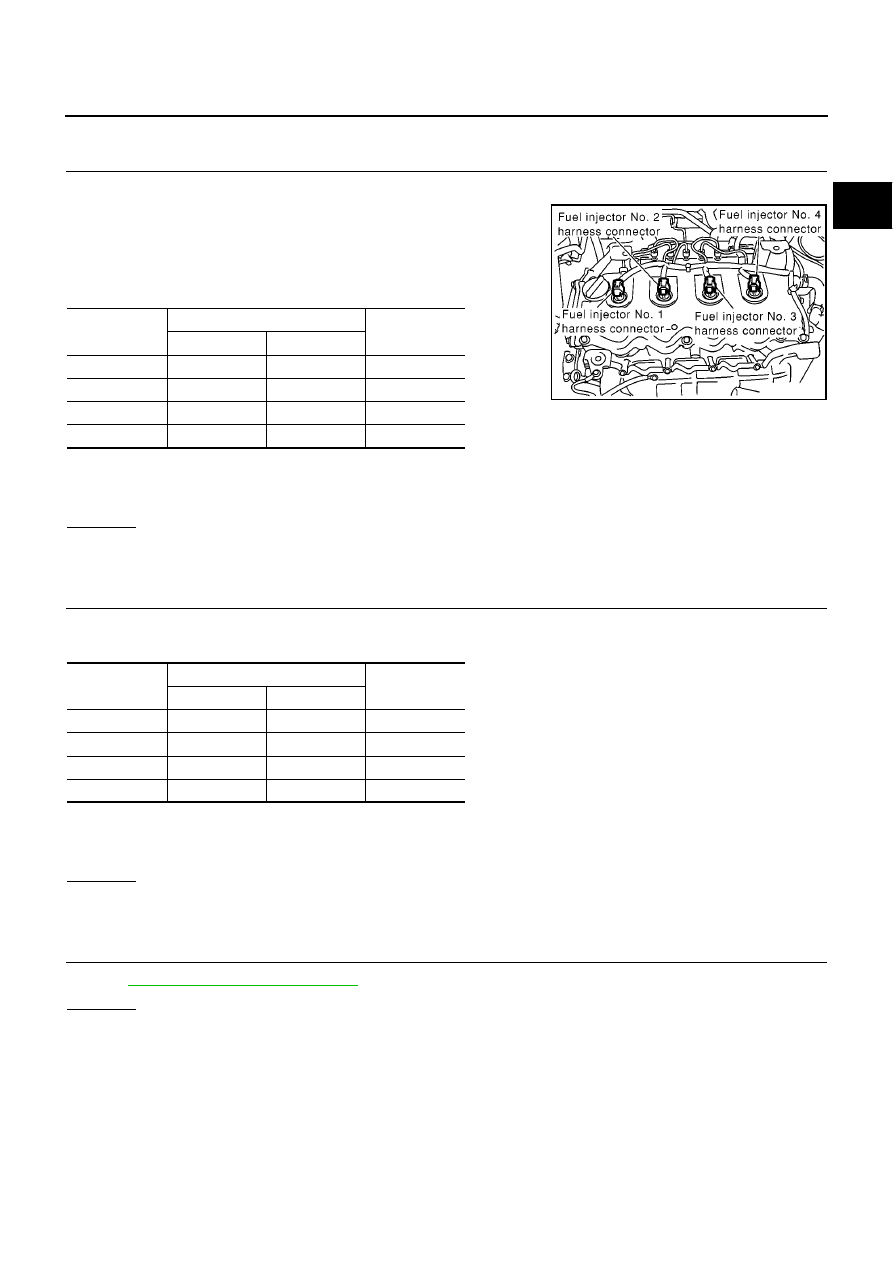

Diagnostic Procedure

EBS013R5

1.

CHECK FUEL INJECOR POWER SUPPLY CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Disconnect fuel injector harness connector.

4.

Check harness continuity between the following terminals corre-
sponding to the malfunctioning cylinder. Refer to Wiring Dia-
gram.

5.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 2.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

2.

CHECK ECM OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Check harness continuity between the following terminals corresponding to the malfunctioning cylinder.
Refer to Wiring Diagram.

2.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 3.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

3.

CHECK FUEL INJECTOR-I

Refer to

EC-276, "Component Inspection"

.

OK or NG

OK

>> GO TO 4.

NG

>> Replace fuel injector.

DTC

Terminal

Cylinder

ECM

Fuel injector

P1268

4

3

No.1

P1269

5

3

No.2

P1270

5

3

No.3

P1271

4

3

No.4

Continuity should exist.

MBIB0085E

DTC

Terminal

Cylinder

ECM

Fuel injector

P1268

42, 43

4

No.1

P1269

21, 22

4

No.2

P1270

23, 24

4

No.3

P1271

40, 41

4

No.4

Continuity should exist.

EC-276

[YD (WITH EURO-OBD)]

DTC P1268 - P1271 FUEL INJECTOR

4.

CHECK FUEL INJECTOR-II

With CONSULT-II

1.

Remove two fuel injectors of malfunctioning cylinder and another cylinder.

2.

Install fuel injectors to different cylinder.

3.

Reconnect ECM harness connector and fuel injector harness connector.

4.

Turn ignition switch ON.

5.

Select “SELF DIAG RESULTS” mode with CONSULT-II.

6.

Touch “ERASE”.

7.

Perform

EC-273, "DTC Confirmation Procedure"

.

8.

Is another DTC displayed?

With GST

1.

Remove two fuel injectors of malfunctioning cylinder and another cylinder.

2.

Install fuel injectors to different cylinder.

3.

Reconnect ECM harness connector and fuel injector harness connector.

4.

Turn ignition switch ON.

5.

Select MODE4 with GST.

6.

Touch “ERASE”.

7.

Perform

EC-273, "DTC Confirmation Procedure"

.

8.

Is another DTC displayed?

Yes or No

Yes

>> Replace fuel injector of malfunctioning cylinder.

No

>> GO TO 5.

5.

CHECK INTERMITTENT INCIDENT

Refer to

EC-75, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

.

>> INSPECTION END

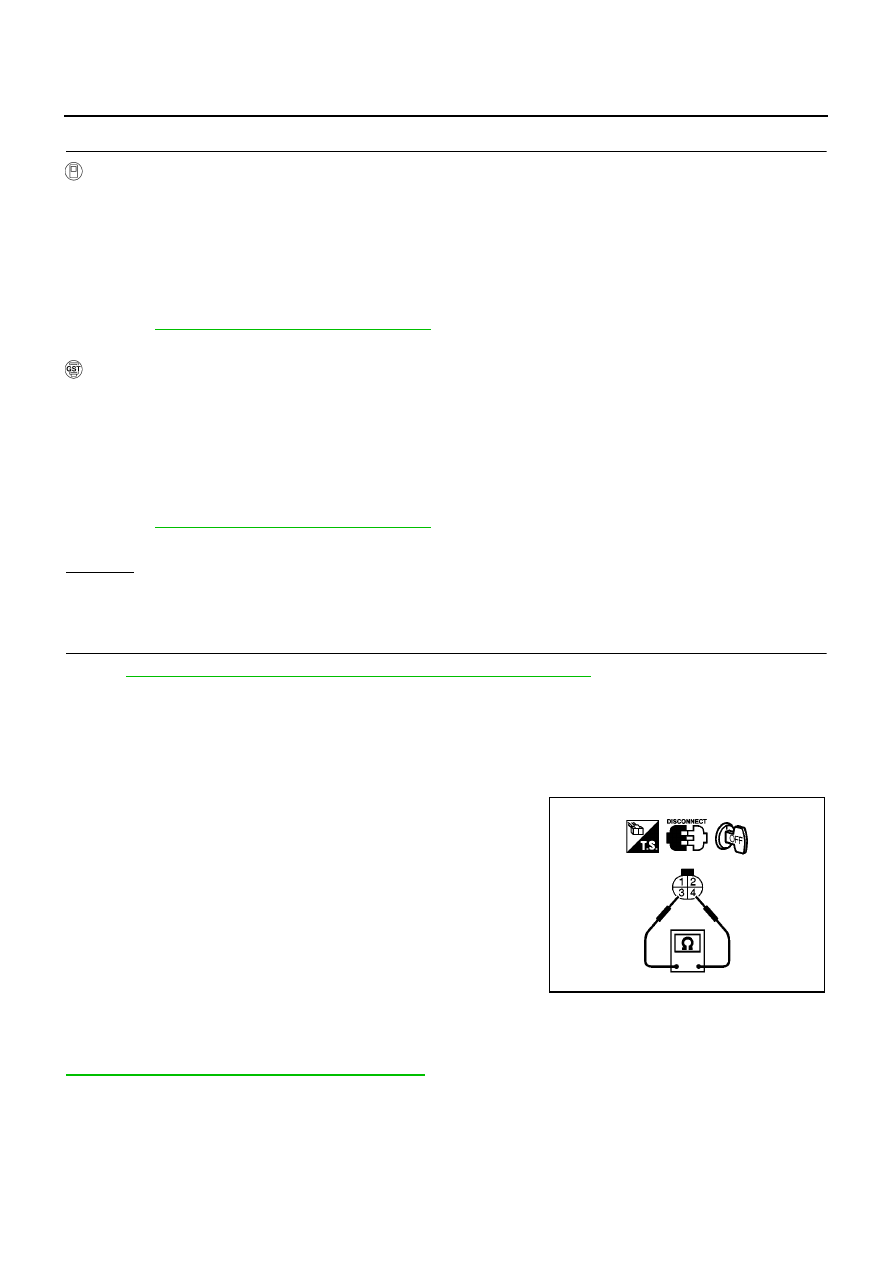

Component Inspection

EBS013R6

FUEL INJECTOR

1.

Disconnect fuel injector.

2.

Check continuity between terminals as shown in the figure.

3.

If NG, replace fuel injector.

Removal and Installation

EBS013R7

FUEL INJECTOR

Refer to

EM-39, "INJECTION TUBE AND FUEL INJECTOR"

.

Continuity should exist.

PBIB0406E
