DTC P0686 ECM RELAY

EC-261

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

WITH GST

Follow the procedure “WITH CONSULT-II” above.

EC-262

[YD (WITH EURO-OBD)]

DTC P0686 ECM RELAY

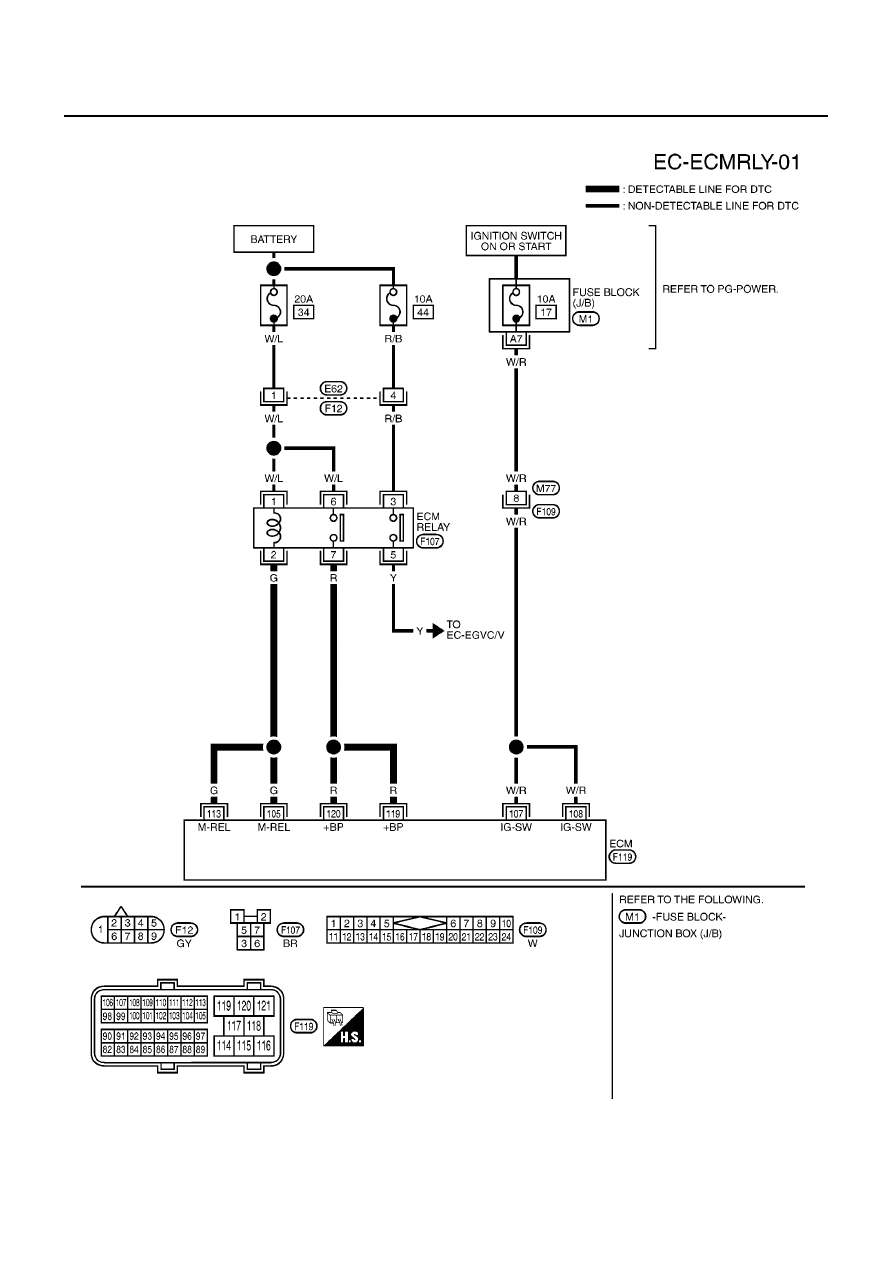

Wiring Diagram

EBS013QG

MBWA0648E

DTC P0686 ECM RELAY

EC-263

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

Diagnostic Procedure

EBS013QH

1.

CHECK ECM OUTPUT SIGNAL CIRCUIT FOR SHORT TO GROUND

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check harness continuity between ECM terminals 105, 113 and ground.
Refer to Wiring Diagram.

OK or NG

OK

>> GO TO 2.

NG

>> Repair short to ground in harness or connectors.

2.

CHECK ECM INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Disconnect ECM relay.

2.

Check harness continuity between ECM terminals 119, 120 and
ECM relay terminal 7. Refer to Wiring Diagram.

3.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 3.

NG

>> Repair open circuit or short to ground or short to power

in harness or connectors.

3.

CHECK ECM RELAY

Refer to

EC-263, "Component Inspection"

.

OK or NG

OK

>> GO TO 4.

NG

>> Replace ECM relay.

4.

CHECK INTERMITTENT INCIDENT

Refer to

EC-75, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

.

>> INSPECTION END

Component Inspection

EBS013QI

ECM RELAY

1.

Apply 12V direct current between ECM relay terminals 1 and 2.

2.

Check continuity between relay terminals 3 and 5, 6 and 7.

3.

If NG, replace ECM relay.

Continuity should not exist.

Continuity should exist.

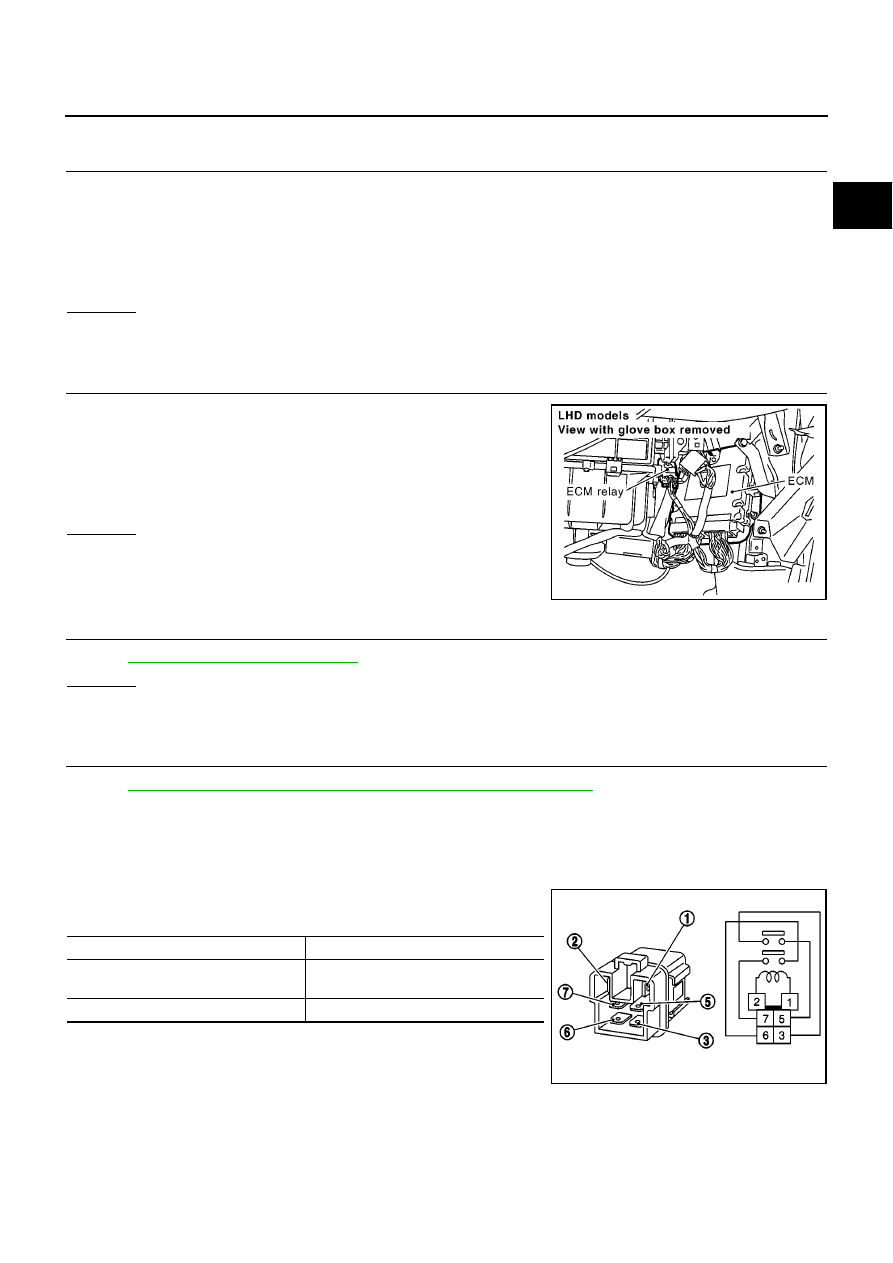

MBIB1086E

Condition

Continuity

12V direct current supply between ter-
minals 1 and 2

Yes

OFF

No

PBIB0077E

EC-264

[YD (WITH EURO-OBD)]

DTC P1211 TCS CONTROL UNIT

DTC P1211 TCS CONTROL UNIT

PFP:47850

Description

EBS013QJ

The malfunction information related to TCS is transferred through the CAN communication line from ESP/
TCS/ABS control unit to ECM.
Be sure to erase the malfunction information such as DTC not only for ESP/TCS/ABS control unit but
also for ECM after TCS related repair.

On Board Diagnosis Logic

EBS013QK

This self-diagnosis has the one trip detection logic.
The MI will not light up for this self-diagnosis.

DTC Confirmation Procedure

EBS013QL

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

WITH CONSULT-II

1.

Turn ignition switch ON.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Wait at least 5 seconds.

4.

If DTC is detected, go to

EC-264, "Diagnostic Procedure"

.

WITH GST

Folow the procedure “WITH CONSLT-II” above.

Diagnostic Procedure

EBS013QM

Go to

BRC-47, "TROUBLE DIAGNOSIS"

(models with ESP system) or

BRC-8, "TROUBLE DIAGNOSIS"

(models without ESP system).

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P1211

TCS control unit

ECM receives a malfunction information from
ESP/TCS/ABS control unit.

ESP/TCS/ABS control unit

TCS related parts

SEF817Y
