DTC P0642, P0643 SENSOR POWER SUPPLY

EC-253

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

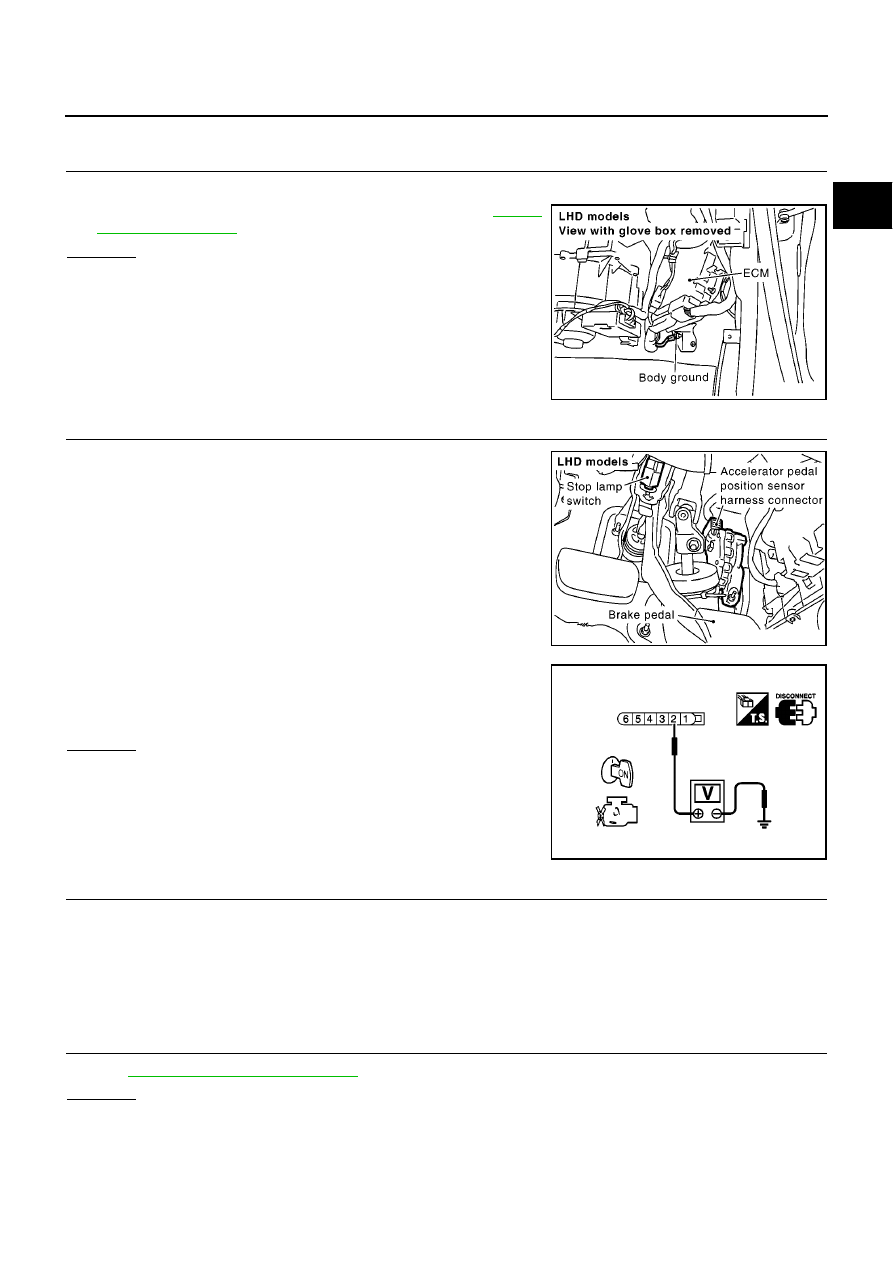

Diagnostic Procedure

EBS013Q1

1.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

Loosen and retighten engine ground screws. Refer to

EC-82,

"Ground Inspection"

.

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace ground connections.

2.

CHECK APP SENSOR 1 POWER SUPPLY CIRCUIT

1.

Disconnect accelerator pedal position (APP) sensor harness
connector.

2.

Turn ignition switch ON.

3.

Check voltage between APP sensor terminal 2 and ground with
CONSULT-II or tester.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 3.

3.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors M77, F109

●

Harness for open or short between ECM and APP sensor

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK APP SENSOR

Refer to

EC-254, "Component Inspection"

.

OK or NG

OK

>> GO TO 5.

NG

>> Replace accelerator pedal assembly.

MBIB0915E

MBIB0903E

Voltage: Approximately 5.3V

PBIB0811E

EC-254

[YD (WITH EURO-OBD)]

DTC P0642, P0643 SENSOR POWER SUPPLY

5.

CHECK INTERMITTENT INCIDENT

Refer to

EC-75, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

.

>> INSPECTION END

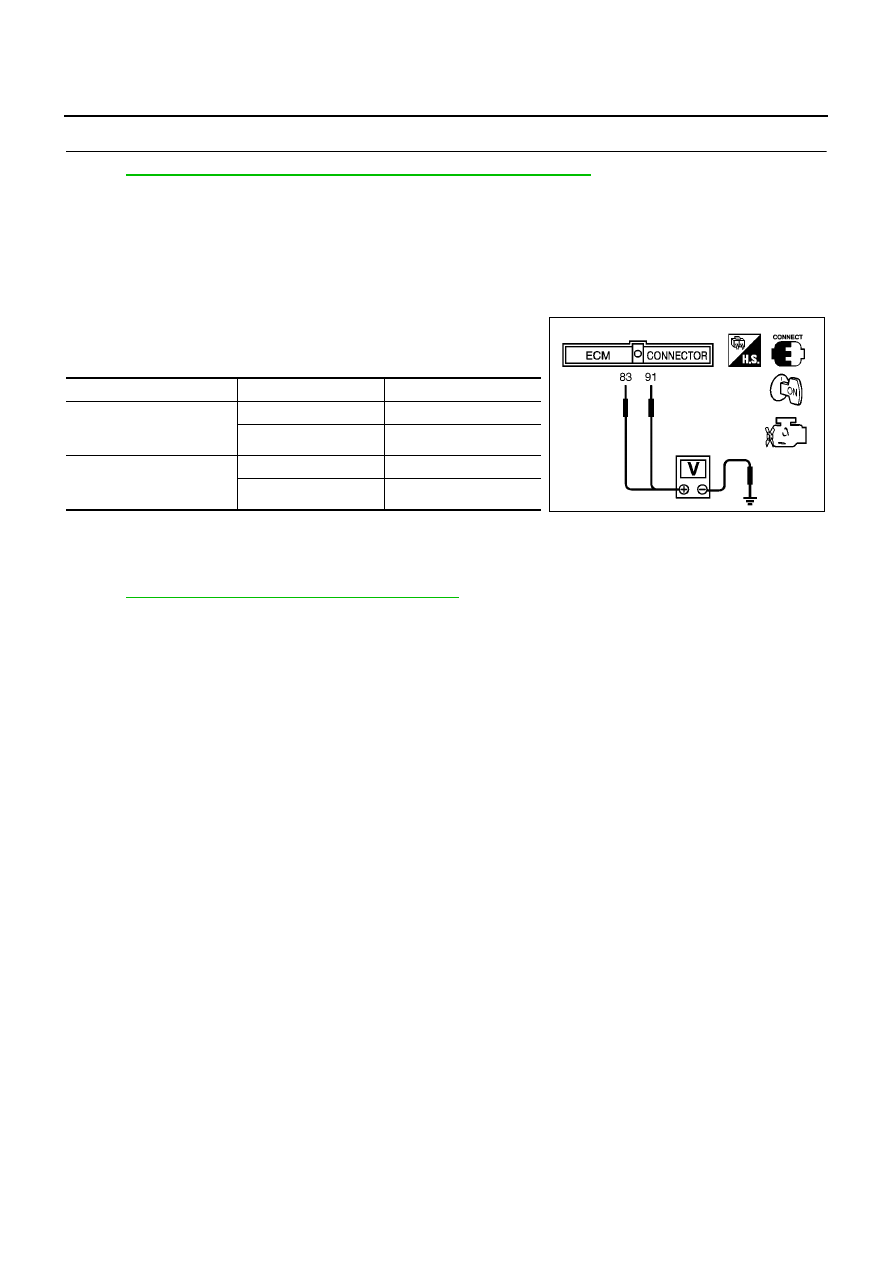

Component Inspection

EBS013Q2

ACCELERATOR PEDAL POSITION SENSOR

1.

Reconnect all harness connectors disconnected.

2.

Turn ignition switch ON.

3.

Check voltage between ECM terminals 83 (APP sensor 1 sig-
nal), 91 (APP sensor 2 signal) and body ground under the fol-
lowing conditions.

4.

If NG, replace accelerator pedal assembly.

Removal and Installation

EBS013Q3

ACCELERATOR PEDAL

Refer to

ACC-2, "ACCELERATOR CONTROL SYSTEM"

.

Terminal

Accelerator pedal

Voltage

83

(Accelerator pedal position

sensor 1)

Fully released

0.5 - 1.0V

Fully depressed

4.2 - 5.2V

91
(Accelerator pedal position
sensor 2)

Fully released

0.4 - 0.7V

Fully depressed

2.2 - 2.7V

MBIB0615E

DTC P0652, P0653 SENSOR POWER SUPPLY

EC-255

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

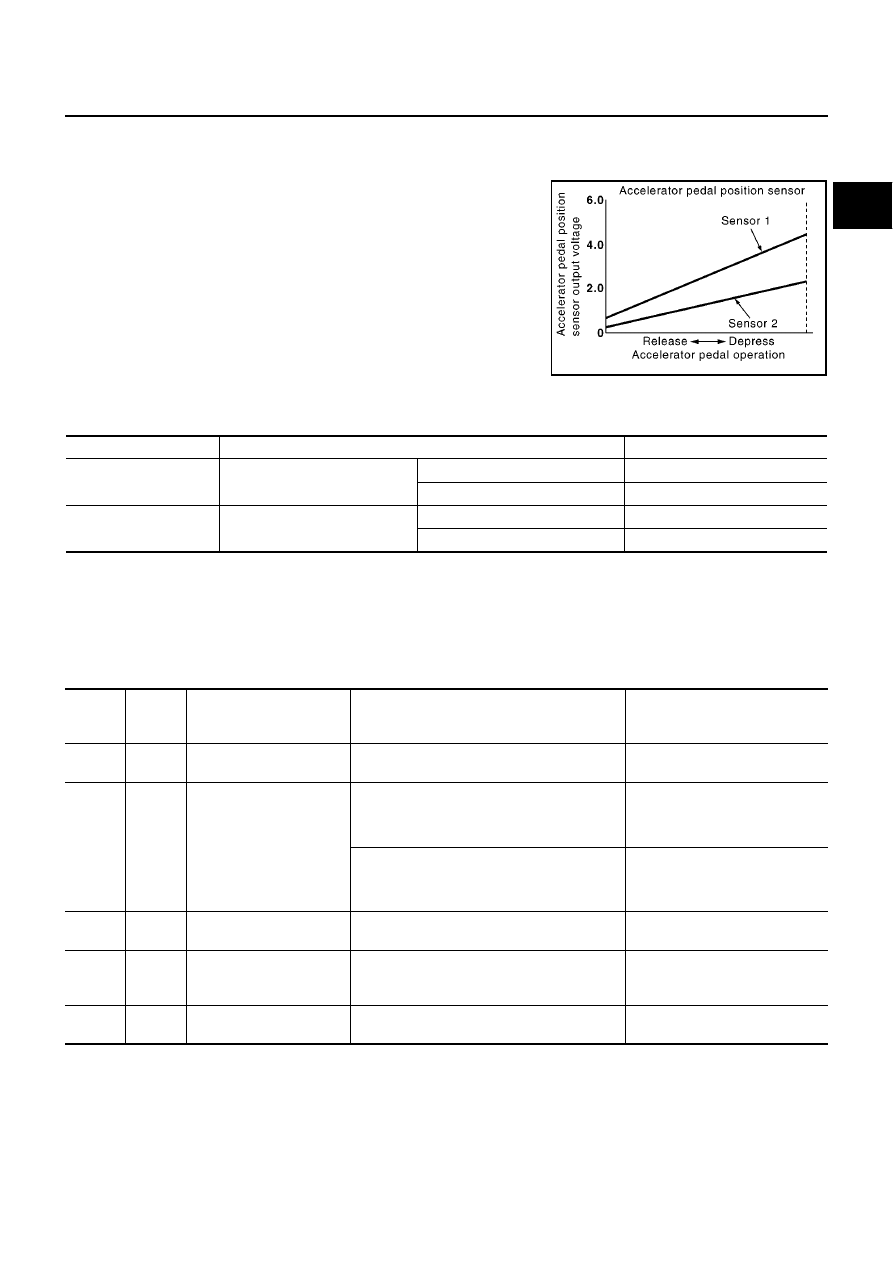

DTC P0652, P0653 SENSOR POWER SUPPLY

PFP:18002

Description

EBS013Q4

The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensors detect the accelera-
tor pedal position and sends a signal to the ECM. The ECM uses the
signal to determine the amount of fuel to be injected.

CONSULT-II Reference Value in Data Monitor Mode

EBS013Q5

Specification data are reference values.

*: This signal is converted by ECM internally. Thus, it differs from ECM terminal voltage.

ECM Terminals and Reference Value

EBS013Q6

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

PBIB1741E

MONITOR ITEM

CONDITION

SPECIFICATION

ACCEL POS SEN*

●

Ignition switch: ON
(Engine stopped)

Accelerator pedal: fully released

0.2 - 0.7V

Accelerator pedal: fully depressed

3.9 - 4.9V

ACCEL SEN 2*

●

Ignition switch: ON
(Engine stopped)

Accelerator pedal: fully released

0.1 - 0.4V

Accelerator pedal: fully depressed

1.9 - 2.4V

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA

(DC Voltage)

82

L/R

Accelerator pedal position
sensor 1 power supply

[Ignition switch ON]

Approximately 5.3V

83

L/W

Accelerator pedal position
sensor 1

[Ignition switch ON]

●

Engine stopped

●

Accelerator pedal fully released

0.5 - 1.0V

[Ignition switch ON]

●

Engine stopped

●

Accelerator pedal fully depressed

4.2 - 5.2V

84

L

Accelerator pedal position
sensor 1 ground

[Ignition switch ON]

Approximately 0.3V

85

—

Sensor ground
(Accelerator pedal posi-
tion sensor shield circuit)

[Ignition switch ON]

Approximately 0.3V

90

R

Accelerator pedal position
sensor 2 power supply

[Ignition switch ON]

Approximately 5.3V

EC-256

[YD (WITH EURO-OBD)]

DTC P0652, P0653 SENSOR POWER SUPPLY

On Board Diagnosis Logic

EBS013Q7

DTC Confirmation Procedure

EBS013Q8

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

WITH CONSULT-II

1.

Turn ignition switch ON.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Wait at least 5 seconds.

4.

If 1st trip DTC is detected, go to

EC-258, "Diagnostic Procedure"

.

WITH GST

Follow the procedure “WITH CONSULT-II” above.

91

W

Accelerator pedal position
sensor 2

[Ignition switch ON]

●

Engine stopped

●

Accelerator pedal fully released

0.4 - 0.7V

[Ignition switch ON]

●

Engine stopped

●

Accelerator pedal fully depressed

2.2 - 2.7V

92

B

Accelerator pedal position
sensor 2 ground

[Ignition switch ON]

Approximately 0.3V

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA

(DC Voltage)

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0652

Accelerator pedal position
sensor 2 power supply cir-
cuit low

ECM detects a voltage of power source for the
APP sensor 2 is excessively low.

●

Harness or connectors
(The APP sensor 2 power supply cir-
cuit is open or shorted.)

●

Accelerator pedal position sensor
(Accelerator pedal position sensor 2)

P0653

Accelerator pedal position
sensor 2 power supply cir-
cuit high

ECM detects a voltage of power source for the
APP sensor 2 is excessively high.
