DTC P0628, P0629 FUEL PUMP

EC-249

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

Component Inspection

EBS013PT

FUEL PUMP

1.

Check continuity between fuel supply pump terminals 1 and 2.

2.

If NG, replace fuel pump.

Removal and Installation

EBS013PU

FUEL PUMP

Refer to

EM-42, "FUEL PUMP"

.

Continuity should exist.

MBIB0623E

EC-250

[YD (WITH EURO-OBD)]

DTC P0642, P0643 SENSOR POWER SUPPLY

DTC P0642, P0643 SENSOR POWER SUPPLY

PFP:18002

Description

EBS013PV

The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensors detect the accelera-
tor pedal position and sends a signal to the ECM. The ECM uses the
signal to determine the amount of fuel to be injected.

CONSULT-II Reference Value in Data Monitor Mode

EBS013PW

Specification data are reference values.

*: This signal is converted by ECM internally. Thus, it differs from ECM terminal voltage.

ECM Terminals and Reference Value

EBS013PX

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

PBIB1741E

MONITOR ITEM

CONDITION

SPECIFICATION

ACCEL POS SEN*

●

Ignition switch: ON
(Engine stopped)

Accelerator pedal: fully released

0.2 - 0.7V

Accelerator pedal: fully depressed

3.9 - 4.9V

ACCEL SEN 2*

●

Ignition switch: ON
(Engine stopped)

Accelerator pedal: fully released

0.1 - 0.4V

Accelerator pedal: fully depressed

1.9 - 2.4V

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA

(DC Voltage)

82

L/R

Accelerator pedal position
sensor 1 power supply

[Ignition switch ON]

Approximately 5.3V

83

L/W

Accelerator pedal position
sensor 1

[Ignition switch ON]

●

Engine stopped

●

Accelerator pedal fully released

0.5 - 1.0V

[Ignition switch ON]

●

Engine stopped

●

Accelerator pedal fully depressed

4.2 - 5.2V

84

L

Accelerator pedal position
sensor 1 ground

[Ignition switch ON]

Approximately 0.3V

85

—

Sensor ground
(Accelerator pedal posi-
tion sensor shield circuit)

[Ignition switch ON]

Approximately 0.3V

90

R

Accelerator pedal position
sensor 2 power supply

[Ignition switch ON]

Approximately 5.3V

DTC P0642, P0643 SENSOR POWER SUPPLY

EC-251

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

On Board Diagnosis Logic

EBS013PY

DTC Confirmation Procedure

EBS013PZ

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

WITH CONSULT-II

1.

Turn ignition switch ON.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Wait at least 5 seconds.

4.

If 1st trip DTC is detected, go to

EC-253, "Diagnostic Procedure"

.

WITH GST

Follow the procedure “WITH CONSULT-II” above.

91

W

Accelerator pedal position
sensor 2

[Ignition switch ON]

●

Engine stopped

●

Accelerator pedal fully released

0.4 - 0.7V

[Ignition switch ON]

●

Engine stopped

●

Accelerator pedal fully depressed

2.2 - 2.7V

92

B

Accelerator pedal position
sensor 2 ground

[Ignition switch ON]

Approximately 0.3V

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA

(DC Voltage)

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0642

Accelerator pedal position
sensor 1 power supply cir-
cuit low

ECM detects a voltage of power source for the
APP sensor 1 is excessively low.

●

Harness or connectors
(The APP sensor 1 power supply cir-
cuit is open or shorted.)

●

Accelerator pedal position sensor
(Accelerator pedal position sensor 1)

P0643

Accelerator pedal position
sensor 1 power supply cir-
cuit high

ECM detects a voltage of power source for the
APP sensor 1 is excessively high.

SEF817Y

EC-252

[YD (WITH EURO-OBD)]

DTC P0642, P0643 SENSOR POWER SUPPLY

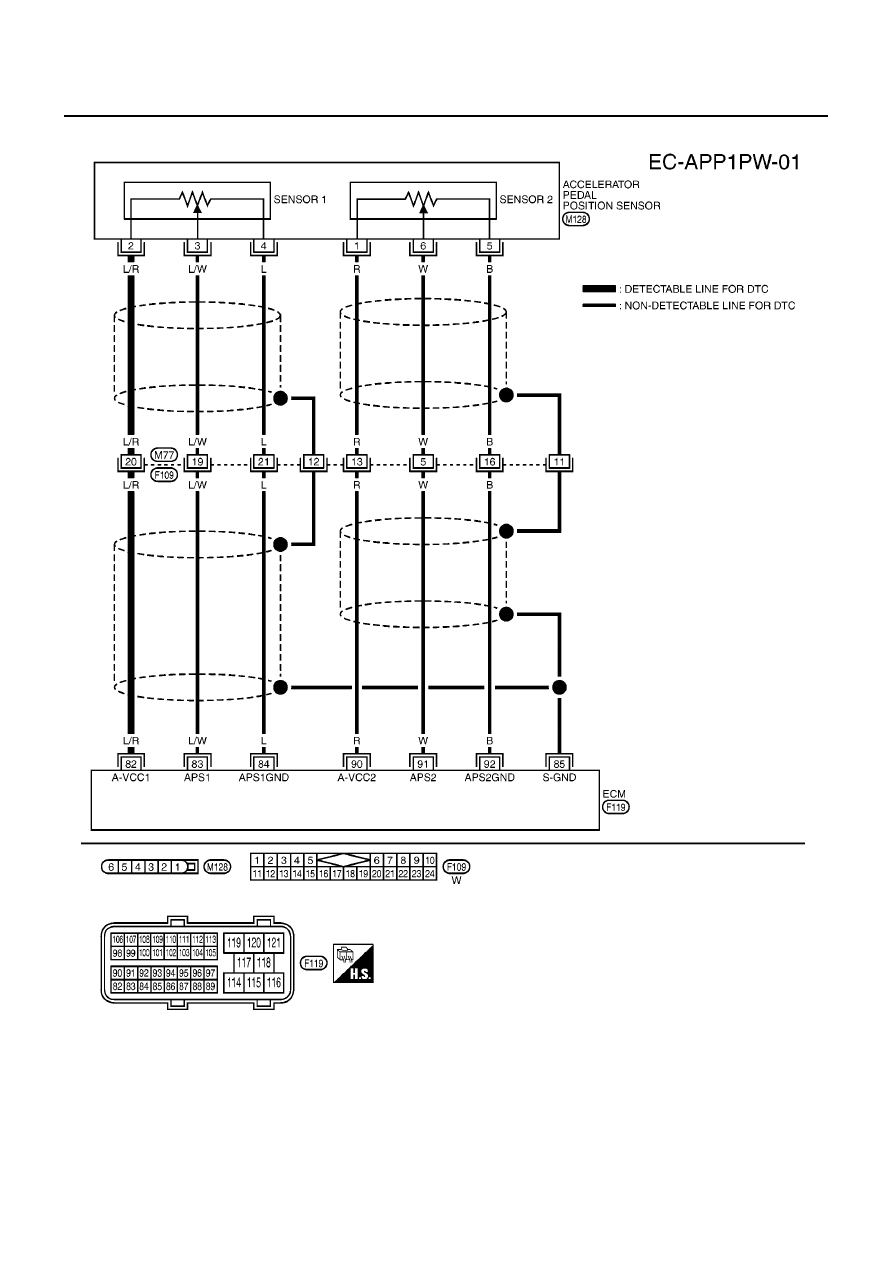

Wiring Diagram

EBS013Q0

MBWA0434E
