Nissan Primera P12. Manual - part 172





COMBINATION METERS (LHD MODELS)

DI-17

C

D

E

F

G

H

I

J

L

M

A

B

DI

Combination Meter Calibration

After replacing a combination meter, it might be necessary to calibrate the fuel gauge/low fuel warning lamp. In
case the fuel warning lamp is flashing after replacing the combination meter perform the following:
1.

Press both reset buttons.

2.

Turn the ignition ON and keep the reset buttons depressed for at least 5 seconds.

3.

Release both reset buttons.
The low fuel warning lamp will stop flashing and the combination meter will shown CALL and possibly
CALL FAIL. Showing CALL FAIL does not indicate a concern as this might be related to the current (unex-
pected) amount of fuel in the tank.

Trouble Diagnoses

EKS009A9

PRELIMINARY CHECK

1.

CHECK WARNING LAMPS

1.

Turn ignition switch ON.

2.

Warning lamps should illuminate (seat belt warning or door warning etc.).

Do warning lamps illuminate?

YES

>> GO TO 2.

NO

>> Power supply and ground check. Refer to

DI-20, "Power Supply and Ground Circuit Check"

.

2.

CHECK SELF-DIAGNOSIS MODE OPERATION

Perform self-diagnosis mode. Refer to

DI-14, "PERFORMING SELF-DIAGNOSIS MODE"

.

Can self-diagnosis mode be activated?

YES

>> GO TO 3.

NO

>> Replace unified meter control unit. Refer to

DI-26, "Removal and Installation for Combination

Meter"

.

3.

CHECK METER/GAUGE OPERATION

Check meter/gauge operation in self-diagnosis mode (Meter/gauge test). Refer to

DI-14, "PERFORMING

SELF-DIAGNOSIS MODE"

.

Is any malfunction indicated in self-diagnosis mode?

YES

>> GO TO “Symptom Chart 1”. Refer to

DI-19, "SYMPTOM CHART"

.

NO

>> GO TO 4.

4.

CHECK SEGMENTS

Check all odo/trip meter segments in self-diagnosis mode (Odo/trip meter segment test). Refer to

DI-14,

"PERFORMING SELF-DIAGNOSIS MODE"

.

Is any malfunction indicated in self-diagnosis mode?

YES

>> GO TO “Symptom Chart 1”. Refer to

DI-19, "SYMPTOM CHART"

.

NO

>> GO TO 5.

5.

CHECK FUEL WARNING LAMP

Check fuel warning lamp in self-diagnosis mode (Fuel warning lamp test). Refer to

DI-14, "PERFORMING

SELF-DIAGNOSIS MODE"

.

Does fuel warning lamp illuminate?

YES

>> GO TO “Symptom Chart 1”. Refer to

DI-19, "SYMPTOM CHART"

.

NO

>> GO TO 6.

DI-18

COMBINATION METERS (LHD MODELS)

6.

CHECK INPUT SIGNALS

Check input signals from each sensors in self-diagnosis mode (Error 1 and Error E). Refer to

DI-14, "PER-

FORMING SELF-DIAGNOSIS MODE"

.

OK or NG

OK

>> GO TO 7.

NG

>> GO TO “Symptom Chart 2”. Refer to

DI-19, "SYMPTOM CHART"

.

7.

CHECK OTHER MALFUNCTION

Check each malfunction according to the instruction of the “SYMPTOM CHART 3”. Refer to

DI-19, "SYMP-

TOM CHART"

.

OK or NG

OK

>> Combination meter is OK.

NG

>> Check the case of malfunction.

COMBINATION METERS (LHD MODELS)

DI-19

C

D

E

F

G

H

I

J

L

M

A

B

DI

SYMPTOM CHART
Symptom Chart 1

Symptom Chart 2

Symptom Chart 3

Symptom

Possible causes

Repair order

Odo/trip meter indicates mal-
function in Diagnosis mode.

Unified meter control unit

Replace unified meter control unit. Refer to

DI-26, "Removal and

Installation for Combination Meter"

.

Multiple meter/gauge indi-
cate malfunction in Diagno-
sis mode.

One of speedometer/tachom-
eter/fuel gauge/water temp.
gauge indicates malfunction
in Diagnosis mode.

Symptom

Possible causes

Repair order

Speedometer input signal
indicates malfunction in Diag-
nosis mode.

Speedometer input signal

Check signal for speedometer. Refer to

DI-21, "Inspection/Vehicle

Speed Signal (With ESP/TCS/ABS Control System)"

or

DI-21,

"Inspection/Vehicle Speed Signal (Without ESP/TCS/ABS Control
System)"

.

Tachometer input signal indi-
cates malfunction in Diagno-
sis mode.

Tachometer input signal

Check signal for tachometer. Refer to

DI-21, "Inspection/Engine

Speed Signal"

.

Fuel level input signal indi-
cates malfunction in Diagno-
sis mode.

Fuel level input signal

Check signal for tachometer. Refer to

DI-22, "Inspection/Fuel Level

Sensor Unit"

.

Water temperature input sig-
nal Indicates malfunction in
Diagnosis mode.

Water temp. gauge input signal

Check signal for water temp. gauge. Refer to

DI-24, "Inspection/

Water Temperature Gauge"

.

Reset buttons indicates mal-
function in Diagnosis mode.

Unified meter control unit

Replace unified meter control unit assembly. Refer to

DI-26,

"Removal and Installation for Combination Meter"

.

CPU indicates malfunction in
Diagnosis mode.

Unified meter control unit

Replace unified meter control unit assembly. Refer to

DI-26,

"Removal and Installation for Combination Meter"

.

Symptom

Possible causes

Repair order

Fuel gauge pointer fluctuates,
Indicator wrong value or var-
ies.

-

Check the case of malfunction. Refer to

DI-24, "The Fuel Gauge

Pointer Fluctuates Indicator Wrong Value or Varies"

.

Fuel gauge does not move to
“F” position.

-

Check the case of malfunction. Refer to

DI-24, "The Fuel Gauge

Does Not Move to F-position"

.

Fuel gauge does not work.

-

Check the case of malfunction. Refer to

DI-25, "The Fuel Gauge

Does Not Work"

.

DI-20

COMBINATION METERS (LHD MODELS)

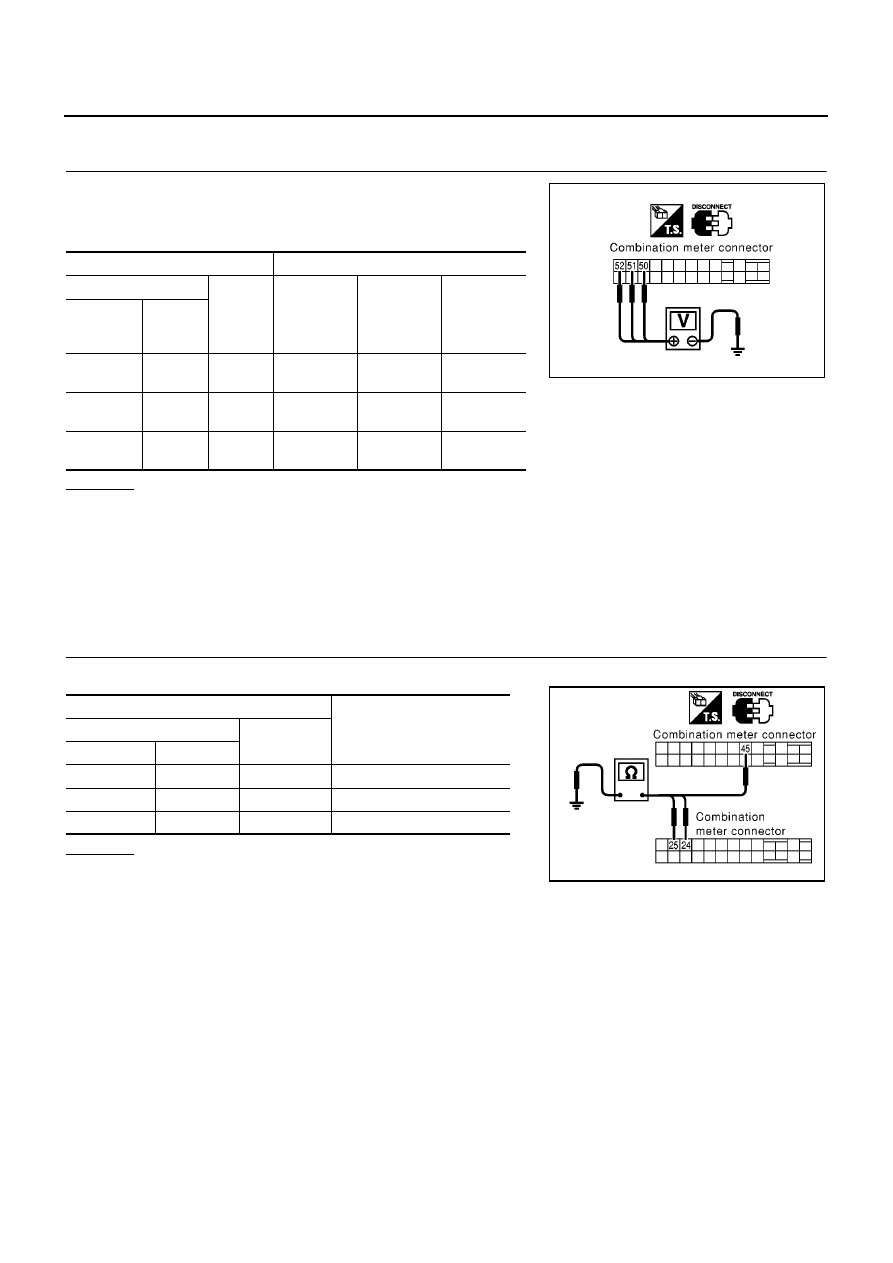

Power Supply and Ground Circuit Check

EKS009AA

1.

POWER SUPPLY CIRCUIT CHECK

1.

Disconnect combination meter connector.

2.

Check voltage between combination meter harness connector
and ground in the following conditions.

OK or NG

OK

>> GO TO 2.

NG

>> Check the following.

10A fuse [No. 1, located in fuse block (J/B)].

10A fuse [No. 30, located in fuse block (J/B)].

10A fuse [No. 12, located in fuse block (J/B)].

Harness for open or short between fuse and combination meter.

2.

GROUND CIRCUIT CHECK

Check continuity between combination meter and ground in the following conditions.

OK or NG

OK

>> INSPECTION END.

NG

>> Harness for open ground circuit.

Terminals

Ignition switch position

(+)

(

)

OFF

ACC

ON

Connector

Terminal

(wire

color)

M37

50 (P)

Ground

0V

Battery
voltage

Battery
voltage

M37

51 (Y)

Ground

0V

0V

Battery
voltage

M37

52 (R/B)

Ground

Battery
voltage

Battery
voltage

Battery
voltage

MKIB0035E

Terminals

Continuity

(+)

(

)

Connector

Terminal

M36

25

Ground

Yes

M37

45

Ground

Yes

M36

24

Ground

Yes

MKIB0036E
