POWER DOOR LOCK SYSTEM

BL-33

C

D

E

F

G

H

J

K

L

M

A

B

BL

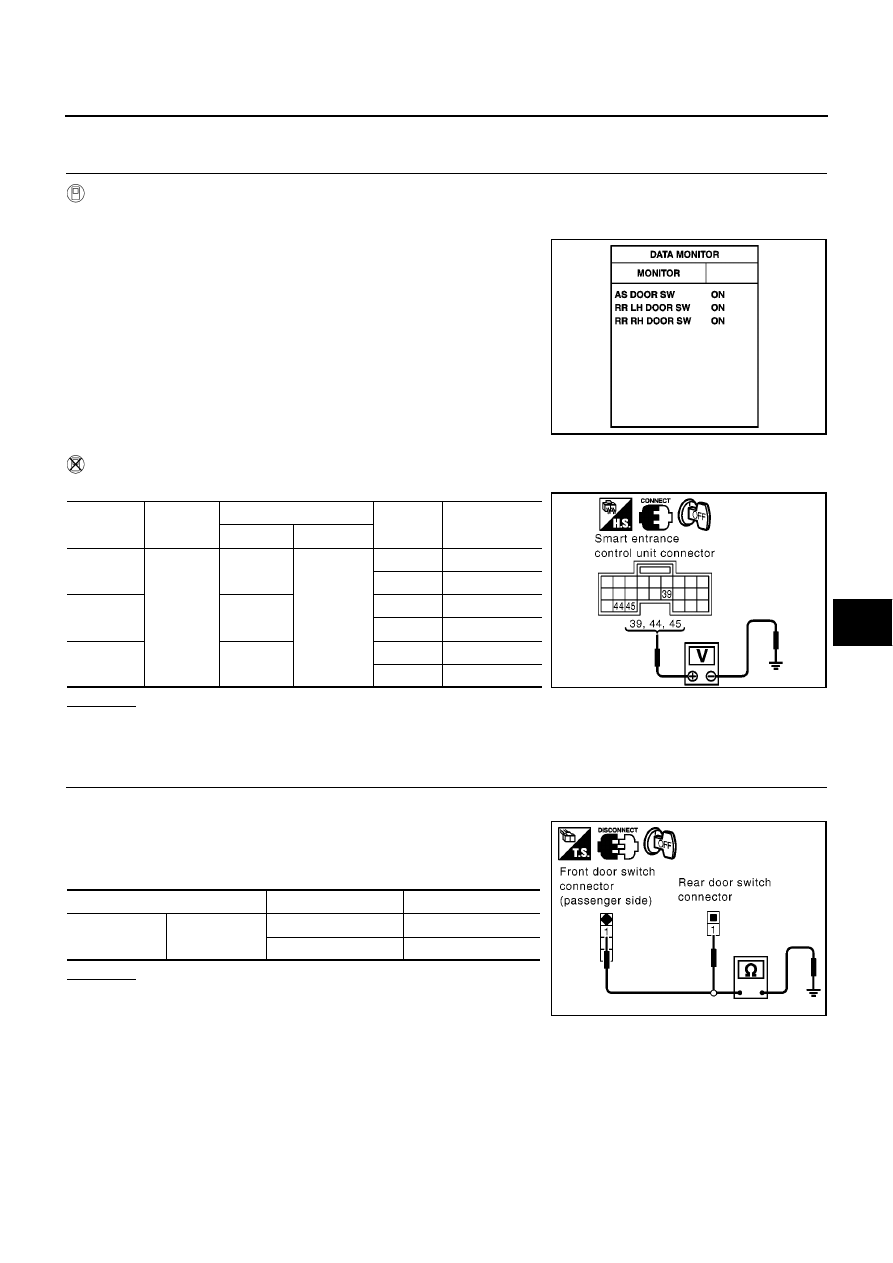

EXCEPT DRIVER SIDE

1.

CHECK OTHER DOORS SWITCHES INPUT SIGNAL

WITH CONSULT-II

Check other doors switch signal (“AS DOOR SW”, “RR DOOR SW” or “RR RH DOOR SW”) in “DATA MONI-
TOR” mode with CONSULT-II.

WITHOUT CONSULT-II

Check voltage between smart entrance control unit harness connector and ground.

OK or NG

OK

>> Door switch OK.

NG

>> GO TO 2.

2.

CHECK DOOR SWITCHES

1.

Turn ignition switch OFF.

2.

Disconnect each door switches harness connector.

3.

Check continuity between door switch terminal 1 and ground
part of door switch.

OK or NG

OK

>> Check harness for open or short between smart

entrance control unit and door switch.

NG

>> Replace malfunction door switch.

Each DOOR SW

Each door is open

: ON

Each door is closed

: OFF

MKIB0199E

Item

Connector

Terminal (wire color)

Condition

Voltage (V)

(Approx.)

(+)

(

−

)

Rear door
LH or RH

M42

39 (BR/W)

Ground

Open

0

Closed

Battery voltage

Passenger
side

44 (L/OR)

Open

0

Closed

Battery voltage

Rear door
LH or RH

45 (R/Y)

Open

0

Closed

Battery voltage

MKIB0583E

Terminal

Condition

Continuity

1

Ground part of

door switch

Pushed

No

Released

Yes

MKIB0584E

BL-34

POWER DOOR LOCK SYSTEM

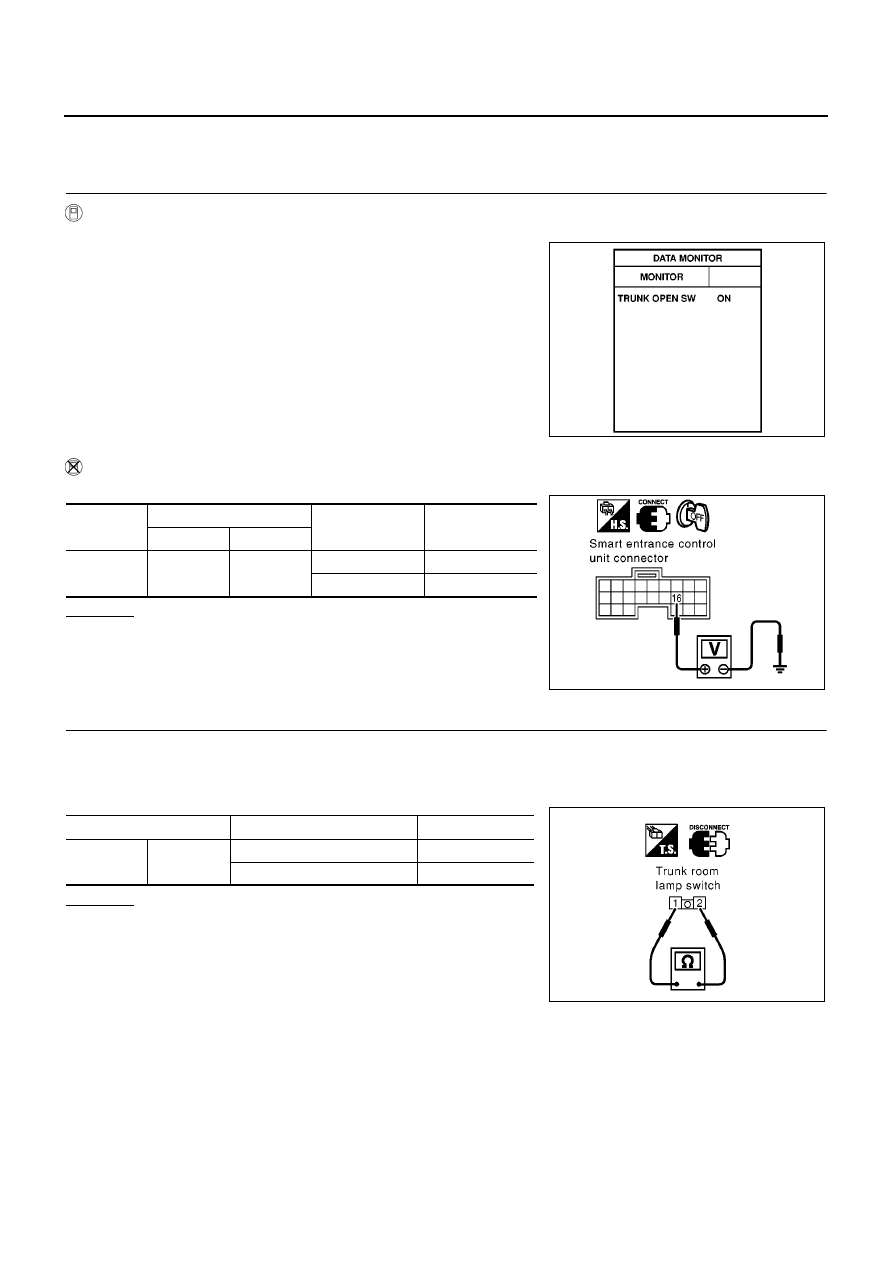

Trunk Room Lamp Switch or Back Door Switch Check

EIS005H1

TRUNK ROOM LAMP SWITCH

1.

CHECK TRUNK ROOM LAMP SWITCH INPUT SIGNAL

With CONSULT- II

Check door switch “TRUNK OPEN SWITCH” in “DATA MONITOR” mode with CONSULT- II.

Without CONSULT- II

Check voltage between smart entrance control unit harness connector and ground.

OK or NG

OK

>> Trunk room lamp switch is OK.

NG

>> GO TO 2

2.

CHECK TRUNK ROOM LAMP SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect trunk room lamp switch harness connector.

3.

Check continuity between trunk room lamp switch terminals 1 and 2.

OK or NG

OK

>> Check the following.

●

Trunk room lamp switch ground circuit

●

Harness for open or short between smart entrance
control unit and trunk room lamp switch

NG

>> Replace trunk room lamp switch.

TRUNK OPEN SW

Trunk lid open

: ON

Trunk lid open

: OFF

SIIA1635E

Connector

Terminal (wire color)

Trunk lid

Voltage (V)

(Approx.)

(+)

(–)

M41

16 (G)

Ground

Closed

5

Open

0

SIIA1636E

Terminal

Trunk lid condition

Continuity

1

2

Opened

Yes

Closed

No

SIIA1637E

POWER DOOR LOCK SYSTEM

BL-35

C

D

E

F

G

H

J

K

L

M

A

B

BL

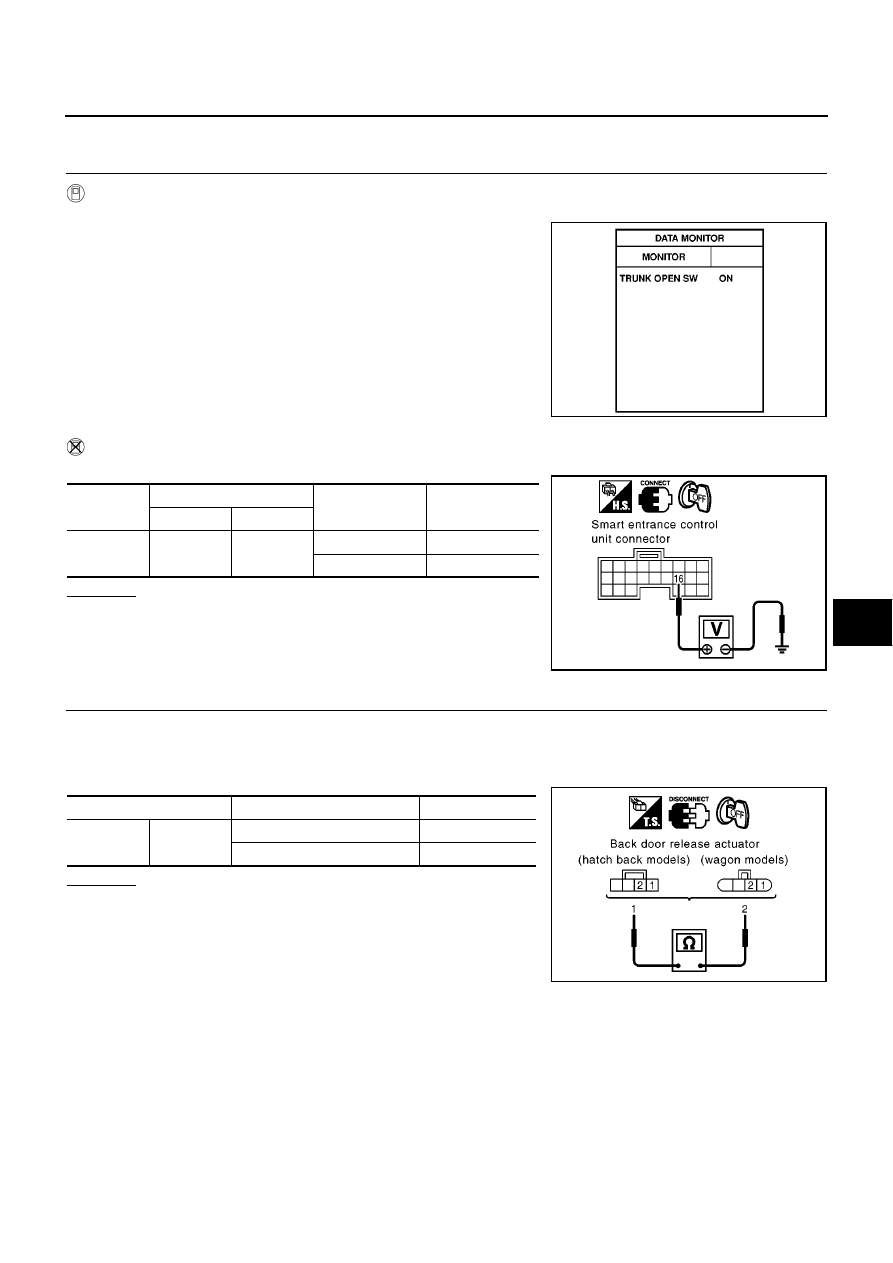

BACK DOOR SWITCH

1.

CHECK BACK DOOR SWITCH INPUT SIGNAL

With CONSULT- II

Check door switch “TRUNK OPEN SWITCH” in “DATA MONITOR” mode with CONSULT- II.

Without CONSULT- II

Check voltage between smart entrance control unit harness connector and ground.

OK or NG

OK

>> Back door switch is OK.

NG

>> GO TO 2

2.

CHECK BACK DOOR SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect back door release actuator connector.

3.

Check continuity between back door release actuator terminals 1 and 2.

OK or NG

OK

>> Check the following.

●

Back door release actuator ground circuit

●

Harness for open or short between smart entrance
control unit and back door release actuator

NG

>> Replace back door release actuator.

TRUNK OPEN SW

Back door open

: ON

Back door close

: OFF

SIIA1635E

Connector

Terminal (wire color)

Back door

Voltage (V)

(Approx.)

(+)

(–)

M41

16 (G)

Ground

Closed

5

Open

0

SIIA1636E

Terminal

Back door condition

Continuity

1

2

Opened

Yes

Closed

No

MIIB0456E

BL-36

POWER DOOR LOCK SYSTEM

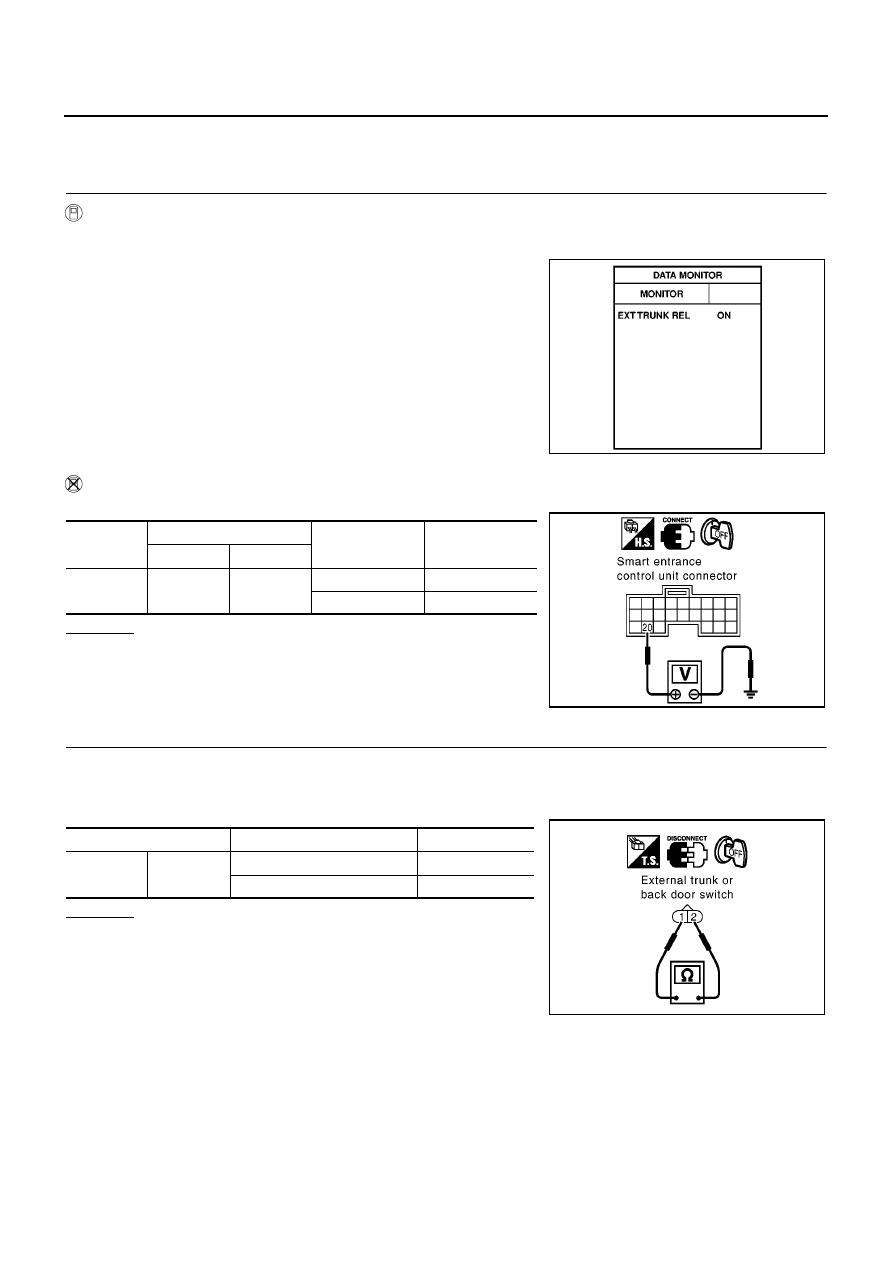

Trunk or Back Door Release Switch Check

EIS005H2

EXTERNAL SWITCH

1.

CHECK EXTERNAL TRUNK OR BACK DOOR RELEASE SWITCH INPUT SIGNAL

With CONSULT-II

Check external trunk or back door release switch input signal “EXT TRUNK REL” in “DATA MONITOR” mode
with CONSULT- II.

Without CONSULT- II

Check voltage between smart entrance control unit harness connector M41 terminal 20(BR) and ground.

OK or NG

OK

>> Trunk or back door release switch is OK.

NG

>> GO TO 2

2.

CHECK EXTERNAL TRUNK OR BACK DOOR RELEASE SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect external trunk or back door release switch connector.

3.

Check continuity between external trunk or back door release switch terminals 1 and 2.

OK or NG

OK

>> Check the following.

●

Harness for open or short between external trunk or
back door release switch and smart entrance control
unit

●

External trunk or back door release switch ground cir-
cuit

NG

>> Replace external trunk or back door release switch.

Release switch is pushed (open):

EXT TRUNK REL ON

Release switch is released (close):

EXT TRUNK REL OFF

SIIA1603E

Connector

Terminal (wire color)

Release switch

Voltage (V)

(Approx.)

(+)

(–)

M41

20 (B/R)

Ground

Pushed

0

Released

5

SIIA1604E

Terminal

Release switch

Continuity

1

2

Pushed

Yes

Released

No

SIIA1605E
