POWER DOOR LOCK SYSTEM

BL-25

C

D

E

F

G

H

J

K

L

M

A

B

BL

CONSULT- II Application Items

EIS005GV

DOOR LOCKING

DATA MONITOR

WORK SUPPORT

TRUNK RELEASE

DATA MONITOR

WORK SUPPORT

Trouble Diagnoses

EIS005GW

First perform the “SELF-DIAG RESULTS” in “SMART ENTRANCE” with CONSULT-II, when perform the each
trouble diagnosis. Refer to

BCS-13, "CONSULT-II INSPECTION PROCEDURE"

.

SYMPTOM CHART

Monitored Item

Description

IGNITION SW

Indicates [ON/OFF] condition of ignition switch.

KEY IN DETECT

Indicates [ON/OFF] condition of key switch.

DOOR SW DR RR

Indicates [ON/OFF] condition of rear door switch (driver side).

DOOR SW AS RR

Indicates [ON/OFF] condition of rear door switch (passenger side).

AS DOOR SW

Indicates [ON/OFF] condition of front door switch (passenger side).

DR DOOR SW

Indicates [ON\OFF] condition of front door switch (driver side).

CDL LOCK SW

Indicates [ON/OFF] condition of lock signal from door lock/ unlock switch.

CDL UNLOCK SW

Indicates [ON/OFF] condition of unlock signal from door lock/ unlock switch.

RKE LOCK

Indicates [ON/OFF] condition of lock signal from remote controller.

RKE UNLOCK

Indicates [ON/OFF] condition of unlock signal from remote controller.

RKE SEL UNLOCK

Indicates [ON/OFF] condition of select unlock signal from remote controller.

Monitored Item

Description

AUTO RE-LOCK

Auto re-lock function can be changed in this mode. The re-lock mode will be changed when
“CHANGE MODE” on CONSULT-II screen is touched.

SELECTIVE UNLOCK

Selective unlock function can be changed in this mode. The unlock mode will be changed when
“CHANGE SET” on CONSULT-II screen is touched.

Monitored Item

Description

IGNITION SW

Indicates [ON/OFF] condition of ignition switch.

TRUNK OPEN SW

Indicates [ON/OFF] condition of trunk room lamp switch (sedan) or back door switch (wagon).

INT TRUNK REL

Indicates [ON/OFF] condition of internal trunk release switch (sedan) or internal back door
release switch (wagon).

EXT TRUNK REL

Indicates [ON/OFF] condition of external trunk release switch (sedan) or external back door
release switch (wagon).

RKE TRUNK REL

Indicates [ON/OFF] condition of trunk (sedan) or back door (back door) open signal from trunk
or back door release switch.

Monitored Item

Description

TRUNK OPEN DELAY

This mode can be changed trunk release switch (sedan) or back door (wagon) release switch
operation time.

Symptom

Malfunctioning system

Reference

page

Power door lock does not operate using any switch

1.

Smart entrance control unit power supply and ground
circuit check

BL-26

2.

Door lock actuator check

BL-28

3.

Replace smart entrance control unit.

BL-26

POWER DOOR LOCK SYSTEM

*:Make sure the power door lock system operates properly.

Smart Entrance Control Unit Power Supply and Ground Circuit Check

EIS005GX

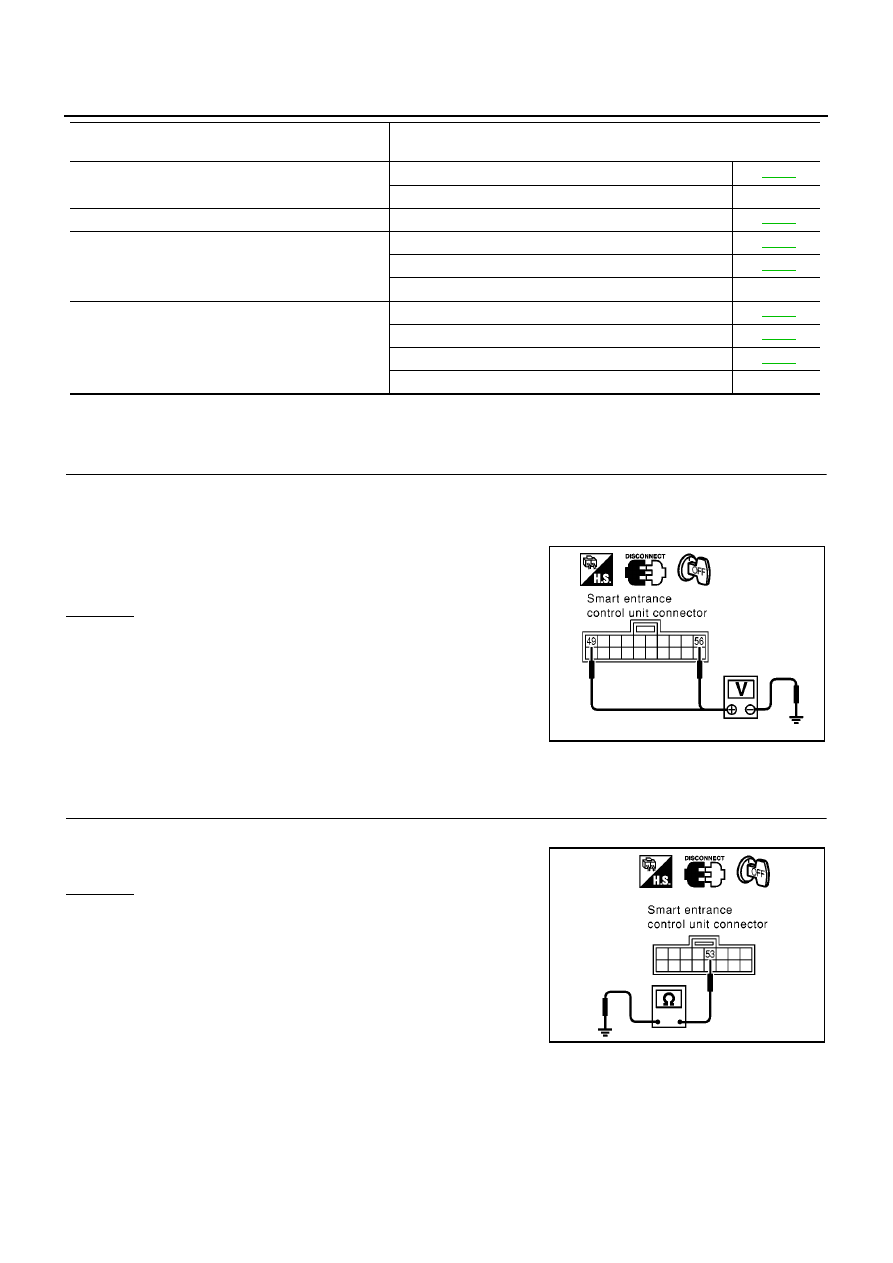

1.

CHECK POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect smart entrance control unit connector.

3.

Check voltage between smart entrance control unit harness connector M43 terminal 49, 56 and ground.

OK or NG

OK

>> GO TO 2.

NG

>> Check the following.

40A fusible link (letter B, located in the fusible link and
fuse box)

10A fuse (No. 12, located in the fusible link and fuse
box)

Condition of circuit breaker-1

Harness for open or short smart entrance control unit power supply circuit.

2.

CHECK GROUND CIRCUIT

Check continuity between smart entrance control unit harness connector M43 terminal 53 and ground.

OK or NG

OK

>> Smart entrance control unit power supply and ground

circuit are OK.

NG

>> Check smart entrance control unit ground circuit for

open or short.

Power door lock does not operate with lock/unlock
switch.

1.

Door lock/unlock switch check

BL-27

2.

Replace smart entrance control unit.

Specific door lock actuator does not operate.

1.

Door lock actuator check

BL-28

*Key reminder system does not operate.

1.

Door switch check

BL-32

2.

Key switch check

BL-41

3.

Replace smart entrance control unit.

Trunk or back door release actuator does not operate.

1.

Trunk room lamp switch or back door switch check

BL-36

2.

Trunk release actuator check (sedan)

BL-38

3.

Back door release actuator check (wagon)

BL-39

4.

Replace smart entrance control unit.

Symptom

Malfunctioning system

Reference

page

49 (W/L) - Ground

: Battery voltage

56 (R/B) - Ground

: Battery voltage

SIIA1564E

53 (B) - Ground

: Continuity should exist.

SIIA1565E

POWER DOOR LOCK SYSTEM

BL-27

C

D

E

F

G

H

J

K

L

M

A

B

BL

Door Lock/Unlock Switch Check

EIS005GY

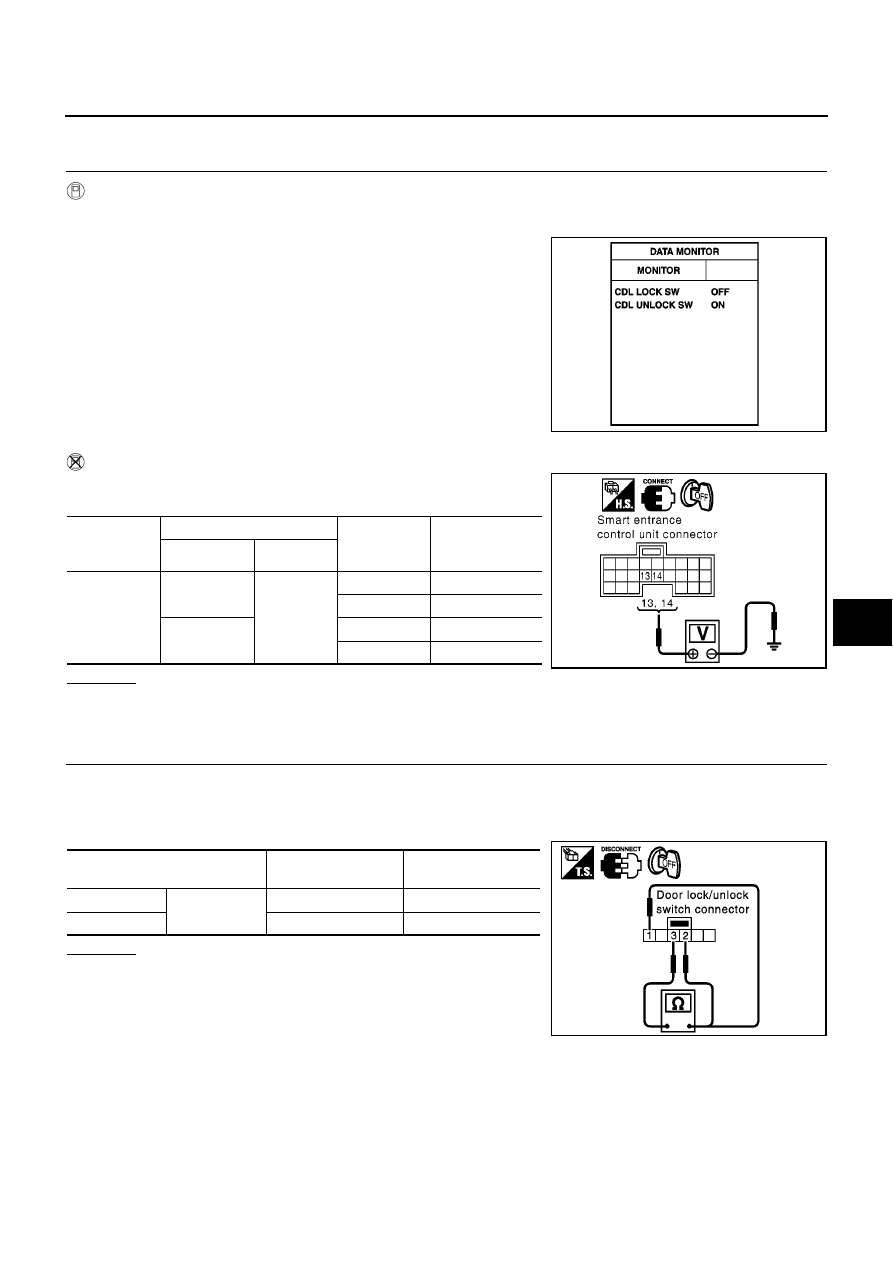

1.

CHECK DOOR LOCK/UNLOCK SWITCH

WITH CONSULT-II

Check door lock/unlock switch signal (“CDL LOCK SW” or “CDL UNLOCK SW”) in “DATA MONITOR” mode
with CONSULT-II.

WITHOUT CONSULT-II

Check voltage between smart entrance control unit harness connec-
tor and ground.

OK or NG

OK

>> Door lock/unlock switch is OK.

NG

>> GO TO 2.

2.

CHECK DOOR LOCK/UNLOCK SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect door lock/unlock switch connector.

3.

Check continuity between door lock/unlock switch connector terminals 1, 2 and 3.

OK or NG

OK

>> Check the following.

Ground circuit for door lock/unlock switch

Harness for open short between door lock/unlock
switch and smart entrance control unit

NG

>> Replace door lock/unlock switch.

When door lock/unlock is
locked

: CDL LOCK SW ON

When door lock/unlock is
unlocked

: CDL UNLOCK SW ON

MKIB0198E

Connector

Terminals (wire color)

Condition

(Door lock/

unlock switch)

Voltage (V)

(Approx.)

(+)

(

)

M41

13 (GY)

Ground

Locked

0

Unlocked

Battery voltage

14 (BR/Y)

Locked

Battery voltage

Unlocked

0

MKIB0582E

Terminal

Door lock/unlock

switch condition

Continuity

1

3

Lock

Yes

2

Unlock

Yes

MKIB0261E

BL-28

POWER DOOR LOCK SYSTEM

Door Lock Actuator Check

EIS005GZ

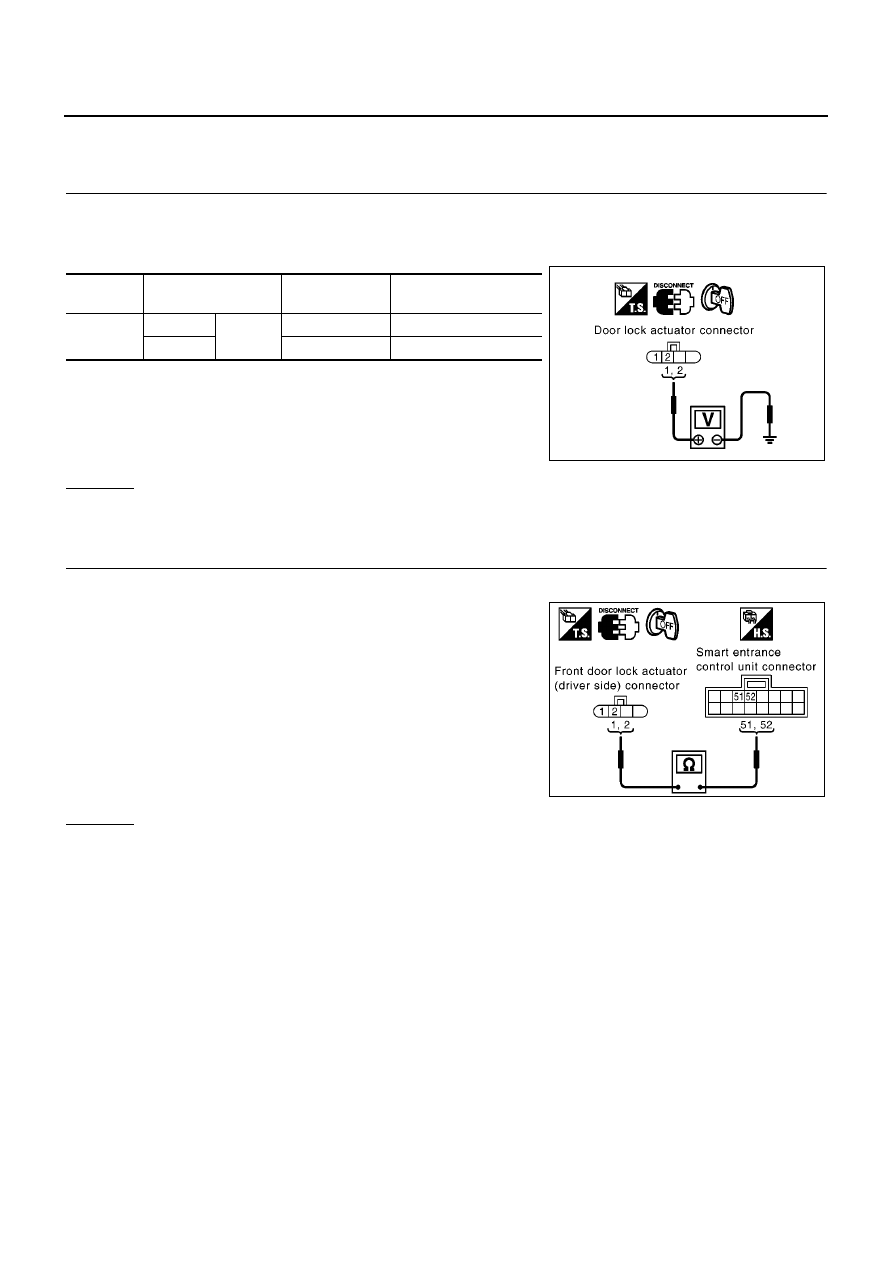

DRIVER SIDE

1.

CHECK DOOR LOCK SIGNAL

1.

Turn ignition switch OFF.

2.

Disconnect front door lock actuator (driver side) harness connector.

3.

Check voltage between front door lock actuator (driver side) harness connector and ground.

OK or NG

OK

>> Replace front door lock actuator (driver side).

NG

>> GO TO 2.

2.

CHECK DOOR LOCK ACTUATOR CIRCUIT

1.

Disconnect smart entrance control unit harness connector.

2.

Check continuity between front door lock actuator (driver side)
harness connector D8 terminal 1, 2 and smart entrance control
unit harness connector M43 terminal 51, 52.

OK or NG

OK

>> Replace smart entrance control unit.

NG

>> Repair or replace harness between smart entrance control unit and front door lock actuator (driver

side).

Connector

Terminal (wire color)

Door lock/unlock

switch condition

Voltage (V)

(Approx.)

D8

1 (L/R)

Ground

Lock

0

Battery voltage

0

2 (Y)

Unlock

0

Battery voltage

0

MIIB0451E

1 (L/R) - 51 (L/R)

: Continuity should exist.

2 (Y) - 52 (Y)

: Continuity should exist.

MIIB0452E
