TROUBLE DIAGNOSIS

ATC-93

C

D

E

F

G

H

I

K

L

M

A

B

ATC

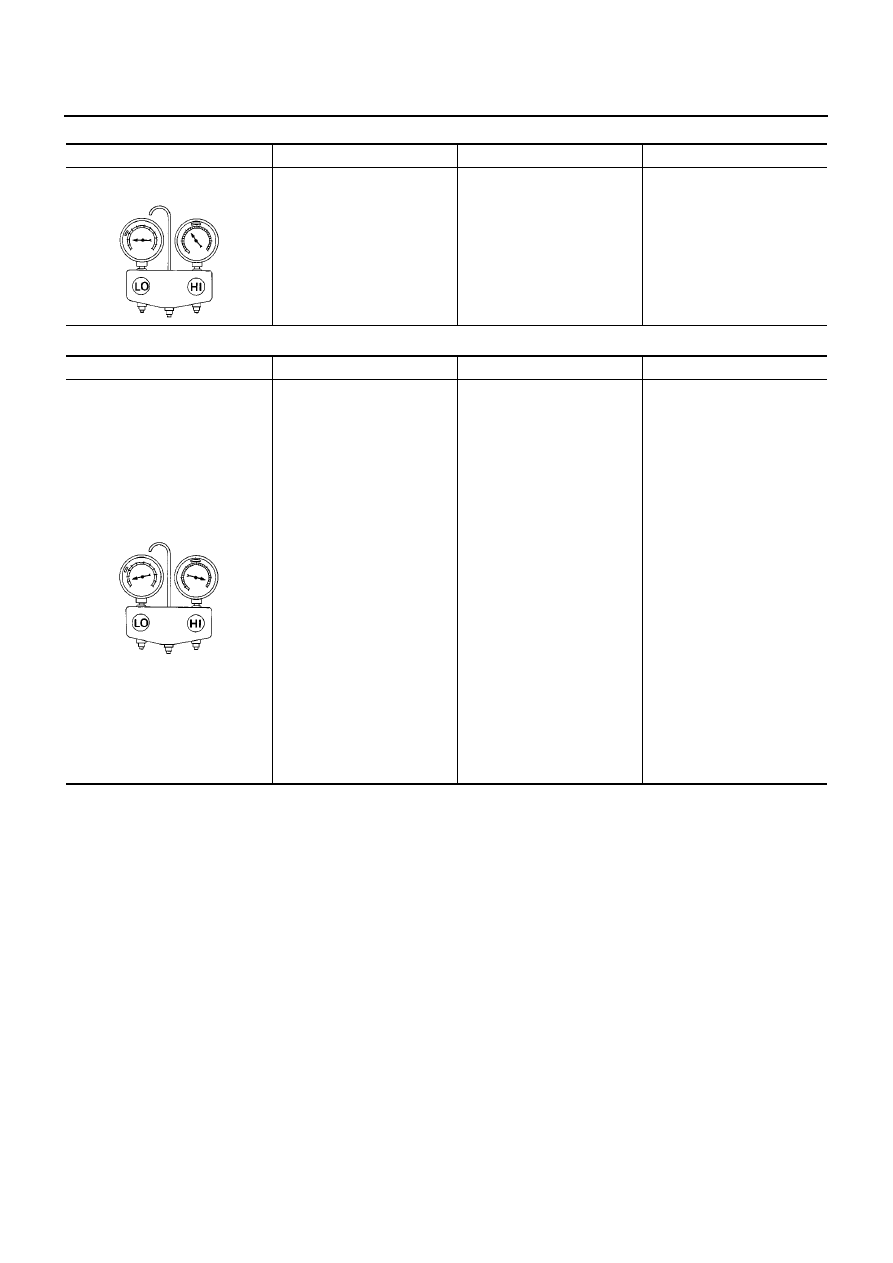

High-pressure Side is Too Low and Low-pressure Side is Too High.

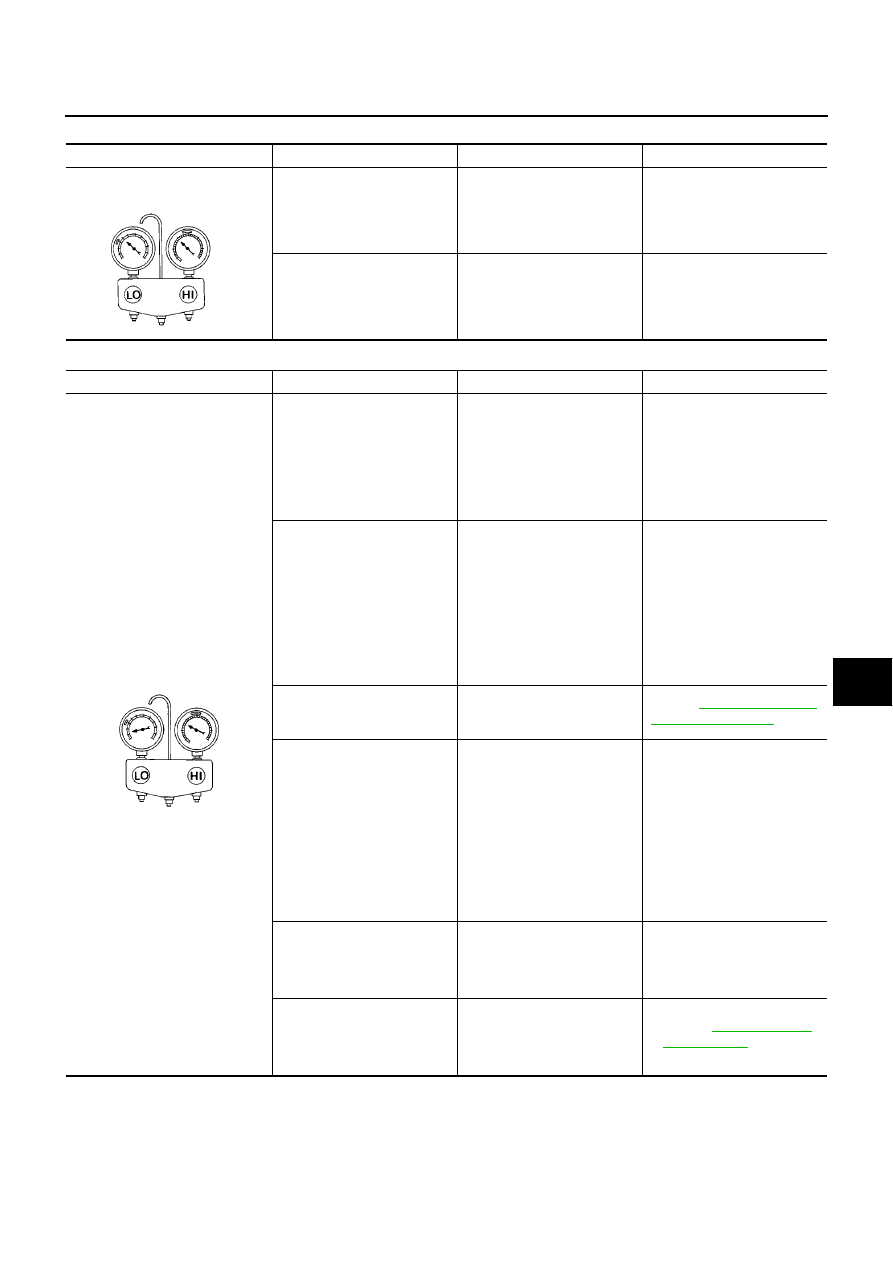

Both High- and Low-pressure Sides are Too Low.

Gauge indication

Refrigerant cycle

Probable cause

Corrective action

High-pressure side is too low and
low-pressure side is too high.

High and low-pressure sides
become equal soon after com-
pressor operation stops.

Compressor pressure opera-
tion is improper.

Damaged inside compressor
packings

Replace compressor.

No temperature difference
between high and low-pres-
sure sides

Compressor pressure opera-
tion is improper.

Damaged inside compressor
packings.

Replace compressor.

AC356A

Gauge indication

Refrigerant cycle

Probable cause

Corrective action

Both high- and low-pressure sides
are too low.

There is a big temperature
difference between receiver
drier outlet and inlet. Outlet
temperature is extremely
low.

Liquid tank inlet and expan-
sion valve are frosted.

Liquid tank inside is slightly
clogged.

Replace liquid tank.

Check lubricant for contami-
nation.

Temperature of expansion
valve inlet is extremely low
as compared with areas
near liquid tank.

Expansion valve inlet may
be frosted.

Temperature difference
occurs somewhere in high-
pressure side

High-pressure pipe located
between receiver drier and
expansion valve is clogged.

Check and repair malfunc-
tioning parts.

Check lubricant for contami-
nation.

Expansion valve and liquid
tank are warm or only cool
when touched.

Low refrigerant charge

Leaking fittings or components

Refer to

ATC-146, "Checking

for Refrigerant Leaks"

.

There is a big temperature dif-
ference between expansion
valve inlet and outlet while the
valve itself is frosted.

Expansion valve closes a little
compared with the specifica-
tion.

1. Improper expansion valve

adjustment

2. Malfunctioning thermal

valve

3. Outlet and inlet may be

clogged.

Remove foreign particles by
using compressed air.

Check lubricant for contami-
nation.

An area of the low-pressure
pipe is colder than areas near
the evaporator outlet.

Low-pressure pipe is clogged
or crushed.

Check and repair malfunc-
tioning parts.

Check lubricant for contami-
nation.

Air flow volume is not enough
or is too low.

Evaporator is frozen.

Check intake sensor circuit.
Refer to

ATC-108, "Intake

Sensor Circuit"

Replace compressor.

AC353A

ATC-94

TROUBLE DIAGNOSIS

Low-pressure Side Sometimes Becomes Negative.

Low-pressure Side Becomes Negative.

Gauge indication

Refrigerant cycle

Probable cause

Corrective action

Low-pressure side sometimes
becomes negative.

Air conditioning system
does not function and does
not cyclically cool the com-
partment air.

The system constantly func-
tions for a certain period of
time after compressor is
stopped and restarted.

Refrigerant does not dis-
charge cyclically.

Moisture is frozen at expan-
sion valve outlet and inlet.

Water is mixed with refriger-
ant.

Drain water from refrigerant
or replace refrigerant.

Replace liquid tank.

AC354A

Gauge indication

Refrigerant cycle

Probable cause

Corrective action

Low-pressure side becomes nega-
tive.

Liquid tank or front/rear side of
expansion valve

s pipe is

frosted or dewed.

High-pressure side is closed
and refrigerant does not flow.

Expansion valve or liquid tank
is frosted.

Leave the system at rest until
no frost is present. Start it
again to check whether or not
the problem is caused by
water or foreign particles.

If water is the cause, initially
cooling is okay. Then the
water freezes causing a
blockage. Drain water from
refrigerant or replace refrig-
erant.

If due to foreign particles,
remove expansion valve
and remove the particles
with dry and compressed air
(not shop air).

If either of the above meth-
ods cannot correct the prob-
lem, replace expansion
valve.

Replace liquid tank.

Check lubricant for contami-
nation.

AC362A

TROUBLE DIAGNOSIS

ATC-95

C

D

E

F

G

H

I

K

L

M

A

B

ATC

Insufficient Heating

EJS002Y5

SYMPTOM: Insufficient heating

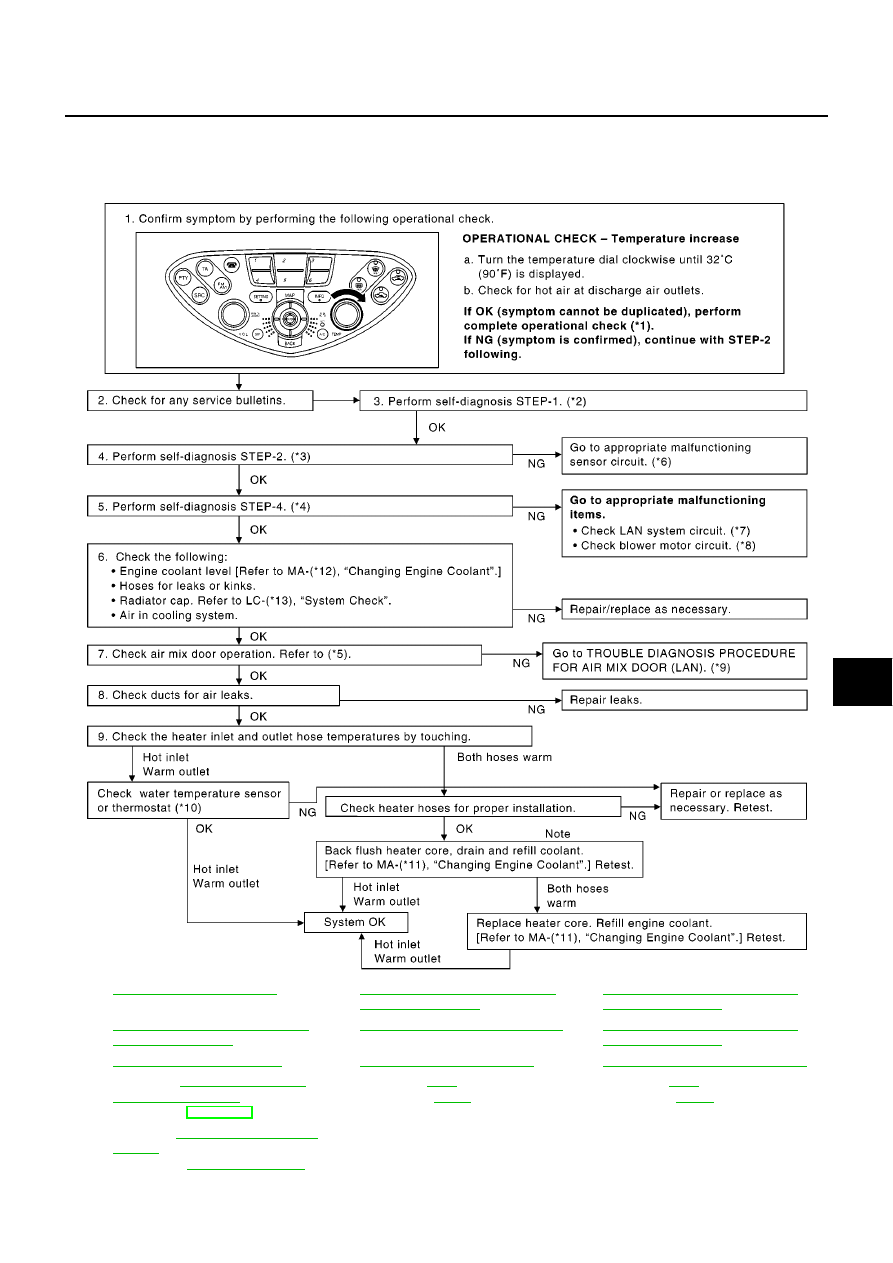

INSPECTION FLOW

*1

ATC-56, "Operational Check"

*2

ATC-49, "FUNCTION CONFIRMA-
TION PROCEDURE"

see No.1.

*3

ATC-49, "FUNCTION CONFIRMA-
TION PROCEDURE"

, see No.5.

*4

ATC-49, "FUNCTION CONFIRMA-
TION PROCEDURE"

see No.7.

*5

ATC-67, "Air Mix Door Motor Circuit"

*6

ATC-49, "FUNCTION CONFIRMA-
TION PROCEDURE"

, see No.14.

*7

ATC-61, "LAN System Circuit"

*8

ATC-73, "Blower Motor Circuit"

*9

ATC-67, "Air Mix Door Motor Circuit"

*10 YD engine:

EC-119, "DTC P0117,

P0118 ECT SENSOR"

F9Q engine: EC-F9Q-17

*11

YD engine:

CO-8

F9Q engine:

CO-25

*12 YD engine:

CO-8

F9Q engine:

CO-25

*13 YD engine:

CO-11, "Checking Radia-

tor Cap"

F9Q engine:

CO-27, "RADIATOR"

RJIA0805E
