Nissan Primera P12. Manual - part 6





REFRIGERATION SYSTEM

ATC-17

C

D

E

F

G

H

I

K

L

M

A

B

ATC

DESCRIPTION
General

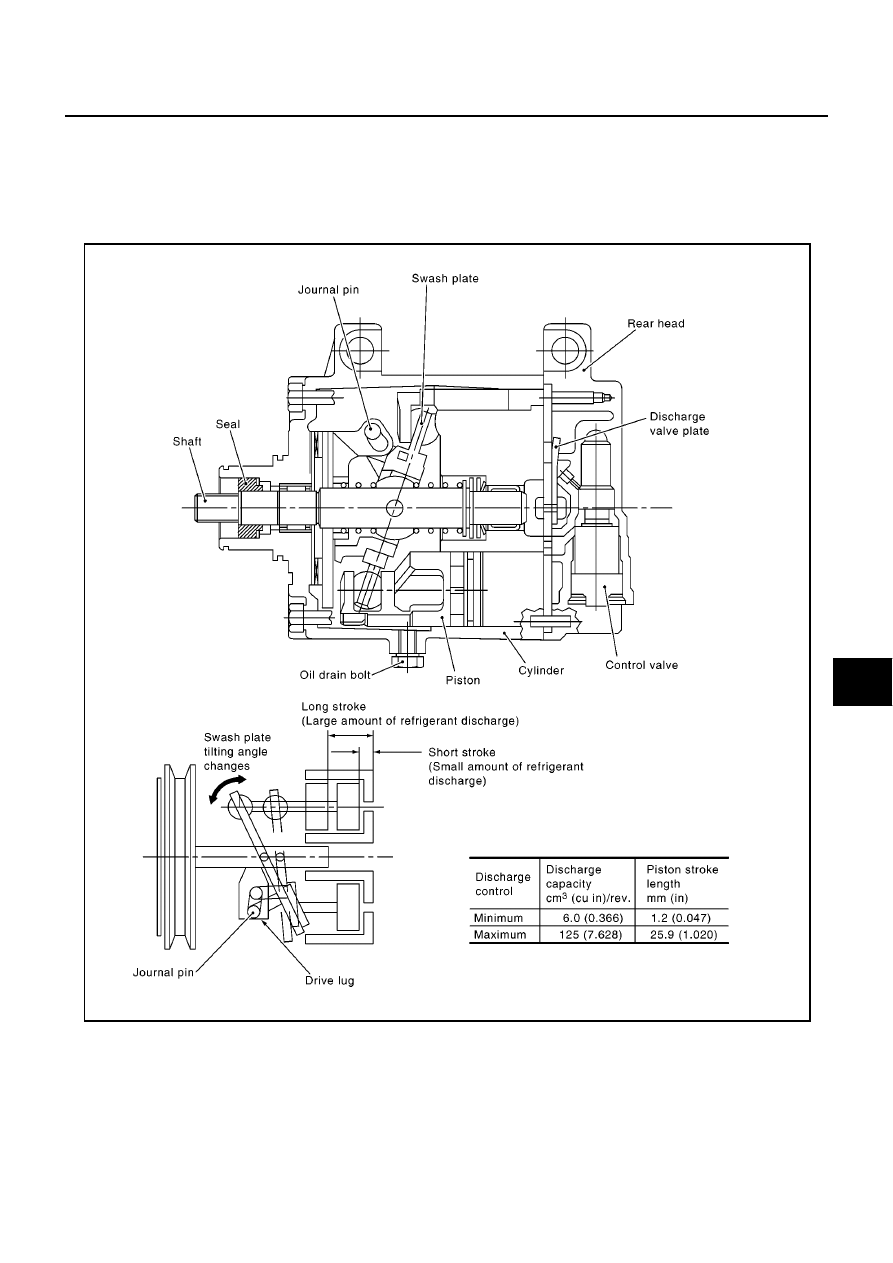

The variable compressor is basically a swash plate type that changes piston stroke in response to the required
cooling capacity.
The tilt of the swash plate allows the piston

s stroke to change so that refrigerant discharge can be continu-

ously changed from 6.0 to 125 cm

3

(0.366 to 7.628 cu in).

Operation

1.

Operation Control Valve
Operation control valve is located in the suction port (low-pressure) side, and opens or closes in response
to changes in refrigerant suction pressure.
Operation of the valve controls the internal pressure of the crankcase.
The angle of the swash plate is controlled between the crankcase

s internal pressure and the piston cylin-

der pressure.

RHA854HA

ATC-18

REFRIGERATION SYSTEM

2.

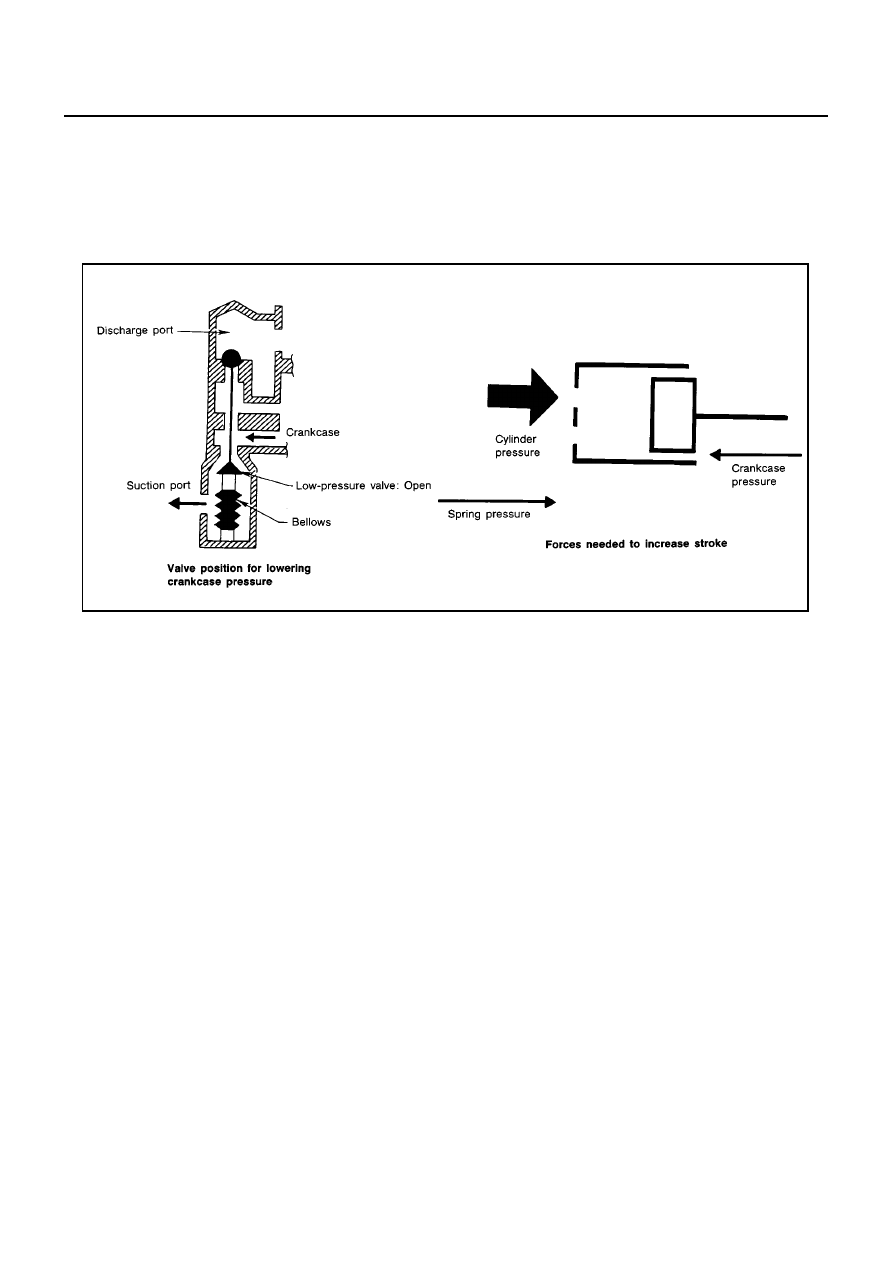

Maximum Cooling
Refrigerant pressure on the low-pressure side increases with an increase in heat loads.
When this occurs, the control valve

s bellows compress to open the low-pressure side valve and close the

high-pressure side valve.
This causes the following pressure changes:

The crankcase

s internal pressure to equal the pressure on the low-pressure side;

The cylinder

s internal pressure to be greater than the crankcase

s internal pressure.

Under this condition, the swash plate is set to the maximum stroke position.

3.

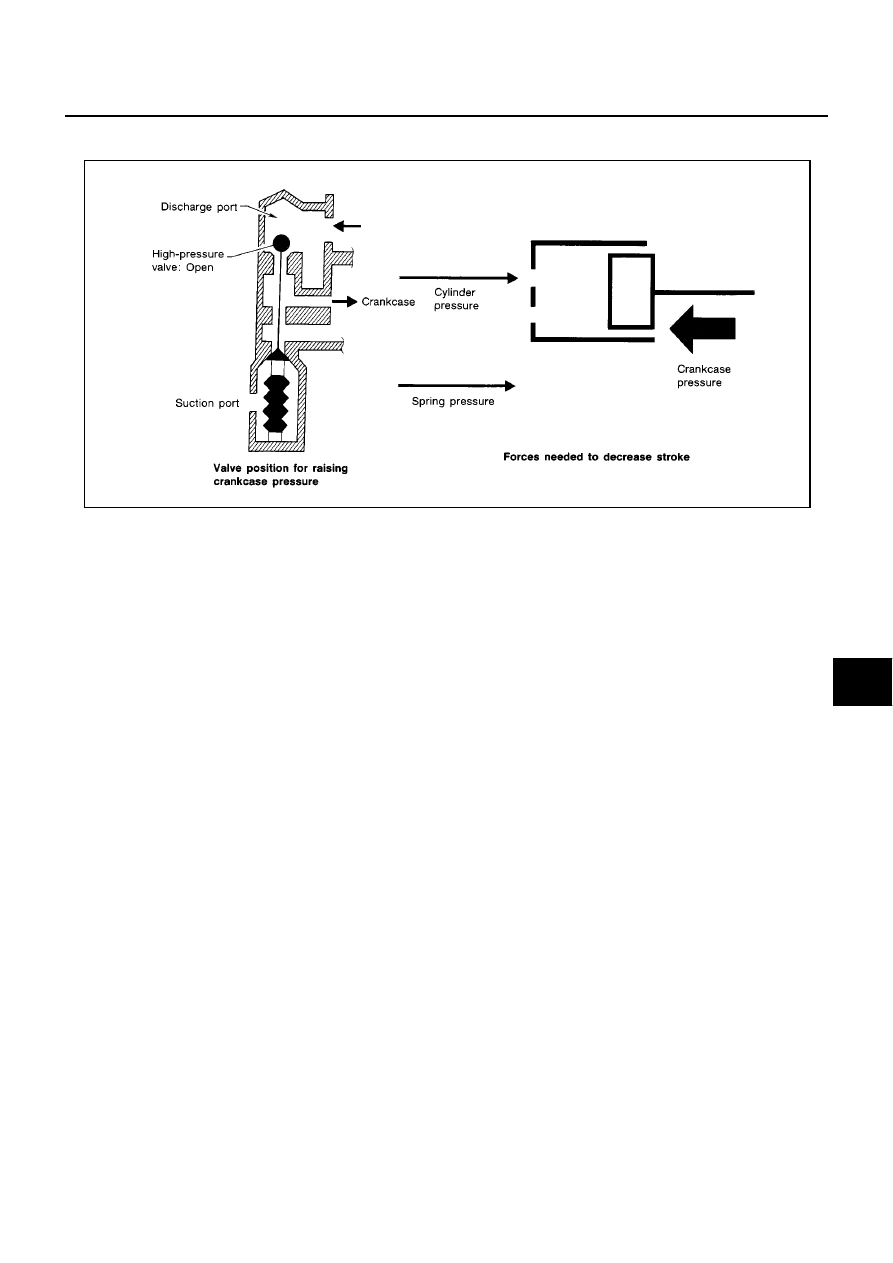

Capacity Control

Refrigerant pressure on suction side is low during high speed driving or when ambient or interior tem-

perature is low.

The bellows expands when refrigerant pressure on the suction pressure side drops below approxi-

mately 177 kPa (1.77 bar, 1.8 kg/cm

2

, 26 psi).

Since suction pressure is low, it makes the suction port close and the discharge port open. Thus, crank-
case pressure becomes high as high pressure enters the crankcase.

The force acts around the journal pin near the swash plate, and is generated by the pressure difference

before and behind the piston.
The drive lug and journal pin are located where the piston generates the highest pressure. Piston pres-
sure is between suction pressure Ps and discharge pressure Pd, which is near suction pressure Ps. If
crankcase pressure Pc rises due to capacity control, the force around the journal pin makes the swash
plate angle decrease and also the piston stroke decrease. In other words, crankcase pressure increase

RHA473C

REFRIGERATION SYSTEM

ATC-19

C

D

E

F

G

H

I

K

L

M

A

B

ATC

triggers pressure difference between the piston and the crankcase. The pressure difference changes the
angle of the swash plate.

RHA474C

ATC-20

REFRIGERATION SYSTEM

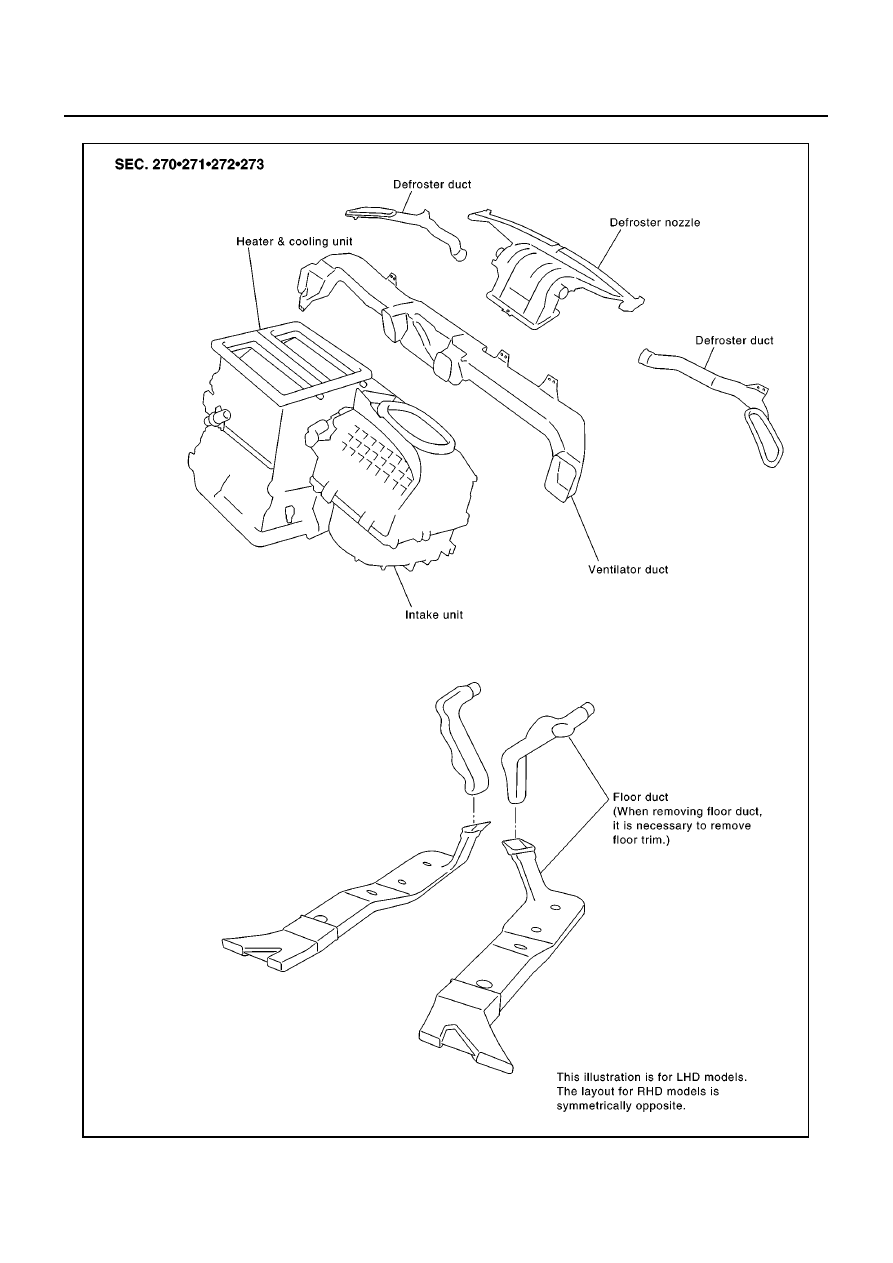

Component Layout

EJS003A5

RJIA0686E
