Qashqai J11. Seat - part 3





REAR SEAT

SE-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

REAR SEAT

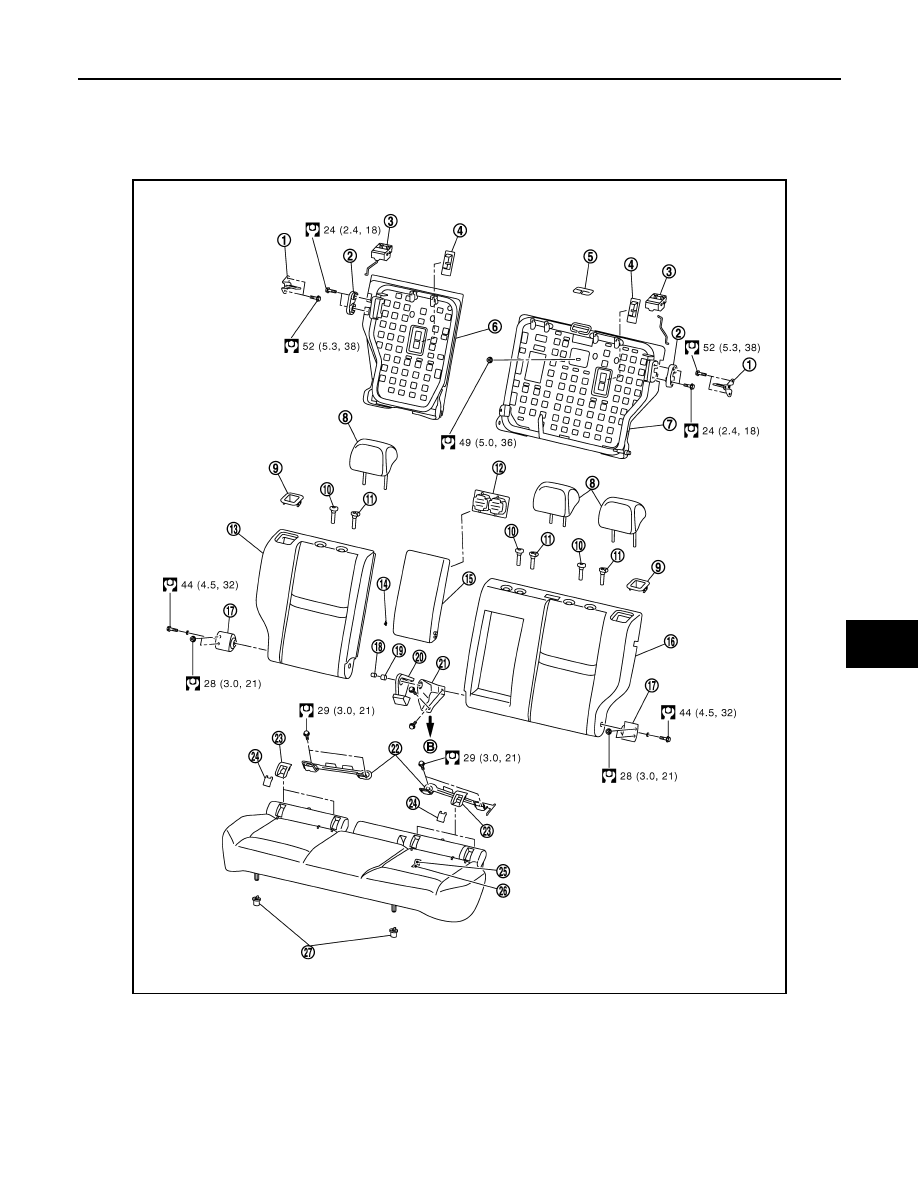

Exploded View

INFOID:0000000010478075

E1JIA0315GB

1.

Striker

2.

Seatback lock assembly

3.

Seatback lock knob

4.

Tether child cover

5.

Rear seat belt escutcheon

6.

Seatback frame RH

7.

Seatback frame LH

8.

Headrest

9.

Seatback lock knob finisher

10. Headrest holder (free)

11.

Headrest holder (locked)

12. Cup holder

13. Armrest assembly

14. Spring clip

15. Seatback trim & pad RH

16. Seatback trim & pad LH

17. Seatback side bracket

18. Bearing

SE-34

< REMOVAL AND INSTALLATION >

REAR SEAT

Removal and Installation

INFOID:0000000010478076

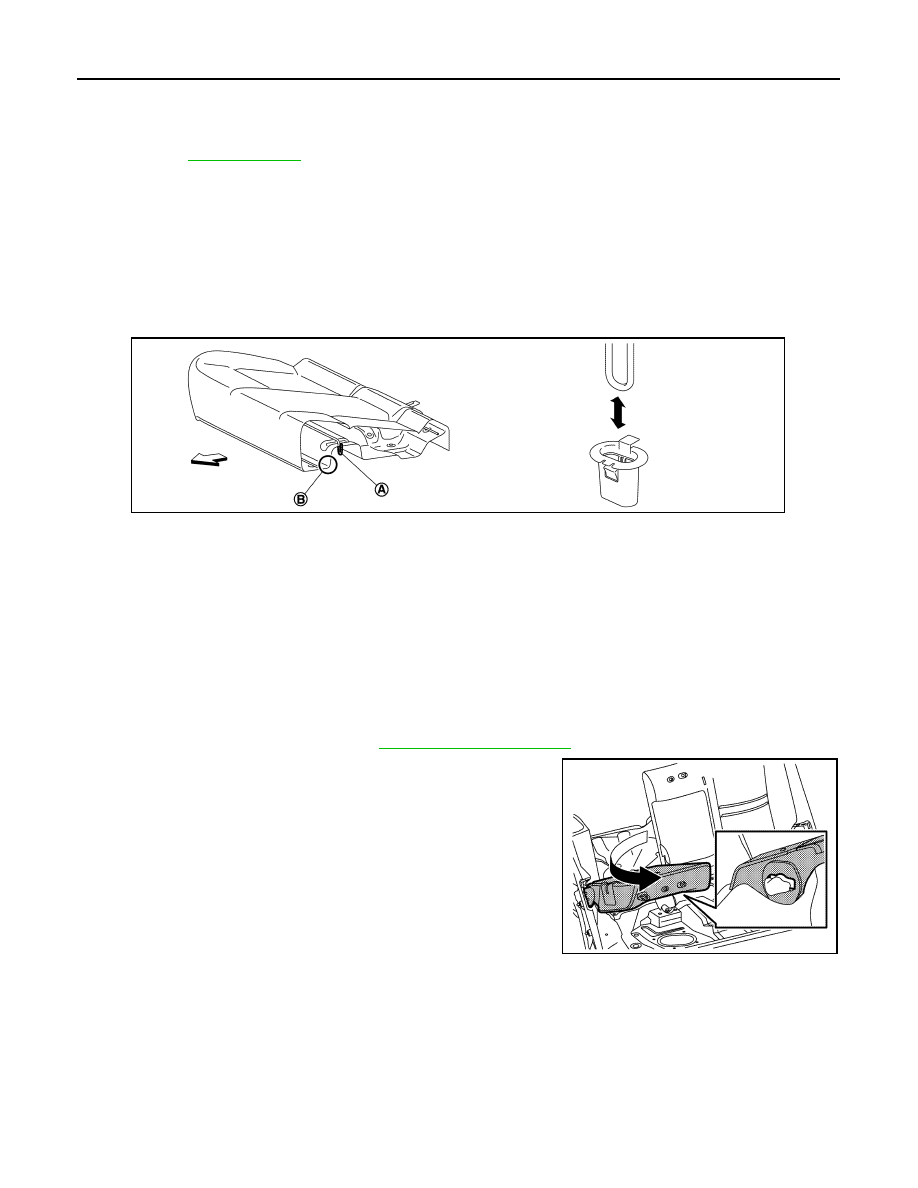

REMOVAL

SEAT CUSHION

CAUTION:

During removal and installation, an assistant is required to protect against injury or damage.
1.

Lift up front end portion of seat cushion (B) and disengage seat cushion hook (A).

2.

Pull out seat belt buckle from seat cushion.

3.

Remove seat cushion from the vehicle.

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

SEATBACK

CAUTION:

During removal and installation, an assistant is required to protect against injury or damage.

1.

Remove rear seat cushion.

2.

Remove headrest.

3.

Remove uggage side finisher. Refer to

INT-29, "Luggage side trim"

4.

Remove seatback:

a.

Remove seatback mounting bolts

b.

Unlock and tilt seatback.

c.

Remove seatback.

INSTALLATION

Note the following item, and install in the reverse order of removal.

19. Bearing

20. Center hinge cover

21. Center hinge

22. Isofix bracket

23. Isofix cover

24. Isofix cover cap

25. Seat cushion trim

26. Seat cushion pad

27. Seat cushion hook

Refer to

GI-4, "Components"

 for symbpls in the figure.

JMJIA4835ZZ

JMJIA9698ZZ

REAR SEAT

SE-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

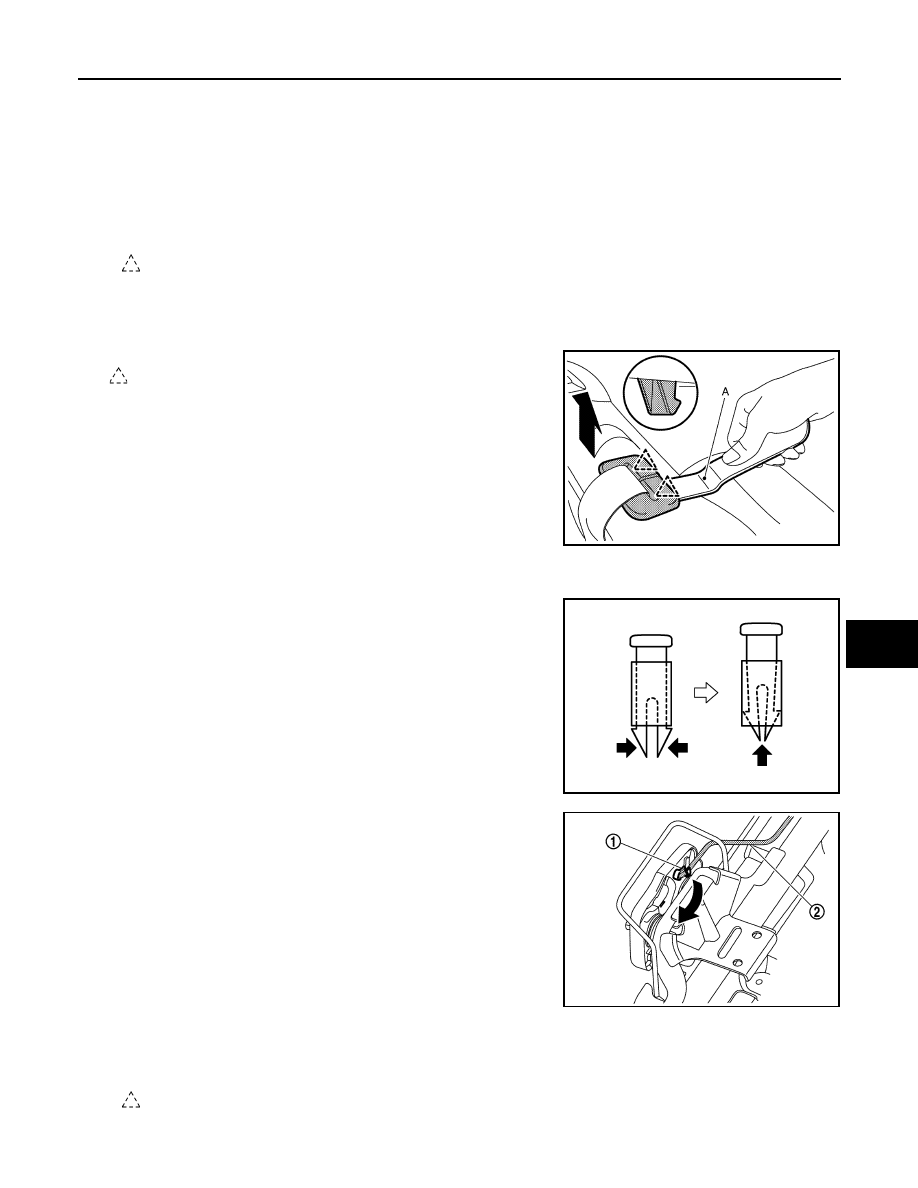

SEATBACK

SEATBACK : Disassembly and Assembly

INFOID:0000000010478170

DISASSEMBLY

1.

Remove armrest.
• Unclip cup holder.

: Pawl

• Remove spring clip. Using suitable tool.
• Push armest towards the left side of the vehicle to disengage LH pivot pin from bracket.
• Twist and disengage RH hinge pin to remove armest.

2.

Using a suitable tool remove seat belt finisher.

: Pawl

3.

Sqeeze clips and push up to remove.

CAUTION:

Wear protective gloves and sleeves to prevent injury from
sharp edges on frame.

4.

Remove seat lock knob finisher.
• Remove seat lock knob.
- Remove the mating (1) by the rotation of the rod holder (2).

- Remove rod holder (2) from seat lock knob (1).

- Remove seat lock knob finisher.

: Pawl

5.

6.

Remove in one piece seatback pad and trim.

JMJIA9700ZZ

PIIB4084J

JMJIA9704ZZ

SE-36

< REMOVAL AND INSTALLATION >

REAR SEAT

7.

Remove hog ring to separate seatback pad and trim.

ASSEMBLY

Assembly is in the reverse order of disassembly.
• Install new hog rings on the seatback trim in original positions.
• Use only one hog ring in each designated location.
• Make sure hog rings are correctly fastened around both the seat-

back trim and seatback pad wires.

• Use NISSAN standard hog rings and tools to assemble.
• Make sure hook fastener is pressed into place after seatback trim

is assembled.

• Smooth out all wrinkles during assembly.

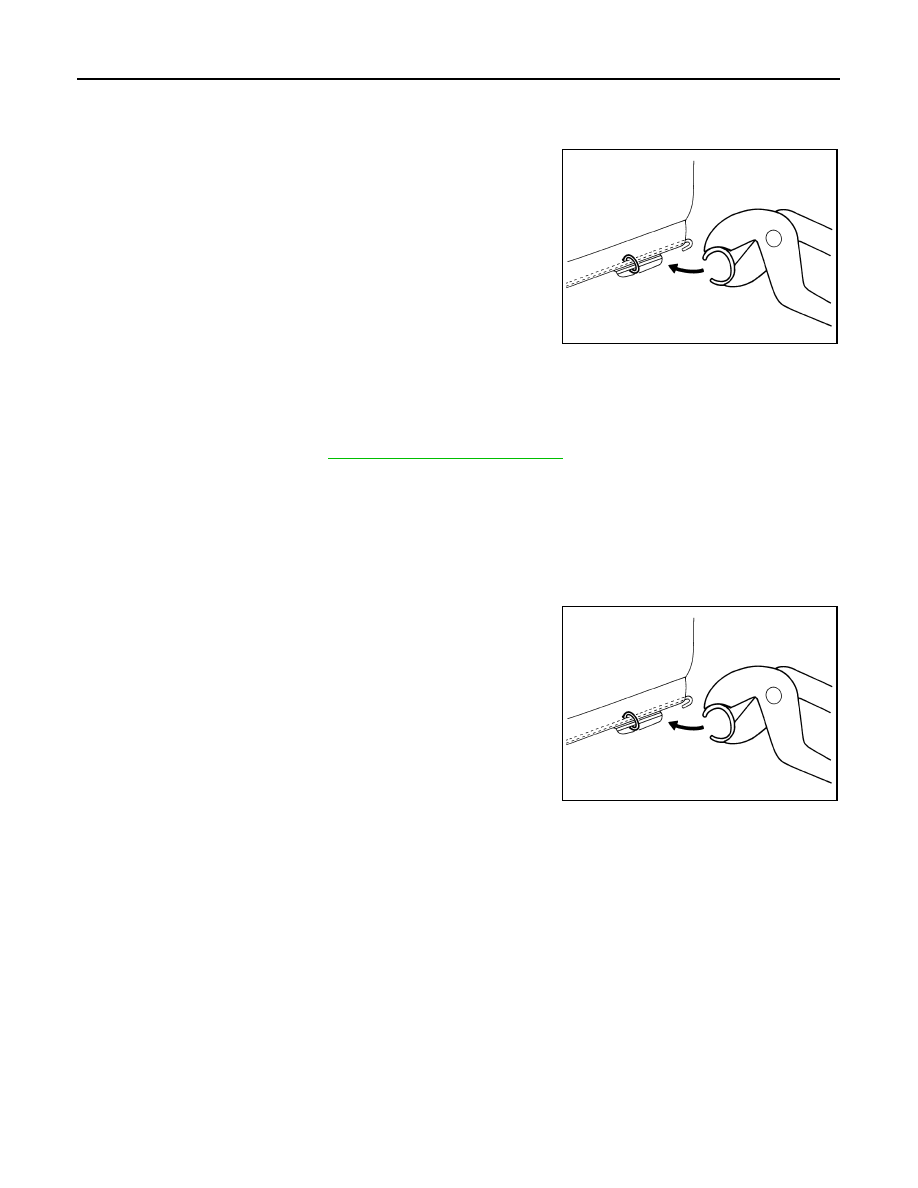

SEAT CUSHION

SEAT CUSHION : Disassembly and Assembly

INFOID:0000000010478171

DISASSEMBLY

1.

Remove seat cushion. Refer to

SE-34, "Removal and Installation"

.

2.

Remove hog rings on the bottom side of seat cushion.

3.

Remove hog rings on the top side of seat cushion and separate the seat cushion trim from the seat cush-
ion pad.
NOTE:
Remove all pieces of hog rings and discard them.

ASSEMBLY

Assembly is in the reverse order of disassembly.
• Install new hog rings on the seat cushion trim in original positions.
• Use only one hog ring in each designated location.
• Make sure hog rings are correctly fastened around both the seat

cushion trim and seat cushion pad wires.

• Use NISSAN standard hog rings and tools to assemble.
• Make sure hook fastener is pressed into place after seat cushion

trim is assembled.

• Smooth out all wrinkles during assembly.

PIIB3356J

PIIB3356J

POWER SEAT SWITCH

SE-37

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

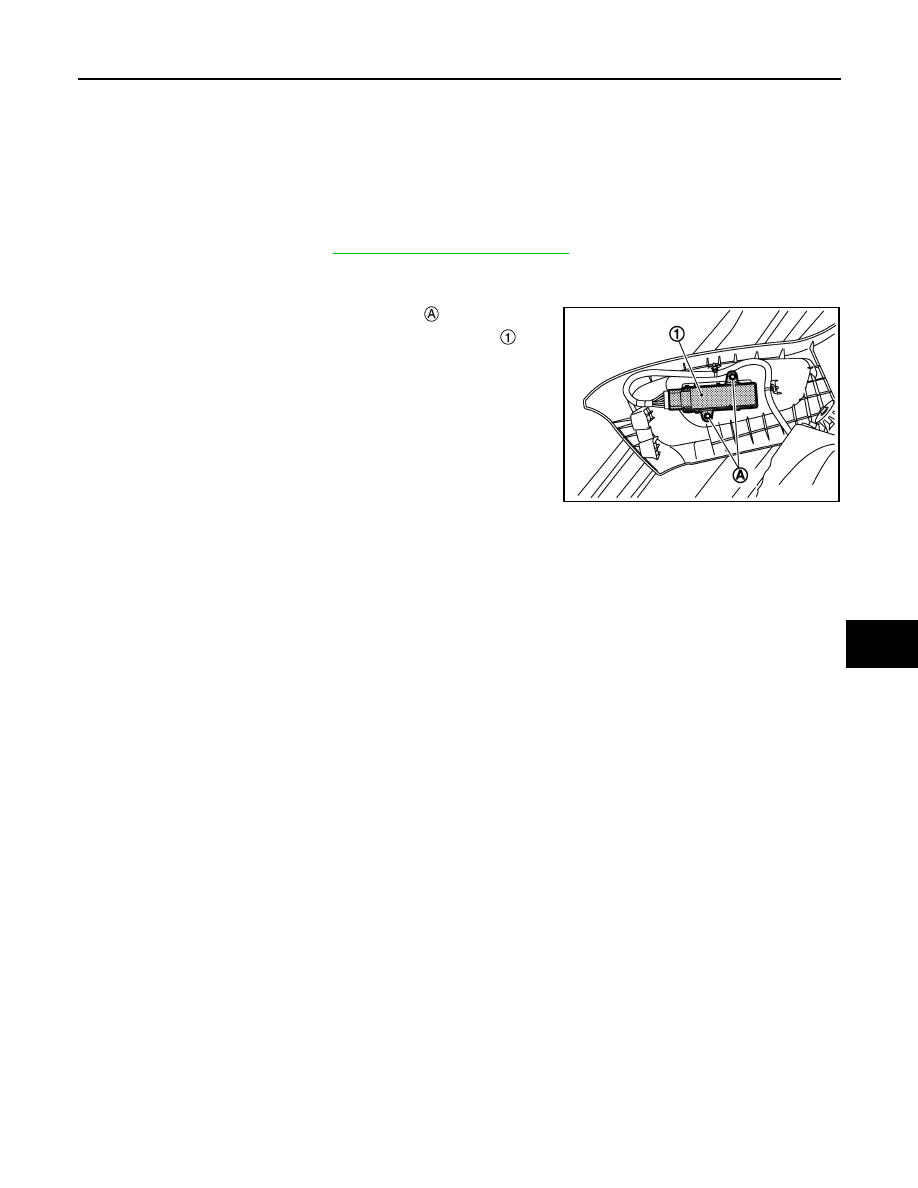

POWER SEAT SWITCH

Removal and Installation

INFOID:0000000010436343

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

1.

Remove the front seat. Refer to

SE-28, "Removal and Installation"

.

2.

Remove the seat cushion outer finisher inside.

3.

Disconnect power seat switch connector.

4.

Remove power seat switch mounting screws

.

5.

Remove harness clip and remove power seat switch

 from

seat cushion outer finisher.

INSTALLATION

Install in the reverse order of removal.

JMJIA9931ZZ

SE-38

< REMOVAL AND INSTALLATION >

HEATED SEAT SWITCH

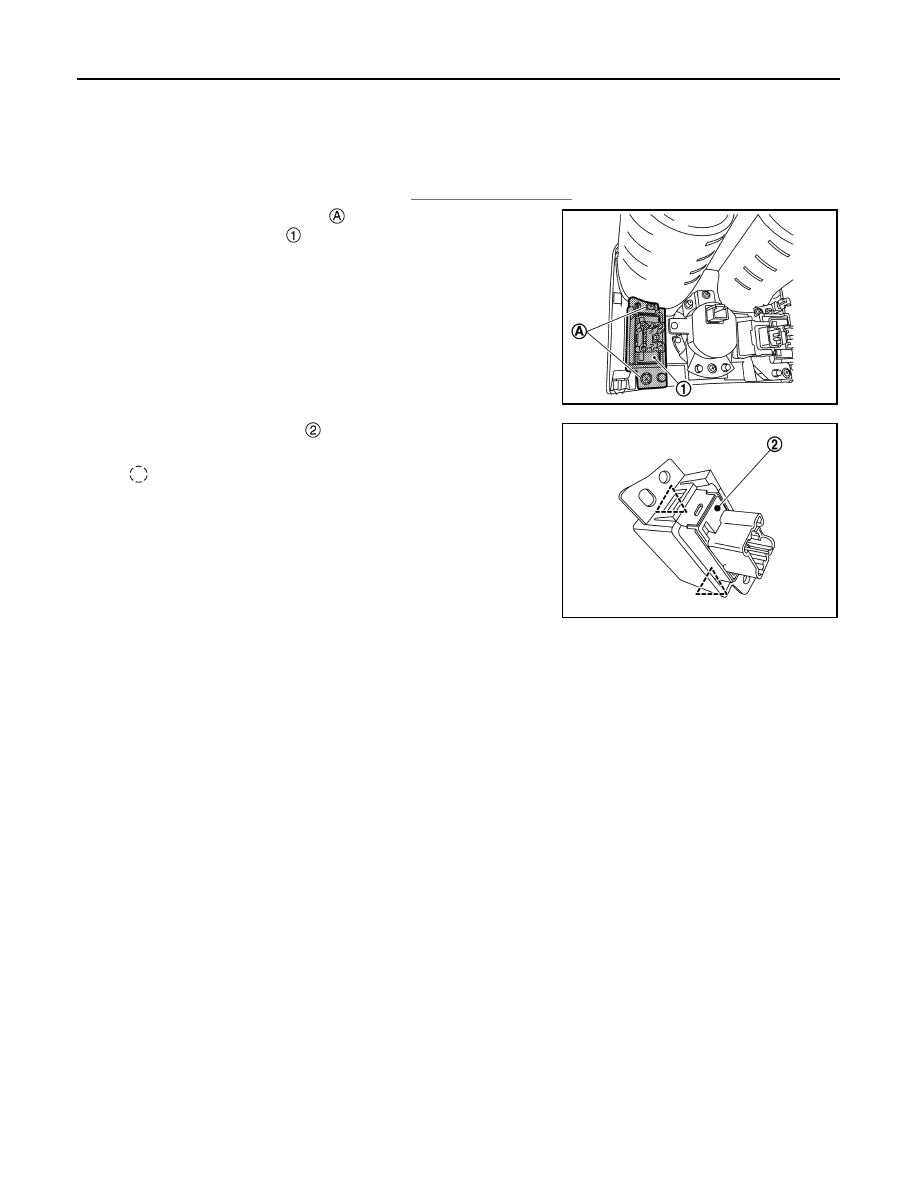

HEATED SEAT SWITCH

Removal and Installation

INFOID:0000000010436338

REMOVAL

1.

Remove the console switch panel. Refer to

IP-18, "Exploded View"

.

2.

Remove the mounting screws

, and then remove heat seat

switch and switch bracket

.

3.

Remove heated seat switch

 from switch bracket.

INSTALLATION

Installation is in the reverse order of removal.

JMJIA9647ZZ

: Pawl

JMJIA9648ZZ
