Qashqai J11. Seat - part 2

HEATED SEAT SYSTEM

SE-17

< WIRING DIAGRAM >

JRJWC9131GB

SE-18

< SYMPTOM DIAGNOSIS >

SQUEAK AND RATTLE TROUBLE DIAGNOSES

SYMPTOM DIAGNOSIS

SQUEAK AND RATTLE TROUBLE DIAGNOSES

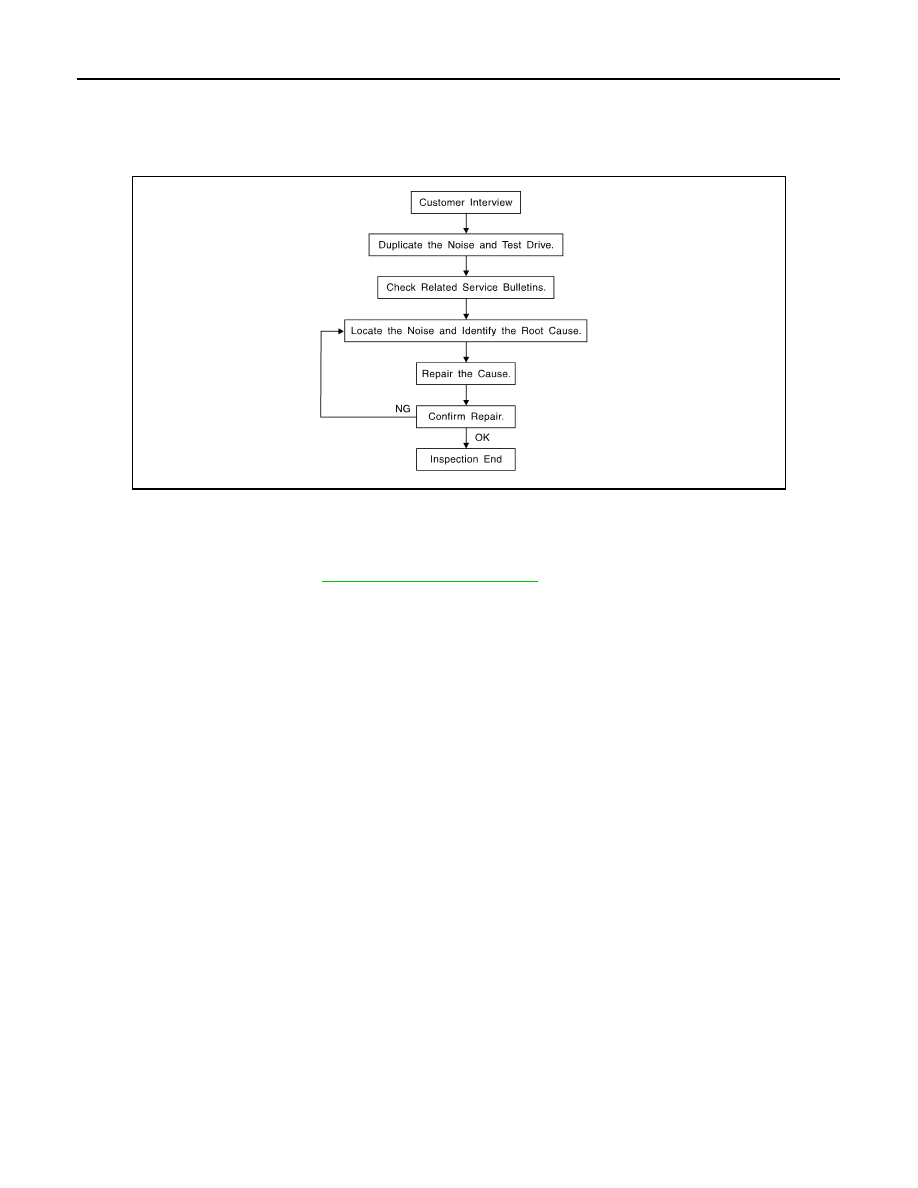

Work Flow

INFOID:0000000010436326

CUSTOMER INTERVIEW

Interview the customer if possible, to determine the conditions that exist when the noise occurs. Use the Diag-
nostic Worksheet during the interview to document the facts and conditions when the noise occurs and any of
the customer's comments; refer to

SE-22, "Diagnostic Worksheet"

. This information is necessary to duplicate

the conditions that exist when the noise occurs.
• The customer may not be able to provide a detailed description or the location of the noise. Attempt to obtain

all the facts and conditions that exist when the noise occurs (or does not occur).

• If there is more than one noise in the vehicle, be sure to diagnose and repair the noise that the customer is

concerned about. This can be accomplished by a test drive with the customer.

• After identifying the type of noise, isolate the noise in terms of its characteristics. The noise characteristics

are provided so the customer, service adviser and technician are all speaking the same language when
defining the noise.

• Squeak – (Like tennis shoes on a clean floor)

Squeak characteristics include the light contact/fast movement/brought on by road conditions/hard surfaces
= higher pitch noise/softer surfaces = lower pitch noises/edge to surface = chirping

• Creak – (Like walking on an old wooden floor)

Creak characteristics include firm contact/slow movement/twisting with a rotational movement/pitch depen-
dent on materials/often brought on by activity.

• Rattle – (Like shaking a baby rattle)

Rattle characteristics include the fast repeated contact/vibration or similar movement/loose parts/missing
clip or fastener/incorrect clearance.

• Knock – (Like a knock on a door)

Knock characteristics include hollow sounding/sometimes repeating/often brought on by driver action.

• Tick – (Like a clock second hand)

Tick characteristics include gentle contacting of light materials/loose components/can be caused by driver
action or road conditions.

• Thump – (Heavy, muffled knock noise)

Thump characteristics include softer knock/dead sound often brought on by activity.

• Buzz – (Like a bumble bee)

Buzz characteristics include high frequency rattle/firm contact.

• Often the degree of acceptable noise level will vary depending upon the person. A noise that a technician

may judge as acceptable may be very irritating to the customer.

• Weather conditions, especially humidity and temperature, may have a great effect on noise level.

DUPLICATE THE NOISE AND TEST DRIVE

SBT842

SQUEAK AND RATTLE TROUBLE DIAGNOSES

SE-19

< SYMPTOM DIAGNOSIS >

If possible, drive the vehicle with the customer until the noise is duplicated. Note any additional information on
the Diagnostic Worksheet regarding the conditions or location of the noise. This information can be used to
duplicate the same conditions when the repair is reconfirmed.
If the noise can be duplicated easily during the test drive, to help identify the source of the noise, try to dupli-
cate the noise with the vehicle stopped by doing one or all of the following:
1) Close a door.
2) Tap or push/pull around the area where the noise appears to be coming from.
3) Rev the engine.
4) Use a floor jack to recreate vehicle “twist”.
5) At idle, apply engine load (electrical load, half-clutch on M/T model, drive position on A/T model).
6) Raise the vehicle on a hoist and hit a tire with a rubber hammer.
• Drive the vehicle and attempt to duplicate the conditions the customer states exist when the noise occurs.
• If it is difficult to duplicate the noise, drive the vehicle slowly on an undulating or rough road to stress the

vehicle body.

LOCATE THE NOISE AND IDENTIFY THE ROOT CAUSE

Narrow down the noise to a general area. To help pinpoint the source of the noise, use a listening tool
(Engine Ear or mechanics stethoscope).

Narrow down the noise to a more specific area and identify the cause of the noise by:

• Removing the components in the area that is are suspected to be the cause of the noise.

Do not use too much force when removing clips and fasteners, otherwise clips and fastener can be broken
or lost during the repair, resulting in the creation of new noise.

• Tapping or pushing/pulling the component that is are suspected to be the cause of the noise.

Do not tap or push/pull the component with excessive force, otherwise the noise will be eliminated only tem-
porarily.

• Feeling for a vibration by hand by touching the component(s) that is are suspected to be the cause of the

noise.

• Placing a piece of paper between components that is are suspected to be the cause of the noise.
• Looking for loose components and contact marks.

Refer to

SE-20, "Inspection Procedure"

REPAIR THE CAUSE

• If the cause is a loose component, tighten the component securely.
• If the cause is insufficient clearance between components:
- Separate components by repositioning or loosening and retightening the component, if possible.
- Insulate components with a suitable insulator such as urethane pads, foam blocks, felt cloth tape or ure-

thane tape. These insulators are available through the authorized Nissan Parts Department.

CAUTION:

Never use excessive force as many components are constructed of plastic and may be damaged.
NOTE:
• URETHANE PADS

Insulates connectors, harness, etc.

• INSULATOR (Foam blocks)

Insulates components from contact. Can be used to fill space behind a panel.

• INSULATOR (Light foam block)
• FELT CLOTHTAPE

Used to insulate where movement does not occur. Ideal for instrument panel applications.
The following materials, not available through NISSAN Parts Department, can also be used to repair
squeaks and rattles.

• UHMW(TEFLON) TAPE

Insulates where slight movement is present. Ideal for instrument panel applications.

• SILICONE GREASE

Used in place of UHMW tape that is be visible or does not fit.
Note: Will only last a few months.

• SILICONE SPRAY

Used when grease cannot be applied.

• DUCT TAPE

Used to eliminate movement.

CONFIRM THE REPAIR

SE-20

< SYMPTOM DIAGNOSIS >

SQUEAK AND RATTLE TROUBLE DIAGNOSES

Confirm that the cause of a noise is repaired by test driving the vehicle. Operate the vehicle under the same
conditions as when the noise originally occurred. Refer to the notes on the Diagnostic Worksheet.

Inspection Procedure

INFOID:0000000010436327

Refer to Table of Contents for specific component removal and installation information.

INSTRUMENT PANEL

Most incidents are caused by contact and movement between:
1.

Cluster lid A and instrument panel

Acrylic lens and combination meter housing

Instrument panel to front pillar garnish

Instrument panel to windshield

Instrument panel mounting pins

Wiring harnesses behind the combination meter

A/C defroster duct and duct joint

These incidents can usually be located by tapping or moving the components to duplicate the noise or by
pressing on the components while driving to stop the noise. Most of these incidents can be repaired by apply-
ing felt cloth tape or silicon spray (in hard to reach areas). Urethane pads can be used to insulate wiring har-
ness.

CAUTION:

Never use silicone spray to isolate a squeak or rattle. If the area is saturated with silicone, the recheck
of repair becomes impossible.

CENTER CONSOLE

Components to pay attention to include:

Shifter assembly cover to finisher

A/C control unit and cluster lid C

Wiring harnesses behind audio and A/C control unit

The instrument panel repair and isolation procedures also apply to the center console.

DOORS

Pay attention to the following:
1.

Finisher and inner panel making a slapping noise

Inside handle escutcheon to door finisher

Wiring harnesses tapping

Door striker out of alignment causing a popping noise on starts and stops

Tapping or moving the components or pressing on them while driving to duplicate the conditions can isolate
many of these incidents. The areas can usually be insulated with felt cloth tape or insulator foam blocks to
repair the noise.

TRUNK

Trunk noises are often caused by a loose jack or loose items put into the trunk by the customer.
In addition look for the following:

Trunk lid dumpers out of adjustment

Trunk lid striker out of adjustment

Trunk lid torsion bars knocking together

A loose license plate or bracket

Most of these incidents can be repaired by adjusting, securing or insulating the item(s) or component(s) caus-
ing the noise.

SUNROOF/HEADLINING

Noises in the sunroof/headlining area can often be traced to one of the following:
1.

Sunroof lid, rail, linkage or seals making a rattle or light knocking noise

Sunvisor shaft shaking in the holder

Front or rear windshield touching headlining and squeaking

SQUEAK AND RATTLE TROUBLE DIAGNOSES

SE-21

< SYMPTOM DIAGNOSIS >

Again, pressing on the components to stop the noise while duplicating the conditions can isolate most of these
incidents. Repairs usually consist of insulating with felt cloth tape.

SEATS

When isolating seat noise it is important to note the position the seat is in and the load placed on the seat
when the noise occurs. These conditions should be duplicated when verifying and isolating the cause of the
noise.
Cause of seat noise include:

Headrest rods and holder

A squeak between the seat pad cushion and frame

Rear seatback lock and bracket

These noises can be isolated by moving or pressing on the suspected components while duplicating the con-
ditions under which the noise occurs. Most of these incidents can be repaired by repositioning the component
or applying urethane tape to the contact area.

UNDERHOOD

Some interior noise may be caused by components under the hood or on the engine wall. The noise is then
transmitted into the passenger compartment.
Causes of transmitted underhood noise include:

Any component mounted to the engine wall

Components that pass through the engine wall

Engine wall mounts and connectors

Loose radiator mounting pins

Hood bumpers out of adjustment

Hood striker out of adjustment

These noises can be difficult to isolate since they cannot be reached from the interior of the vehicle. The best
method is to secure, move or insulate one component at a time and test drive the vehicle. Also, engine RPM
or load can be changed to isolate the noise. Repairs can usually be made by moving, adjusting, securing, or
insulating the component causing the noise.

SE-22

< SYMPTOM DIAGNOSIS >

SQUEAK AND RATTLE TROUBLE DIAGNOSES

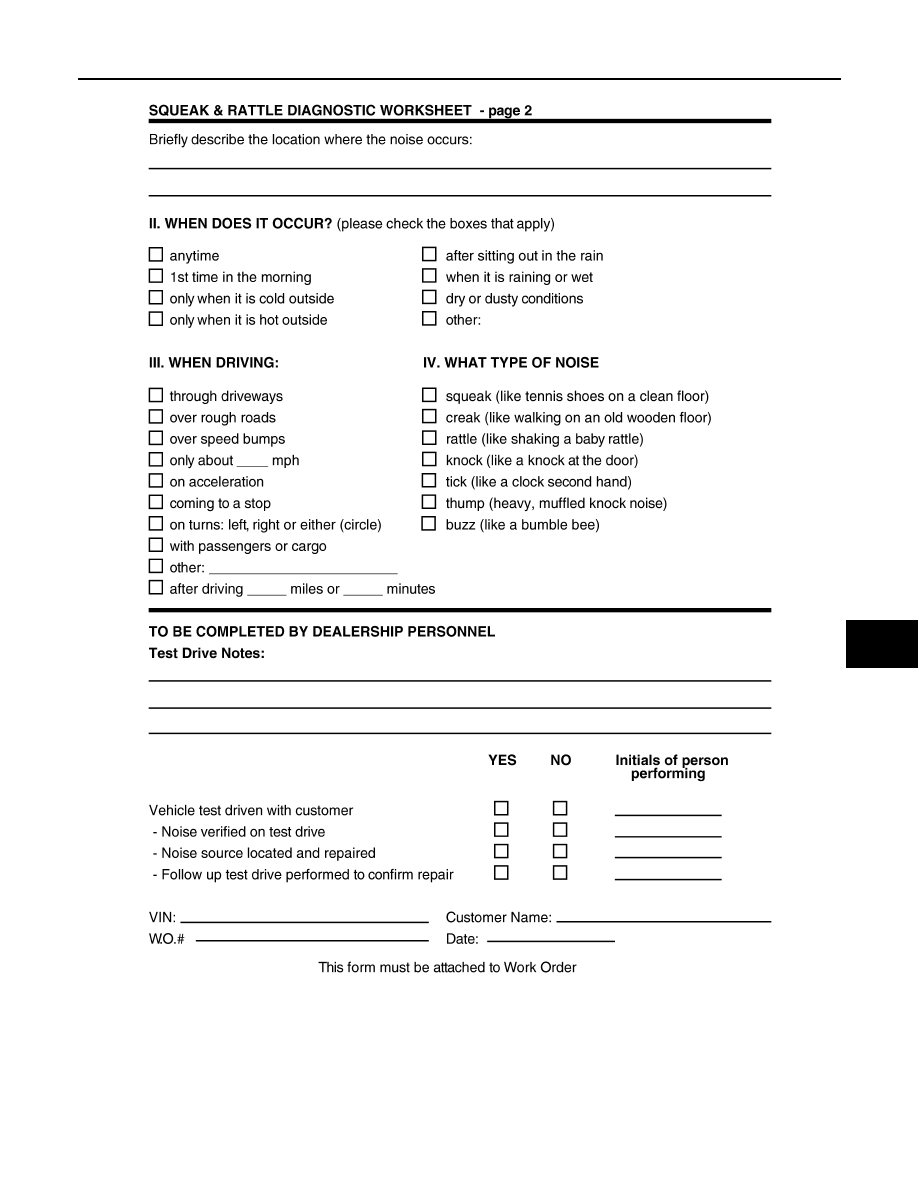

Diagnostic Worksheet

INFOID:0000000010436328

PIIB8740E

SQUEAK AND RATTLE TROUBLE DIAGNOSES

SE-23

< SYMPTOM DIAGNOSIS >

PIIB8742E

SE-24

< REMOVAL AND INSTALLATION >

FRONT SEAT

REMOVAL AND INSTALLATION

FRONT SEAT

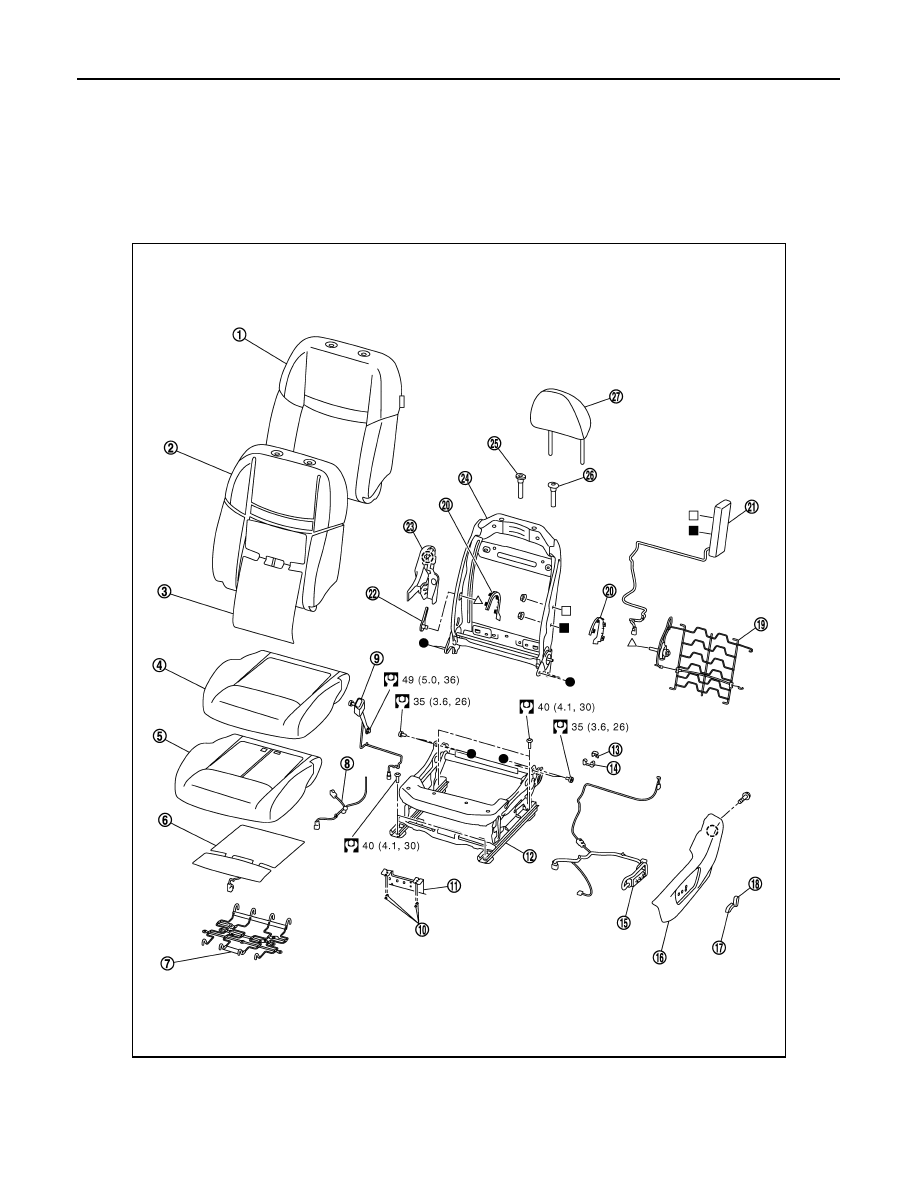

Exploded View

INFOID:0000000010478132

DRIVER SEAT

POWER SEAT

E1JIA0290GB

Seatback trim

Seatback pad

Seatback heater unit (if
equipped)

Seat cushion trim

Seat cushion pad

Seat cushion heater unit (if
equipped)

FRONT SEAT

SE-25

< REMOVAL AND INSTALLATION >

MANUAL SEAT

Seat cushion suspension mat

Seat cushion heater unit har-
ness connector

Seat belt buckle

10. Rivet

11.

Connector bracket

12. Seat cushion frame

13. Lower end cap

14. Upper end cap

15. Power seat switch assembly

16. Seat cushion outer finisher (LH)

17. Slide switch knob

18. Reclining switch knob

19. Seat lumbar unit assembly

20. Seat cushion inner finisher

21. Side air bag module

22. Lumbar handle

23. Seat cushion inner finisher

24. Seatback frame

25. Headrest holder (free)

26. Headrest holder (locked)

27. Headrest

Refer to

GI-4, "Components"

for symbols in the figure.

E1JIA0289GB

SE-26

< REMOVAL AND INSTALLATION >

FRONT SEAT

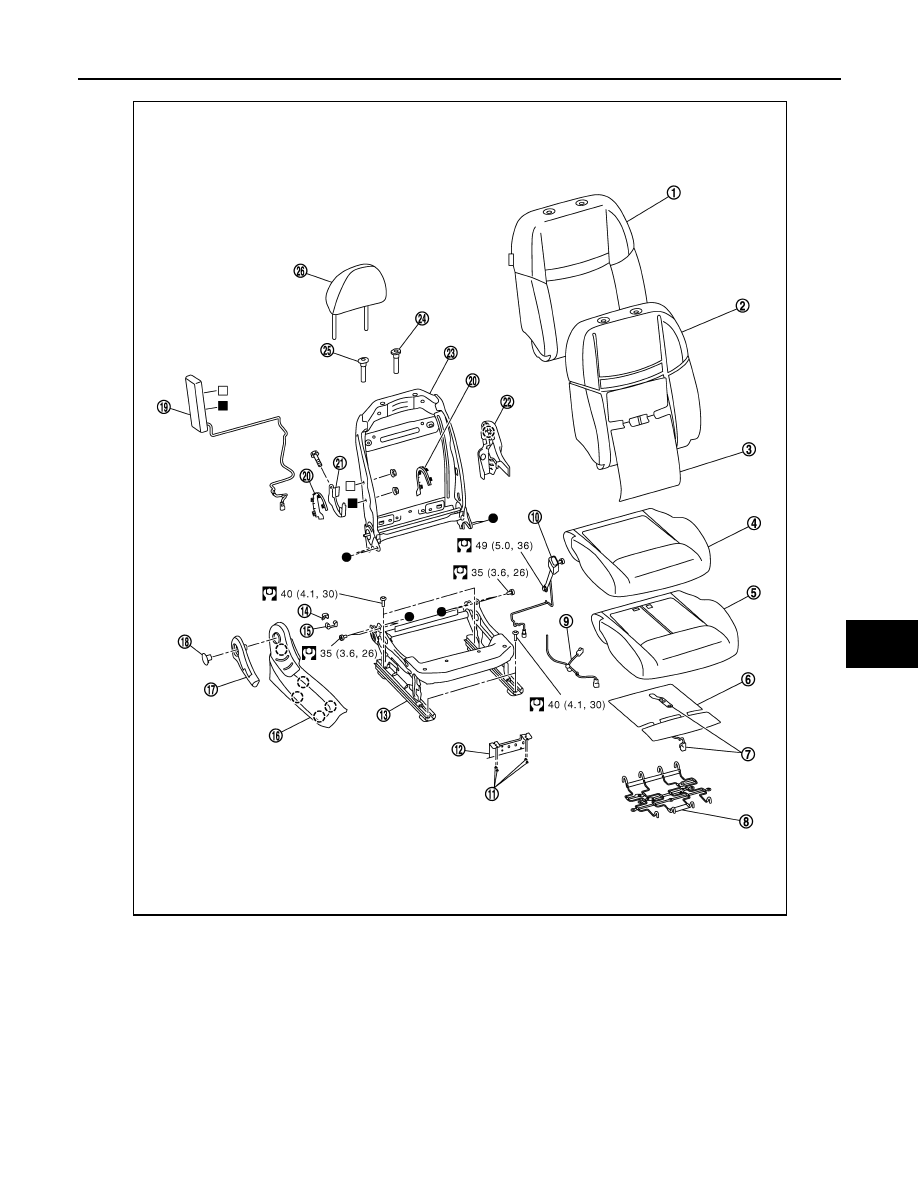

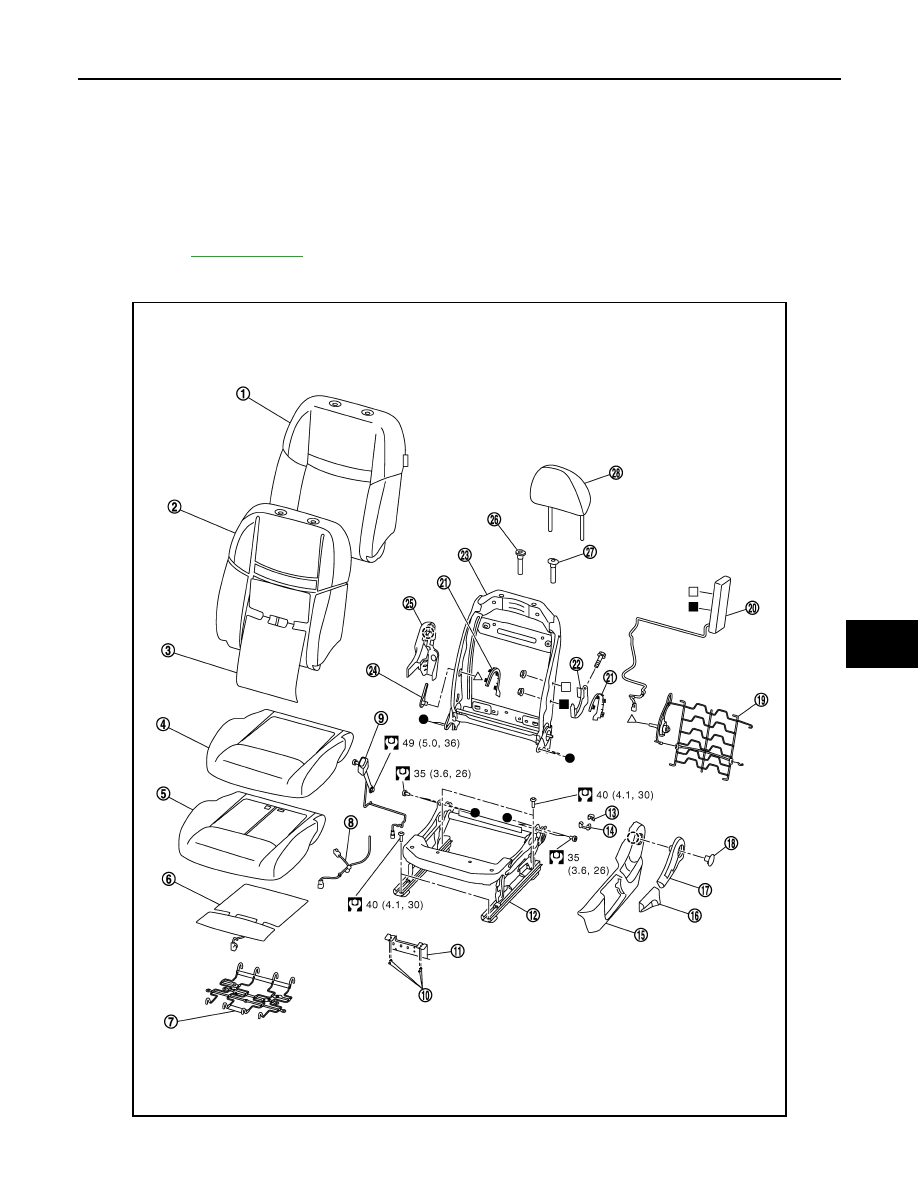

PASSENGER SEAT

Seatback trim

Seatback pad

Seatback heater unit (if
equipped)

Seat cushion trim

Seat cushion pad

Seat cushion heater unit (if
equipped)

Seat cushion suspension mat

Seat cushion heater unit har-
ness connector

Seat belt buckle

10. Rivet

11.

Connector bracket

12. Seat cushion frame

13. Lower end cap

14. Upper end cap

15. Seat cushion outer finisher

16. Lifter lever knob

17. Reclining lever knob

18. Lifter lever knob cap

19. Seat lumbar unit assembly (if

equipped)

20. Side air bag module

21. Seat cushion inner finisher

22. Spring inner cover

23. Seatback frame

24. Lumbar handle (if equipped)

25. Seat cushion inner finisher

26. Headrest holder (free)

27. Headrest holder (locked)

28. Headrest

Refer to

GI-4, "Components"

for symbols in the figure.

FRONT SEAT

SE-27

< REMOVAL AND INSTALLATION >

Seatback trim

Seatback pad

Seatback heater unit (if
equipped)

Seat cushion trim

Seat cushion pad

Seat cushion heater unit (if
equipped)

Seat occupant sensor

Seat cushion suspension mat

Seat cushion heater unit har-
ness connector

10. Seat belt buckle

11.

Rivet

12. Connector bracket

13. Seat cushion frame

14. Lower end cap

15. Upper end cap

16. Seat cushion outer finisher

17. Lifter lever knob

18. Lifter lever knob cap

19. Side air bag module

20. Reclining device inner cover

21. Spring inner cover

22. Seat cushion inner finisher

23. Seatback frame

24. Headrest holder (free)

E1JIA0294GB

SE-28

< REMOVAL AND INSTALLATION >

FRONT SEAT

Removal and Installation

INFOID:0000000010478133

REMOVAL

CAUTION:

• When removing and installing, use shop cloths to protect parts from damage.
• Before removal, turn ignition switch OFF, disconnect both battery cables, and then wait for at least 3

minutes.

Remove headrests.

Slide the seat to the full rearward position.

Disconnect negative and positive battery terminals, then wait at least three minutes (power seat only).

Disconnect harness connector from side air bag module.

Remove front mouting bolts.

Connect negative and positive battery terminals, then slide the seat to the full forward position (power seat
only).

Slide the seat to the full forward position.

Disconnect negative and positive battery terminals, then wait at least three minutes (power seat only).

Remove rear mounting bolts.

10. Tilt the seat rearward and disconnect the harness connectors from the seat.

CAUTION:

Before performing removal operation, check the installation position of harness connectors and
harness fixing clamps.

11. Remove the seat from the vehicle.

CAUTION:

• When removing and installing, use cloths to protect parts from damage.
• When removing and installing, 2 workers are required so as to prevent it from dropping.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• When removing and installing, use shop cloths to protect parts from damage.

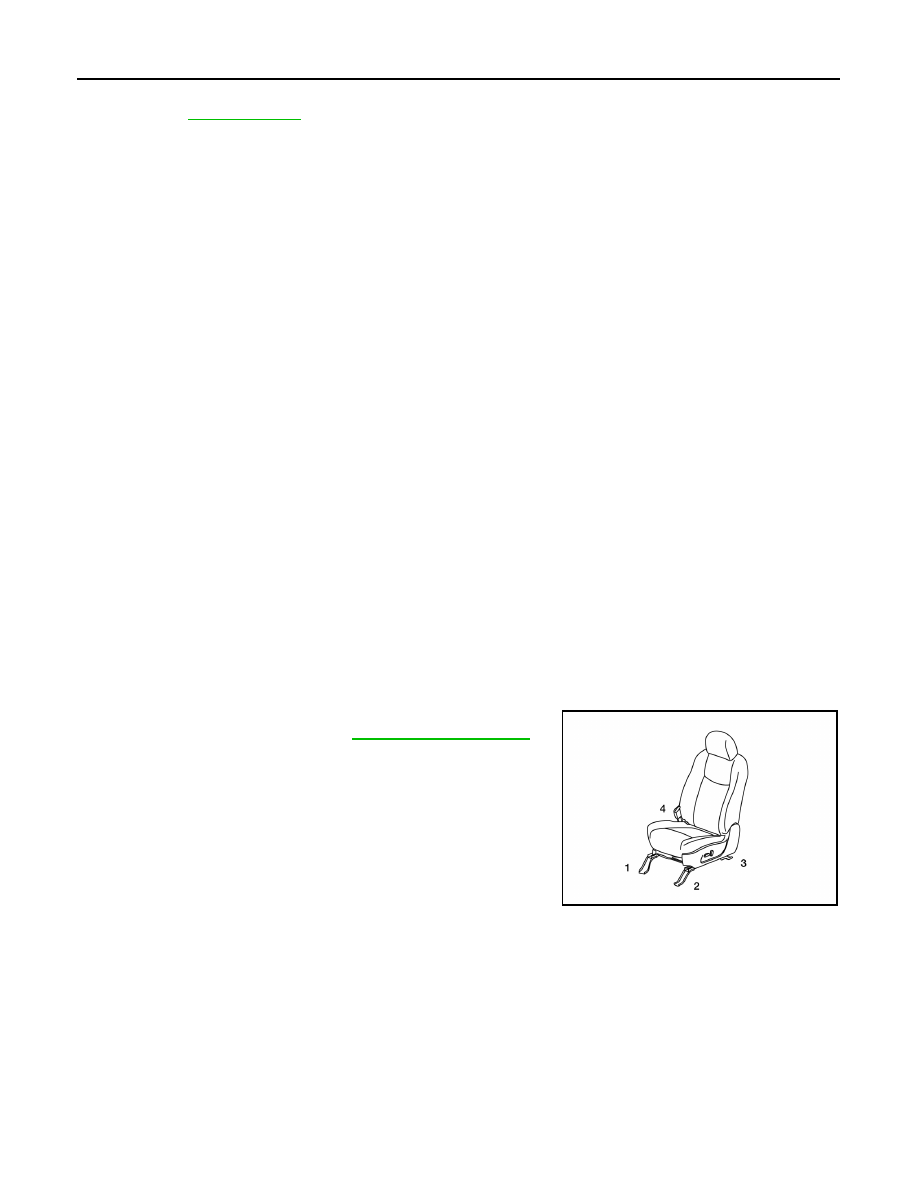

• Tighten front seat mounting bolts following the numerical

order shown in the figure. Refer to

SE-24, "Exploded View"

• Always fix the harness fixing clamp in position.

SEATBACK

SEATBACK : Disassembly and Assembly

INFOID:0000000010478134

DISASSEMBLY

WARNING:

Do not leave any objects (screwdrivers, tools, etc.) on the seat during seatback repair. It can lead to
personal injury if the side air bag module should accidentally deploy.

CAUTION:

25. Headrest holder (locked)

26. Headrest

Refer to

GI-4, "Components"

for symbols in the figure.

ALJIA0788ZZ

FRONT SEAT

SE-29

< REMOVAL AND INSTALLATION >

• Before servicing, turn the ignition switch OFF, disconnect both battery terminals then wait at least

three minutes.

• Always work from the side or back of the seatback, do not work in front of seat.
• Do not use air tools or electric tools for servicing the seat assembly.
• Do not insert any objects into the side air bag module.
• Do not attempt to disassemble the side air bag module.
• Do not expose the side air bag module to temperatures exceeding 93

C (199

F).

• Do not expose the side air bag module to any oil, grease, detergent or water.
• During disassembly, do not damage the seatback board, connectors, retainers, clips, module har-

ness or the side air bag module.

NOTE:
• If the vehicle has been involved in a collision and the side air bag module has deployed, the seat trim must

be replaced.

• Front seat (LH) shown, front seat (RH) similar.

Remove driver side front seat or front seat passenger side. Refer to

SE-28, "Removal and Installation"

(DRIVER SIDE),

SE-28, "Removal and Installation"

(PASSENGER SIDE).

Release seatback fasteners (LH/RH).

Press the headrest holder lock button, then lift headrest up and remove.

Release headrest holder locks as shown and remove headrest holders.

CAUTION:

Before removing/installing the headrest holder, check its orientation (front/rear and right/left).

Release side air bag module harness clamps from seat frame.
NOTE:
Take note of harness routing and attachment location for correct installation.

Remove side air bag module harness mounting nuts (A).

CAUTION:

Never reuse side air bag module nuts.

Remove seat cushion outer finisher (LH).

Manual seat:

Remove cap with a suitable trim tool.

ii.

Pull handle to remove..

iii.

Lift handle to access clip on inside.

iv.

Disengage clip with suitable tool and slide off.

Power seat (driver seat only):

Remove the seat cushion outer finisher (LH).

ii.

Release metal clips from seat frame.

iii.

Release pawls and remove.

iv.

Disconnect harness connectors from the power seat switch and lumbar support switch (if equipped).

Release pawls and clips, and remove seat cushion outer finisher (RH).

Release clips and remove side air bag module harness from seat frame.
NOTE:

ALJIA1428ZZ

JMJIA3940ZZ

SE-30

< REMOVAL AND INSTALLATION >

FRONT SEAT

Take note of harness routing and attachment location for correct installation.

10. Disconnect the harness connector from lumbar support motor (if equipped) and release harness from

seatback assembly.
NOTE:
Take note of harness routing and attachment location for correct installation.

11. Disconnect the harness connector for the front seat heater (if equipped).

NOTE:
Take note of harness routing and attachment location for correct installation.

12. Remove seatback trim and pad.
13. Release fastener and remove hog rings, then separate seatback trim from seatback pad.

NOTE:
Remove all pieces of hog rings and discard them.

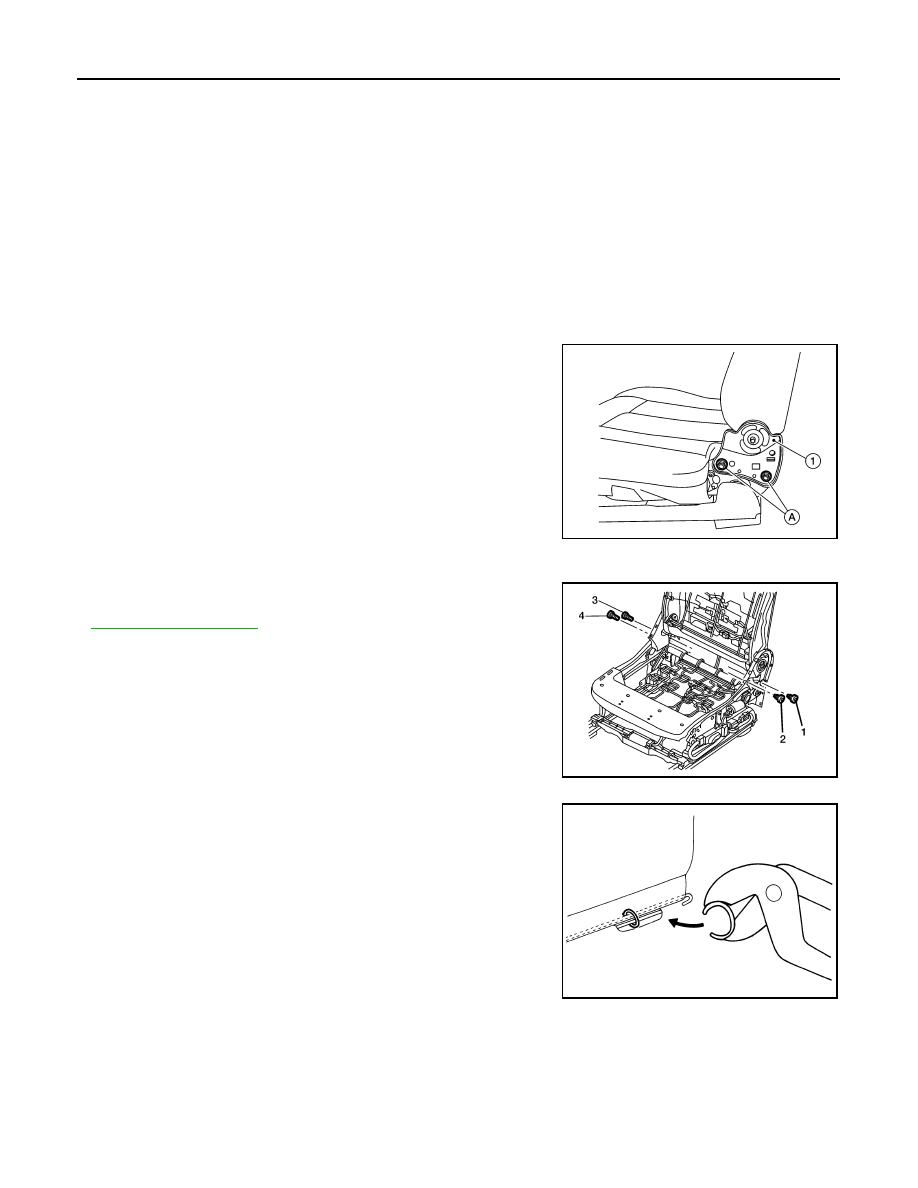

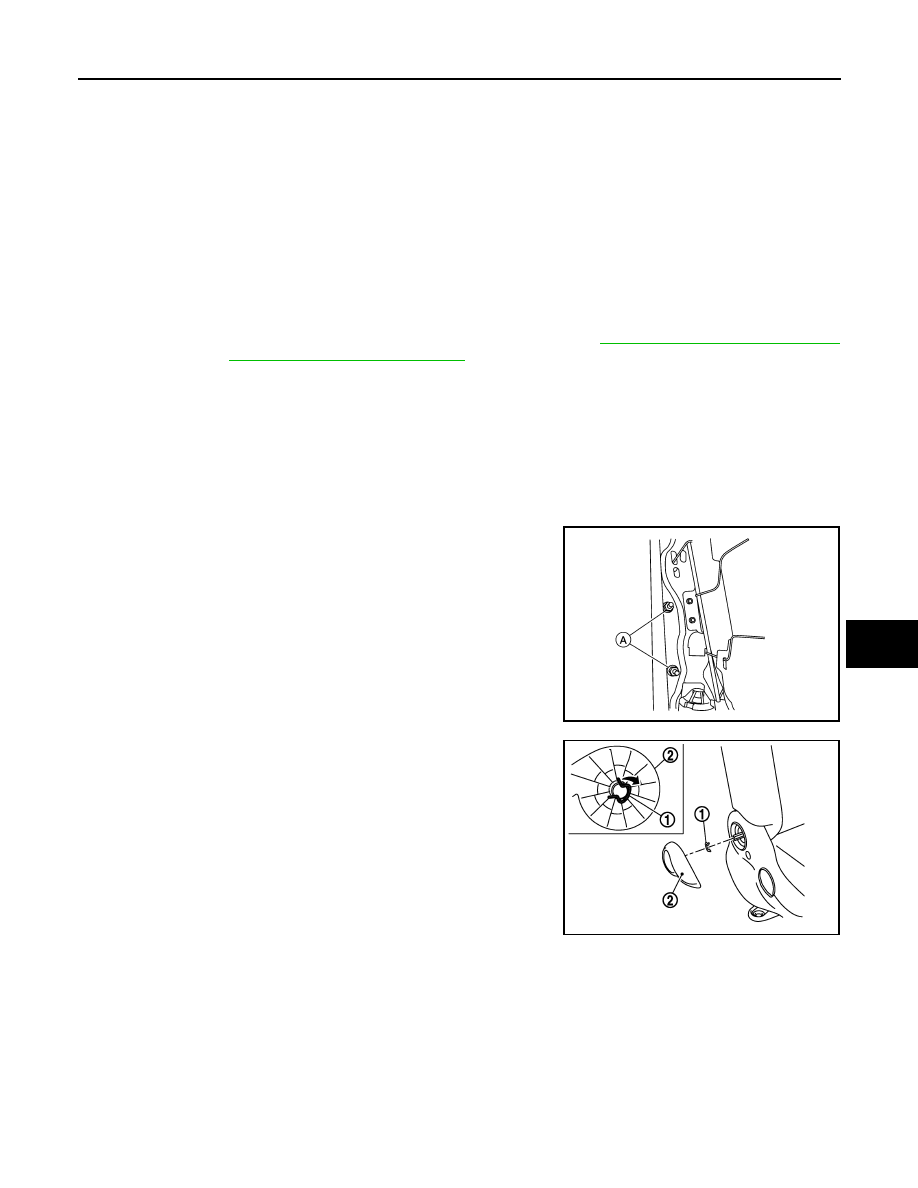

14. Remove screws (A) on both sides of the seatback frame (1).

CAUTION:

Never reuse seatback frame screws. Replace with new
ones.

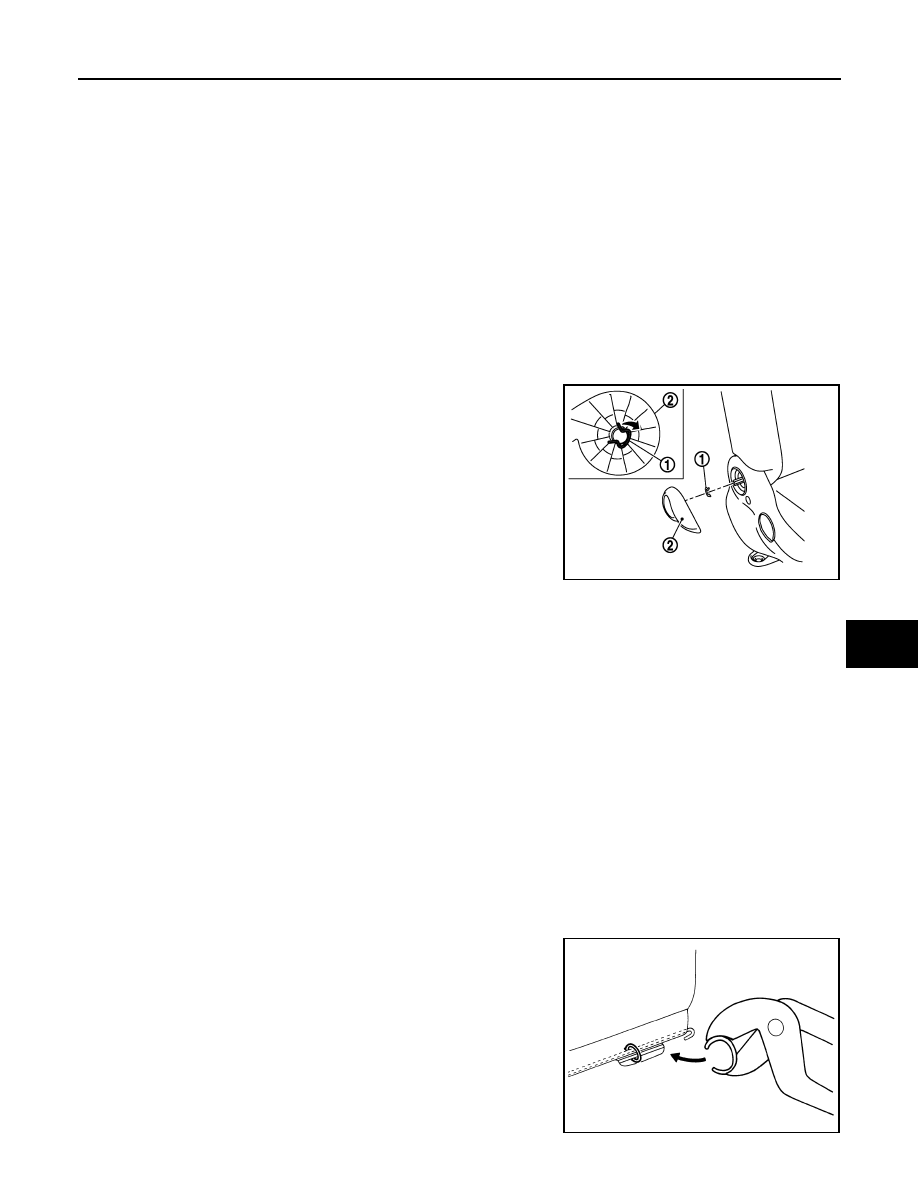

ASSEMBLY

• First tighten screws by hand in the order shown.
• Tighten the seatback assembly screws to specification. Refer to

SE-24, "Exploded View"

• Install new hog rings on the seatback trim in original positions.
• Use only one hog ring in each designated location.
• Make sure hog rings are correctly fastened around both the seat

back trim and seatback pad wires.

• Use NISSAN standard hog rings and tools to assemble.
• Make sure hook fastener is pressed into place after seatback trim

is assembled.

• Smooth out all wrinkles during assembly.

CAUTION:

• Do not reuse seatback frame bolts, replace with new ones.
• Always route side air bag module harness in original location. Replace any deformed or damaged

clips with same type and color. Always install clips in the original location in the harness.

• After work is completed, check that no system malfunction is detected causing the air bag warning

lamp to illuminate.

ALJIA0969ZZ

ALJIA1443ZZ

PIIB3356J

FRONT SEAT

SE-31

< REMOVAL AND INSTALLATION >

• If a malfunction is detected by the air bag warning lamp after repair or replacement of the malfunc-

tion parts, perform the SRS final check.

SEAT CUSHION

SEAT CUSHION : Disassembly and Assembly

INFOID:0000000010478135

DISASSEMBLY

WARNING:

Do not leave any objects (screwdrivers, tools, etc.) on the seat during seat cushion repair. It can lead
to personal injury if the side air bag module should accidentally deploy.

CAUTION:

• Before servicing, turn the ignition switch OFF, disconnect both battery terminals and wait at least

three minutes.

• Always work from the side or back of the seatback assembly, do not work in front of seat.
• Do not use air tools or electric tools for servicing the seat assembly.

Remove seat cushion outer finisher (LH).

Manual seat:

Remove cap with suitable trim tool.

ii.

Pull handle to remove.

iii.

Lift handle to access clip on inside.

iv.

Disengage clip with suitable tool and slide off.

Power seat (Driver seat only):

Remove the seat cushion outer finisher (LH).

ii.

Release metal clips from seat frame.

iii.

Release pawls and remove.

iv.

Disconnect harness connectors from the power seat switch and lumbar support switch (if equipped).

Release pawls and clips, and remove seat cushion outer finisher (RH).

Release two seatback retainers from the seat frame.

Partially release seatback fasteners (LH/RH).

Release the seat cushion holding the seat cushion trim to the seat frame.

Remove seat cushion trim and seat cushion pad as an assembly from the seat frame.

Remove hog rings and separate seat cushion trim and seat cushion pad.
NOTE:
Remove all pieces of hog rings and discard them.

ASSEMBLY

Assembly is in the reverse order of disassembly.
• Install new hog rings on the seat cushion trim in original positions.
• Use only one hog ring in each designated location.
• Make sure hog rings are correctly fastened around both the seat

cushion trim and seat cushion pad wires.

• Use NISSAN standard hog rings and tools to assemble.
• Make sure hook fastener is pressed into place after seat cushion

trim is assembled.

• Smooth out all wrinkles during assembly.

JMJIA3940ZZ

PIIB3356J

SE-32

< REMOVAL AND INSTALLATION >

FRONT SEAT

CAUTION:

• Always route side air bag module harness in original location. Replace any deformed or damaged

clips with same type and color. Always install clips in the original location in the harness.

• After work is completed, check that no system malfunction is detected causing the air bag warning

lamp to illuminate.

• If a malfunction is detected by the air bag warning lamp after repair or replacement of the malfunc-

tion parts, perform the SRS final check.

Content .. 1 2 3 ..
