Qashqai J11. Seat - part 1





SE-1

BODY INTERIOR

C

D

E

F

G

H

I

K

L

M

SECTION

SE

A

B

SE

N

O

P

CONTENTS

SEAT

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

2

Precautions for Removing Battery Terminal  .............

2

Service Notice  ...........................................................

3

Precaution for Work  ..................................................

3

PREPARATION ............................................

4

PREPARATION ...................................................

4

Commercial Service Tool  ..........................................

4

CLIP LIST  ............................................................

5

Clip List  .....................................................................

5

SYSTEM DESCRIPTION  ..............................

6

COMPONENT PARTS  ........................................

6

POWER SEAT SYSTEM  .............................................

6

POWER SEAT SYSTEM : Component Parts Lo-
cation .......................................................................
..

6

POWER SEAT SYSTEM : Component Descrip-
tion ..........................................................................
..

6

HEATED SEAT SYSTEM  ............................................

6

HEATED SEAT SYSTEM : Component Parts Lo-
cation .......................................................................
..

7

HEATED SEAT SYSTEM : Component Descrip-
tion ..........................................................................
..

7

SYSTEM ..............................................................

8

POWER SEAT SYSTEM  .............................................

8

POWER SEAT SYSTEM : System Description  ........

8

HEATED SEAT SYSTEM  ............................................

8

HEATED SEAT SYSTEM : System Description  .......

8

WIRING DIAGRAM  .......................................

9

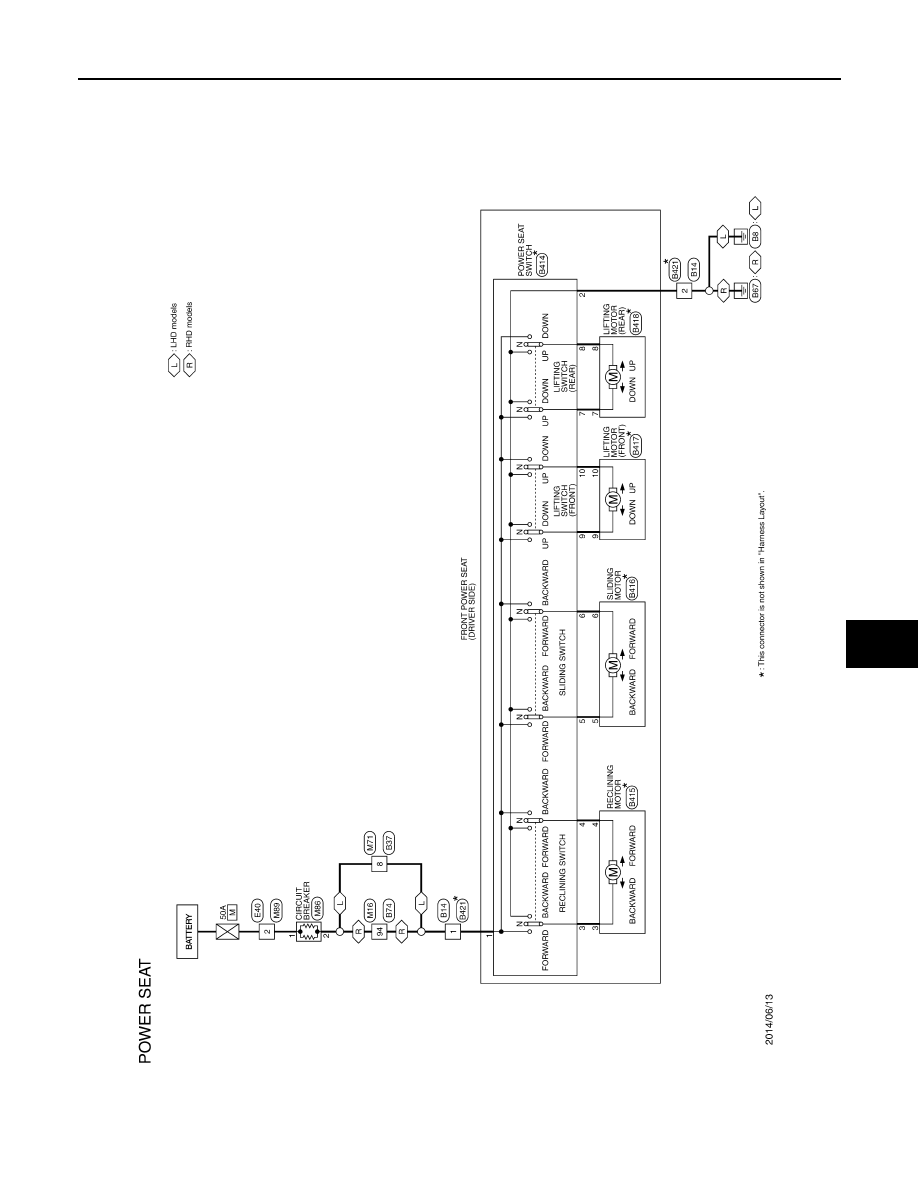

POWER SEAT CONTROL SYSTEM  .................

9

Wiring Diagram .........................................................

9

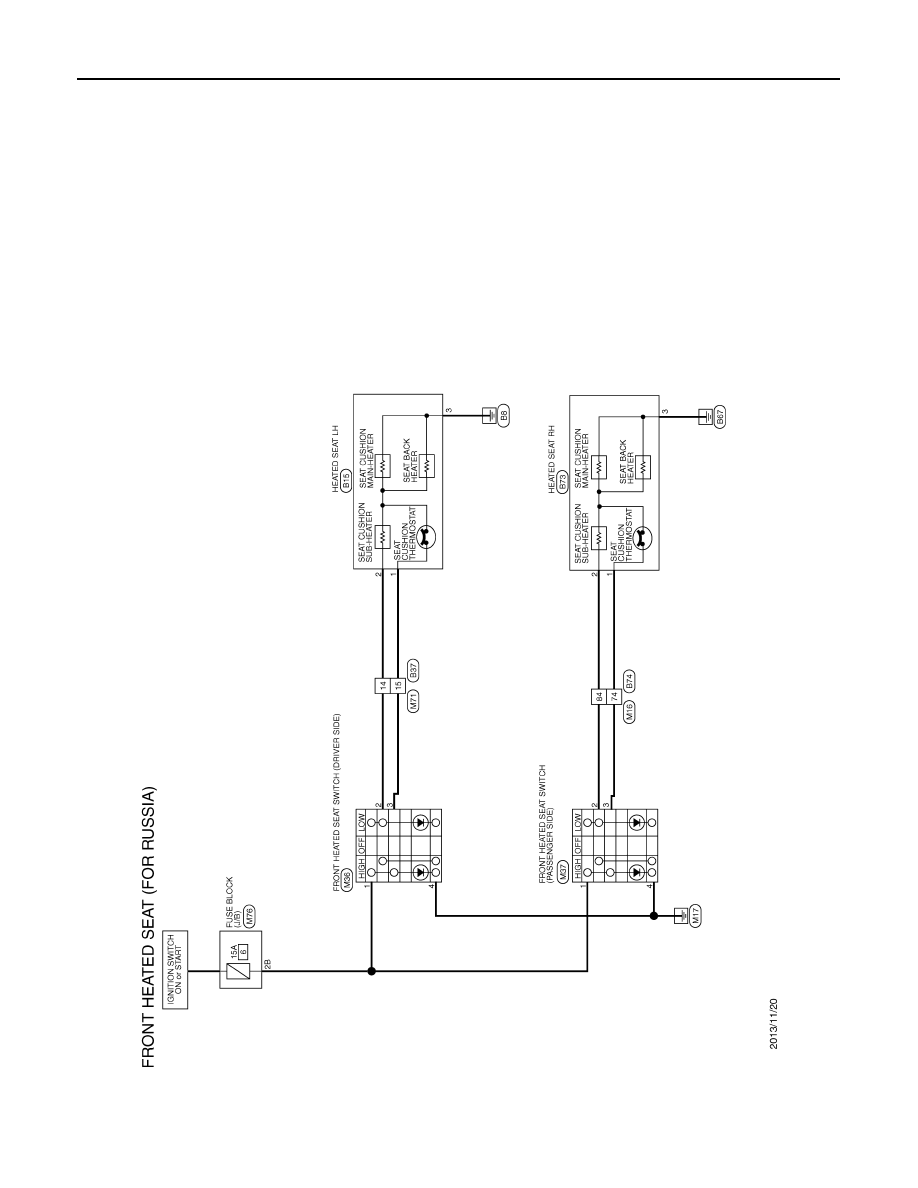

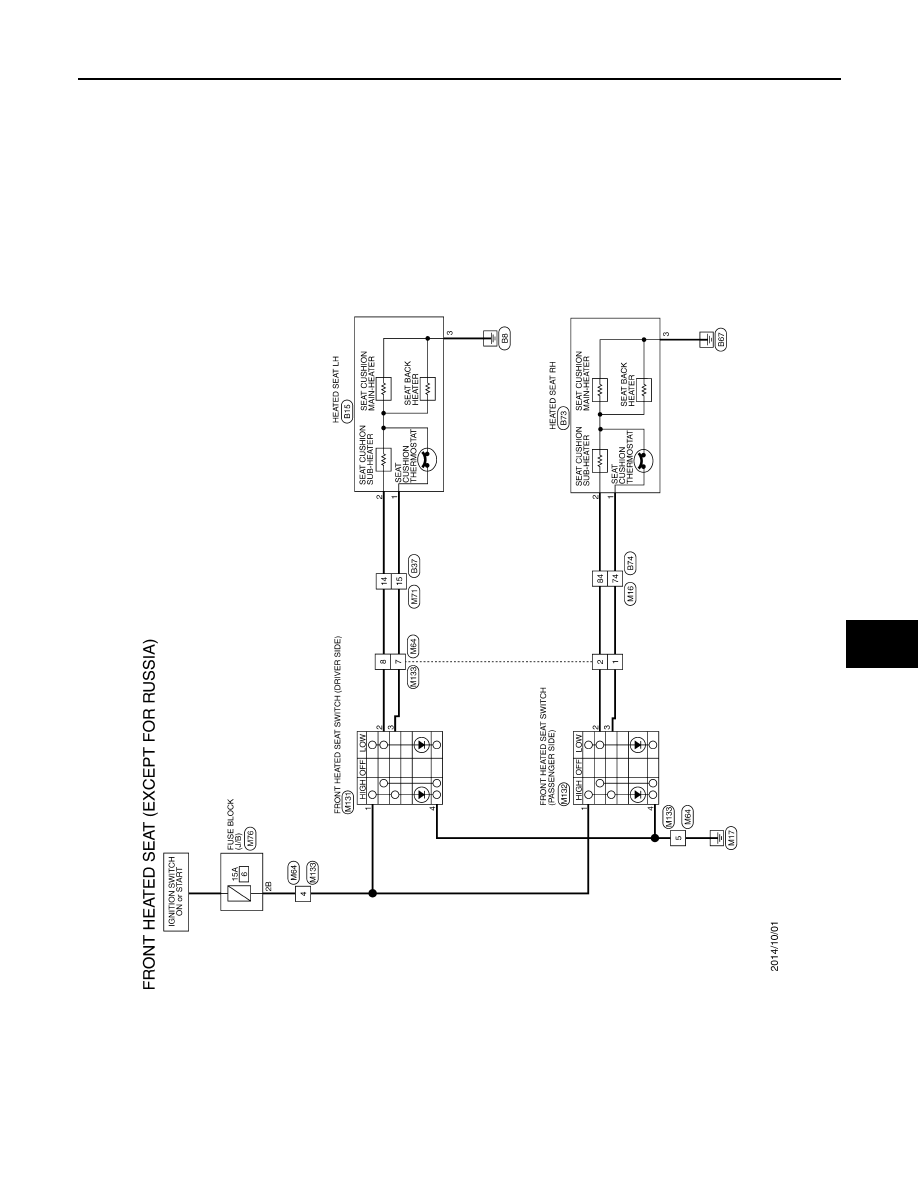

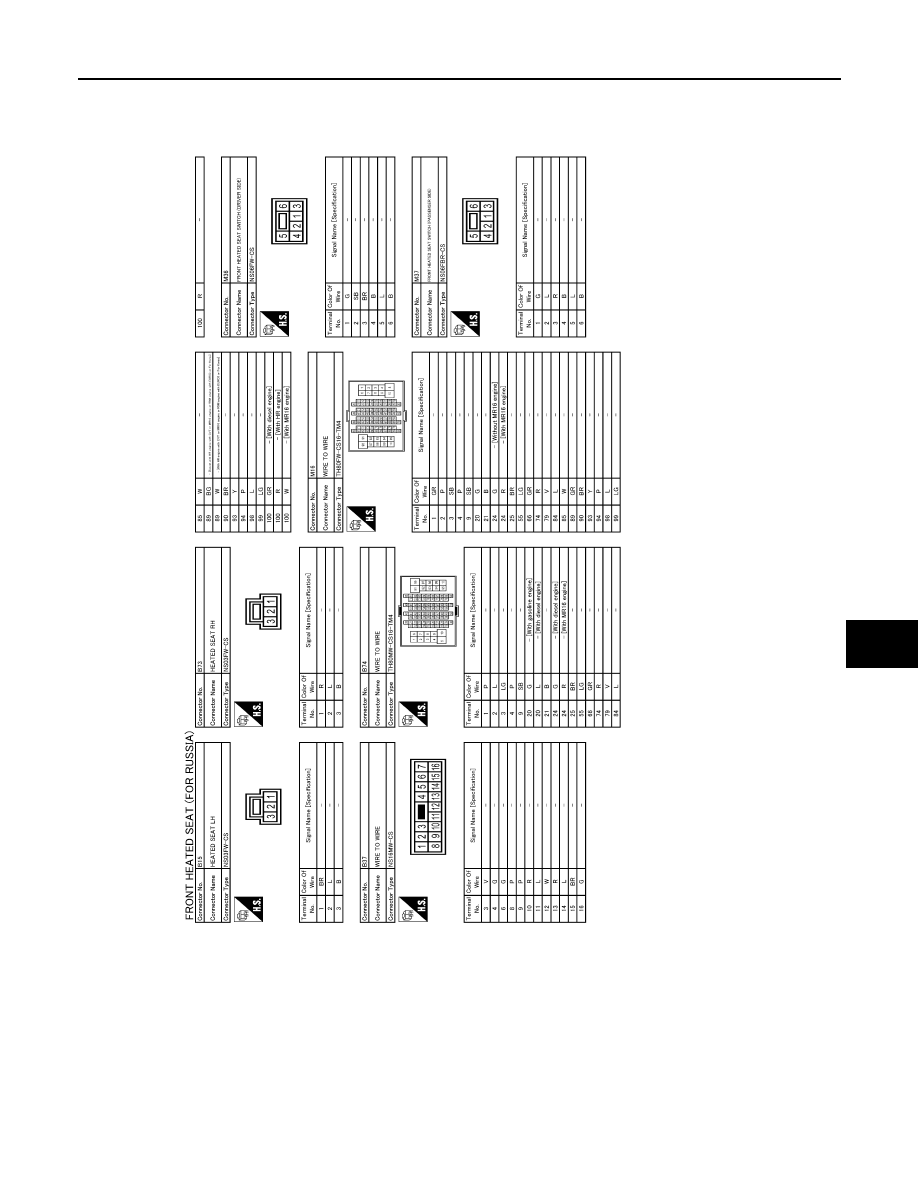

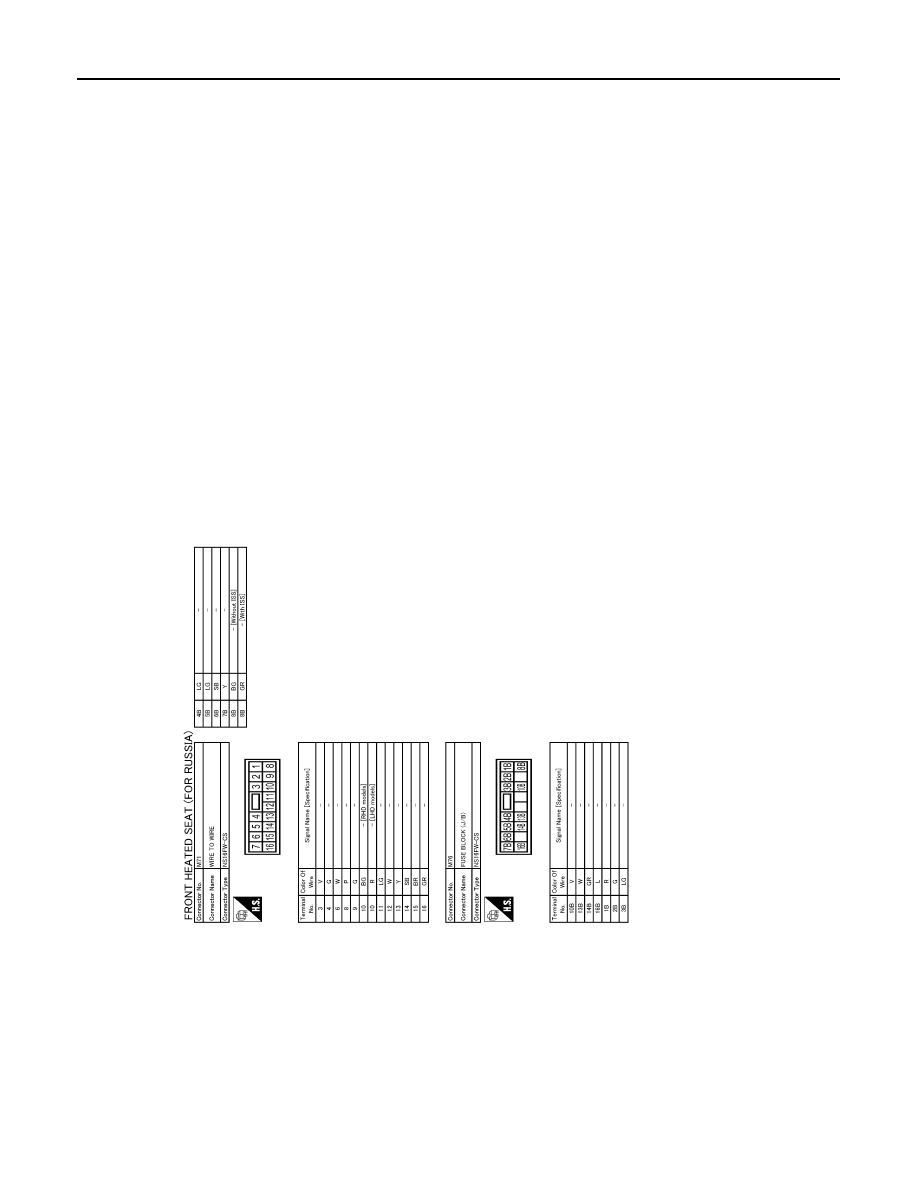

HEATED SEAT SYSTEM ..................................

12

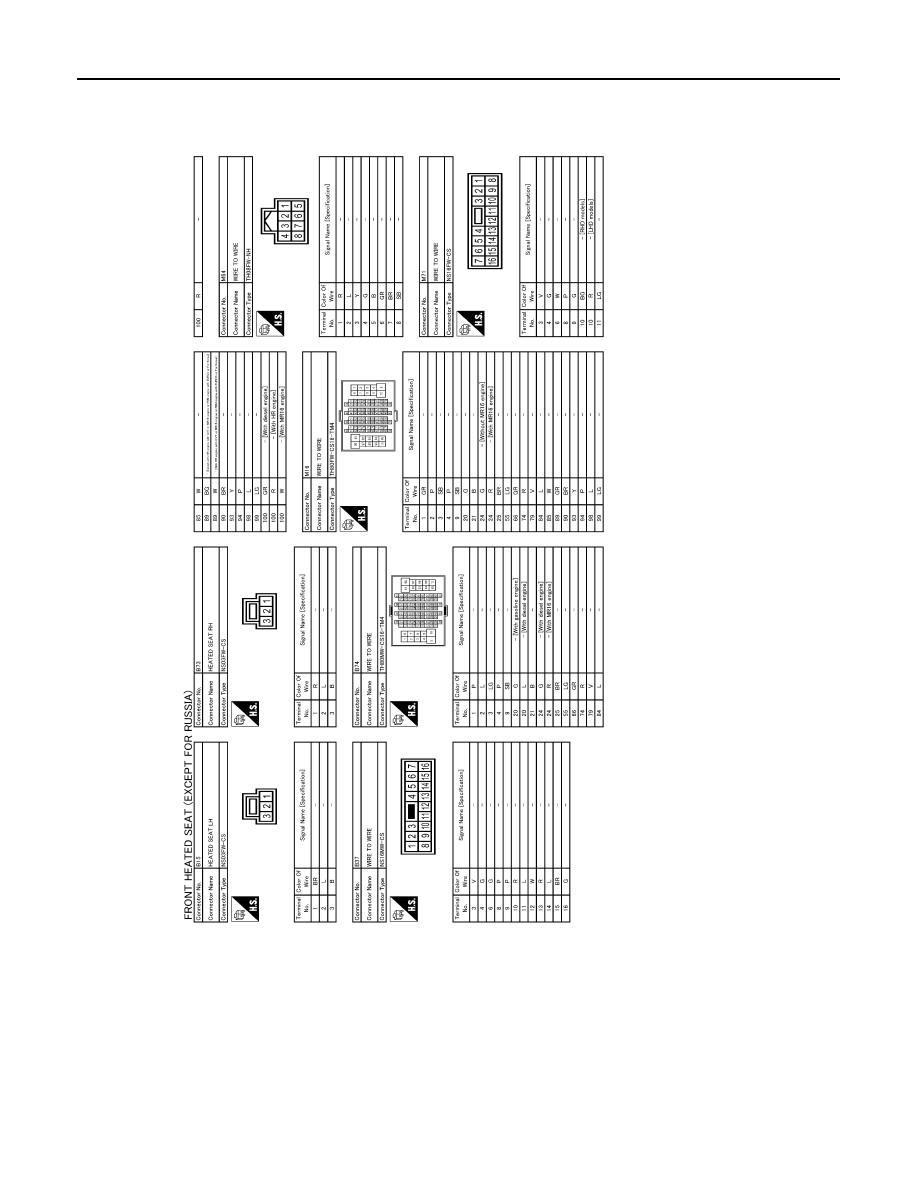

Wiring Diagram ........................................................

12

SYMPTOM DIAGNOSIS  ..............................

18

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ..............................................................

18

Work Flow ................................................................

18

Inspection Procedure ...............................................

20

Diagnostic Worksheet ..............................................

22

REMOVAL AND INSTALLATION  ...............

24

FRONT SEAT ....................................................

24

Exploded View .........................................................

24

Removal and Installation  .........................................

28

SEATBACK ................................................................

28

SEATBACK : Disassembly and Assembly  ..............

28

SEAT CUSHION  ........................................................

31

SEAT CUSHION : Disassembly and Assembly .......

31

REAR SEAT  ......................................................

33

Exploded View .........................................................

33

Removal and Installation  .........................................

34

SEATBACK ................................................................

35

SEATBACK : Disassembly and Assembly  ..............

35

SEAT CUSHION  ........................................................

36

SEAT CUSHION : Disassembly and Assembly .......

36

POWER SEAT SWITCH  ...................................

37

Removal and Installation  .........................................

37

HEATED SEAT SWITCH  ..................................

38

Removal and Installation  .........................................

38

SE-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000011461870

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precautions for Removing Battery Terminal

INFOID:0000000010503414

• With the adoption of Auto ACC function, ACC power is automatically supplied by operating the intelligent key

or remote keyless entry or by opening/closing the driver side door. In addition, ACC power is supplied even
after the ignition switch is turned to the OFF position, i.e. ACC power is supplied for a certain fixed time.

• When disconnecting the 12V battery terminal, turn off the ACC

power before disconnecting the 12V battery terminal, observing
“How to disconnect 12V battery terminal” described below.
NOTE:
Some ECUs operate for a certain fixed time even after ignition
switch is turned OFF and ignition power supply is stopped. If the
battery terminal is disconnected before ECU stops, accidental DTC
detection or ECU data damage may occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

HOW TO DISCONNECT 12V BATTERY TERMINAL

Disconnect 12V battery terminal according to instruction described below.
1.

Open the hood.

2.

Turn ignition switch to the ON position.

3.

Turn ignition switch to the OFF position with the driver side door opened.

4.

Get out of the vehicle and close the driver side door.

SEF289H

PRECAUTIONS

SE-3

< PRECAUTION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

5.

Wait at least 3 minutes. For vehicle with the engine listed below, remove the battery terminal after a lapse
of the specified time.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

6.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

Service Notice

INFOID:0000000010436318

• When removing or installing various parts, place a cloth or padding onto the vehicle body to prevent

scratches.

• Handle trim, molding, instruments, grille, etc. carefully during removing or installing. Be careful not to oil or

damage them.

• Apply sealing compound where necessary when installing parts.
• When applying sealing compound, be careful that the sealing compound does not protrude from parts.
• When replacing any metal parts (for example body outer panel, members, etc.), be sure to take rust preven-

tion measures.

Precaution for Work

INFOID:0000000010436319

• When removing or disassembling each component, be careful not to damage or deform it. If a component

may be subject to interference, be sure to protect it with a shop cloth.

• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component

with a shop cloth or vinyl tape to protect it.

• Protect the removed parts with a shop cloth and keep them.
• Replace a deformed or damaged clip.
• If a part is specified as a non-reusable part, always replace it with new one.
• Be sure to tighten bolts and nuts securely to the specified torque.
• After re-installation is completed, be sure to check that each part works normally.
• Follow the steps below to clean components.
- Water soluble foul: Dip a soft cloth into lukewarm water, and wring the water out of the cloth to wipe the

fouled area.
Then rub with a soft and dry cloth.

- Oily foul: Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%), and wipe

the fouled area.
Then dip a cloth into fresh water, and wring the water out of the cloth to wipe the detergent off. Then rub with
a soft and dry cloth.

• Never use organic solvent such as thinner, benzene, alcohol, and gasoline.
• For genuine leather seats, use a genuine leather seat cleaner.

D4D engine

: 20 minutes

HRA2DDT

: 12 minutes

K9K engine

: 4 minutes

M9R engine

: 4 minutes

R9M engine

: 4 minutes

V9X engine

: 4 minutes

SE-4

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

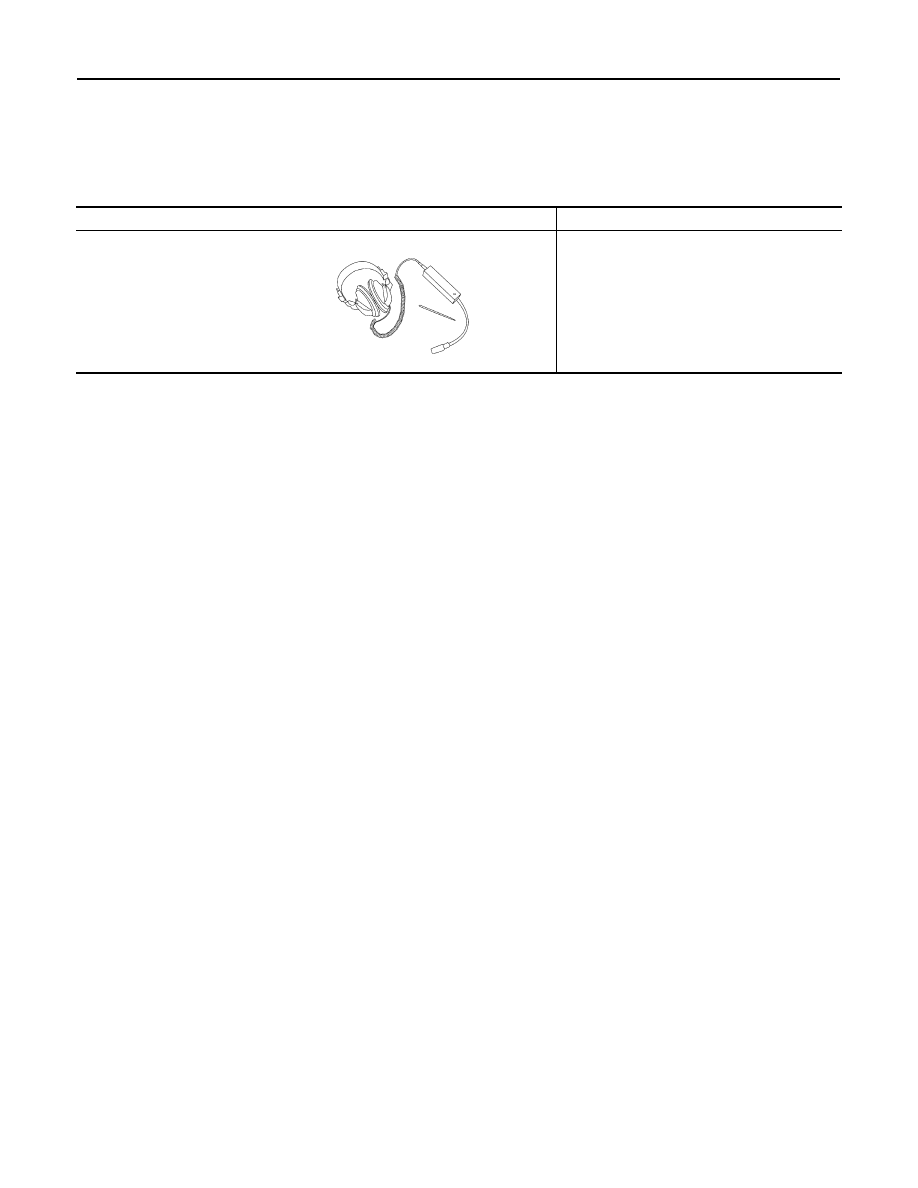

Commercial Service Tool

INFOID:0000000010436320

Tool name

Description

Engine ear

Locates the noise

SIIA0995E

CLIP LIST

SE-5

< PREPARATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

CLIP LIST

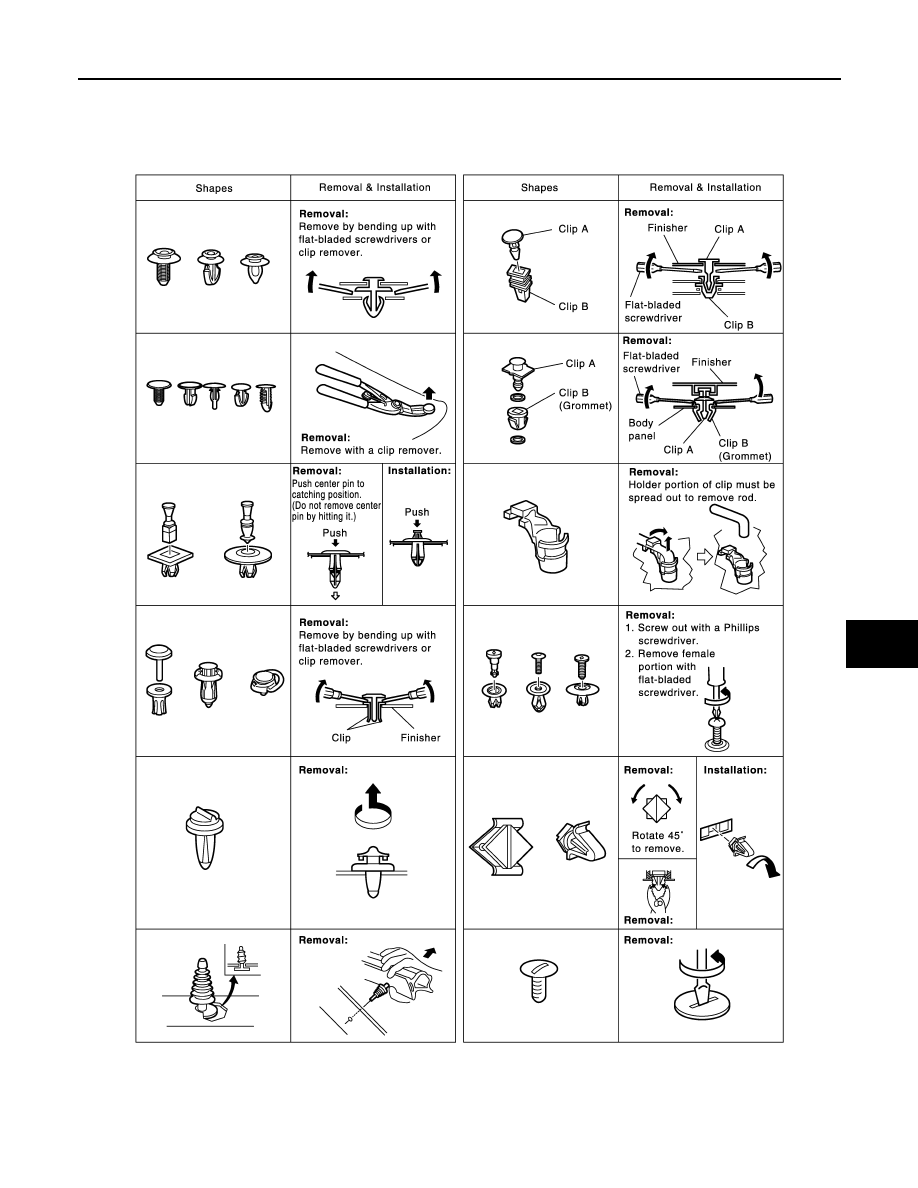

Clip List

INFOID:0000000010436321

JMJIA3734GB

SE-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

POWER SEAT SYSTEM

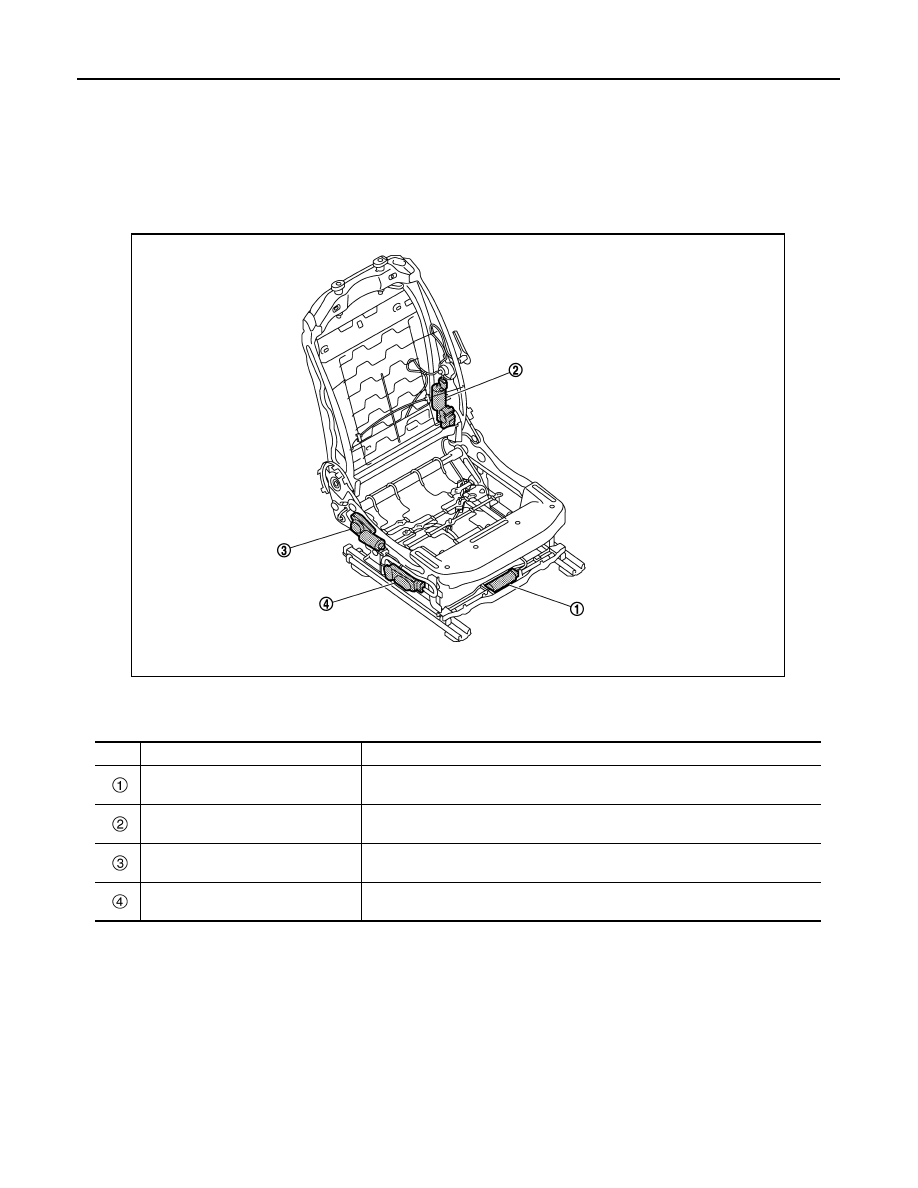

POWER SEAT SYSTEM : Component Parts Location

INFOID:0000000010436340

POWER SEAT SYSTEM : Component Description

INFOID:0000000010436341

HEATED SEAT SYSTEM

JMJIA9930ZZ

No.

Component

Function

Sliding motor

With the power supplied from power seat switch, operates the forward and back-
ward slide of seat

Reclining motor

With the power supplied from power seat switch, operates the forward and back-
ward movement of seatback

Lifting motor

With the power supplied from power seat switch, operates the up and down
movement of seat cushion

Power seat switch

Built-in reclining switch, sliding switch and lifting switch, controls the power sup-
plied to each motor

COMPONENT PARTS

SE-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

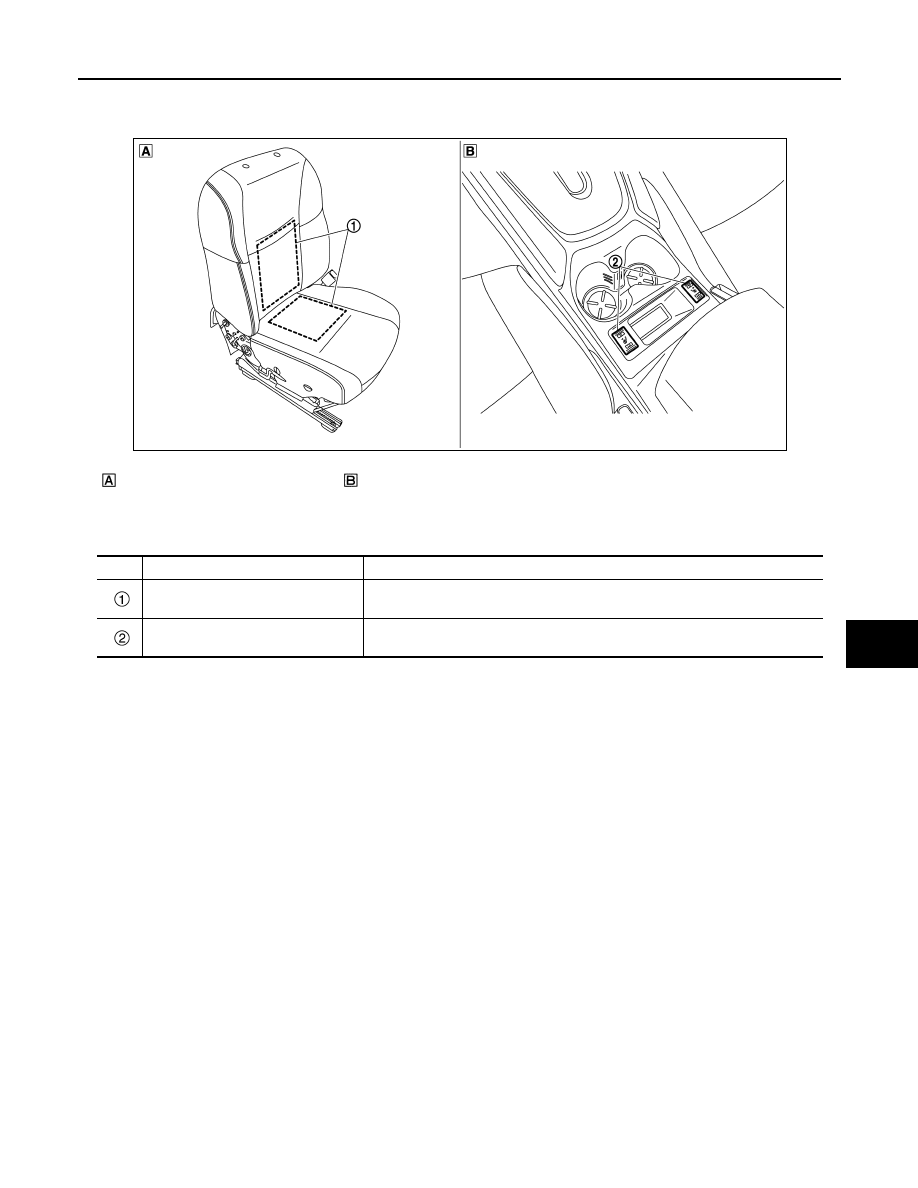

HEATED SEAT SYSTEM : Component Parts Location

INFOID:0000000010436322

HEATED SEAT SYSTEM : Component Description

INFOID:0000000010436323

The inside of front seat

View with console switch panel

JMJIA9768ZZ

No.

Component

Function

Front seat heater (driver side/passen-
ger side)

Front seat heater is located inside of front heated seat cushion and seat back,
and operates with power source provided via front heated seat switch.

Front heated seat switch (driver side/
passenger side)

Front heated seat switch changes ON/OFF operation and HI/LO operation, and
supplies power source to front heated seats.

SE-8

< SYSTEM DESCRIPTION >

SYSTEM

SYSTEM

POWER SEAT SYSTEM

POWER SEAT SYSTEM : System Description

INFOID:0000000010436339

Power seat switch can be operated regardless of the ignition switch position, because power supply is always
supplied to power seat switch.

SLIDING OPERATION

While operating the sliding switch located in power seat switch, sliding motor operates and makes possible the
seat front and back position adjustment.

RECLINING OPERATION

While operating the reclining switch located in power seat switch, reclining motor operates and makes possi-
ble the seat back forward and backward position adjustment.

LIFTING OPERATION

While operating the lifting switch located in power seat switch, lifting motor operates and makes possible the
seat cushion up and down position adjustment.

HEATED SEAT SYSTEM

HEATED SEAT SYSTEM : System Description

INFOID:0000000010436324

Heated seat is a system that operates when ignition switch is in ON position.

HEATER OPERATION

• When the heated seat switch is ON, seat heater and seat back heater operate.
• Temperature of seat can be adjusted by operating on heated seat switch.

POWER SEAT CONTROL SYSTEM

SE-9

< WIRING DIAGRAM >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

WIRING DIAGRAM

POWER SEAT CONTROL SYSTEM

Wiring Diagram

INFOID:0000000010436342

JRJWC6755GB

SE-10

< WIRING DIAGRAM >

POWER SEAT CONTROL SYSTEM

JRJWC9125GB

POWER SEAT CONTROL SYSTEM

SE-11

< WIRING DIAGRAM >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

JRJWC9126GB

SE-12

< WIRING DIAGRAM >

HEATED SEAT SYSTEM

HEATED SEAT SYSTEM

Wiring Diagram

INFOID:0000000010436325

FOR RUSSIA MODELS

JRJWC4032GB

HEATED SEAT SYSTEM

SE-13

< WIRING DIAGRAM >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

JRJWC9127GB

SE-14

< WIRING DIAGRAM >

HEATED SEAT SYSTEM

JRJWC9128GB

HEATED SEAT SYSTEM

SE-15

< WIRING DIAGRAM >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

EXCEPT FOR RUSSIA MODELS

JRJWC9129GB

SE-16

< WIRING DIAGRAM >

HEATED SEAT SYSTEM

JRJWC9130GB















Content      ..       1      2     ..
