AWD WARNING LAMP DOES NOT TURN OFF

Description

INFOID:0000000010288314

AWD warning lamp does not turn OFF several seconds after engine started.

Diagnosis Procedure

INFOID:0000000010288315

1.

PERFORM SELF-DIAGNOSIS

With CONSULT

Perform AWD control unit self-diagnosis.

Is any error system detected?

YES

>> Check the error system.

NO

>> GO TO 2.

2.

CHECK AWD WARNING LAMP

Perform the trouble diagnosis of the AWD warning lamp. Refer to

DLN-126, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace the malfunctioning part.

3.

CHECK AWD CONTROL UNIT POWER SUPPLY AND GROUND CIRCUIT

Perform the trouble diagnosis of the power supply and ground circuit. Refer to

DLN-124, "Diagnosis Proce-

dure"

.

Is the inspection result normal?

YES

>> Check each harness connector pin terminal for malfunction or disconnection.

NO

>> Repair or replace the malfunctioning part.

DLN-146

< SYMPTOM DIAGNOSIS >

[TRANSFER: TY30A]

HEAVY TIGHT-CORNER BRAKING SYMPTOM OCCURS

HEAVY TIGHT-CORNER BRAKING SYMPTOM OCCURS

Description

INFOID:0000000010288316

Heavy tight-corner braking symptom occurs when the vehicle is driven and the steering wheel is turned fully to
either side after the engine is started.
NOTE:
Light tight-corner braking symptom may occur depending on driving conditions. This is not malfunction.

Diagnosis Procedure

INFOID:0000000010288317

1.

PERFORM ECM SELF-DIAGNOSIS

With CONSULT

Perform ECM self-diagnosis.

Is any error system detected?

YES

>> Check the error system.

NO

>> GO TO 2.

2.

PERFORM SELF-DIAGNOSIS

With CONSULT

Perform AWD control unit self-diagnosis.

Is DTC “U1000” detected?

YES

>> CAN specification chart. Refer to

LAN-24, "Trouble Diagnosis Flow Chart"

.

NO

>> GO TO 3.

3.

CHECK AWD SOLENOID

Perform the trouble diagnosis of the AWD solenoid. Refer to

DLN-113, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace the malfunctioning part.

4.

CHECK ELECTRIC CONTROLLED COUPLING

1.

Turn the ignition switch OFF.

2.

Set the transaxle to neutral. Release the parking brake.

3.

Lift up the vehicle.

4.

Rotate the propeller shaft by hand.

5.

Hold rear wheel of right and left lightly.

Does rear wheel rotate?

YES

>> Replace electric controlled coupling for mechanical malfunction (clutch sticking etc.). Refer to

DLN-203, "Exploded View"

.

NO

>> Check each harness connector pin terminal for disconnection.

VEHICLE DOES NOT ENTER AWD MODE

DLN-147

< SYMPTOM DIAGNOSIS >

[TRANSFER: TY30A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

VEHICLE DOES NOT ENTER AWD MODE

Description

INFOID:0000000010288318

Vehicle does not enter AWD mode even though AWD warning lamp turned to OFF.

Diagnosis Procedure

INFOID:0000000010288319

1.

CHECK AWD WARNING LAMP

Turn the ignition switch ON.

Does AWD warning lamp turn ON?

YES

>> GO TO 2.

NO

>> Go to

DLN-144, "Diagnosis Procedure"

.

2.

PERFORM SELF-DIAGNOSIS

With CONSULT

Perform AWD control unit self-diagnosis.

Is DTC “U1000” detected?

YES

>> CAN specification chart. Refer to

LAN-24, "Trouble Diagnosis Flow Chart"

.

NO

>> GO TO 3.

3.

CHECK AWD SOLENOID

Perform the trouble diagnosis of the AWD solenoid. Refer to

DLN-113, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace the malfunctioning part.

4.

CRUISE TEST

Drive the vehicle for a period of time.

Does any symptom occur?

YES

>> Replace electric controlled coupling for mechanical malfunction (mechanical engagement of

clutch is not possible). Refer to

DLN-203, "Exploded View"

.

NO

>> Check each harness connector pin terminal for disconnection.

DLN-148

< SYMPTOM DIAGNOSIS >

[TRANSFER: TY30A]

AWD WARNING LAMP BLINKS QUICKLY

AWD WARNING LAMP BLINKS QUICKLY

Description

INFOID:0000000010288320

While driving, AWD warning lamp blinks 2 times in 1 second and it turns OFF after 1 minute.
• This symptom protects drive train parts when a heavy load is applied to the electric controlled coupling and

multiple disc clutch temperature increases. Also, optional distribution of torque sometimes becomes rigid
before lamp blinks quickly. Both cases are not malfunction.

• When this symptom occurs, stop vehicle and allow it to idle for some times. Blinking will stop and system will

be restored.

AWD WARNING LAMP BLINKS SLOWLY

DLN-149

< SYMPTOM DIAGNOSIS >

[TRANSFER: TY30A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

AWD WARNING LAMP BLINKS SLOWLY

Description

INFOID:0000000010288321

AWD warning lamp blinks at approximately 2 seconds intervals while driving.

Diagnosis Procedure

INFOID:0000000010288322

1.

CHECK TIRE

Check the following.
• Tire pressure
• Wear condition
• Longitudinal tire size (There is no difference between longitudinal tires.)

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Drive at vehicle speed of 20 km/h (12 MPH) or more for 5 seconds or more after repairing or

replacing damaged parts. (Initialize improper size tire information.)

2.

CHECK INPUT SIGNAL OF TIRE DIAMETER

With CONSULT

1.

Start engine.

2.

Drive at 20 km/h (12 MPH) or more for approx. 200 seconds.

3.

Check “DIS-TIRE MONI” of AWD control unit CONSULT “DATA MONITOR”.

Does the item on “DATA MONITOR” indicate “0 - 4 mm”?

YES

>> INSPECTION END

NO

>> GO TO 3.

3.

TERMINAL INSPECTION

Check AWD control unit harness connector for disconnection.
Is the inspection result normal?

YES

>> Replace AWD control unit. Refer to

DLN-153, "Exploded View"

.

NO

>> Repair or replace the malfunctioning part.

DLN-150

< SYMPTOM DIAGNOSIS >

[TRANSFER: TY30A]

NORMAL OPERATING CONDITION

NORMAL OPERATING CONDITION

Description

INFOID:0000000010288323

While driving, AWD warning lamp blinks 2 times in 1 second and it turns OFF after 1 minute.
• This symptom protects drive train parts when a heavy load is applied to the electric controlled coupling and

multiple disc clutch temperature increases. Also, optional distribution of torque sometimes becomes rigid
before lamp blinks quickly. Both cases are not malfunction.

• When this symptom occurs, stop vehicle and allow it to idle for some times. Blinking will stop and system will

be restored.

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

DLN-151

< SYMPTOM DIAGNOSIS >

[TRANSFER: TY30A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000010288324

M/T MODELS

Use the chart below to help you find the cause of the symptom. The numbers indicate the order of the inspec-
tion. If necessary, repair or replace these parts.

Reference

DL

N-15

2,

 "In

s

p

e

c

tio

n"

DL

N-15

7,

 "Ex

p

lo

de

d

V

iew"

DL

N-15

7,

 "Ex

p

lo

de

d

V

iew"

DL

N-15

7,

 "Ex

p

lo

de

d

V

iew"

D

L

N-1

6

3

, "I

ns

pe

ct

io

n

 Af

te

r Di

sa

ss

em

bl

y"

D

L

N-1

6

3

, "I

ns

pe

ct

io

n

 Af

te

r Di

sa

ss

em

bl

y"

SUSPECTED PARTS
(Possible cause)

TRANSF

ER OIL (Level l

o

w)

TRANSF

ER OIL (W

rong)

T

R

ANSFER OI

L (L

ev

el

 to

o h

ig

h

)

LIQUID GASKET

 (Damaged)

O-RING (W

orn

 or

da

ma

ge

d)

OIL SEAL (W

orn or

damaged)

GEAR (W

o

rn o

r da

m

a

g

ed)

BEAR

ING

 (W

orn

 o

r

da

ma

ge

d)

Symptom

Noise

1

2

3

3

3

Transfer oil leakage

3

1

2

2

2

DLN-152

< PERIODIC MAINTENANCE >

[TRANSFER: TY30A]

TRANSFER OIL

PERIODIC MAINTENANCE

TRANSFER OIL

Inspection

INFOID:0000000010288332

OIL LEAKAGE

Check transfer surrounding area (oil seal, drain plug, filler plug, and transfer case, etc.) for oil leakage.

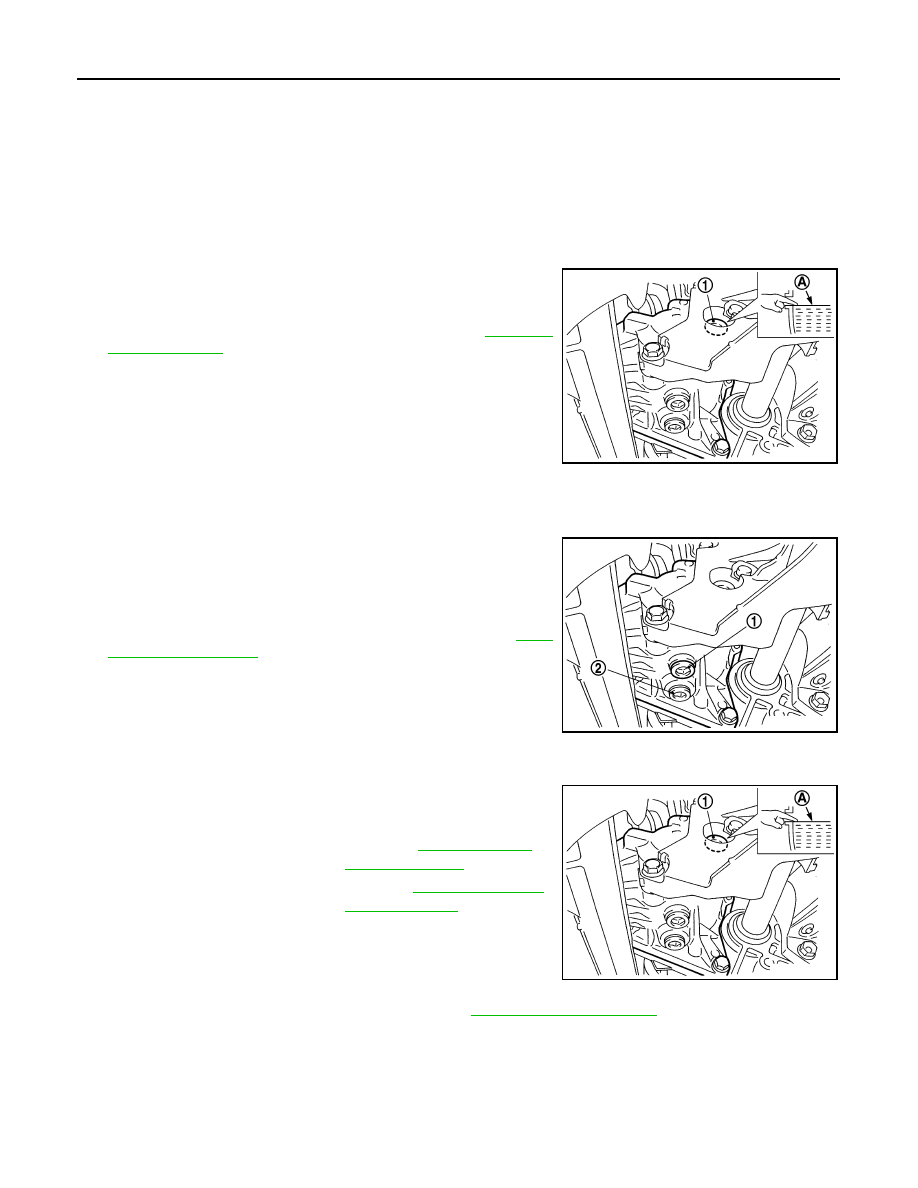

OIL LEVEL

1.

Remove filler plug (1) and gasket. Then check that oil is filled up
(A) from mounting hole for the filler plug.

2.

Before installing filler plug, set a new gasket. Install filler plug on
transfer and tighten to the specified torque. Refer to

DLN-157,

"Exploded View"

 .

CAUTION:

Never reuse gaskets.

Draining

INFOID:0000000010288333

1.

Run the vehicle to warm up the transfer unit sufficiently.

2.

Stop the engine and remove drain plug (1) and gaskets to drain
the transfer oil.

CAUTION:

Never remove tooth contact test hole plug (2).

3.

Before installing drain plug, set a new gasket. Install drain plug
on transfer and tighten to the specified torque. Refer to

DLN-

157, "Exploded View"

 .

CAUTION:

Never reuse gaskets.

Refilling

INFOID:0000000010288334

1.

Remove filler plug (1) and gasket. Then fill oil up to mounting
hole (A) for the filler plug.

CAUTION:

Carefully fill the oil. (Fill up for approximately 3 minutes.)

2.

Leave the vehicle for 3 minutes. Then check oil level again.

3.

Before installing filler plug, set a new gasket. Install filler plug on
transfer and tighten to the specified torque. Refer to

DLN-157, "Exploded View"

 .

CAUTION:

Never reuse gasket.

SDIA3060J

SDIA3059J

Oil grade and viscosity

: Refer to

MA-59, "Fluids

and Lubricants"

.

Oil capacity

: Refer to

DLN-97, "General

Specifications"

.

SDIA3060J

AWD CONTROL UNIT

DLN-153

< REMOVAL AND INSTALLATION >

[TRANSFER: TY30A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

REMOVAL AND INSTALLATION

AWD CONTROL UNIT

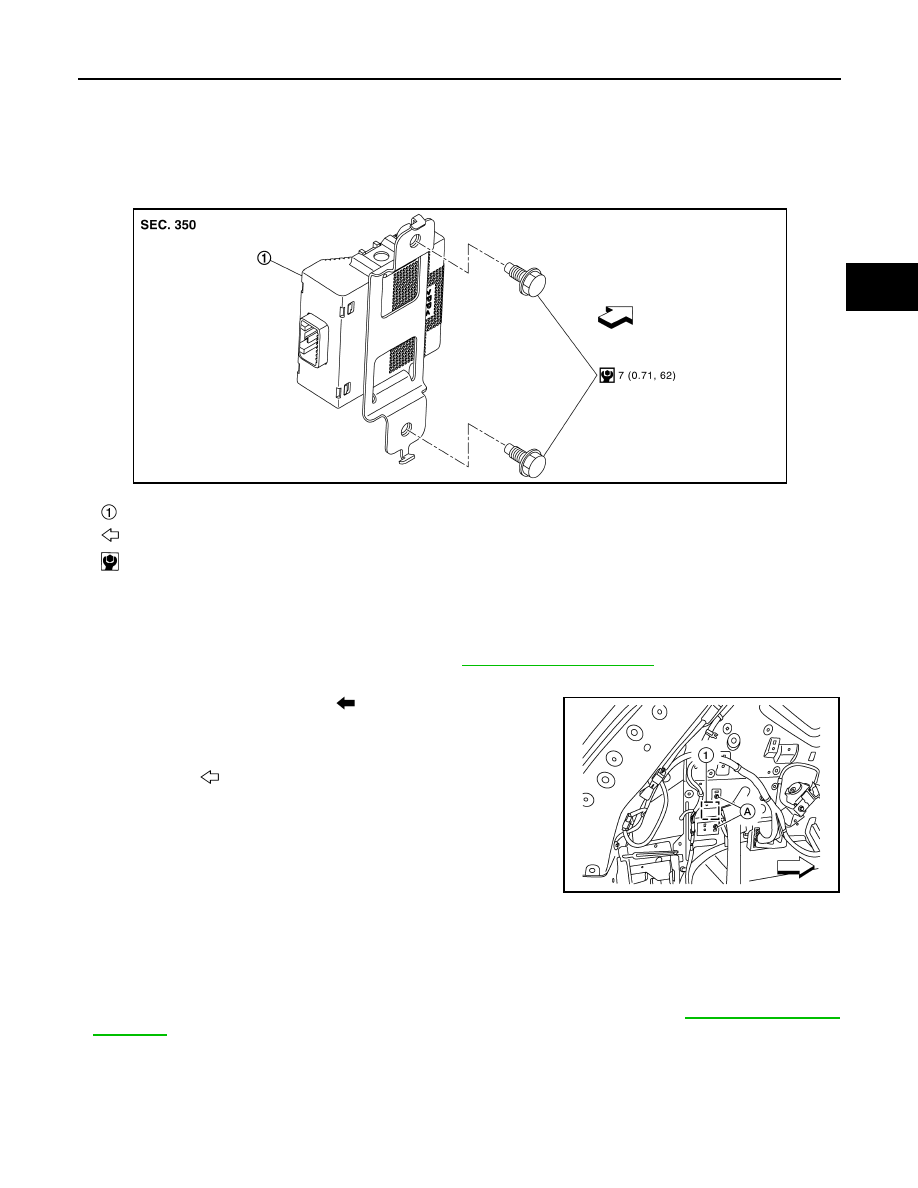

Exploded View

INFOID:0000000010471495

Removal and Installation

INFOID:0000000010471496

REMOVAL

1.

Remove luggage side lower finisher (LH). Refer to

INT-29, "Luggage side trim"

.

2.

Disconnect AWD control unit harness connector.

3.

Remove AWD control unit bolts (

).

NOTE:
AWD control unit is located on the back side of body panel.

4.

Remove AWD control unit.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not drop or shock AWD control unit.
• When replacing AWD control unit, perform writing unit characteristic. Refer to

DLN-109, "CONSULT

Function"

.

AWD control unit

: Vehicle front

: N·m (kg-m, in-lb)

JSDIA5368GB

: Front

AWDIA1154ZZ

DLN-154

< REMOVAL AND INSTALLATION >

[TRANSFER: TY30A]

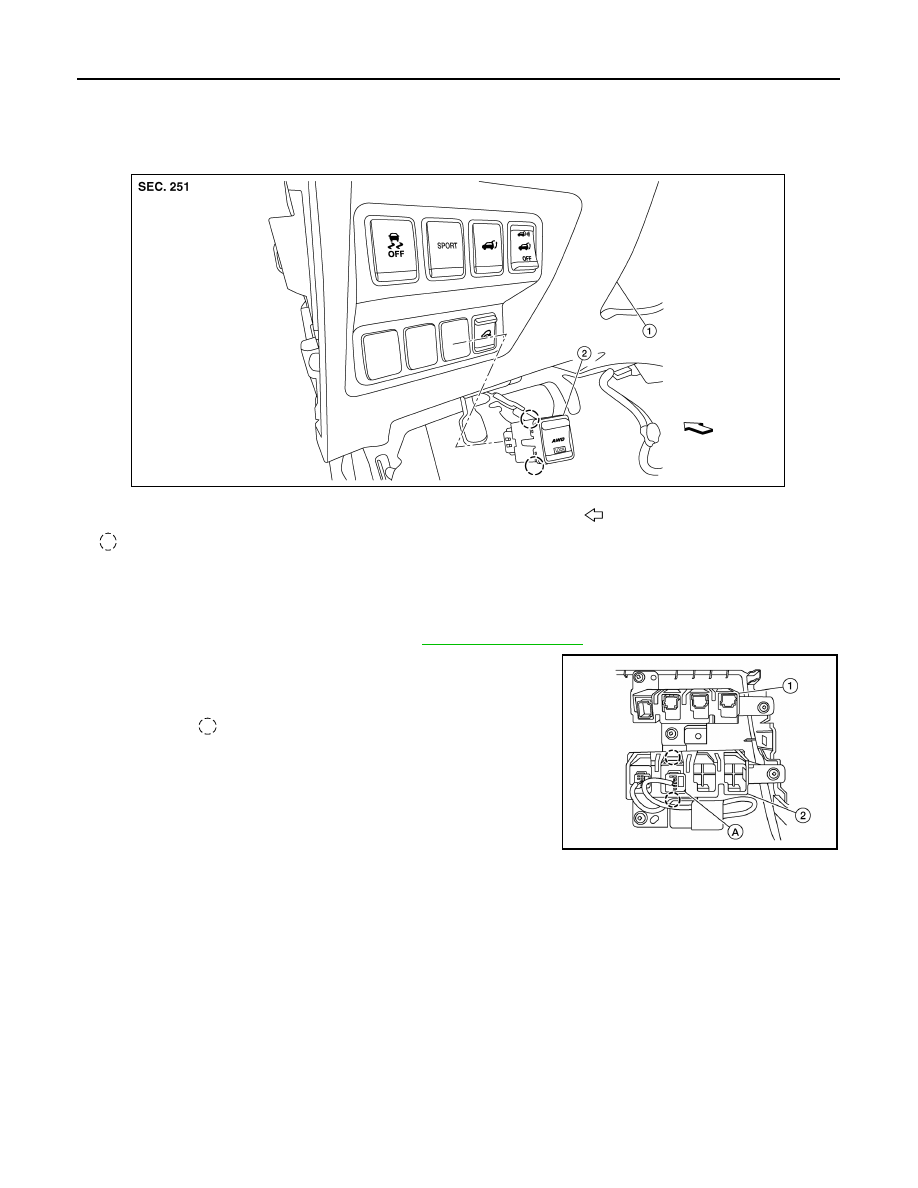

AWD MODE SWITCH

AWD MODE SWITCH

Exploded View

INFOID:0000000010464154

Removal and Installation

INFOID:0000000010464155

REMOVAL

1.

Remove instrument lower panel LH. Refer to

IP-12, "Exploded View"

.

2.

Disconnect AWD lock switch harness connector (A).

3.

Remove AWD lock switch from lower switch bracket (2).

INSTALLATION

Install in the reverse order of removal.

1.

Instrument lower panel LH

2.

AWD lock switch

Front

Pawl

ALDIA0506ZZ

: Pawls

AWDIA1151ZZ

TRANSFER ASSEMBLY

DLN-155

< UNIT REMOVAL AND INSTALLATION >

[TRANSFER: TY30A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

UNIT REMOVAL AND INSTALLATION

TRANSFER ASSEMBLY

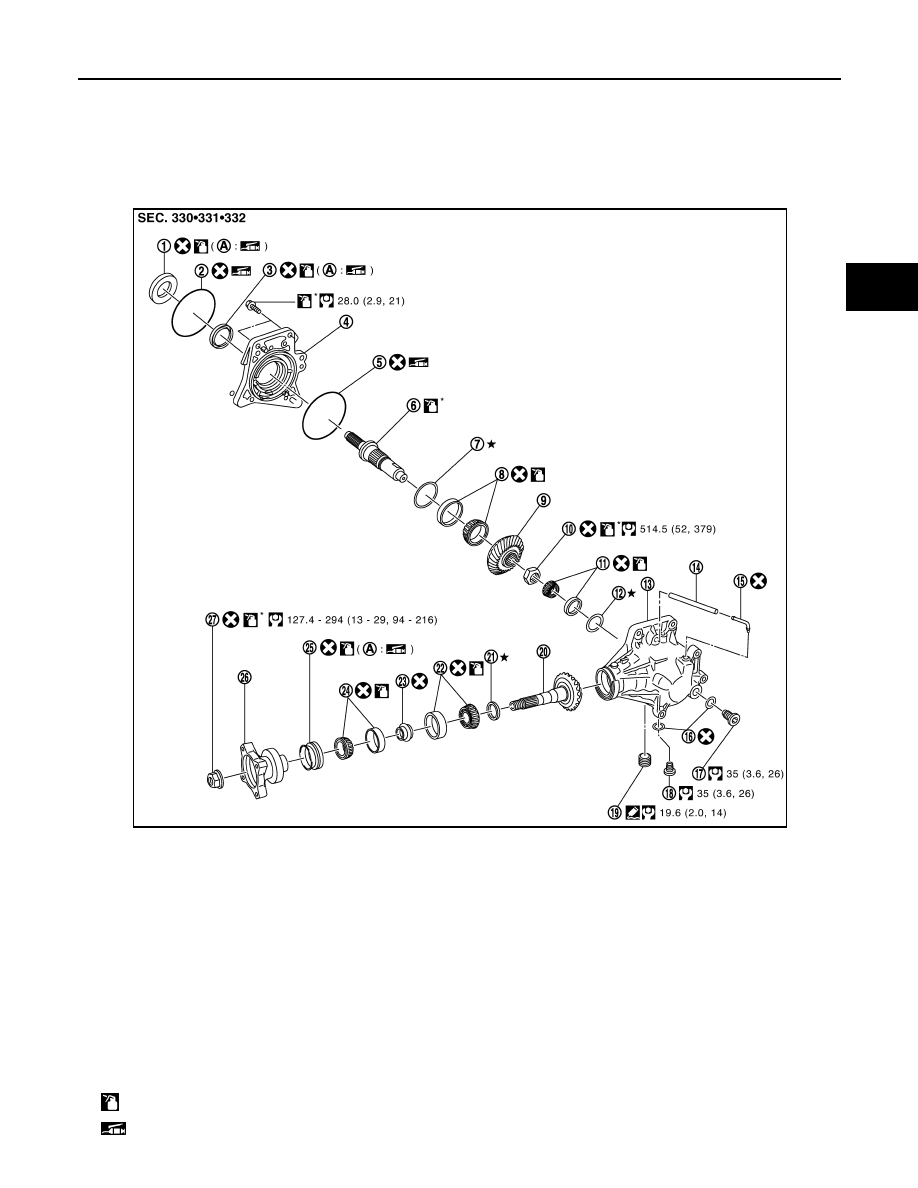

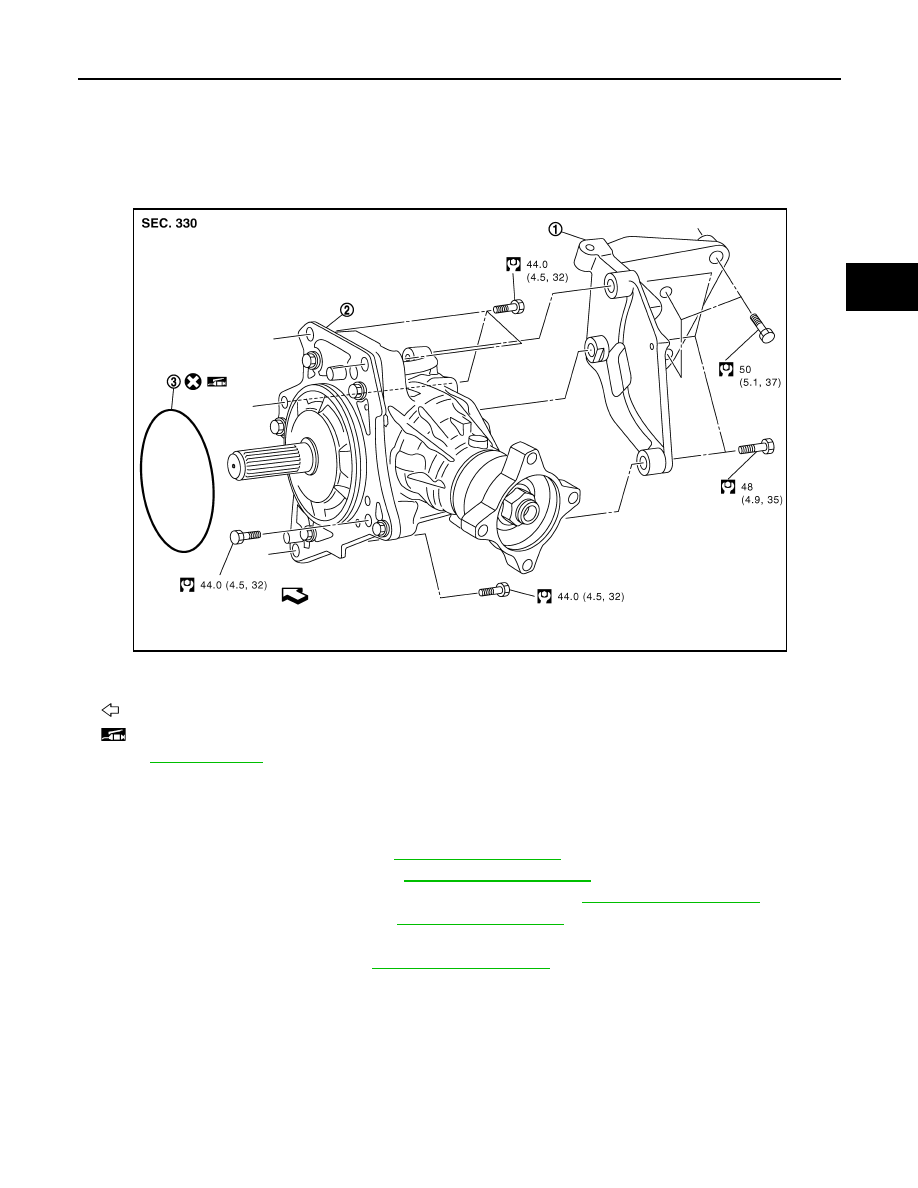

Exploded View

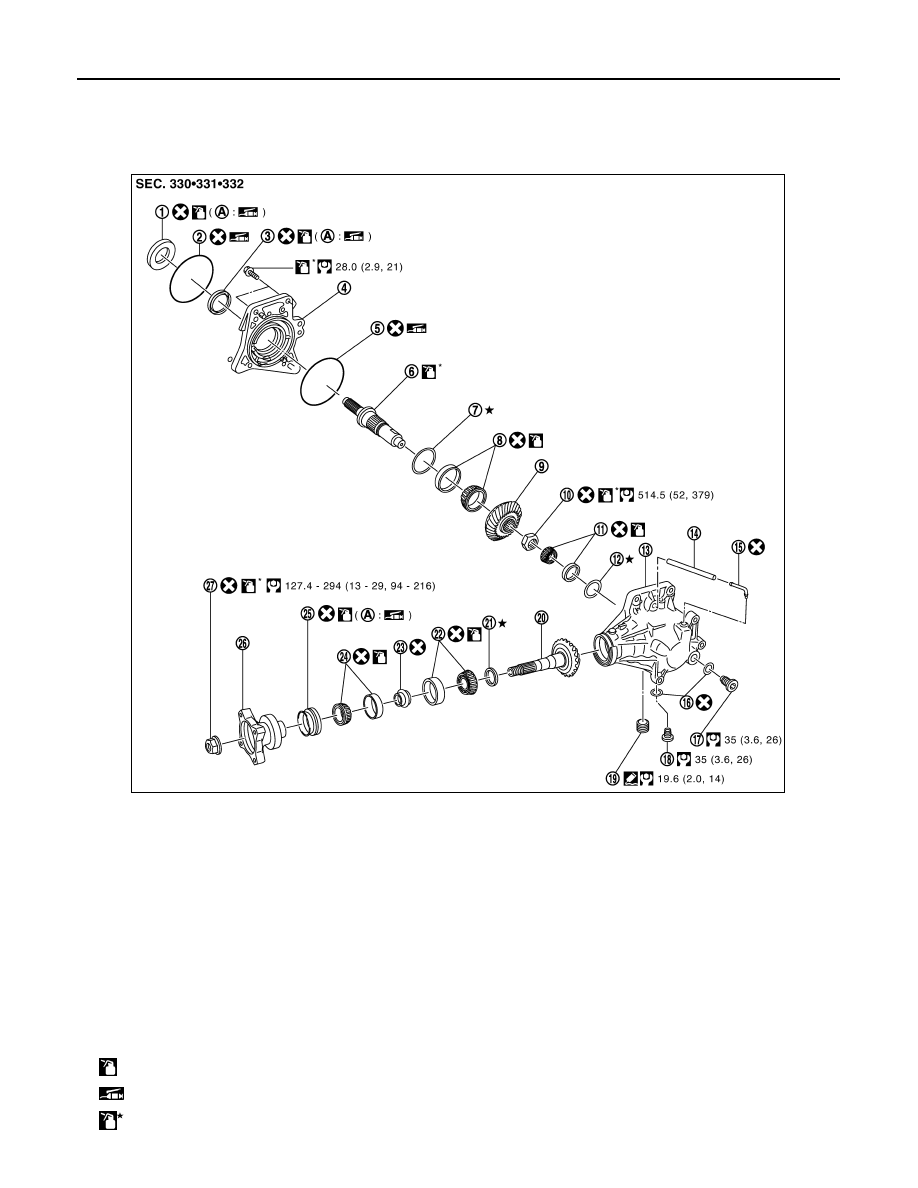

INFOID:0000000010288345

Removal and Installation

INFOID:0000000010288346

REMOVAL

1.

Remove the exhaust front tube. Refer to

EX-22, "Exploded View"

.

2.

Separate the rear propeller shaft. Refer to

DLN-186, "Exploded View"

.

3.

Remove right side drive shaft and support bearing bracket. Refer to

RAX-14, "Exploded View"

.

4.

Remove the diesel particle filter. Refer to

EX-24, "Exploded View"

.

5.

Remove the gusset.

6.

Remove the rear torque rod. Refer to

EM-429, "Exploded View"

.

1.

Gusset

2.

Transfer assembly

3.

O-ring (outer)

: Vehicle front

: Apply multi-purpose grease.

Refer to

GI-4, "Components"

 for symbols not described on the above.

JSDIA0267GB

DLN-156

< UNIT REMOVAL AND INSTALLATION >

[TRANSFER: TY30A]

TRANSFER ASSEMBLY

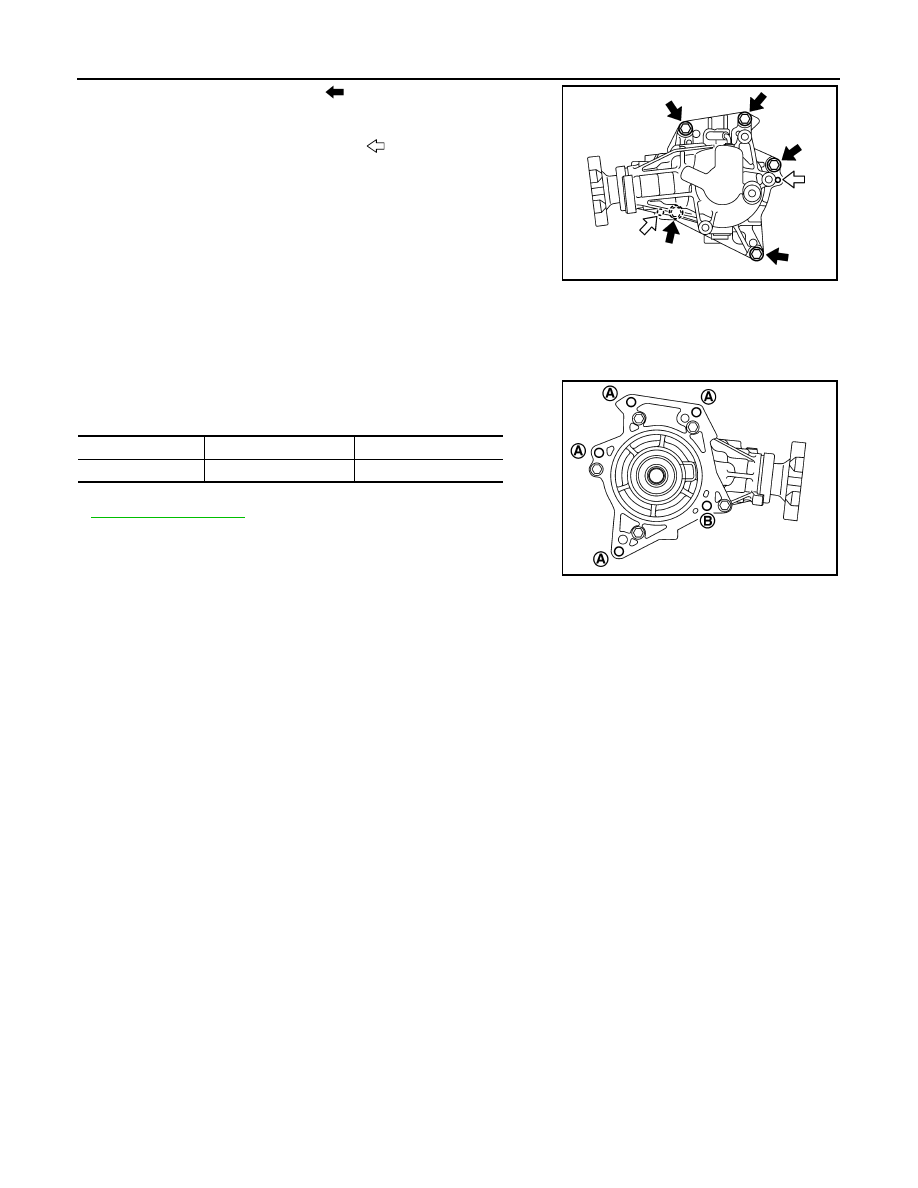

7.

Remove the mounting bolts (

) of transaxle assembly and

transfer assembly.

CAUTION:

Never remove the mounting bolts (

) of adapter case.

8.

Remove transfer assembly from the vehicle.

CAUTION:

• Never damage ring gear shaft.
• Never damage air breather hose.

9.

Remove O-ring (outer) from the transfer assembly.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Apply multi-purpose grease lightly and evenly onto an O-ring (outer), and install it to the transfer assembly.

CAUTION:

Never reuse O-ring (outer).

• Install mounting bolts according to the standard below when install-

ing transfer assembly to the transaxle assembly.

• Check oil level and check for oil leakage after installation. Refer to

DLN-152, "Inspection"

.

SDIA3225J

Bolt symbol

A

B

Installation direction

Transfer

⇒

 Transaxle

Transaxle

⇒

 Transfer

SDIA3070J

ADAPTER CASE

DLN-157

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY30A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

UNIT DISASSEMBLY AND ASSEMBLY

ADAPTER CASE

Exploded View

INFOID:0000000010288347

1.

Adapter case oil seal (outer)

2.

O-ring (outer)

3.

Adapter case oil seal (inner)

4.

Adapter case

5.

O-ring (inner)

6.

Ring gear shaft

7.

Ring gear adjusting shim
(adapter case side)

8.

Ring gear shaft bearing
(adapter case side)

9.

Ring gear

10. Ring gear nut

11.

Ring gear shaft bearing
(transfer case side)

12. Ring gear adjusting shim

(transfer case side)

13. Transfer case

14. Air breather hose

15. Air breather tube

16. Gasket

17. Filler plug

18. Drain plug

19. Plug

20. Drive pinion

21. Drive pinion adjusting shim

22. Drive pinion bearing (front side)

23. Collapsible spacer

24. Drive pinion bearing (rear side)

25. Drive pinion oil seal

26. Companion flange

27. Lock nut

A: Oil seal lip

: Apply gear oil.

: Apply multi-purpose grease.

JSDIA0319GB

DLN-158

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY30A]

ADAPTER CASE

Disassembly

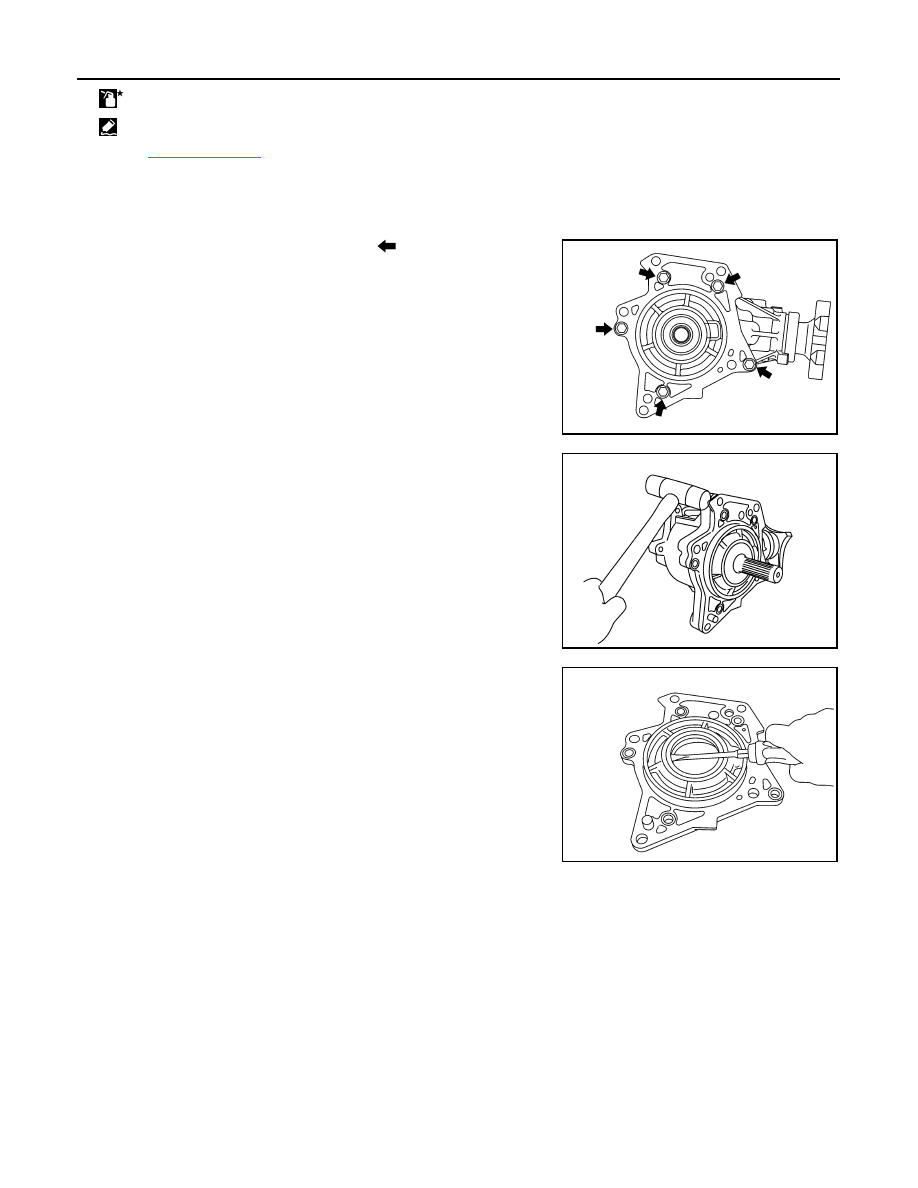

INFOID:0000000010288348

1.

Remove O-ring (outer) from adapter case.

2.

Remove adapter case mounting bolts (

).

3.

Lightly tap adapter case with a plastic hammer to remove
adapter case.

4.

Remove O-ring (inner) from adapter case.

5.

Remove adapter case oil seal (outer/inner) with a screwdriver.

CAUTION:

Be careful not to damage adapter case.

Assembly

INFOID:0000000010288349

1.

Install O-ring (inner) to adapter case.

CAUTION:

• Never reuse O-ring (inner).
• Apply multi-purpose grease to O-ring (inner).

2.

Install adapter case to the transfer case.

: Apply anti-corrosive oil.

: Apply Genuine Liquid Gasket, Three Bond 1215 or equivalent.

Refer to

GI-4, "Components"

 for symbols not described on the above.

SDIA3076J

JSDIA0252ZZ

SDIA3078J

ADAPTER CASE

DLN-159

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY30A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

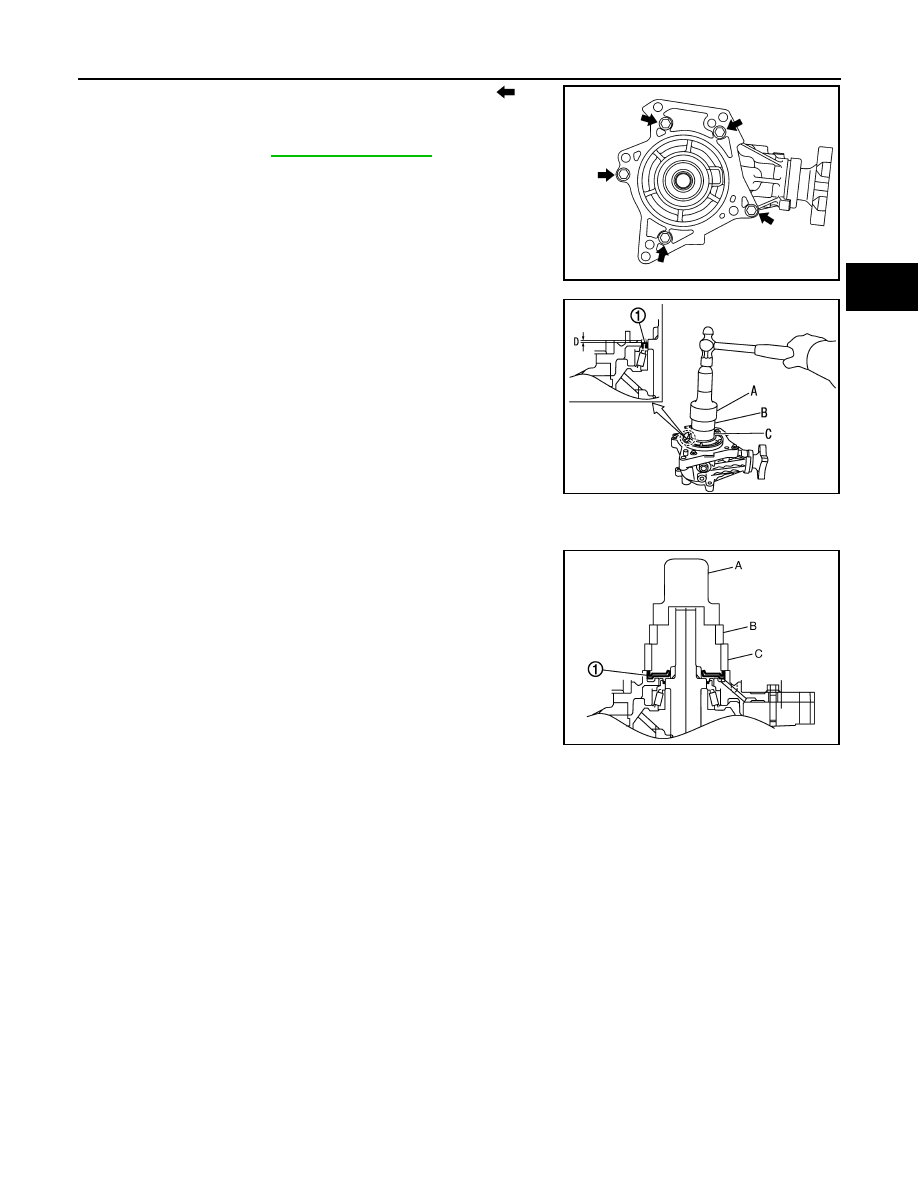

3.

Apply anti-corrosive oil onto threads and seats of bolts (

), and

tighten with the specified torque.

4.

Check backlash, tooth contact, total preload and companion
flange runout. Refer to

DLN-167, "Adjustment"

.

CAUTION:

Measure the total preload without the adapter case oil seal
(outer/inner).

5.

Install adapter case oil seal (inner) (1) to the adapter case with
drifts.

CAUTION:

• Never reuse oil seal.
• Apply multi-purpose grease onto oil seal lips, and gear oil

onto the circumference.

• Install adapter case oil seal (inner) in the direction shown in the figure.

6.

Install adapter case oil seal (outer) (1) to the adapter case with
drifts so that it becomes flush with adapter case end surface.

CAUTION:

• Never reuse oil seal.
• Apply multi-purpose grease onto oil seal lips, and gear oil

onto the circumference.

• Install adapter case oil seal (outer) in the direction shown

in the figure.

7.

Install O-ring (outer) to the adapter case.

Inspection After Disassembly

INFOID:0000000010288350

Check items below. If necessary, replace them with new ones.

CASE

Check the bearing mounting surface for wear, cracks and damages.

SDIA3076J

A

: Drift (SST: ST30720000)

B

: Drift (SST: ST27861000)

C

: Drift (commercial service tool)

Dimension “D”

: 0 – 1.0 mm

A

: Drift (SST: ST30720000)

B

: Drift (SST: ST27861000)

C

: Drift (commercial service tool)

JSDIA0259ZZ

JSDIA0214ZZ

DLN-160

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY30A]

RING GEAR SHAFT

RING GEAR SHAFT

Exploded View

INFOID:0000000010288355

1.

Adapter case oil seal (outer)

2.

O-ring (outer)

3.

Adapter case oil seal (inner)

4.

Adapter case

5.

O-ring (inner)

6.

Ring gear shaft

7.

Ring gear adjusting shim
(adapter case side)

8.

Ring gear shaft bearing
(adapter case side)

9.

Ring gear

10. Ring gear nut

11.

Ring gear shaft bearing
(transfer case side)

12. Ring gear adjusting shim

(transfer case side)

13. Transfer case

14. Air breather hose

15. Air breather tube

16. Gasket

17. Filler plug

18. Drain plug

19. Plug

20. Drive pinion

21. Drive pinion adjusting shim

22. Drive pinion bearing (front side)

23. Collapsible spacer

24. Drive pinion bearing (rear side)

25. Drive pinion oil seal

26. Companion flange

27. Lock nut

A: Oil seal lip

: Apply gear oil.

: Apply multi-purpose grease.

: Apply anti-corrosive oil.

JSDIA0319GB
