Qashqai J11. Driveline - part 6

Remove ring gear bearing outer race (transfer cover side) and ring gear bearing adjusting shim (transfer
cover side) from the transfer cover. Refer to

Remove ring gear shaft assembly from the transfer case.

Remove ring gear bearing outer race (transfer case side) and ring gear bearing adjusting shim (transfer
case side) from the transfer case. Refer to

DLN-95, "Disassembly"

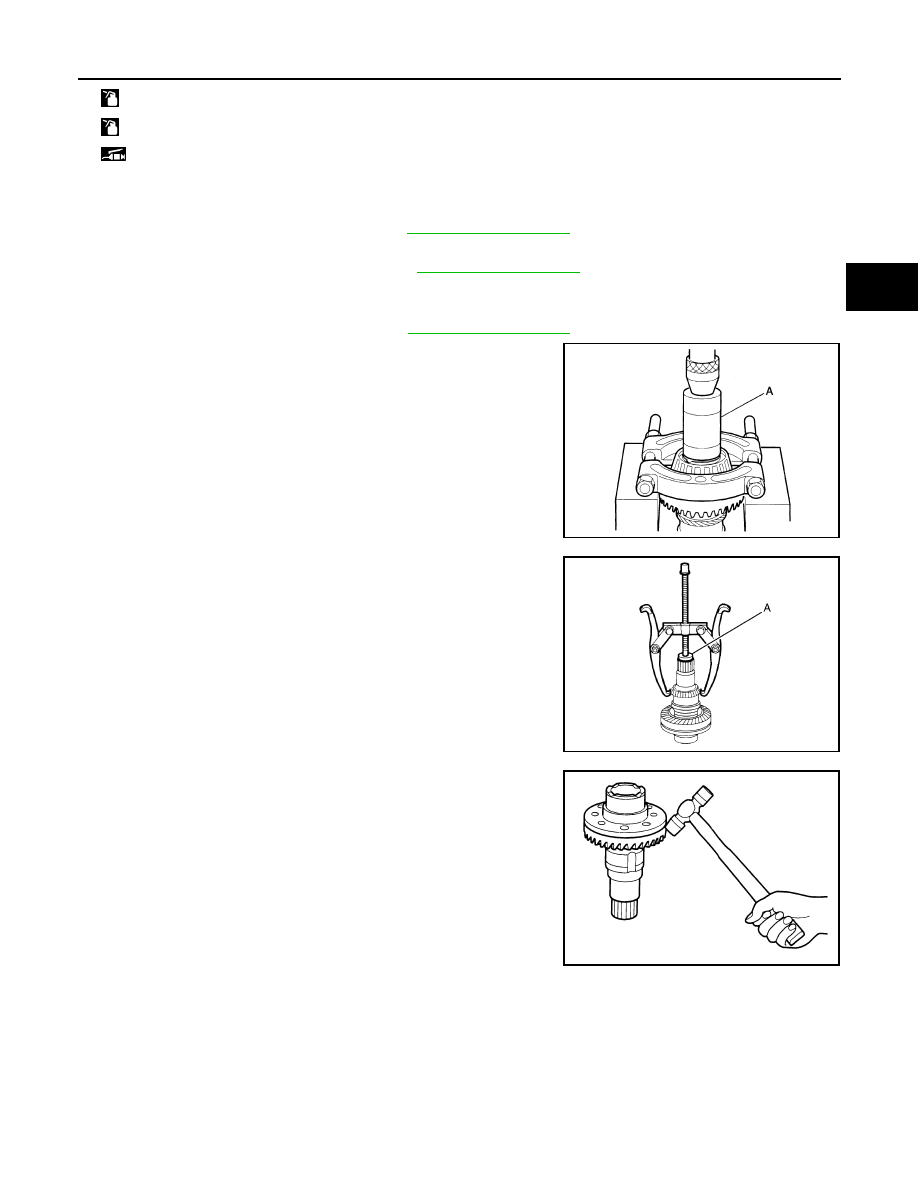

Remove ring gear bearing inner race (transfer cover side) from
ring gear shaft using suitable tool (A) and suitable tool.

Remove ring gear bearing inner race (transfer case side) from
ring gear shaft with suitable tool (A) and Tool.

Remove the ring gear mounting bolts.

Lightly tap ring gear with a plastic hammer to remove ring gear
from the ring gear shaft.

: Apply transfer oil.

: Apply anti-corrosive oil.

: Apply multi-purpose grease.

JPDIE0030ZZ

Tool number

: ST33061000

JPDIE0031ZZ

SDIA1807J

DLN-84

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY21C]

RING GEAR SHAFT

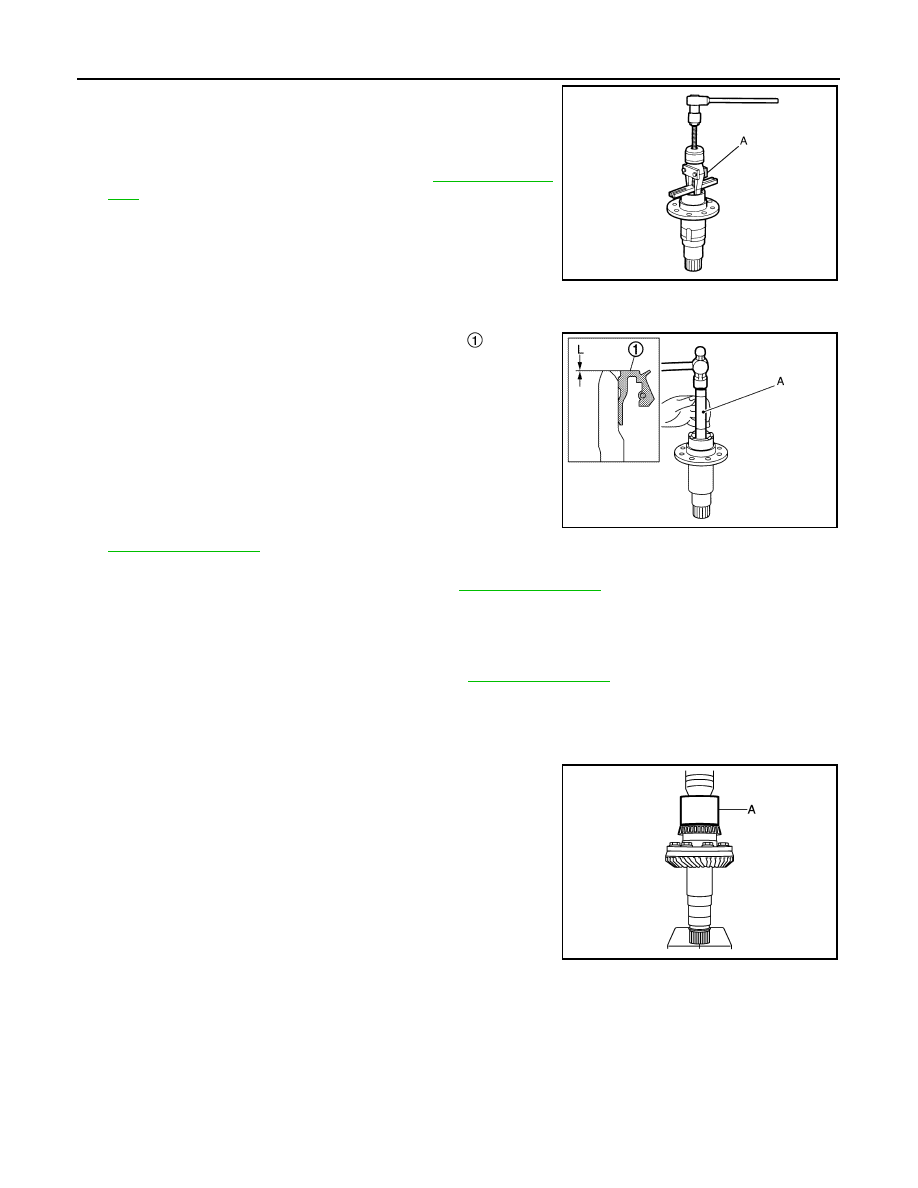

Remove ring gear shaft oil seal from the ring gear shaft with the
Tool (A).

10. Perform inspection after disassembly. Refer to

DLN-85, "Inspec-

tion"

Assembly

INFOID:0000000010755200

Using suitable tool (A), install ring gear shaft oil seal

within the

dimension (L) shown as follows.

CAUTION:

• Never reuse the oil seal.
• When installing, never incline oil seal.
• Apply multi-purpose grease onto oil seal lips, and transfer

oil onto the circumference of the oil seal.

Select ring gear bearing adjusting shim (transfer case side) and
ring gear bearing adjusting shim (transfer cover side). Refer to

Assemble the selected ring gear bearing adjusting shim (transfer case side) and ring gear bearing outer
race (transfer case side) to transfer case. Refer to

DLN-95, "Assembly"

CAUTION:

• Never reuse ring gear bearing.
• Apply transfer oil to the ring gear bearing.

Assemble the selected ring gear bearing adjusting shim (transfer cover side) and ring gear bearing outer
race (transfer cover side) to transfer cover. Refer to

CAUTION:

• Never reuse ring gear bearing.
• Apply transfer oil to the ring gear bearing.

Install the ring gear to ring gear shaft, and tighten mounting bolts to the specified torque.

Install ring gear bearing inner race (transfer cover side) with drift
(A) (commercial service tool).

CAUTION:

• Never reuse ring gear bearing.
• Apply transfer oil to the ring gear bearing.

Tool number

: KV381054S0

JPDIE0032ZZ

: 2.0 +0.6/

−

0 mm (0.079 +0.024/

−

0 in)

JSDIA2492ZZ

JSDIA1056ZZ

RING GEAR SHAFT

DLN-85

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY21C]

DLN

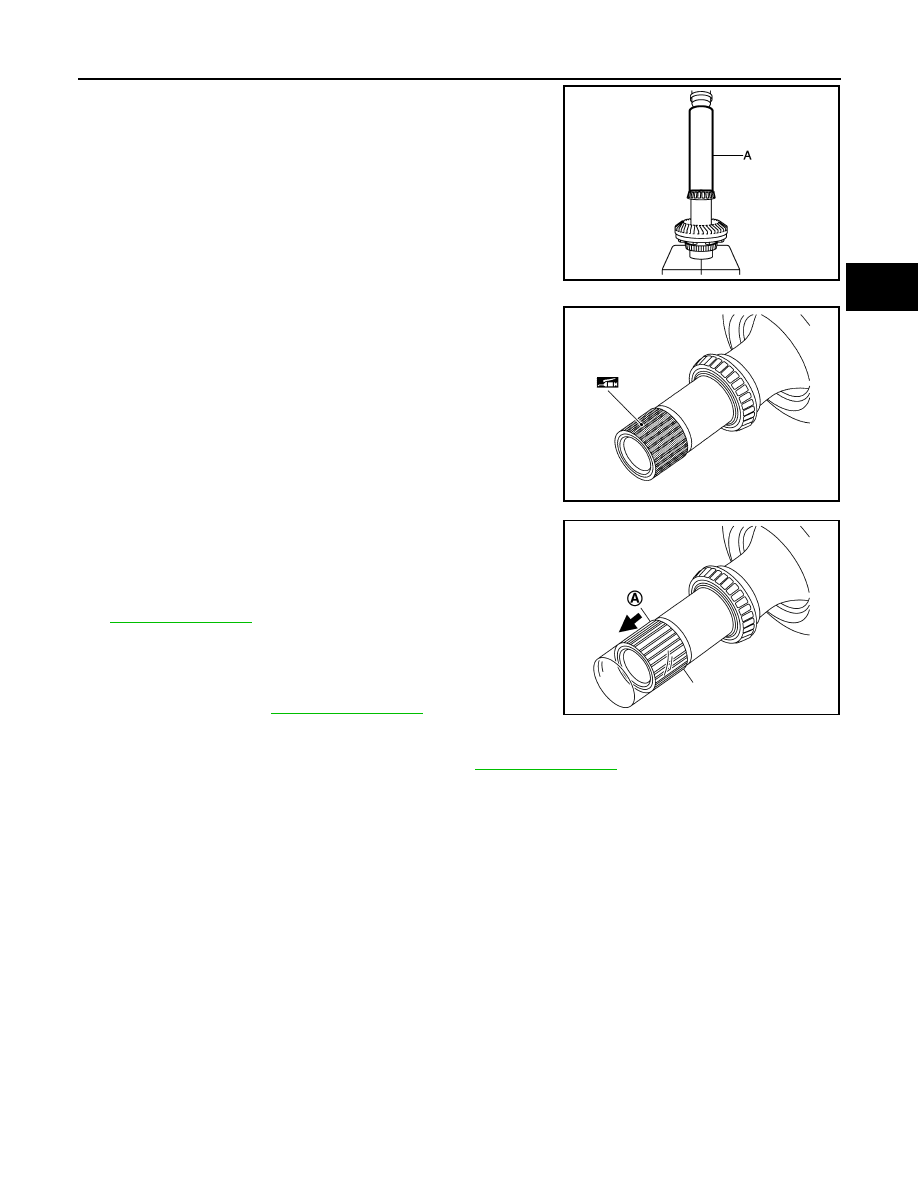

Install the ring gear bearing inner race (transfer case side) to
ring gear shaft with suitable tool (A).

CAUTION:

• Never reuse ring gear bearing.
• Apply transfer oil to the ring gear bearing.

Install the ring gear shaft assembly to the transfer case.

CAUTION:

Protect transfer case oil seals beforehand from being dam-
aged by the spline of ring gear shaft below method follow-
ing.

Apply multi-purpose grease to spline part indicated in the figure.

Wrap piece of vinyl to spline part only indicated in the figure.
[(A): limit line]

CAUTION:

Never wrap sliding surfaces on oil seal.

Install transfer cover to check and adjust each part. Refer to

NOTE:
At this timing, O-ring installing to transfer cover is not necessary.
Install O-ring after backlash and tooth contact are checked.

10. Check backlash, tooth contact, total preload and companion

flange runout. Refer to

CAUTION:

Measure the total preload without oil seals of transfer cover and transfer case.

11. Reinstall transfer cover for installing O-ring. Refer to

12. After installing transfer case oil seals, remove wrapped vinyl from the spline of ring gear shaft.

Inspection

INFOID:0000000010755201

INSPECTION AFTER DISASSEMBLY

Check items below. If necessary, replace them with new ones.

Gear and Shaft

Check gear face and shaft for wear, cracks, damage, and seizure.

CAUTION:

If malfunction is detected on the ring gear or drive pinion, replace the ring gear and drive pinion as a
set.

Bearing

Check for seizure, peeling, wear, corrosion, sticking, unusual noise, roughness in hand turning, and other
damage.

CAUTION:

When replacing the bearing, always replace the inner race and outer race as a pair.

Shim

Check for seizure, damage, and unusual wear.

JSDIA1055ZZ

JSDIA4195ZZ

JSDIA4196ZZ

- 8

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY21C]

DRIVE PINION

DRIVE PINION

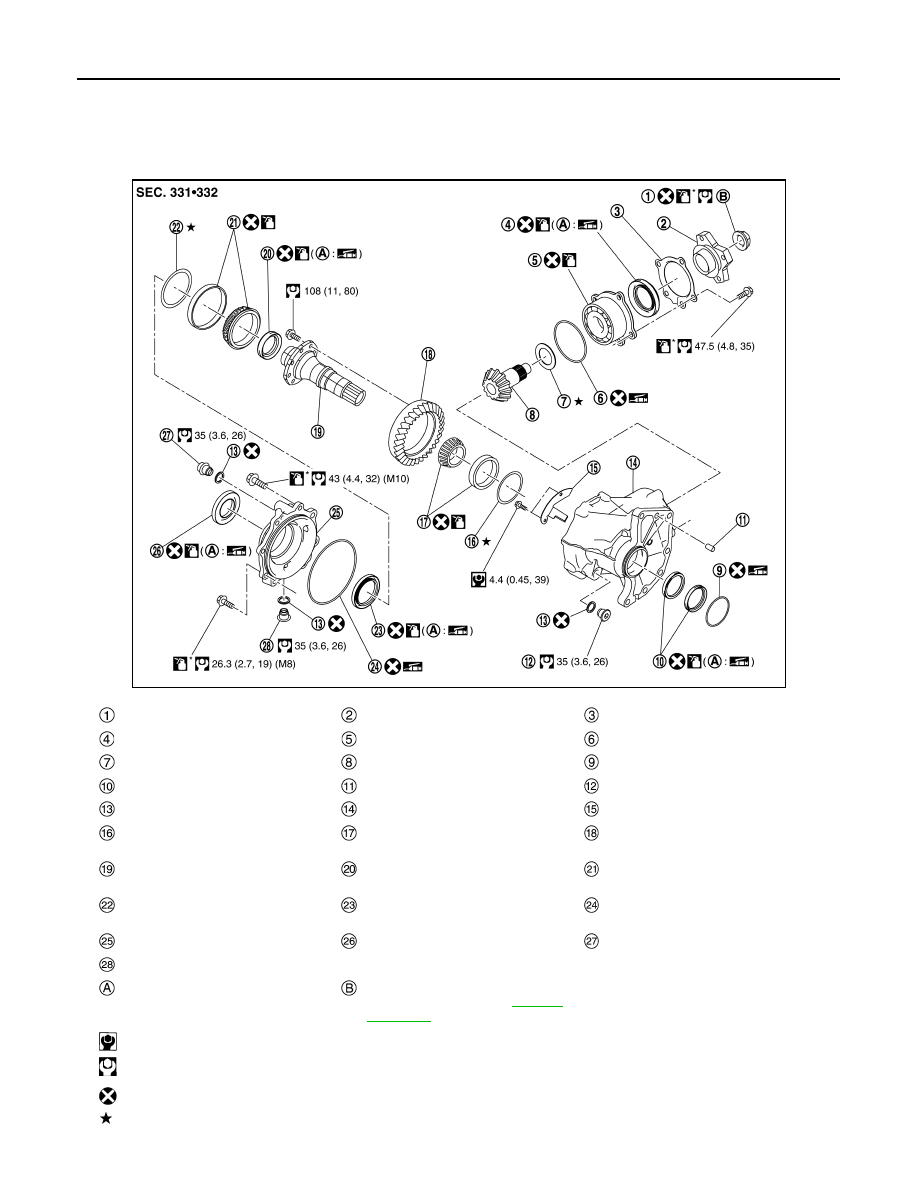

Exploded View

INFOID:0000000010755202

MR20DD models

JSDIA5341GB

Pinion lock nut

Companion flange

Dust cover

Oil seal

Pinion bearing assembly

O-ring

Drive pinion adjusting shim

Drive pinion

O-ring

Oil seal

Dowel pin

Plug

Gasket

Transfer case

Baffle plate

Ring gear bearing adjusting shim
(transfer case side)

Ring gear bearing (transfer case
side)

Ring gear

Ring gear shaft

Ring gear shaft oil seal

Ring gear bearing (transfer cover
side)

Ring gear bearing adjusting shim
(transfer cover side)

Oil seal

O-ring

Transfer cover

Oil seal

Filler plug

Drain plug

Oil seal lip

Comply with the assembly procedure
when tightening. Refer to

DLN-87,

"Assembly"

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

: Always replace after every disassembly.

: Select with proper thickness.

DRIVE PINION

DLN-87

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY21C]

DLN

Disassembly

INFOID:0000000010755203

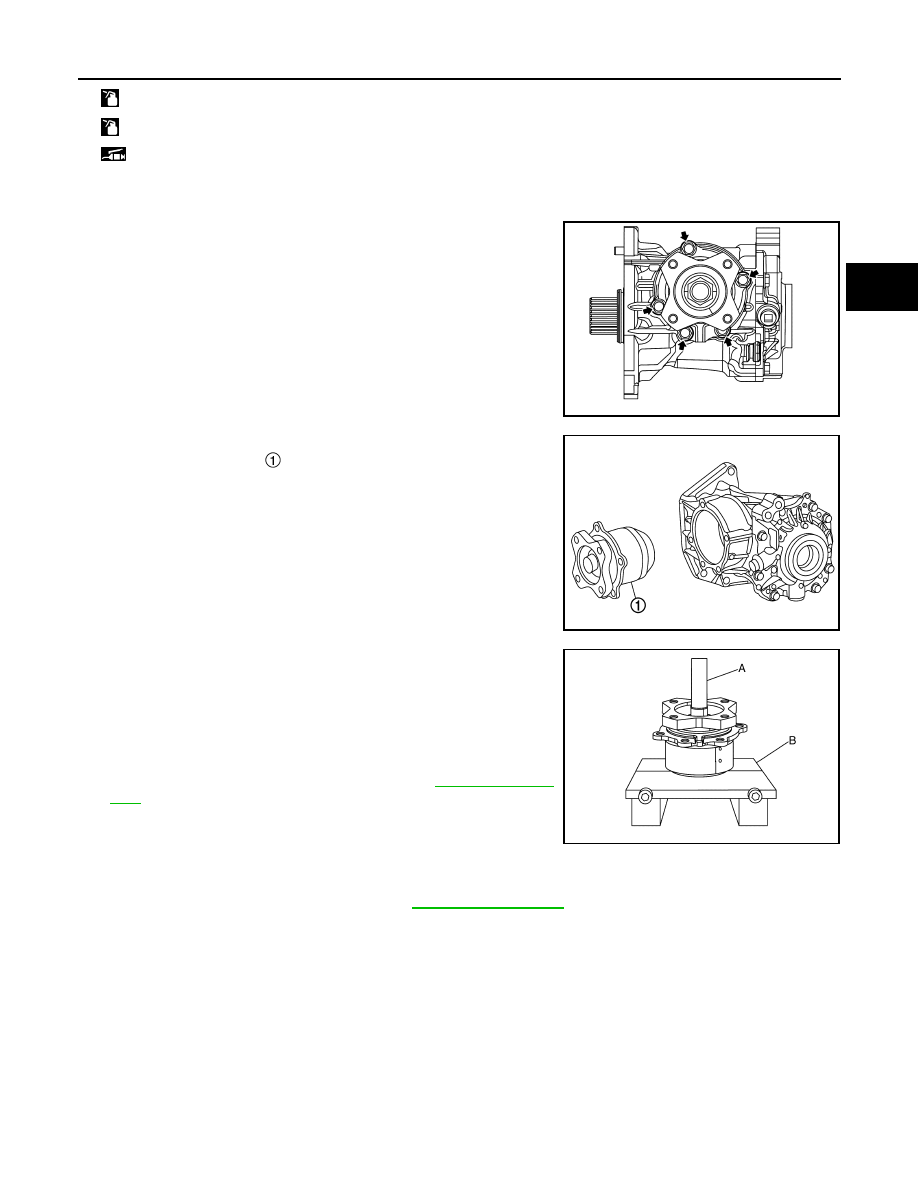

Remove pinion bearing assembly mounting bolts.

Lightly tap companion flange with a plastic hammer to remove
drive pinion assembly

Remove the O-ring from pinion bearing.

Remove the pinion lock nut.

Remove drive pinion from pinion bearing assembly using suit-
able tool (A) and suitable tool (B).

Remove adjusting shim.

Remove companion flange.

Remove the dust cover.

Remove the oil seal.

10. Perform inspection after disassembly. Refer to

DLN-93, "Inspec-

tion"

Assembly

INFOID:0000000010755204

Select drive pinion adjusting shim. Refer to

Assemble the selected drive pinion adjusting shim to drive pinion.

Install the drive pinion to pinion bearing assembly using suitable tool.

CAUTION:

• Never reuse pinion bearing assembly.
• Apply transfer oil to pinion bearing part.

: Apply transfer oil.

: Apply anti-corrosive oil.

: Apply multi-purpose grease.

JSDIA3951ZZ

JSDIA3952ZZ

JSDIA3953ZZ

DLN-88

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY21C]

DRIVE PINION

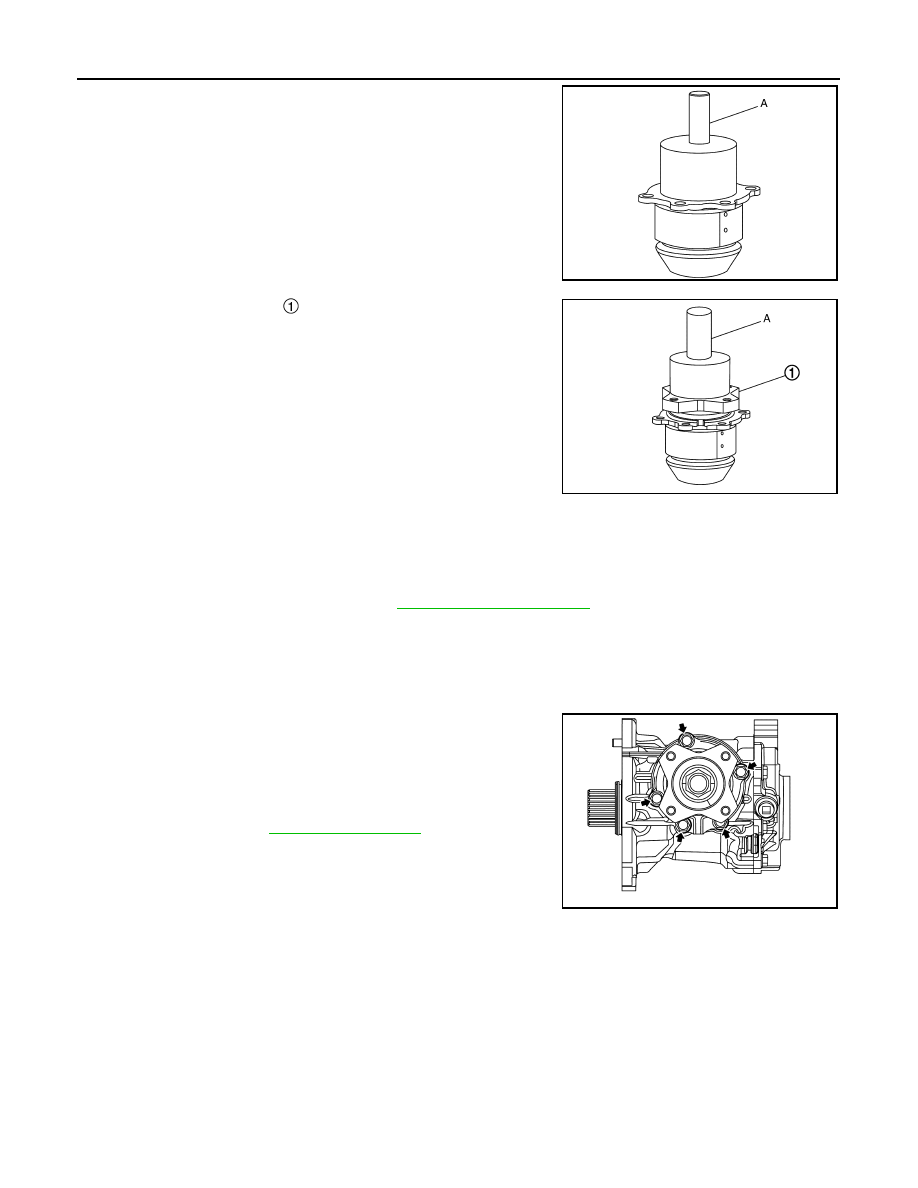

Install oil seal to pinion bearing assembly using suitable tool (A).

CAUTION:

• Never reuse the oil seal.
• When installing, never incline oil seal.
• Apply multi-purpose grease onto oil seal lips, and transfer

oil onto the circumference of the oil seal.

Install dust cover.
NOTE:
Tighten dust cover together with pinion bearing assembly.

Install companion flange

to pinion bearing using suitable tool

(A).

Apply anti-corrosive oil to the thread and seat of the lock nut,
and adjust the pinion lock nut tightening torque and pinion bear-
ing preload torque, using a preload gauge.

Install pinion lock nut, and then tighten to the specified torque.

CAUTION:

• Never reuse pinion lock nut.
• Check that pinion lock nut is seated on the companion flange.

After tightening pinion lock nut to the specified torque, retighten the pinion lock nut by 25 degrees.

Measure the pinion bearing preload.

Apply multi-purpose grease lightly and evenly onto an O-ring, and install it to the pinion bearing assembly.

CAUTION:

• Never reuse O-ring.
• When installing O-ring, never use a suitable tool.
• Never damage O-ring.

Install drive pinion assembly, and apply anti-corrosive oil onto
thread and seats on the mounting bolts. Tighten to the specified
torque.
NOTE:
Tighten dust cover together with pinion bearing assembly.

10. Check backlash, tooth contact, total preload and companion

flange runout. Refer to

DLN-97, "Preload Torque"

CAUTION:

Measure the total preload without oil seals of transfer cover
and transfer case.

Adjustment

INFOID:0000000010755205

ADJUSTING SHIM SELECTION

JSDIA3996ZZ

Pinion lock nut
tightening torque

: 90

9 N·m (9.2

0.92kg-m, 66

7 ft-lb)

Pinion bearing preload

: Refer to

JSDIA3997ZZ

JSDIA3951ZZ

DRIVE PINION

DLN-89

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY21C]

DLN

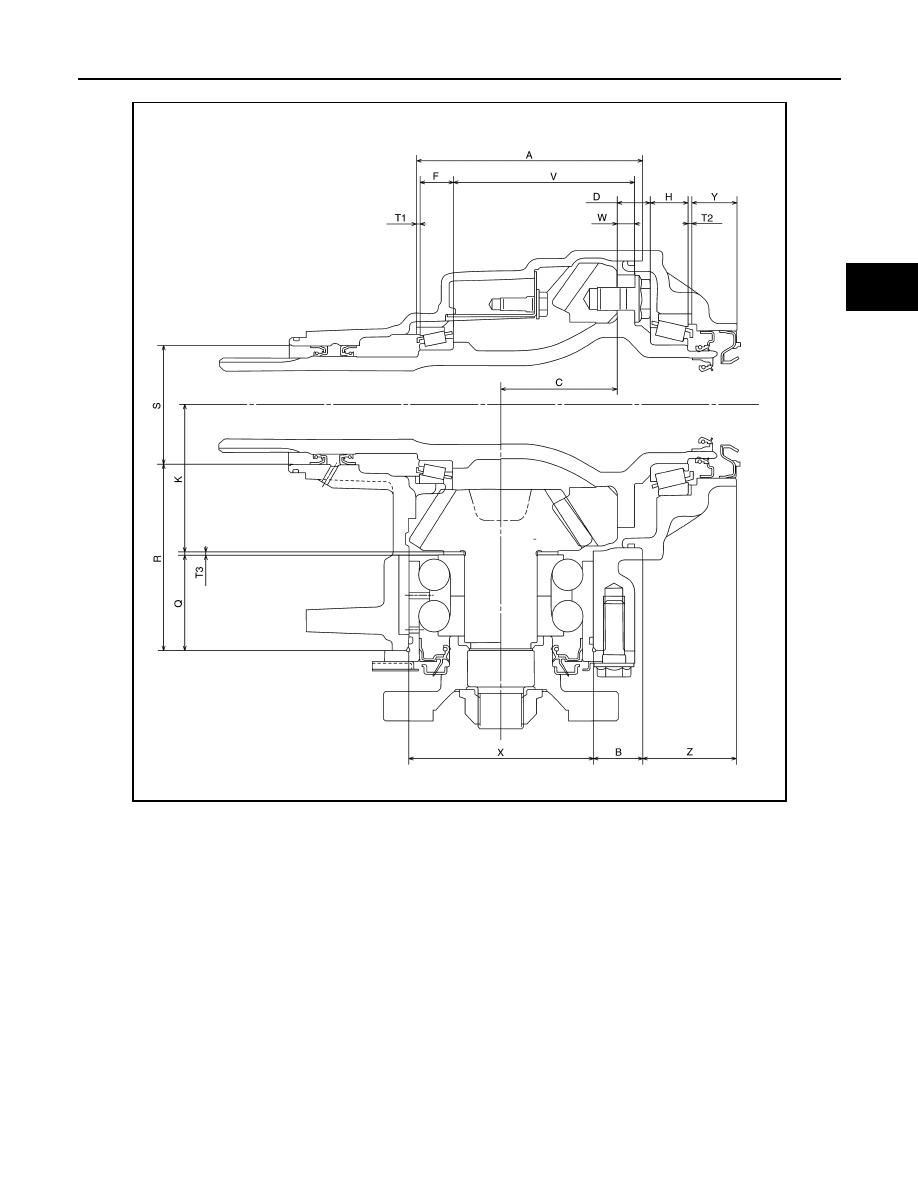

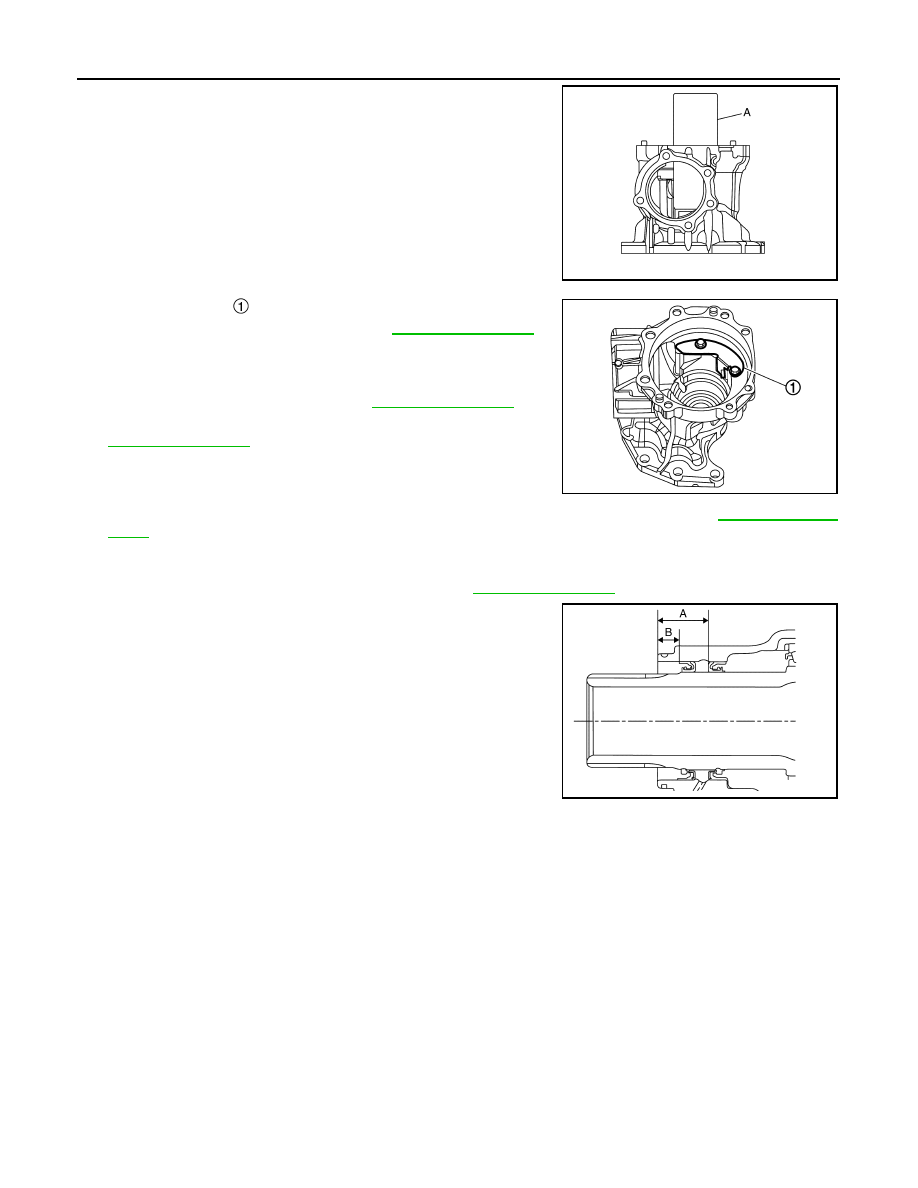

Measurement point

Select adjusting shim of T1, T2, and T3, respectively, by using the following equation.

T1 [Ring gear bearing adjusting shim (transfer case side)]

• T1 = A

−

(B +X/2) +C +W

−

(M/100) +0.071 mm (0.0028 in)

T2 [Ring gear bearing adjusting shim (transfer cover side)]

• T2 =

−

Y +Z +(B +X/2)

−

H +(M/100) +0.071 mm (0.0028 in)

T3 (Drive pinion adjusting shim)

• T3 =

−

Q +(R +S/2)

−

K +(O/100)

JSDIA4034ZZ

DLN-90

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY21C]

DRIVE PINION

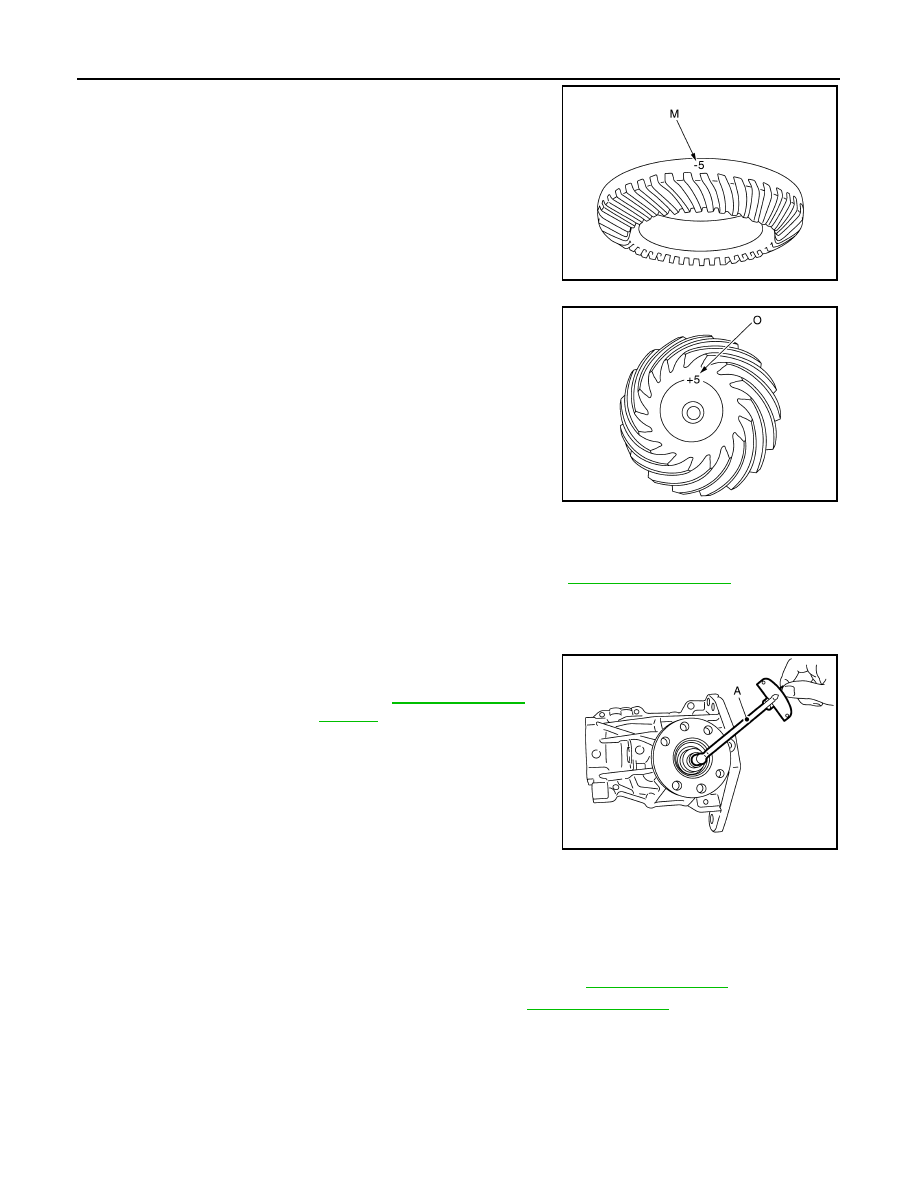

• Check dimension (M) on the ring gear side face.

NOTE:
Dimension “M” indicates the difference between the optimum
engagement and standard dimensions in increments of 0.01 mm
(0.0004 in) written on the ring gear side face.

• Check dimension (O) on the gear end of drive pinion.

NOTE:
Dimension “O” indicates the difference between the optimum
engagement and the standard dimensions in increments of 0.01
mm (0.0004 in) written on the gear end of drive pinion.

PINION BEARING PRELOAD

CAUTION:

When measuring preload, the rotating speed must be set to 30 rpm.
1.

Remove ring gear shaft assembly from the transfer case. Refer to

DLN-83, "Disassembly"

Rotate the companion flange back and forth from 2 to 3 times to check for unusual noise, binding, sticking,
and so on.

Rotate the companion flange at least 20 times to check for smooth operation of the bearing.

Measure the pinion bearing preload using Tool (A).

CAUTION:

Each rotational part should rotate smoothly with the speci-
fied transfer oil.
• If outside the standard, disassemble the drive pinion assembly

to check and adjust each part.

TOTAL PRELOAD

CAUTION:

When measuring preload, the rotating speed must be set to 30 rpm.
1.

Measure pinion bearing preload.

CAUTION:

Check that the pinion bearing preload is within the standard.

Assemble the ring gear shaft assembly to the transfer case. Refer to

DLN-84, "Assembly"

Install transfer cover to check and adjust each part. Refer to

Rotate the companion flange at least 20 times to check for smooth operation of the bearing.

JSDIA2495ZZ

JSDIA2496ZZ

Pinion bearing preload

: Refer to

DLN-97, "Preload

Torque"

Tool number

: ST3127S000

JSDIA2500ZZ

DRIVE PINION

DLN-91

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY21C]

DLN

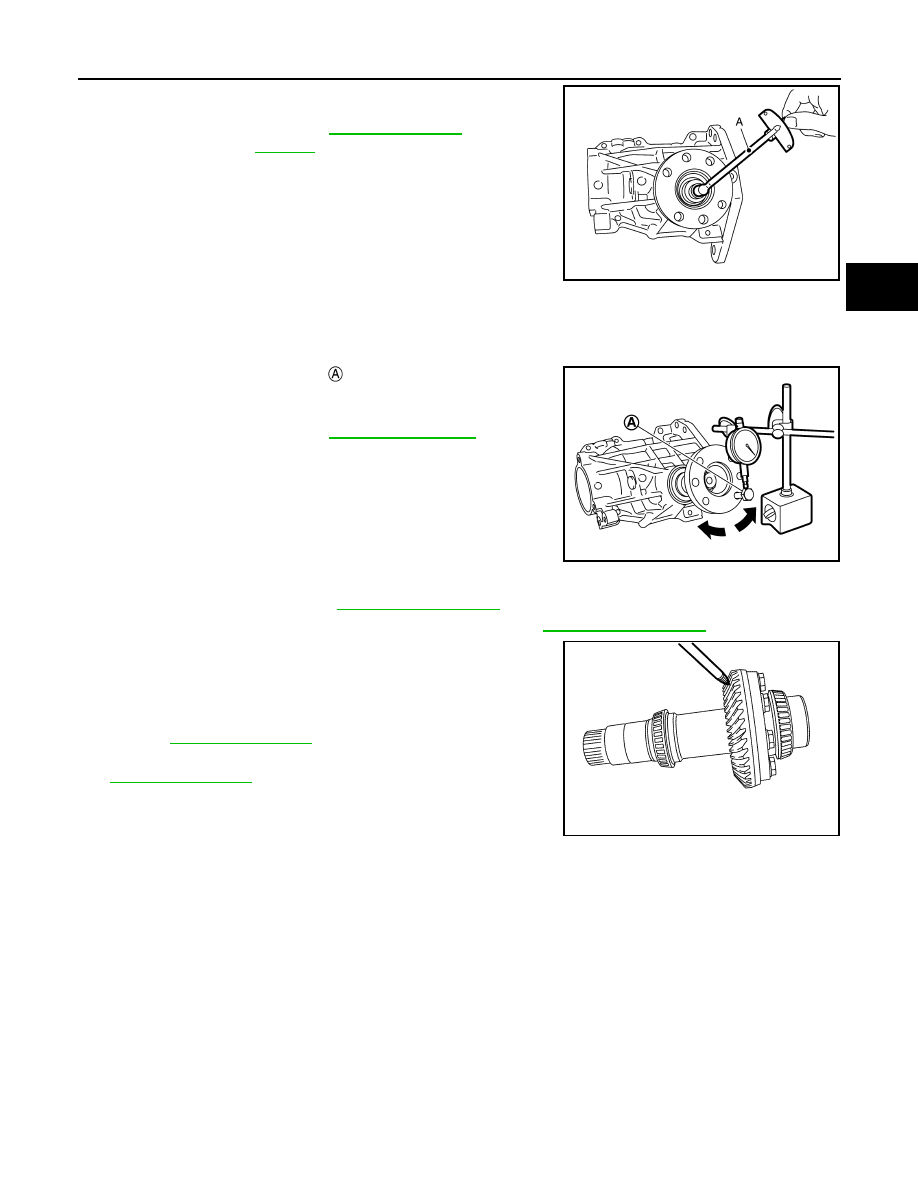

Measure the total preload using Tool (A).

CAUTION:

Each rotational part should rotate smoothly with the speci-
fied transfer oil.
• If outside the standard, disassemble the transfer assembly to

check and adjust each part. Measure it with the transfer case
oil seal and transfer cover oil seal removed when measuring
total preload after disassembly. Then install transfer case oil seals and transfer cover oil seal.

BACKLASH

Install the bolt to the companion flange.

Fit a dial indicator onto the bolt

Measure the circumference backlash of the companion flange.

• If outside the standard, disassemble the transfer assembly to

check and adjust each part.

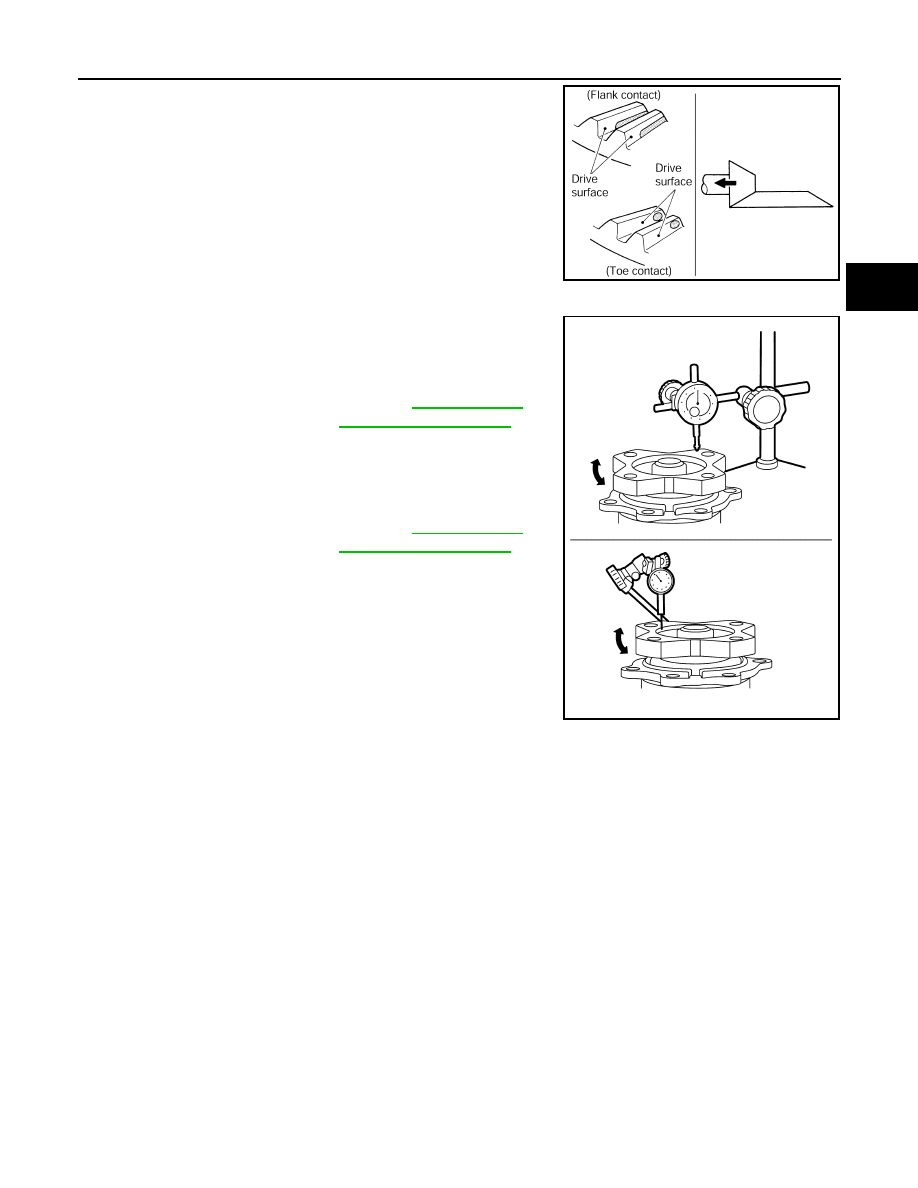

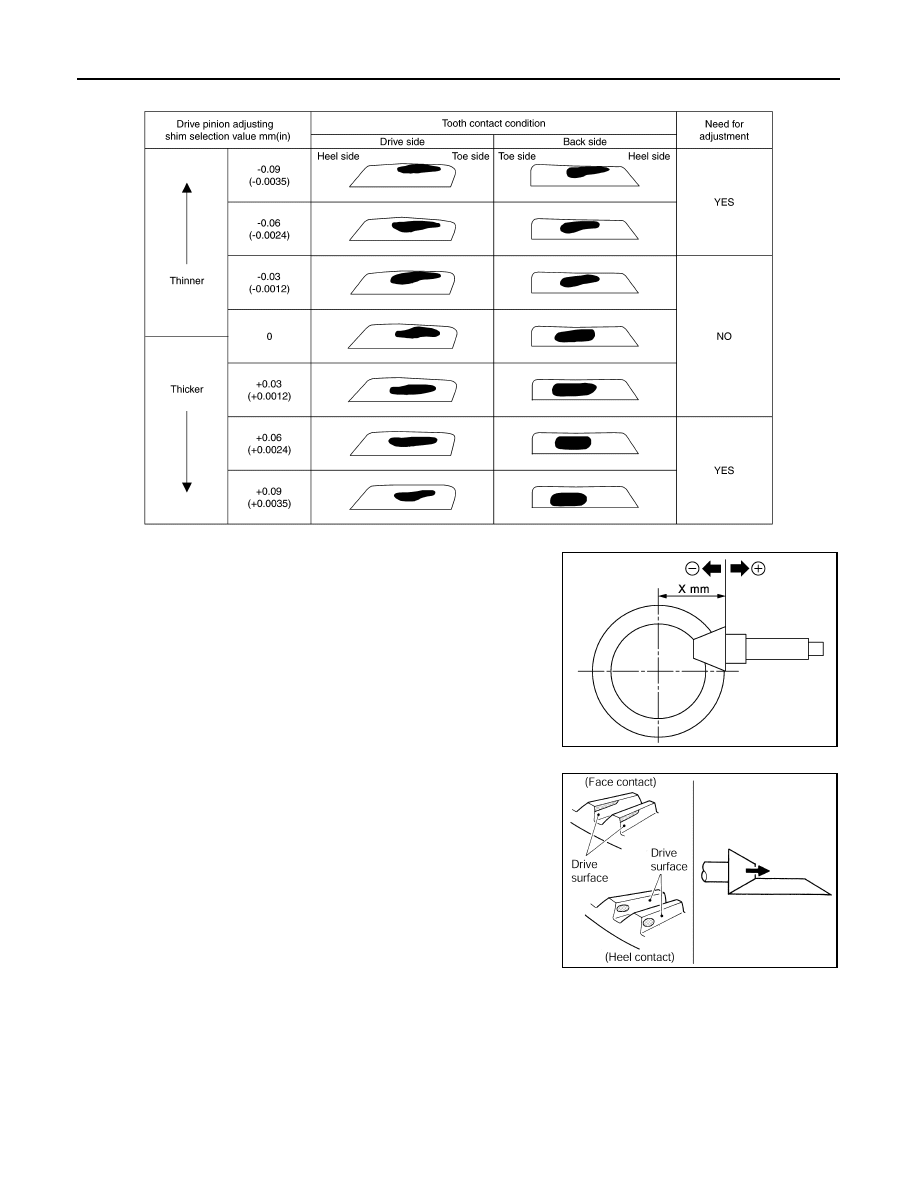

TOOTH CONTACT

Remove transfer cover. Refer to

Remove ring gear shaft assembly from transfer case. Refer to

DLN-83, "Disassembly"

Apply red lead onto the ring gear.

CAUTION:

Apply red lead to both faces of 3 to 4 gears at 4 locations
evenly spaced on the ring gear.

Assemble the ring gear shaft assembly to the transfer case.
Refer to

DLN-84, "Assembly"

Install transfer cover to check and adjust each part. Refer to

panion Flange Runout"

NOTE:
At this timing, O-ring installing to transfer cover is not necessary.
Install O-ring after backlash and tooth contact are checked.

Remove the plug from the transfer case.

Rotate the companion flange back and forth several times, and check the drive pinion gear to ring gear
tooth contact by viewing from the plug hole.

Total preload

: Refer to

DLN-97, "Preload

Torque"

Tool number

: ST3127S000

JSDIA2500ZZ

Backlash

: Refer to

DLN-97, "Backlash"

JSDIA2501ZZ

JSDIA2188ZZ

DLN-92

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY21C]

DRIVE PINION

Tooth Contact Judgment Guide

Follow the procedure below to adjust pinion height (dimension
X) if tooth contact is improper. For selecting adjusting shim, refer
to the latest parts information.

CAUTION:

If no adjusting shim with the calculated value is available,
select the thicker and closest one.

• Thicken the drive pinion adjusting shim to move the drive pin-

ion closer to the ring gear in case of face contact or heel con-
tact.

CAUTION:

Only one adjusting shim can be selected.

JSDIA4035GB

JSDIA1221ZZ

PDIA0440E

DRIVE PINION

DLN-93

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY21C]

DLN

• Thin the drive pinion adjusting shim to move the drive pinion

farther from the ring gear in case of flank contact or toe con-
tact.

CAUTION:

Only one adjusting shim can be selected.

COMPANION FLANGE RUNOUT

Fit a dial indicator onto the companion flange face (inner side of
the propeller shaft mounting bolt holes).

Rotate the companion flange to check for runout.

Fit suitable tool to the inner side of the companion flange (socket
diameter).

Rotate the companion flange to check for runout.

Follow the procedure below to adjust if runout value is outside
the repair limit.

Check for runout while changing the phase between companion
flange and drive pinion in 90

steps. Then search for the mini-

mum point.

Replace companion flange if runout value is still outside the limit
after the phase has been changed.

Adjust assembly status of the pinion bearing and drive pinion, or
replace pinion bearing assembly if runout is outside the standard
after the companion flange is replaced.

Inspection

INFOID:0000000010755206

INSPECTION AFTER DISASSEMBLY

Check items below. If necessary, replace them with new ones.

Gear and Shaft

Check gear face and shaft for wear, cracks, damage, and seizure.

CAUTION:

Replace ring gear and drive pinion as a set (hypoid gear set) if any malfunction is detected on the ring
gear or drive pinion.

Bearing

Check for seizure, peeling, wear, corrosion, sticking, unusual noise, roughness in hand turning, and other
damage.

Shim

Check for seizure, damage, and unusual wear.

PDIA0441E

Companion flange runout

: Refer to

DLN-97, "Com-

Companion flange runout

: Refer to

DLN-97, "Com-

panion Flange Runout"

JSDIA3981ZZ

DLN-94

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY21C]

TRANSFER CASE

TRANSFER CASE

Exploded View

INFOID:0000000010755207

MR20DD models

JSDIA5341GB

Pinion lock nut

Companion flange

Dust cover

Oil seal

Pinion bearing assembly

O-ring

Drive pinion adjusting shim

Drive pinion

O-ring

Oil seal

Dowel pin

Plug

Gasket

Transfer case

Baffle plate

Ring gear bearing adjusting shim
(transfer case side)

Ring gear bearing (transfer case
side)

Ring gear

Ring gear shaft

Ring gear shaft oil seal

Ring gear bearing (transfer cover
side)

Ring gear bearing adjusting shim
(transfer cover side)

Oil seal

O-ring

Transfer cover

Oil seal

Filler plug

Drain plug

Oil seal lip

Comply with the assembly procedure
when tightening. Refer to

DLN-87,

"Assembly"

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

: Always replace after every disassembly.

: Select with proper thickness.

TRANSFER CASE

DLN-95

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY21C]

DLN

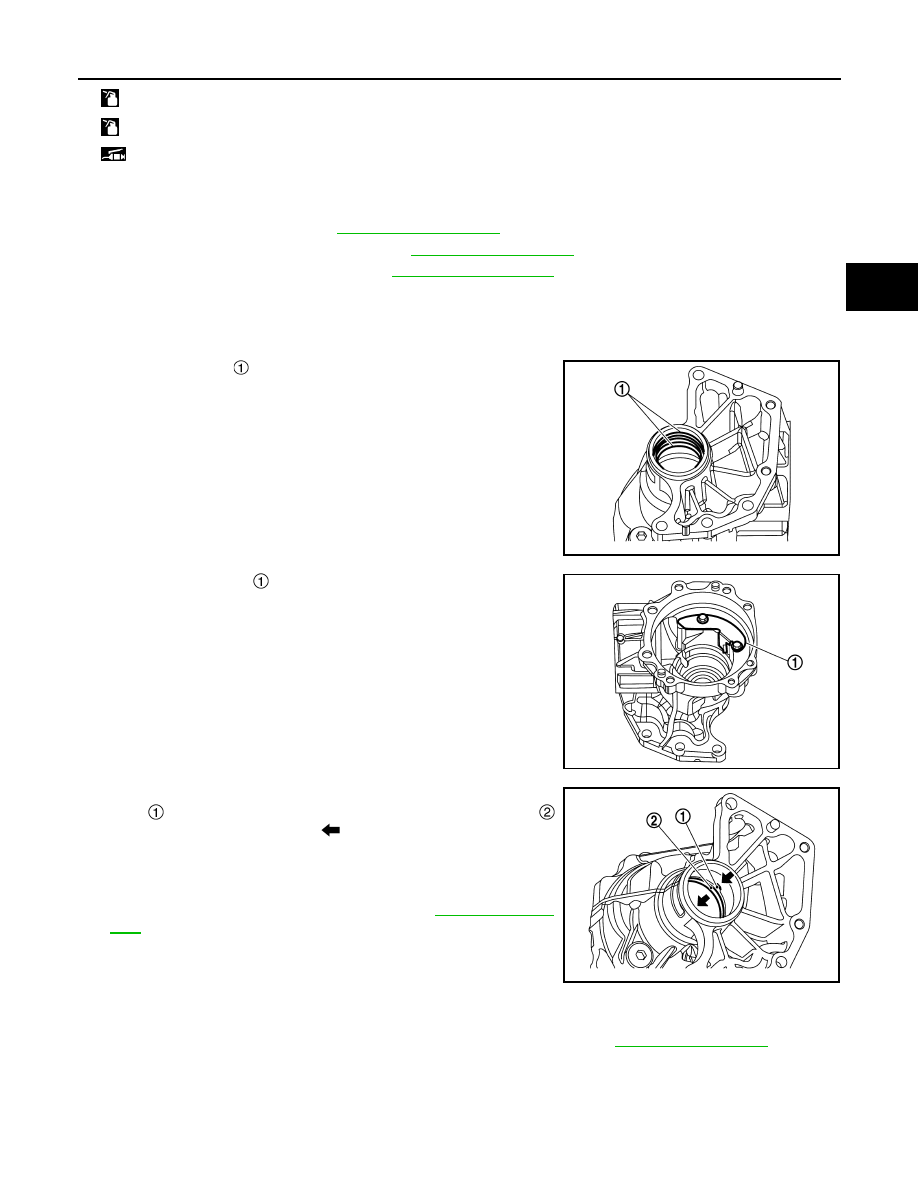

Disassembly

INFOID:0000000010755208

Remove transfer cover. Refer to

Remove ring gear shaft assembly. Refer to

DLN-83, "Disassembly"

Remove drive pinion assembly. Refer to

DLN-87, "Disassembly"

Remove O-ring from transfer case.

CAUTION:

• Never use a suitable tool.
• Never damage transfer case.

Remove oil seals

CAUTION:

Never damage transfer case.

Remove baffle plate

Remove the ring gear bearing adjusting shim (transfer case
side)

and ring gear bearing outer race (transfer case side)

by tapping from the 2 cutouts (

) on the transfer case.

CAUTION:

Never damage transfer case.

Remove plug and gasket.

Perform inspection after disassembly. Refer to

DLN-96, "Inspec-

tion"

Assembly

INFOID:0000000010755209

Select the ring gear bearing adjusting shim (transfer case side). Refer to

: Apply transfer oil.

: Apply anti-corrosive oil.

: Apply multi-purpose grease.

JSDIA3983ZZ

JSDIA3982ZZ

JSDIA3984ZZ

DLN-96

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY21C]

TRANSFER CASE

Install the selected ring gear bearing adjusting shim (transfer
case side) and ring gear bearing outer race (transfer case side)
using suitable tool (A).

CAUTION:

• Never reuse ring gear bearing.
• Apply transfer oil to the ring gear bearing.

Install baffle plate

Install ring gear shaft assembly. Refer to

DLN-84, "Assembly"

CAUTION:

Protect transfer case oil seals beforehand from being dam-
aged by the spline of ring gear shaft.

Install drive pinion assembly. Refer to

DLN-87, "Assembly"

Install transfer cover to check and adjust each part. Refer to

NOTE:
At this timing, O-ring installing to transfer cover is not necessary.
Install O-ring after backlash and tooth contact are checked.

Check backlash, tooth contact, total preload and companion flange runout. Refer to

DLN-88, "Adjust-

ment"

CAUTION:

Measure the total preload without oil seals of transfer cover and transfer case.

Reinstall transfer cover for installing O-ring. Refer to
