SYMPTOM DIAGNOSIS

HEAVY TIGHT-CORNER BRAKING SYMPTOM OCCURS

Description

INFOID:0000000010755288

Heavy tight-corner braking symptom occurs when the vehicle is driven and the steering wheel is turned fully to
either side after the engine is started.
NOTE:
Light tight-corner braking symptom may occur depending on driving conditions. This is not malfunction.

Diagnosis Procedure

INFOID:0000000010755289

1.

PERFORM ECM SELF-DIAGNOSIS

With CONSULT

Perform self-diagnosis for “ENGINE”.

Is any DTC detected?

YES

>> Check the DTC. Refer to

ECM-93, "DTC Index"

 (MR20DD).

NO

>> GO TO 2.

2.

PERFORM SELF-DIAGNOSIS

With CONSULT

Perform self-diagnosis for “ALL MODE AWD/4WD”.
Is DTC “U1000” detected?

YES

>> Proceed to

DLN-58, "Diagnosis Procedure"

.

NO

>> GO TO 3.

3.

CHECK 4WD SOLENOID

Perform the trouble diagnosis of the 4WD solenoid. Refer to

DLN-40, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace the error-detected parts.

4.

CHECK ELECTRIC CONTROLLED COUPLING

1.

Turn the ignition switch OFF.

2.

Set the transaxle to neutral. Release the parking brake.

3.

Lift up the vehicle.

4.

Rotate the propeller shaft by hand.

5.

Hold rear wheel of right and left lightly.

Does rear wheel rotate?

YES

>> Replace electric controlled coupling for mechanical malfunction (clutch sticking etc.). Refer to

DLN-76, "Exploded View"

.

NO

>> Check each harness connector pin terminal for disconnection.

DLN-66

< SYMPTOM DIAGNOSIS >

[TRANSFER: TY21C]

VEHICLE DOES NOT ENTER 4WD MODE

VEHICLE DOES NOT ENTER 4WD MODE

Description

INFOID:0000000010755290

Vehicle does not enter 4-wheel drive mode even though 4WD warning is not displayed.

Diagnosis Procedure

INFOID:0000000010755291

1.

CHECK INFORMATION DISPLAY (COMBINATION METER)

Perform the trouble diagnosis of combination meter. Refer to

MWI-54, "Work flow"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the error-detected parts.

2.

CHECK PARKING BRAKE SWITCH SIGNAL

With CONSULT

Check “PARKING BRAKE SW SIG” of CONSULT “DATA MONITOR” for “ALL MODE AWD/4WD”.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Proceed to

PB-67, "Component Inspection"

.

3.

CRUISE TEST

Drive the vehicle for a period of time.

Does any symptom occur?

YES

>> Replace electric controlled coupling for mechanical malfunction (mechanical engagement of

clutch is not possible). Refer to

DLN-76, "Exploded View"

.

NO

>> Check each harness connector pin terminal for disconnection.

Monitor Item

Condition

Status

PARKING BRAKE SW SIG

When the parking brake pedal is operation.

On

When the parking brake pedal is not operation.

Off

4WD HIGH TEMP IS DISPLAYED ON INFORMATION DISPLAY

DLN-67

< SYMPTOM DIAGNOSIS >

[TRANSFER: TY21C]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

4WD HIGH TEMP IS DISPLAYED ON INFORMATION DISPLAY

Description

INFOID:0000000010755292

While driving, 4WD warning (4WD High Temp. Stop vehicle) is displayed on information display (combination
meter).
• This symptom protects drivetrain parts when a heavy load is applied to the electric controlled coupling and

multiple disc clutch temperature increases. Also, optional distribution of torque sometimes becomes rigid
before 4WD warning (4WD High Temp. Stop vehicle) is displayed. Both cases are not malfunction. Refer to

DLN-26, "Protection Function"

.

• When this symptom occurs, stop vehicle and allow it to idle for some times. Displays will stop and system

will be restored.

DLN-68

< SYMPTOM DIAGNOSIS >

[TRANSFER: TY21C]

TIRE SIZE INCORRECT IS DISPLAYED ON INFORMATION DISPLAY

TIRE SIZE INCORRECT IS DISPLAYED ON INFORMATION DISPLAY

Description

INFOID:0000000010755293

While driving, 4WD warning (Tire Size Incorrect: See Owner’s Manual) is displayed on information display
(combination meter).

Diagnosis Procedure

INFOID:0000000010755294

1.

CHECK TIRE

Check the following.
• Tire pressure
• Wear condition
• Front and rear tire size (There is no difference between front and rear tires.)
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace error-detected parts. And then, drive the vehicle at speed of 20 km/h (12 MPH)

or more for 5 seconds or more. Improper size information is initialized accordingly.

2.

CHECK INPUT SIGNAL OF TIRE DIAMETER

 With CONSULT

1.

Start the engine.

2.

Drive at 20 km/h (12 MPH) or more for approximately 4 minutes continually.

3.

Check “DIS-TIRE MONI” of CONSULT “DATA MONITOR” for “ALL MODE AWD/4WD”.

Does the item on “DATA MONITOR” indicate “0 - 4 mm”?

YES

>> INSPECTION END

NO

>> GO TO 3.

3.

TERMINAL INSPECTION

Check 4WD control unit harness connector for disconnection.

Is the inspection result normal?

YES

>> Replace 4WD control unit. Refer to

DLN-72, "Removal and Installation"

.

NO

>> Repair or replace the error-detected parts.

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

DLN-69

< SYMPTOM DIAGNOSIS >

[TRANSFER: TY21C]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000010755295

Use the chart below to find the cause of the symptom. The numbers indicate the order of the inspection. If nec-
essary, repair or replace these parts.

Reference

DLN-7

0

, "Ins

pe

c

tio

n"

—

DLN-78, "Exploded

V

iew"

DLN-78, "Exploded

V

iew"

DLN-8

5

, "Ins

pe

c

tio

n"

,

DLN-93

, "I

ns

pe

ct

ion

"

DLN-8

5

, "Ins

pe

c

tio

n"

,

DLN-93

, "I

ns

pe

ct

ion

"

SUSPECTED PARTS
(Possible cause)

T

R

ANSFER OIL (Level

low)

T

R

ANSFER OIL (W

rong)

T

R

ANSFER OIL (Level

too high)

LI

QUI

D

 GASKET

 (Dam

ag

ed

)

O-RING (W

o

rn o

r da

m

age

d)

OIL

 SEA

L (W

o

rn o

r da

m

age

d)

GEAR

 (W

orn

 o

r

da

ma

ge

d)

B

EARING (W

orn

 or

da

ma

ge

d)

Symptom

Noise

1

2

3

3

3

Transfer oil leakage

3

1

2

2

2

DLN-70

< PERIODIC MAINTENANCE >

[TRANSFER: TY21C]

TRANSFER OIL

PERIODIC MAINTENANCE

TRANSFER OIL

Inspection

INFOID:0000000010590215

OIL LEAKS

Check that oil is not leaking from transfer assembly or around it.

OIL LEVEL

CAUTION:

Do not start engine while checking oil level.

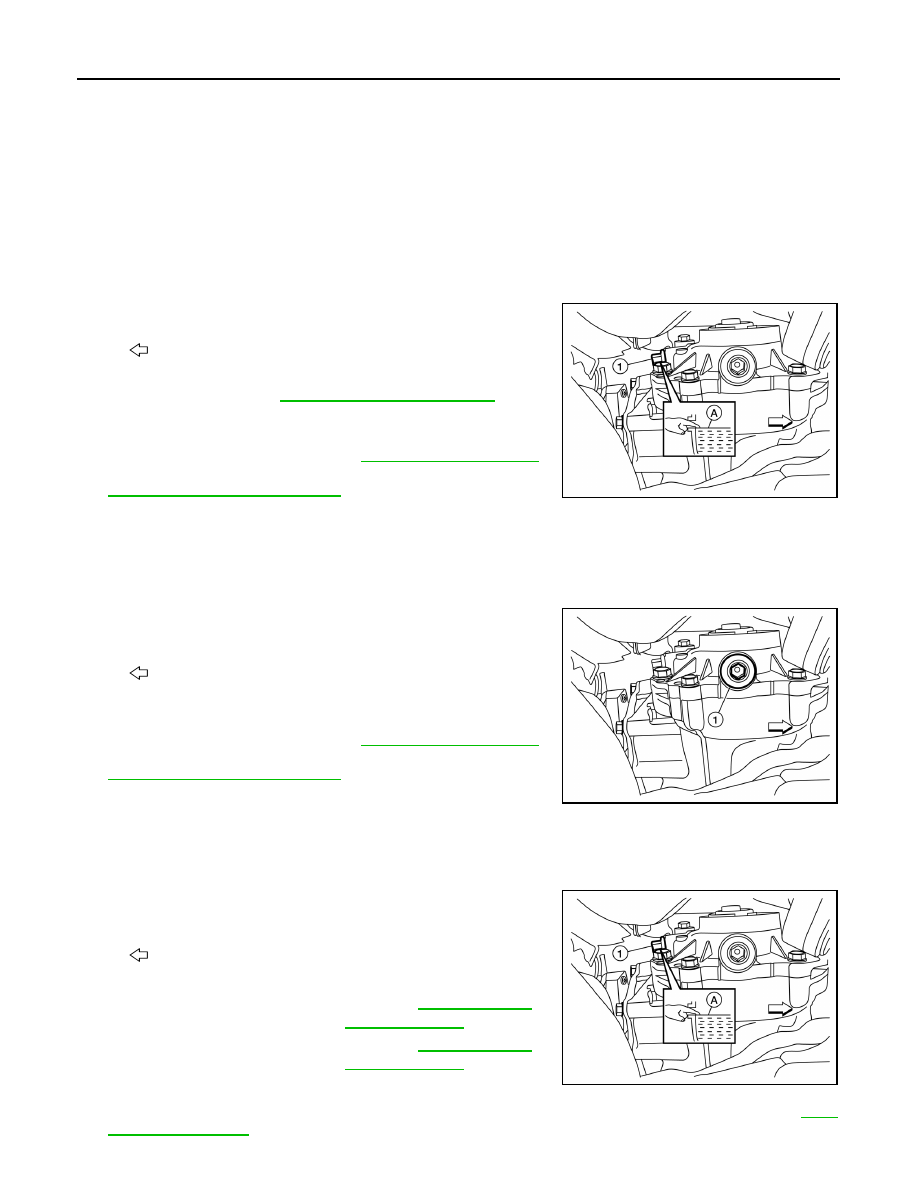

1.

Remove filler plug (1).

2.

Oil level (A) should be level with bottom of filler plug hole. Add
oil if necessary. Refer to

MA-59, "Fluids and Lubricants"

 .

3.

Clean threads of filler plug (1) and transfer case.

4.

Apply sealant to the threads of the filler plug (1) and install it.
Tighten to specified torque. Refer to

DLN-76, "Exploded View"

 .

Use Genuine Silicone RTV Sealant or equivalent. Refer to

MA-59, "Fluids and Lubricants"

.

Draining

INFOID:0000000010590216

CAUTION:

Do not start engine while checking oil level.

1.

Run the vehicle to warm up the transfer unit sufficiently.

2.

Stop the engine and remove drain plug (1) and drain the transfer
oil.

3.

Clean threads of drain plug (1) and transfer case.

4.

Apply sealant to the threads of the drain plug (1) and install it.
Tighten to specified torque. Refer to

DLN-76, "Exploded View"

.

Use Genuine Silicone RTV Sealant or equivalent. Refer to

MA-59, "Fluids and Lubricants"

.

Refilling

INFOID:0000000010590217

CAUTION:

Do not start engine while checking oil level.

1.

Remove filler plug (1).

2.

Fill with new oil to the specified level (A) near the filler plug hole.

3.

Clean threads of filler plug (1) and transfer case.

4.

Apply sealant to the threads of the filler plug (1), and install it. Tighten to specified torque. Refer to

DLN-

76, "Exploded View"

.

: Front

ALDIA0383ZZ

: Front

ALDIA0382ZZ

: Front

Oil grade and viscosity

: Refer to

MA-59, "Fluids

and Lubricants"

.

Oil capacity

: Refer to

MA-59, "Fluids

and Lubricants"

.

ALDIA0383ZZ

TRANSFER OIL

DLN-71

< PERIODIC MAINTENANCE >

[TRANSFER: TY21C]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

Use Genuine Silicone RTV Sealant or equivalent. Refer to

MA-59, "Fluids and Lubricants"

.

DLN-72

< REMOVAL AND INSTALLATION >

[TRANSFER: TY21C]

4WD CONTROL UNIT

REMOVAL AND INSTALLATION

4WD CONTROL UNIT

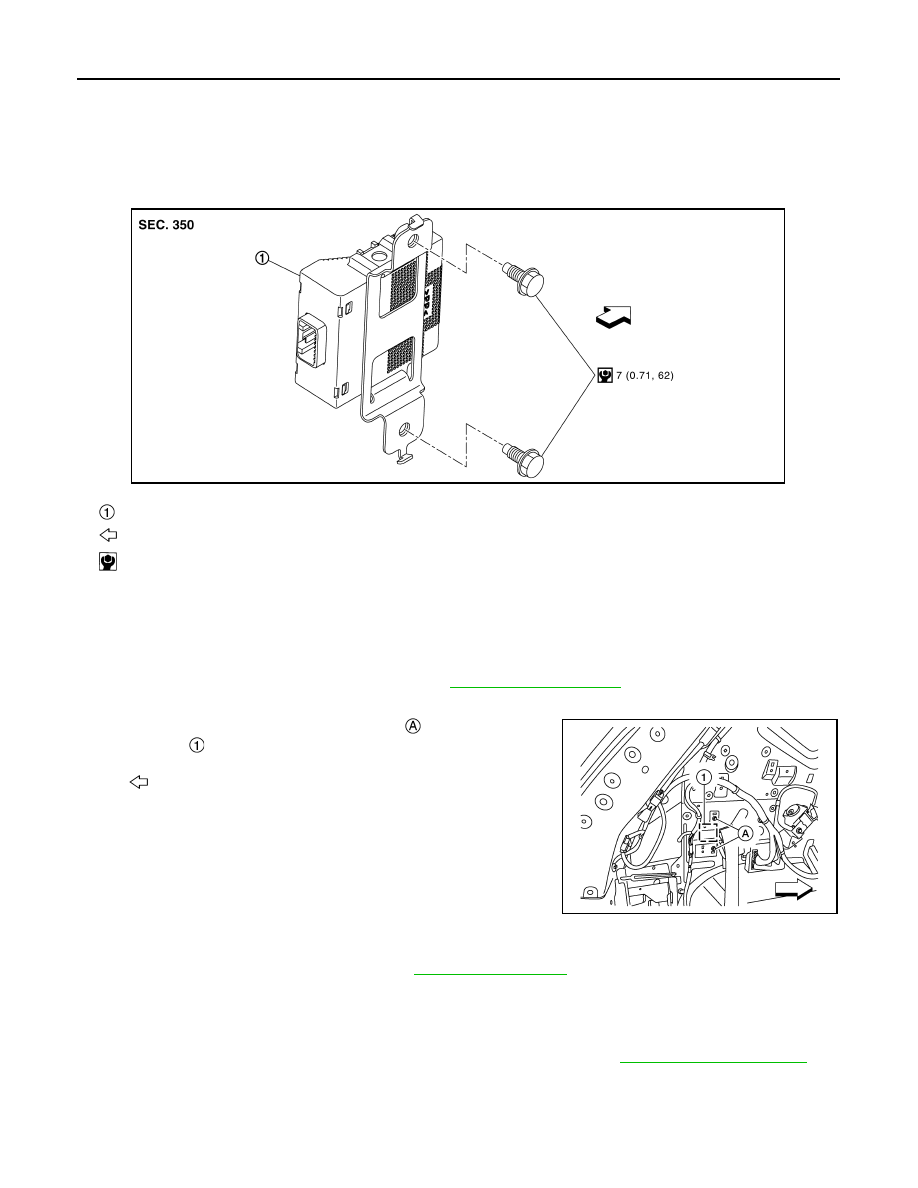

Exploded View

INFOID:0000000010755216

Removal and Installation

INFOID:0000000010755217

REMOVAL

1.

Turn the ignition switch OFF.

2.

Remove luggage side lower finisher LH. Refer to

INT-28, "Exploded View"

.

3.

Disconnect 4WD control unit harness connector.

4.

Remove 4WD control unit mounting nuts

 and remove 4WD

control unit

.

NOTE:
4WD control unit is located on the back side of the rear wheel
house outer panel LH.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Perform iadjustment after installation. Refer to

DLN-72, "Adjustment"

.

Adjustment

INFOID:0000000010755218

ADJUSTMENT AFTER INSTALLATION

When replaced 4WD control unit, perform writing unit characteristics. Refer to

DLN-37, "Work Procedure"

.

4WD control unit

: Vehicle front

: N·m (kg-m, in-lb)

JSDIA5368GB

: Vehicle front

AWDIA1154ZZ

4WD MODE SWITCH

DLN-73

< REMOVAL AND INSTALLATION >

[TRANSFER: TY21C]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

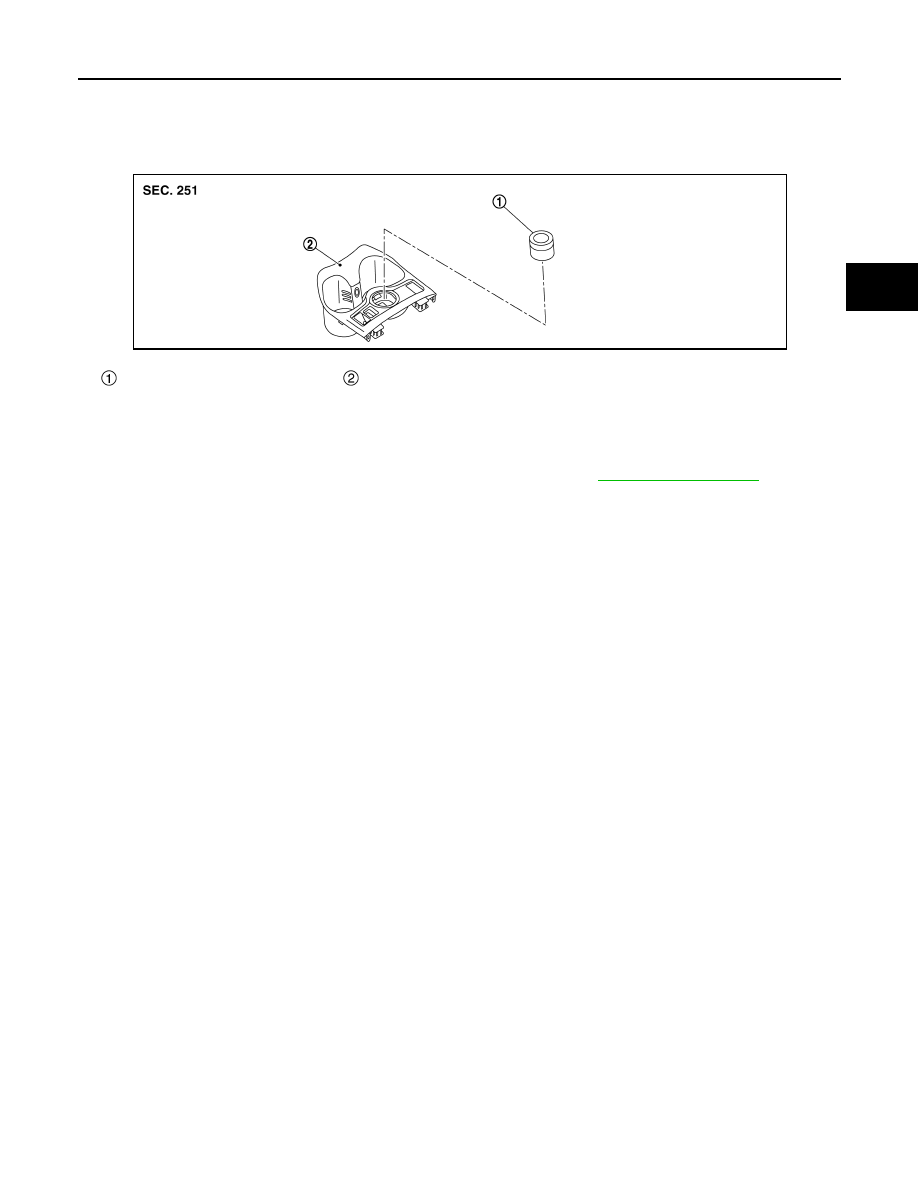

4WD MODE SWITCH

Exploded View

INFOID:0000000010755219

Removal and Installation

INFOID:0000000010755220

REMOVAL

1.

Remove console switch panel from center console assembly. Refer to

IP-18, "Exploded View"

.

2.

Disconnect 4WD mode switch harness connector.

3.

Remove 4WD mode switch from console switch panel.

INSTALLATION

Install in the reverse order of removal.

4WD mode switch

Console switch panel

JSDIA5457ZZ

DLN-74

< REMOVAL AND INSTALLATION >

[TRANSFER: TY21C]

TRANSFER COVER OIL SEAL

TRANSFER COVER OIL SEAL

Exploded View

INFOID:0000000010755221

MR20DD

QR25DE

NOTE:
• Replacement on vehicle may cause damage to transfer cover, and may cause a transfer oil leak.
• If transfer cover oil seal requires replacement, remove transfer assembly from the vehicle before replacing

transfer cover oil seal. Refer to

DLN-79, "Disassembly"

.

Removal and Installation

INFOID:0000000010755222

NOTE:

For QR25DE models only:

• Replacement on vehicle may cause damage to transfer cover, and may cause a transfer oil leak.
• If transfer cover oil seal requires replacement, remove transfer assembly from the vehicle before replacing

transfer cover oil seal. Refer to

DLN-79, "Disassembly"

.

REMOVAL

MR20DD

1.

Drain the transfer oil. Refer to

DLN-70, "Draining"

.

2.

Remove front drive shaft (right side). Refer to

FAX-22, "Exploded View (LH)"

.

CAUTION:

Oil may leak from the opening. Use cap and/or plug to prevent leakage.

3.

Remove transfer cover oil seal (outer/inner), using oil seal remover (commercial service tool).

CAUTION:

Never damage transfer cover.

INSTALLATION

MR20DD

Transfer assembly

Transfer cover oil seal (inner)

Transfer cover oil seal (outer)

Oil seal lip

: Always replace after every disassembly.

: Apply transfer oil.

: Apply multi-purpose grease.

JSDIA5360ZZ

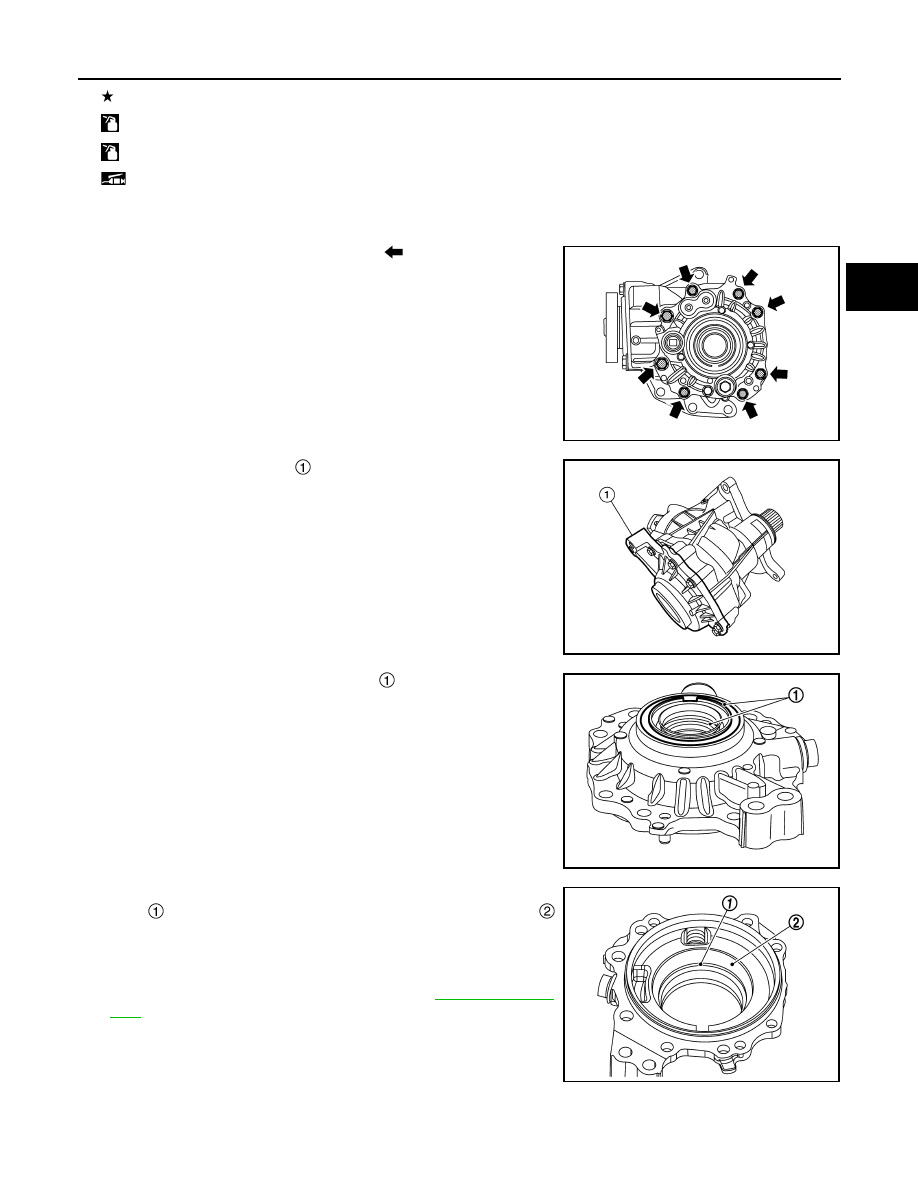

TRANSFER COVER OIL SEAL

DLN-75

< REMOVAL AND INSTALLATION >

[TRANSFER: TY21C]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

1.

Using drift (commercial service tool), install transfer cover oil
seal (outer/inner) with the directions below.

CAUTION:

• Never reuse oil seal.
• When installing, never incline oil seal.
• Apply multi-purpose grease onto oil seal lips, and transfer oil onto the circumference of oil seal.

2.

Install front drive shaft (right side). Refer to

FAX-22, "Removal and Installation (LH)"

.

3.

Refill the transfer oil to transfer assembly. Refer to

DLN-70, "Refilling"

.

4.

Perform inspection after installation. Refer to

DLN-70, "Inspection"

.

Inspection

INFOID:0000000010755223

INSPECTION AFTER INSTALLATION

Check oil level and transfer for oil leakage. Refer to

DLN-70, "Inspection"

.

A

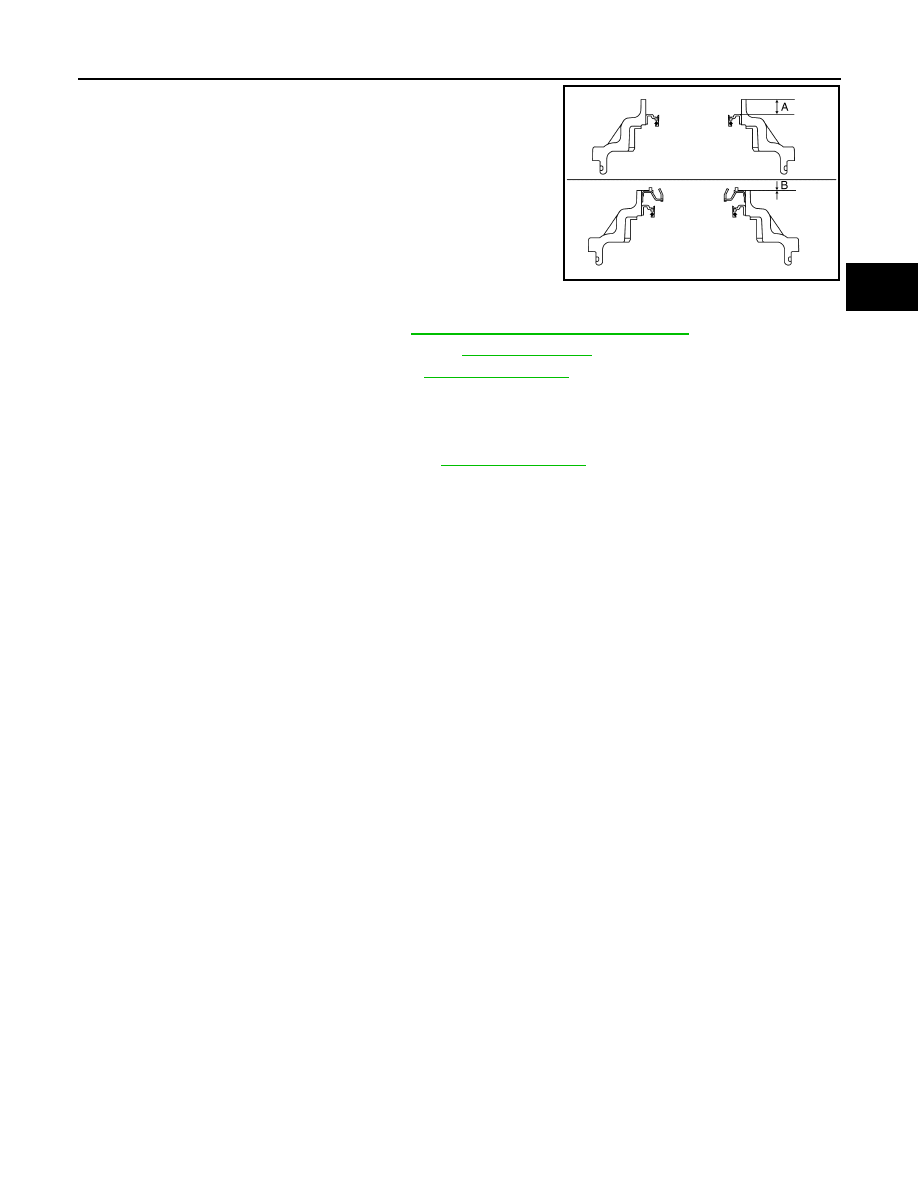

: Installation dimension for transfer cover oil seal (inner)

B

: Installation dimension for transfer cover oil seal (outer)

A

: 10.3 +0.6/-0 mm (0.406 +0.024/-0 in)

B

: 0 +0.6/-0 mm (0 +0.024/-0 in)

JSDIA3993ZZ

DLN-76

< UNIT REMOVAL AND INSTALLATION >

[TRANSFER: TY21C]

TRANSFER ASSEMBLY

UNIT REMOVAL AND INSTALLATION

TRANSFER ASSEMBLY

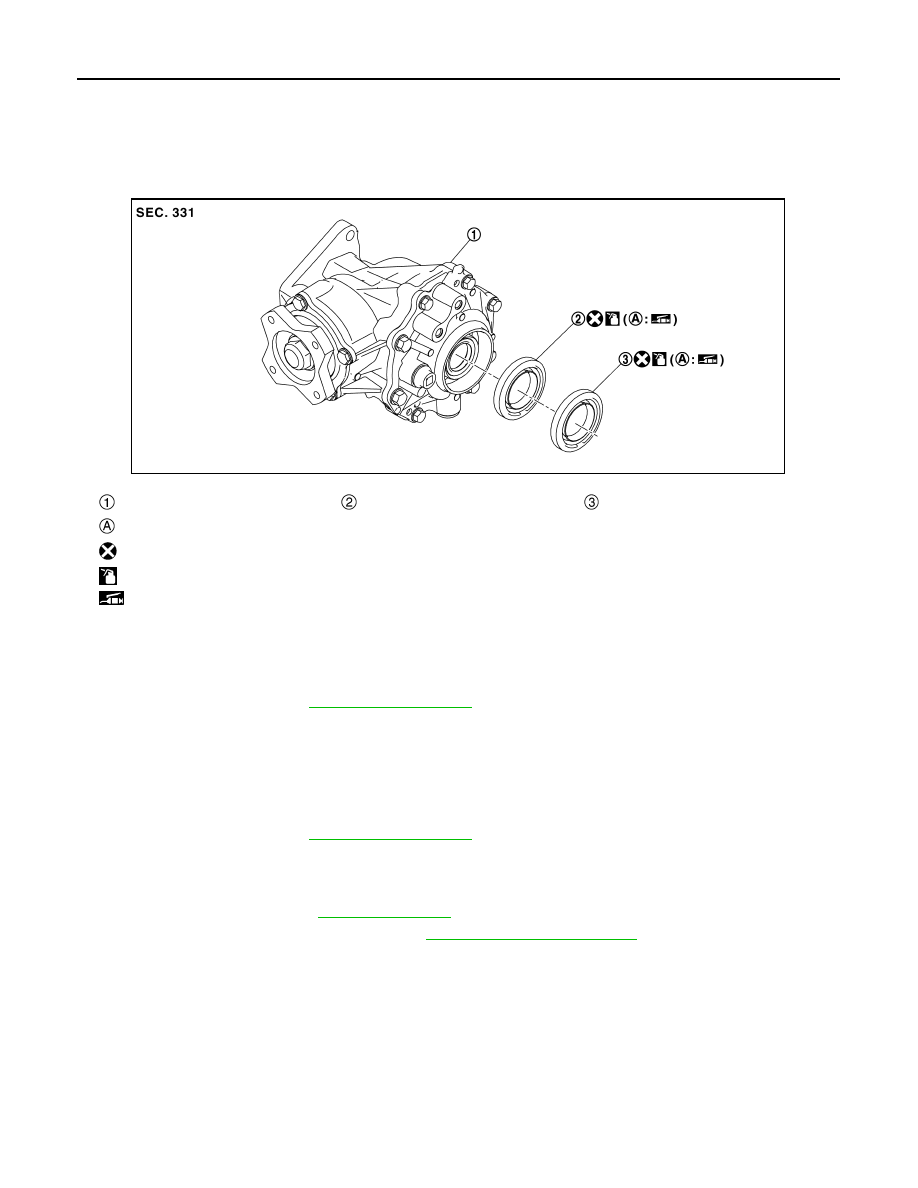

Exploded View

INFOID:0000000010755191

Removal and Installation

INFOID:0000000010755192

REMOVAL

MR20DD

1.

Remove exhaust front tube. Refer to

EX-11, "Removal and Installation"

.

2.

Remove front drive shaft (RH). Refer to

FAX-63, "Removal and Installation (RH)"

.

CAUTION:

Oil may leak from the opening. Use cap and/or plug to prevent leakage.

3.

Remove propeller shaft from transfer assembly. Refer to

DLN-186, "Exploded View"

 .

CAUTION:

The joint of propeller shaft must be handled with care.

4.

Remove transfer gusset

.

5.

Remove transfer assembly from transaxle assembly.

CAUTION:

• Never damage ring gear shaft.
• Be careful when removing transfer assembly form the

vehicle because it is heavy.

INSTALLATION

Note the following, and install in the reverse order of removal.

Transfer gusset (MR20DD)

Transfer assembly

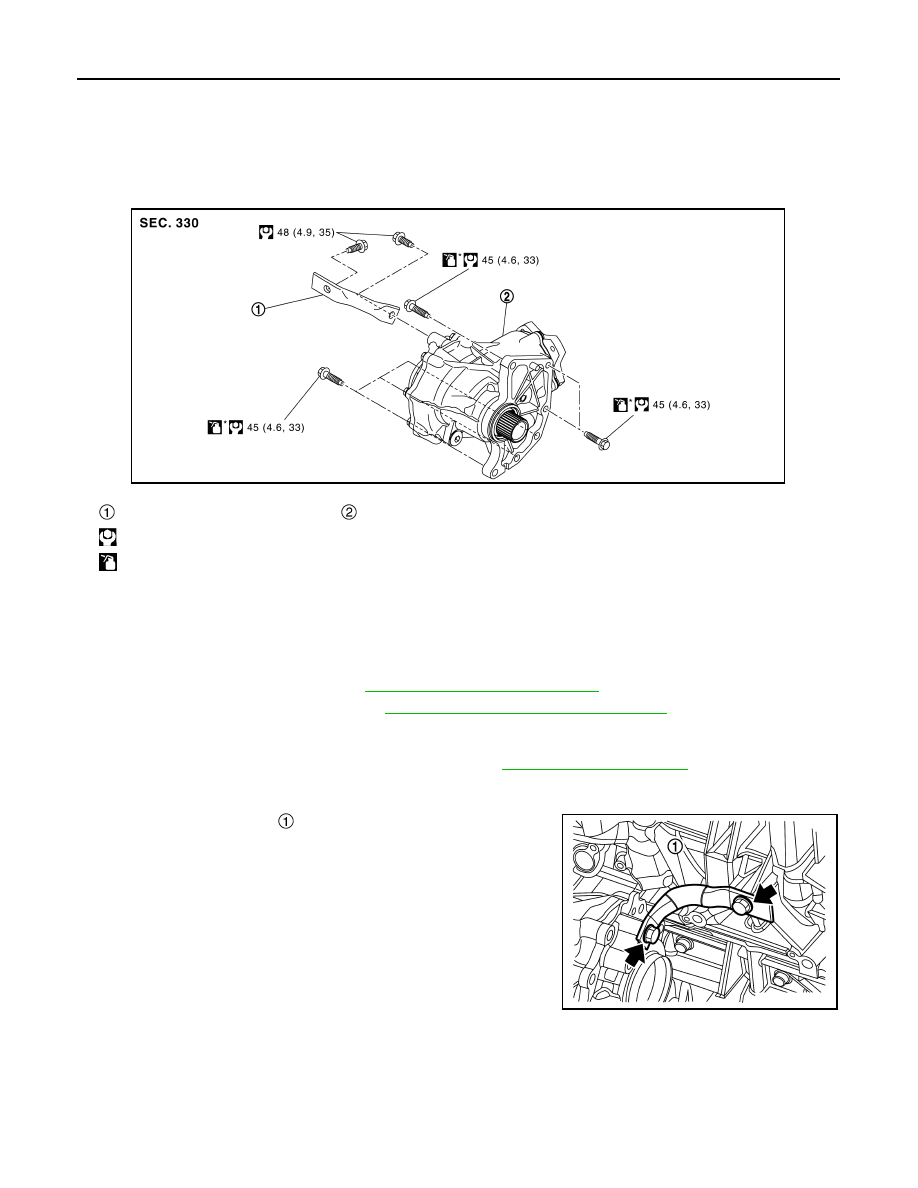

: N·m (kg-m, ft-lb)

*: Apply anti-corrosion oil.

JSDIA5353GB

JSDIA5358ZZ

TRANSFER ASSEMBLY

DLN-77

< UNIT REMOVAL AND INSTALLATION >

[TRANSFER: TY21C]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

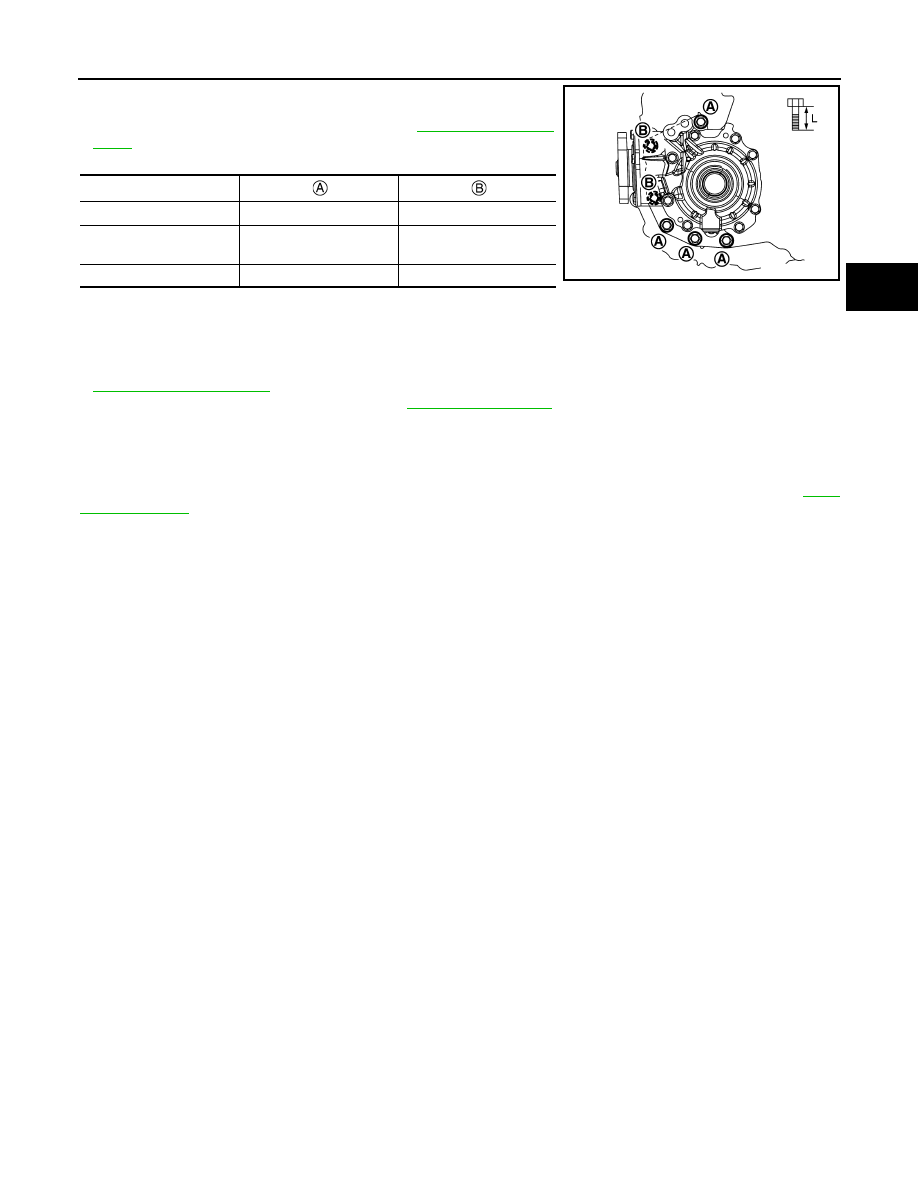

• When installing the transfer to the transaxle, install the mounting

bolts following the standard below, tighten bolts to the specified
torque. For each tightening torque, refer to

DLN-76, "Exploded

View"

.

CAUTION:

• Apply anti-corrosion oil to the thread and seat of mounting bolts.
• Never damage O-ring of transfer.

• For mounting bolts of transfer gusset, temporarily tightening the engine side bolt first. After this, tighten bolts

to the specified torque in the order from transfer side bolt to engine side bolt. For tightening torque, refer to

DLN-76, "Exploded View"

. (MR20DD)

• Perform inspection after installation. Refer to

DLN-77, "Inspection"

.

Inspection

INFOID:0000000010755193

INSPECTION AFTER INSTALLATION

When oil leaks while removing/installing transfer assembly, check oil level after the installation. Refer to

DLN-

70, "Inspection"

.

Bolt symbol

Quantity

4

2

Bolt length
“L” mm (in)

40 (1.57)

40 (1.57)

Insertion direction

Transfer to transaxle

Transaxle to transfer

JSDIA5355ZZ

DLN-78

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY21C]

TRANSFER COVER

UNIT DISASSEMBLY AND ASSEMBLY

TRANSFER COVER

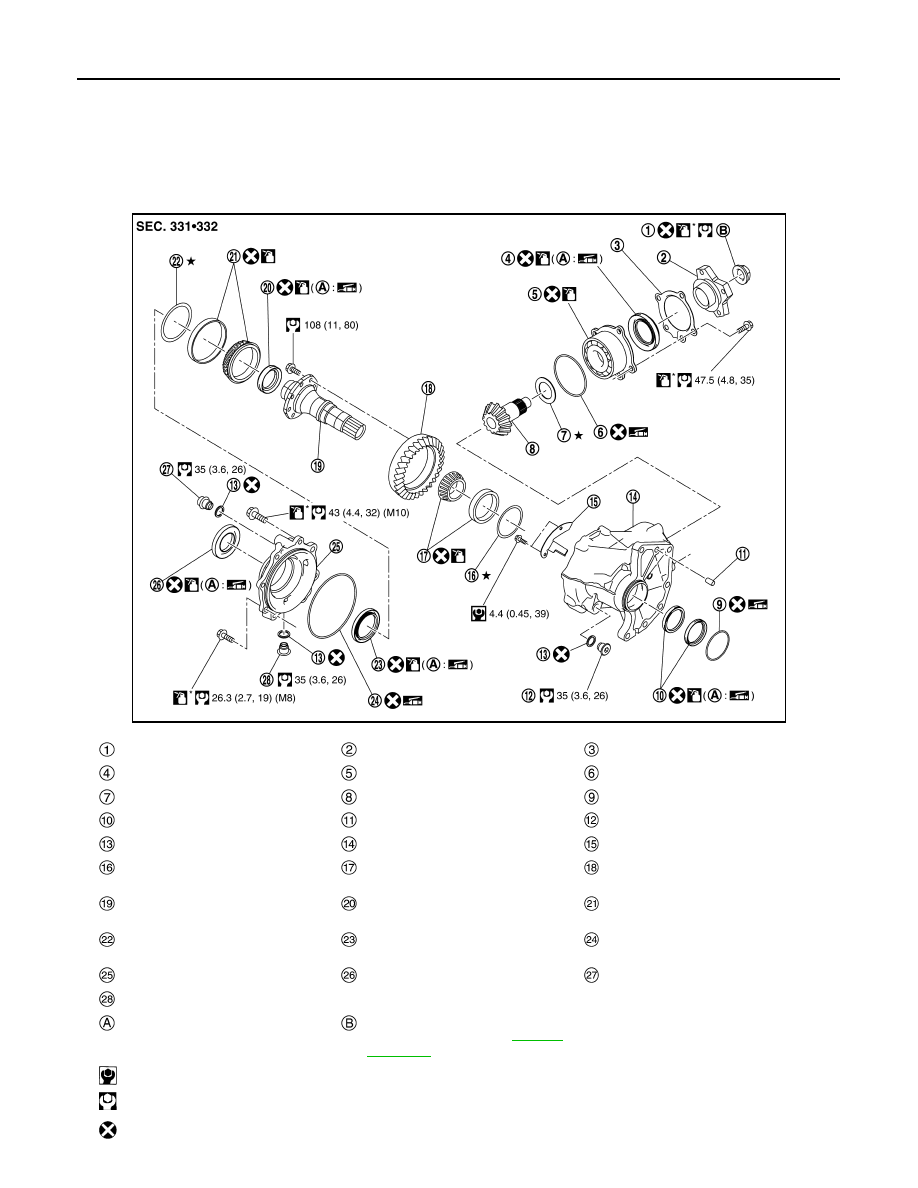

Exploded View

INFOID:0000000010755194

MR20DD models

JSDIA5341GB

Pinion lock nut

Companion flange

Dust cover

Oil seal

Pinion bearing assembly

O-ring

Drive pinion adjusting shim

Drive pinion

O-ring

Oil seal

Dowel pin

Plug

Gasket

Transfer case

Baffle plate

Ring gear bearing adjusting shim
(transfer case side)

Ring gear bearing (transfer case
side)

Ring gear

Ring gear shaft

Ring gear shaft oil seal

Ring gear bearing (transfer cover
side)

Ring gear bearing adjusting shim
(transfer cover side)

Oil seal

O-ring

Transfer cover

Oil seal

Filler plug

Drain plug

Oil seal lip

Comply with the assembly procedure
when tightening. Refer to

DLN-87,

"Assembly"

.

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

: Always replace after every disassembly.

TRANSFER COVER

DLN-79

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY21C]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

Disassembly

INFOID:0000000010755195

1.

Remove transfer cover mounting bolts (

).

2.

Lightly tap transfer cover

 with a plastic hammer to remove

transfer cover.

3.

Remove O-ring from transfer cover.

CAUTION:

• Never use a suitable tool.
• Never damage transfer cover.

4.

Lightly tap the metal part of oil seals

 with punch from back

side of transfer cover to remove oil seals.

CAUTION:

When removing, never damage the transfer cover by scoop-
ing it out with a suitable tool.

5.

Remove the ring gear bearing adjusting shim (transfer cover
side)

 and ring gear bearing outer race (transfer cover side)

using suitable tool.

6.

Remove drain plug and gasket.

7.

Remove filler plug and gasket.

8.

Perform inspection after disassembly. Refer to

DLN-81, "Inspec-

tion"

.

: Select with proper thickness.

: Apply transfer oil.

*

: Apply anti-corrosive oil.

: Apply multi-purpose grease.

AWDIA1139ZZ

ALDIA0446ZZ

JSDIA3990ZZ

JSDIA3992ZZ

DLN-80

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY21C]

TRANSFER COVER

Assembly

INFOID:0000000010755196

1.

Select the ring gear bearing adjusting shim (transfer cover side). Refer to

DLN-88, "Adjustment"

.

2.

Install the selected ring gear bearing adjusting shim (transfer
cover side)

 and ring gear bearing outer race (transfer cover

side)

 using suitable tool.

CAUTION:

• Never reuse ring gear bearing.
• Apply transfer oil to the ring gear bearing.

3.

Install gasket onto drain plug and install them to transfer cover.

CAUTION:

Never reuse gasket.

4.

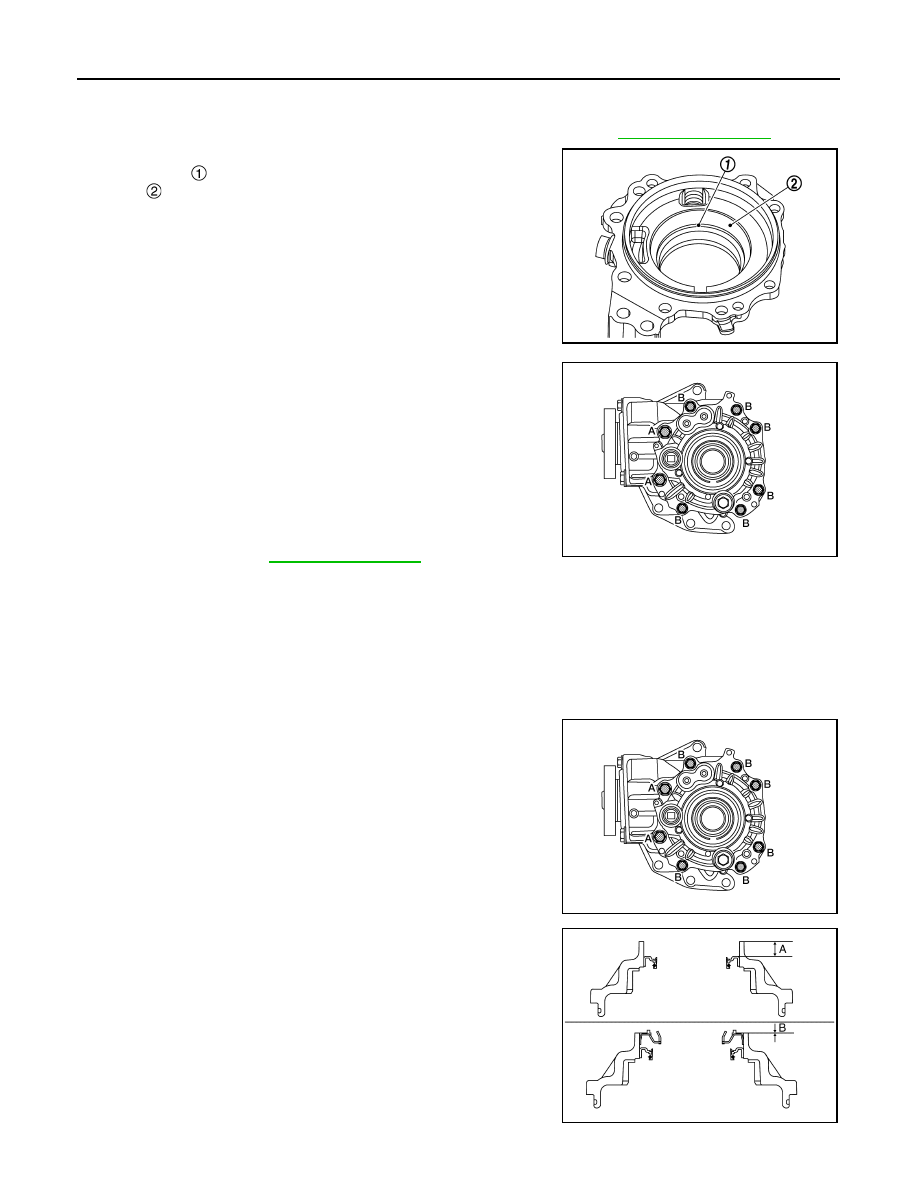

Install the transfer cover to the transfer case, and apply anti-cor-
rosive oil onto thread and seats on the mounting bolts. Then
tighten mounting bolts to the specified torque.

NOTE:
At this timing, O-ring installing to transfer cover is not necessary.
Install O-ring after tooth contact is checked.

5.

Check backlash, tooth contact, total preload and companion
flange runout. Refer to

DLN-88, "Adjustment"

.

CAUTION:

Measure the total preload without oil seals of transfer cover and transfer case.

6.

Remove transfer cover to install O-ring.

7.

Apply multi-purpose grease lightly and evenly onto an O-ring, and install it to the transfer cover.

CAUTION:

• Never reuse O-ring.
• When installing O-ring, never use a suitable tool.
• Never damage O-ring.

8.

Install the transfer cover to the transfer case, and apply anti-cor-
rosive oil onto thread and seats on the mounting bolts. Then
tighten mounting bolts to the specified torque.

9.

Using drift (commercial service tool), install transfer cover oil
seal (outer/inner) with the directions below.

CAUTION:

• When checking the total preload torque, measure it with-

out the oil seal, then install the oil seal.

JSDIA3992ZZ

A

: M10 bolt

B

:  M8  bolt

A

: M10 bolt

B

:  M8  bolt

AWDIA1140ZZ

AWDIA1140ZZ

A

: Installation dimension for transfer cover oil seal (inner)

B

: Installation dimension for transfer cover oil seal (outer)

A

: 10.3 +0.6/-0 mm (0.406 +0.024/-0 in)

B

: 0 +0.6/-0 mm (0 +0.024/-0 in)

JSDIA3993ZZ
