Qashqai J11. Body repair - part 5





REPLACEMENT OPERATIONS

BRM-65

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

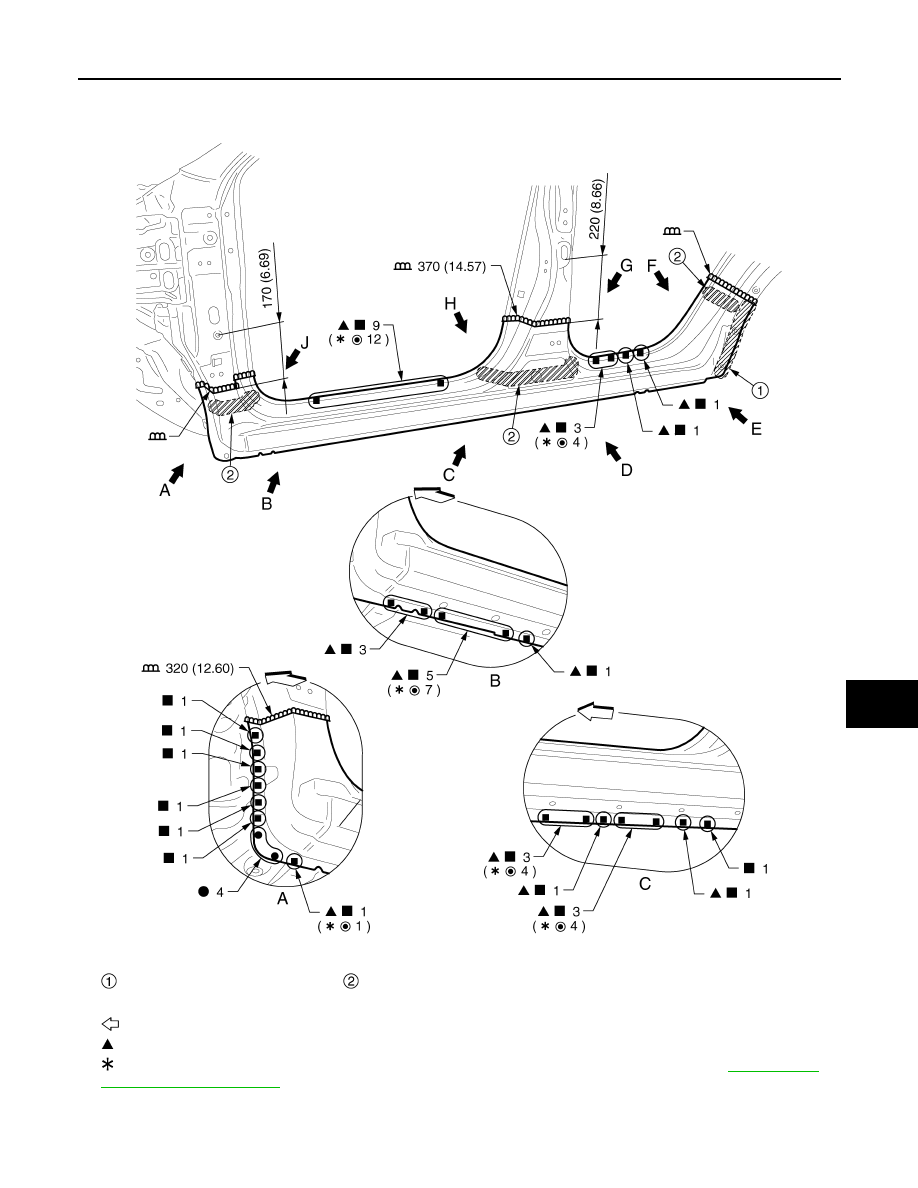

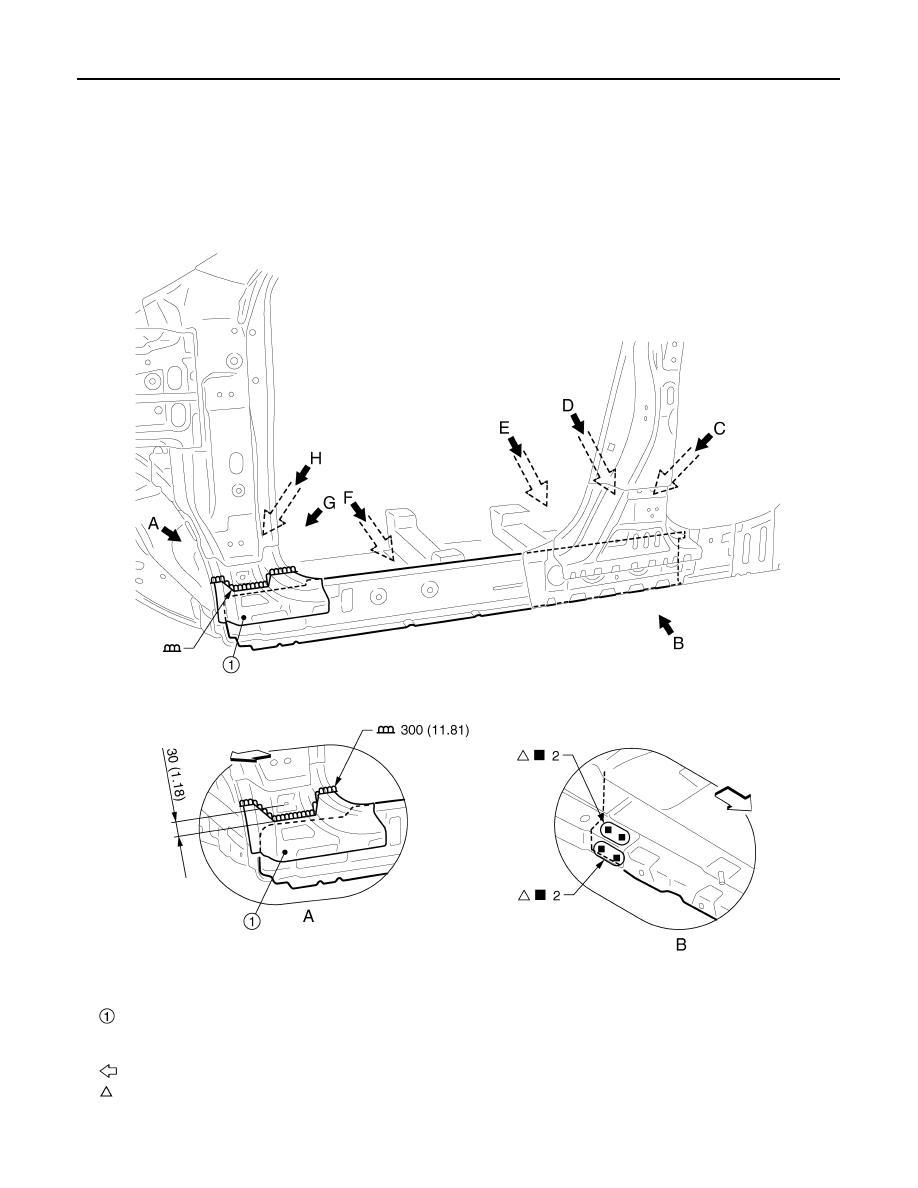

Outer Sill

INFOID:0000000010287991

Body sealing

Urethane foam

Unit: mm (in)

: Vehicle front

: Drill

φ

6 mm (0.24 in) hole for the plug welding hole (ultra high strength steel).

: For spot welding of steel plate of tensile strength 980 MPa, observe the indicated welding conditions. Refer to

BRM-48, "Weld-

ing of Ultra High Strength Steel"

Replacement part

z

Outer sill assembly

JSKIA4015GB

BRM-66

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

REPLACEMENT OPERATIONS

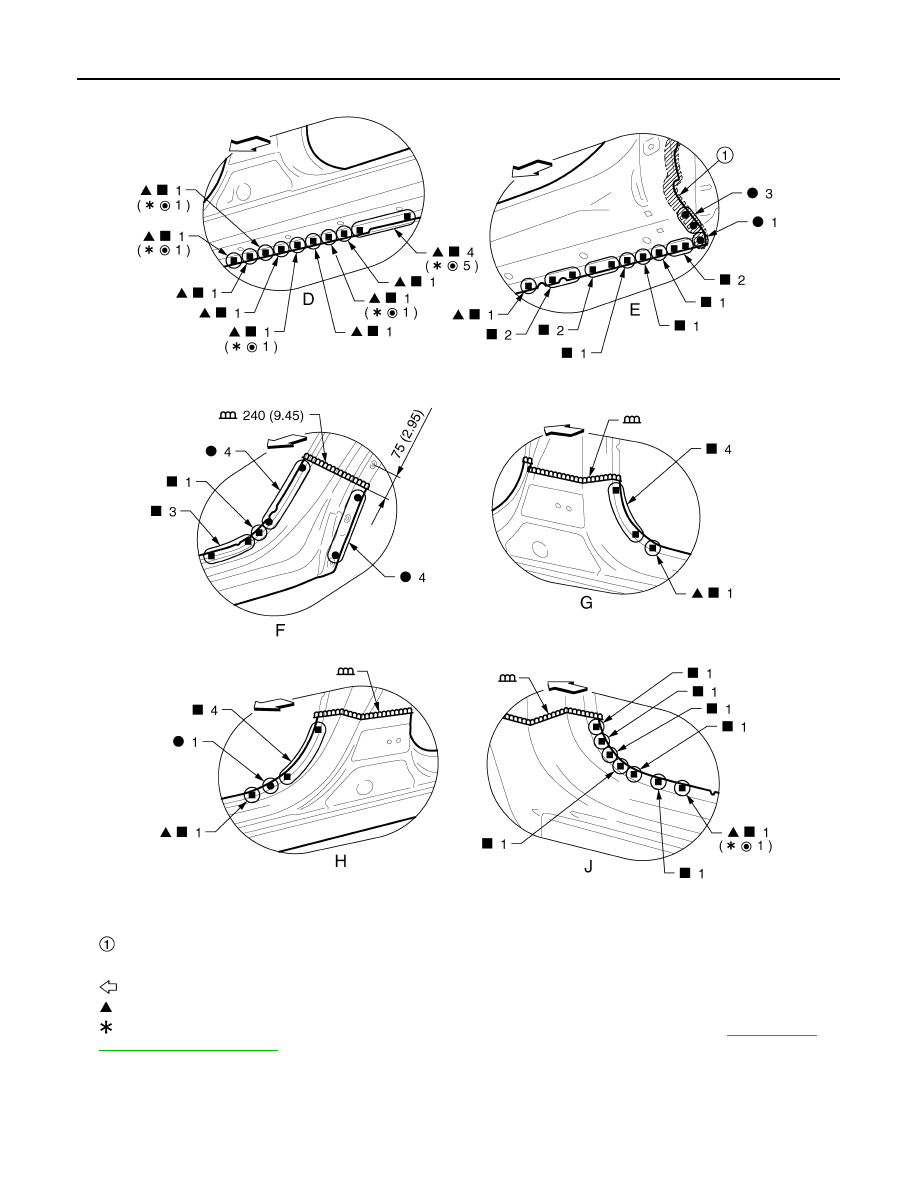

Outer Sill Reinforcement

INFOID:0000000010312606

Work after outer sill is removed.

Body sealing

Unit: mm (in)

: Vehicle front

: Drill

φ

6 mm (0.24 in) hole for the plug welding hole (ultra high strength steel).

: For spot welding of steel plate of tensile strength 980 MPa, observe the indicated welding conditions. Refer to

BRM-48, "Weld-

ing of Ultra High Strength Steel"

JSKIA4016GB

REPLACEMENT OPERATIONS

BRM-67

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Urethane foam

: Vehicle front

: Drill

φ

7 mm (0.28 in) hole for the plug welding hole (ultra high strength steel).

: Drill

φ

8 mm (0.31 in) hole for the plug welding hole (ultra high strength steel).

: Drill

φ

9 mm (0.35 in) hole for the plug welding hole (ultra high strength steel).

: Weld the parts onto the back of the component part.

: For spot welding of steel plate of tensile strength 980 MPa, observe the indicated welding conditions. Refer to

BRM-48, "Weld-

ing of Ultra High Strength Steel"

Replacement part

z

Outer sill reinforcement assembly

JSKIA4017ZZ

BRM-68

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

REPLACEMENT OPERATIONS

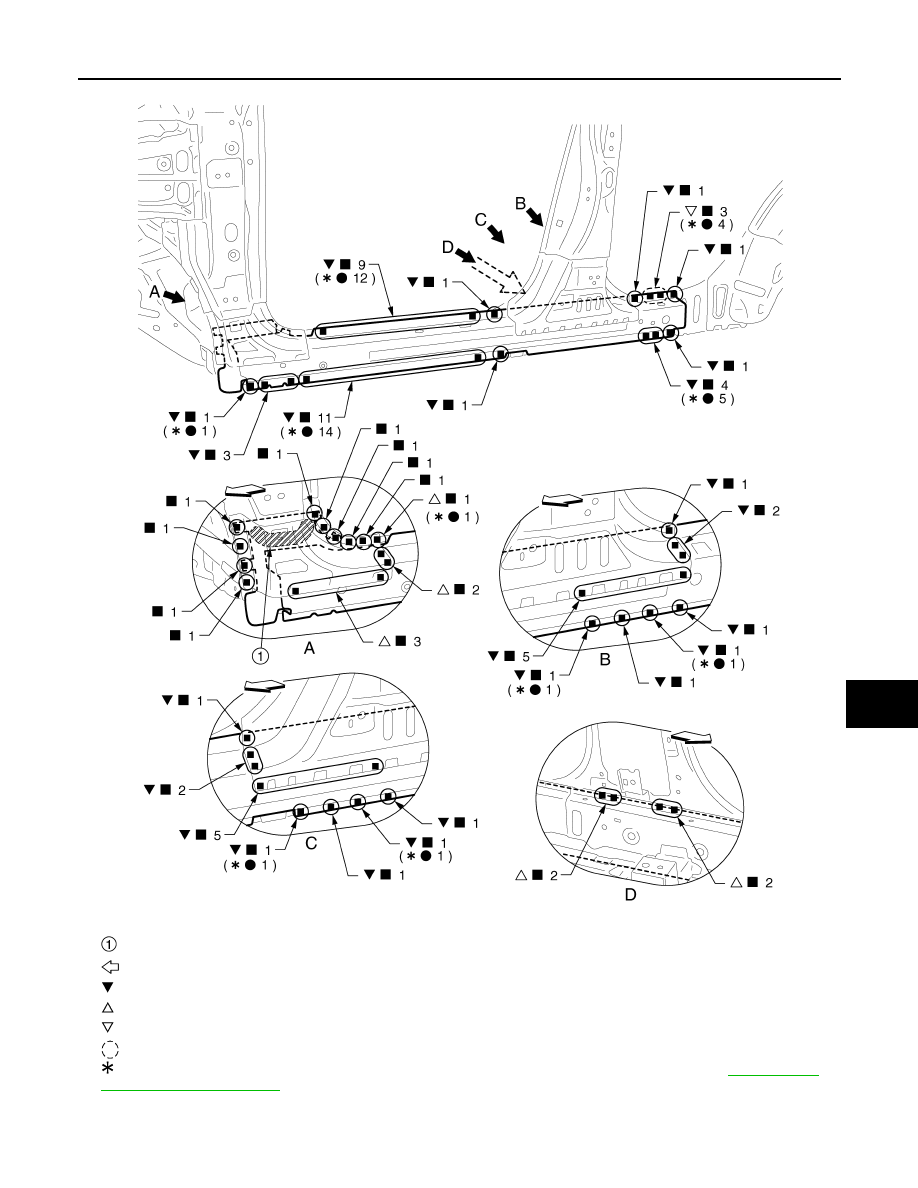

Inner Sill

INFOID:0000000010287992

Work after outer sill and outer sill reinforcement are removed.
Cut the lower front pillar hinge brace (reusable) for easier installation.

Lower front pillar hinge brace (reus-
able)

Unit: mm (in)

: Vehicle front

: Drill

φ

8 mm (0.31 in) hole for the plug welding hole (ultra high strength steel).

Replacement part

z

Inner sill assembly

JSKIA4018GB

REPLACEMENT OPERATIONS

BRM-69

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

View G: Before installing lower front pillar hinge brace (reusable)

Unit: mm (in)

: Vehicle front

: Drill

φ

6 mm (0.24 in) hole for the plug welding hole (ultra high strength steel).

: Drill

φ

7 mm (0.28 in) hole for the plug welding hole (ultra high strength steel).

: Drill

φ

8 mm (0.31 in) hole for the plug welding hole (ultra high strength steel).

: Drill

φ

98 mm (0.35 in) hole for the plug welding hole (ultra high strength steel).

: Weld the parts onto the back of the component part.

: For spot welding of steel plate of tensile strength 980 MPa, observe the indicated welding conditions. Refer to

BRM-48, "Weld-

ing of Ultra High Strength Steel"

JSKIA4019GB

BRM-70

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

REPLACEMENT OPERATIONS

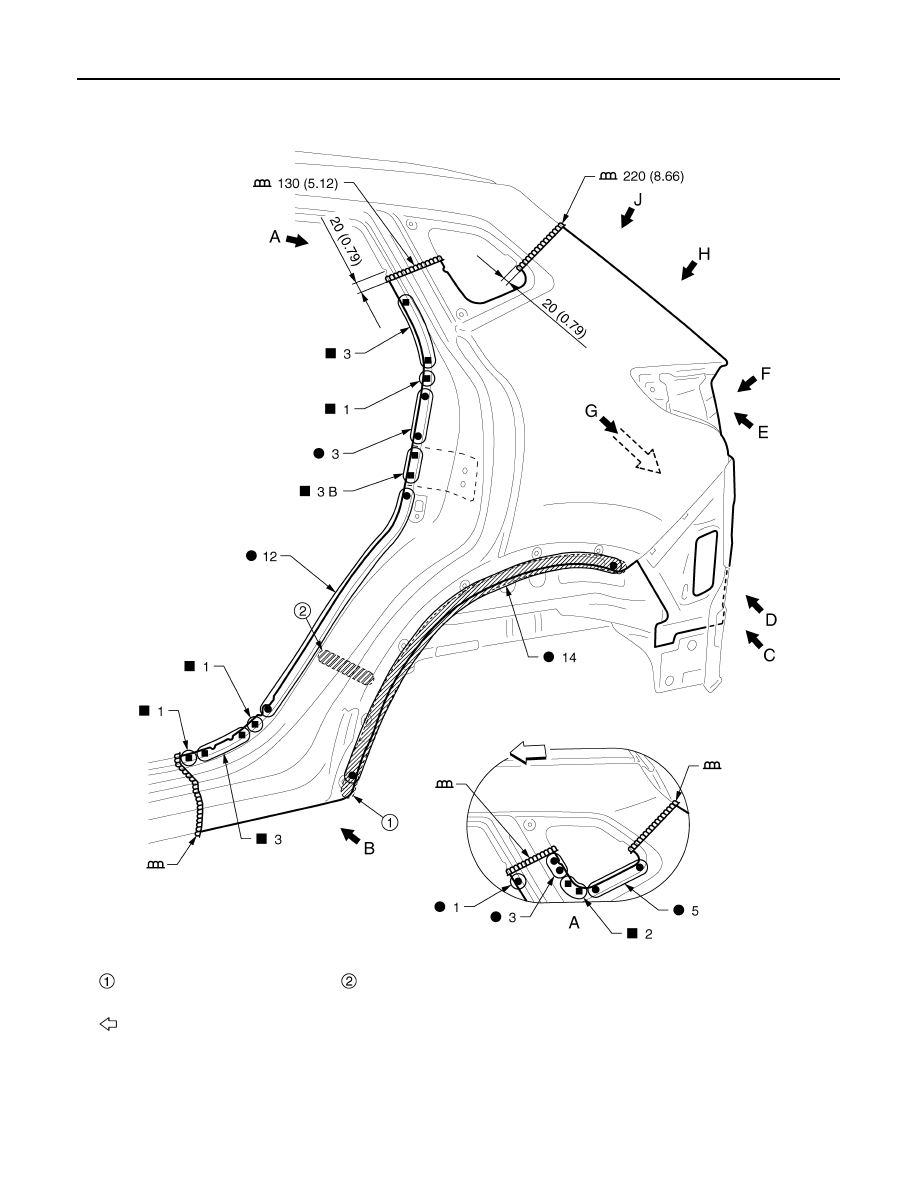

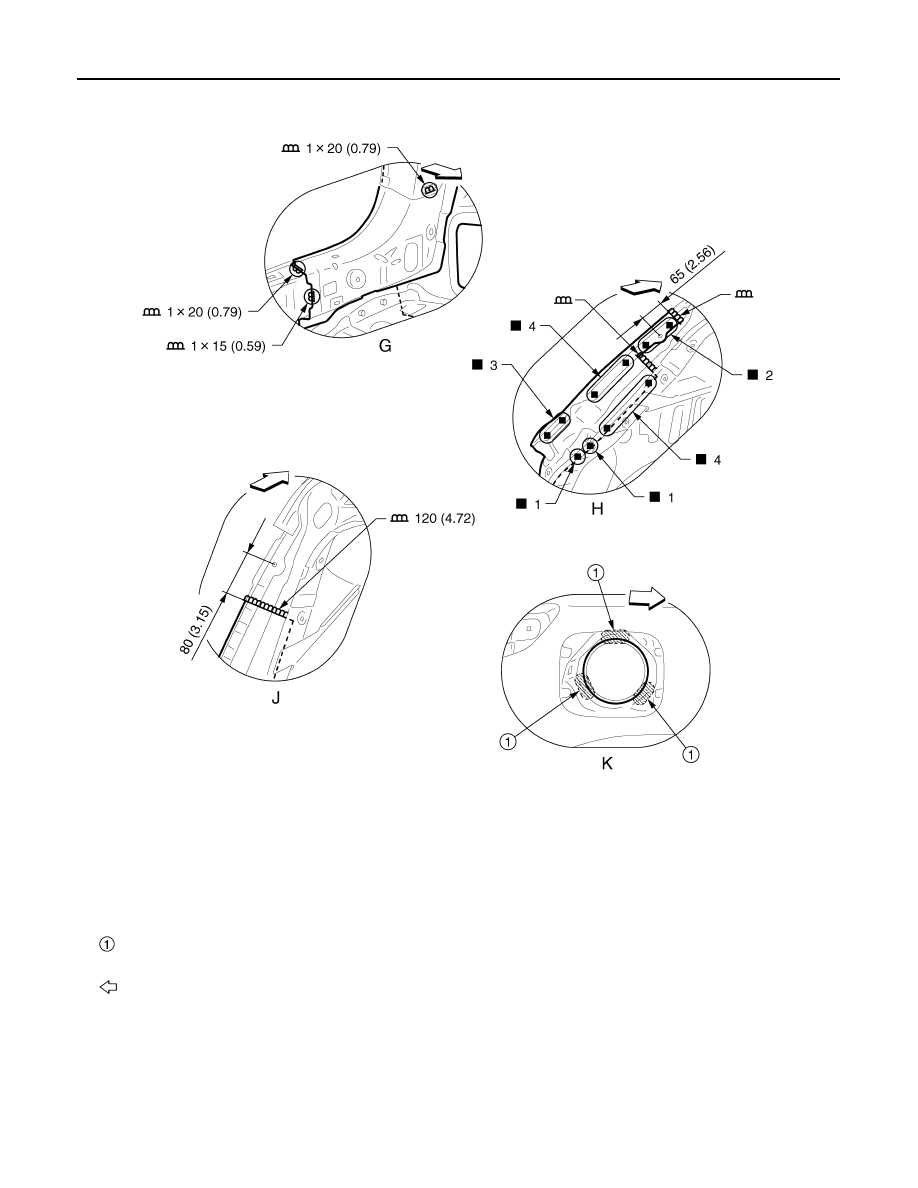

Rear Fender

INFOID:0000000010287993

Body sealing

Urethane foam

Unit: mm (in)

: Vehicle front

Replacement part

z

Rear fender assembly

z

Rear fender extension complete

z

Striker retainer assembly

JSKIA4020GB

REPLACEMENT OPERATIONS

BRM-71

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Body sealing

Unit: mm (in)

: Vehicle front

: Weld the parts onto the back of the component part.

JSKIA4021GB

BRM-72

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

REPLACEMENT OPERATIONS

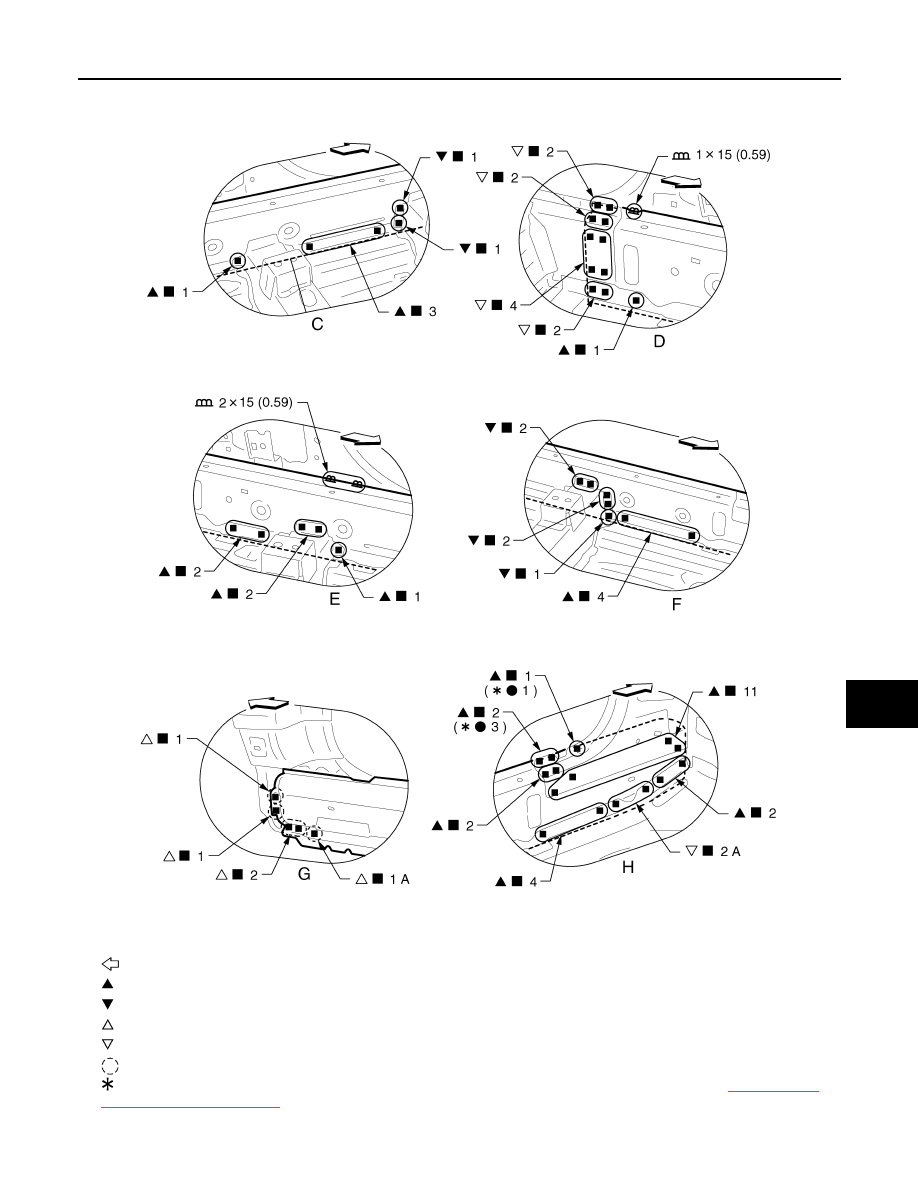

View J: Before installing rear fender assembly
View G: Right side rear fender

Adhesive

Unit: mm (in)

: Vehicle front

JSKIA4022GB

REPLACEMENT OPERATIONS

BRM-73

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

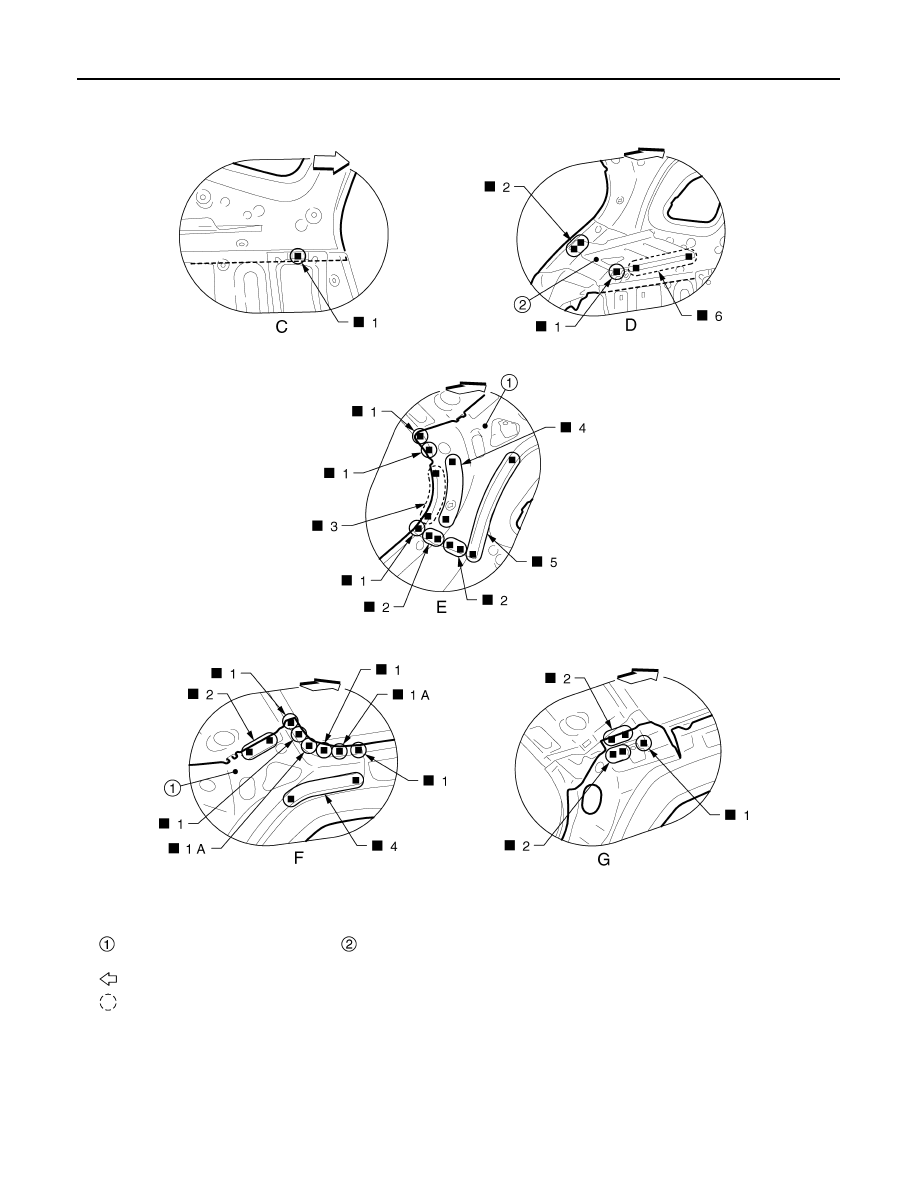

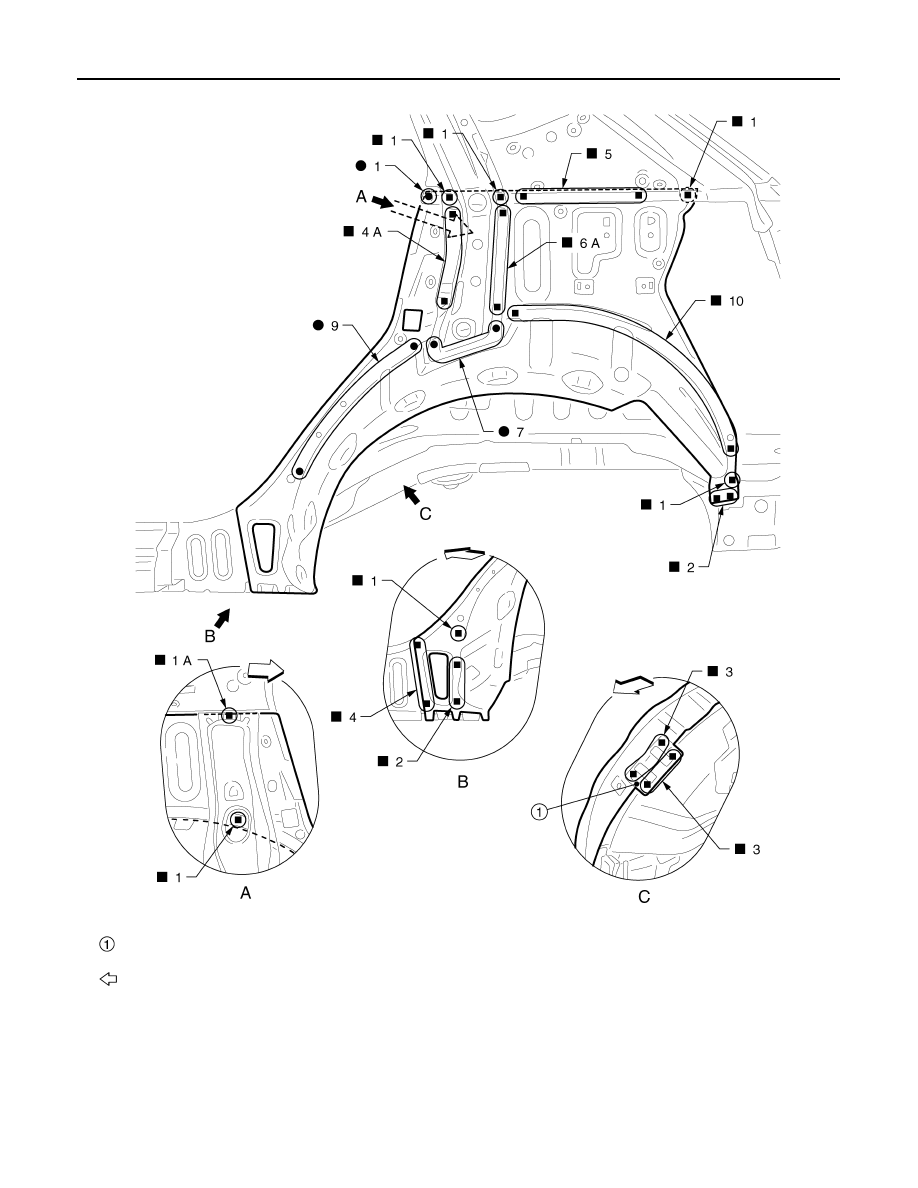

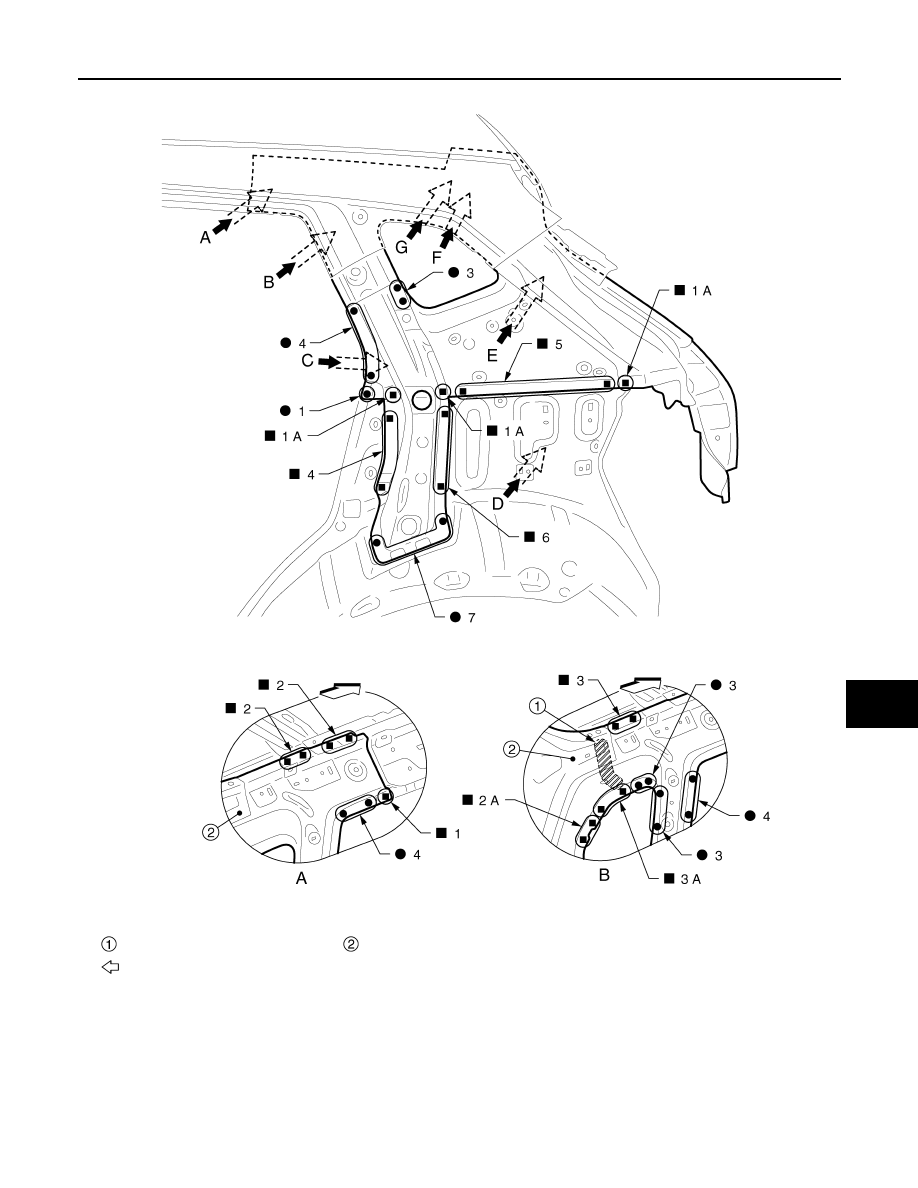

Rear Fender Extension

INFOID:0000000010287994

Outer Rear Wheelhouse (2WD)

INFOID:0000000010452586

Work after rear fender is removed.
Remove the inner rear wheelhouse reinforcement (reusable) for easier installation.

Body sealing

Unit: mm (in)

Replacement part

z

Rear fender assembly

JSKIA4023GB

BRM-74

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

REPLACEMENT OPERATIONS

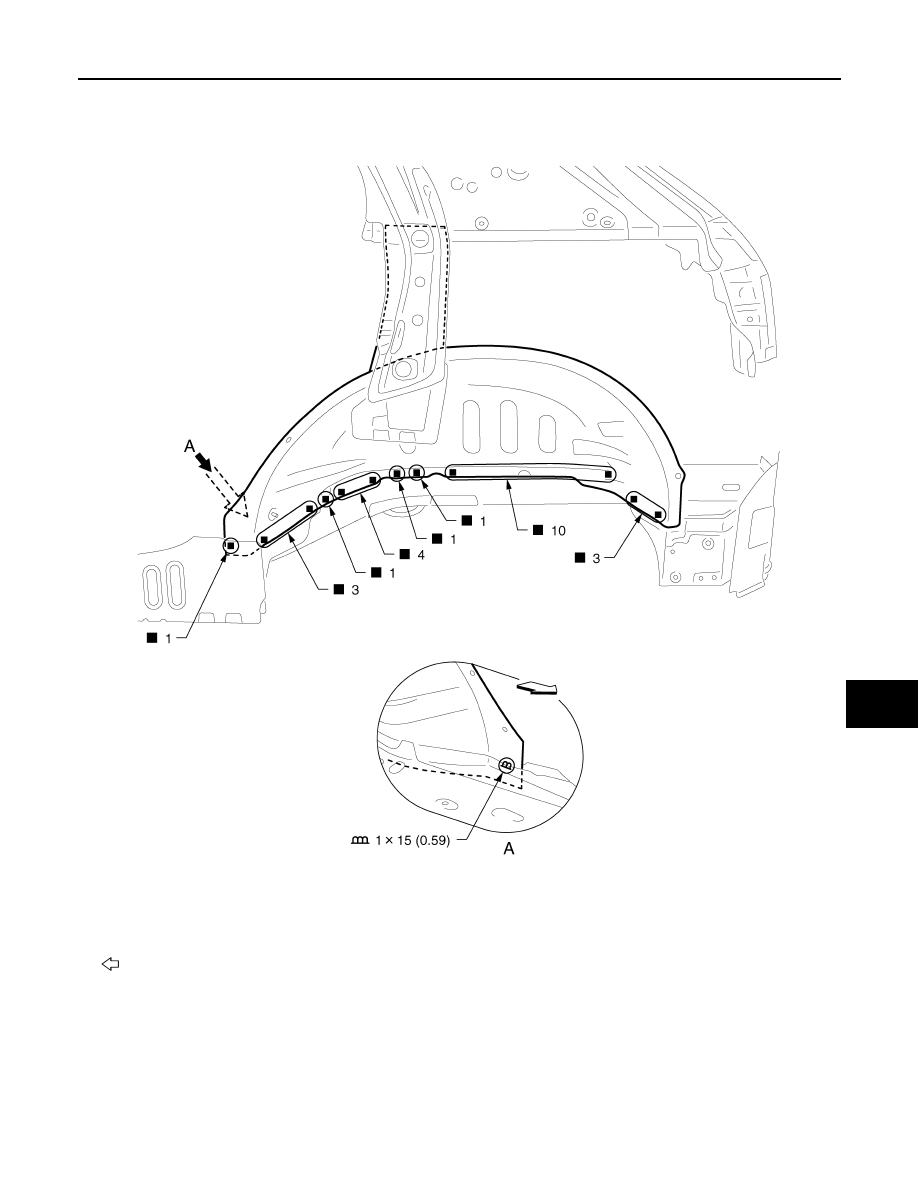

Outer Rear Wheelhouse (4WD)

INFOID:0000000010287996

Work after rear fender is removed.

Inner rear wheelhouse reinforcement
(reusable)

: Vehicle front

Replacement part

z

Outer rear wheelhouse assembly

JSKIA4255ZZ

REPLACEMENT OPERATIONS

BRM-75

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

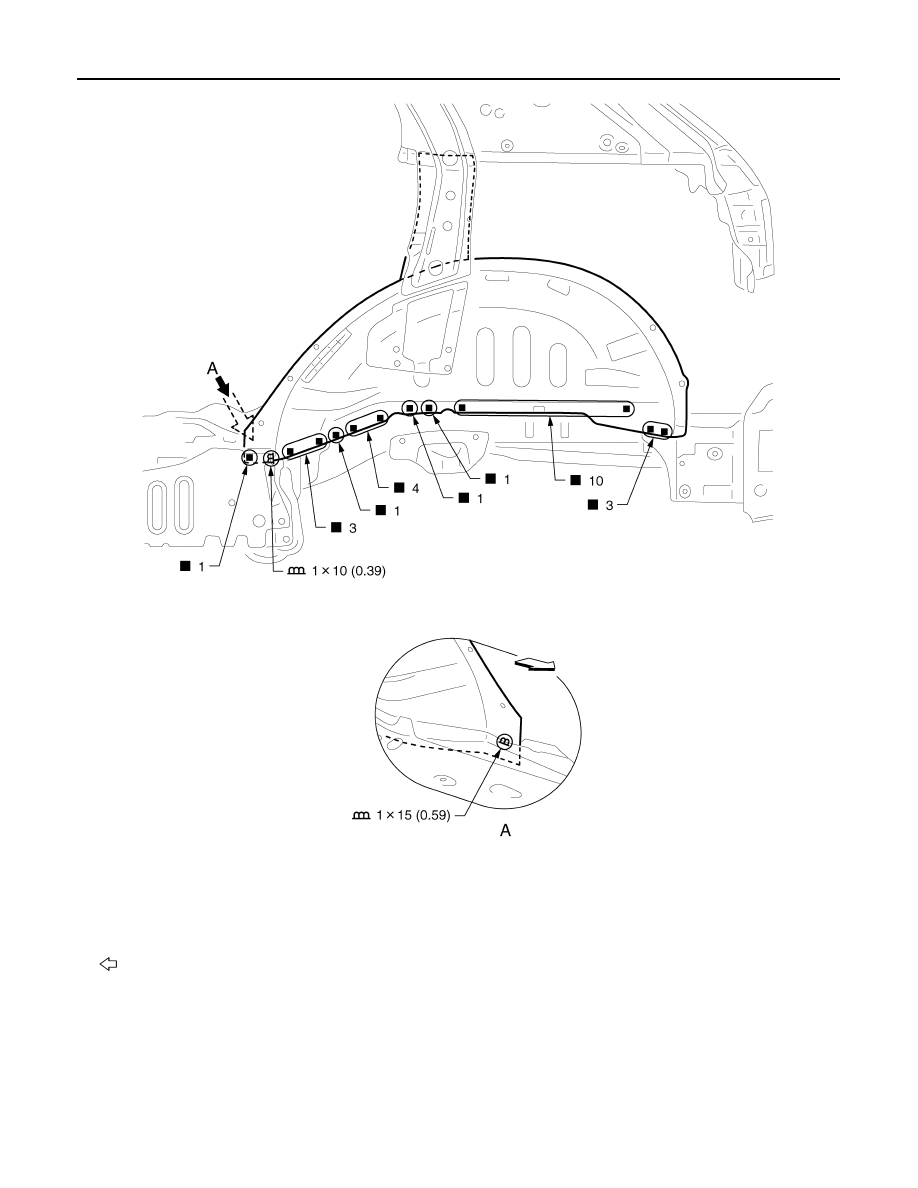

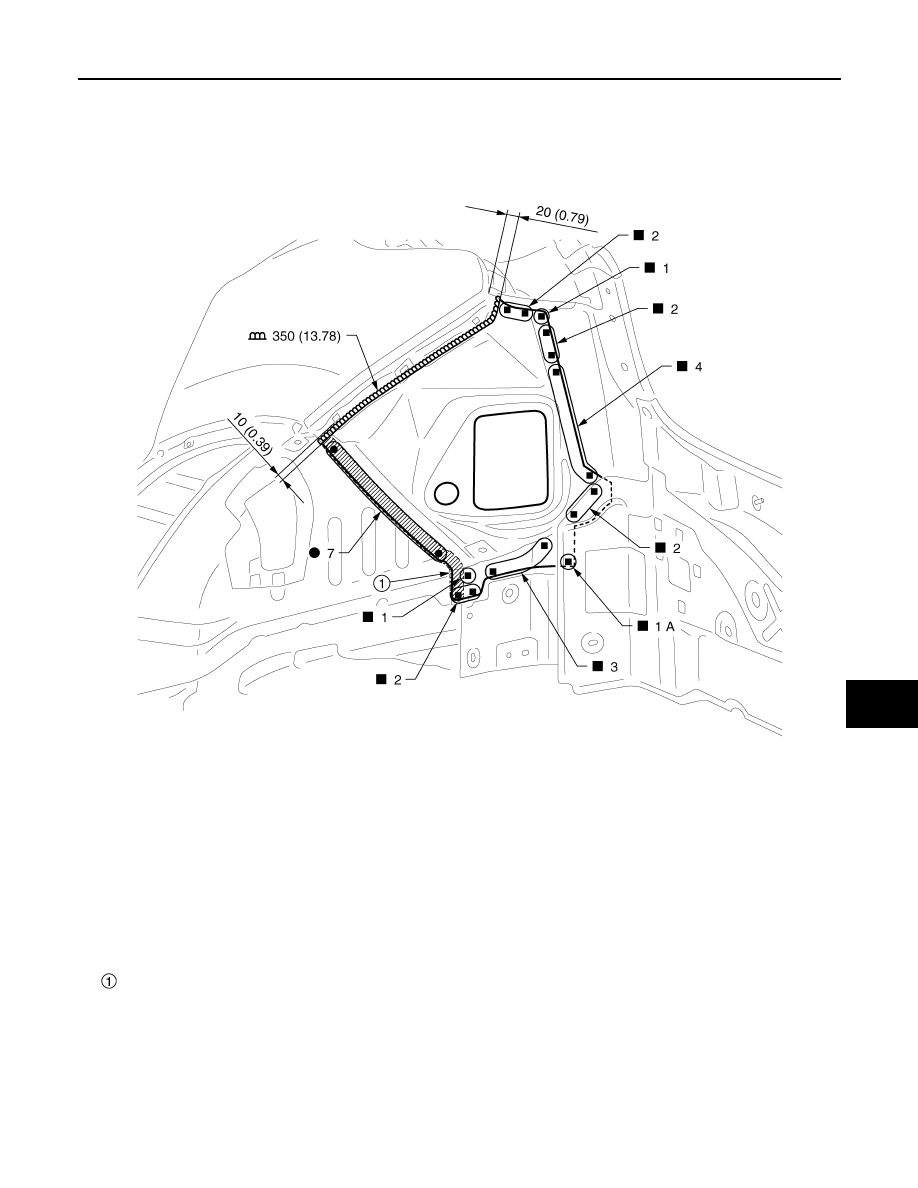

Inner Rear Wheelhouse (2WD)

INFOID:0000000010452587

Work after rear fender and outer rear wheelhouse are removed.

: Vehicle front

Replacement part

z

Outer rear wheelhouse assembly

JSKIA4024ZZ

BRM-76

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

REPLACEMENT OPERATIONS

Inner Rear Wheelhouse (4WD)

INFOID:0000000010287997

Work after rear fender and outer rear wheelhouse are removed.

Unit: mm (in)

: Vehicle front

Replacement part

z

Inner rear wheelhouse assembly

JSKIA4256GB

REPLACEMENT OPERATIONS

BRM-77

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Inner Rear Pillar Reinforcement

INFOID:0000000010287995

Work after rear fender is removed.

Unit: mm (in)

: Vehicle front

Replacement part

z

Inner rear wheelhouse assembly

JSKIA4025GB

BRM-78

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

REPLACEMENT OPERATIONS

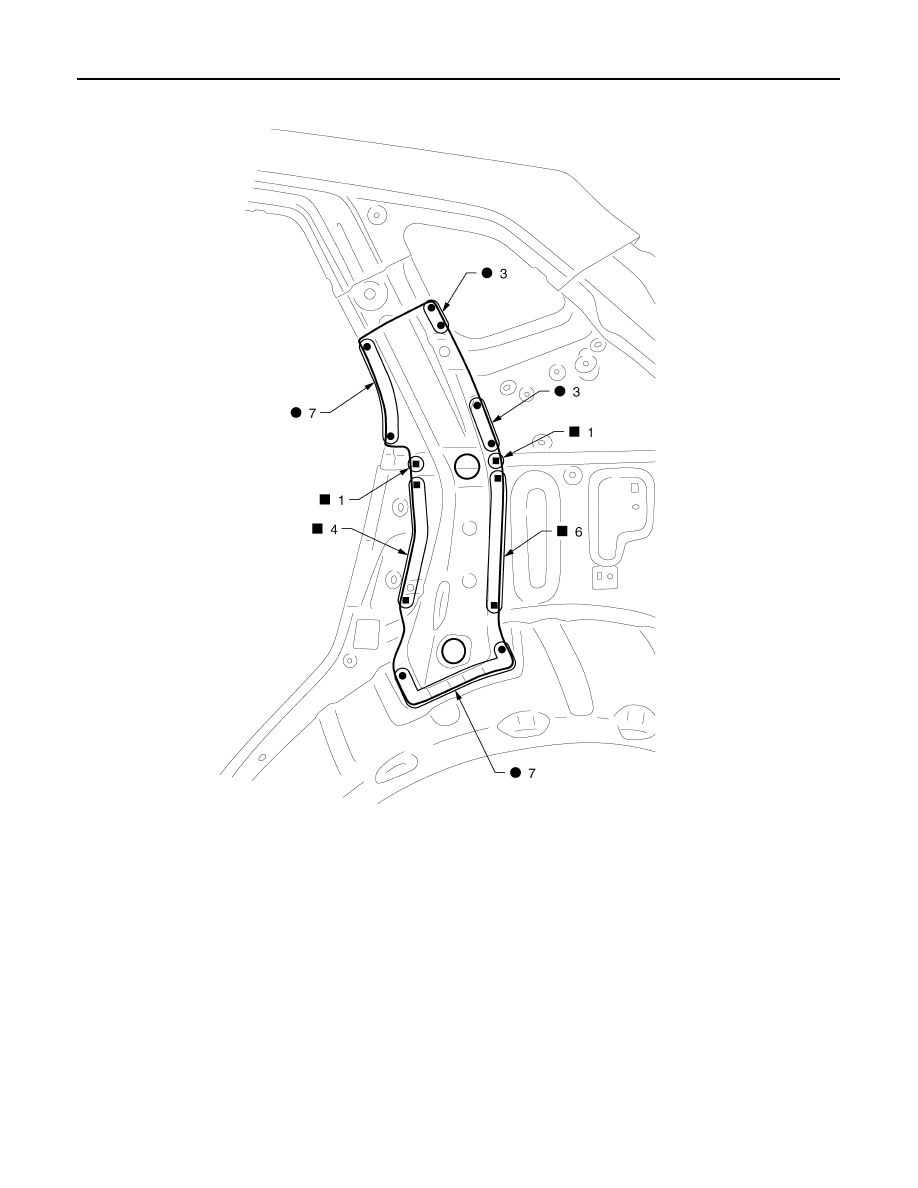

Inner Rear Pillar

INFOID:0000000010287998

Work after rear fender is removed.
Remove the rear roof rail brace (reusable) and rear seat belt anchor reinforcement (reusable) from the service
part

″

Inner rear pillar assembly

″

 for easier installation.

Replacement part

z

Inner rear pillar reinforcement

JSKIA4026ZZ

REPLACEMENT OPERATIONS

BRM-79

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Urethane foam

Rear roof rail brace (reusable)

: Vehicle front.

Replacement part

z

Inner rear pillar assembly

JSKIA4027ZZ

BRM-80

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

REPLACEMENT OPERATIONS

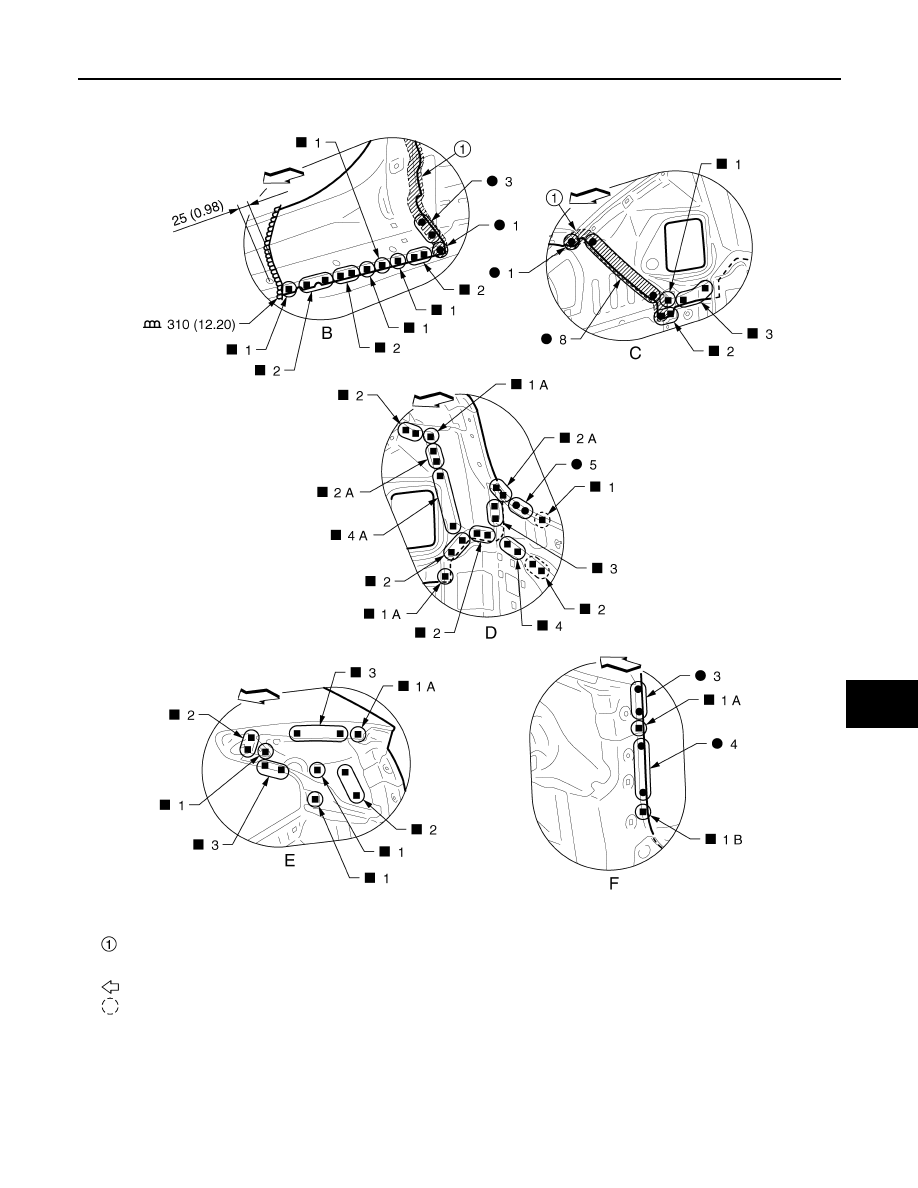

View E: Before installing rear seat belt anchor reinforcement
View G: Before installing rear roof rail brace and rear seat belt anchor reinforcement

Rear roof rail brace (reusable)

Rear seat belt anchor reinforcement
(reusable)

: Vehicle front.

: Weld the parts onto the back of the component part.

JSKIA4028ZZ
