Qashqai J11. Body repair - part 3





CORROSION PROTECTION

BRM-33

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

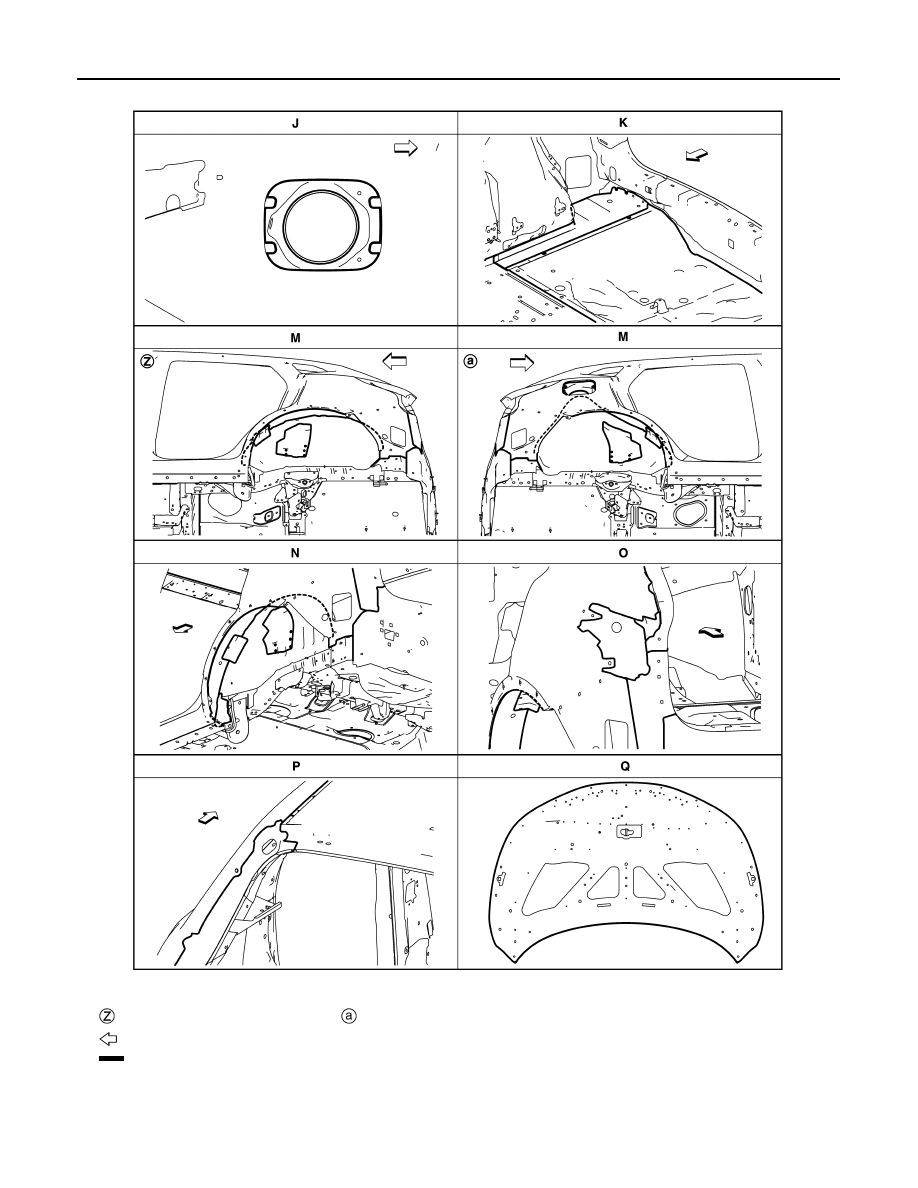

Without sunroof models

With sunroof models

: Vehicle front

: Sealed portions

JSKIA3891ZZ

BRM-34

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

CORROSION PROTECTION

Left side

Right side

: Vehicle front

: Sealed portions

JSKIA3892ZZ

CORROSION PROTECTION

BRM-35

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

4WD

4WD : Description

INFOID:0000000010305238

To provide improved corrosion prevention, the following anti-corrosive measures have been implemented in
NISSAN production plants. When repairing or replacing body panels, it is necessary to use the same anti-cor-
rosive measures.

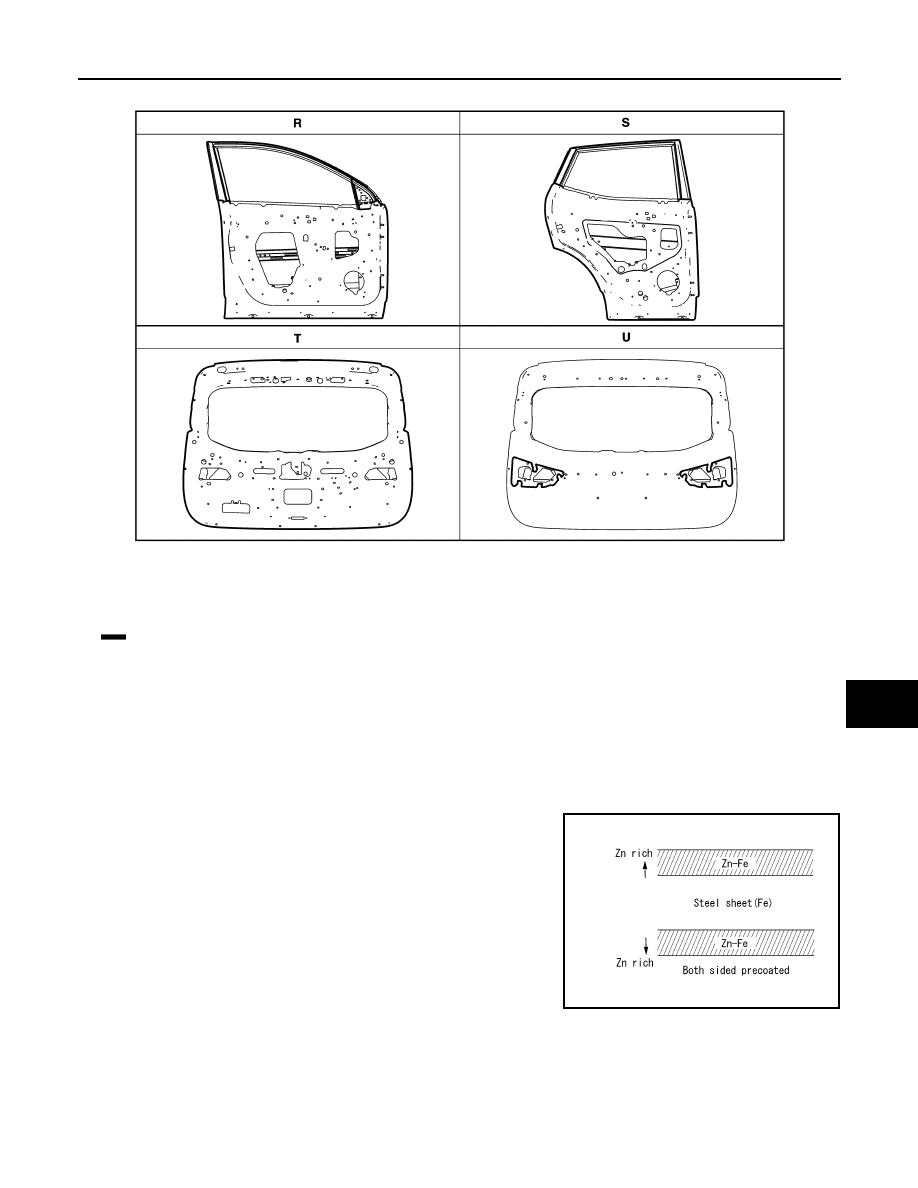

Anti-Corrosive Precoated Steel (Galvannealed Steel)

To improve repairability and corrosion resistance, a new type of anti-
corrosive precoated steel sheet is adopted replacing conventional
zinc-coated steel sheet.
Galvannealed steel is electroplated and heated to form Zinc-iron
alloy, which provides excellent and long term corrosion resistance
with cationic electrodeposition primer.

NISSAN genuine parts are fabricated from galvannealed steel. Therefore, it is recommended that NISSAN
genuine parts or an equivalent be used for panel replacement to maintain the anti-corrosive performance built
into the vehicle at the factory.

Phosphate Coating Treatment and Cationic Electrodeposition Primer

: Sealed portions

JSKIA3893ZZ

SIIA2294E

BRM-36

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

CORROSION PROTECTION

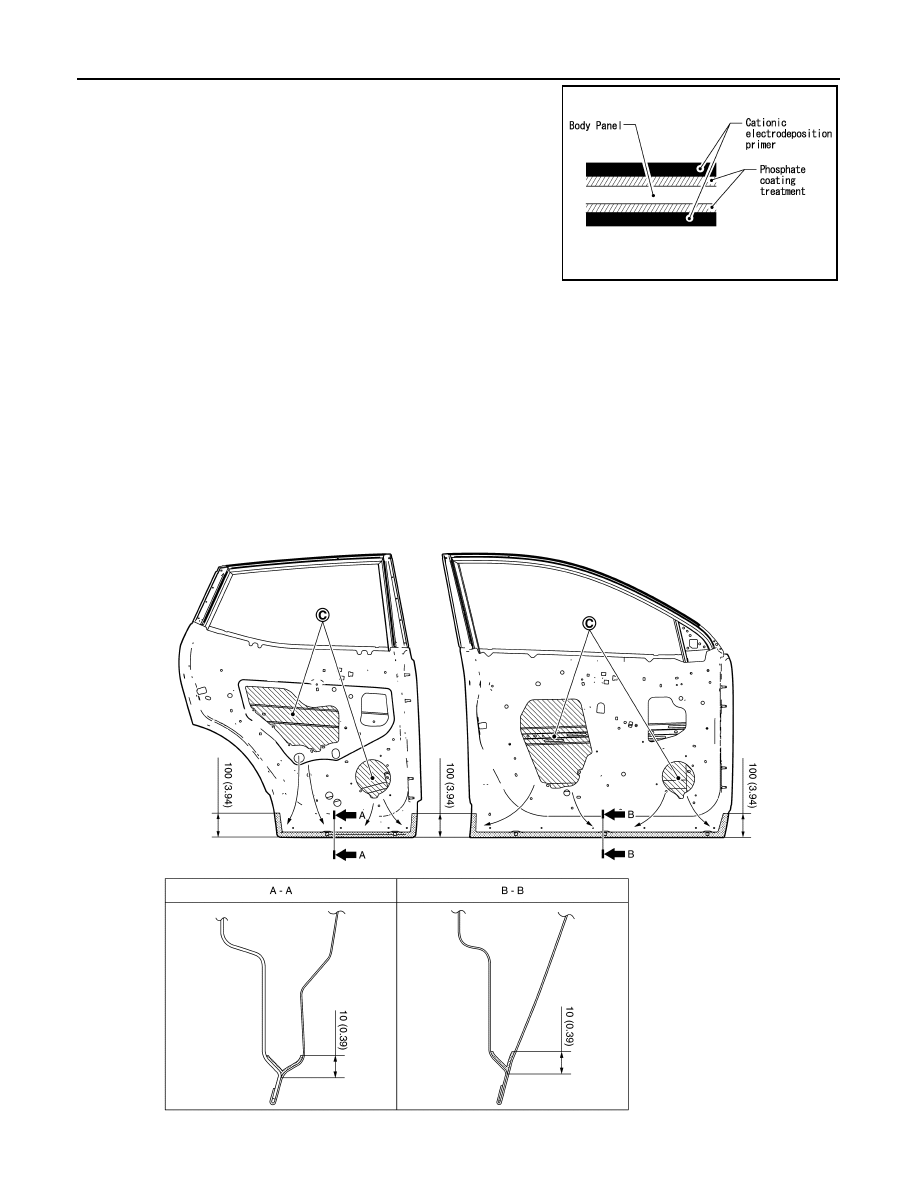

A phosphate coating treatment and a cationic electrodeposition
primer, which provide excellent corrosion protection, are applied to
all body components.

CAUTION:

Confine paint removal during welding operation to an absolute
minimum.

NISSAN genuine parts are also treated in the same manner. Therefore, it is recommended that NISSAN gen-
uine parts or an equivalent be used for panel replacement to maintain anti-corrosive performance built into the
vehicle at the factory.

4WD : Anti-corrosive Wax

INFOID:0000000010305298

To improve corrosion resistance, anti-corrosive wax is applied inside the body sill and inside other closed sec-
tions. Accordingly, when replacing these parts, be sure to apply anti-corrosive wax to the appropriate areas of
the new parts. Select an excellent anti-corrosive wax which will penetrate after application and has a long shelf
life.

DOOR

PIIA0095E

JSKIA3887GB

CORROSION PROTECTION

BRM-37

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

4WD : Undercoating

INFOID:0000000010305295

The underside of the floor and wheelhouse are undercoated to prevent rust, vibration, noise and stone chip-
ping. Therefore, when such a panel is replaced or repaired, apply undercoating to that part. Use an undercoat-
ing which is rust resistant, soundproof, vibration-proof, shock-resistant, adhesive, and durable.

Precautions in Undercoating

1.

Never apply undercoating to any place unless specified (such as the areas above the muffler and three
way catalyst that are subjected to heat).

2.

Never undercoat the exhaust pipe or other parts that become hot.

3.

Never undercoat rotating parts.

4.

Apply bitumen wax after applying undercoating.

5.

After putting seal on the vehicle, put undercoating on it.

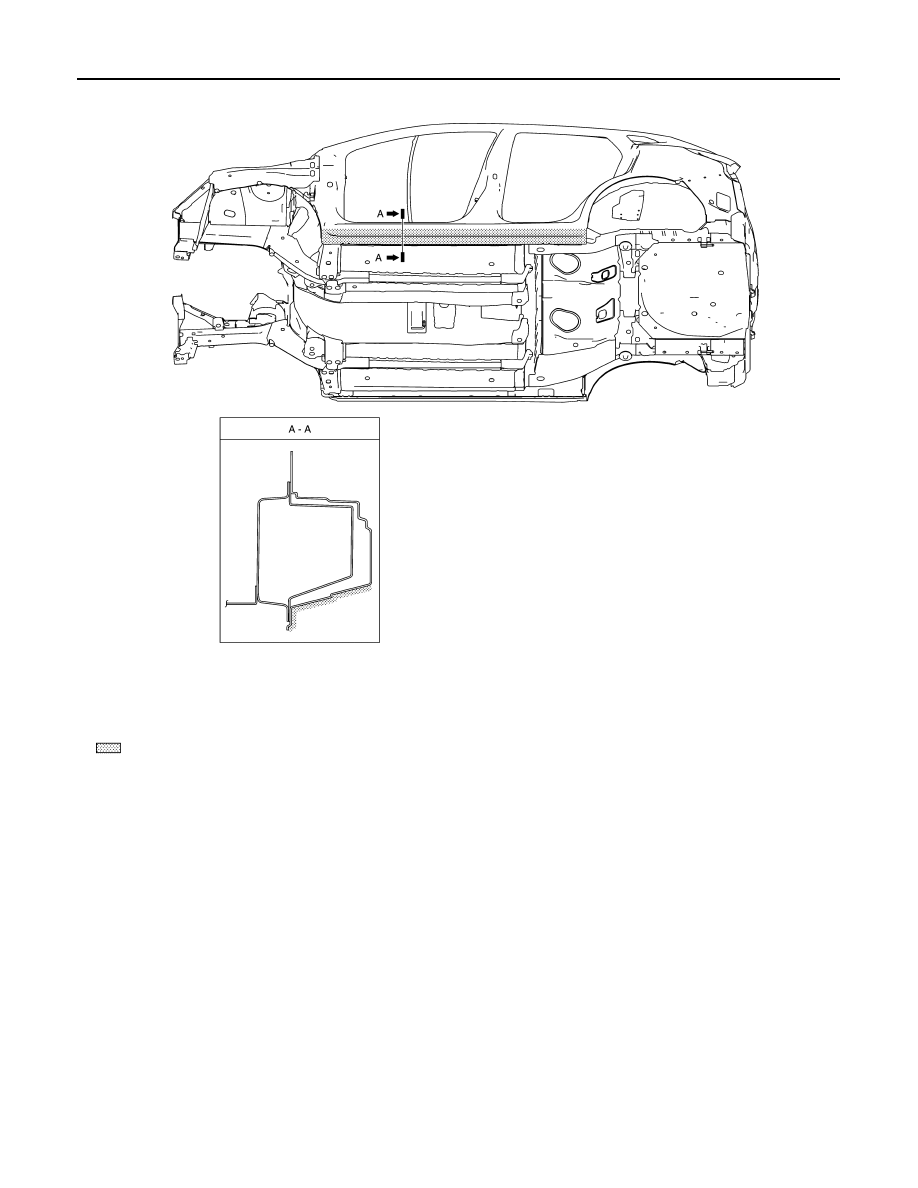

4WD : Stone Guard Coat

INFOID:0000000010305296

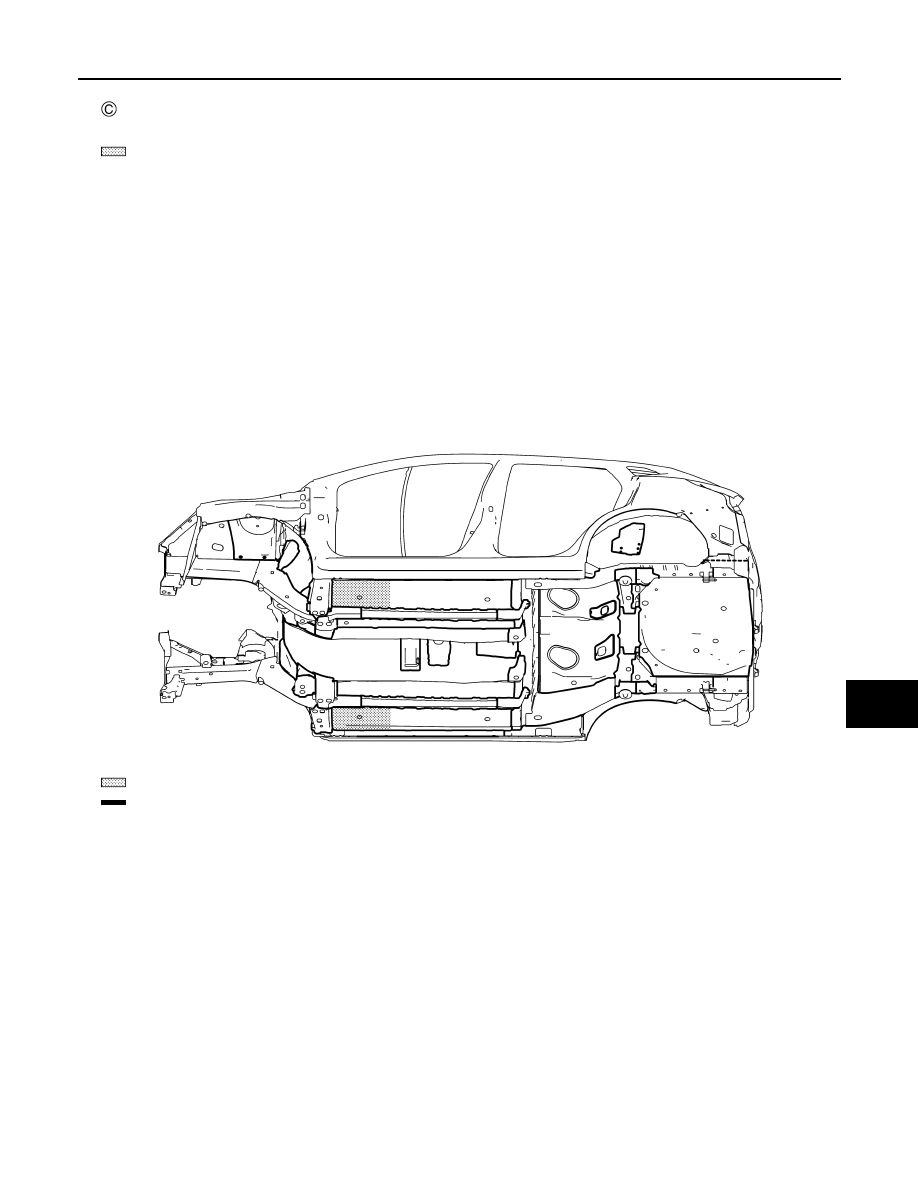

To prevent damage caused by stones, the lower outer body panel (fender, door, etc.) have an additional layer
of Stone Guard Coating over the ED primer coating. When replacing or repairing these panels, apply Stone
Guard coating to the same portions as before. Use a coating which is rust preventive, durable, shock-resistant
and has a long shelf life.

Nozzle insert hole

Unit: mm (in)

: Anti-corrosive wax coated portions

: Undercoated areas

: Sealed portions

JSKIA3895ZZ

BRM-38

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

CORROSION PROTECTION

4WD : Body Sealing

INFOID:0000000010305297

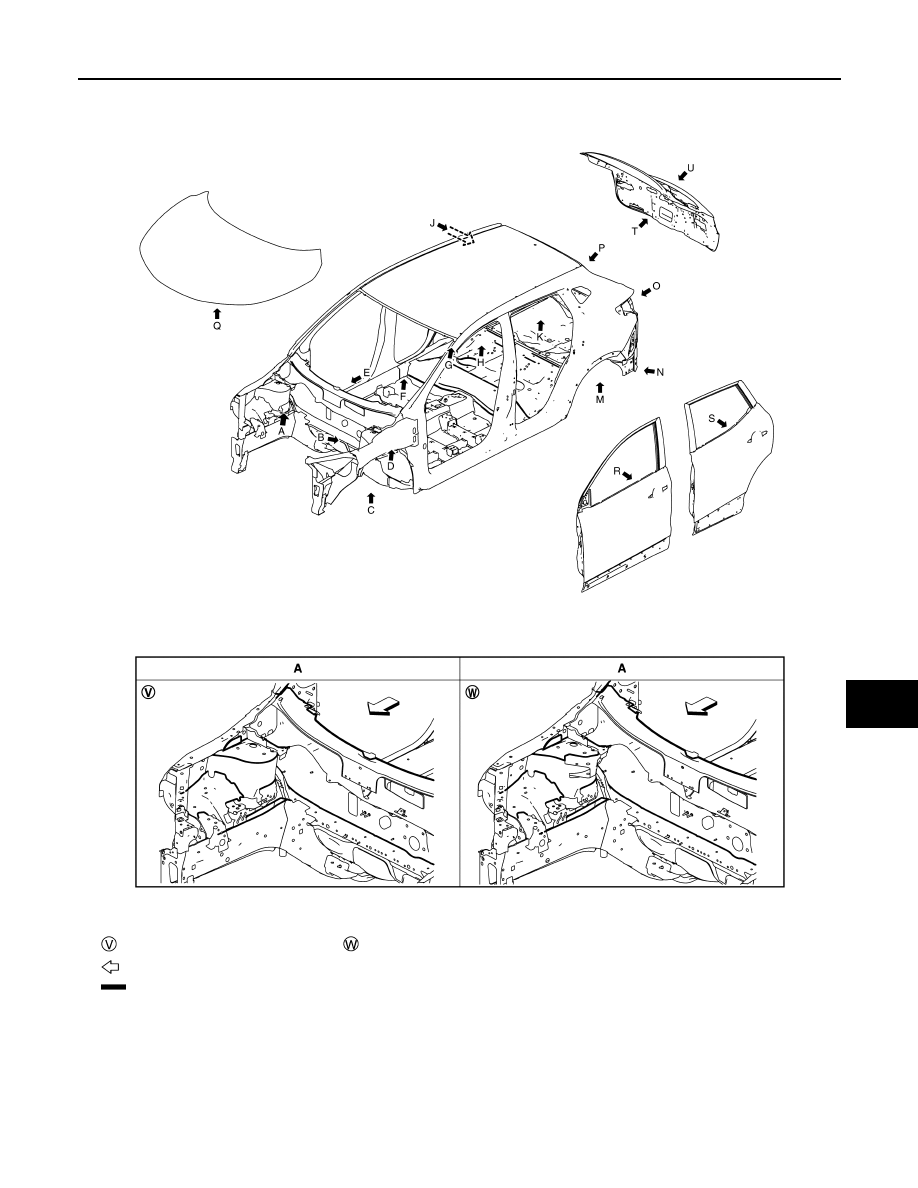

The following figure shows the areas that are sealed at the factory. Sealant that is applied to these areas
should be smooth and free from cuts or gaps. Care should be taken not to apply an excess amount of sealant
and not to allow other unaffected parts to come into contact with the sealant.

: Stone guard coated portions

JSKIA3896ZZ

CORROSION PROTECTION

BRM-39

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

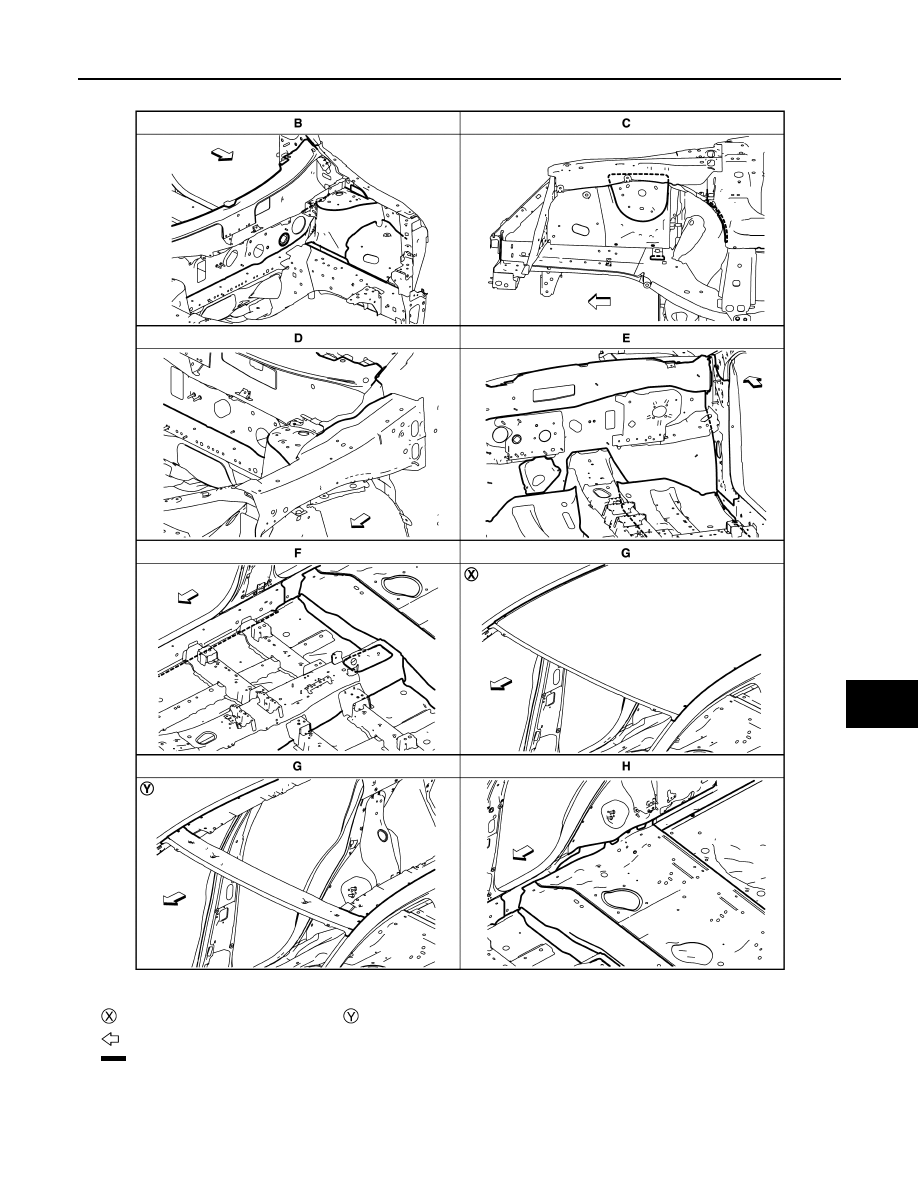

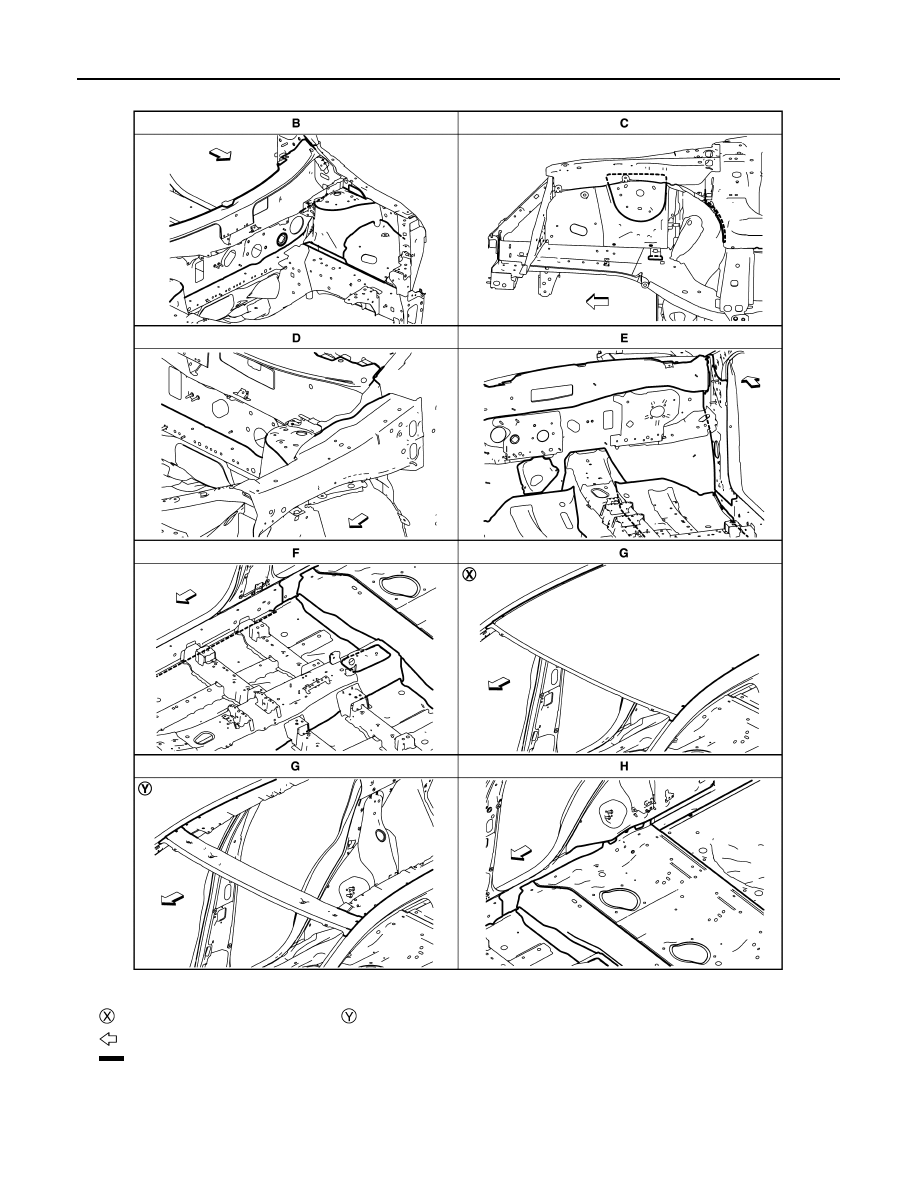

Except for R9M engine models

R9M engine models

: Vehicle front

: Sealed portions

JSKIA3890ZZ

BRM-40

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

CORROSION PROTECTION

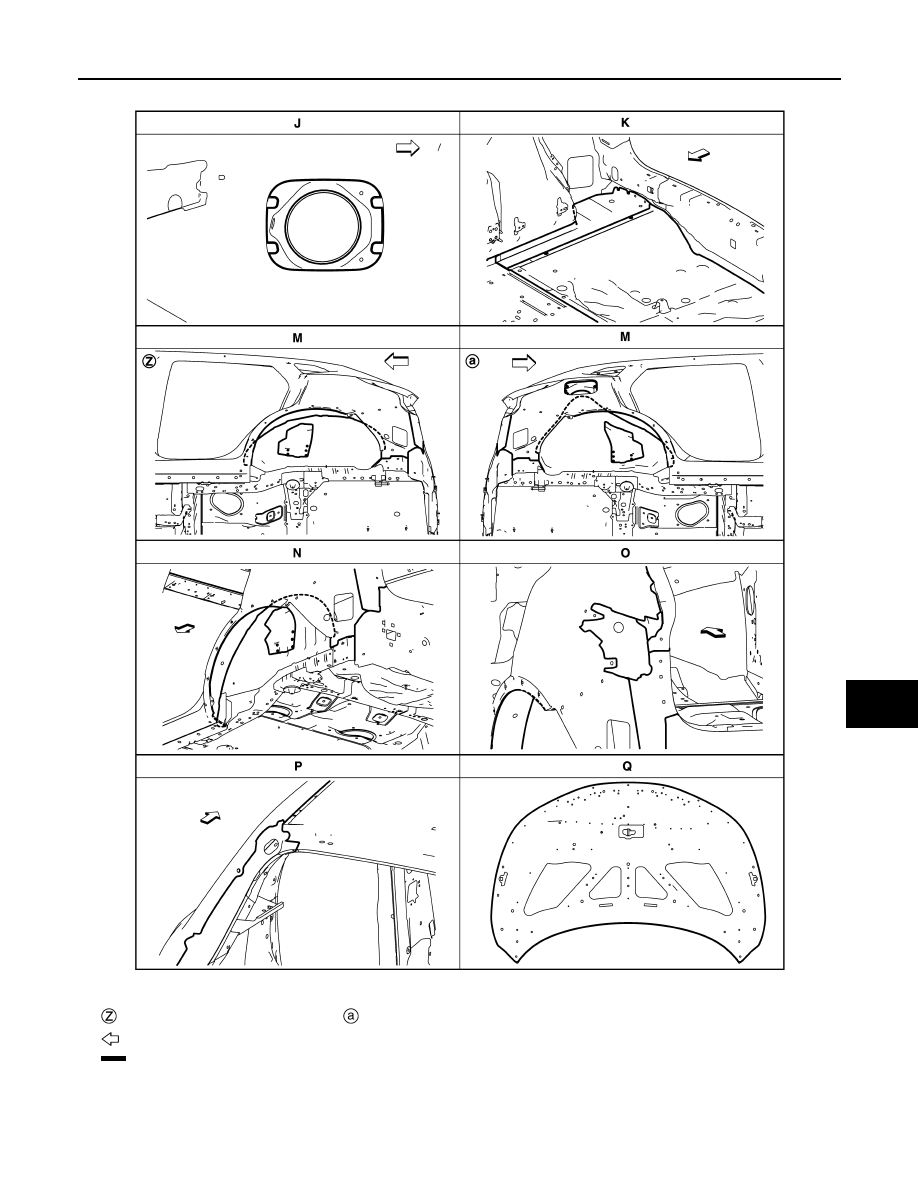

Without sunroof models

With sunroof models

: Vehicle front

: Sealed portions

JSKIA3898ZZ

CORROSION PROTECTION

BRM-41

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Left side

Right side

: Vehicle front

: Sealed portions

JSKIA3899ZZ

BRM-42

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

CORROSION PROTECTION

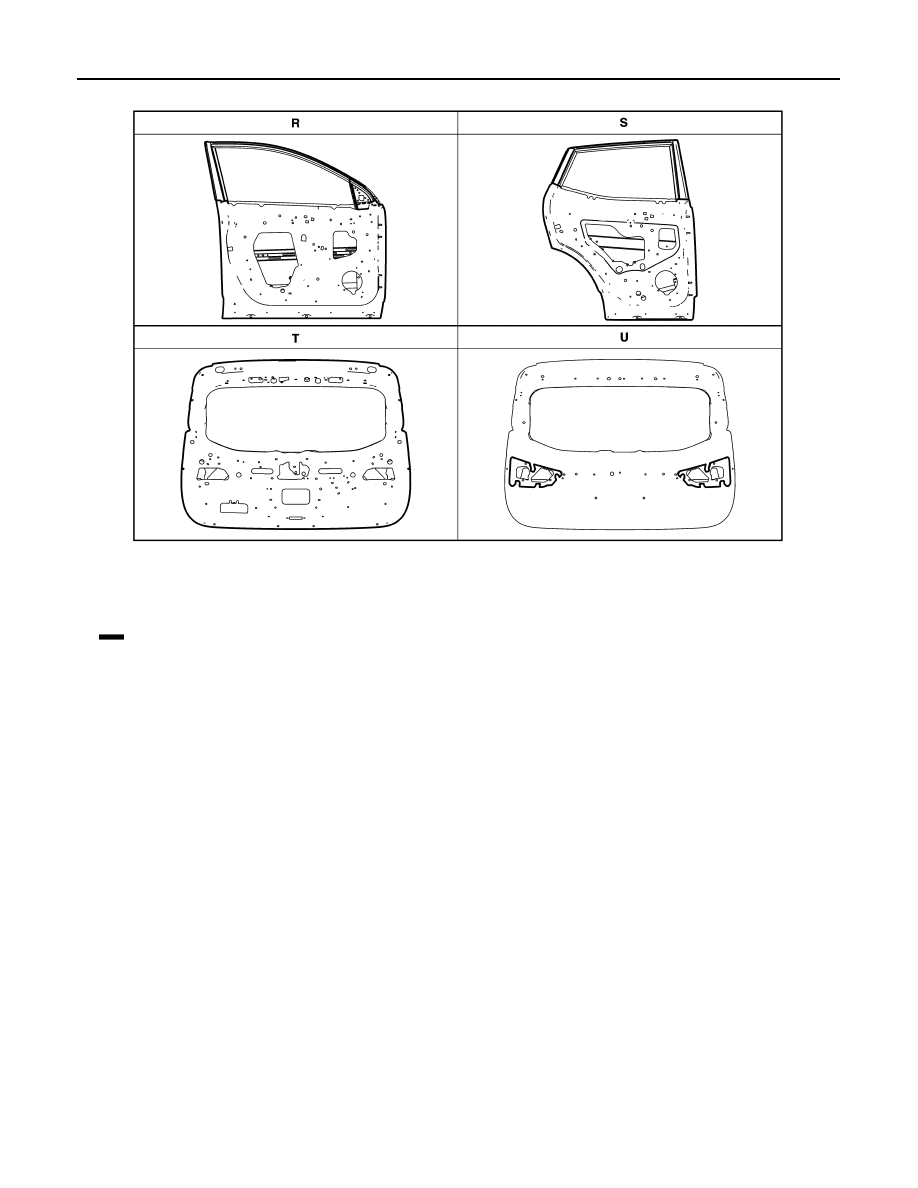

: Sealed portions

JSKIA3893ZZ

BODY CONSTRUCTION

BRM-43

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

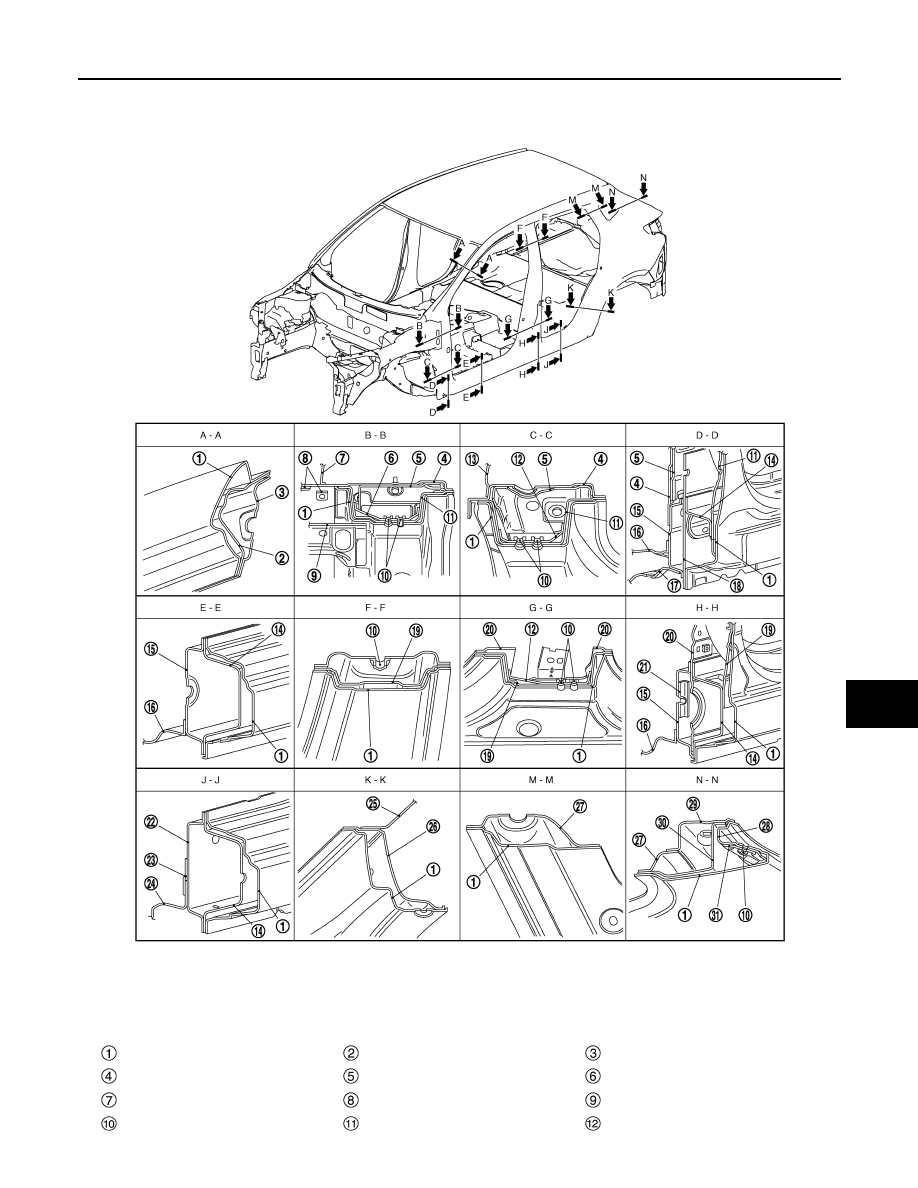

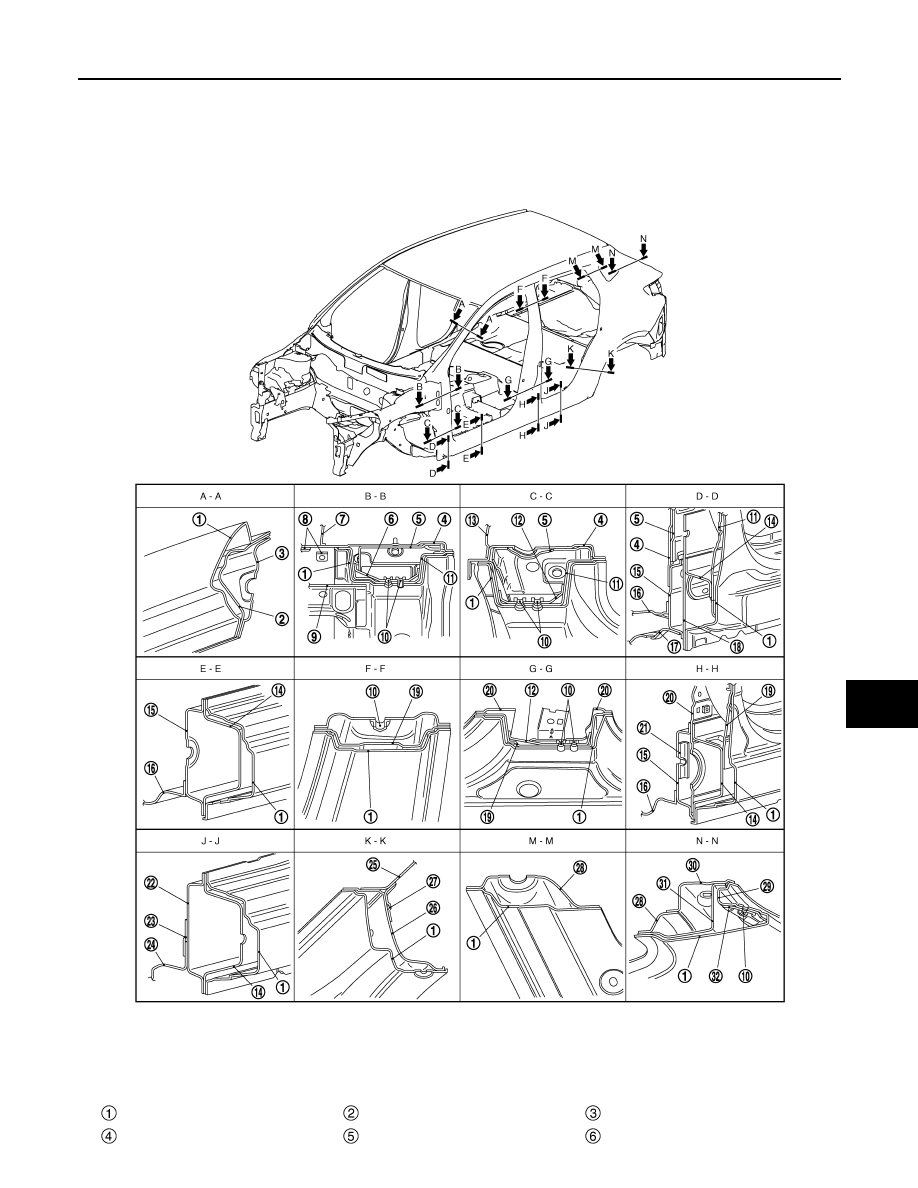

BODY CONSTRUCTION

2WD

2WD : Body Construction

INFOID:0000000010287981

JSKIA3901ZZ

Outer side body

Outer front pillar reinforcement

Upper inner front pillar

Side dash

Inner front pillar reinforcement

Upper hinge plate

BRM-44

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

BODY CONSTRUCTION

4WD

Upper dash

Side dash reinforcement

Hoodledge reinforcement

Weld nut

Lower front pillar hinge brace

Lower hinge plate

Lower dash

Outer sill reinforcement

Inner sill

Front floor

Front side member outrigger

Lower front pillar reinforcement

Center pillar hinge brace

Inner center pillar

Weld plate

Inner sill extension

Rear seat crossmember

Rear floor front extension

Inner rear wheelhouse

Outer rear wheelhouse

Inner rear wheelhouse reinforce-
ment

Inner rear pillar

Rear fender extension

Rear roof rail brace

Upper back pillar reinforcement

Back door stay reinforcement

BODY CONSTRUCTION

BRM-45

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

4WD : Body Construction

INFOID:0000000010308800

Outer side body

Outer front pillar reinforcement

Upper inner front pillar

Side dash

Inner front pillar reinforcement

Upper hinge plate

Upper dash

Side dash reinforcement

Hoodledge reinforcement

Weld nut

Lower front pillar hinge brace

Lower hinge plate

JSKIA3902ZZ

BRM-46

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

BODY CONSTRUCTION

Lower dash

Outer sill reinforcement

Inner sill

Front floor

Front side member outrigger

Lower front pillar reinforcement

Center pillar hinge brace

Inner center pillar

Weld plate

Inner sill extension

Rear seat crossmember

Rear floor front extension

Inner rear wheelhouse

Outer rear wheelhouse

Inner rear pillar

Rear fender extension

Rear roof rail brace

Upper back pillar reinforcement

Back door stay reinforcement

REPLACEMENT OPERATIONS

BRM-47

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

REPLACEMENT OPERATIONS

Description

INFOID:0000000010287983

• This section is prepared for technicians who have attained a high level of skill and experience in repairing

collision-damaged vehicles and also use modern service tools and equipment. Persons unfamiliar with body
repair techniques should not attempt to repair collision-damaged vehicles by using this section.

• Technicians are also encouraged to read the Body Repair Manual (Fundamentals) in order to ensure that the

original functions and quality of the vehicle are maintained. The Body Repair Manual (Fundamentals) con-
tains additional information, including cautions and warnings, that are not including in this manual. Techni-
cians should refer to both manuals to ensure proper repair.

• Please note that this information is prepared for worldwide usage, and as such, certain procedures might not

apply in some regions or countries.

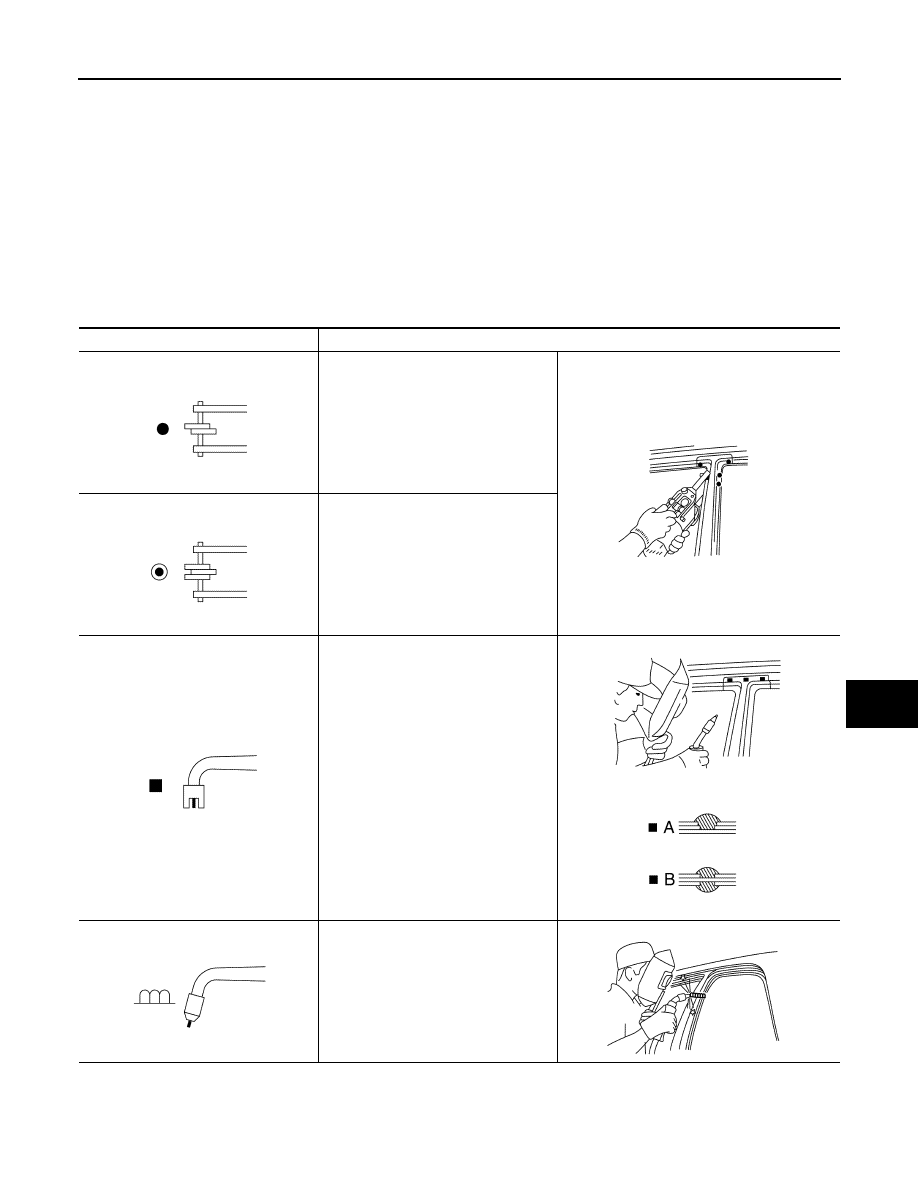

The symbols used in this section for welding operations are shown below.

Symbol marks

Description

2-spot welds

3-spot welds

MIG plug weld

For 3 panels plug weld method

MIG seam weld / Point weld

JSKIA0049ZZ

JSKIA0053ZZ

JSKIA0050ZZ

JSKIA0051ZZ

JSKIA0054ZZ

JSKIA0055ZZ

JSKIA0052ZZ

JSKIA0056ZZ

BRM-48

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

REPLACEMENT OPERATIONS

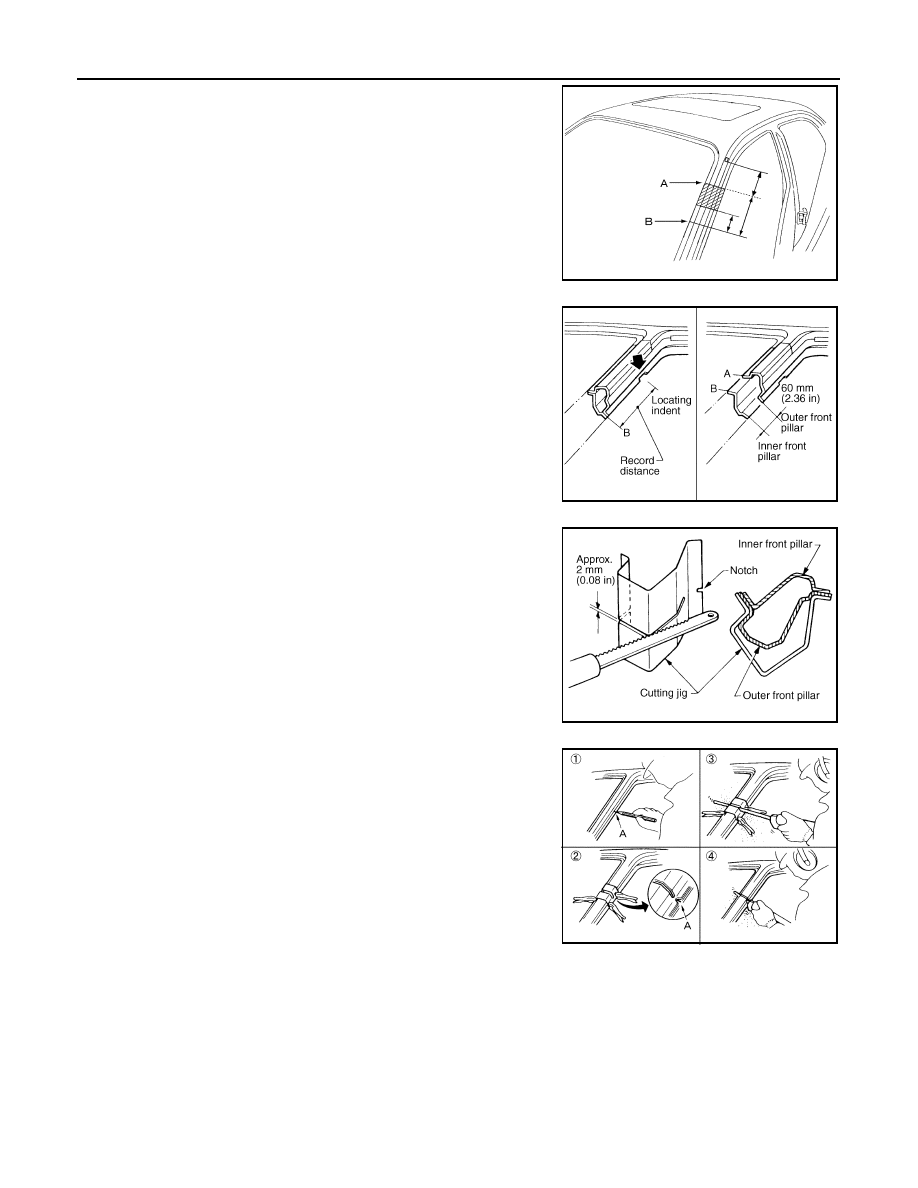

• Front pillar butt joint can be determined anywhere within shaded

area as shown in the figure. The best location for the butt joint is at
position A due to the construction of the vehicle.

• Determine cutting position and record distance from the locating

indent. Use this distance when cutting the service part. Cut outer
front pillar over 60 mm (2.36 in) above the inner front pillar cut
position.

• Prepare a cutting jig to make outer pillar easier to cut. Also, this will

permit the service part to be accurately cut at the joint position.

• An example of cutting operation using a cutting jig is as per the fol-

lowing.

1.

Mark cutting lines.
A: Cut position of outer pillar
B: Cut position of inner pillar

2.

Align cutting line with notch on jig. Clamp jig to pillar.

3.

Cut outer pillar along groove of jig (at position A).

4.

Remove jig and cut remaining portions.

5.

Cut inner pillar at position B in same manner.

Welding of Ultra High Strength Steel

INFOID:0000000010479320

SPOT WELDING

The spot welding is limited to ultra high strength steel of tensile strength 980 MPa under the conditions listed
below.

CAUTION:

• If this condition is not satisfied, then perform plug welding.
• This condition is inapplicable to ultra high strength steel of tensile strength more than 980 MPa. For

this type of ultrahigh strength steel, perform plug welding.

PIIA0150E

JSKIA0104GB

JSKIA0105GB

PIIA0153E
