or remote keyless entry or by opening/closing the driver side door. In addition, ACC power is supplied even
after the ignition switch is turned to the OFF position, i.e. ACC power is supplied for a certain fixed time.

• When disconnecting the 12V battery terminal, turn off the ACC

power before disconnecting the 12V battery terminal, observing
“How to disconnect 12V battery terminal” described below.
NOTE:
Some ECUs operate for a certain fixed time even after ignition
switch is turned OFF and ignition power supply is stopped. If the
battery terminal is disconnected before ECU stops, accidental DTC
detection or ECU data damage may occur.

• For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be detected.

• After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

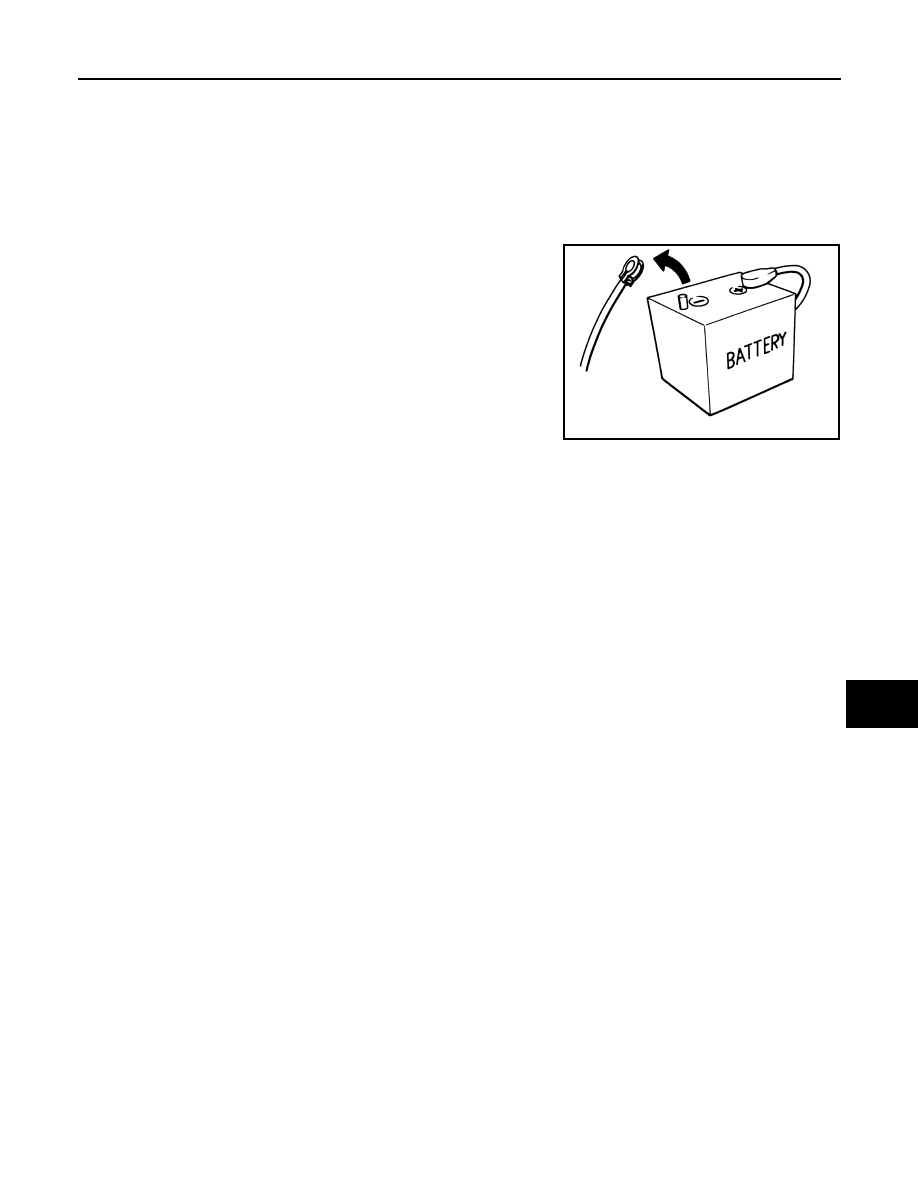

HOW TO DISCONNECT 12V BATTERY TERMINAL

Disconnect 12V battery terminal according to Instruction 1 or Instruction 2 described below.
For vehicles parked by ignition switch OFF, refer to Instruction 2.

INSTRUCTION 1

Open the hood.

Turn key switch to the OFF position with the driver side door opened.

Get out of the vehicle and close the driver side door.

Wait at least 3 minutes. For vehicle with the engine listed below, remove the battery terminal after a lapse
of the specified time.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

INSTRUCTION 2 (FOR VEHICLES PARKED BY IGNITION SWITCH OFF)

Unlock the door with intelligent key or remote keyless entry.
NOTE:
At this moment, ACC power is supplied.

Open the driver side door.

Open the hood.

Close the driver side door.

Wait at least 3 minutes.

SEF289H

D4D engine

: 20 minutes

HRA2DDT

: 12 minutes

K9K engine

: 4 minutes

M9R engine

: 4 minutes

R9M engine

: 4 minutes

V9X engine

: 4 minutes

REPAIRING HIGH STRENGTH STEEL

BRM-9

< PRECAUTION >

[FOR EUROPE (LHD)]

BRM

REPAIRING HIGH STRENGTH STEEL

High Strength Steel (HSS)

INFOID:0000000010287972

High strength steel is used for body panels in order to reduce vehicle weight.
Accordingly, precautions in repairing automotive bodies made of high strength steel are described below:

Tensile strength

Major applicable parts

440 - 780 MPa

• Trans control reinforcement

(Center front floor assembly component part)

• 2nd crossmember

(Front floor assembly component part)

• 3rd crossmember

(Front floor assembly component part)

• 3rd crossmember reinforcement

(Front floor assembly component part)

• Lower dash crossmember

(Lower dash assembly component part)

• Side dash

(Side dash assembly component part)

• Inner front pillar reinforcement

(Side dash assembly component part)

• Front suspension spring support

(Front strut housing assembly component part)

• Engine mounting bracket reinforcement

(Front strut housing assembly component part)

• Engine mounting bracket

(Front strut housing assembly component part)

• Front bumper reinforcement assembly
• Lower front bumper stay
• Front side member closing plate (Front)

(Side member closing plate assembly component part)

• Outer add on frame bracket

(Side member closing plate assembly component part)

• Closing plate reinforcement

(Side member closing plate assembly component part)

• Front side member assembly
• Engine mounting member bracket assembly
• Front suspension mounting rear bracket assembly
• Inner sill extension

(Rear side member assembly component part)

• Inner rear sill

(Rear side member assembly component part)

• Outer rear anchor reinforcement

(Rear side member assembly component part)

• Rear side member extension assembly
• Inner front side roof rail assembly
• Upper inner front pillar assembly
• Inner center pillar (Lower)

(Inner center pillar assembly component part)

• Lower front pillar hinge brace
• Rear bumper stay assembly

BRM-10

< PRECAUTION >

[FOR EUROPE (LHD)]

REPAIRING HIGH STRENGTH STEEL

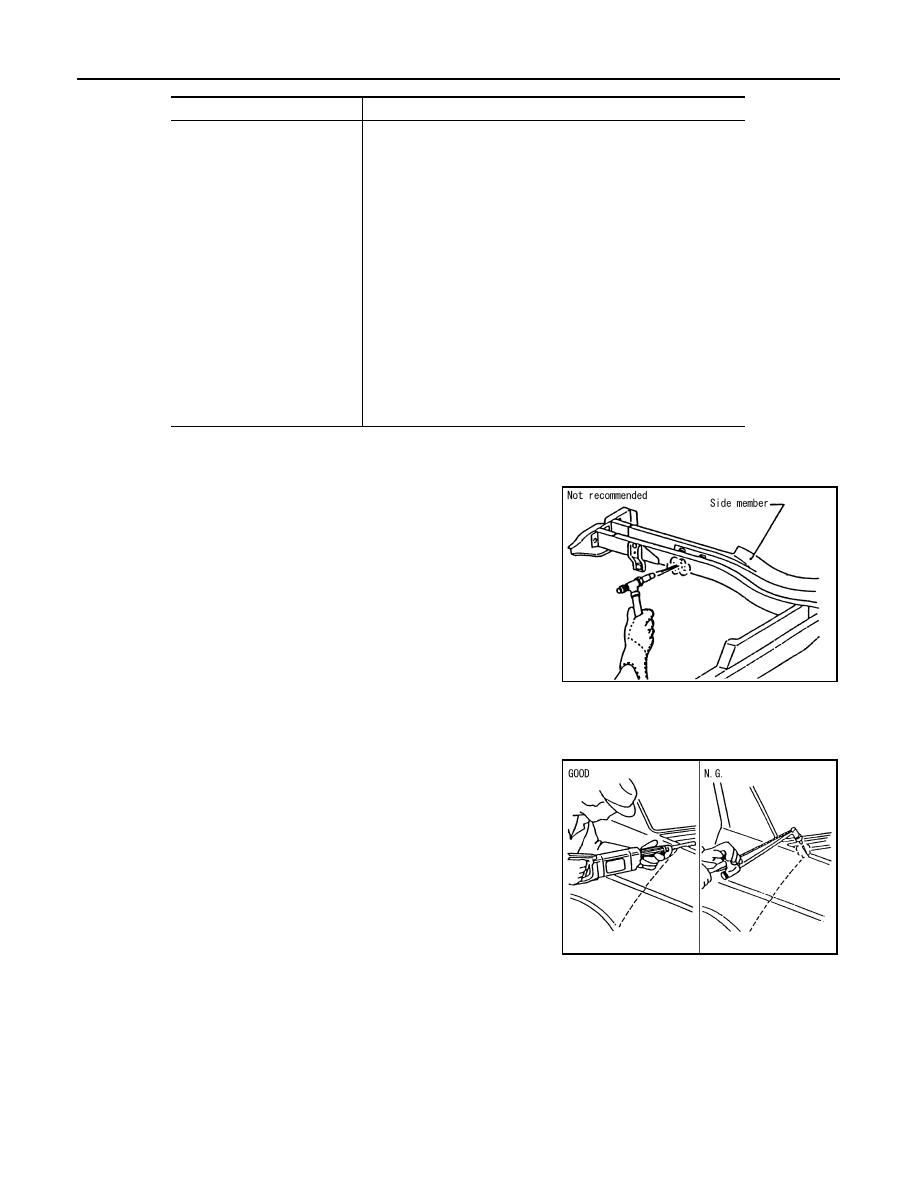

Read the following precautions when repairing HSS:

Additional points to consider
• The repair of reinforcements (such as side members) by heat-

ing is not recommended, because it may weaken the compo-
nent. When heating is unavoidable, never heat HSS parts
above 550

C (1,022

F).

Verify heating temperature with a thermometer.
(Crayon-type and other similar type thermometer are appropri-
ate.)

• When straightening body panels, use caution in pulling any HSS panel. Because HSS is very strong,

pulling may cause deformation in adjacent sections of the body. In this case, increase the number of
measuring points, and carefully pull the HSS panel.

• When cutting HSS panels, avoid gas (torch) cutting if possible.

Instead, use a saw to avoid weakening surrounding areas due
to heat. If gas (torch) cutting is unavoidable, allow a minimum
margin of 50 mm (1.97 in).

Tensile strength

Major applicable parts

980 - 1350 MPa

• Front side member rear extension

(Front floor assembly component part)

• Inner sill assembly
• Lower center dash crossmember assembly
• Front bumper reinforcement assembly
• Front side member closing plate (Rear)

(Side member closing plate assembly component part)

• Front side member (Rear)

(Front side member assembly component part)

• Inner center pillar (Upper)

(Inner center pillar assembly component part)

• Outer side roof rail
• Center pillar hinge brace (Upper)

(Center pillar hinge brace assembly component part)

• Outer front pillar reinforcement

(Front pillar hinge brace assembly component part)

• Outer sill reinforcement

(Outer sill reinforcement assembly component part)

• Rear bumper reinforcement assembly

PIIA0115E

PIIA0117E

REPAIRING HIGH STRENGTH STEEL

BRM-11

< PRECAUTION >

[FOR EUROPE (LHD)]

BRM

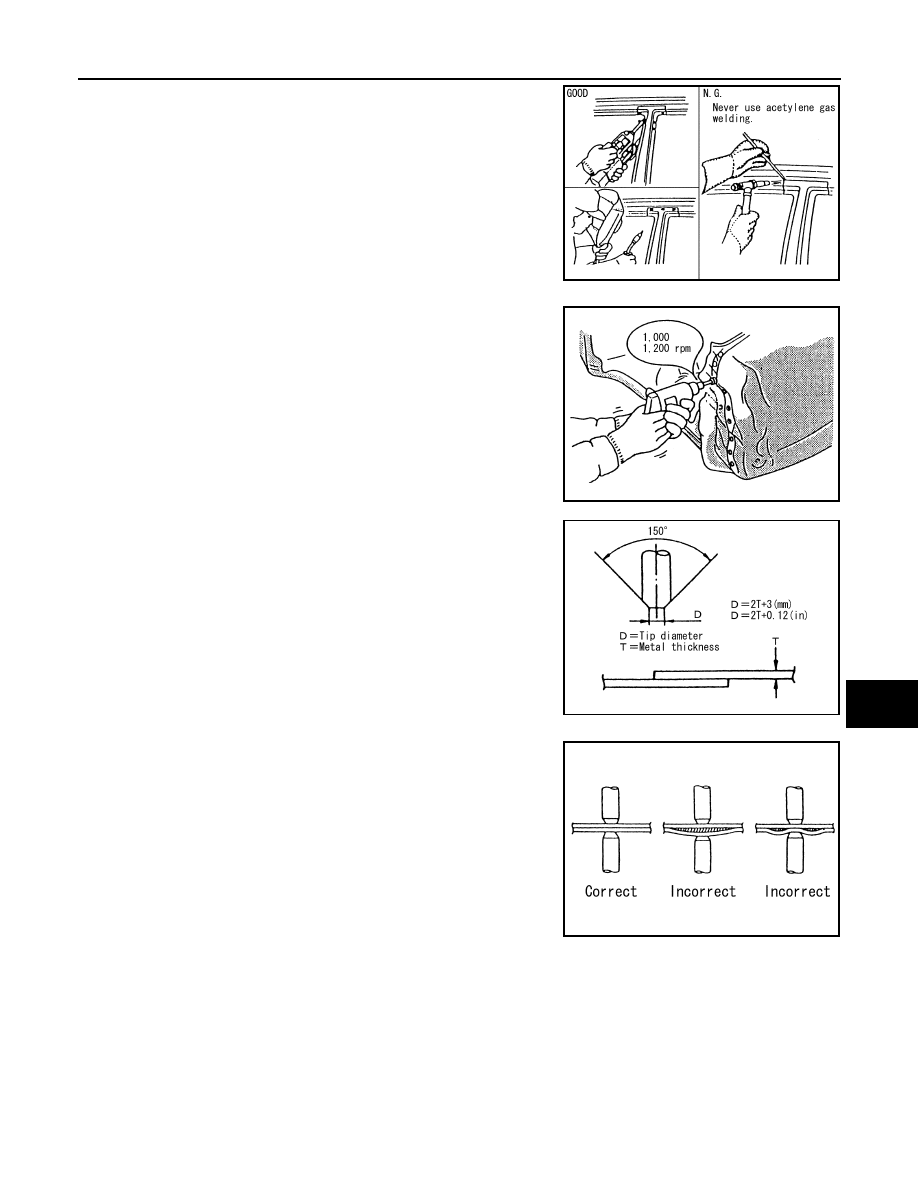

• When welding HSS panels, use spot welding whenever possi-

ble in order to minimize weakening surrounding areas due to
heat.
If spot welding is impossible, use MIG. welding. Do not use
gas (torch) for welding because it is inferior in welding
strength.

• Spot welding on HSS panels is harder than that of an ordinary

steel panel.
Therefore, when cutting spot welds on a HSS panel, use a low
speed high torque drill (1,000 to 1,200 rpm) to increase drill bit
durability and facilitate the operation.

Precautions in spot welding HSS
This work should be performed under standard working condi-
tions. Always note the following when spot welding HSS:
• The electrode tip diameter must be sized properly according to

the metal thickness.

• The panel surfaces must fit flush to each other, leaving no

gaps.

PIIA0144E

PIIA0145E

PIIA0146E

PIIA0147E

REPAIRING MATERIAL

BRM-13

< PREPARATION >

[FOR EUROPE (LHD)]

BRM

PREPARATION

REPAIRING MATERIAL

Foam Repair

INFOID:0000000010287974

During factory body assembly, foam insulators are installed in certain body panels and locations around the
vehicle. Use the following procedure(s) to replace any factory-installed foam insulators.

URETHANE FOAM APPLICATIONS

Use commercially available Urethane foam for sealant (foam material) repair of material used on vehicle.

Read instructions on product for fill procedures.

Example of foaming agent filling operation procedure

Fill procedures after installation of service part.

Eliminate foam material remaining on vehicle side.

Clean area after eliminating form insulator and foam material.

Install service part.

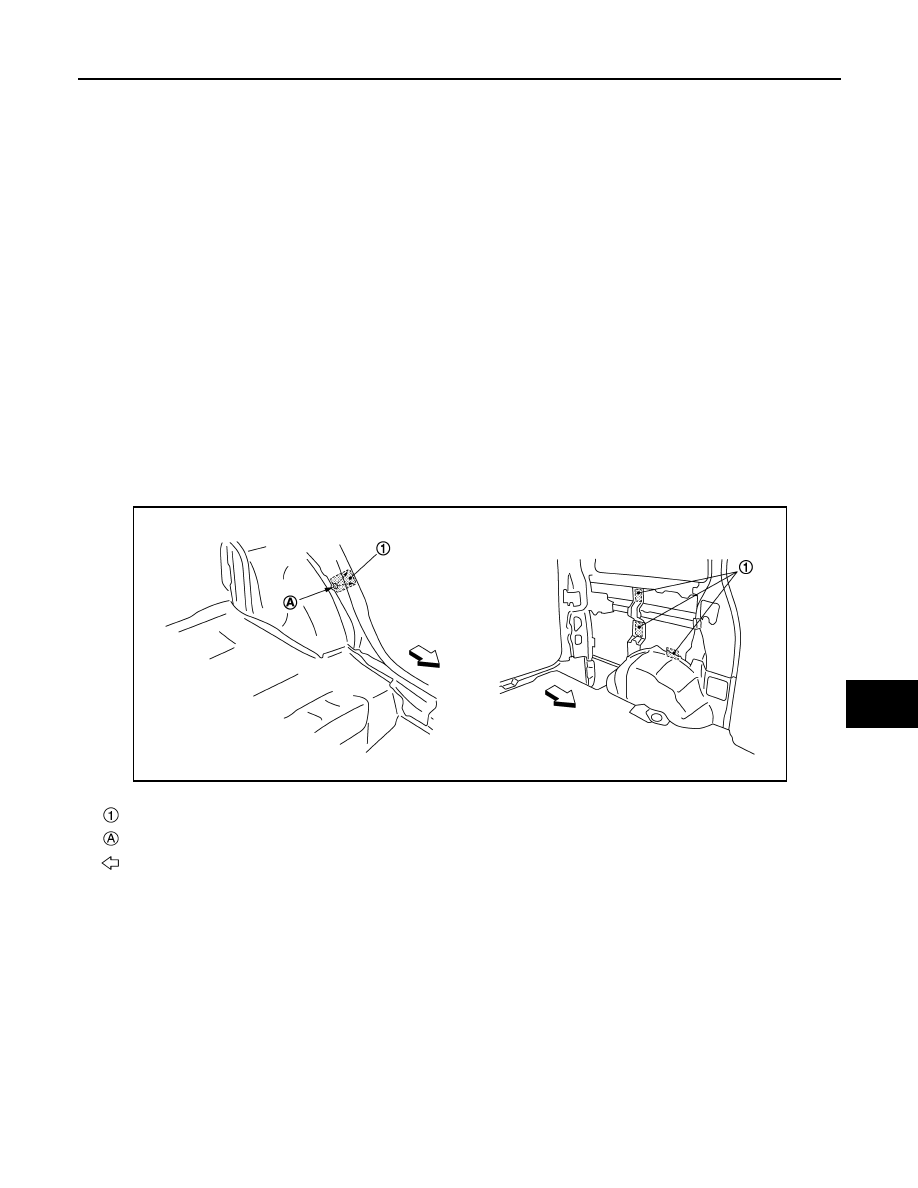

Insert nozzle into hole near fill area and fill foam material or fill enough to close gap with the service part.

Fill procedures before installation of service part.

Eliminate foam material remaining on vehicle side.

Clean area after eliminating foam insulator and foam material.

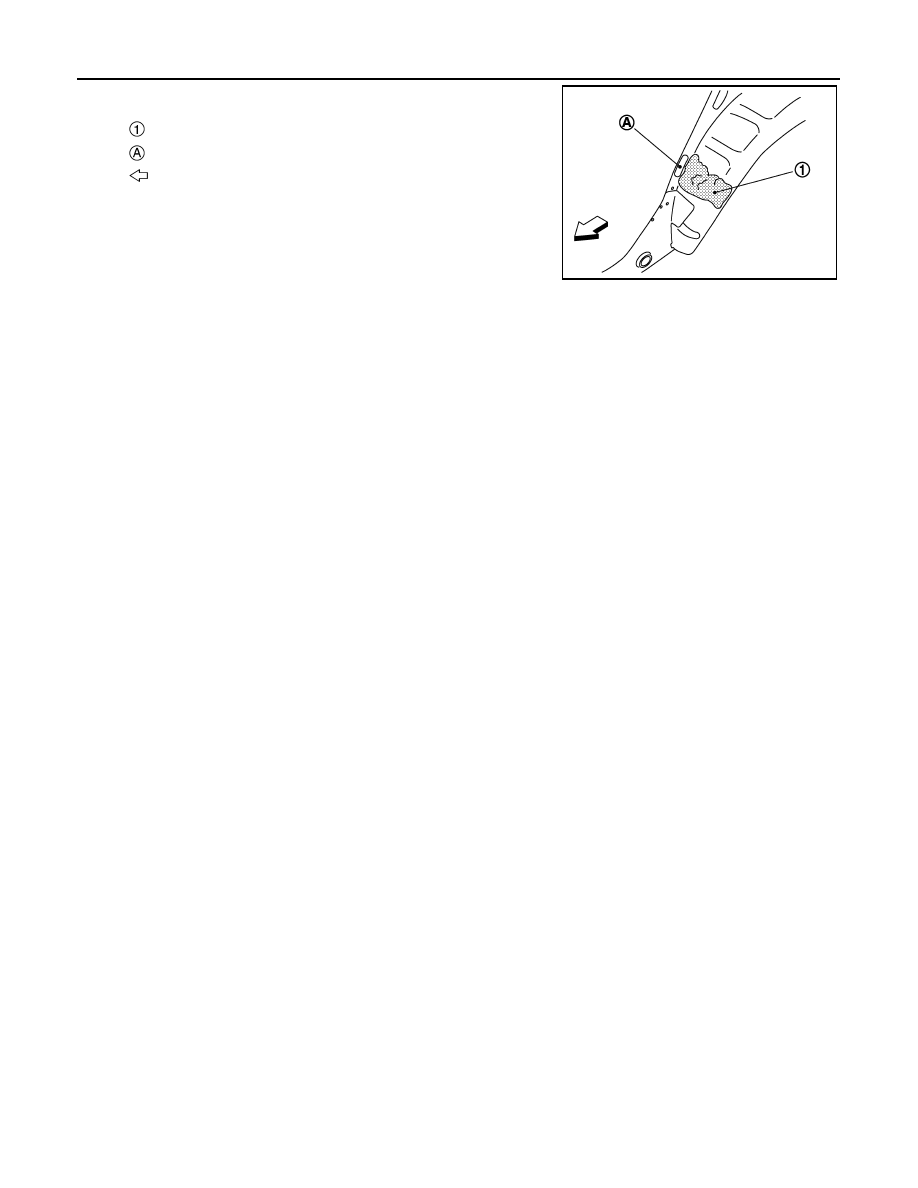

Fill foam material on wheelhouse outer side.

<Urethane foam for foaming agent>

3M™ Automix™ Flexible Foam 08463 or equiva-
lent

Urethane foam

Nozzle insert hole

: Vehicle front

JSKIA0129GB

BODY COMPONENT PARTS

BRM-15

< PREPARATION >

[FOR EUROPE (LHD)]

BRM

BODY COMPONENT PARTS

2WD

2WD : Ultra High Strength Steel Part

INFOID:0000000010505342

DESCRIPTION

Ultra high strength steel parts signify high strength steel plates with tensile strength of 980 MPa or more.
When replacing parts made of ultra high strength steel or parts including ultra high strength steel, never per-
form the prohibition described below:

PROHIBITION

WARNING:

Never cut ultra high strength steel parts or perform butt welding. Violation of this prohibition causes
extreme strength degradation, and the strength before damage cannot be secured.

PART REPLACEMENT

To replace an ultra high strength part, be sure to replace it by panel supply unit of ultra high strength steel part.
For the welding method, refer to

BRM-48, "Welding of Ultra High Strength Steel"

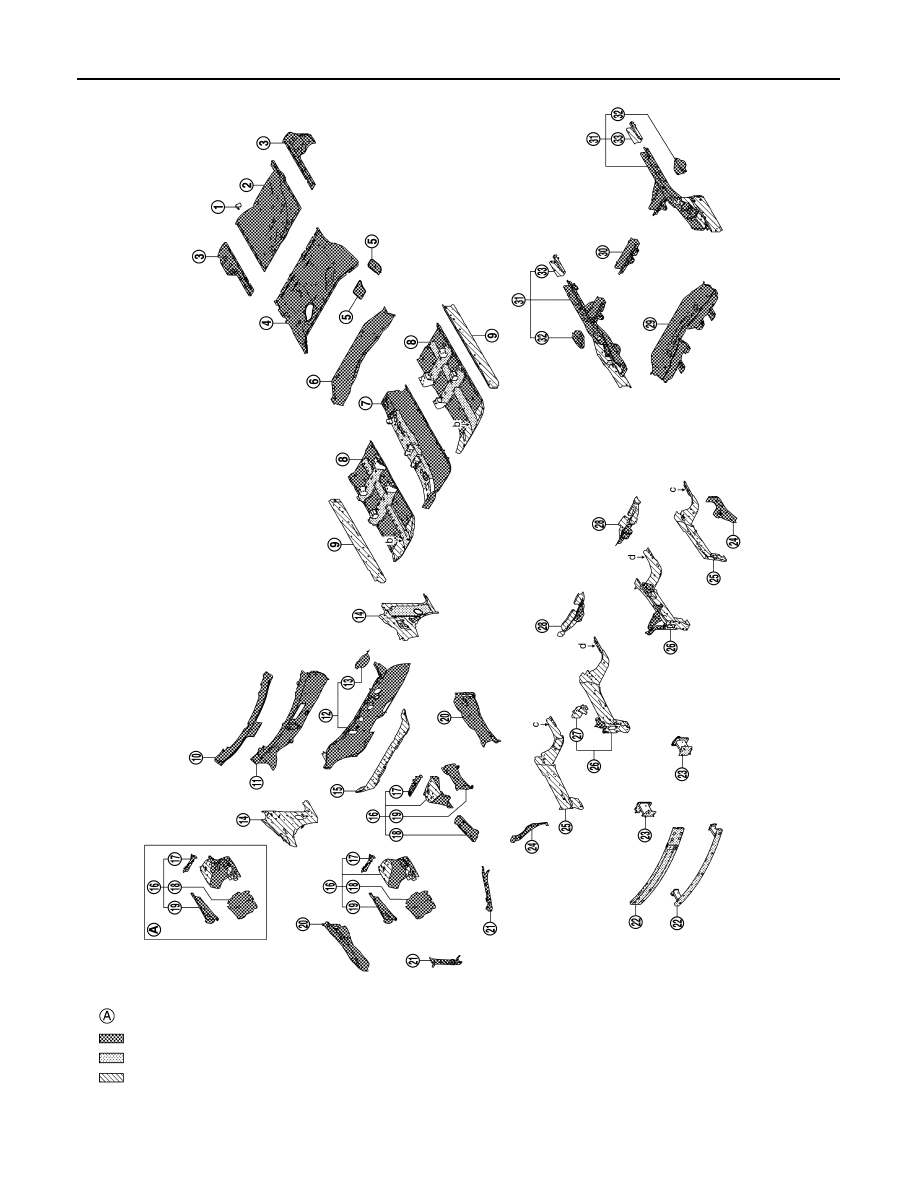

2WD : Underbody Component Parts

INFOID:0000000010287975

Refer to parts catalogue for the replacement parts.
