Qashqai J11. Security control system - part 15

SECURITY CONTROL SYSTEM

SEC-225

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

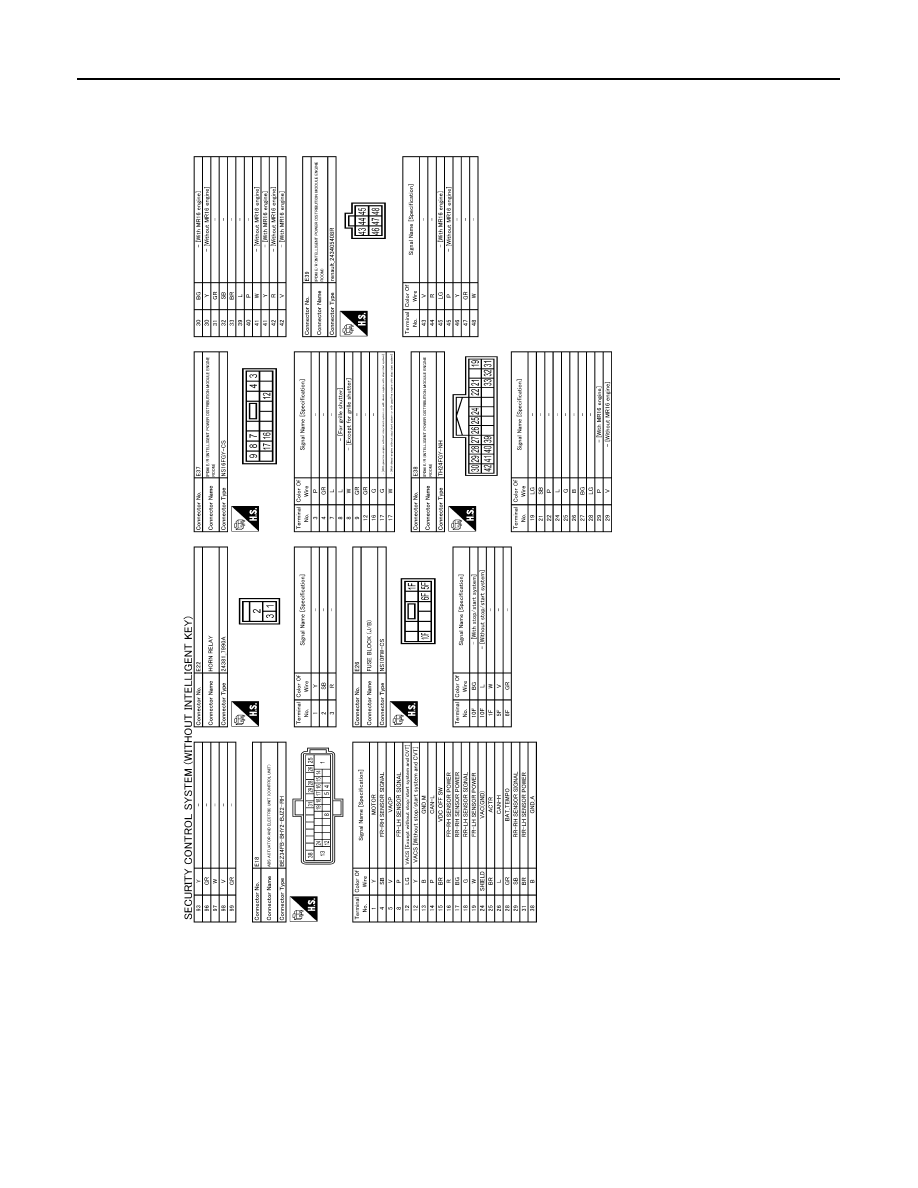

JRKWE4021GB

SEC-226

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

SECURITY CONTROL SYSTEM

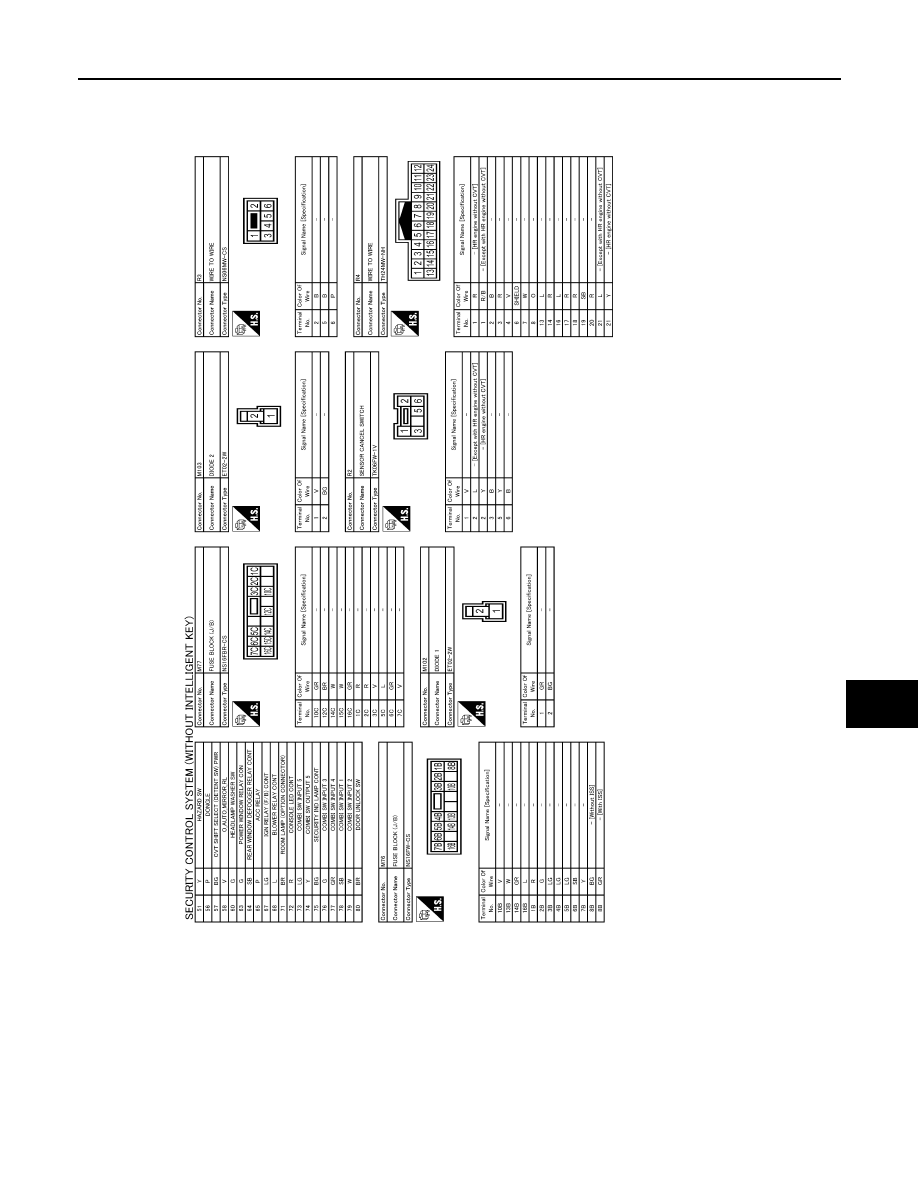

JRKWE4022GB

SECURITY CONTROL SYSTEM

SEC-227

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

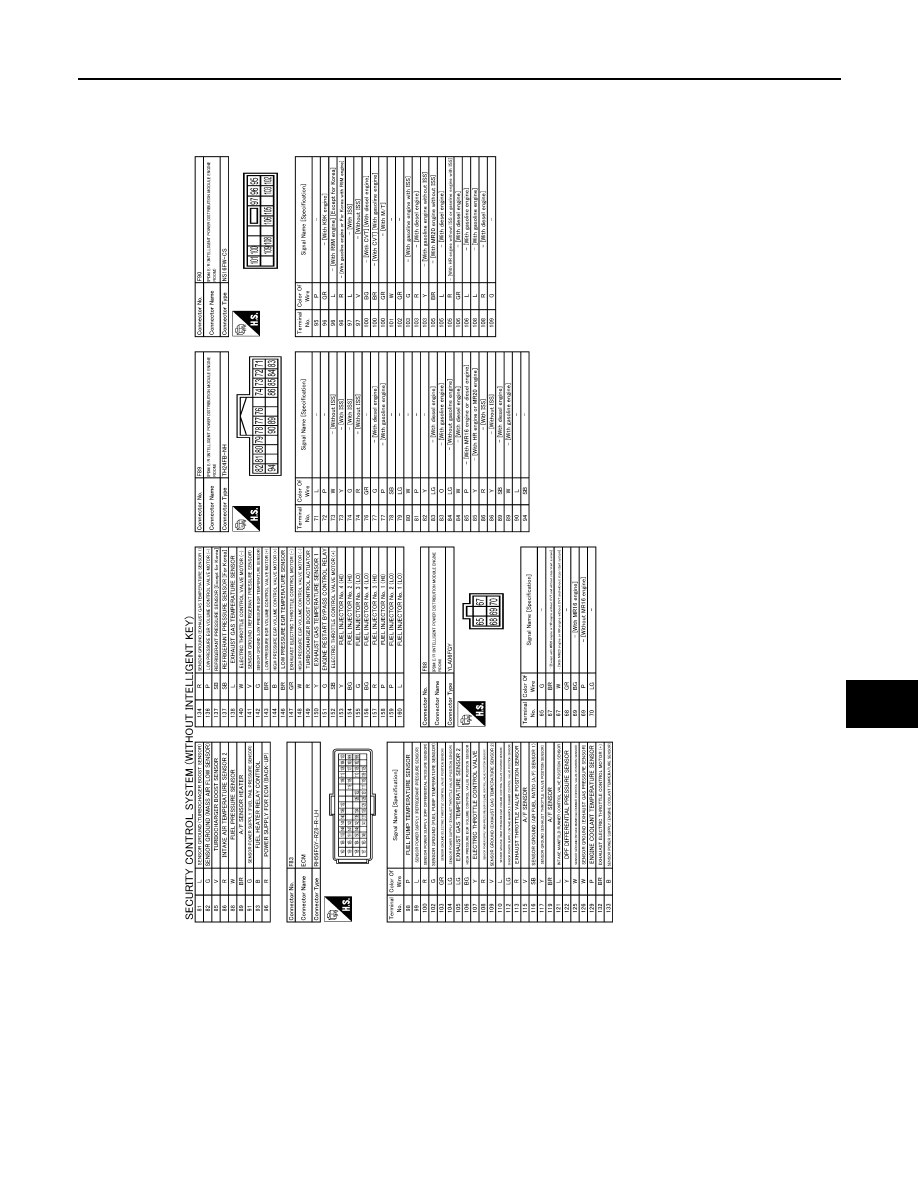

JRKWE4023GB

SEC-228

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

SECURITY CONTROL SYSTEM

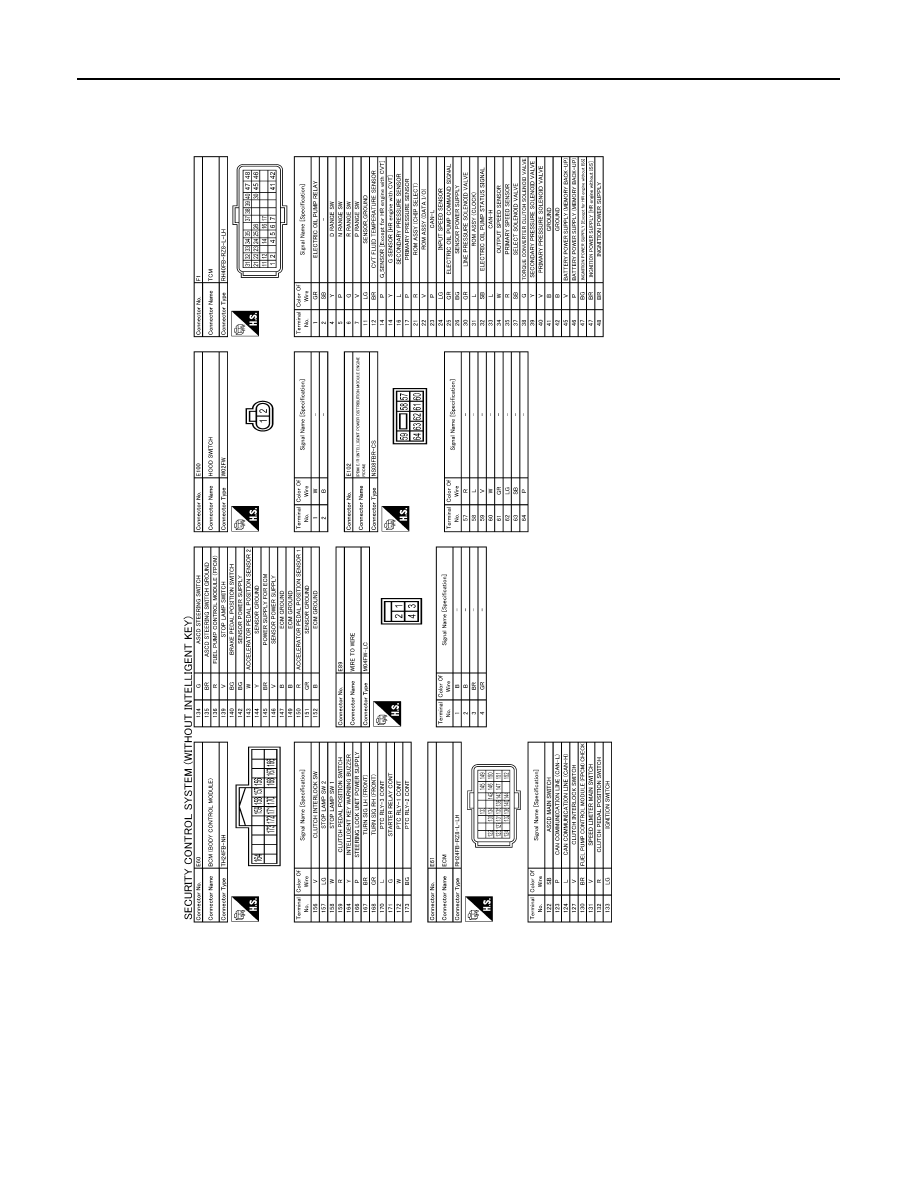

JRKWE4024GB

SECURITY CONTROL SYSTEM

SEC-229

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

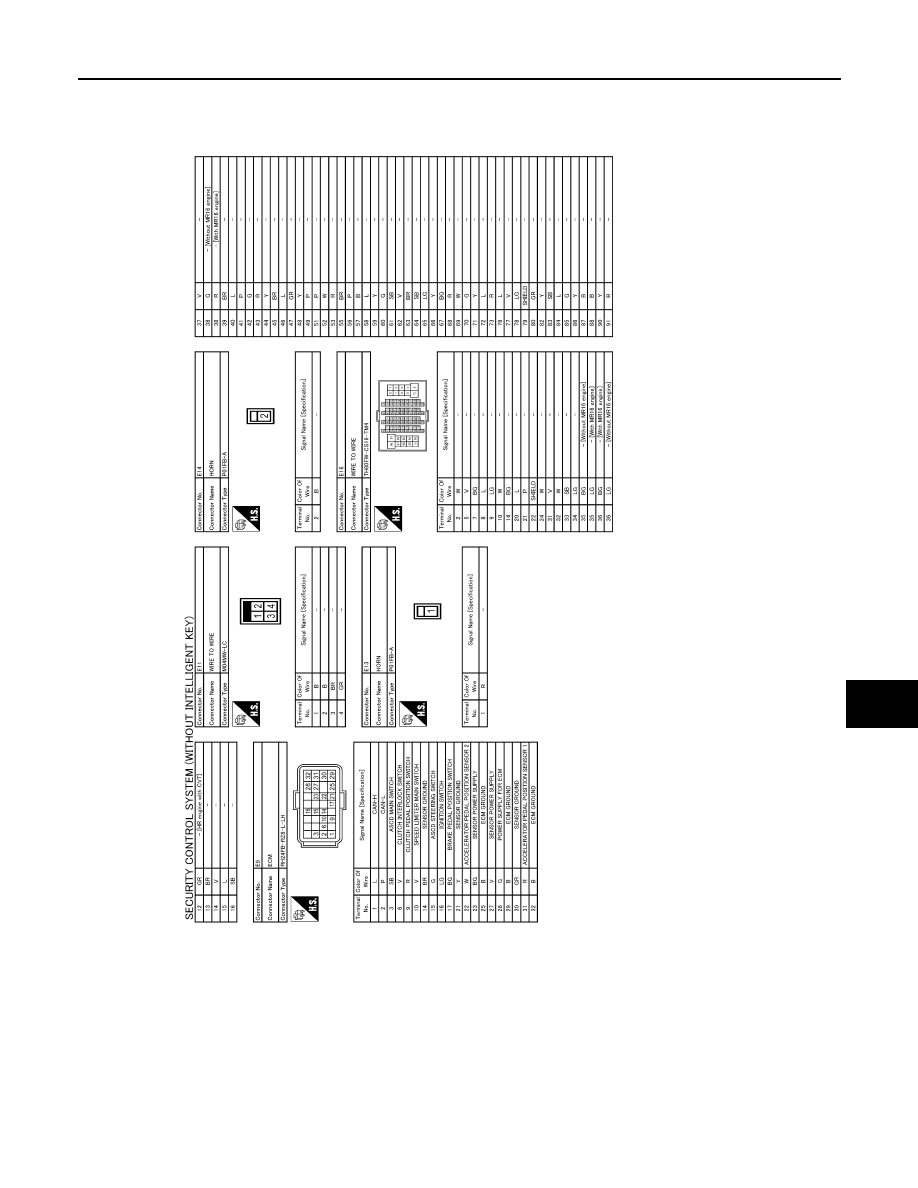

JRKWE4025GB

SEC-230

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

SECURITY CONTROL SYSTEM

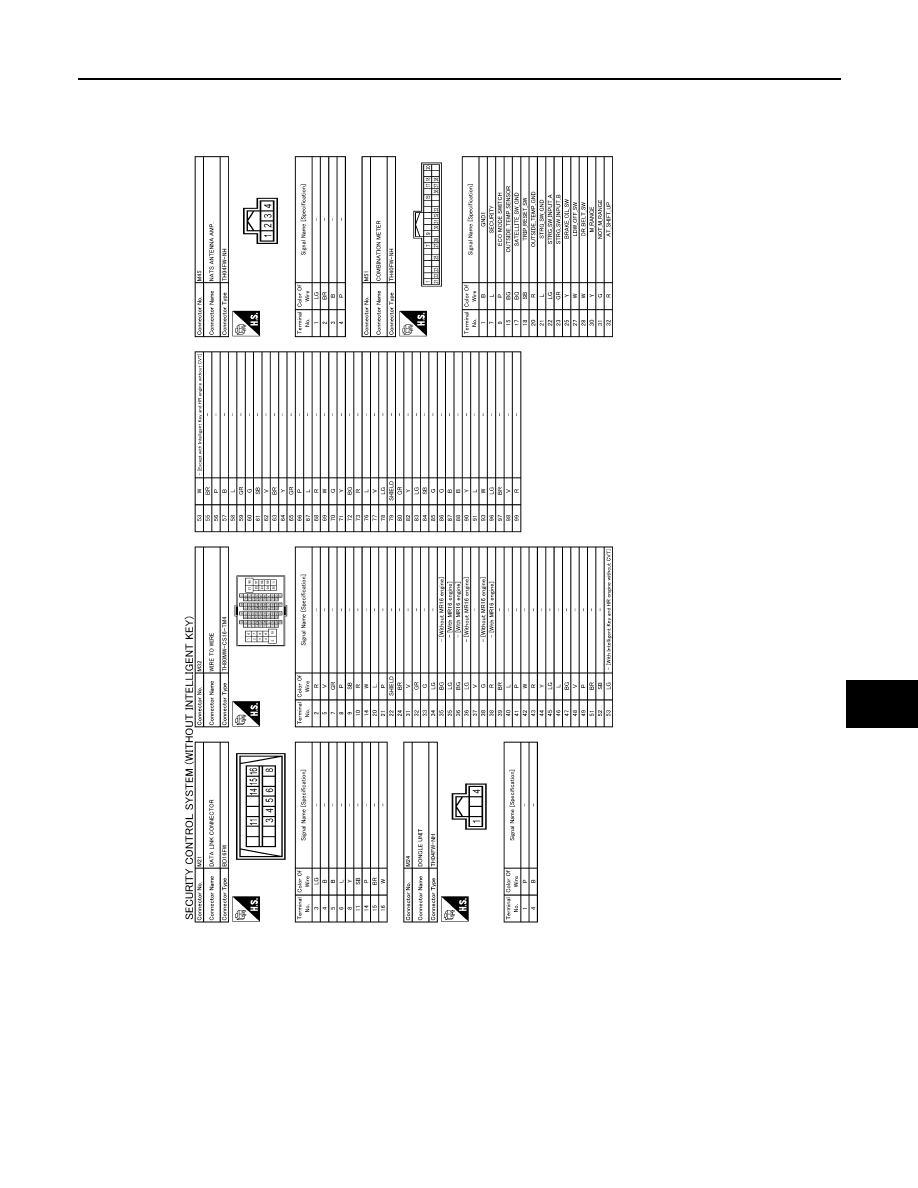

JRKWE4026GB

SECURITY CONTROL SYSTEM

SEC-231

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

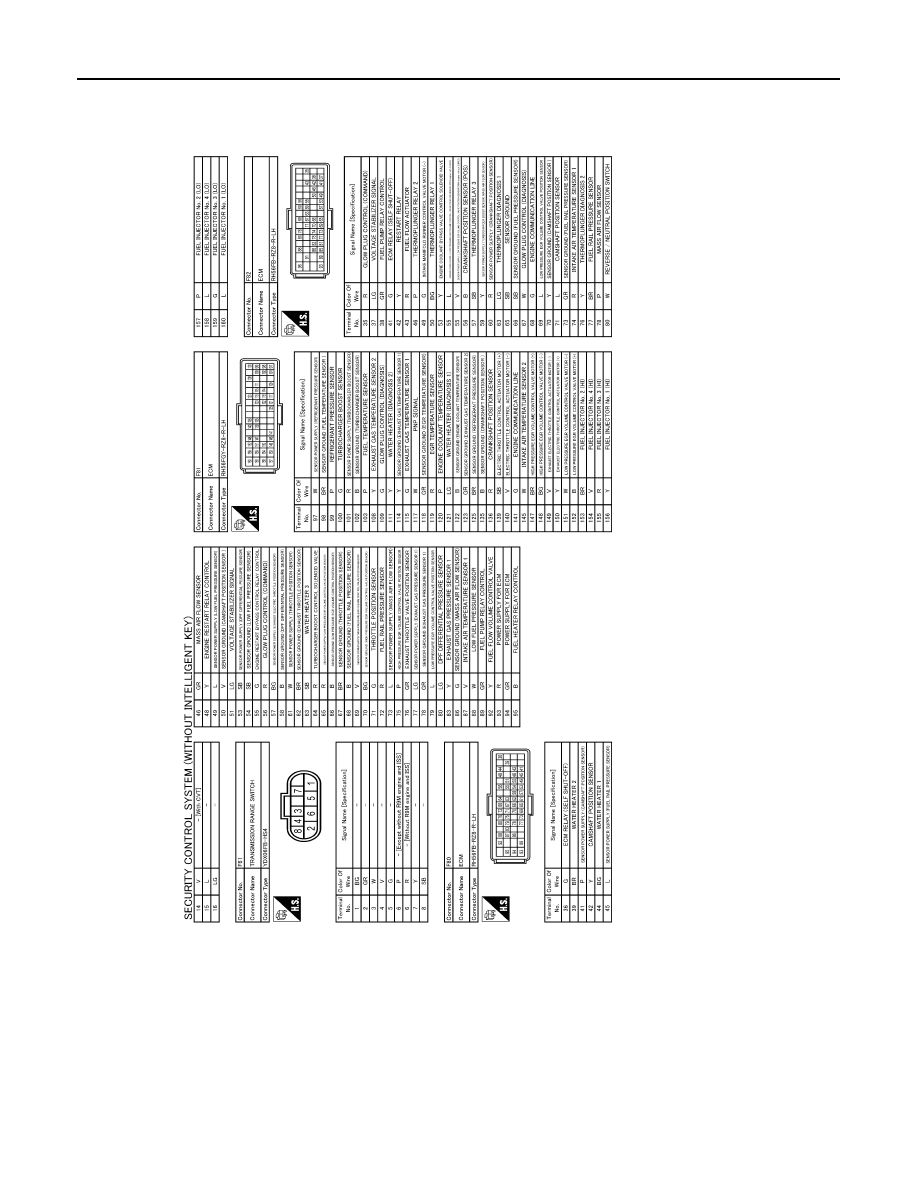

JRKWE4027GB

SEC-232

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

SECURITY CONTROL SYSTEM

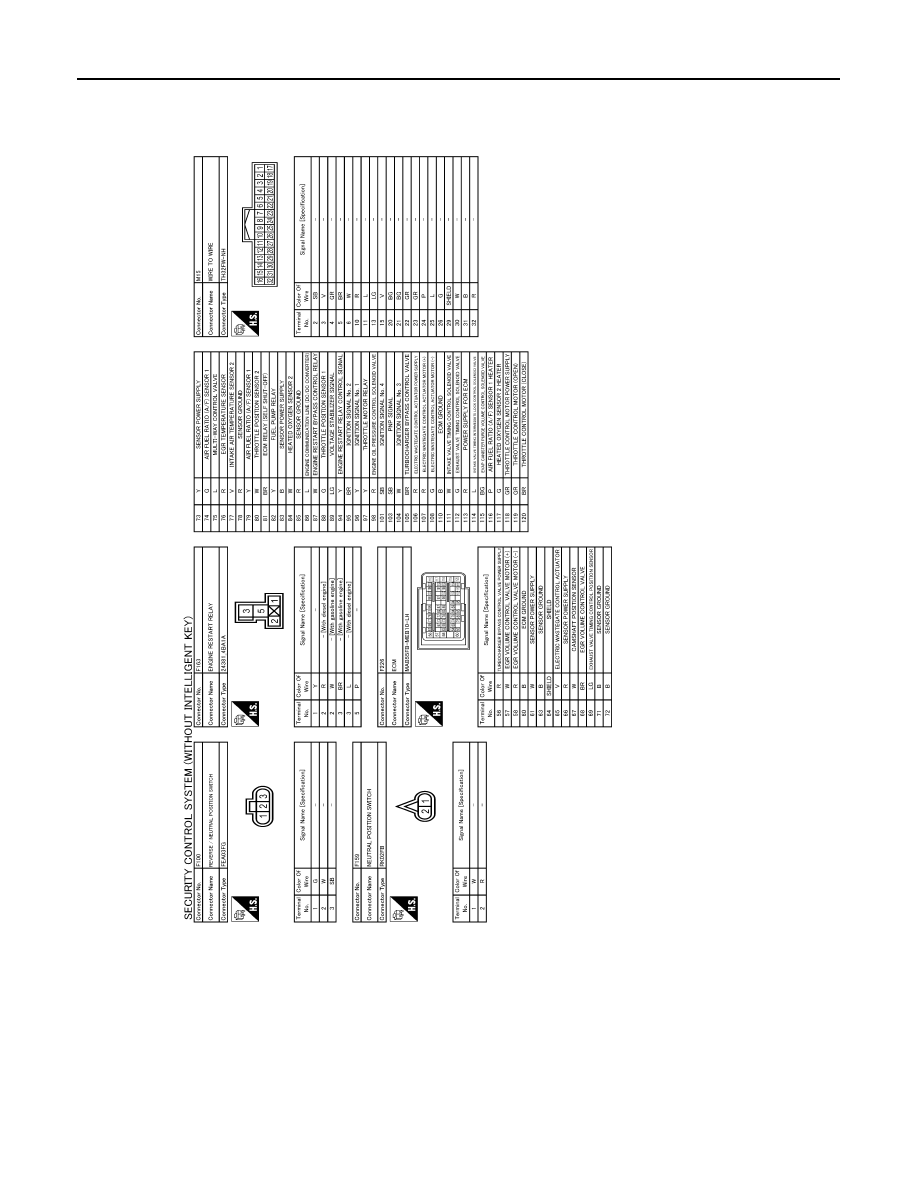

JRKWE4028GB

SECURITY CONTROL SYSTEM

SEC-233

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

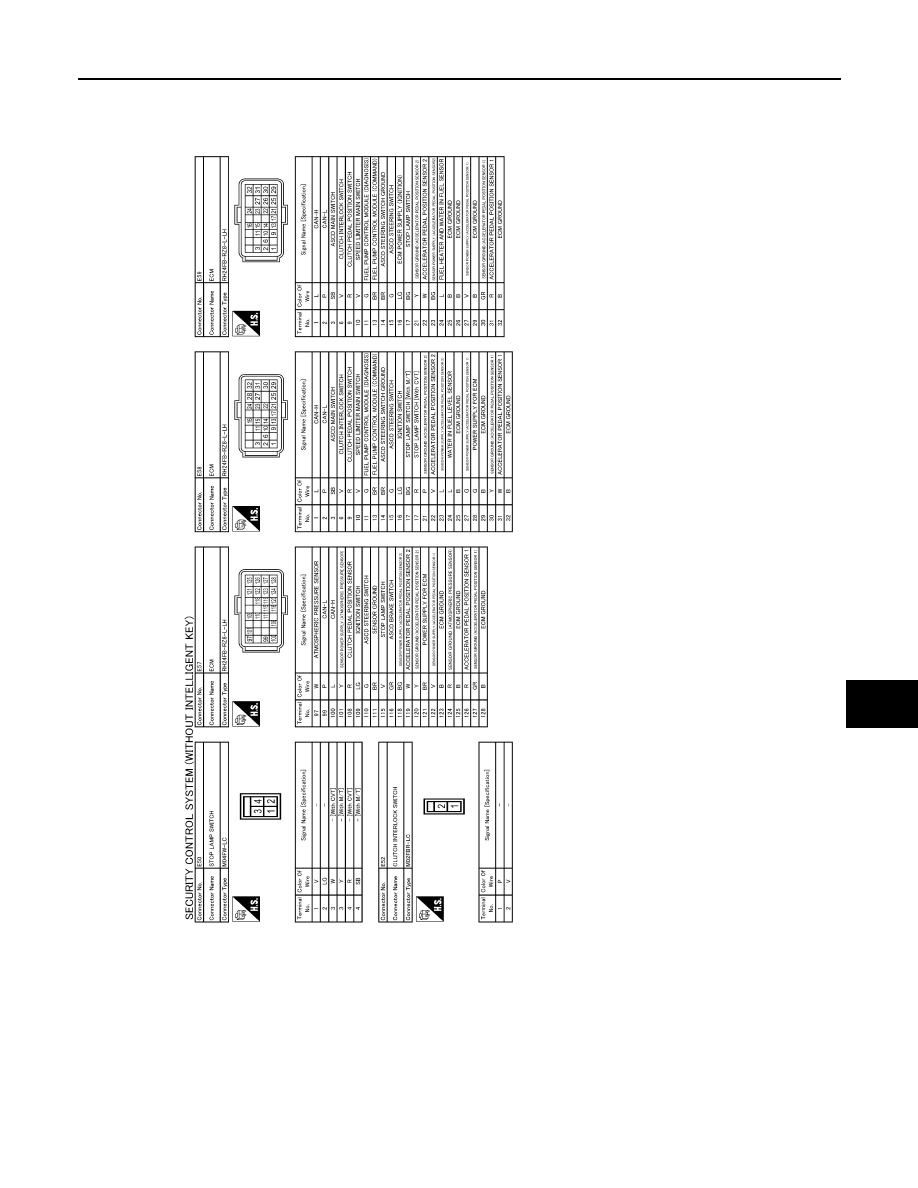

JRKWE4029GB

SEC-234

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

SECURITY CONTROL SYSTEM

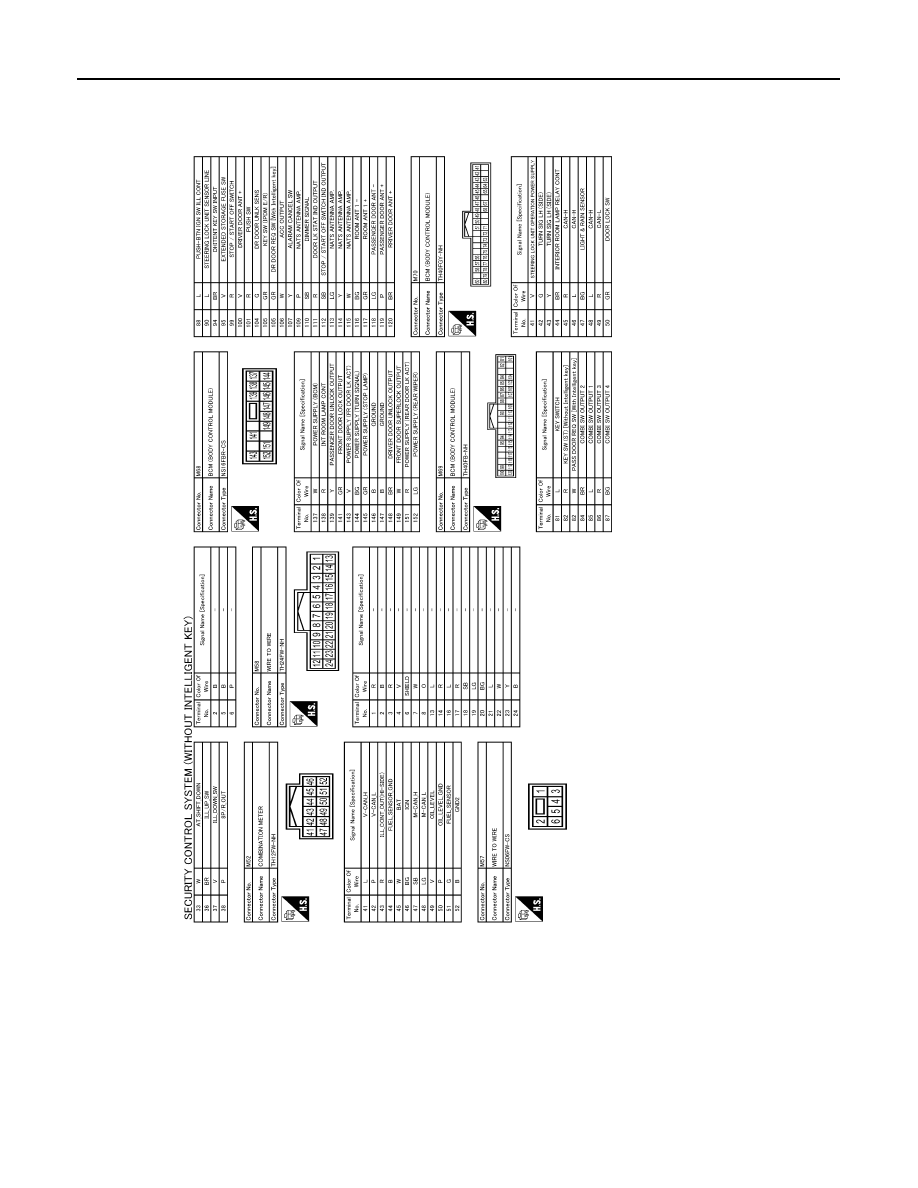

JRKWE4030GB

SECURITY CONTROL SYSTEM

SEC-235

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

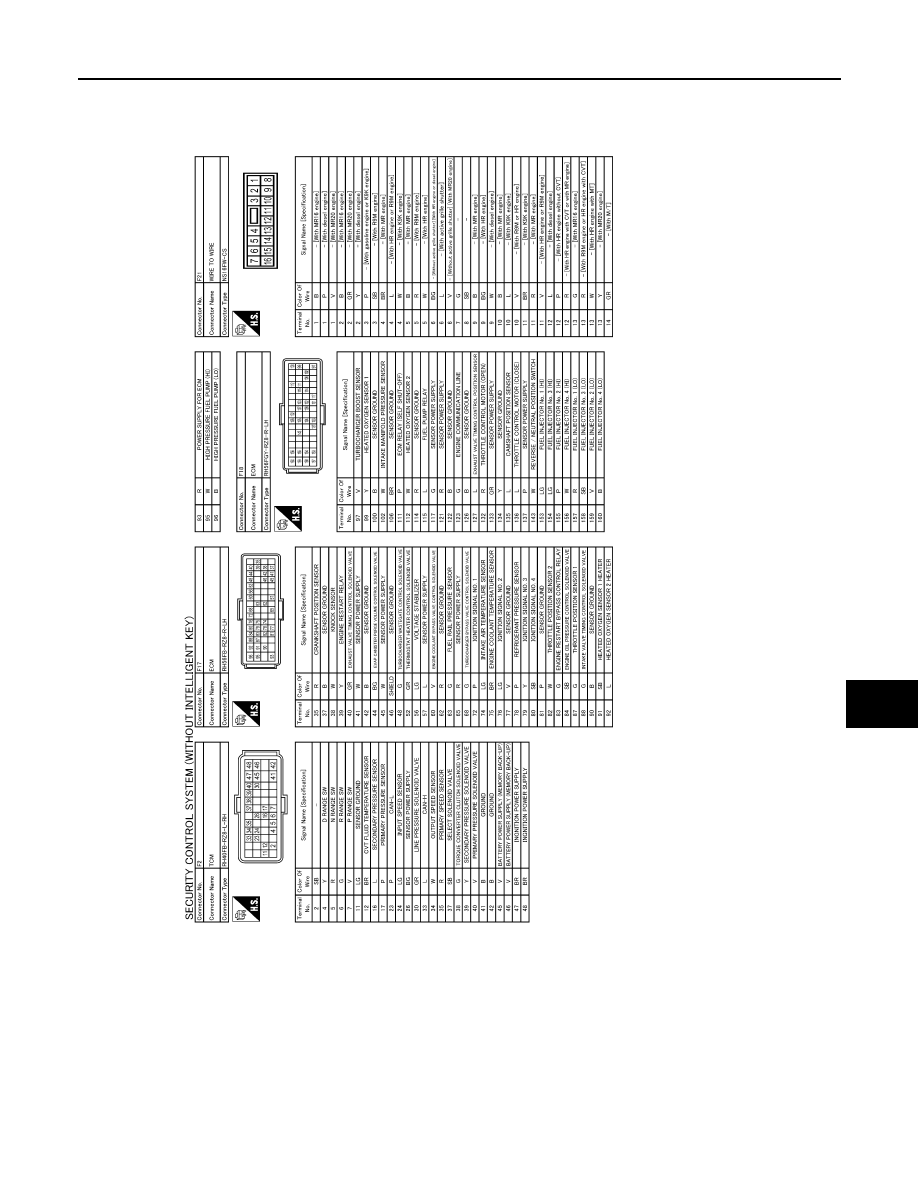

JRKWE4031GB

SEC-236

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

SECURITY CONTROL SYSTEM

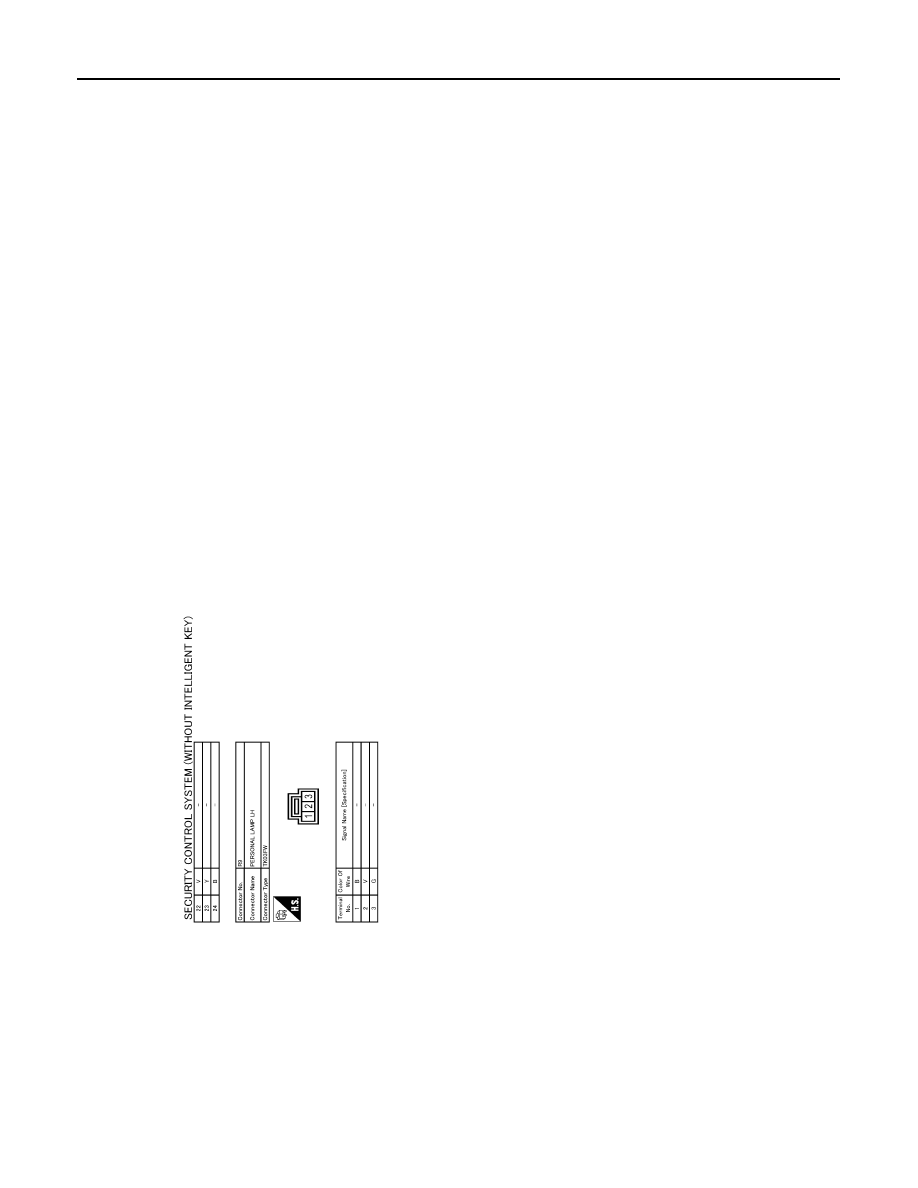

JRKWE4032GB

DIAGNOSIS AND REPAIR WORK FLOW

SEC-237

< BASIC INSPECTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

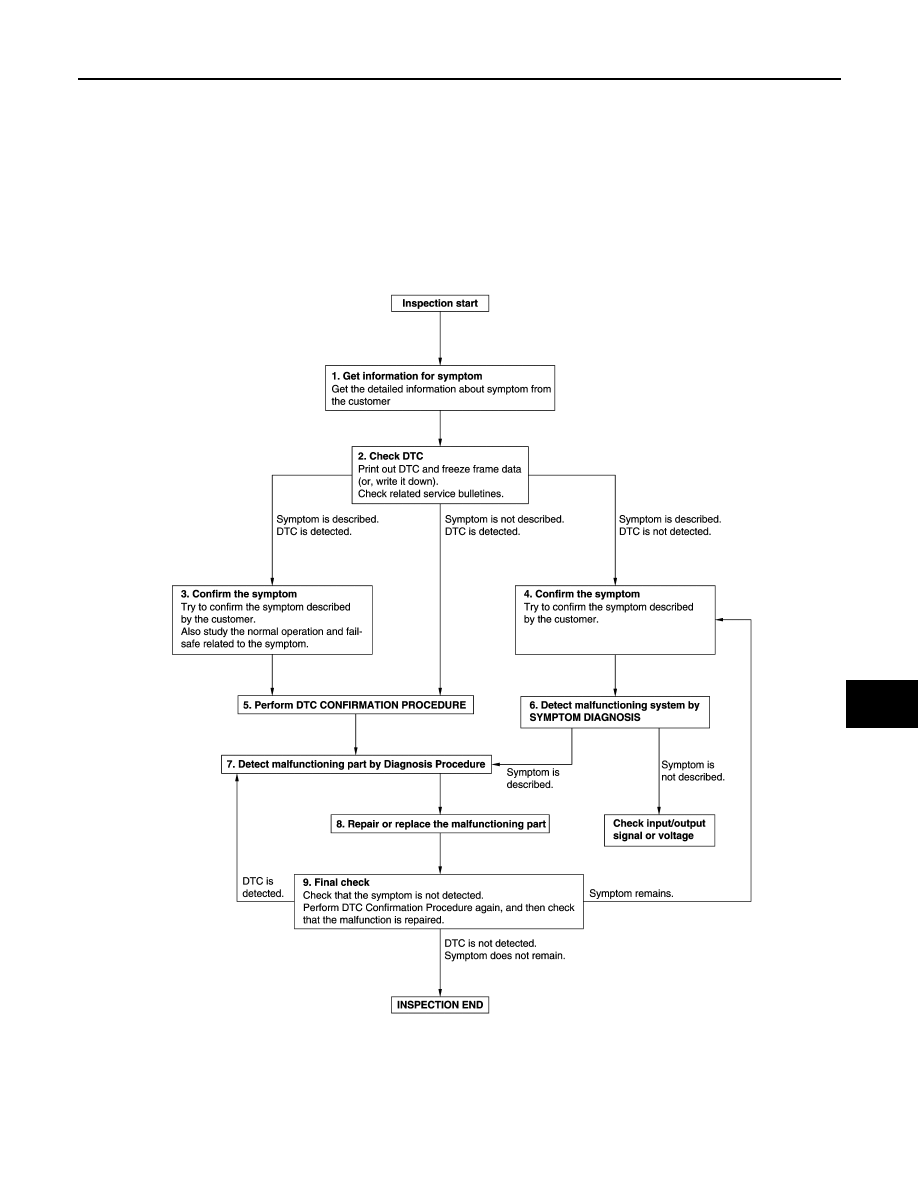

Work Flow

INFOID:0000000010338041

OVERALL SEQUENCE

DETAILED FLOW

JMKIA8652GB

SEC-238

< BASIC INSPECTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

DIAGNOSIS AND REPAIR WORK FLOW

1.

GET INFORMATION FOR SYMPTOM

1.

Get detailed information from the customer about the symptom (the condition and the environment when
the incident/malfunction occurs).

2.

Check operation condition of the function that is malfunctioning.

>> GO TO 2.

2.

CHECK DTC

1.

Check DTC.

2.

Perform the following procedure if DTC is detected.

-

Record DTC and freeze frame data (Print them out using CONSULT.)

-

Erase DTC.

-

Study the relationship between the cause detected by DTC and the symptom described by the customer.

3.

Check related service bulletins for information.

Are any symptoms described and any DTC detected?

Symptom is described, DTC is detected>>GO TO 3.
Symptom is described, DTC is not detected>>GO TO 4.
Symptom is not described, DTC is detected>>GO TO 5.

3.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer.
Also study the normal operation and fail-safe related to the symptom.
Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 5.

4.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer.
Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 6.

5.

PERFORM DTC CONFIRMATION PROCEDURE

Perform DTC CONFIRMATION PROCEDURE for the detected DTC, and then check that DTC is detected
again. At this time, always connect CONSULT to the vehicle, and check self diagnostic results in real time.
If two or more DTCs are detected, refer to

BCS-88, "DTC Inspection Priority Chart"

 and determine trouble

diagnosis order.
NOTE:
• Freeze frame data is useful if the DTC is not detected.
• Perform Component Function Check if DTC CONFIRMATION PROCEDURE is not included on Service

Manual. This simplified check procedure is an effective alternative though DTC cannot be detected during
this check.
If the result of Component Function Check is NG, it is the same as the detection of DTC by DTC CONFIR-
MATION PROCEDURE.

Is DTC detected?

YES

>> GO TO 7.

NO

>> Check according to

GI-44, "Intermittent Incident"

.

6.

DETECT MALFUNCTIONING SYSTEM BY SYMPTOM DIAGNOSIS

Detect malfunctioning system according to SYMPTOM DIAGNOSIS based on the confirmed symptom in step
4, and determine the trouble diagnosis order based on possible causes and symptom.

Is the symptom described?

YES

>> GO TO 7.

NO

>> Monitor input data from related sensors or check voltage of related module terminals using CON-

SULT.

7.

DETECT MALFUNCTIONING PART BY DIAGNOSIS PROCEDURE

DIAGNOSIS AND REPAIR WORK FLOW

SEC-239

< BASIC INSPECTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

Inspect according to Diagnosis Procedure of the system.

Is malfunctioning part detected?

YES

>> GO TO 8.

NO

>> Check according to

GI-44, "Intermittent Incident"

.

8.

REPAIR OR REPLACE THE MALFUNCTIONING PART

1.

Repair or replace the malfunctioning part.

2.

Reconnect parts or connectors disconnected during Diagnosis Procedure again after repair and replace-
ment.

3.

Check DTC. If DTC is detected, erase it.

>> GO TO 9.

9.

FINAL CHECK

When DTC is detected in step 2, perform DTC CONFIRMATION PROCEDURE again, and then check that the
malfunction is repaired securely.
When symptom is described by the customer, refer to confirmed symptom in step 3 or 4, and check that the
symptom is not detected.

Is DTC detected and does symptom remain?

YES-1 >> DTC is detected: GO TO 7.
YES-2 >> Symptom remains: GO TO 4.
NO

>> Before returning the vehicle to the customer, always erase DTC.

SEC-240

< BASIC INSPECTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT

ECM

ECM : Description

INFOID:0000000011863548

Performing the following procedure can automatically activate recommunication of ECM and BCM, but only
when the ECM is replaced with a new one*.
*: New one means a virgin ECM that has never been energized on-board.
NOTE:
• When the replaced ESM is not a brand new, the specified procedure (Initialization of BCM and regis-

tration of ignition keys) using CONSULT is necessary.

• If multiple keys are attached to the key holder, separate them before beginning work.
• Distinguish keys with unregistered key IDs from those with registered IDs.

ECM : Work Procedure

INFOID:0000000011863549

1.

PERFORM ECM RECOMMUNICATING FUNCTION

1.

Install ECM.

2.

Contact backside of the registered Intelligent Key* to push-button ignition switch while brake pedal is
depressed, then turn ignition switch ON.
*: To perform this step, use the key that is used before performing ECM replacement.

3.

Maintain ignition switch in the ON position for at least 5 seconds.

4.

Turn ignition switch OFF.

5.

Check that the engine starts.

>> GO TO 2.

2.

PERFORM ADDITIONAL SERVICE WHEN REPLACING ECM

Perform the following procedure.
• MR20DD:

ECM-740, "Description"

• MR16DDT:

ECM-186, "Description"

• HRA2DDT:

ECH-105, "Description"

• R9M:

EC9-139, "Description"

• K9K:

ECK-131, "Description"

>> END
