IN-VEHICLE SENSOR

Removal and Installation

INFOID:0000000010432253

REMOVAL

1.

Remove instrument lower panel center. Refer to

IP-13, "Removal and Installation"

.

2.

Remove fixing screw, and then remove in-vehicle sensor.

INSTALLATION

Install in the reverse order of removal.

HAC-130

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

SUNLOAD SENSOR

SUNLOAD SENSOR

Removal and Installation

INFOID:0000000010432254

REMOVAL

1.

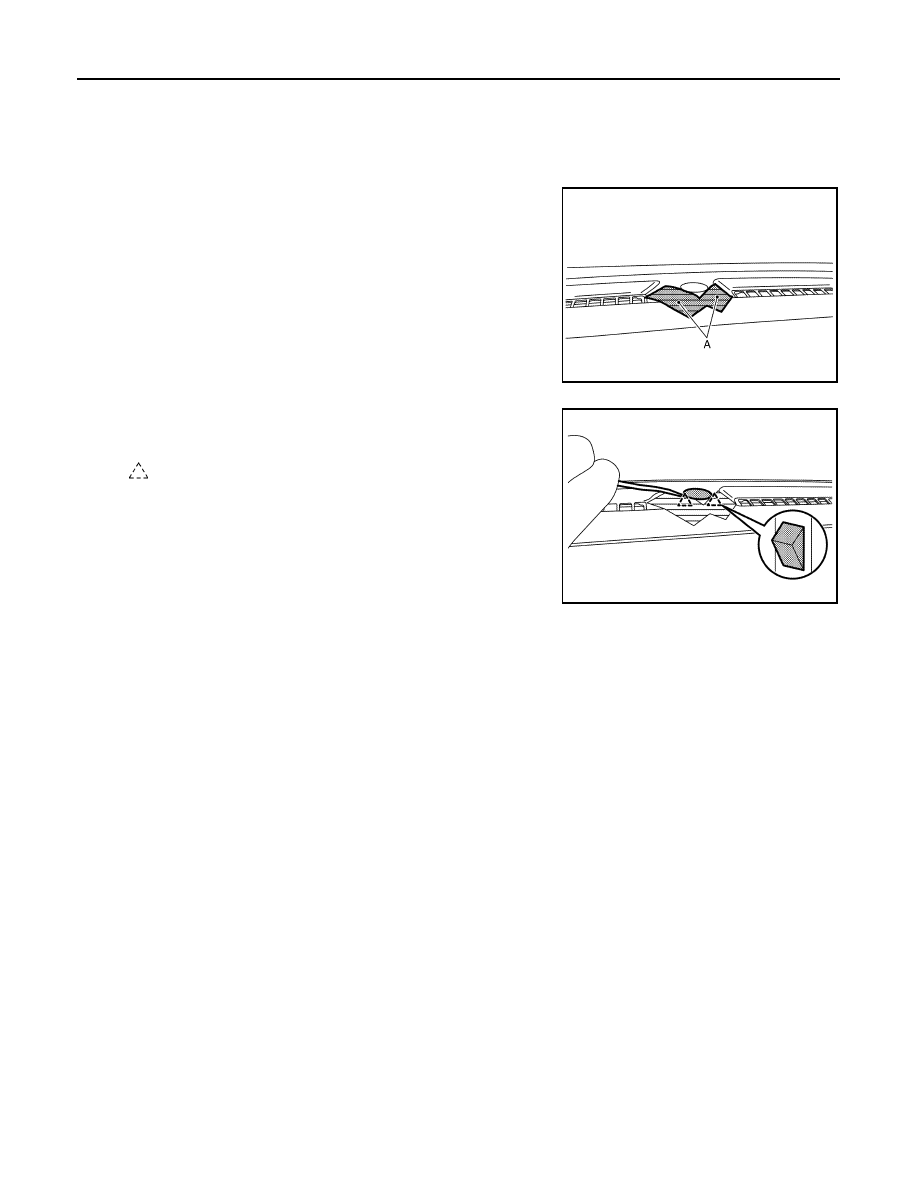

Apply protective tape (A) on instrument panel assembly to pro-
tect from damage.

2.

Disengage fixing pawls using a remover tool, and then pull up
sunload sensor.

CAUTION:

Using a remover tool wrapped in tape.

3.

Disconnect harness connector, and then remove sunload sensor.

INSTALLATION

Install in the reverse order of removal.

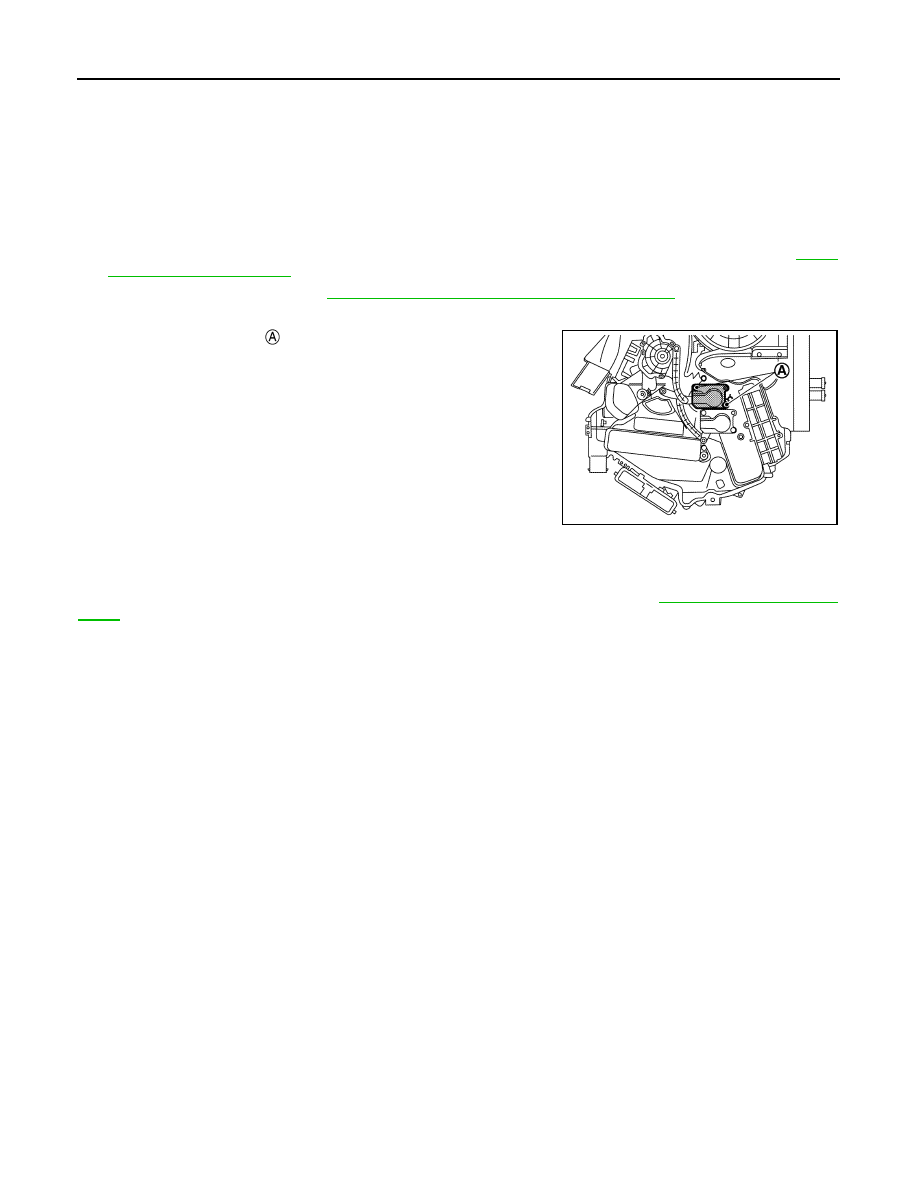

JMIIA3364ZZ

: Pawl

JMIIA3391ZZ

INTAKE SENSOR

HAC-131

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

INTAKE SENSOR

Exploded View

INFOID:0000000010432255

Refer to

HA-39, "Exploded View"

.

Removal and Installation

INFOID:0000000010432256

REMOVAL

1.

Remove instrument lower cover LH. Refer to

IP-13, "Removal and Installation"

.

2.

Remove intake sensor from A/C unit assembly.

3.

Disconnect harness connector from intake sensor.

CAUTION:

If disconnect harness connector from intake sensor, replace intake sensor with new one.

INSTALLATION

Note the following item, and then install in the order of removal.

CAUTION:

If disconnect harness connector from intake sensor, replace intake sensor with new one.

HAC-132

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

REFRIGERANT PRESSURE SENSOR

REFRIGERANT PRESSURE SENSOR

Exploded View

INFOID:0000000010432257

Refer to

HA-33, "Exploded View"

 (HRA2DDT engine models),

HA-76, "Exploded View"

 (K9K engine models)

or

HA-123, "Exploded View"

 (R9M engine models).

Removal and Installation

INFOID:0000000010432258

REMOVAL

Refer to

HA-36, "REFRIGERANT PRESSURE SENSOR : Removal and Installation"

 (HRA2DDT engine mod-

els),

HA-80, "REFRIGERANT PRESSURE SENSOR : Removal and Installation"

 (K9K engine models) or

HA-

127, "REFRIGERANT PRESSURE SENSOR : Removal and Installation"

 (R9M engine models).

INSTALLATION

Install in the reverse order of removal.

PTC HEATER

HAC-133

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

PTC HEATER

Removal and Installation

INFOID:0000000010500715

REMOVAL

1.

Remove instrument lower cover RH (RHD models) or glove box cover (LHD models). Refer to

IP-13,

"Removal and Installation"

.

2.

Disconnect PTC heater connector.

3.

Remove fixing screws

, and then remove PTC heater from A/

C unit assembly.

INSTALLATION

Install in the reverse order of removal.

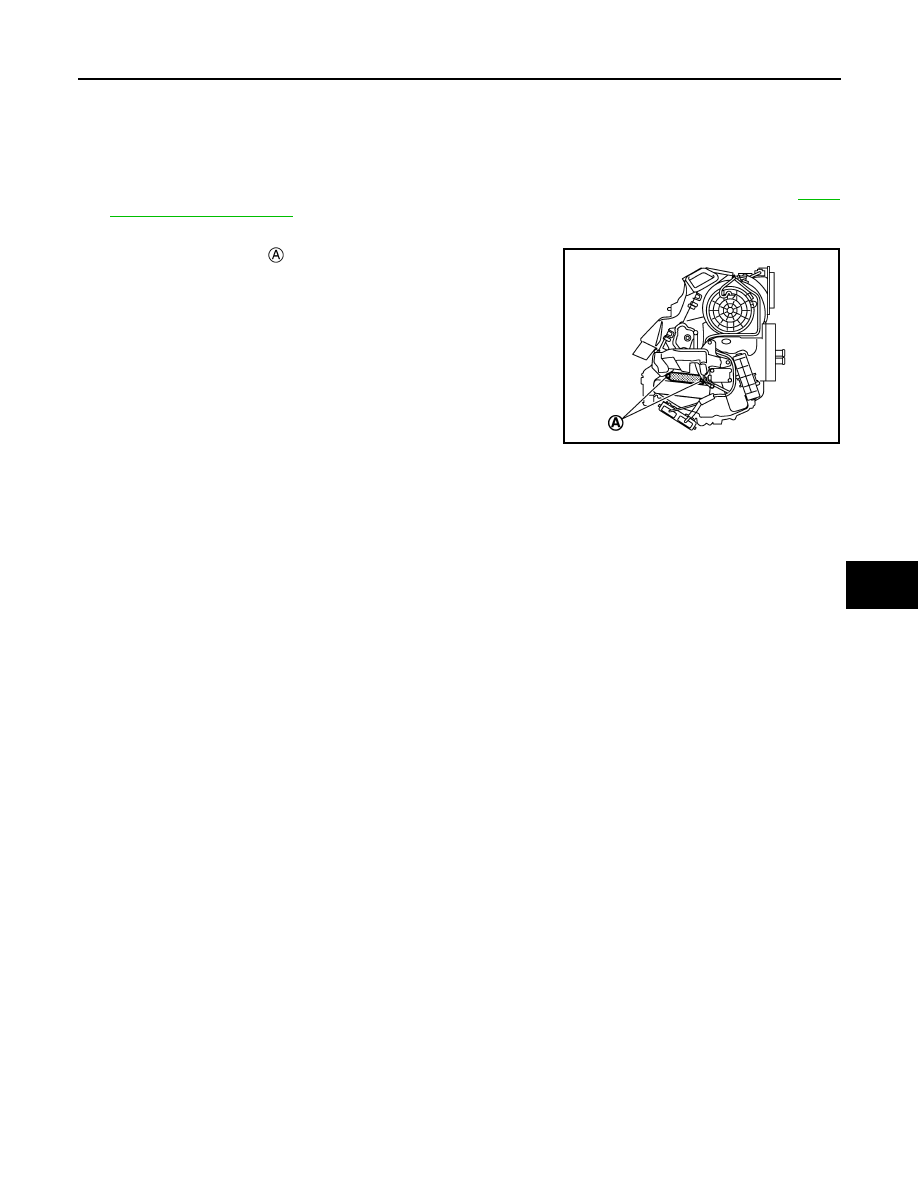

JMIIA3532ZZ

HAC-134

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

POWER TRANSISTOR

POWER TRANSISTOR

Exploded View

INFOID:0000000010432259

Refer to

HA-39, "Exploded View"

.

Removal and Installation

INFOID:0000000010432260

REMOVAL

1.

Disconnect power transistor harness connector.

2.

Remove fixing screw

 and disengage pawl.

3.

Remove power transistor from A/C unit assembly.

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMIIA3399ZZ

DOOR MOTOR

HAC-135

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

DOOR MOTOR

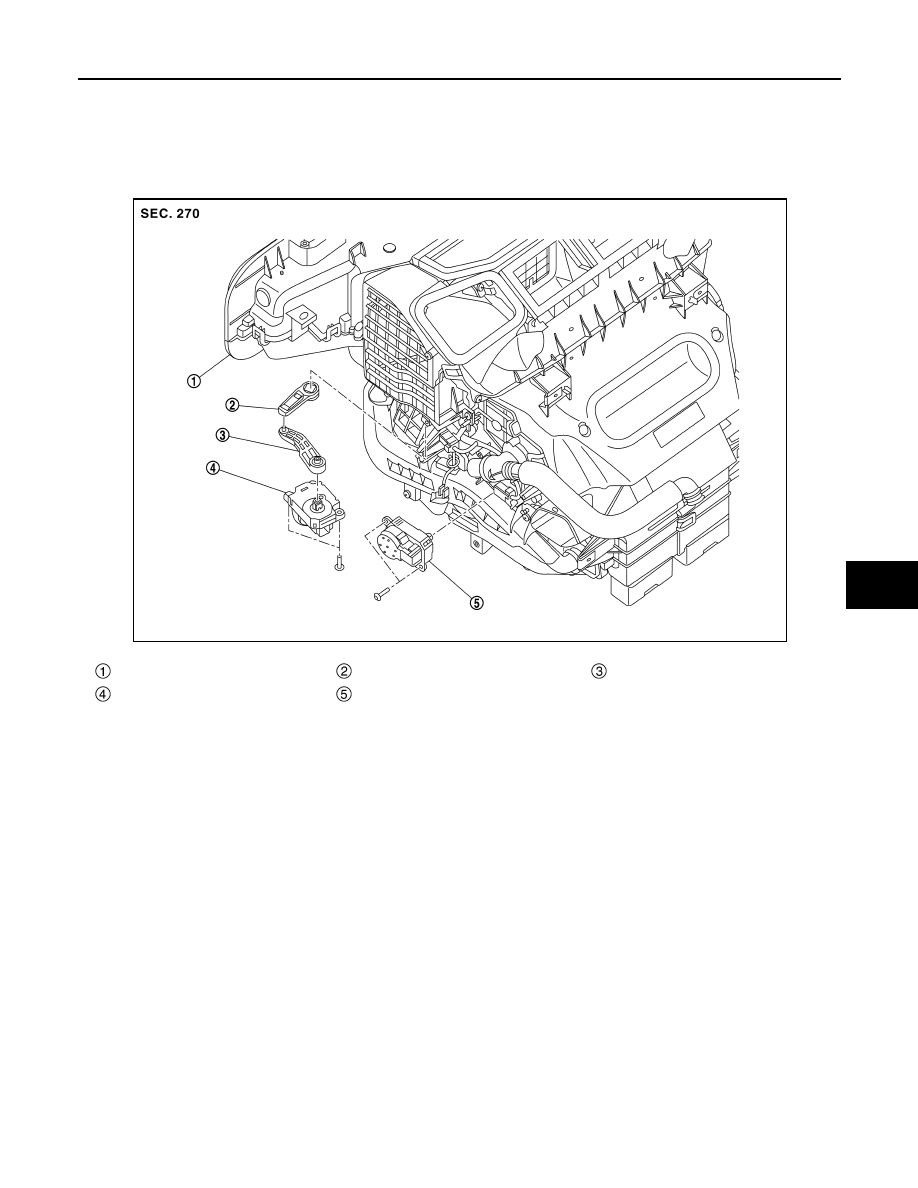

Exploded View

INFOID:0000000010432261

LEFT SIDE

RIGHT SIDE

A/C unit assembly

Intake door lever

Intake door link

Intake door motor

Air mix door motor LH

JMIIA3368GB

HAC-136

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

POWER TRANSISTOR

POWER TRANSISTOR

Exploded View

INFOID:0000000010432259

Refer to

HA-40, "Exploded View"

.

Removal and Installation

INFOID:0000000010432260

REMOVAL

1.

Disconnect power transistor harness connector.

2.

Remove fixing screw

 and disengage pawl.

3.

Remove power transistor from A/C unit assembly.

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMIIA3399ZZ

DOOR MOTOR

HAC-137

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

DOOR MOTOR

Exploded View

INFOID:0000000010432261

LEFT SIDE

RIGHT SIDE

A/C unit assembly

Intake door lever

Intake door link

Intake door motor

Air mix door motor LH

JMIIA3368GB

HAC-138

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

DOOR MOTOR

AIR MIX DOOR MOTOR

AIR MIX DOOR MOTOR : Removal and Installation

INFOID:0000000010432262

REMOVAL

Air Mix Door Motor RH

1.

Set the temperature at 32

°

C (90

°

F).

CAUTION:

Always perform the above procedure when removing air mix door motor. Otherwise, air mix door
may interfere in A/C unit assembly may be damaged.

2.

Remove instrument lower panel RH (RHD models) or glove box cover (LHD models). Refer to

IP-13,

"Removal and Installation"

.

3.

Remove foot duct RH. Refer to

VTL-14, "FOOT DUCT : Removal and Installation"

.

4.

Disconnect air mix door motor harness connector.

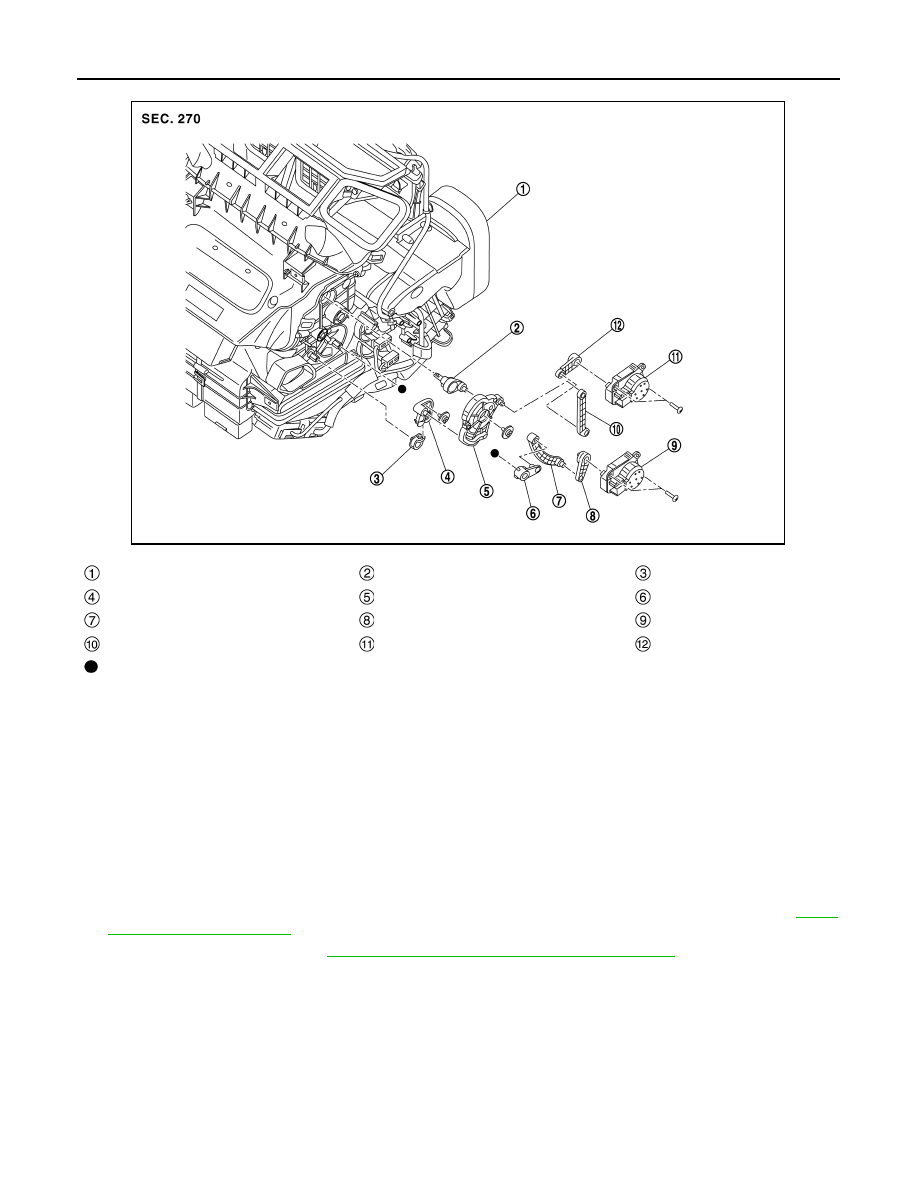

A/C unit assembly

Side ventilator door lever

Foot door link

Foot door link

Main link

Air mix door lever

Air mix door rod

Air mix door motor lever

Air mix door motor RH

Mode door link

Mode door motor

Mode door lever

 : Indicates that the part is connected at pints with same symbol in actual vehicle.

JMIIA3367GB

DOOR MOTOR

HAC-139

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

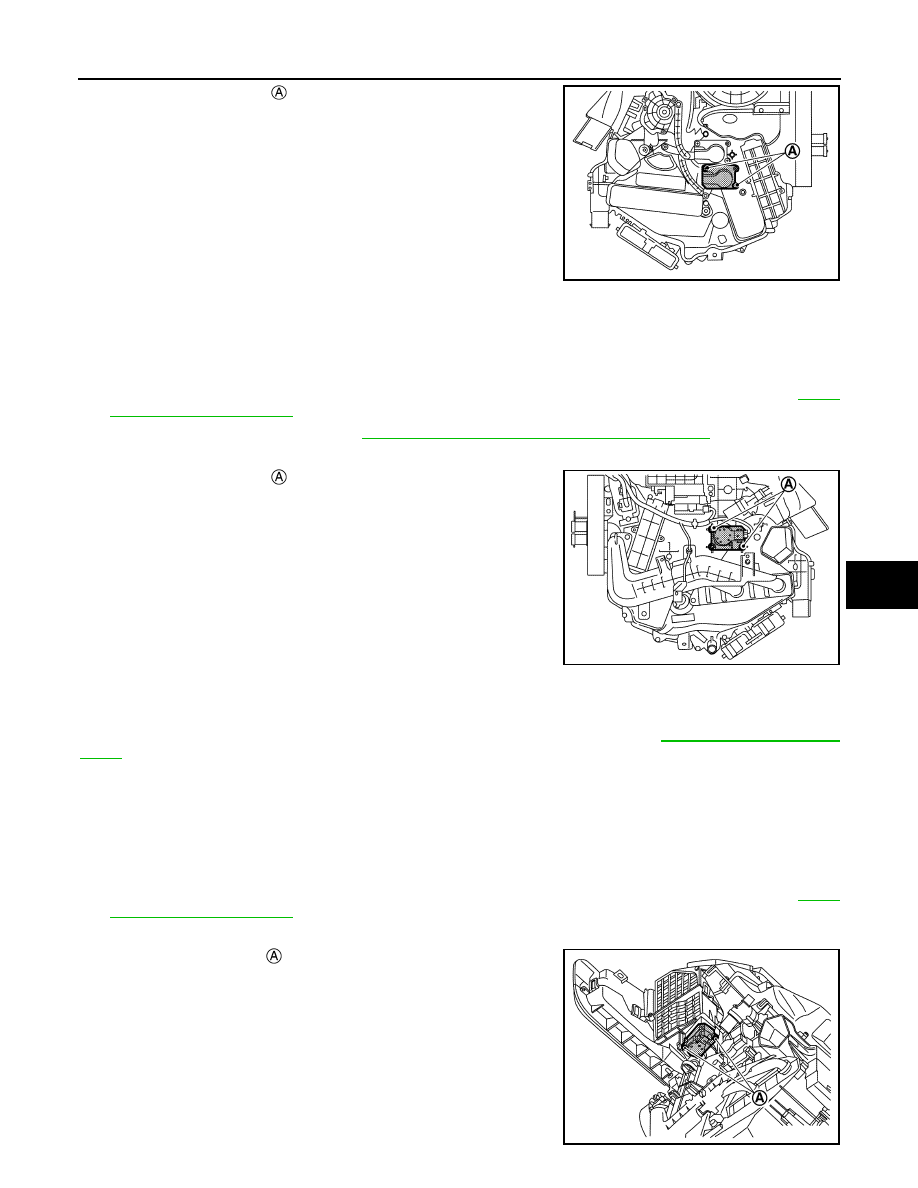

5.

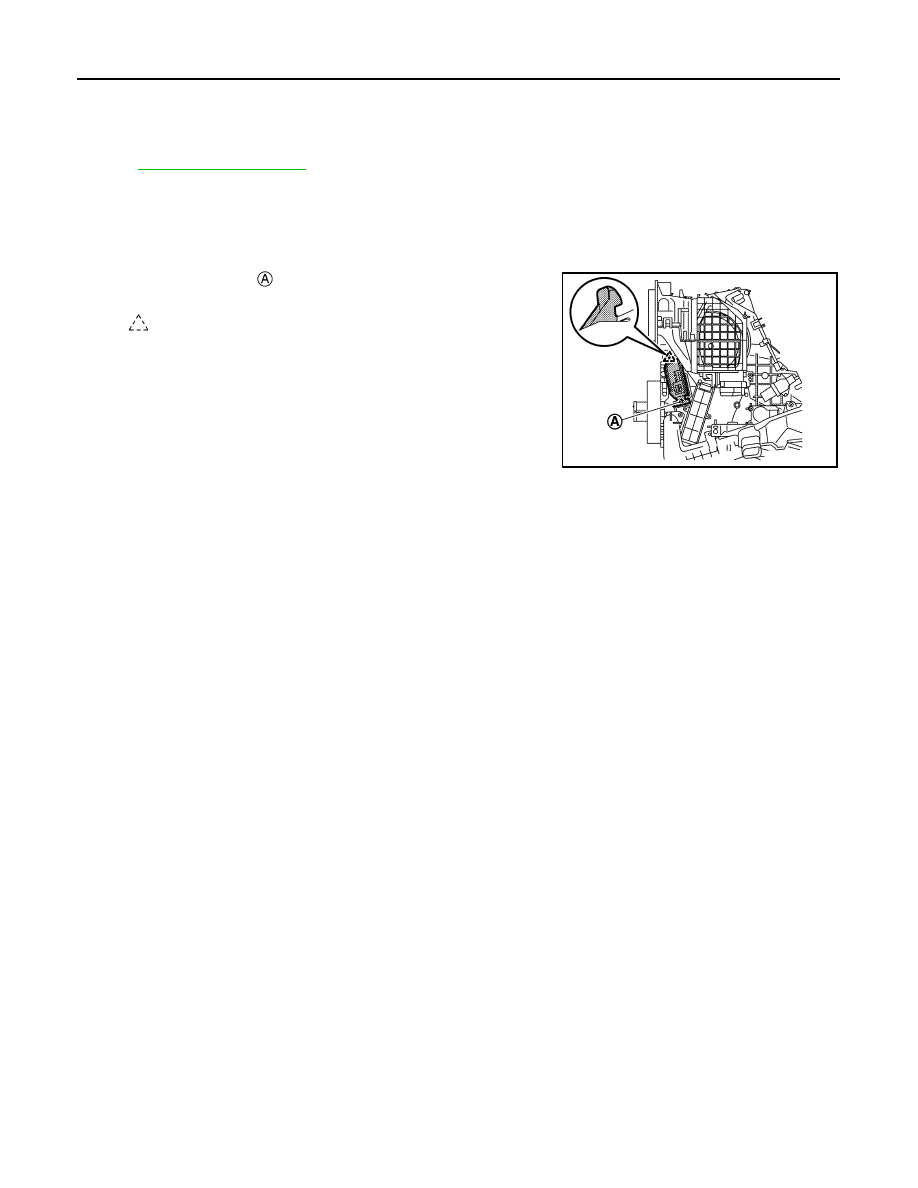

Remove fixing screws

, and then remove air mix door motor

RH.

Air Mix Door Motor LH

1.

Set the temperature at 18

°

C (64

°

F).

CAUTION:

Always perform the above procedure when removing air mix door motor. Otherwise, air mix door
may interfere in A/C unit assembly may be damaged.

2.

Remove instrument lower panel LH (LHD models) or glove box cover (RHD models). Refer to

IP-13,

"Removal and Installation"

.

3.

Remove front foot duct LH. Refer to

VTL-14, "FOOT DUCT : Removal and Installation"

.

4.

Disconnect air mix door motor harness connector.

5.

Remove fixing screws

, and then remove air mix door motor

LH.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installing door motor, perform door motor starting position. Refer to

HAC-272, "Work Proce-

dure"

.

INTAKE DOOR MOTOR

INTAKE DOOR MOTOR : Removal and Installation

INFOID:0000000010432263

REMOVAL

1.

Remove instrument lower panel LH (LHD models) or glove box cover (RHD models). Refer to

IP-13,

"Removal and Installation"

.

2.

Disconnect intake door motor harness connector.

3.

Remove fixing screws

, and then remove intake door motor.

JMIIA3397ZZ

JMIIA3395ZZ

JMIIA3394ZZ

HAC-140

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

DOOR MOTOR

INSTALLATION

Install in the reverse order of removal.

MODE DOOR MOTOR

MODE DOOR MOTOR : Removal and Installation

INFOID:0000000010432264

REMOVAL

1.

Remove instrument lower panel RH (RHD models) or glove box cover (LHD models). Refer to

IP-13,

"Removal and Installation"

.

2.

Remove foot duct RH. Refer to

VTL-14, "FOOT DUCT : Removal and Installation"

.

3.

Disconnect mode door motor harness connector.

4.

Remove fixing screws

, mode door motor.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installing door motor, perform door motor starting position. Refer to

HAC-272, "Work Proce-

dure"

.

JMIIA3396ZZ

PRECAUTIONS

HAC-141

< PRECAUTION >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000010432482

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precautions for Removing Battery Terminal

INFOID:0000000010521163

• With the adoption of Auto ACC function, ACC power is automatically supplied by operating the intelligent key

or remote keyless entry or by opening/closing the driver side door. In addition, ACC power is supplied even
after the ignition switch is turned to the OFF position, i.e. ACC power is supplied for a certain fixed time.

• When disconnecting the 12V battery terminal, turn off the ACC

power before disconnecting the 12V battery terminal, observing
“How to disconnect 12V battery terminal” described below.
NOTE:
Some ECUs operate for a certain fixed time even after ignition
switch is turned OFF and ignition power supply is stopped. If the
battery terminal is disconnected before ECU stops, accidental DTC
detection or ECU data damage may occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

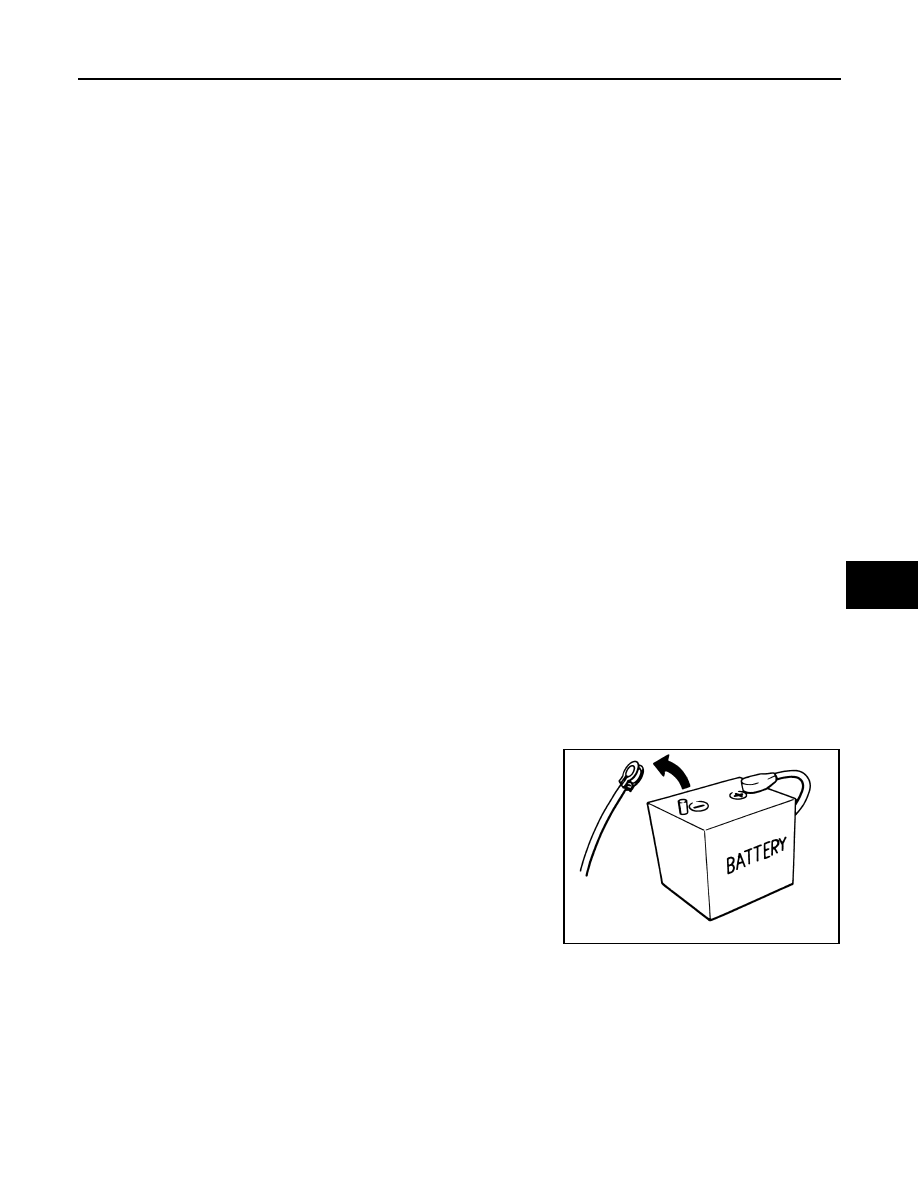

HOW TO DISCONNECT 12V BATTERY TERMINAL

Disconnect 12V battery terminal according to instruction described below.
1.

Open the hood.

2.

Turn ignition switch to the ON position.

3.

Turn ignition switch to the OFF position with the driver side door opened.

4.

Get out of the vehicle and close the driver side door.

SEF289H

HAC-142

< PRECAUTION >

[MANUAL AIR CONDITIONING]

PRECAUTIONS

5.

Wait at least 3 minutes. For vehicle with the engine listed below, remove the battery terminal after a lapse
of the specified time.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

6.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

D4D engine

: 20 minutes

HRA2DDT

: 12 minutes

K9K engine

: 4 minutes

M9R engine

: 4 minutes

R9M engine

: 4 minutes

V9X engine

: 4 minutes

COMPONENT PARTS

HAC-143

< SYSTEM DESCRIPTION >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

MANUAL AIR CONDITIONING SYSTEM

MANUAL AIR CONDITIONING SYSTEM : Component Parts Location

INFOID:0000000010432484

Left side of A/C unit assembly

Right side of A/C unit assembly

JMIIA3542ZZ

HAC-144

< SYSTEM DESCRIPTION >

[MANUAL AIR CONDITIONING]

COMPONENT PARTS

PTC HEATER CONTROL SYSTEM

No.

Component

Function

Compressor

Magnet clutch

HAC-149, "COMPRESSOR : Magnet Clutch"

ECV (Electrical Con-
trol Valve)

HAC-149, "COMPRESSOR : ECV (Electrical Control Valve)"

Refrigerant pressure sensor

HAC-150, "Refrigerant Pressure Sensor"

Ambient sensor

HAC-150, "Ambient Sensor"

IPDM E/R

A/C relay is integrated in IPDM E/R. IPDM E/R operates A/C relay when re-
ceiving A/C compressor request signal from ECM via CAN communication
line.
IPDM E/R controls ECV compressor when receiving ECV control signal from
A/C amp. via CAN communication line.
Refer to

PCS-5, "Component Parts Location"

 for detailed installation loca-

tion.

ECM

ECM, when receiving A/C ON signal and blower fan ON signal from A/C
amp., transmits A/C compressor request signal to IPDM E/R via CAN com-
munication according to status of the engine and refrigerant pressure.
ECM receives cooling fan request signal from A/C amp.
ECM transmits engine coolant temperature signal and refrigerant pressure
sensor signal to A/C amp. via CAN communication line.
Refer to

ECH-13, "Component Parts Location"

 (HR engine models),

ECM-

25, "ENGINE CONTROL SYSTEM : Component Parts Location"



(MR16DDT engine models),

ECM-627, "ENGINE CONTROL SYSTEM :

Component Parts Location"

 (MR20DD engine models),

ECK-12, "Compo-

nent Parts Location"

 (K9K engine models) or

EC9-14, "Component Parts Lo-

cation"

 (R9M engine models) for detailed installation location.

Combination meter

Combination meter transmits ambient temperature signal and vehicle speed
signal to A/C amp. via CAN communication line.

A/C control (A/C amp.)

HAC-150, "A/C Control (A/C Amp.)"

Fan control amp.

HAC-148, "A/C UNIT ASSEMBLY : Fan Control Amp."

Intake sensor

HAC-146, "A/C UNIT ASSEMBLY : Intake Sensor"

Air mix door motor

HAC-146, "A/C UNIT ASSEMBLY : Air Mix Door Motor"

Intake door motor

HAC-147, "A/C UNIT ASSEMBLY : Intake Door Motor"

Mode door motor

HAC-147, "A/C UNIT ASSEMBLY : Mode Door Motor"

Blower motor

HAC-148, "A/C UNIT ASSEMBLY : Blower Motor"
