SYSTEM

EXL-193

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

NOTE:
• Headlamp (HI) depend on the combination switch condition.
• Front fog lamp and rear fog lamp does not turn ON automatically (depend on the each fog lamp switch oper-

ation).

• ON/OFF of fog override function can be changed using CONSULT. Refer to

INL-15, "INT LAMP : CONSULT

Function (BCM - INT LAMP)"

.

DAYTIME RUNNING LIGHT SYSTEM

DAYTIME RUNNING LIGHT SYSTEM : System Description

INFOID:0000000010469894

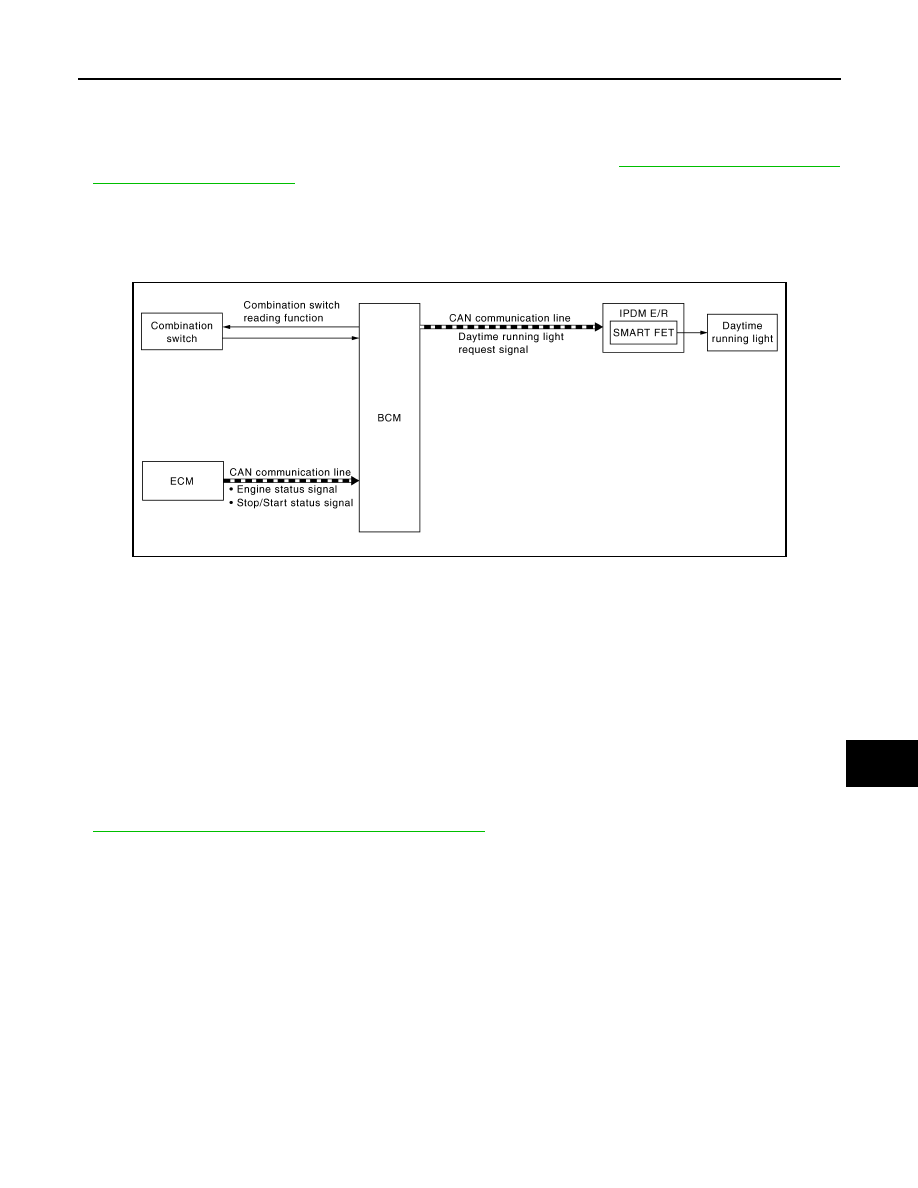

SYSTEM DIAGRAM

OUTLINE

Daytime running light is controlled by daytime running light control function and combination switch reading
function of BCM, and smart FET control function of IPDM E/R.

DAYTIME RUNNING LIGHT OPERATION

• BCM detects the combination switch condition by the combination switch reading function.
• BCM detects vehicle condition depending on the engine status signal and Stop/Start status signal* (received

from ECM via CAN communication).

• BCM transmits the daytime running light request signal to IPDM E/R via CAN communication according to

the daytime running light ON condition.

Daytime running light ON condition

- Engine running and any following conditions are satisfied.
• Lighting switch OFF
• Lighting switch AUTO (Only when the illumination judgment by auto light system is OFF. For details, refer to

EXL-192, "AUTO LIGHT SYSTEM : System Description"

.)

• IPDM E/R turns the integrated smart FET ON, and turns the daytime running light ON according to the day-

time running light request signal.

NOTE:
When the engine is stopped by the Stop/Start system, the operation of daytime running light system is not can-
celed.*
*: With Stop/Start system

DAYTIME RUNNING LIGHT SYSTEM : Fail-safe

INFOID:0000000010469895

FAIL-SAFE CONTROL BY DTC

IPDM E/R performs fail-safe control when any DTC are detected.

JMLIA5230GB

EXL-194

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

SYSTEM

CAN COMMUNICATION CONTROL

When CAN communication with BCM is impossible, IPDM E/R performs fail-safe control. After CAN communi-
cation recovers normally, it also returns to normal control.

If No CAN Communication Is Available With BCM

HEADLAMP AIMING CONTROL (MANUAL)

HEADLAMP AIMING CONTROL (MANUAL) : System Description

INFOID:0000000010470149

The headlamp levelizer adjusts the headlamp light axis upward and downward with the aiming motor inte-
grated in the front combination lamp.

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM : System Description

INFOID:0000000010469898

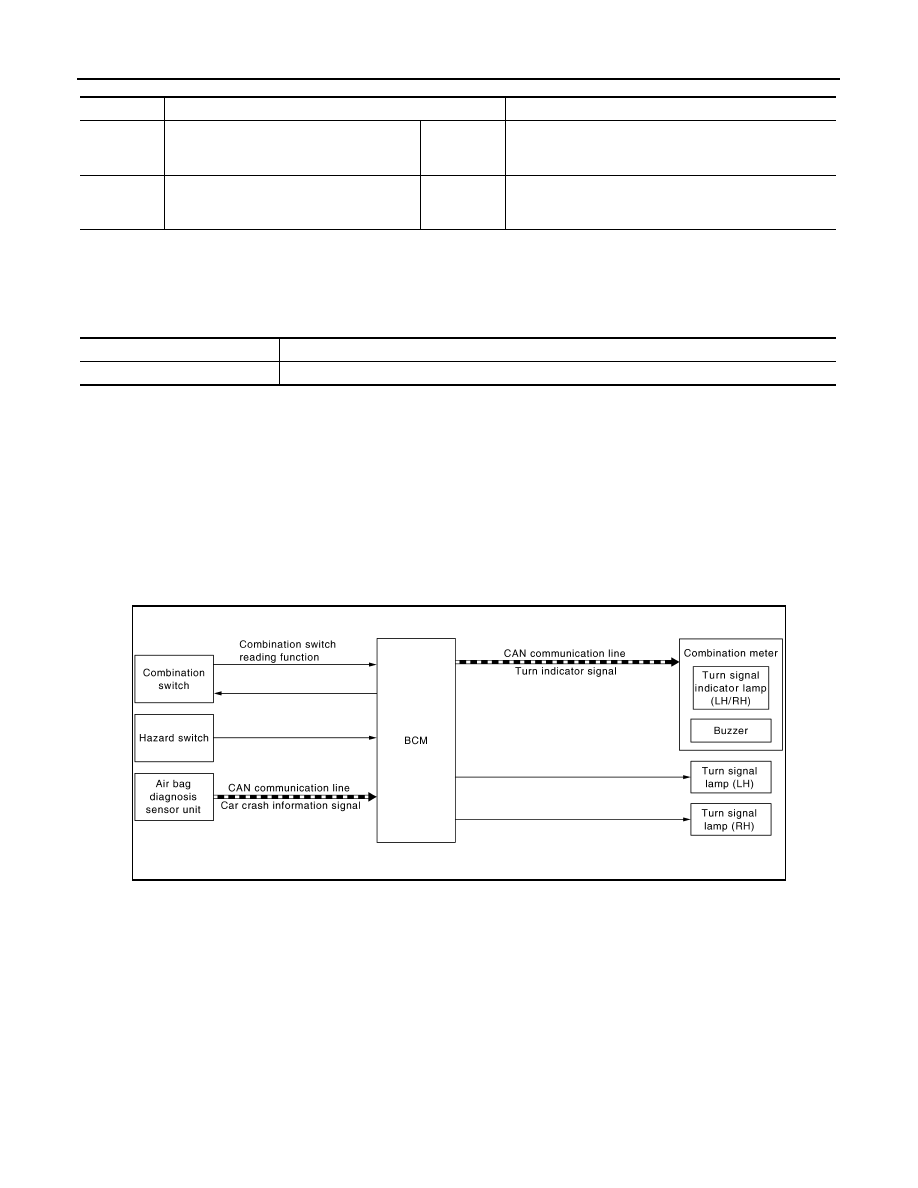

SYSTEM DIAGRAM

OUTLINE

Turn signal lamp and hazard warning lamp is controlled by combination switch reading function and the flasher
control function of BCM.

TURN SIGNAL LAMP OPERATION

• BCM detects the combination switch condition by the combination switch reading function.
• BCM supplies voltage to the right (left) turn signal lamp circuit when the ignition switch is ON and the turn

signal switch is in the right (left) position. BCM blinks the turn signal lamp.

HAZARD WARNING LAMP OPERATION

BCM supplies voltage to both turn signal lamp circuits when the hazard switch is ON. BCM blinks the hazard
warning lamp.

TURN SIGNAL INDICATOR LAMP AND TURN SIGNAL OPERATION

DTC

CONSULT display description

Fail-safe

B1231

DTRL RH PWR SPLY CIRC

[CIRC
SHORT TO
GRND]

Shuts off the power supply to the daytime running light RH
power supply circuit until the daytime running light ON
conditions are no longer satisfied.

B20CB

DTRL LH PWR SPLY CIRC

[CIRC
SHORT TO
GRND]

Shuts off the power supply to the daytime running light LH
power supply circuit until the daytime running light ON
conditions are no longer satisfied.

Control part

Fail-safe operation

Daytime running light

Daytime running light: OFF

JMLIA5232GB

SYSTEM

EXL-195

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

• BCM transmits the turn indicator signal to the combination meter using CAN communication while the turn

signal lamp and the hazard warning lamp are operating.

• Combination meter outputs the turn signal sound with the integrated buzzer while blinking the turn signal

indicator lamp according to the turn indicator signal.

3-TIME FLASHER FUNCTION

• By a short touch of the turn signal lever, BCM blinks the turn signal lamps 3 times in the selected direction.
• Cancels the operation when short touch of the turn signal lever in the reverse direction during the 3-time

flasher function operation.

NOTE:
ON/OFF of 3-time flasher function can be changed using CONSULT. Refer to

EXL-205, "FLASHER : CON-

SULT Function (BCM - FLASHER) (Halogen Headlamp)"

.

HIGH FLASHER OPERATION

• BCM detects the turn signal lamp circuit status from the current value.
• BCM increases the turn signal lamp blinking speed if the bulb or harness open is detected with the turn sig-

nal lamp operating.
NOTE:
The blinking speed is normal while operating the hazard warning lamp.

AUTO HAZARD FUNCTION

• Air bag diagnosis sensor unit transmits car crash information signal to BCM via CAN communication, when

air bag diagnosis sensor unit detects strong impact to the vehicle body while ignition switch is ON.

• When car crash information signal received from air bag diagnosis sensor unit is detected, BCM supplies

voltage to each turn signal lamp system and hazard lamp blinks.

PARKING, LICENSE PLATE AND TAIL LAMP SYSTEM

PARKING, LICENSE PLATE AND TAIL LAMP SYSTEM : System Description

INFOID:0000000010469899

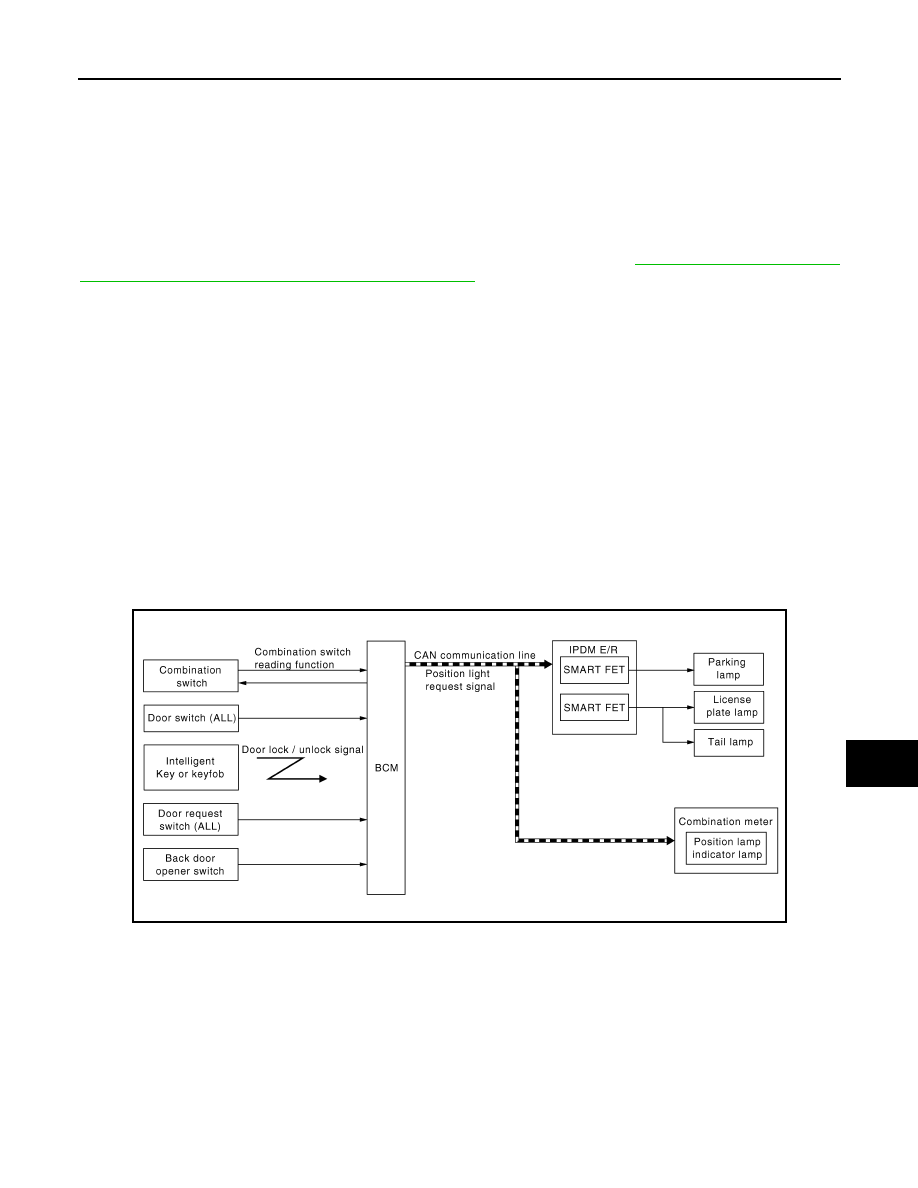

SYSTEM DIAGRAM

OUTLINE

Parking, license plate and tail lamps are controlled by combination switch reading function and parking,
license plate and tail lamps control function of BCM, and smart FET control function of IPDM E/R.

PARKING, LICENSE PLATE AND TAIL LAMPS OPERATION

• BCM detects the combination switch condition by the combination switch reading function.
• BCM transmits the position light request signal to IPDM E/R and the combination meter via CAN communi-

cation according to the parking, license plate and tail lamps ON condition.

Parking, license plate and tail lamps ON condition (when any of the following conditions are satisfied)

- Lighting switch 1ST
- Lighting switch 2ND

JMLIA5233GB

EXL-196

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

SYSTEM

- Lighting switch AUTO (Only when the illumination judgment by auto light system is ON. For details, refer to

EXL-192, "AUTO LIGHT SYSTEM : System Description"

.)

• IPDM E/R turns the integrated smart FET ON and turns the parking, license plate and tail lamps ON accord-

ing to the position light request signal.

• Combination meter turns the position lamp indicator lamp ON according to the position light request signal.
NOTE:
Parking lamp and daytime running light use a common light source. When the parking, license plate and tail
lamps are turned ON while daytime running light is ON, the parking lamp/daytime running light is dimmed.

FOLLOW ME HOME FUNCTION

When the driver is moving to the house entrance from the own vehicle, parking, license plate and tail lamps
are kept still ON by the follow me home function of BCM.
• When BCM detects the input of lighting switch PASS while all of the following conditions are satisfied, it

transmits the position light request signal for a period of time to IPDM E/R and the combination meter
through CAN communication.

Follow me home ON condition (When all of the following conditions are satisfied)

- Ignition switch OFF
- Lighting switch OFF or AUTO
• IPDM E/R turns the integrated smart FET ON and turns the parking, license plate and tail lamps ON accord-

ing to the position light request signal.

• Combination meter turns the position lamp indicator lamp ON according to the position light request signal.
• When in any of following conditions, follow me home function can be cancelled while follow me home func-

tion is operating.

Follow me home OFF condition (When any of the following conditions are satisfied)

- Ignition switch other than OFF
- Lighting switch other than OFF or AUTO
- Follow me home operating time is expired
NOTE:
• Flash-to-pass operation illumination time for 1 time can be extended to approximately 30 seconds during

operation of follow me home function.

• Flash-to-pass operation can be illuminated continuously for approximately 60 seconds (flash-to-pass opera-

tion, 2 times), approximately 90 seconds (flash-to-pass operation, 3 times), and a maximum of approxi-
mately 120 seconds (flash-to-pass operation, 4 times).

SIGNATURE LIGHT FUNCTION

Description

The signature light function is a function that turns ON the parking lamp, license plate lamp, and tail lamp for a
set period of time when the doors are locked or unlocked from outside the vehicle.

Operation Description

BCM transmits the position light request signal to IPDM E/R and the combination meter via CAN communica-
tion according to the signature light function ON condition.

Signature light function ON condition (Operation when doors are unlocked)

• When all of the following conditions are satisfied, the signature light function operates when door unlock

operation is performed from outside the vehicle (Intelligent Key, door request switch, back door opener
switch).

- Ignition switch: OFF
- Door open/close status: All door close
- Door lock status: All door lock
• When any of the following conditions is satisfied while the signature light function is operating, the signature

light function stops.

- Ignition switch: ON
- Door lock status: All door lock (This only occurs when door lock operation is performed using the door lock

and unlock switch, etc. When door lock operation is performed with the Intelligent Key or door request
switch, the system changes to operation when doors are locked.)

- Since signature light function ON, 30 seconds are passed.

Signature light function ON condition (Operation when doors are locked)

• When all of the following conditions are satisfied, the signature light function operates when door lock oper-

ation is performed from outside the vehicle (Intelligent Key or door request switch).

SYSTEM

EXL-197

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

- Ignition switch: OFF
- Door open/close status: All door close
• When any of the following conditions is satisfied while the signature light function is operating, the signature

light function stops.

- Ignition switch: ON
- Door open/close status: Any door open
- Door lock status: Any door unlock or all door unlock (This only occurs when door unlock operation is per-

formed using the door lock and unlock switch etc. When door unlock operation is performed with the Intelli-
gent Key, door request switch or back door opener switch, the system changes to operation when doors are
unlocked.)

- Door open/close status: All door close
NOTE:
ON/OFF of signature light function can be changed using CONSULT. Refer to

DLK-47, "DOOR LOCK : CON-

SULT Function (BCM - DOOR LOCK) (Type 1)"

DLK-221, "DOOR LOCK : CONSULT Function (BCM - DOOR

LOCK) (Type 2)"

DLK-394, "DOOR LOCK : CONSULT Function (BCM - DOOR LOCK) (Type 3)"

DLK-518,

"DOOR LOCK : CONSULT Function (BCM - DOOR LOCK) (Type 4)"

DLK-671, "DOOR LOCK : CONSULT

Function (BCM - DOOR LOCK) (Type 5)"

 or

DLK-842, "DOOR LOCK : CONSULT Function (BCM - DOOR

LOCK) (Type 6)"

. Regarding to the vehicle type, refer to

DLK-24, "Information"

.

PARKING, LICENSE PLATE AND TAIL LAMP SYSTEM : Fail-safe

INFOID:0000000010469900

FAIL-SAFE CONTROL BY DTC

IPDM E/R performs fail-safe control when any DTC are detected.

CAN COMMUNICATION CONTROL

When CAN communication with BCM is impossible, IPDM E/R performs fail-safe control. After CAN communi-
cation recovers normally, it also returns to normal control.

If No CAN Communication Is Available With BCM

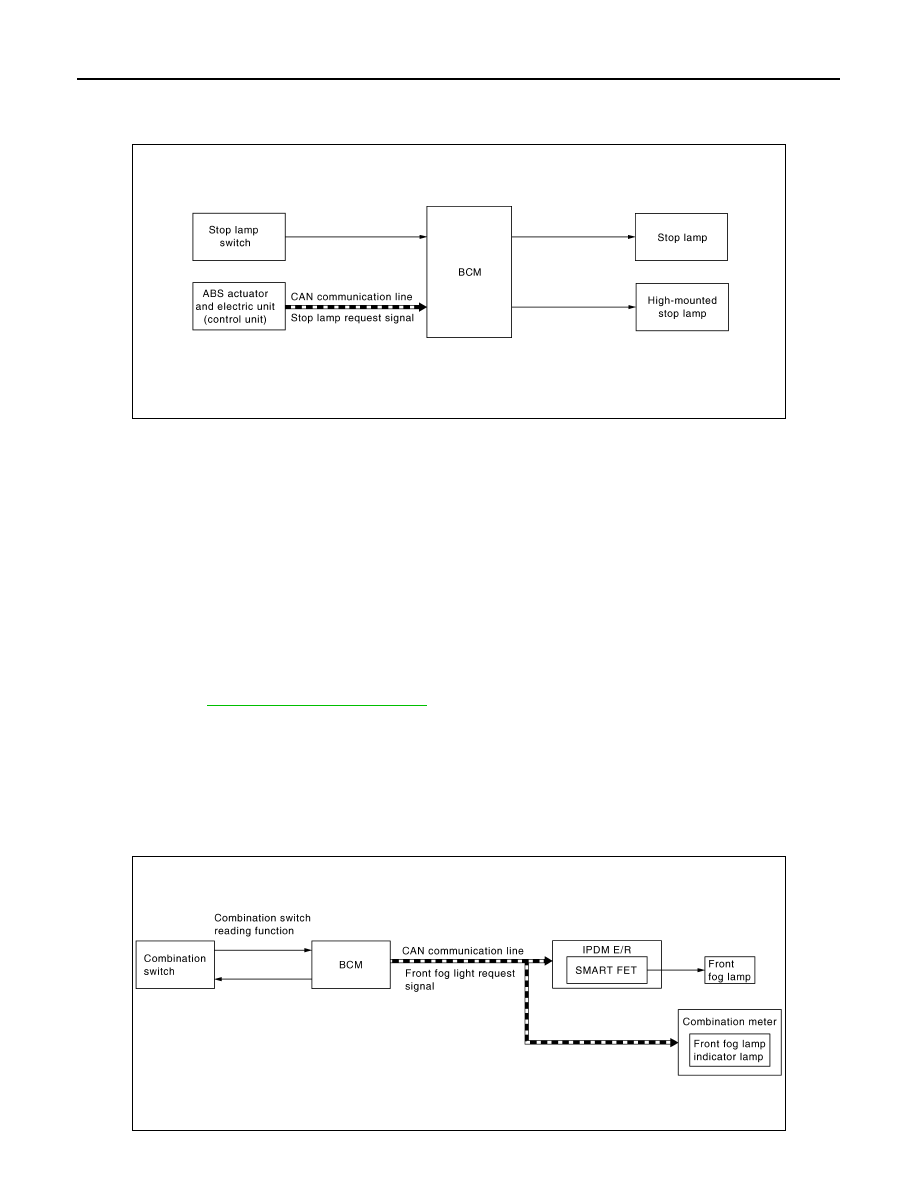

STOP LAMP SYSTEM

DTC

CONSULT display description

Fail-safe

B20D2

PARKING LAMP PWR SPLY CIRC

[CIRC
SHORT TO
GRND]

Shuts off the power supply to the parking lamp (LH/RH)
power supply circuit until the parking lamp, license plate
lamp, and tail lamp ON conditions are no longer satisfied.

B20D4

TAIL LAMP LH PWR SPLY CIRC

[CIRC
SHORT TO
GRND]

Shuts off the power supply to the following power supply
circuits until the parking lamp, license plate lamp, and tail
lamp ON conditions are no longer satisfied.
• Tail lamp LH (body side)
• Tail lamp LH (back door side)
• License plate lamp LH
• License plate lamp RH

B20D5

TAIL LAMP RH PWR SPLY CIRC

[CIRC
SHORT TO
GRND]

Shuts off the power supply to the following power supply
circuits until the parking lamp, license plate lamp, and tail
lamp ON conditions are no longer satisfied.
• Tail lamp RH (body side)
• Tail lamp RH (back door side)

Control part

Fail-safe operation

• Parking lamp
• License plate lamp
• Tail  lamp

• Turns ON the tail lamp, parking lamp and license plate lamp when the ignition switch is turned

ON.

• Turns OFF the tail lamp, parking lamp and license plate lamp when the ignition switch is turned

OFF.

EXL-198

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

SYSTEM

STOP LAMP SYSTEM : System Description

INFOID:0000000010469901

SYSTEM DIAGRAM

OUTLINE

Stop lamp and high-mounted stop lamp is controlled by combination switch reading function and the stop lamp
and high-mounted stop lamp control function of BCM, and forward emergency braking function of ABS actua-
tor and electric unit (control unit).

STOP LAMP AND HIGH-MOUNTED STOP LAMP OPERATION

• BCM detects the brake pedal position status from stop lamp switch.
• BCM supplies voltage to stop lamp and high-mounted stop lamp according to the stop lamp and high-

mounted stop lamp ON condition.

Stop lamp and high-mounted stop lamp ON condition

- Brake pedal is depressed

FORWARD EMERGENCY BRAKING FUNCTION

• When the Forward Emergency Braking operates, the ABS actuator and electric unit (control unit) transmits

the stop lamp request signal to BCM via CAN communication. (For details about the Forward Emergency
Braking, refer to

BRC-150, "System Description"

.)

• When BCM receives the stop lamp request signal from the ABS actuator and electric unit (control unit), it

supplies power to the stop lamp and high-mounted stop lamp systems, turning ON the stop lamp and high-
mounted stop lamp.

FRONT FOG LAMP SYSTEM

FRONT FOG LAMP SYSTEM : System Description

INFOID:0000000010469902

SYSTEM DIAGRAM

JMLIA5234GB

JMLIA5239GB

SYSTEM

EXL-199

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

OUTLINE

Front fog lamp is controlled by combination switch reading function and front fog lamp control function of BCM,
and smart FET control function of IPDM E/R.

FRONT FOG LAMP OPERATION

• BCM detects the combination switch condition by the combination switch reading function.
• BCM transmits the front fog light request signal to IPDM E/R and the combination meter via CAN communi-

cation according to the front fog lamp ON condition.

Front fog lamp ON condition (when any of the following conditions are satisfied) (without rear fog lamp)

- Lighting switch 1ST with the front fog lamp switch ON
- Lighting switch 2ND with the front fog lamp switch ON
- Lighting switch AUTO with the front fog lamp switch ON (Only when the illumination judgment by auto light

system is ON. For details, refer to

EXL-192, "AUTO LIGHT SYSTEM : System Description"

.)

Front fog lamp ON condition (with rear fog lamp)

- Front fog lamp switch is turned from OFF to ON, and any of the following conditions are satisfied.
• Lighting switch 1ST
• Lighting switch 2ND
• Lighting switch AUTO (Only when the illumination judgment by auto light system is ON. For details, refer to

EXL-192, "AUTO LIGHT SYSTEM : System Description"

.)

• IPDM E/R turns the integrated smart FET ON, and turns the front fog lamp ON according to the front fog light

request signal.

• Combination meter turns the front fog lamp indicator lamp ON according to the front fog light request signal.

FRONT FOG LAMP SYSTEM : Fail-safe

INFOID:0000000010469903

FAIL-SAFE CONTROL BY DTC

IPDM E/R performs fail-safe control when any DTC are detected.

CAN COMMUNICATION CONTROL

When CAN communication with BCM is impossible, IPDM E/R performs fail-safe control. After CAN communi-
cation recovers normally, it also returns to normal control.

If No CAN Communication Is Available With BCM

REAR FOG LAMP SYSTEM

DTC

CONSULT display description

Fail-safe

B121A

FR FOG LAMP LH PWR SPLY CIRC

[CIRC
SHORT TO
GRND]

Shuts off the power supply to the front fog lamp LH power
supply circuit until the front fog lamp ON conditions are no
longer satisfied.

B1256

FR FOG LAMP RH PWR SPLY CIRC

[CIRC
SHORT TO
GRND]

Shuts off the power supply to the front fog lamp RH power
supply circuit until the front fog lamp ON conditions are no
longer satisfied.

Control part

Fail-safe operation

Front fog lamp

Front fog lamp: OFF

EXL-200

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

SYSTEM

REAR FOG LAMP SYSTEM : System Description

INFOID:0000000010469904

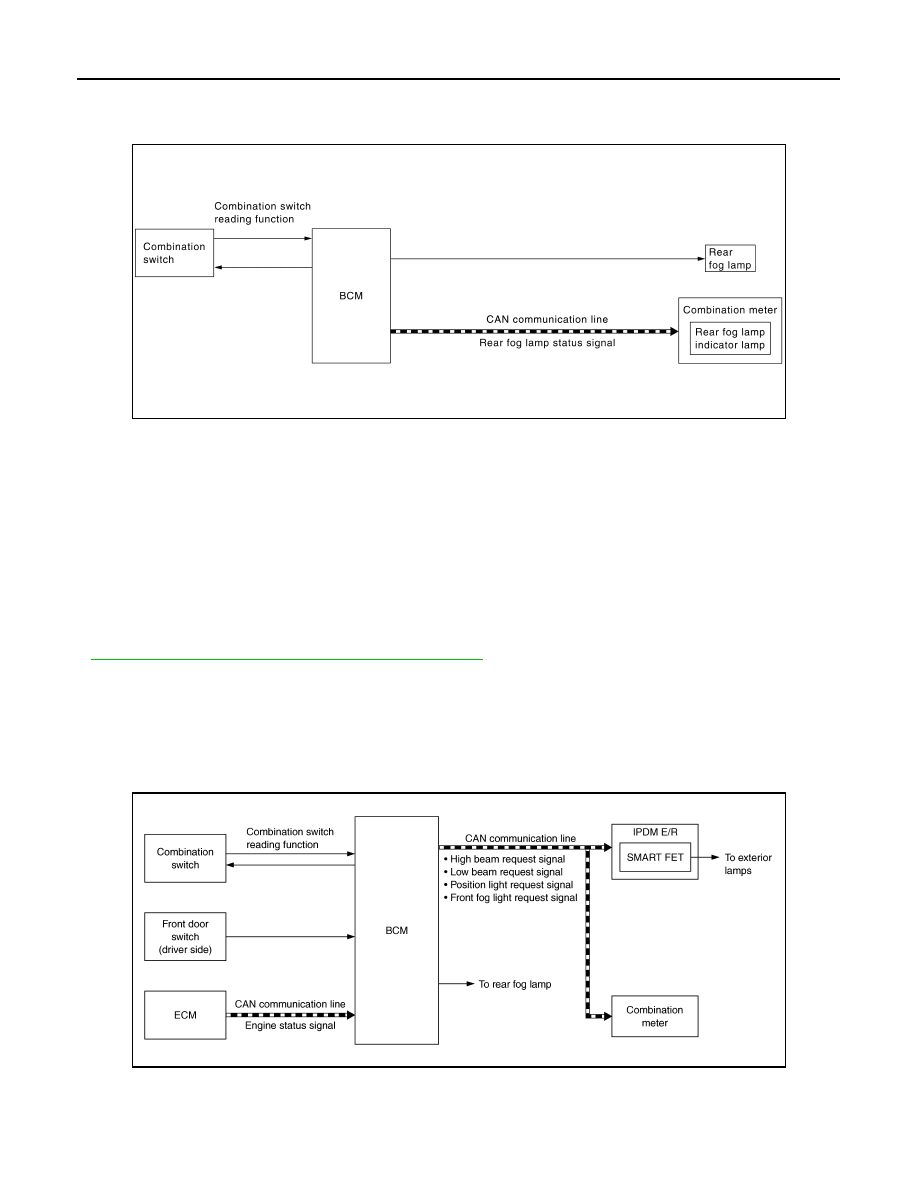

SYSTEM DIAGRAM

OUTLINE

Rear fog lamp is controlled with the combination switch reading function and the rear fog lamp control function
of BCM.

REAR FOG LAMP OPERATION

• BCM detects the condition of the combination switch by the combination switch reading function.
• BCM supplies voltage to rear fog lamp according to the rear fog lamp ON condition.

Rear fog lamp ON condition

- Rear fog lamp switch is turned from OFF to ON, and any of the following conditions are satisfied.
• Lighting switch 1ST
• Lighting switch 2ND
• Lighting switch AUTO (Only when the illumination judgment by auto light system is ON. For details, refer to

EXL-192, "AUTO LIGHT SYSTEM : System Description"

.)

• BCM transmits the rear fog lamp status signal to the combination meter using CAN communication.
• Combination meter turns the rear fog lamp indicator lamp ON according to the rear fog lamp status signal.

EXTERIOR LAMP BATTERY SAVER SYSTEM

EXTERIOR LAMP BATTERY SAVER SYSTEM : System Description

INFOID:0000000010469905

SYSTEM DIAGRAM

OUTLINE

• Exterior lamp battery saver system is controlled by combination switch reading function and exterior lamp

battery saver function of BCM, and smart FET control function of IPDM E/R.

JMLIA3188GB

JMLIA5240GB

SYSTEM

EXL-201

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

• BCM turns the exterior lamp* OFF, according to the vehicle status when ignition switch is turned OFF while

exterior lamp is ON, for preventing battery discharge.

*: Headlamp (LO/HI), front fog lamp, rear fog lamp, parking lamp, license plate lamp and tail lamp

EXTERIOR LAMP BATTERY SAVER ACTIVATION

• BCM turns the exterior lamps OFF (battery saver is activated) when all of the following conditions are satis-

fied.

- Exterior  lamp:  ON
- Engine status: Running

Stop (ignition switch is turned OFF)

- Front door switch (driver side): OFF

ON

NOTE:
When in any of following conditions (after the exterior lamp battery saver is activated), exterior lamps [except
front fog lamp (with rear fog lamp) and rear fog lamp] can be turned ON.
• Lighting switch: 1ST or 2ND

OFF or AUTO

1ST or 2ND

• Engine status: Stop

Running

EXL-202

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000010469906

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

×

: Applicable item

NOTE:
*: This item is displayed, but not used.

FREEZE FRAME DATA (FFD)

The BCM records the following vehicle condition at the time a particular DTC is detected, and displays on
CONSULT.

Diagnosis mode

Function Description

Work Support

Changes the setting for each system function.

Self Diagnostic Result

Displays the diagnosis results judged by BCM.

CAN Diag Support Monitor

Monitors the reception status of CAN communication viewed from BCM.

Data Monitor

The BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Ecu Identification

The BCM part number is displayed.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

Work Support

Data Monitor

Active Test

Door lock

DOOR LOCK

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Exterior lamp

HEAD LAMP

×

×

×

Interior room lamp control

INT LAMP

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

AIR CONDITONER*

×

×

Intelligent Key system

INTELLIGENT KEY

×

×

×

Combination switch

COMB SW

×

Body control system

BCM

×

NVIS - NATS

IMMU

×

Interior room lamp battery saver

BATTERY SAVER

×

Back door open

TRUNK

×

Vehicle security

THEFT ALM

×

×

RAP

RETAINED PWR

×

Remote keyless entry system

MULTI REMOTE ENT

×

×

Signal buffer system

SIGNAL BUFFER

×

×

DIAGNOSIS SYSTEM (BCM)

EXL-203

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

HEADLAMP

HEADLAMP : CONSULT Function (BCM - HEAD LAMP) (Halogen Headlamp)

INFOID:0000000010469907

WORK SUPPORT

*

1

: For models without auto light system, this item is displayed, but cannot be used.

*

2

: Factory setting

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

CONSULT screen item

Indication/Unit

Description

BATTERY VOLTAGE

V

Battery voltage of the moment a particular DTC is detected.

VEHICLE SPEED

km/h

Vehicle speed of the moment a particular DTC is detected.

EXTERNAL TEMP

°

C

External temperature of the moment a particular DTC is detected

VEHICLE COND

NOTE:
This item is displayed, but cannot be use this item.

DOOR LOCK STATUS

NOTE:
This item is displayed, but cannot be use this item.

POWER SUPPLY
COUNTER

min

Displays the cumulative time from the time that the battery terminal is connected.

Service item

Setting item

Setting

CUSTOM A/LIGHT SET-

TING*

1

MODE 1*

2

Normal

MODE 2

More sensitive setting than normal setting. (Turns ON earlier than normal op-
eration.)

MODE 3

More sensitive setting than MODE 2. (Turns ON earlier than MODE 2.)

MODE 4

Less sensitive setting than normal setting. (Turns ON later than normal oper-
ation.)

TWILIGHT On

MODE 1

NOTE:
This item is displayed, but cannot be used.

MODE 2

WIPER LINK

MODE 1

NOTE:
This item is displayed, but cannot be used.

MODE 2

MODE 3

MODE 4

Monitor item

[Unit]

Description

PUSH SW
[On/Off]

Indicates [On/Off] condition of push-button ignition switch

ENGINE STATE
[STOP/STALL/CRANK/RUN]

Indicates [STOP/STALL/CRANK/RUN] condition of engine states

VEH SPEED 1
[km/h]

Indicates [km/h] condition of vehicle speed signal from combination meter

EXL-204

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

DIAGNOSIS SYSTEM (BCM)

*

1

: For models without auto light system, this item is displayed, but cannot be monitored.

*

2

: For models without front fog lamp, this item is displayed, but cannot be monitored.

*

3

: For models without rear fog lamp, this item is displayed, but cannot be monitored.

ACTIVE TEST

TURN SIGNAL R
[On/Off]

Each switch status that BCM judges from the combination switch reading function.

TURN SIGNAL L
[On/Off]

TAIL LAMP SW
[On/Off]

HI BEAM SW
[On/Off]

HEADLAMP SW
[On/Off]

LIGHT OFF SW
[On/Off]

PASSING SW
[On/Off]

AUTO LIGHT SW*

1

[On/Off]

FR FOG SW*

2

[On/Off]

RR FOG SW*

3

[On/Off]

DOOR SW-DR
[On/Off]

Indicated [On/Off] condition of front door switch (driver side)

DOOR SW-AS
[On/Off]

Indicated [On/Off] condition of front door switch (passenger side)

DOOR SW-RR
[On/Off]

Indicated [On/Off] condition of rear door switch RH

DOOR SW-RL
[On/Off]

Indicated [On/Off] condition of rear door switch LH

DOOR SW-BK
[On/Off]

Indicated [On/Off] condition of back door switch

OPTI SEN (DTCT)
[V]

NOTE:
This item is displayed, but cannot be monitored.

OPTI SEN (FILT)
[V]

NOTE:
This item is displayed, but cannot be monitored.

OPTICAL SENSOR*

1

[On/Off/NG]

The sensor condition received from light & rain sensor

Monitor item

[Unit]

Description

Test item

Operation

Description

FR FOG LAMP*

1

On

Transmits the front fog light request signal to IPDM E/R using CAN com-
munication to turn the front fog lamp ON.

Off

Stops the front fog light request signal transmission.

RR FOG LAMP*

2

On

Outputs voltage to turn the rear fog lamp ON.

Off

Stops the voltage to turn the rear fog lamp OFF.

STOP LAMP 1

On

Outputs voltage to turn the stop lamp RH ON.

Off

Stops the voltage to turn the stop lamp RH OFF.

DIAGNOSIS SYSTEM (BCM)

EXL-205

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

*

1

: For models with front fog lamp, this item is displayed, but cannot be tested.

*

2

: For models without rear fog lamp, this item is displayed, but cannot be tested.

FLASHER

FLASHER : CONSULT Function (BCM - FLASHER) (Halogen Headlamp)

INFOID:0000000010469908

WORK SUPPORT

*: Factory setting

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

INT LAMP

INT LAMP : CONSULT Function (BCM - INT LAMP)

INFOID:0000000010469909

WORK SUPPORT

STOP LAMP 2

On

Outputs voltage to turn the stop lamp LH ON.

Off

Stops the voltage to turn the stop lamp LH OFF.

STOP LAMP 3

On

Outputs voltage to turn the high-mounted stop lamp ON.

Off

Stops the voltage to turn the high-mounted stop lamp OFF.

Test item

Operation

Description

Service item

Setting item

Setting

3-TIME FLASHER SETTING

On*

With 3-time flasher function

Off

Without 3-time flasher function

Monitor item

[Unit]

Description

REQ SW -DR
[On/Off]

Indicated [On/Off] condition of door request switch (driver side)

REQ SW -AS
[On/Off]

Indicated [On/Off] condition of door request switch (passenger side)

PUSH SW
[On/Off]

Indicates [On/Off] condition of push-button ignition switch

TURN SIGNAL R
[On/Off]

Each switch status that BCM detects from the combination switch reading function.

TURN SIGNAL L
[On/Off]

HAZARD SW
[On/Off]

The switch status input from the hazard switch.

RKE-LOCK
[On/Off]

Indicates [On/Off] condition of LOCK signal from Intelligent Key or keyfob

RKE-UNLOCK
[On/Off]

Indicates [On/Off] condition of UNLOCK signal from Intelligent Key or keyfob

RKE-PANIC
[On/Off]

NOTE:
This item is displayed, but cannot be monitored.

Service item

Setting item

Setting

SET I/L D-UNLCK INTCON

On*

1

With interior room lamp timer function

Off

Without interior room lamp timer function

EXL-206

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

DIAGNOSIS SYSTEM (BCM)

*

1

: Factory setting

*

2

: With spicy illumination

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

ACTIVE TEST

FOG LAMP OVERRIDE

On*

1

With front fog override function

Off

Without front fog override function

SPICY BRIGHTNESS SETTING*

2

MODE1

Turns spicy illumination function OFF

MODE2

Sets spicy illumination brightness.

MODE3

MODE4

MODE5*

1

MODE6

MODE7

MODE8

Service item

Setting item

Setting

Monitor item

[Unit]

Description

REQ SW-DR
[On/Off]

Indicated [On/Off] condition of door request switch (driver side)

REQ SW-AS
[On/Off]

Indicated [On/Off] condition of door request switch (passenger side)

PUSH SW
[On/Off]

Indicates [On/Off] condition of push-button ignition switch

DOOR SW-DR
[On/Off]

Indicated [On/Off] condition of front door switch (driver side)

DOOR SW-AS
[On/Off]

Indicated [On/Off] condition of front door switch (passenger side)

DOOR SW-RR
[On/Off]

Indicated [On/Off] condition of rear door switch RH

DOOR SW-RL
[On/Off]

Indicated [On/Off] condition of rear door switch LH

DOOR SW-BK
[On/Off]

Indicated [On/Off] condition of back door switch

CDL LOCK SW
[On/Off]

Indicated [On/Off] condition of lock signal from door lock and unlock switch

CDL UNLOCK SW
[On/Off]

Indicated [On/Off] condition of unlock signal from door lock and unlock switch

KEY CYL LK-SW
[On/Off]

NOTE:
This item is displayed, but cannot be monitored

KEY CYL UN-SW
[On/Off]

NOTE:
This item is displayed, but cannot be monitored

RKE-LOCK
[On/Off]

Indicates [On/Off] condition of LOCK signal from Intelligent Key

RKE-UNLOCK
[On/Off]

Indicates [On/Off] condition of UNLOCK signal from Intelligent Key

KEY SW
[On/Off]

NOTE:
This item is displayed, but cannot be monitored

DIAGNOSIS SYSTEM (BCM)

EXL-207

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

DOOR LOCK

DOOR LOCK : Information

INFOID:0000000010735633

Check the vehicle type to use the service information in this section.

DOOR LOCK : CONSULT Function (BCM - DOOR LOCK) (Type 1)

INFOID:0000000010469910

BCM CONSULT FUNCTION

CONSULT performs the following functions via CAN communication with BCM.

WORK SUPPORT

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

Test item

Operation

Description

INT LAMP

On

Outputs interior room lamp control signal.

Off

Stops interior room lamp control signal.

Service information

Destination

Type 1

For Europe

With Intelligent Key and super lock

Type 2

• For Europe
• For South Africa
• For Russia, Ukraine and Kazakhstan

With Intelligent Key, without super lock

Type 3

For Europe

Without Intelligent Key, with super lock

Type 4

• For Europe
• For South Africa
• For Russia, Ukraine and Kazakhstan

Without Intelligent Key and super lock

Type 5

• For  Australia
• For General export

With Intelligent Key, without super lock

Type 6

• For  Australia
• For General export

Without Intelligent Key and super lock

Monitor item

Description

DOOR LOCK-UNLOCK SET

Anti-hijack function mode can be changed to operation with this mode
• On: Operate
• Off: Non-operation

SIGNATURE LIGHT SETTING

Signature light function can be changed to operation with this mode
• On: Operate
• Off: Non-operation

Monitor Item

Contents

REQ SW-DR

Indicated [On/Off] condition of door request switch (driver side)

REQ SW-AS

Indicated [On/Off] condition of door request switch (passenger side)

REQ SW-BD/TR

Indicated [On/Off] condition of back door request switch

DOOR SW-DR

Indicated [On/Off] condition of front door switch (driver side)

DOOR SW-AS

Indicated [On/Off] condition of front door switch (passenger side)

DOOR SW-RR

Indicated [On/Off] condition of rear door switch RH

DOOR SW-RL

Indicated [On/Off] condition of rear door switch LH

DOOR SW-BK

Indicated [On/Off] condition of back door switch

CDL LOCK SW

Indicated [On/Off] condition of lock signal from door lock unlock switch

EXL-208

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

DIAGNOSIS SYSTEM (BCM)

ACTIVE TEST

DOOR LOCK : CONSULT Function (BCM - DOOR LOCK) (Type 2)

INFOID:0000000010500829

BCM CONSULT FUNCTION

CONSULT performs the following functions via CAN communication with BCM.

WORK SUPPORT

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

CDL UNLOCK SW

Indicated [On/Off] condition of unlock signal from door lock unlock switch

KEY CYL LK-SW

NOTE:
This item is displayed, but cannot be monitored

KEY CYL UN-SW

NOTE:
This item is displayed, but cannot be monitored

SHOCK SENSOR

Indicates [NOMAL/On/Off] condition of circuit between BCM and air bag diagnosis sensor unit
• NORMAL: Ignition switch ON. (BCM is receiving normal condition signal from air bag diagnosis sensor

unit.)

• ON: During the receiving of air bag signal from air bag diagnosis sensor unit
• OFF: After the receiving of air bag signal from air bag diagnosis sensor unit

KEY SW

NOTE:
This item is displayed, but cannot be monitored

Monitor Item

Contents

Test item

Description

DOOR LOCK

This test is able to check door lock/unlock operation
• The all door lock actuators are locked when “ALL LOCK” on CONSULT screen is touched
• The all door lock actuators are unlocked when “ALL UNLOCK” on CONSULT screen is touched

SUPER LOCK

This test is able to check super lock actuator operation
• The all door lock actuators are set when “LOCK” on CONSULT screen is touched
• The all door lock actuators are released when “UNLOCK” on CONSULT screen is touched

DOOR LOCK IND

This test is able to check door lock status indicator operation
• On: Operate
• Off: Non-operation

Monitor item

Description

DOOR LOCK-UNLOCK SET

Anti-hijack function mode can be changed to operation with this mode
• On: Operate
• Off: Non-operation

SIGNATURE LIGHT SETTING

Signature light function can be changed to operation with this mode
• On: Operate
• Off: Non-operation

Monitor Item

Contents

REQ SW-DR

Indicated [On/Off] condition of door request switch (driver side)

REQ SW-AS

Indicated [On/Off] condition of door request switch (passenger side)

REQ SW-BD/TR

Indicated [On/Off] condition of back door request switch

DOOR SW-DR

Indicated [On/Off] condition of front door switch (driver side)

DOOR SW-AS

Indicated [On/Off] condition of front door switch (passenger side)

DOOR SW-RR

Indicated [On/Off] condition of rear door switch RH

DOOR SW-RL

Indicated [On/Off] condition of rear door switch LH

DOOR SW-BK

Indicated [On/Off] condition of back door switch















Content      ..     11      12      13      14     ..
