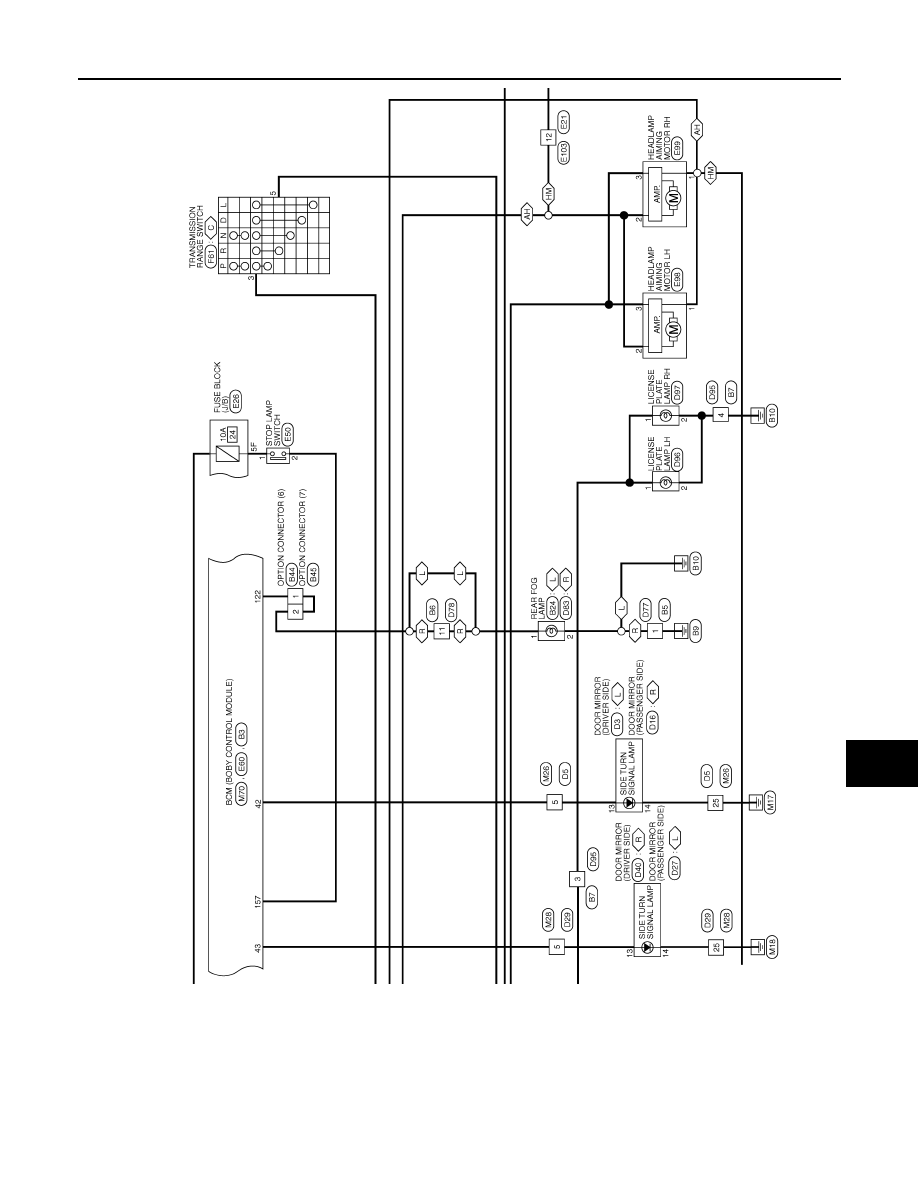

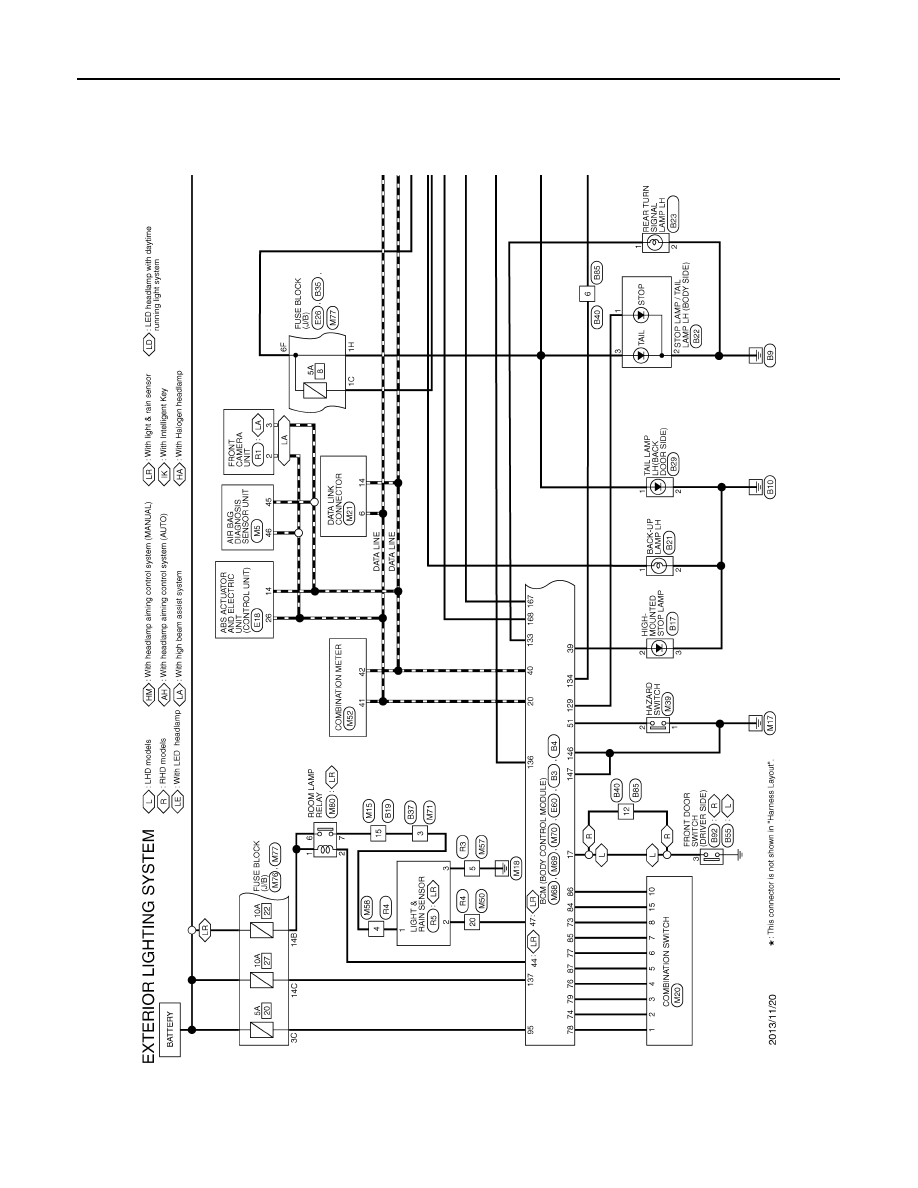

Qashqai J11. Exterior Lighting system

DIAGNOSIS SYSTEM (BCM)

EXL-209

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

EXL

ACTIVE TEST

DOOR LOCK : CONSULT Function (BCM - DOOR LOCK) (Type 3)

INFOID:0000000010469912

WORK SUPPORT

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

CDL LOCK SW

Indicated [On/Off] condition of lock signal from door lock unlock switch

CDL UNLOCK SW

Indicated [On/Off] condition of unlock signal from door lock unlock switch

KEY CYL LK-SW

NOTE:
This item is displayed, but cannot be monitored

KEY CYL UN-SW

NOTE:
This item is displayed, but cannot be monitored

SHOCK SENSOR

Indicates [NOMAL/On/Off] condition of circuit between BCM and air bag diagnosis sensor unit
• NORMAL: Ignition switch ON. (BCM is receiving normal condition signal from air bag diagnosis sensor

unit.)

• ON: During the receiving of air bag signal from air bag diagnosis sensor unit
• OFF: After the receiving of air bag signal from air bag diagnosis sensor unit

KEY SW

NOTE:
This item is displayed, but cannot be monitored

Monitor Item

Contents

Test item

Description

DOOR LOCK

This test is able to check door lock/unlock operation
• The all door lock actuators are locked when “ALL LOCK” on CONSULT screen is touched
• The all door lock actuators are unlocked when “ALL UNLOCK” on CONSULT screen is touched

SUPER LOCK

NOTE:
This item is displayed, but cannot be monitored

DOOR LOCK IND

This test is able to check door lock status indicator operation
• On: Operate
• Off: Non-operation

Monitor item

Description

DOOR LOCK-UNLOCK SET

Anti-hijack function can be changed to operate with this mode
• On: Operate
• Off: Non-operation

Monitor Item

Contents

DOOR SW-DR

Indicated [On/Off] condition of front door switch (driver side)

DOOR SW-AS

Indicated [On/Off] condition of front door switch (passenger side)

DOOR SW-RR

Indicated [On/Off] condition of rear door switch RH

DOOR SW-RL

Indicated [On/Off] condition of rear door switch LH

DOOR SW-BK

Indicated [On/Off] condition of back door switch

CDL LOCK SW

Indicated [On/Off] condition of lock signal from door lock unlock switch

CDL UNLOCK SW

Indicated [On/Off] condition of unlock signal from door lock unlock switch

KEY CYL LK-SW

NOTE:
This item is displayed, but cannot be monitored

KEY CYL UN-SW

NOTE:
This item is displayed, but cannot be monitored

EXL-210

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

DIAGNOSIS SYSTEM (BCM)

ACTIVE TEST

DOOR LOCK : CONSULT Function (BCM - DOOR LOCK) (Type 4)

INFOID:0000000010469913

WORK SUPPORT

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

SHOCK SENSOR

NOTE:
This item is displayed, but cannot be monitored

KEY SW

Indicated [On/Off] condition of key switch

Monitor Item

Contents

Test item

Description

DOOR LOCK

SUPER LOCK

This test is able to check super lock actuator operation
• The all door lock actuators are set when “LOCK” on CONSULT screen is touched
• The all door lock actuators are released when “UNLOCK” on CONSULT screen is touched

DOOR LOCK IND

This test is able to check door lock status indicator operation
• On: Operate
• Off: Non-operation

Monitor item

Description

DOOR LOCK-UNLOCK SET

Anti-hijack function can be changed to operate with this mode
• On: Operate
• Off: Non-operation

Monitor Item

Contents

IGN ON SW

Indicated [On/Off] condition of ignition switch in ON position

KEY ON SW

Indicated [On/Off] condition of key switch

CDL LOCK SW

Indicated [On/Off] condition of lock signal from door lock unlock switch

CDL UNLOCK SW

Indicated [On/Off] condition of unlock signal from door lock unlock switch

DOOR SW-DR

Indicated [On/Off] condition of front door switch (driver side)

DOOR SW-AS

Indicated [On/Off] condition of front door switch (passenger side)

DOOR SW-RR

Indicated [On/Off] condition of rear door switch RH

DOOR SW-RL

Indicated [On/Off] condition of rear door switch LH

BACK DOOR SW

Indicated [On/Off] condition of back door switch

LOCK STATUS

Indicated [On/Off] condition of front door driver side

ACC ON SW

Indicated [On/Off] condition of ignition switch in ACC position

KEYLESS LOCK

Indicated [On/Off] condition of lock signal from key fob

KEYLESS UNLOCK

Indicated [On/Off] condition of unlock signal from key fob

SHOCK SENSOR

NOTE:
This item is displayed, but cannot be monitored

KEY CYL LK-SW

NOTE:
This item is displayed, but cannot be monitored

DIAGNOSIS SYSTEM (BCM)

EXL-211

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

EXL

ACTIVE TEST

DOOR LOCK : CONSULT Function (BCM - DOOR LOCK) (Type 5)

INFOID:0000000010735634

BCM CONSULT FUNCTION

CONSULT performs the following functions via CAN communication with BCM.

WORK SUPPORT

: P range interlock door lock/unlock can be selected for M/T models, but automatic door lock/unlock function

does not operate.

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

KEY CYL UN-SW

NOTE:
This item is displayed, but cannot be monitored

VEHICLE SPEED

Display the vehicle speed signal received from combination meter by numer-
ical value [Km/h]

Monitor Item

Contents

Test item

Description

DOOR LOCK

This test is able to check door lock/unlock operation
• The all door lock actuators are locked when “ALL LCK” on CONSULT screen is touched
• The all door lock actuators are unlocked when “ALL UNLK” on CONSULT screen is touched
• The door lock actuator (driver side) is unlocked when “DR UNLK” on CONSULT screen is

touched

• “BD ULK” is displayed, but cannot be used
• “OTR ULK” is displayed, but cannot be used

DOOR LOCK IND

NOTE:
This item is displayed, but cannot be used

SUPER LOCK

NOTE:
This item is displayed, but cannot be used

Monitor item

Description

DOOR LOCK-UNLOCK SET

Selective unlock function mode can be changed to operation with this mode
• On: Operate
• Off: Non-operation

AUTO UNLOCK TYPE

Automatic door unlock function mode can be selected from the following in this mode
• MODE1: All doors are locked
• MODE2: Only driver door is unlocked

AUTO LOCK FUNCTION

Automatic door lock function mode can be selected from the following in the mode
• MODE1: All doors are locked when vehicle speed more than 10 km/h (6 MPH)

• MODE 2

: All doors are locked when shifting the selector lever from P position to other than the

P position

• MODE 3: Non-operation
• Off: Non-operation

AUTO UNLOCK FUNCTION

Automatic door unlock function mode can be selected from the following in this mode
• MODE1: All doors are unlocked when the power supply position is changed from ON to OFF

• MODE 2

: All doors are unlocked when shifting the selector lever from any position other than

the P to P position

• MODE 3: Non-operation
• Off: Non-operation

SIGNATURE LIGHT SETTING

Signature light function can be changed to operation with this mode
• On: Operate
• Off: Non-operation

EXL-212

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

DIAGNOSIS SYSTEM (BCM)

ACTIVE TEST

DOOR LOCK : CONSULT Function (BCM - DOOR LOCK) (Type 6)

INFOID:0000000010735635

WORK SUPPORT

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

Monitor Item

Contents

REQ SW-DR

Indicated [On/Off] condition of door request switch (driver side)

REQ SW-AS

Indicated [On/Off] condition of door request switch (passenger side)

REQ SW-BD/TR

Indicated [On/Off] condition of back door request switch

DOOR SW-DR

Indicated [On/Off] condition of front door switch (driver side)

DOOR SW-AS

Indicated [On/Off] condition of front door switch (passenger side)

DOOR SW-RR

Indicated [On/Off] condition of rear door switch RH

DOOR SW-RL

Indicated [On/Off] condition of rear door switch LH

DOOR SW-BK

Indicated [On/Off] condition of back door switch

CDL LOCK SW

Indicated [On/Off] condition of lock signal from door lock unlock switch

CDL UNLOCK SW

Indicated [On/Off] condition of unlock signal from door lock unlock switch

KEY CYL LK-SW

NOTE:
This item is displayed, but cannot be monitored

KEY CYL UN-SW

NOTE:
This item is displayed, but cannot be monitored

SHOCK SENSOR

Indicates [NOMAL/On/Off] condition of circuit between BCM and air bag diagnosis sensor unit
• NORMAL: Ignition switch ON. (BCM is receiving normal condition signal from air bag diagnosis sensor

unit.)

• ON: During the receiving of air bag signal from air bag diagnosis sensor unit
• OFF: After the receiving of air bag signal from air bag diagnosis sensor unit

KEY SW

NOTE:
This item is displayed, but cannot be monitored

Test item

Description

DOOR LOCK

DOOR LOCK IND

This test is able to check door lock status indicator operation
• On: Operate
• Off: Non-operation

Monitor item

Description

DOOR LOCK-UNLOCK SET

Anti-hijack function can be changed to operate with this mode
• On: Operate
• Off: Non-operation

Monitor Item

Contents

IGN ON SW

Indicated [On/Off] condition of ignition switch in ON position

KEY ON SW

Indicated [On/Off] condition of key switch

CDL LOCK SW

Indicated [On/Off] condition of lock signal from door lock unlock switch

CDL UNLOCK SW

Indicated [On/Off] condition of unlock signal from door lock unlock switch

DOOR SW-DR

Indicated [On/Off] condition of front door switch (driver side)

EXL-214

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

DIAGNOSIS SYSTEM (IPDM E/R)

DIAGNOSIS SYSTEM (IPDM E/R)

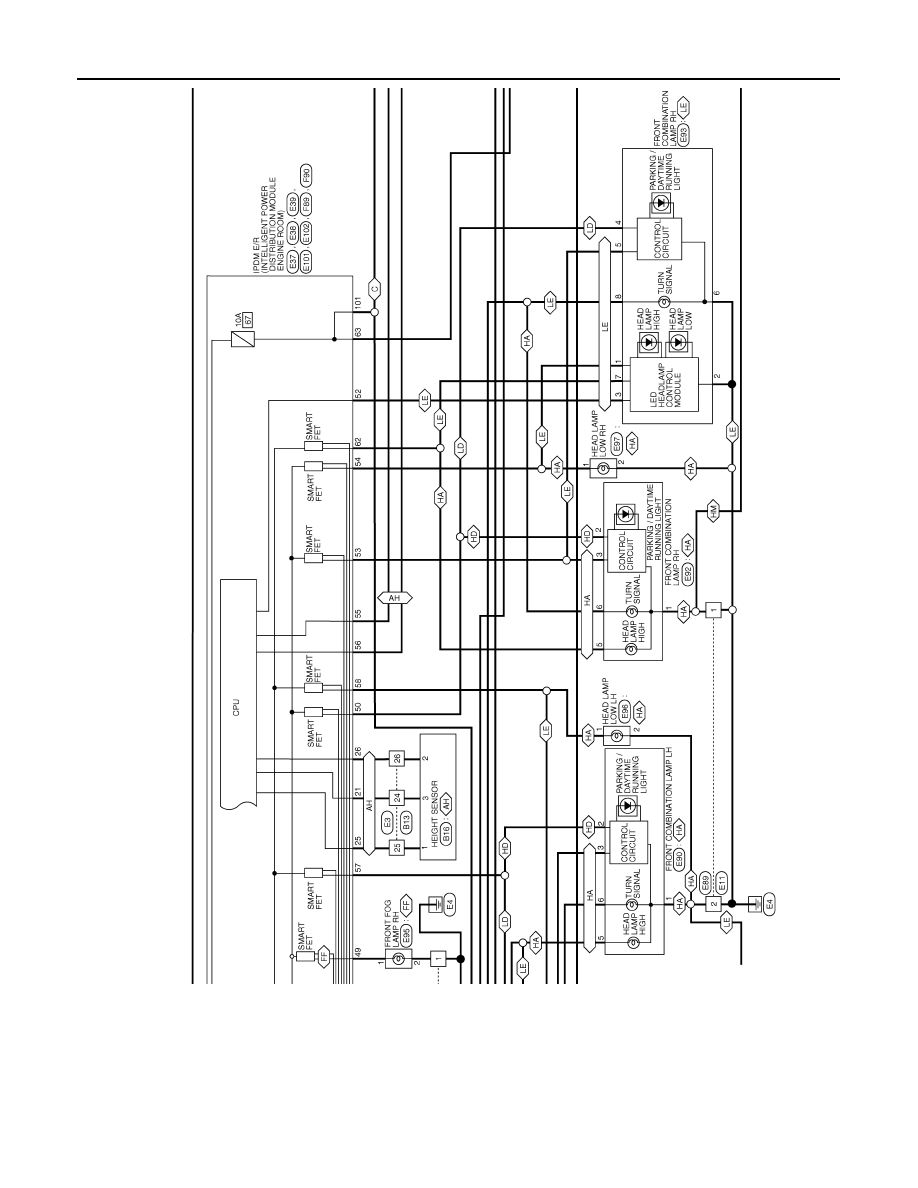

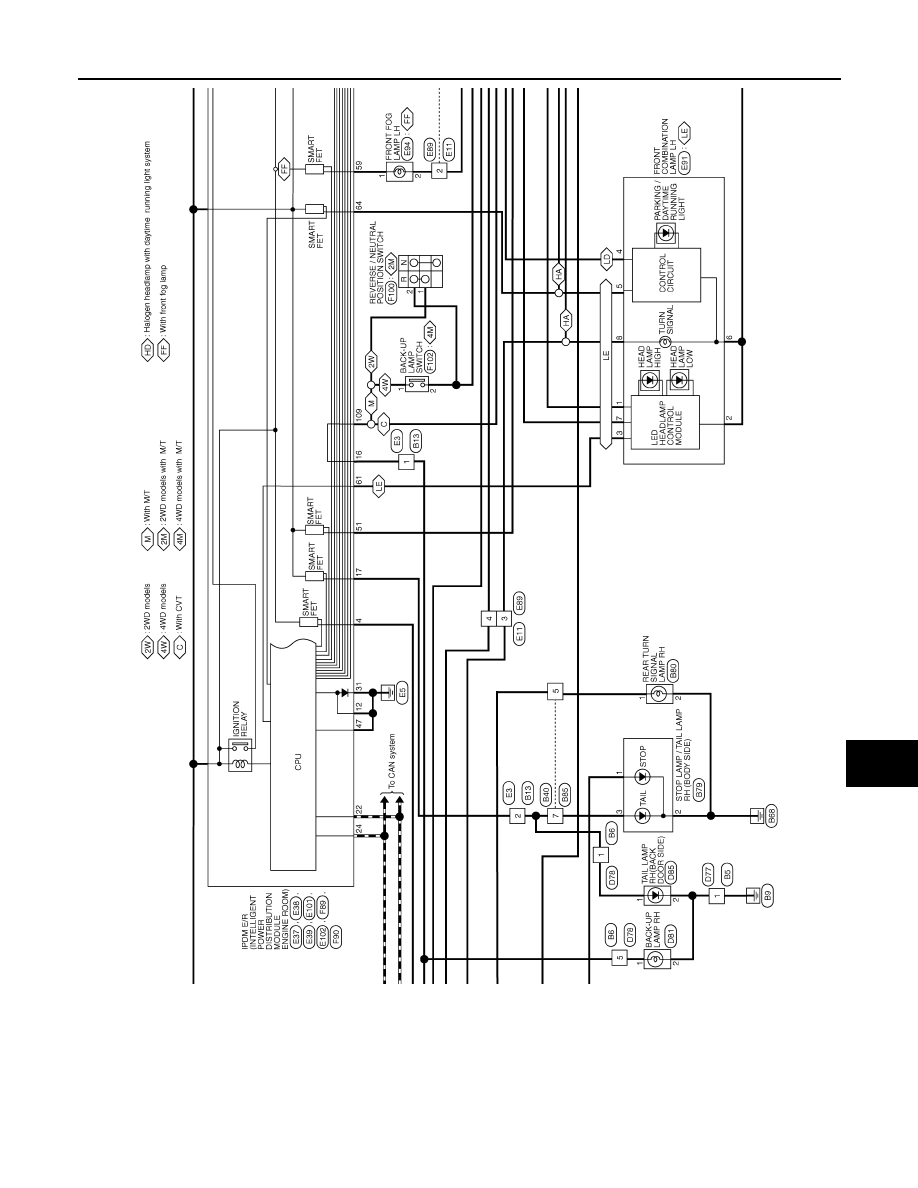

CONSULT Function (IPDM E/R)

INFOID:0000000010469914

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with IPDM E/R.

SELF DIAGNOSTIC RESULT

Refer to

PCS-37, "DTC Index"

Freeze Frame Data (FFD)

The IPDM E/R records the vehicle condition at the time a particular DTC is detected, and displays on CON-
SULT.

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

Diagnosis mode

Description

Self Diagnostic Result

Displays the diagnosis results judged by IPDM E/R.

Data Monitor

Displays the real-time input/output data from IPDM E/R input/output data.

Work Support

Changes the setting for each system function.

Active Test

IPDM E/R can provide a drive signal to electronic components to check their operations.

Ecu Identification

Allows confirmation of IPDM E/R part number.

Configuration

• Read and save the vehicle specification.
• White the vehicle specification when replacing IPDM E/R.

CAN Diag Support Monitor

The results of transmit/receive diagnosis of CAN communication can be read.

Monitor Item

[Unit]

Description

REVERSE SIGNAL
[Open/Close]

Displays the status of the transmission range switch (CVT) or reverse/neutral position
switch (M/T) judged by IPDM E/R.

IGN RELAY
[Open/Close]

Displays the status of the ignition relay judged by IPDM E/R.

PUSH SW
[Open/Close]

Displays the status of the push-button ignition switch judged by IPDM E/R.

NEUTRAL SW
[Open/Close]

Displays the status of the reverse/neutral position switch (M/T) judged by IPDM E/R.

INTERLOCK/PNP SW
[Open/Close]

Displays the status of the transmission range switch (CVT) judged by IPDM E/R.

OIL PRESSURE SW
[Open/Close]

Displays the status of the oil pressure switch judged by IPDM E/R.

LED H/L RH STATUS
[Open/Close]

Displays the LED headlamp (right) ON/OFF status judged by IPDM E/R.
NOTE:
This item is monitored only on the vehicle with LED headlamp.

LED H/L LH STATUS
[Open/Close]

Displays the LED headlamp (left) ON/OFF status judged by IPDM E/R.
NOTE:
This item is monitored only on the vehicle with LED headlamp.

HOOD SW
[Open/Close]

Displays the status of the hood switch judged by IPDM E/R.

COMPRESSOR
[Off/On]

Displays the compressor drive status judged by IPDM E/R.

H/L WASHER PUMP
[Off/On]

Displays the status of the headlamp washer pump judged by IPDM E/R.

DIAGNOSIS SYSTEM (IPDM E/R)

EXL-215

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

EXL

HORN RELAY
[Off/On]

NOTE:
The item is indicated, but not monitored.

COOLING FAN
[Off/On]

NOTE:
The item is indicated, but not monitored.

FRONT WIPER HI/LO RELAY
[Off/On]

Displays the status of the front wiper HI/LO relay judged by IPDM E/R.

FRONT WIPER RELAY
[Off/On]

Displays the status of the front wiper relay judged by IPDM E/R.

IGN RELAY OFF STATUS
[Off/On]

Displays the status of the ignition relay OFF circuit judged by IPDM E/R.

IGN RELAY ON STATUS
[Off/On]

Displays the status of the ignition relay ON circuit judged by IPDM E/R.

STEERING LOCK PWR SPLY
[Off/On]

Displays the power supply status from IPDM E/R to the steering lock unit.
NOTE:
This item is monitored only on the vehicle with Intelligent Key system

HEIGHT SENSOR PWR SPLY
[Off/On]

Displays the power supply status from IPDM E/R to the height sensor.

COOLING FAN RELAY 1
[Open/Close]

Displays the status of the cooling fan relay-1 judged by IPDM E/R.

STARTER RELAY
[Off/On]

Displays the status of the starter control relay judged by IPDM E/R.

COMP ECV DUTY
[%]

Displays the compressor control signal (PWM) status of IPDM E/R.

COOLING FAN RELAY 2
[%]

Displays the status of the cooling fan relay-2 judged by IPDM E/R.

FR FOG LAMP LH
[%]

Displays the front fog lamp (left) output (PWM) status of IPDM E/R.

FR FOG LAMP RH
[%]

Displays the front fog lamp (right) output (PWM) status of IPDM E/R.

LEVELIZER OUTPUT
[%]

Displays the aiming motor drive signal (PWM) status of IPDM E/R.

PARKING LAMP
[%]

Displays the parking lamp output (PWM) status of IPDM E/R.

TAIL LAMP LH
[%]

Displays the tail lamp (left) output (PWM) status of IPDM E/R.

TAIL LAMP RH
[%]

Displays the tail lamp (right) output (PWM) status of IPDM E/R.

DAYTIME RUNNING LIGHT LH
[%]

Displays the daytime running light (left) output status of IPDM E/R.

DAYTIME RUNNING LIGHT RH
[%]

Displays the daytime running light (right) output status of IPDM E/R.

HEADLAMP (HI) LH
[%]

Displays the headlamp (HI) (left) output (PWM) status of IPDM E/R.

HEADLAMP (HI) RH
[%]

Displays the headlamp (HI) (right) output (PWM) status of IPDM E/R.

HEADLAMP (LO) LH
[%]

Displays the headlamp (LO) (left) output (PWM) status of IPDM E/R.

HEADLAMP (LO) RH
[%]

Displays the headlamp (LO) (right) output (PWM) status of IPDM E/R.

A/C RELAY STUCK
[OK/NG]

Displays the ON stuck status of the A/C relay judged by IPDM E/R.

Monitor Item

[Unit]

Description

EXL-216

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

DIAGNOSIS SYSTEM (IPDM E/R)

A/C RELAY
[Off/On]

Displays the status of the A/C relay judged by IPDM E/R.

COMP ECV STATUS
[OK/NG]

Displays the compressor malfunction diagnosis status judged by IPDM E/R.

VEHICLE SECURITY HORN
[Off/On]

NOTE:
The item is indicated, but not monitored.

BATTERY CURRENT SENSOR
[OK/NG]

Displays the battery current sensor malfunction diagnosis status judged by IPDM E/
R.

FRONT FOG LAMP
[Off/On]

Displays the fog lamp illumination control status of IPDM E/R.

COMP ECV CURRENT
[A]

Displays the electric current output to compressor judged by IPDM E/R.

BATTERY VOLTAGE
[V]

Displays the status of the battery voltage judged by IPDM E/R.

COOLING FAN DUTY
[%]

Displays the cooling fan output signal status of IPDM E/R.

HOOD SW (CAN)
[Open/Close]

Displays the status of the hood switch judged by IPDM E/R.

FRONT WIPER
[STOP/HI/LO/NG]

Displays the front wiper motor drive control status of IPDM E/R.

FR WIPER STOP POSITION
[ACTIVE P/STOP P]

Displays the status of the front wiper position status judged by IPDM E/R.

HEADLAMP (HI)
[Off/On]

Displays the headlamp (HI) illumination control status of IPDM E/R.

HEADLAMP (LO)
[Off/On]

Displays the headlamp (LO) illumination control status of IPDM E/R.

IGN RELAY MONITOR
[Off/On]

Displays the status of the ignition relay judged by IPDM E/R.

IGNITION POWER SUPPLY
[Off/On]

Displays the status of the ignition power supply judged by IPDM E/R.

INTERLOCK/PNP SW (CAN)
[Off/On]

Displays the status of the transmission range switch signal that IPDM transmits via
CAN communication.

NEUTRAL SWITCH (CAN)
[Off/On]

Displays the status of the reverse/neutral position switch (M/T) signal that IPDM
transmits via CAN communication.

PUSH-BUTTON IGN SW (CAN)
[Off/On]

Displays the status of the ignition switch signal that IPDM transmits via CAN commu-
nication.

TAIL LAMP
[Off/On]

Displays the tail lamp illumination control status of IPDM E/R.

REVERSE SIGNAL (CAN)
[Off/On]

Displays the status of the steering lock relay signal received from BCM via CAN com-
munication.

STARTER MOTOR STATUS
[Off/On]

Displays the status of the starter motor judged by IPDM E/R.

STARTER RELAY (CAN)
[LOW/HIGH]

Displays the status of the IPDM E/R transmits the starter control relay status signal
via CAN communication.

IPDM NOT SLEEP
[NO RDY/READY]

Displays the status of the IPDM E/R transmits the not sleep signal via CAN commu-
nication.

STOP/START STATUS
[PRHBT/PERMIT]

Displays the status of the stop/starter system ready judged by IPDM E/R.

AFTER COOLING TIME
[No request/0.5min/1.0min/1.5min/
2.0min/2.5min/3.0min/3.5min/4min/5min/
6min/8min/10min/12min/14min/16min]

NOTE:
The item is indicated, but not monitored.

Monitor Item

[Unit]

Description

DIAGNOSIS SYSTEM (IPDM E/R)

EXL-217

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

EXL

AFTER COOLING SPEED
[0%/25%/40%/55%/70%/78%/85%/
100%]

NOTE:
The item is indicated, but not monitored.

COOLING FAN TYPE
[RENAULT/NISSAN]

NOTE:
The item is indicated, but not monitored.

COMPRESSOR REQ 1
[Off/On]

Displays the status of the A/C compressor request signal received from ECM via CAN
communication.

VHCL SECRITY HORN REQ
[Off/On]

NOTE:
The item is indicated, but not monitored.

DTRL REQ
[Off/On]

Displays the status of the daytime running light request signal received from BCM via
CAN communication.

SLEEP/WAKE UP
[SLEEP/WAKEUP]

NOTE:
The item is indicated, but not monitored.

CLUTCH INTERLOCK SW
[Off/On]

NOTE:
The item is indicated, but not monitored.

CRANKING ENABLE-TCM
[OK/NG]

Displays the status of the cranking enable signal received from TCM via CAN com-
munication.

CRANKING ENABLE-ECM
[OK/NG]

Displays the status of the cranking enable signal received from ECM via CAN com-
munication.

CAN DIAGNOSIS
[OK/NG]

Displays the status of the CAN diagnosis signal received from BCM via CAN commu-
nication.

FRONT FOG LAMP REQ
[Off/On]

Displays the status of the front fog light request signal received from BCM via CAN
communication.

H/L WASHER REQ
[Off/On]

Displays the status of the headlamp washer request signal received from BCM via
CAN communication.

PASSING REQ
[Off/On]

NOTE:
The item is indicated, but not monitored.

HIGH BEAM REQ
[Off/On]

Displays the status of the high beam request signal received from BCM via CAN com-
munication.

HORN CHIRP
[Off/On]

NOTE:
The item is indicated, but not monitored.

COOLING FAN REQ
[%]

Displays the status of the cooling fan speed request signal received from ECM via
CAN communication.

ENGINE STATUS
[STOP/IDLING/RUN]

Displays the status of the engine status signal received from ECM via CAN commu-
nication.

TURN SIGNAL REQ
[Off/On]

Displays the status of the turn indicator signal received from BCM via CAN commu-
nication.

FR WIPER REQ
[Off/On]

Displays the status of the front wiper request signal received from BCM via CAN com-
munication.

SHIFT POSITION
[OFF/P/R/N/D/S/L/B/1/2/3/4/5/6/7]

Displays the status of the shift position signal received from TCM via CAN communi-
cation.

LOW BEAM REQ
[Off/On]

Displays the status of the low beam request signal received from BCM via CAN com-
munication.

POSITION LIGHT REQ
[Off/On]

Displays the status of the position light request signal received from BCM via CAN
communication.

COMPRESSOR REQ 2
[Off/On]

Displays the status of the A/C ON signal received from A/C auto amp. via CAN com-
munication.

IGNITION SW
[Off/On/START]

Displays the status of the ignition switch ON signal and starter control relay request
signal received from BCM via CAN communication.

VEHICLE SPEED (METER)
[km/h]

Displays the status of the A/C ON signal received from A/C auto amp. via CAN com-
munication.

Monitor Item

[Unit]

Description

EXL-218

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

DIAGNOSIS SYSTEM (IPDM E/R)

BAT DISCHAGE COUNT
[—]

Monitor the cumulative discharge value of the battery.
NOTE:
When 65,000 or more is counted, replace the battery. (Only with stop/start system
modls)

P LAMP CIRC MALFUNCTN
[0 – 1]

Monitor the number of times that the smart FET in IPDM E/R reaches the retry upper
limit of the parking lamp circuit.
NOTE:
When the number of parking lamp circuit retries count is 20, this item counts 1.

NMB P LAMP CIRC RETRY
[0 – 20]

Monitor the number of times that the smart FET in IPDM E/R permits the retry of the
parking lamp circuit.
NOTE:
When the number of short circuits in the parking lamp circuit count is 5 and the igni-
tion switch OFF to ON operation is detected, this item counts 1.

NMB P LAMP CIRC SHORT
[0 – 5]

Monitor the number of times that the smart FET in IPDM E/R detects the over current
of the parking lamp circuit.

DTRL LH CIRC MALFUNCTN
[0 – 1]

Monitor the number of times that the smart FET in IPDM E/R reaches the retry upper
limit of the daytime running light (left) circuit.
NOTE:
When the number of daytime running light (left) circuit retries count is 20, this item
counts 1.

NMB DTRL LH CIRC RETRY
[0 – 20]

Monitor the number of times that the smart FET in IPDM E/R permits the retry of the
daytime running light (left) circuit.
NOTE:
When the number of short circuits in the daytime running light (left) circuit count is 5
and the ignition switch OFF to ON operation is detected, this item counts 1.

NMB DTRL LH CIRC SHORT
[0 – 5]

Monitor the number of times that the smart FET in IPDM E/R detects the over current
of the daytime running light (left) circuit.

DTRL RH CIRC MALFUNCTN
[0 – 1]

Monitor the number of times that the smart FET in IPDM E/R reaches the retry upper
limit of the daytime running light (right) circuit.
NOTE:
When the number of daytime running light (right) circuit retries count is 20, this item
counts 1.

NMB DTRL RH CIRC RETRY
[0 – 20]

Monitor the number of times that the smart FET in IPDM E/R permits the retry of the
daytime running light (right) circuit.
NOTE:
When the number of short circuits in the daytime running light (right) circuit count is
5 and the ignition switch OFF to ON operation is detected, this item counts 1.

NMB DTRL RH CIRC SHORT
[0 – 5]

Monitor the number of times that the smart FET in IPDM E/R detects the over current
of the daytime running light (right) circuit.

F FOG LH CIRC MALFUNCTN
[0 – 1]

Monitor the number of times that the smart FET in IPDM E/R reaches the retry upper
limit of the front fog lamp (left) circuit.
NOTE:
When the number of front fog lamp (left) circuit retries count is 20, this item counts 1.

NMB F FOG LH CIRC RETRY
[0 – 20]

Monitor the number of times that the smart FET in IPDM E/R permits the retry of the
front fog lamp (left) circuit.
NOTE:
When the number of short circuits in the front fog lamp (left) circuit count is 5 and the
ignition switch OFF to ON operation is detected, this item counts 1.

NMB F FOG LH CIRC SHORT
[0 – 5]

Monitor the number of times that the smart FET in IPDM E/R detects the over current
of the front fog lamp (left) circuit.

F FOG RH CIRC MALFUNCTN
[0 – 1]

Monitor the number of times that the smart FET in IPDM E/R reaches the retry upper
limit of the front fog lamp (right) circuit.
NOTE:
When the number of front fog lamp (right) circuit retries count is 20, this item counts 1.

Monitor Item

[Unit]

Description

DIAGNOSIS SYSTEM (IPDM E/R)

EXL-219

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

EXL

NMB F FOG RH CIRC RETRY
[0 – 20]

Monitor the number of times that the smart FET in IPDM E/R permits the retry of the
front fog lamp (right) circuit.
NOTE:
When the number of short circuits in the front fog lamp (right) circuit count is 5 and
the ignition switch OFF to ON operation is detected, this item counts 1.

NMB F FOG RH CIRC SHORT
[0 – 5]

Monitor the number of times that the smart FET in IPDM E/R detects the over current
of the front fog lamp (right) circuit.

HL (HI) LH CIRC MALFUNCTN
[0 – 1]

Monitor the number of times that the smart FET in IPDM E/R reaches the retry upper
limit of the headlamp (HI) (left) circuit.
NOTE:
When the number of headlamp (HI) (left) circuit retries count is 20, this item counts 1.

NMB HL (HI) LH CIRC RETRY
[0 – 20]

Monitor the number of times that the smart FET in IPDM E/R permits the retry of the
headlamp (HI) (left) circuit.
NOTE:
When the number of short circuits in the headlamp (HI) (left) circuit count is 5 and the
ignition switch OFF to ON operation is detected, this item counts 1.

NMB HL (HI) LH CIRC SHORT
[0 – 5]

Monitor the number of times that the smart FET in IPDM E/R detects the over current
of the headlamp (HI) (left) circuit.

HL (HI) RH CIRC MALFUNCTN
[0 – 1]

Monitor the number of times that the smart FET in IPDM E/R reaches the retry upper
limit of the headlamp (HI) (right) circuit.
NOTE:
When the number of headlamp (HI) (right) circuit retries count is 20, this item counts
1.

NMB HL (HI) RH CIRC RETRY
[0 – 20]

Monitor the number of times that the smart FET in IPDM E/R permits the retry of the
headlamp (HI) (right) circuit.
NOTE:
When the number of short circuits in the headlamp (HI) (right) circuit count is 5 and
the ignition switch OFF to ON operation is detected, this item counts 1.

NMB HL (HI) RH CIRC SHORT
[0 – 5]

Monitor the number of times that the smart FET in IPDM E/R detects the over current
of the headlamp (HI) (right) circuit.

S/L CIRC MALFUNCTION
[0 – 1]

Monitor the number of times that the smart FET in IPDM E/R reaches the retry upper
limit of the steering lock circuit.
NOTE:
When the number of steering lock circuit retries count is 20, this item counts 1.

NMB S/L CIRC RETRY
[0 – 20]

Monitor the number of times that the smart FET in IPDM E/R permits the retry of the
steering lock circuit.
NOTE:
When the number of short circuits in the steering lock circuit count is 5 and the ignition
switch OFF to ON operation is detected, this item counts 1.

NMB S/L CIRC SHORT
[0 – 5]

Monitor the number of times that the smart FET in IPDM E/R detects the over current
of the steering lock circuit.

HL (LO) LH CIRC MALFUNCTN
[0 – 1]

Monitor the number of times that the smart FET in IPDM E/R reaches the retry upper
limit of the headlamp (LO) (left) circuit.
NOTE:
When the number of headlamp (LO) (left) circuit retries count is 20, this item counts 1.

NMB HL (LO) LH CIRC RETRY
[0 – 20]

Monitor the number of times that the smart FET in IPDM E/R permits the retry of the
headlamp (LO) (left) circuit.
NOTE:
When the number of short circuits in the headlamp (LO) (left) circuit count is 5 and
the ignition switch OFF to ON operation is detected, this item counts 1.

NMB HL (LO) LH CIRC SHORT
[0 – 5]

Monitor the number of times that the smart FET in IPDM E/R detects the over current
of the headlamp (LO) (left) circuit.

HL (LO) RH CIRC MALFUNCTN
[0 – 1]

Monitor the number of times that the smart FET in IPDM E/R reaches the retry upper
limit of the headlamp (LO) (right) circuit.
NOTE:
When the number of headlamp (LO) (right) circuit retries count is 20, this item counts
1.

Monitor Item

[Unit]

Description

EXL-220

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

DIAGNOSIS SYSTEM (IPDM E/R)

ACTIVE TEST

WORK SUPPORT

NMB HL (LO) RH CIRC RETRY
[0 – 20]

Monitor the number of times that the smart FET in IPDM E/R permits the retry of the
headlamp (LO) (right) circuit.
NOTE:
When the number of short circuits in the headlamp (LO) (right) circuit count is 5 and
the ignition switch OFF to ON operation is detected, this item counts 1.

NMB HL (LO) RH CIRC SHORT
[0 – 5]

Monitor the number of times that the smart FET in IPDM E/R detects the over current
of the headlamp (LO) (right) circuit.

T LAMP LH CIRC MALFUNCTN
[0 – 1]

Monitor the number of times that the smart FET in IPDM E/R reaches the retry upper
limit of the tail lamp (left) circuit.
NOTE:
When the number of tail lamp (left) circuit retries count is 20, this item counts 1.

NMB T LAMP LH CIRC RETRY
[0 – 20]

Monitor the number of times that the smart FET in IPDM E/R permits the retry of the
tail lamp (left) circuit.
NOTE:
When the number of short circuits in the tail lamp (left) circuit count is 5 and the igni-
tion switch OFF to ON operation is detected, this item counts 1.

NMB T LAMP LH CIRC SHORT
[0 – 5]

Monitor the number of times that the smart FET in IPDM E/R detects the over current
of the tail lamp (left) circuit.

T LAMP RH CIRC MALFUNCTN
[0 – 1]

Monitor the number of times that the smart FET in IPDM E/R reaches the retry upper
limit of the tail lamp (right) circuit.
NOTE:
When the number of tail lamp (right) circuit retries count is 20, this item counts 1.

NMB T LAMP RH CIRC RETRY
[0 – 20]

Monitor the number of times that the smart FET in IPDM E/R permits the retry of the
tail lamp (right) circuit.
NOTE:
When the number of short circuits in the tail lamp (right) circuit count is 5 and the ig-
nition switch OFF to ON operation is detected, this item counts 1.

NMB T LAMP RH CIRC SHORT
[0 – 5]

Monitor the number of times that the smart FET in IPDM E/R detects the over current
of the tail lamp (right) circuit.

BATTERY STATUS
[OK/NG]

Monitor the battery status from the battery output.

Monitor Item

[Unit]

Description

Test item

Operation

Description

HORN

Operates horn relay for 20 ms.
