Qashqai J11. Exterior Lighting system - part 11

FRONT COMBINATION LAMP

EXL-161

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Removal and Installation

INFOID:0000000010338851

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation
for preventing electric leakage. Refer to

EXL-8, "Precautions for Removing Battery Terminal"

.

REMOVAL

1.

Remove front bumper fascia. Refer to

EXT-19, "Removal and Installation"

.

2.

Remove front combination lamp assembly mounting bolts.

3.

Pull out front combination lamp assembly forward the vehicle.

4.

Disconnect front combination lamp assembly harness connectors.

5.

Remove front combination lamp assembly.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installation, perform aiming adjustment. Refer to the following:
• LHD MODELS: Refer to

EXL-153, "LHD : Description"

.

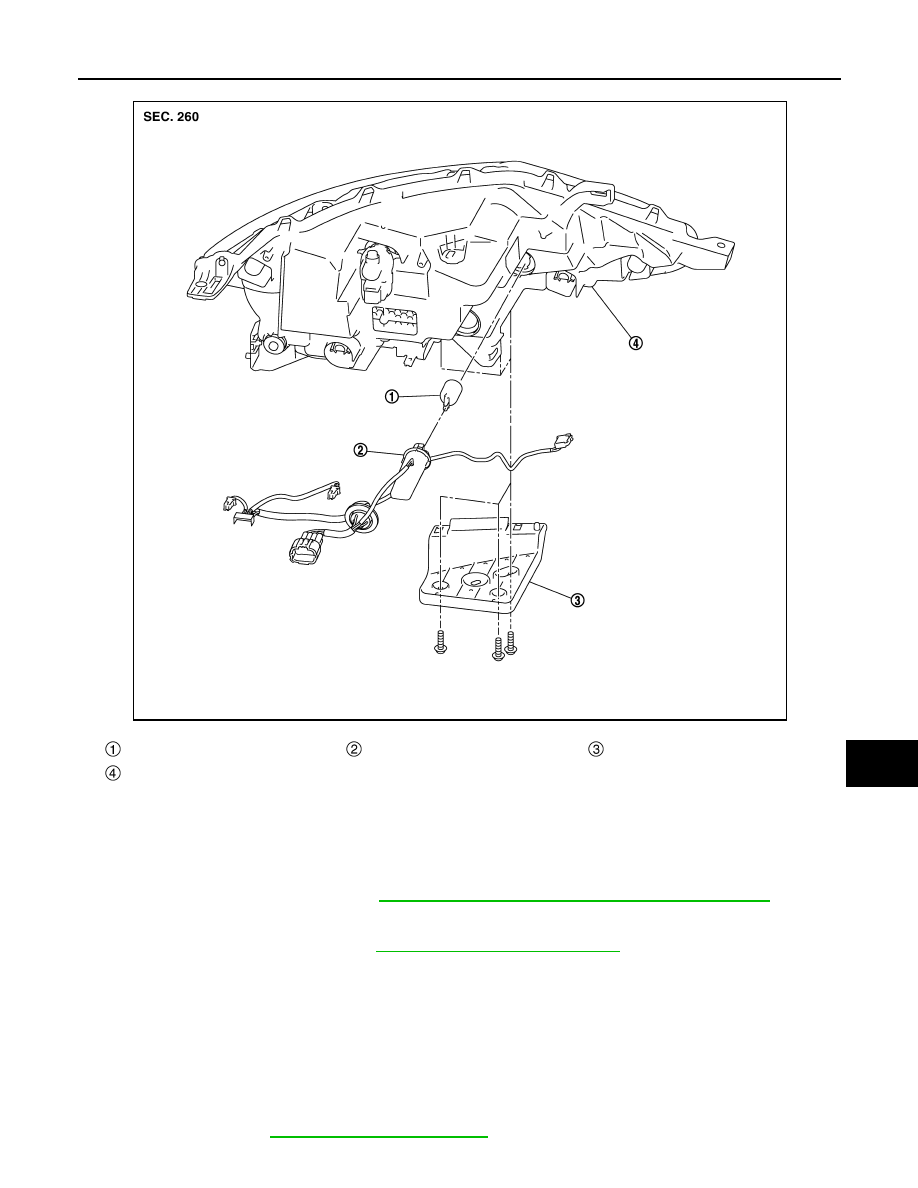

Front turn signal lamp bulb

Front turn signal lamp bulb socket

Front combination lamp bracket

Front combination lamp housing

JMLIA5092ZZ

EXL-162

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

FRONT COMBINATION LAMP

• RHD MODELS: Refer to

EXL-155, "RHD : Description"

.

Replacement

INFOID:0000000010431361

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse when performing the opera-

tion for preventing electric leakage. Refer to

EXL-8, "Precautions for Removing Battery Terminal"

.

• After installing the bulb, install the bulb socket securely for watertightness.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned OFF.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

HEADLAMP BULB (HI)

CAUTION:

Replacement of a single part is not possible due to the adoption of LED bulb. for replacement, replace
front combination lamp as a set.

HEADLAMP BULB (LO)

CAUTION:

Replacement of a single part is not possible due to the adoption of LED bulb. for replacement, replace
front combination lamp as a set.

DAYTIME RUNNING LIGHT/ PARKING LAMP BULB

CAUTION:

Replacement of a single part is not possible due to the adoption of LED bulb. for replacement, replace
front combination lamp as a set.

FRONT TURN SIGNAL LAMP BULB

LH side

1.

Remove air duct. Refer to the following.
• HRA2DDT: Refer to

EM-23, "Removal and Installation"

.

• MR20DD: Refer to

EM-147, "Removal and Installation"

.

• K9K: Refer to

EM-279, "Removal and Installation"

.

• R9M: Refer to

EM-380, "Removal and Installation"

.

2.

Rotate front turn signal lamp bulb socket counterclockwise and unlock it.

3.

Remove front turn signal lamp bulb socket from front combination lamp housing.

4.

Remove front turn signal lamp bulb from turn signal lamp bulb socket.

RH side

1.

Rotate front turn signal lamp bulb socket counterclockwise and unlock it.

2.

Remove front turn signal lamp bulb socket from front combination lamp housing.

3.

Remove front turn signal lamp bulb from turn signal lamp bulb socket.

Disassembly and Assembly

INFOID:0000000010338853

DISASSEMBLY

1.

Remove front combination lamp bracket mounting screws, and then remove front combination lamp
bracket from front combination lamp housing.

2.

Disconnect front combination lamp harness connectors.

3.

Rotate front turn signal lamp bulb socket counterclockwise and unlock it.

4.

Remove front turn signal lamp bulb socket from front combination lamp housing.

5.

Remove front turn signal lamp bulb from front turn signal lamp bulb socket.

ASSEMBLY

Note the following item, and then install in the reverse order of removal.

CAUTION:

• After installing the bulb, install the bulb socket securely watertightness.
• After installation, perform aiming adjustment. Refer to following.
- LHD models: Refer to

EXL-154, "LHD : Aiming Adjustment Procedure"

.

FRONT COMBINATION LAMP

EXL-163

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

- RHD models: Refer to

EXL-156, "RHD : Aiming Adjustment Procedure"

.

EXL-164

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

FRONT FOG LAMP

FRONT FOG LAMP

Exploded View

INFOID:0000000010338858

Removal and Installation

INFOID:0000000010338859

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation
for preventing electric leakage. Refer to

EXL-8, "Precautions for Removing Battery Terminal"

.

REMOVAL

1.

Remove front fender protector to make work space. Refer to

EXT-32, "Removal and Installation"

.

2.

Disconnect front fog lamp harness connector.

3.

Remove front fog lamp fixing bolt, and then remove front fog lamp.

INSTALLATION

Note the following item, and then install in the reverse order of removal.
NOTE:
After installation, perform aiming adjustment. Refer to

EXL-158, "Aiming Adjustment Procedure"

Replacement

INFOID:0000000010338860

CAUTION:

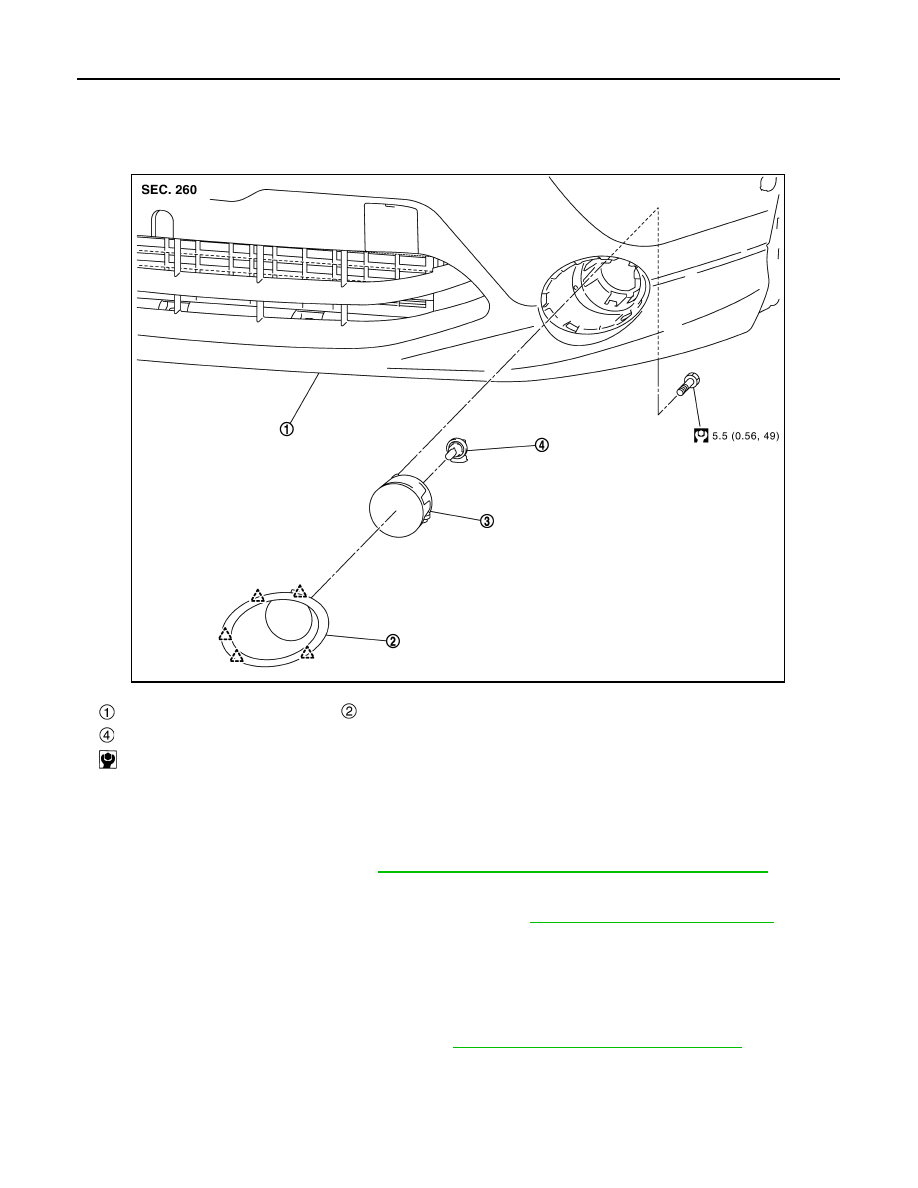

Front bumper fascia

Front bumper finisher

Front fog lamp

Front fog lamp bulb

: N·m (kg-m, in-lb)

JMLIA5093GB

FRONT FOG LAMP

EXL-165

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

• Disconnect the battery negative terminal or remove power circuit fuse when performing the opera-

tion for preventing electric leakage. Refer to

EXL-8, "Precautions for Removing Battery Terminal"

.

• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned OFF.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

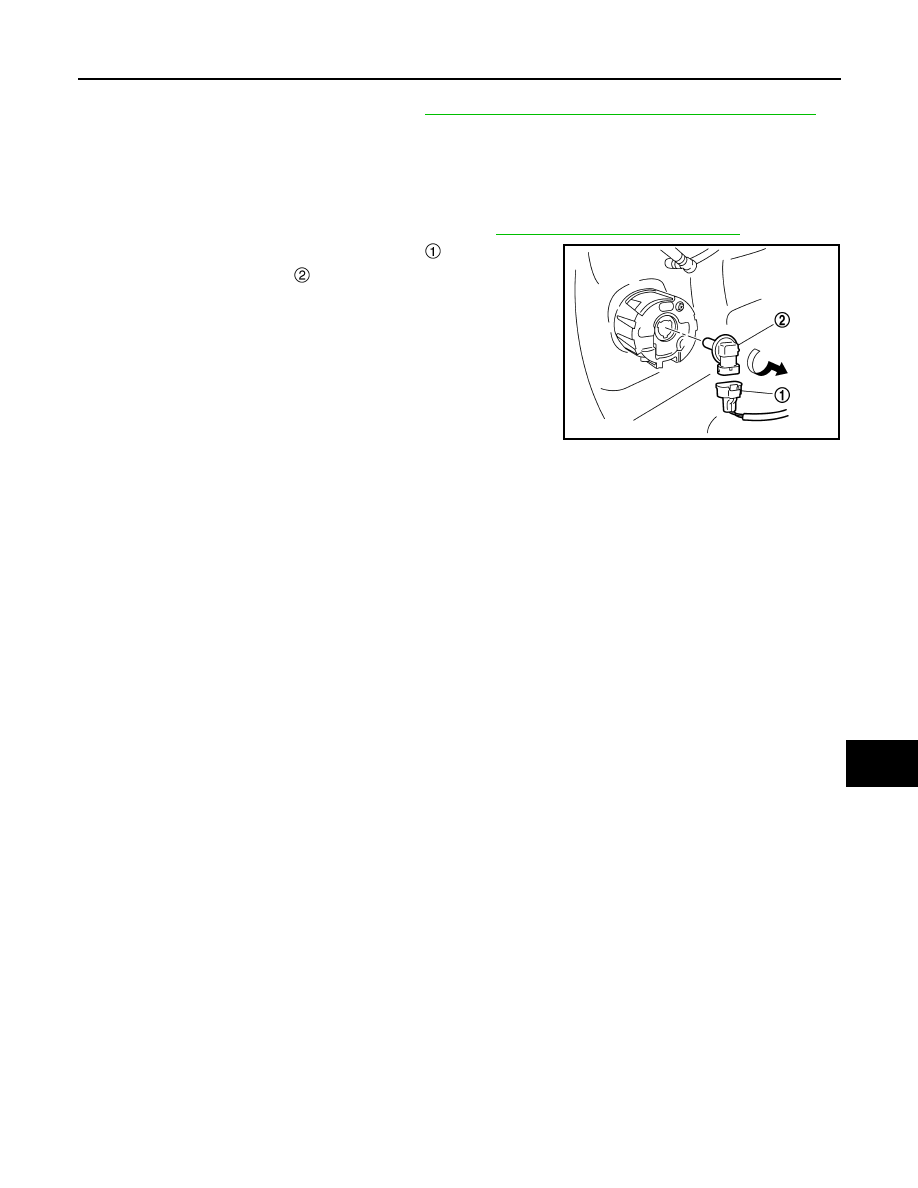

FRONT FOG LAMP BULB

1.

Remove fender protector to make work space. Refer to

EXT-32, "Removal and Installation"

.

2.

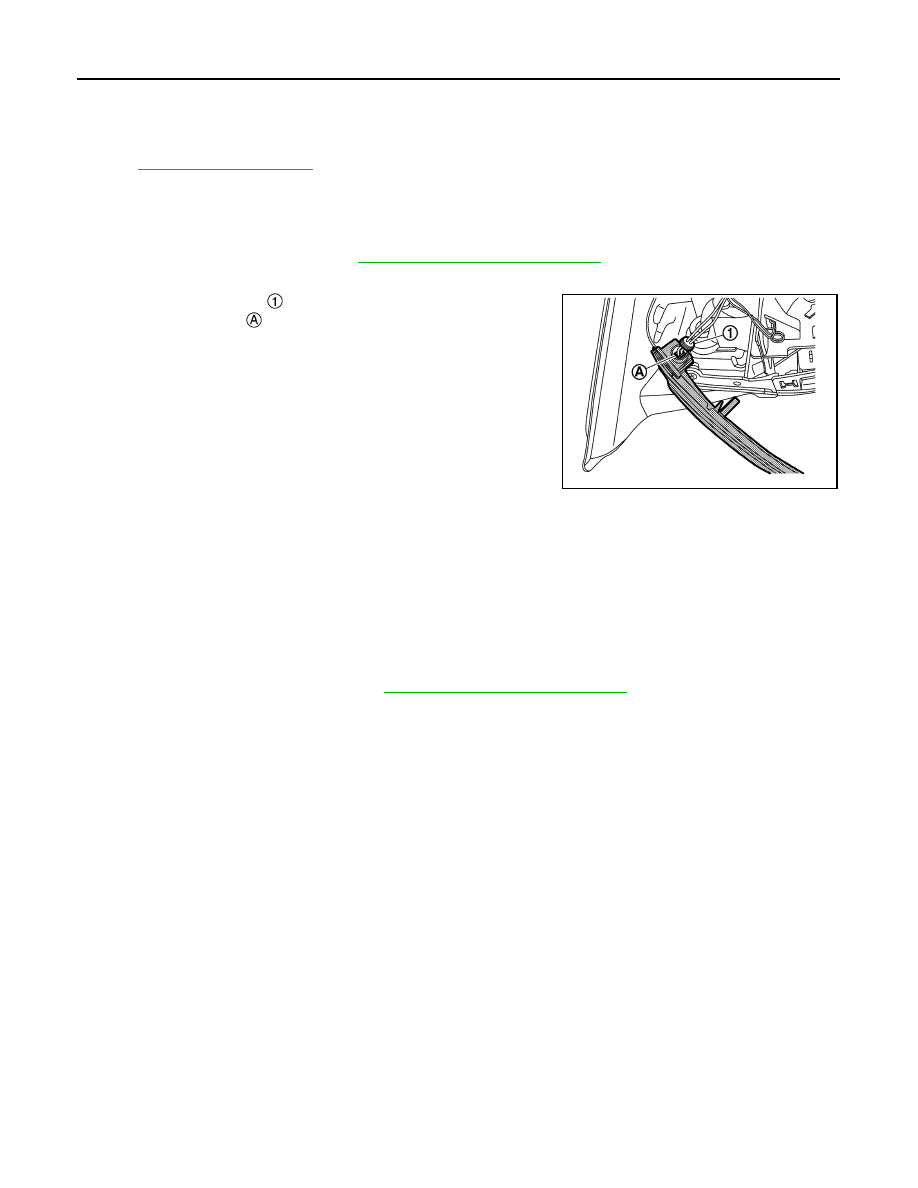

Disconnect front fog lamp harness connector

.

3.

Rotate front fog lamp bulb

 counterclockwise and unlock it.

JPLIA0345ZZ

EXL-166

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

SIDE TURN SIGNAL LAMP

SIDE TURN SIGNAL LAMP

Exploded View

INFOID:0000000010338861

Refer to

MIR-31, "Exploded View"

.

Removal and Installation

INFOID:0000000010338862

REMOVAL

1.

Remove door mirror cover. Refer to

MIR-31, "Removal and Installation"

.

2.

Remove side turn signal lamp fixing screws.

3.

Remove seal packing

 and disconnect side turn signal lamp

harness connector

, and then remove side turn signal lamp

from door mirror housing.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000010338863

CAUTION:

Replacement of a single part is not possible due to the adoption of LED bulb. For replacement, replace
side turn signal lamp as a set.

SIDE TURN SIGNAL LAMP

1.

Remove side turn signal lamp. Refer to

MIR-31, "Removal and Installation"

.

2.

Replace side turn signal lamp with new part.

JMLIA4978ZZ

LIGHTING & TURN SIGNAL SWITCH

EXL-167

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

LIGHTING & TURN SIGNAL SWITCH

Removal and Installation

INFOID:0000000010338866

REMOVAL

Remove light & turn signal switch (combination switch). Refer to

BCS-133, "Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

EXL-168

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

HAZARD SWITCH

HAZARD SWITCH

Exploded View

INFOID:0000000010427649

Removal and Installation

INFOID:0000000010427650

REMOVAL

1.

Remove center ventilator grille. Refer to

IP-13, "Removal and Installation"

.

2.

Disengage fixing pawls, and then remove hazard switch from center ventilator grille.

INSTALLATION

Install in the reverse order of removal.

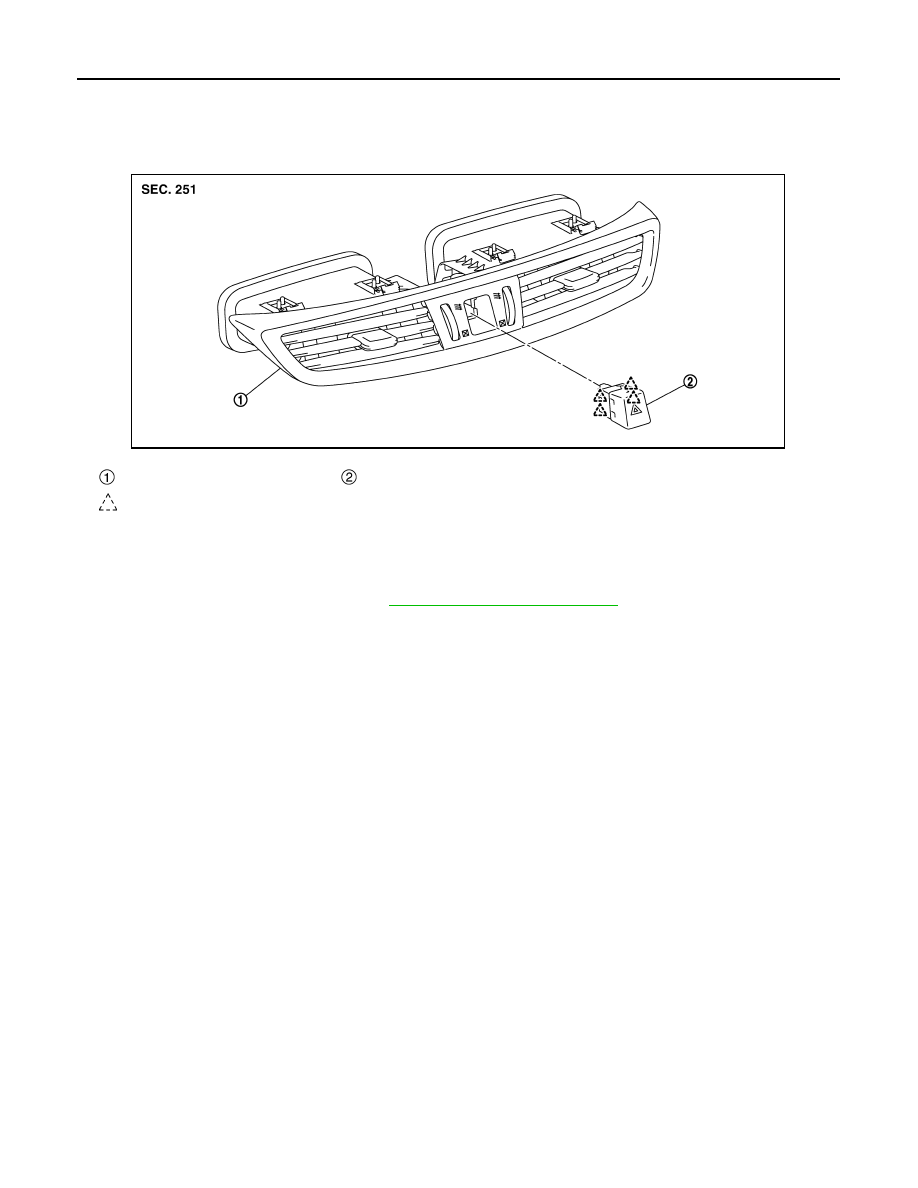

Center ventilator grille

Hazard switch

: Pawl

JMLIA5094ZZ

HEIGHT SENSOR

EXL-169

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

HEIGHT SENSOR

Exploded View

INFOID:0000000010338873

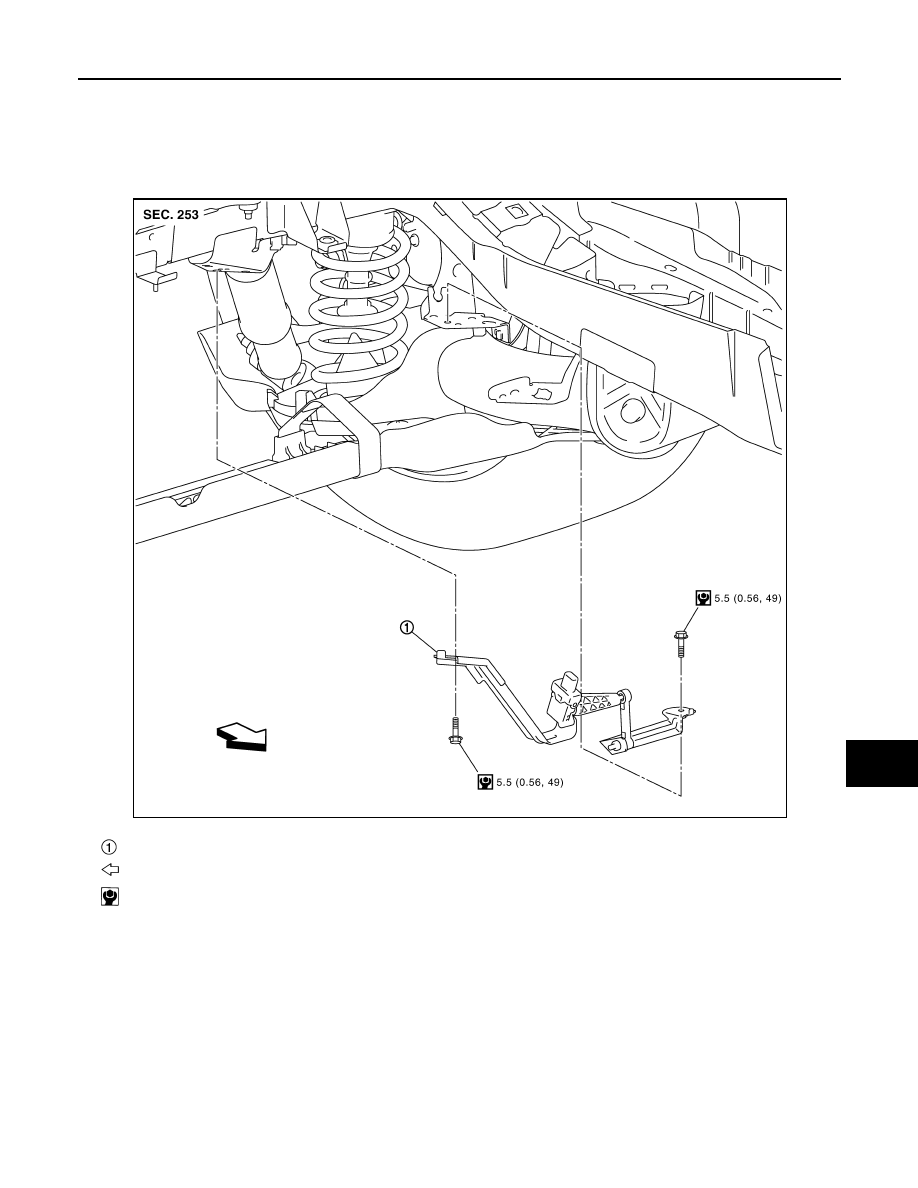

2WD

4WD

Height sensor

: Vehicle front

: N·m (kg-m, in-lb)

JMLIA5096GB

EXL-170

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

HEIGHT SENSOR

Removal and Installation

INFOID:0000000010338874

REMOVAL

1.

Disconnect height sensor harness connector.

2.

Remove height sensor assembly mounting bolts.

3.

Remove height sensor assembly.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

Be sure to perform

″

SENSOR INITIALIZE

″

 when removing the height sensor. Refer to

EXL-74,

"Description"

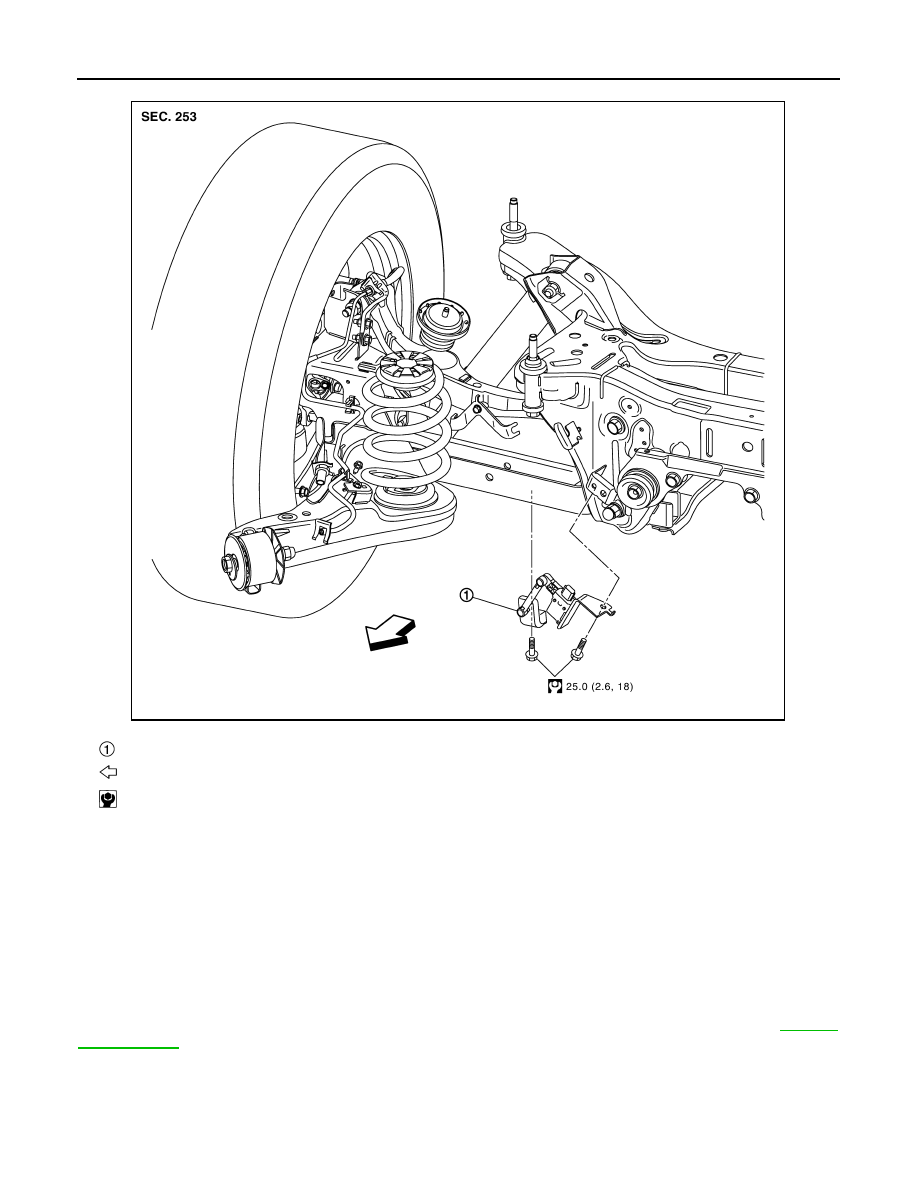

Height sensor

: Vehicle front

: N·m (kg-m, in-lb)

JMLIA5097GB

LIGHT & RAIN SENSOR

EXL-171

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

LIGHT & RAIN SENSOR

Exploded View

INFOID:0000000010431500

Refer to

WW-92, "Exploded View"

.

Removal and Installation

INFOID:0000000010431501

REMOVAL

Remove light & rain sensor. Refer to

WW-92, "Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

EXL-172

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

REAR COMBINATION LAMP

REAR COMBINATION LAMP

Exploded View

INFOID:0000000010338875

REMOVAL

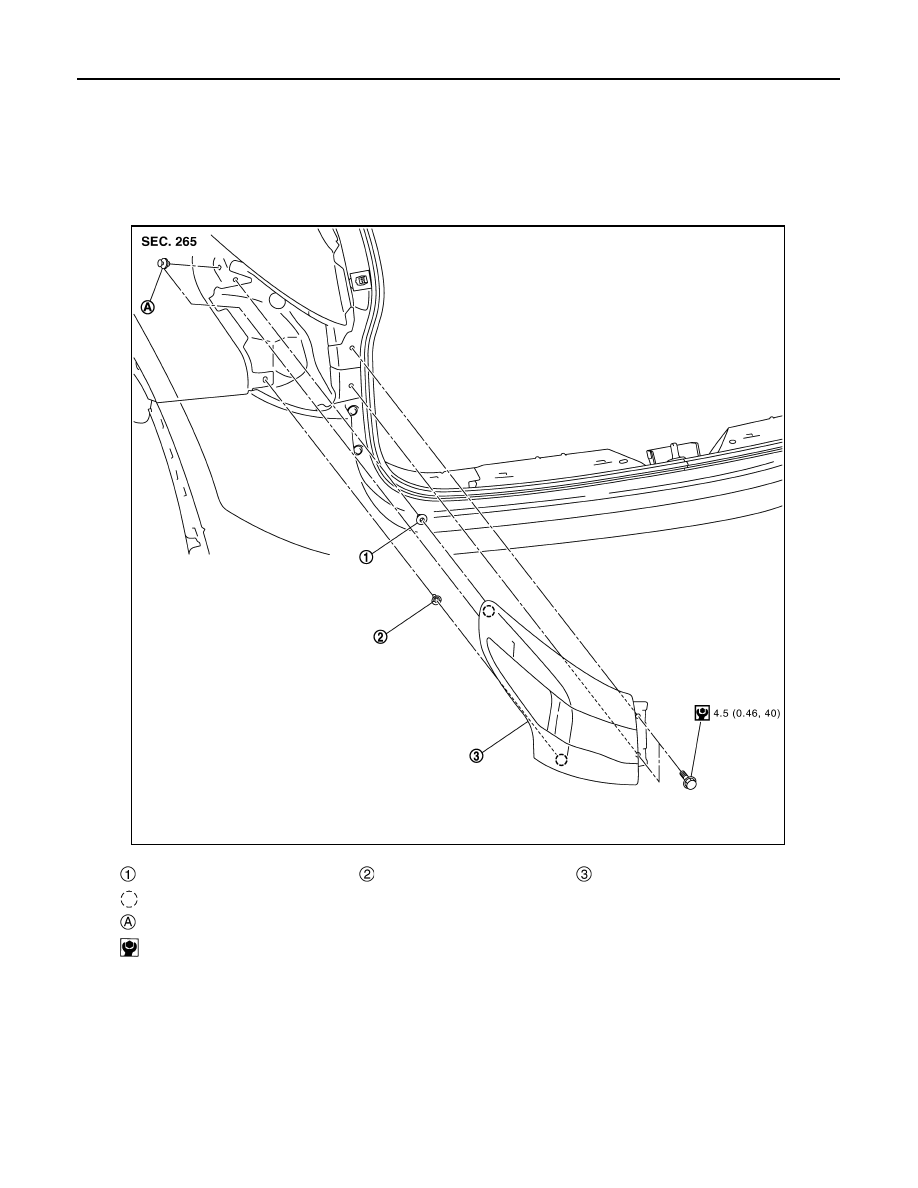

Body Side

Back Door Side

Grommet A

Grommet B

Rear combination lamp

: Clip

: Clip

: N·m (kg-m, in-lb)

JMLIA5098GB

REAR COMBINATION LAMP

EXL-173

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

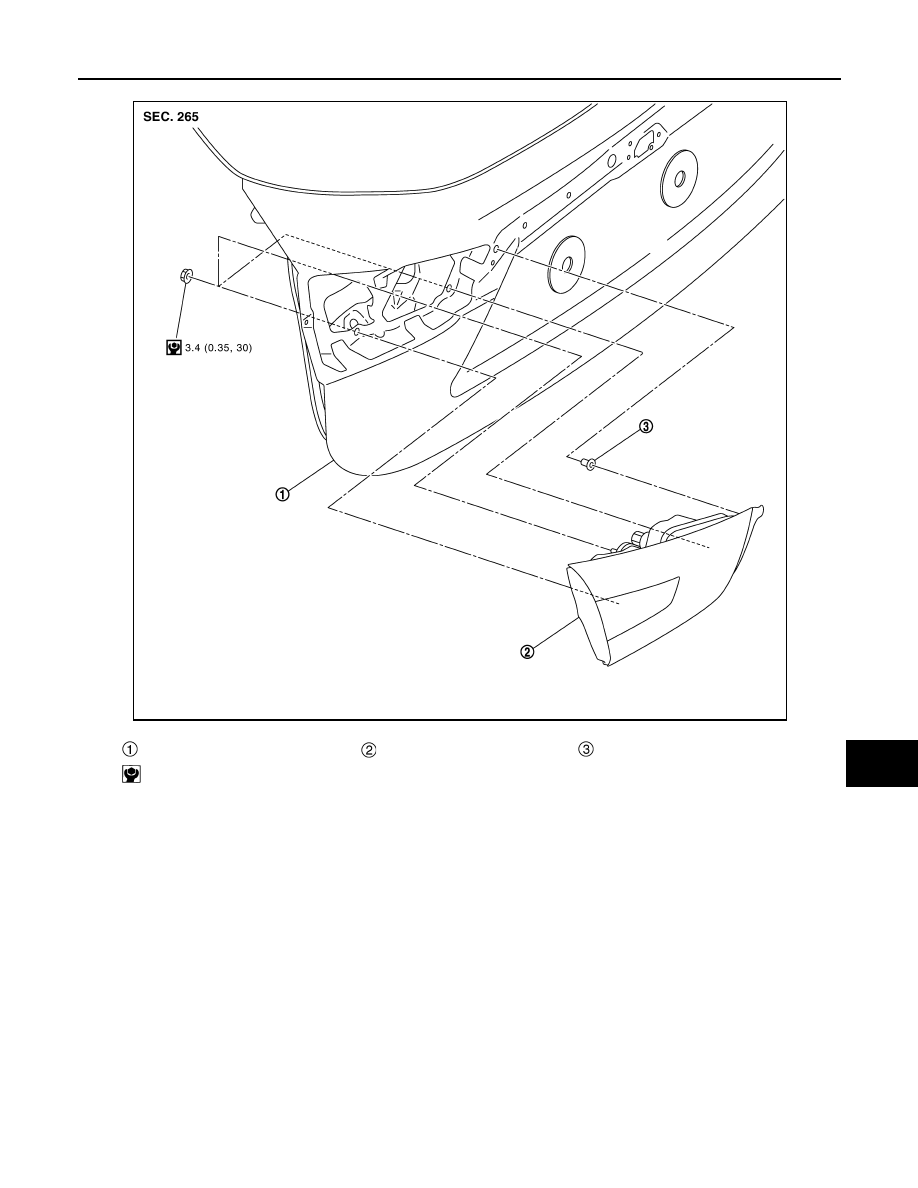

DISASSEMBLY

Back door panel

Rear combination lamp

Grommet

: N·m (kg-m, in-lb)

JMLIA5099GB

EXL-174

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

REAR COMBINATION LAMP

Removal and Installation

INFOID:0000000010338876

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse when performing the opera-

tion for preventing electric leakage. Refer to

EXL-8, "Precautions for Removing Battery Terminal"

.

• When removing, always use a remover tool that is made of plastic.

REMOVAL

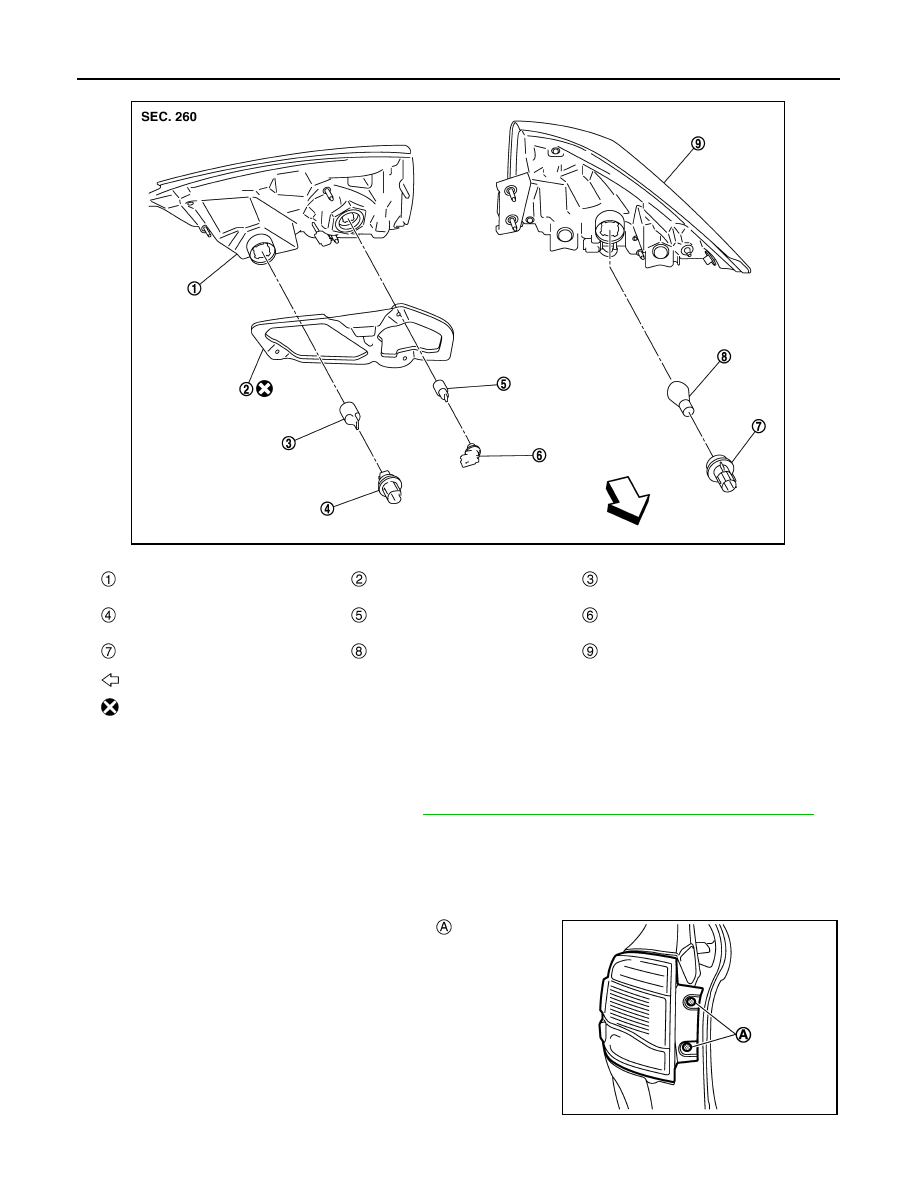

Rear Combination Lamp (body side)

1.

Fully open trunk lid.

2.

Remove rear combination lamp mounting bolts

.

Rear combination lamp housing
(back door side)

Seal packing

Rear fog lamp bulb
 (driver side only)

Rear fog lamp bulb socket
 (driver side only)

Back-up lamp bulb

Back-up lamp bulb socket

Rear turn signal lamp bulb socket

Rear turn signal lamp bulb

Rear combination lamp housing
 (body side)

: Vehicle front

: Always replace after every disassembly

JMLIA5407ZZ

JMLIA5137ZZ

REAR COMBINATION LAMP

EXL-175

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

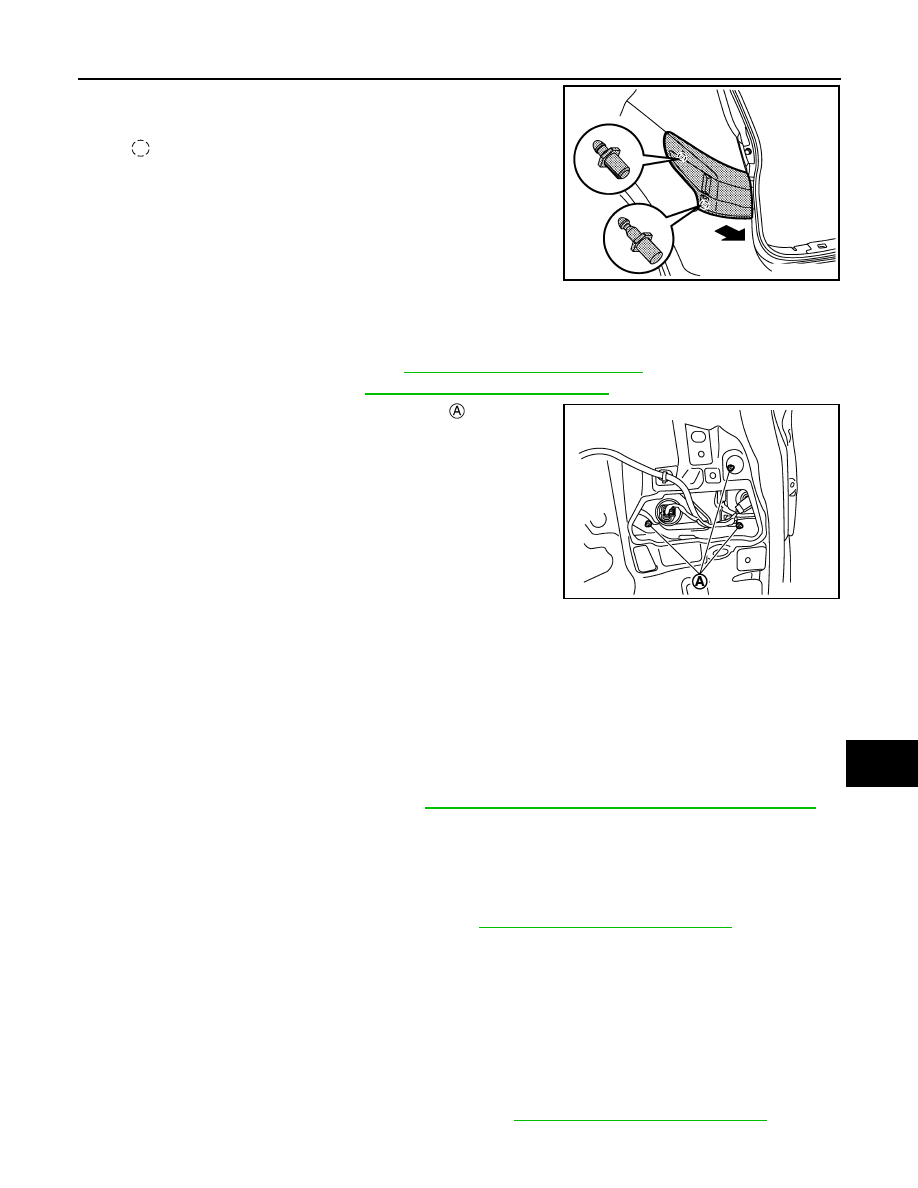

3.

Pull rear combination lamp toward vehicle rear to disengage fix-
ing clips.

4.

Disconnect rear combination lamp harness connectors, and then remove rear combination lamp from
body panel.

Rear Combination Lamp (back door side)

1.

Remove back door inner finisher. Refer to

INT-31, "Removal and Installation"

.

2.

Remove back door finisher. Refer to

EXT-45, "Removal and Installation"

.

3.

Remove rear combination lamp mounting nuts

 and discon-

nect rear combination lamp harness connectors.

4.

Pull rear combination lamp toward vehicle rear to remove rear combination lamp from back door.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

Always replace seal packing with new part after every removal.

Replacement

INFOID:0000000010338877

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse when performing the opera-

tion for preventing electric leakage. Refer to

EXL-8, "Precautions for Removing Battery Terminal"

.

• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned OFF.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

REAR TURN SIGNAL LAMP BULB

1.

Remove rear combination lamp (body side). Refer to

EXL-174, "Removal and Installation"

.

2.

Rotate rear turn signal lamp bulb socket counterclockwise, and then remove rear turn signal lamp bulb
socket.

3.

Remove rear turn signal lamp bulb from rear turn signal lamp bulb socket.

STOP/TAIL LAMP

CAUTION:

Replacement of a single part is not possible due to the adoption of LED bulb. For replacement, replace
rear combination lamp assembly as a set.

REAR FOG LAMP (DRIVER SIDE ONLY)

1.

Remove rear combination lamp (back door side). Refer to

EXL-174, "Removal and Installation"

.

2.

Rotate rear fog lamp bulb socket counterclockwise, and then remove rear fog lamp bulb socket.

: Clip

JMLIA5138ZZ

JMLIA5139ZZ

EXL-176

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

REAR COMBINATION LAMP

3.

Remove rear fog lamp bulb from rear fog lamp bulb socket.

BACK-UP LAMP

1.

Remove rear combination lamp (back door side). Refer to

EXL-174, "Removal and Installation"

.

2.

Rotate back-up lamp bulb socket counterclockwise, and then remove back-up lamp bulb socket.

3.

Remove back-up lamp bulb from back-up lamp bulb socket.
