P1656 ENGINE RESTART BYPASS RELAY

ECK-353

< DTC/CIRCUIT DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

ECK

N

P

O

Check the engine restart bypass relay. Refer to

ECK-354, "Component Inspection (Engine Restart Bypass

Relay)"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-41, "Intermittent Incident"

.

NO

>> Replace error-detected parts.

Component Inspection (Engine Restart Bypass Control Relay)

INFOID:0000000010516038

1.

CHECK ENGINE RESTART BYPASS CONTROL RELAY

1.

Turn ignition switch OFF.

2.

Remove engine restart bypass control relay.

3.

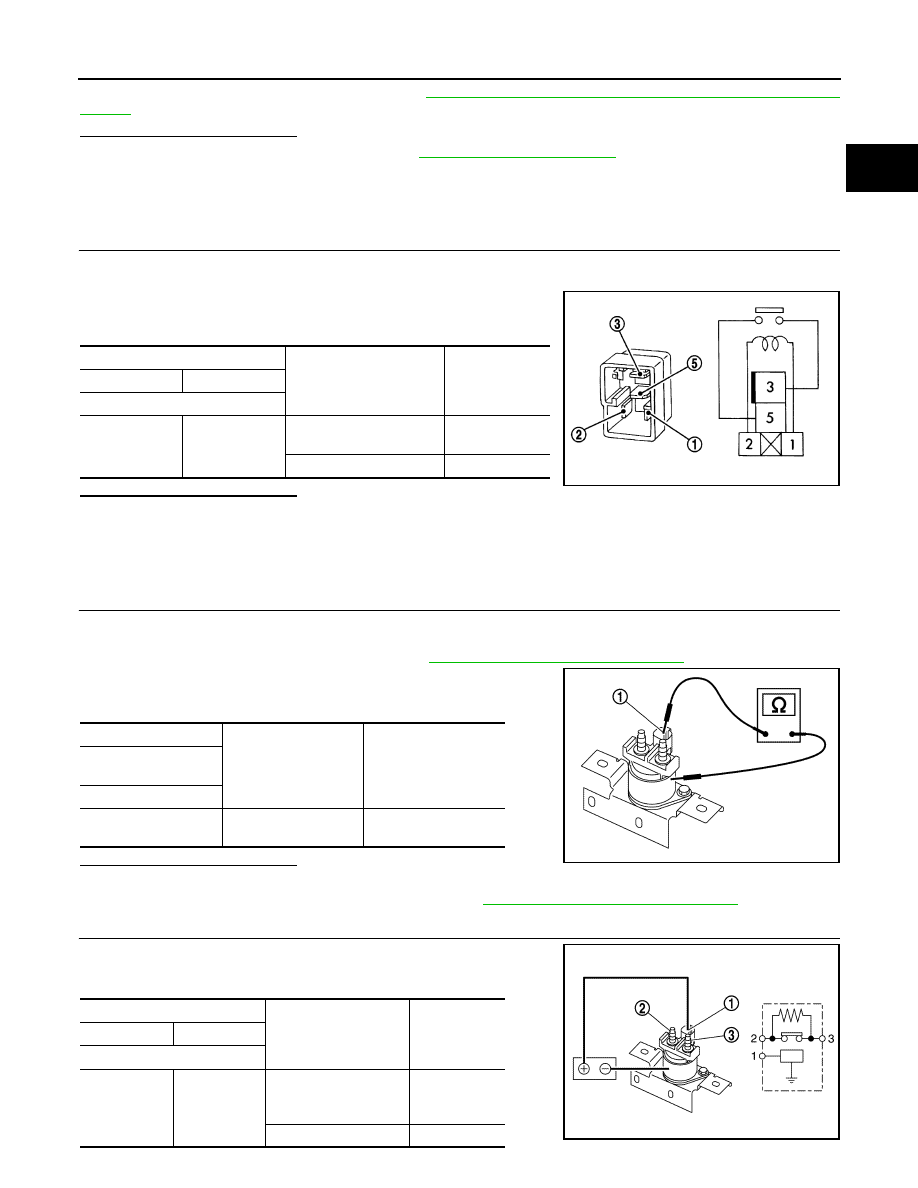

Check continuity between engine restart bypass control relay
terminals as per the following condition.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace engine restart bypass control relay.

Component Inspection (Engine Restart Bypass Relay)

INFOID:0000000010516039

1.

CHECK ENGINE RESTART BYPASS RELAY-1

1.

Turn ignition switch OFF.

2.

Disconnect battery cable from negative terminal.

3.

Remove engine restart bypass relay. Refer to

ECK-403, "Removal and Installation"

.

4.

Check the continuity between engine restart bypass relay termi-
nal and engine restart bypass relay body.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace engine restart bypass relay. Refer to

ECK-403, "Removal and Installation"

.

2.

CHECK ENGINE RESTART BYPASS RELAY-2

Check the resistance between engine restart bypass relay terminals
as per the following conditions.

Engine restart bypass control relay

Condition

Continuity

+

Terminal

3

5

12 V direct current supply
between terminals 1 and 2

Existed

No current supply

Not existed

JSBIA0671ZZ

+

Continuity

Engine restart bypass

relay

Terminal

1

Engine restart bypass

relay body

Existed

JSBIA1735ZZ

Engine restart bypass relay

Condition

Resistance

(Approx.)

+

Terminal

2

3

12 V direct current sup-
ply between terminal 1
and body

10 m

No current supply

JSBIA1736ZZ

ECK-354

< DTC/CIRCUIT DIAGNOSIS >

[K9K]

P1656 ENGINE RESTART BYPASS RELAY

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace engine restart bypass relay. Refer to

ECK-403, "Removal and Installation"

.

P1675 ENGINE COOLANT TEMPERATURE

ECK-355

< DTC/CIRCUIT DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

ECK

N

P

O

P1675 ENGINE COOLANT TEMPERATURE

DTC Logic

INFOID:0000000010516041

DTC DETECTION LOGIC

If the cooling fan or other component in the cooling system malfunctions, engine coolant temperature will rise.
When the engine coolant temperature reaches an abnormally high temperature condition, a malfunction is
indicated.

CAUTION:

When a malfunction is indicated, be sure to replace the coolant. Also, replace the engine oil.
1.

Fill radiator with coolant up to specified level with a filling speed of 2 liters per minute. Be sure to
use coolant with the proper mixture ratio.

2.

After refilling coolant, run engine to ensure that no water-flow noise is emitted.

DTC CONFIRMATION PROCEDURE

1.

PERFORM COMPONENT FUNCTION CHECK

Perform component function check. Refer to

ECK-356, "Component Function Check"

.

NOTE:
Use component function check to check the overall function of the cooling fan. During this check, a DTC might
not be confirmed.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Go to

ECK-357, "Diagnosis Procedure"

.

Component Function Check

INFOID:0000000010516085

1.

PERFORM COMPONENT FUNCTION CHECK-1

WARNING:

Never remove the reservoir tank cap when the engine is hot. Serious burns could be caused by high
pressure fluid escaping from the radiator.
Wrap a thick cloth around cap. Carefully remove the cap by turning it a quarter turn to allow built-up
pressure to escape. Then turn the cap all the way off.

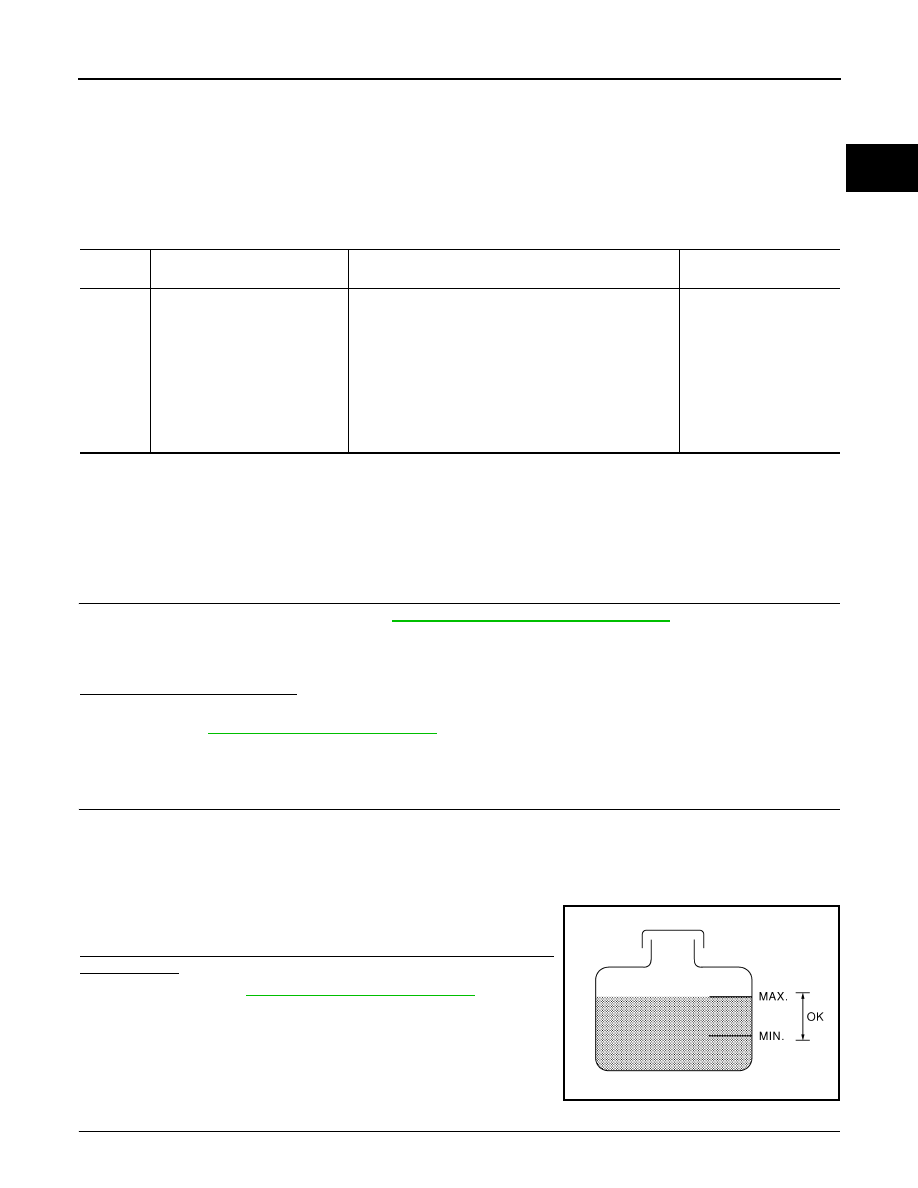

Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
Is the coolant level in the reservoir tank and/or radiator below the
proper range?

YES

>> Proceed to

ECK-357, "Diagnosis Procedure"

.

NO

>> GO TO 2.

2.

PERFORM COMPONENT FUNCTION CHECK-2

DTC No.

CONSULT screen terms

(Trouble diagnosis content)

DTC detecting condition

Possible cause

P1675


(—)

When engine coolant temperature is too high.

• Cooling fan
• Radiator  hose
• Radiator
• Radiator  cap
• Water pump
• Thermostat
• Engine coolant bypass

valve

• Engine coolant temper-

ature sensor

SEF621W

ECK-356

< DTC/CIRCUIT DIAGNOSIS >

[K9K]

P1675 ENGINE COOLANT TEMPERATURE

Confirm whether customer filled the coolant or not.

Did customer fill the coolant?

YES

>> Proceed to

ECK-357, "Diagnosis Procedure"

.

NO

>> GO TO 3.

3.

PERFORM COMPONENT FUNCTION CHECK-3

1.

Start engine and let it idle.

2.

Turn air conditioner switch and blower fan switch ON.

3.

Make sure that cooling fan operates at low speed.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Proceed to

ECK-357, "Diagnosis Procedure"

.

4.

PERFORM COMPONENT FUNCTION CHECK-4

1.

Turn ignition switch OFF.

2.

Turn air conditioner switch and blower fan switch OFF.

3.

Disconnect engine coolant temperature sensor harness connector.

4.

Connect 150

 resistor to engine coolant temperature sensor harness connector.

5.

Restart engine and make sure that cooling fan operates at higher speed than low speed.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Proceed to

ECK-357, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010516086

1.

CHECK COOLING FAN OPERATION

Check cooling fan operation.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace malfunctioning part.

2.

CHECK COOLING SYSTEM FOR LEAK-1

Check cooling system for leak.

Is leakage detected?

YES

>> GO TO 3.

NO

>> GO TO 4.

3.

CHECK COOLING SYSTEM FOR LEAK-2

Check the following for leak.
• Hose
• Radiator
• Radiator cap
• Water pump
• Reservoir tank

>> Repair or replace malfunctioning part.

4.

CHECK RADIATOR CAP

Check radiator cap.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace radiator cap.

5.

CHECK THERMOSTAT

Check thermostat.
Is the inspection result normal?

YES

>> GO TO 6.

P1675 ENGINE COOLANT TEMPERATURE

ECK-357

< DTC/CIRCUIT DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

ECK

N

P

O

NO

>> Replace thermostat.

6.

CHECK ENGINE COOLANT TEMPERATURE SENSOR

Check engine coolant temperature sensor. Refer to

ECK-202, "Component Inspection (Engine Coolant Tem-

perature Sensor)"

.

Is the inspection result normal?

YES

>> Perform overheating cause analysis. Refer to

CO-63, "Troubleshooting Chart"

.

NO

>> Replace engine coolant temperature sensor.

ECK-358

< DTC/CIRCUIT DIAGNOSIS >

[K9K]

P2002 DIESEL PARTICULATE FILTER

P2002 DIESEL PARTICULATE FILTER

DTC Logic

INFOID:0000000010290019

DTC DETECTION LOGIC

NOTE:
If DTC P2002 is displayed with following DTC, perform the trouble diagnosis for following DTC. Refer
to

ECK-97, "DTC Index"

.

• DTC U0121, U0415, P0001, P0002, P0045, P0100, P0101, P0105, P0115, P0200, P0201, P0202, P0203,

P0204, P0225, P0226, P0335, P0402, P0470, P0471, P0487, P0488, P0544, P0560, P060A, P061A,
P062B, P0638, P0641, P0651, P0697, P1544, P160C, P1641, P1642, P1643, P1650, P2080, P2100,
P2119, P2120, P2226, P2263 and P253F.

DTC CONFIRMATION PROCEDURE

1.

PERFORM DIAGNOSIS PROCEDURE

NOTE:
DTC P2002 can not duplicate.

>> Proceed to

ECK-359, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010290020

1.

CHECK DIESEL PARTICULATE FILTER

Refer to

ECK-359, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace diesel particulate filter.

2.

CHECK INTAKE AIR SYSTEM

Check the intake air system for leakage.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace error-detected parts and then GO TO 3.

3.

PERFORM SELF-DIAGNOSIS

Perform “Self-diagnostic results” of “ENGINE” using CONSULT.
Is any DTC detected?

YES

>> Replace diesel particulate filter.

NO

>> Perform SERVICE REGENERATION. Refer to

ECK-149, "Work Procedure"

.

Component Inspection

INFOID:0000000010290021

1.

CHECK DIESEL PARTICULATE FILTER

Check diesel particulate filter for damage.
Is the inspection result normal?

DTC No.

CONSULT screen terms

(Trouble diagnosis content)

DTC detecting condition

Possible cause

P2002

PARTICLE FILTER
(Diesel particulate filter efficiency be-
low threshold bank 1)
• 1.DEF: CLOGGED
• 2.DEF: COMPONENT IN POOR

CONDITION

• 3.DEF: OFFSET IMPLAUSIBLE
• 4.DEF: FAULT ALERTED VIA THE

CONTROL UNIT

Diesel particulate filter function does not oper-
ate properly.

Diesel particulate filter

P2002 DIESEL PARTICULATE FILTER

ECK-359

< DTC/CIRCUIT DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

ECK

N

P

O

YES

>> Perform SERVICE REGENERATION. Refer to

ECK-149, "Work Procedure"

.

NO

>> Replace diesel particulate filter.

ECK-360

< DTC/CIRCUIT DIAGNOSIS >

[K9K]

P2080 EGT SENSOR 1

P2080 EGT SENSOR 1

DTC Logic

INFOID:0000000010290022

DTC DETECTION LOGIC

NOTE:
If DTC P2080 is displayed with DTC P0544, first perform the trouble diagnosis for DTC P0544. Refer to

ECK-259, "DTC Logic"

.

DTC CONFIRMATION PROCEDURE

1.

PERFORM DIAGNOSIS PROCEDURE

NOTE:
DTC P2080 can not be duplicate.

>> Proceed to

ECK-361, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010290023

1.

CHECK INTAKE AIR SYSTEM

1.

Check the air cleaner for clogging.

2.

Check the air duct for connection and cracks.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace error-detected parts.

2.

CHECK ELECTRIC THROTTLE ACTUATOR

Check the electric throttle actuator. Refer to

ECK-363, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace electric throttle actuator.

3.

CHECK FUEL INJECTOR

Check the fuel injector. Refer to

ECK-212, "Component Inspection (Fuel Injector)"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace malfunctioning fuel injector.

4.

CHECK EXHAUST SYSTEM

Check the exhaust gas leakage.
Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-41, "Intermittent Incident"

.

NO

>> Repair or replace error-detected parts.

DTC No.

CONSULT screen terms

(Trouble diagnosis content)

DTC detecting condition

Possible cause

P2080

TBN DOWNS TEMP REG
(Exhaust gas temperature sensor circuit
range/performance bank 1 sensor 1)
• 1.DEF: SIGNAL OUTSIDE UPPER LIM-

IT

• An excessively high voltage from ex-

haust gas temperature sensor 1 is
sent to ECM.

• Temperature before the turbine is

more than 830

°

C (1,526

°

F) for 180

seconds.

• Intake air leaks
• Electric throttle actuator
• Fuel injector
• Exhaust gas leaks

P2100 THROTTLE CONTROL MOTOR RELAY

ECK-361

< DTC/CIRCUIT DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

ECK

N

P

O

P2100 THROTTLE CONTROL MOTOR RELAY

DTC Logic

INFOID:0000000010290024

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 1 minute before conducting the next test.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE-1

1.

Turn ignition ON at least 1 seconds.

2.

Check DTC.

Is DTC detected?

YES

>> Proceed to

ECK-362, "Diagnosis Procedure"

.

NO

>> GO TO 3.

3.

PERFORM DTC CONFIRMATION PROCEDURE-2

1.

Start engine and let it idle for at least 2 seconds.

2.

Check DTC.

Is DTC detected?

YES

>> Proceed to

ECK-362, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000010290025

1.

CHECK ECM HARNESS CONNECTOR CONNECTION

1.

Turn ignition switch OFF.

2.

Check the ECM harness connector connection.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace error-detected parts.

2.

CHECK ELECTRIC THROTTLE CONTROL ACTUATOR HARNESS CONNECTOR CONNECTION

1.

Turn ignition switch OFF.

2.

Check the electric throttle control actuator harness connector connection.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace error-detected parts.

3.

CHECK ELECTRIC THROTTLE CONTROL ACTUATOR CIRCUIT

DTC No.

CONSULT screen terms

(Trouble diagnosis con-

tent)

DTC detecting condition

Possible cause

P2100

INLET AIR FLAP CIR-
CUIT
(Throttle actuator “A”
control motor circuit/
open)
• 1.DEF:  —
• 2.DEF: OPERATION

TEMPERATURE
TOO HIGH

• ECM detects throttle control motor circuit

is open circuit.

• ECM detects throttle control motor circuit

is short circuit to ground.

• ECM detects throttle control motor circuit

is short circuit to battery.

• Harness or connectors

(Throttle control motor circuit is open or shorted)

• Electric throttle control actuator

ECK-362

< DTC/CIRCUIT DIAGNOSIS >

[K9K]

P2100 THROTTLE CONTROL MOTOR RELAY

Check the electric throttle control actuator circuit for open and short.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace error-detected parts.

4.

CHECK THROTTLE CONTROL MOTOR

Perform

ECK-363, "Component Inspection"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-41, "Intermittent Incident"

.

NO

>> Replace electric throttle control actuator.

Component Inspection

INFOID:0000000010290026

1.

CHECK THROTTLE CONTROL MOTOR

1.

Reconnect all harness connectors disconnected.

2.

Check the voltage between ECM harness connectors terminals as per the following conditions.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace electric throttle control actuator.

+

Continuity

ECM

Electric throttle control actuator

Connector

Terminal

Connector

Terminal

F80

61

F46

2

Existed

67

3

71

4

F81

139

6

140

1

ECM

Condition

Voltage

+

Connector

Terminal

Connector

Terminal

F81

139

E59

25

[Engine is running]
• Warm-up condition
• Idle speed

[Ignition switch: OFF]
• For a few seconds after

turning ignition switch
OFF

0 V

140

[Engine is running]
• Warm-up condition
• Idle speed

0 V

JSBIA4796ZZ

P2119 ELECTRIC THROTTLE CONTROL FUNCTION

ECK-363

< DTC/CIRCUIT DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

ECK

N

P

O

P2119 ELECTRIC THROTTLE CONTROL FUNCTION

DTC Logic

INFOID:0000000010290030

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000010290031

1.

CHECK INTERMITTENT INCIDENT

Refer to

GI-41, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace.

2.

REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

1.

Replace electric throttle control actuator.

2.

Perform

ECK-136, "Work Procedure"

.

>> INSPECTION END

DTC No.

CONSULT screen terms

(Trouble diagnosis content)

DTC detecting condition

Possible cause

P2119

AIR INLET FLAP
(Throttle actuator control
throttle body range/perfor-
mance)
• 1.DEF: OFFSET IM-

PLAUSIBLE

ECM detects abnormally closed position of
throttle control valve.

• Harness or connectors

(Throttle control motor circuit is open or
shorted)

• Electric throttle control actuator

ECK-364

< DTC/CIRCUIT DIAGNOSIS >

[K9K]

P2120 APP SENSOR

P2120 APP SENSOR

DTC Logic

INFOID:0000000010290032

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 1 minute before conducting the next test.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Turn ignition switch ON and wait at least 3 seconds.

2.

Check DTC.

Is DTC detected?

YES

>> Proceed to

ECK-365, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000010290033

1.

CHECK ACCELERATOR PEDAL POSITION (APP) SENSOR POWER SUPPLY

Check the power supply of the APP sensor.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK APP SENSOR POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Check APP sensor circuit for open and short.

Is the inspection result normal?

DTC No.

CONSULT screen terms

(Trouble diagnosis content)

DTC detecting condition

Possible cause

P2120

PEDAL POTENTIOMETER CIR-
CUIT TRACK 2
(Throttle/pedal position sensor/
switch “D” circuit)
• 1.DEF: VOLTAGE TOO HIGH
• 2.DEF: VOLTAGE TOO LOW

• Accelerator pedal position (APP) sensor 2

signal is less than 0.04 V.

• Accelerator pedal position (APP) sensor 2

signal is more than 0.74 V.

• Harness or connectors

(APP sensor 2 circuit is open or
shorted.)

• APP sensor 2

+

-

Voltage

(Approx.)

APP sensor

Connector

Terminal

E20

4

Ground

5.0 V

5

+

-

Continuity

ECM

APP sensor

Connector

Terminal

Connector

Terminal

E59

23

E20

5

Existed

27

4

P2120 APP SENSOR

ECK-365

< DTC/CIRCUIT DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

ECK

N

P

O

YES

>> Check ECM power supply circuit. Refer to

ECK-156, "ECM : Diagnosis Procedure"

.

NO

>> Repair or replace error-detected parts.

3.

CHECK APP CIRCUIT

1.

Turn ignition switch OFF.

2.

Check APP sensor circuit for open and short.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace error-detected parts.

4.

CHECK APP SENSOR

Refer to

ECK-366, "Component Inspection (Accelerator Pedal Position Sensor)"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-41, "Intermittent Incident"

.

NO

>> Replace error-detected parts.

Component Inspection (Accelerator Pedal Position Sensor)

INFOID:0000000010290034

1.

CHECK ACCELERATOR PEDAL POSITION SENSOR

1.

Reconnect all harness connectors disconnected.

2.

Turn ignition switch ON.

3.

Check the voltage between ECM harness connector terminals as follows.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace accelerator pedal assembly.

+

-

Continuity

ECM

APP sensor

Connector

Terminal

Connector

Terminal

E59

21

E20

1

Existed

22

6

30

2

31

3

ECM

Condition

Voltage

Connector

+

-

Terminal

E59

31

30

Accelerator pedal

Fully released

0.6 - 0.9 V

Fully depressed

3.9 - 4.7 V

22

21

Fully released

0.3 - 0.6 V

Fully depressed

1.95 - 2.4 V

ECK-366

< DTC/CIRCUIT DIAGNOSIS >

[K9K]

P2226 BARO SENSOR

P2226 BARO SENSOR

DTC Logic

INFOID:0000000010290035

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 1 minute before conducting the next test.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Turn ignition switch ON and wait at least 3 seconds.

2.

Check DTC.

Is DTC detected?

YES

>> Proceed to

ECK-367, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000010290036

1.

CHECK ECM AIR INLET VISUALLY

Check if foreign matter is blocking the air inlet for ECM.

Is the inspection result normal?

YES

>> Replace ECM. Refer to

ECK-399, "Removal and Installation"

.

NO

>> Remove foreign matter.

DTC No.

CONSULT screen terms

(Trouble diagnosis content)

DTC detecting condition

Possible cause

P2226

ATMOS PRESS SEN
(Barometric pressure sensor “A”
circuit)
• 1.DEF: VOLTAGE TOO HIGH
• 2.DEF: VOLTAGE TOO LOW
• 3.DEF: IMPROPER SIGNAL

SHAPE

• Barometric pressure sensor (built-into ECM) signal re-

mains less than 0.3 V for 2.5 seconds.

• Barometric pressure sensor (built-into ECM) signal re-

mains more than 4.95 V for 2.5 seconds.

• Barometric pressure differs from the calculated value

more than 50 hPa (0.05 bar, 0.051 kg/cm

2

, 0.145 psi).

ECM

P2263 TC SYSTEM

ECK-367

< DTC/CIRCUIT DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

ECK

N

P

O

P2263 TC SYSTEM

DTC Logic

INFOID:0000000010290041

DTC DETECTION LOGIC

NOTE:
If DTC P2263 is displayed with following DTC, first perform the trouble diagnosis for following DTC.
Refer to

ECK-97, "DTC Index"

.

• P0001, P0002, P0045, P0105, P0115, P0180, P0190, P0200, P0201, P0202, P0203, P0204, P0217, P0402,

P0409, P0487, P0488, P0627, P0641 and P0651.

DTC CONFIRMATION PROCEDURE

1.

PERFORM DIAGNOSIS PROCEDURE

NOTE:
DTC P2263 can not be duplicate.

>> Proceed to

ECK-368, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010290042

1.

CHECK AIR FILTER

Check that air filter is not obstructed.
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace error-detected parts.

2.

CHECK INTAKE AIR DUCT

Check that intake air duct is not obstructed.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace error-detected parts.

3.

CHECK EXHAUST GAS LEAK

Check exhaust gas leak.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace error-detected parts.

4.

CHECK TURBOCHARGER BOOST SENSOR

Check the turbocharger boost sensor. Refer to

ECK-198, "Component Inspection (Turbocharger Boost Sen-

sor)"

.

Is the inspection result normal?

DTC No.

CONSULT screen terms

(Trouble diagnosis content)

DTC detecting condition

Possible cause

P2263

BOOST PRESSURE CIR-
CUIT
(Turbocharger/supercharg-
er boost system perfor-
mance)
• 1.DEF: SIGNAL OUT-

SIDE LOWER LIMIT

• 2.DEF: SIGNAL OUT-

SIDE UPPER LIMIT

• 3.DEF: PARAMETER AT

MAXIMUM STOP

• 4.DEF: PARAMETER AT

MINIMUM STOP

• Differences between boost pressure

and target value are less than -150 hPa.
(Boost pressure is too high)

• Differences between boost pressure

and target value are more than 150 hPa.
(Boost pressure is too low)

• Harness or connectors

(Turbocharger boost sensor circuit is open
or shorted.)

• Turbocharger boost sensor (with intake air

temperature sensor 2)

• Vacuum air circuit
• Air filter
• Turbocharger
• Intake air leaks
• Exhaust gas leaks
• Low pressure EGR circuit
• High pressure EGR circuit
• Turbocharger boost control solenoid valve

ECK-368

< DTC/CIRCUIT DIAGNOSIS >

[K9K]

P2263 TC SYSTEM

YES

>> GO TO 5.

NO

>> Replace turbocharger boost sensor.

5.

CHECK TURBOCHARGER BOOST CONTROL SOLENOID VALVE

Check the turbocharger boost control solenoid valve. Refer to

ECK-183, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace error-detected parts.

6.

CHECK TURBOCHARGER

Check the turbocharger.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Repair or replace error-detected parts.

7.

CHECK HIGH PRESSURE EGR CIRCUIT AND LOW PRESSURE EGR CIRCUIT

Check the low pressure EGR circuit and high pressure EGR circuit.
Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-41, "Intermittent Incident"

.

NO

>> Repair or replace error-detected parts.















Content      ..     21      22      23      24     ..
