ADDITIONAL SERVICE WHEN REPLACING ECM

>> GO TO 17.

17.

PERFORM SERVICE REGENERATION

Perform

EC9-154, "Work Procedure"

.

>> GO TO 18.

18.

CHANGE ENGINE OIL

Refer to

LU-49, "Draining"

 or

LU-49, "Refilling"

.

>> GO TO 19.

19.

PERFORM ENGINE OIL DATA RESET

Perform

EC9-159, "Work Procedure"

.

>> GO TO 20.

20.

CHECK DTC

1.

Turn ignition switch OFF and wait at least 1 minute.

2.

Turn ignition switch ON.

3.

Check DTC. If DTC is displayed, erase it.

>> END

INJECTOR ADJUSTMENT VALUE REGISTRATION

EC9-147

< BASIC INSPECTION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EC9

N

P

O

INJECTOR ADJUSTMENT VALUE REGISTRATION

Description

INFOID:0000000010309020

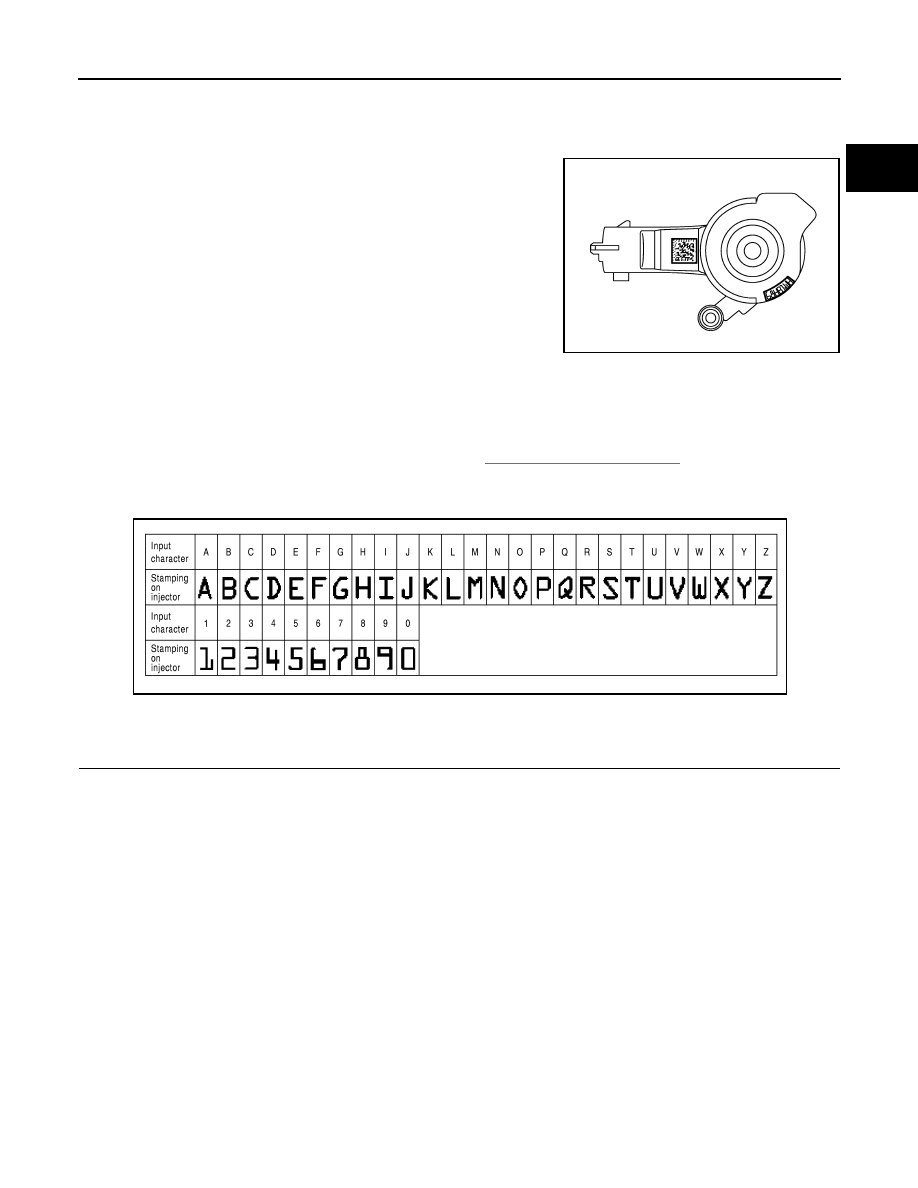

Injector adjustment value indicates manufacturing tolerance and the
value is printed on the top of fuel injector.
The injector adjustment value which is correctly stored in ECM is
needed for precise fuel injection control.
A performance of emission control and a driveability may effect
when there is a mismatch between the following two values.
• The injector adjustment value stored in ECM
• The injector adjustment value of the injector which is installed on

the vehicle

Injector Adjustment Value Registration must be performed after the
following cases.
• Injector(s) are replaced.
- Injector Adjustment Value Registration for the replaced fuel injector must be performed.
• ECM is replaced.
- Injector Adjustment Value Registration for all the fuel injectors must be performed.

NOTE:
The necessary operation is different depending on the operation result of ECM data save or write. Always
perform the operation according to procedures. Refer to

EC9-144, "Work Procedure"

.

For injector adjustment value, refer to the following table.
NOTE:
“J” and “Q”, “9” and “0 (zero)” are not applied.

Work Procedure

INFOID:0000000010309021

1.

START

NOTE:
• Before performing this procedure, record injector adjustment value printed on a fuel injector.
1.

Turn ignition switch ON (engine stopped).

2.

Select “ENTER INJECTOR CODES” in “WORK SUPPORT” mode of “ENGINE” using CONSULT.

3.

Touch “START”.
NOTE:
When touching “START”, CONSULT reads injector adjustment values stored in ECM.

4.

Select the number of the cylinder which needs Injector Adjustment Value Registration.

5.

Input injector adjustment value.
NOTE:

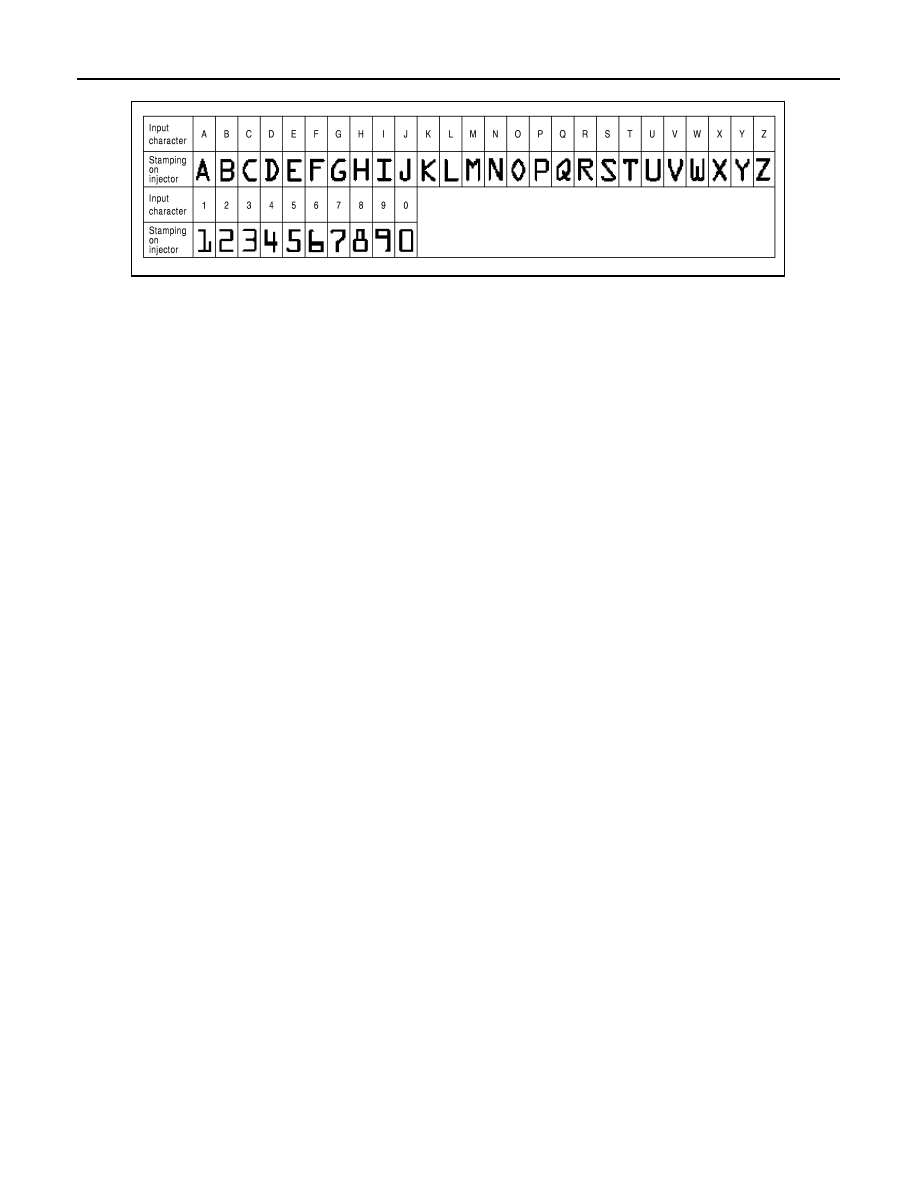

• For injector adjustment value, refer to the following table.

JSBIA0509ZZ

JMBIA2928GB

EC9-148

< BASIC INSPECTION >

[R9M]

INJECTOR ADJUSTMENT VALUE REGISTRATION

•  “J” and “Q”, “9” and “0 (zero)” are not applied.

6.

Repeat step 4 - 5 till there is no cylinder which needs Injector Adjustment Value Registration, and touch
“START”.
NOTE:
When touching “START”, injector adjustment values stored in CONSULT are written onto ECM memory.

7.

Check that the following values are same for each cylinder.

-

Injector adjustment value which is printed on a fuel injector.

-

Injector adjustment value which is displayed on CONSULT screen.

NOTE:
•

In this step, CONSULT reads injector adjustment values stored in ECM and displays the values on the
CONSULT screen. This is for checking if injector adjustment values are written onto ECM memory cor-
rectly.

•

If DTC is detected, perform DTC Confirmation Procedure for the DTC, and check if the same DTC is
detected again.

8.

Turn ignition switch OFF and wait at least 1 minute.

>> END

JMBIA2928GB

THROTTLE VALVE POSITION LEARNING

EC9-149

< BASIC INSPECTION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EC9

N

P

O

THROTTLE VALVE POSITION LEARNING

Description

INFOID:0000000010309022

Throttle valve position learning is an operation to learn the fully closed position of the throttle valve by monitor-
ing the throttle position sensor output signal. It must be performed each time harness connector of electric
throttle control actuator or ECM is disconnected.
• Electric throttle control actuator is removed.
• Electric throttle control actuator is replaced.
• ECM is replaced.

NOTE:
The necessary operation is different depending on the operation result of ECM data save or write. Always
perform the operation according to procedures. Refer to

EC9-144, "Work Procedure"

.

Work Procedure

INFOID:0000000010309023

1.

START

1.

Check that accelerator pedal is fully released.

2.

Turn ignition switch ON and wait at least 10 seconds.

3.

Turn ignition switch OFF and wait at least 1 minute.
NOTE:
Check that throttle valve moves by confirming the operating sound.

>> END

EC9-150

< BASIC INSPECTION >

[R9M]

EXHAUST THROTTLE VALVE POSITION LEARNING

EXHAUST THROTTLE VALVE POSITION LEARNING

Description

INFOID:0000000010309024

Exhaust throttle valve position learning is an operation to learn the fully closed position of the exhaust throttle
valve. It must be performed each time harness connector of exhaust electric throttle control actuator or ECM is
disconnected.
• Exhaust electric throttle control actuator is removed.
• Exhaust electric throttle control actuator is replaced.
• ECM is replaced.

NOTE:
The necessary operation is different depending on the operation result of ECM data save or write. Always
perform the operation according to procedures. Refer to

EC9-144, "Work Procedure"

.

Work Procedure

INFOID:0000000010309025

1.

START

1.

Turn ignition switch ON and wait at least 10 seconds.

2.

Turn ignition switch OFF and wait at least 1 minute.
NOTE:
Check that throttle valve moves by confirming the operating sound.

>> END

EGR VOLUME CONTROL VALVE POSITION LEARNING

EC9-151

< BASIC INSPECTION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EC9

N

P

O

EGR VOLUME CONTROL VALVE POSITION LEARNING

Description

INFOID:0000000010309026

EGR volume control valve position learning is an operation to learn the fully closed position of the high pres-
sure EGR volume control valve by monitoring the high pressure EGR volume control valve position sensor
output signal. It must be performed under any of the following conditions:
• High pressure EGR volume control valve is removed.
• High pressure EGR volume control valve is replaced.
• ECM is replaced.

NOTE:
The necessary operation is different depending on the operation result of ECM data save or write. Always
perform the operation according to procedures. Refer to

EC9-144, "Work Procedure"

.

Work Procedure

INFOID:0000000010309027

1.

START

1.

Turn ignition switch OFF and wait at least 10 seconds.

2.

Turn ignition switch ON and wait for 1 minute.
NOTE:
Check that high pressure EGR volume control valve moves by confirming the operating sound.

>> END

EC9-152

< BASIC INSPECTION >

[R9M]

LOW PRESSURE EGR VOLUME CONTROL VALVE POSITION LEARNING

LOW PRESSURE EGR VOLUME CONTROL VALVE POSITION LEARNING

Description

INFOID:0000000010309028

Low pressure EGR volume control valve position learning is an operation to learn the fully closed position of
the low pressure EGR volume control valve by monitoring the low pressure EGR volume control valve position
sensor output signal. It must be performed under any of the following conditions:
• Low pressure EGR volume control valve is removed.
• Low pressure EGR volume control valve is replaced.
• ECM is replaced.

NOTE:
The necessary operation is different depending on the operation result of ECM data save or write. Always
perform the operation according to procedures. Refer to

EC9-144, "Work Procedure"

.

Work Procedure

INFOID:0000000010309029

1.

START

1.

Turn ignition switch OFF and wait at least 10 seconds.

2.

Turn ignition switch ON and wait for 1 minute.
NOTE:
Check that low pressure EGR volume control valve moves by confirming the operating sound.

>> END

INTAKE MANIFOLD RUNNER CONTROL VALVE POSITION LEARNING

EC9-153

< BASIC INSPECTION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EC9

N

P

O

INTAKE MANIFOLD RUNNER CONTROL VALVE POSITION LEARNING

Description

INFOID:0000000010309030

Intake manifold runner control valve position learning is an operation to learn the fully closed position of the
intake manifold runner control valve. It must be performed each time harness connector of intake manifold
runner control valve actuator or ECM is disconnected.
• Intake manifold runner control valve is removed.
• Intake manifold runner control valve is replaced.
• ECM is replaced.

NOTE:
The necessary operation is different depending on the operation result of ECM data save or write. Always
perform the operation according to procedures. Refer to

EC9-144, "Work Procedure"

.

Work Procedure

INFOID:0000000010309031

1.

START

1.

Check that accelerator pedal is fully released.

2.

Turn ignition switch ON and wait at least 10 seconds.

3.

Turn ignition switch OFF and wait at least 1 minute.
NOTE:
Check that throttle valve moves by confirming the operating sound.

>> END

EC9-154

< BASIC INSPECTION >

[R9M]

SERVICE REGENERATION

SERVICE REGENERATION

Description

INFOID:0000000010309032

Certain types of driving conditions (e.g. urban driving) may load to heavy loads in DPF (Diesel Particulate Fil-
ter). This soot mass may adversely affect the driving. This function can perform DPF regeneration under vehi-
cle stop condition.
Service regeneration is performed with CONSULT to reduce particulate matter in DPF (Diesel Particulate Fil-
ter). Service regeneration should be performed in the following cases.
• ECM enters fail-safe mode because the amount of particulate matter in DPF reaches the specified level.

NOTE:
When ECM enters fail-safe mode because the amount of particulate matter in DPF reaches the specified
level, check whether or not DTC P2002 is stored in ECM. In the case of DTC stored, perform the Diagnostic
Procedure for the DTC.

• ECM is replaced.

NOTE:
• Based on the signal from sensors ECM measures the amount of particulate matter in DPF and stores the

value in EEPROM (Electrically Erasable Programmable Read Only Memory). When ECM is replaced as
new one, there is a difference between the actual amount of particulate matter and the value stored in new
ECM, because the value stored in new ECM is initialized one. In the case above, ECM can not perform
regeneration control correctly. So, perform service regeneration to make the amount of particulate matter
in DPF zero.

• The necessary operation is different depending on the operation result of ECM data save or write. Always

perform the operation according to procedures. Refer to

EC9-144, "Work Procedure"

.

• Component inspection for DPF is performed.

CAUTION:

Oil change is required, depending on service regeneration procedure. Because fuel mixes with
engine oil during service regeneration. The mixture does not occur during the regeneration which is
automatically performed under normal operation.

Work Procedure

INFOID:0000000010309033

1.

CHECK DTC

1.

Turn ignition switch OFF and wait at least 1 minute.

2.

Turn ignition switch ON.

3.

Check DTC.

Is any DTC detected?

YES

>> Perform trouble diagnosis for detected DTC. Refer to

EC9-108, "DTC Index"

.

NO

>> GO TO 2.

2.

CHECK ENGINE OIL LEVEL

Refer to

LU-48, "Inspection"

.

CAUTION:

When the oil level reaches maximum, drain engine oil as to be in MIN and HALF.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Drain or refill engine oil. And then GO TO 3.

3.

PERFORM OK OR NG JUDGEMENT FOR SERVICE REGENERATION

1.

Close the engine hood.

2.

Start engine and warm it up to normal operating temperature.
NOTE:
For best results, warm up the engine until “WATER TEMP” on “DATA MONITOR” mode of “ENGINE”
using CONSULT reaches at least 80

°

C (176

°

F).

3.

Select “PARTICLE FILTER REGENERATION” in “WORK SUPPORT” mode of “ENGINE” using CON-
SULT.

4.

Touch “START”.

Which is displayed on CONSULT screen?

Judged OK>>GO TO 4.

SERVICE REGENERATION

EC9-155

< BASIC INSPECTION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EC9

N

P

O

Judged NG>>GO TO 8.

4.

PERFORM SERVICE REGENERATION

Touch “START” and wait for approximately 40 minutes.

CAUTION:

Never perform any vehicle operation during service regeneration.
NOTE:
It takes approximately 40 minutes until “COMPLETE” is displayed.

Which is displayed on CONSULT screen?

COMPLETE>>GO TO 7.
INCOMPLETE>>GO TO 5.

5.

CHECK DPF TEMPERATURE

Check “EXH GAS TEMP (UPSTM CAT)” in “DATA MONITOR” mode of “ENGINE” using CONSULT.

Is the indication value more than 400

°

C (752

°

F)?

YES

>> GO TO 6.

NO

>> Check exhaust system.

6.

PERFORM SERVICE REGENERATION AGAIN

1.

Turn ignition switch OFF.

2.

Open the engine hood.

3.

Cool the engine at least 2 hours.

4.

Check engine oil level. Refer to

LU-48, "Inspection"

.

5.

Close the engine hood.

6.

Start the engine.

7.

Perform “PARTICLE FILTER REGENERATION” again.

Which is displayed on CONSULT screen?

COMPLETE>>GO TO 7.
INCOMPLETE>>GO TO 8.

7.

PERFORM RESET AFTER SERVICE REGENERATION

1.

Select “AFTER DPF REGENERATION” in “WORK SUPPORT” mode of “ENGINE” using CONSULT.

2.

Touch “START”.

3.

Check that “COMPLETE” is displayed on CONSULT screen.

4.

Touch “END”.

>> GO TO 9.

8.

REPLACE DPF

1.

Turn ignition switch OFF.

2.

Replace DPF. Refer to

EX-30, "Removal and installation"

.

3.

Turn ignition switch ON.

4.

Perform “AFTER DPF REPLACEMENT” in “WORK SUPPORT” mode of “ENGINE” using CONSULT.

>> GO TO 9.

9.

CHECK DTC

1.

Turn ignition switch OFF and wait at least 1 minute.

2.

Turn ignition switch ON.

3.

Check DTC.

Is DTC “P253F” detected?

YES

>> GO TO 10.

NO

>> END

10.

CHANGE ENGINE OIL

1.

Change engine oil. Refer to

LU-49, "Draining"

 or

LU-49, "Refilling"

.

2.

Perform “ENGINE OIL DATA RESET”. Refer to

EC9-159, "Work Procedure"

.

3.

Erase DTC.

EC9-156

< BASIC INSPECTION >

[R9M]

SERVICE REGENERATION

>> END

DIESEL PARTICULATE FILTER DATA CLEAR

EC9-157

< BASIC INSPECTION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EC9

N

P

O

DIESEL PARTICULATE FILTER DATA CLEAR

Description

INFOID:0000000010309034

Perform “DPF DATA CLEAR” in “WORK SUPPORT” mode with CONSULT when oxidation catalyst with diesel
particulate filter is replaced with a new one. Based on the signal from sensors, ECM estimates the amount of
particulate matter in diesel particulate filter and stores the value in EEPROM as diesel particulate filter data.
When oxidation catalyst with diesel particulate filter is replaced with a new one, there is a difference between
diesel particulate filter data stored in ECM and the actual amount of particulate matter in diesel particulate fil-
ter, because no particulate matter is trapped in new diesel particulate filter. In this case, ECM cannot perform
regeneration control correctly. So perform “AFTER DPF REPLACEMENT” in “WORK SUPPORT” mode of
“ENGINE” using CONSULT to clear diesel particulate filter data stored in ECM.

CAUTION:

Never perform “AFTER DPF REPLACEMENT” in “WORK SUPPORT” mode of “ENGINE” using CON-
SULT when oxidation catalyst with diesel particulate filter is not replaced with a new one. Diesel partic-
ulate filter may be damaged because regeneration is not performed at appropriate timing.

Special Repair Requirement

INFOID:0000000010309035

1.

START

1.

Turn ignition switch ON.

2.

Select “AFTER DPF REPLACEMENT” in “WORK SUPPORT” mode of “ENGINE” using CONSULT.

3.

Touch “CLEAR” and wait a few seconds.

4.

Make sure that “CMPLT” is displayed on CONSULT screen.

>> END

EC9-158

< BASIC INSPECTION >

[R9M]

FUEL PUMP LEARNING VALUE CLEARING

FUEL PUMP LEARNING VALUE CLEARING

Description

INFOID:0000000010309036

High Pressure Fuel Pump Total Starts Counter Reset is a function to erase the accumulated number of high
pressure fuel pump operation with engine start. It must be performed when high pressure fuel pump is
replaced.

CAUTION:

Never perform High Pressure Fuel Pump Total Starts Counter Reset when the high pressure fuel pump
is not replaced as new one.

Special Repair Requirement

INFOID:0000000010309037

1.

START

With CONSULT

1.

Turn ignition switch ON.

2.

On the CONSULT screen, select “ENGINE” >> “WORK SUPPORT” >> “H/P FUEL PUMP TOTAL
STARTS COUNTER RESET”.

3.

Touch “CLEAR” and wait a few seconds.

4.

Make sure that “CMPLT” is displayed on CONSULT screen.

>> END

ENGINE OIL DATA RESET

EC9-159

< BASIC INSPECTION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EC9

N

P

O

ENGINE OIL DATA RESET

Description

INFOID:0000000010309038

The oil change alert function allows calculating the remaining distance to drive before oil change request. The
engine oil data reset must be performed after engine oil is changed.

Work Procedure

INFOID:0000000010309039

1.

ENGINE OIL OXIDATION DATA RESET

1.

Select “ENGINE OIL OXIDATION DATA RESET” in “WORK SUPPORT” mode of “ENGINE” using CON-
SULT.

2.

Follow the instruction of CONSULT display.

>> GO TO 2.

2.

ENGINE OIL DILUTION DATA RESET

1.

Select “ENGINE OIL DILUTION DATA RESET” in “WORK SUPPORT” mode of “ENGINE” using CON-
SULT.

2.

Follow the instruction of CONSULT display.

>> END

EC9-160

< BASIC INSPECTION >

[R9M]

STARTER OPERATION COUNTER CLEAR

STARTER OPERATION COUNTER CLEAR

Description

INFOID:0000000010309043

Starter Operation Counter Clear is a function of ECM to erase the starter motor operation counter. It must be
performed when starter motor is replaced.

CAUTION:

Performed this function when starter motor is replaced.

Work Procedure

INFOID:0000000010309044

1.

ERASE STARTER OPERATION COUNTER

With CONSULT

1.

Turn ignition switch ON.

2.

Select “STRT OPRTN CNTR CLEAR” in “WORK SUPPORT” mode of “ENGINE” using CONSULT.

3.

Touch “CLEAR” and erase starter operation counter.

>> INSPECTION END

ACCELERATOR PEDAL

EC9-161

< BASIC INSPECTION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EC9

N

P

O

ACCELERATOR PEDAL

Work Procedure

INFOID:0000000010309040

1.

PERFORM ACCELERATOR PEDAL FORCE-I

1.

Turn ignition switch OFF.

2.

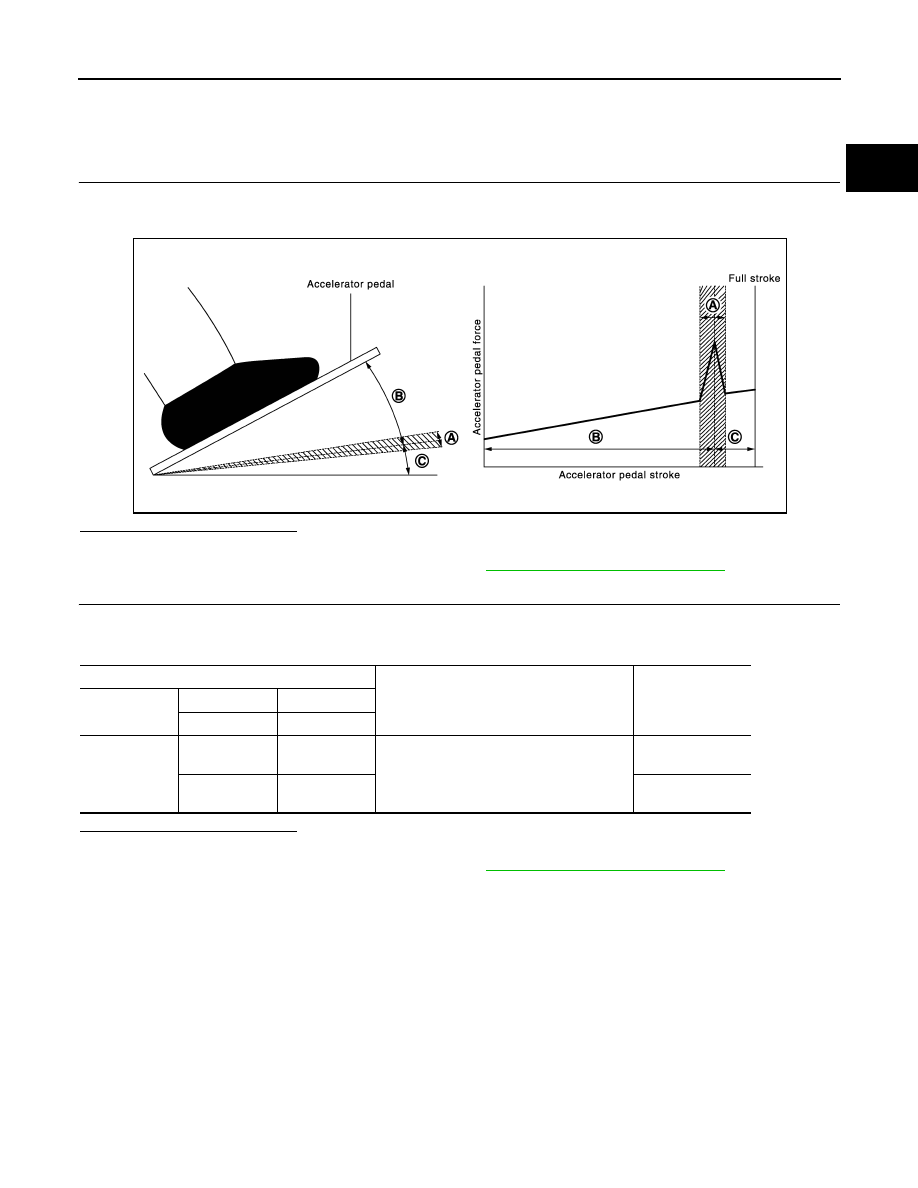

Depress the accelerator pedal and check if there is a specific point (A) in the pedal stroke where the pedal
force increase as shown in the figure.

Is the inspection result normal?

YES-1 >> GO TO 2.
NO

>> Replace accelerator pedal assembly. Refer to

ACC-3, "Removal and Installation"

.

2.

PERFORM ACCELERATOR PEDAL FORCE-II

1.

Turn ignition switch ON.

2.

Check the voltage between ECM harness connector and ground under the following conditions.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace accelerator pedal assembly. Refer to

ACC-3, "Removal and Installation"

.

JMBIA1519GB

ECM

Condition

Voltage

Connector

+

–

Terminal

Terminal

E20

31

(APP sensor 1)

30

Depressing range of the accelerator pedal:
Within (C) as indicated in the figure

More than 4.35 V

22

(APP sensor 2)

21

More than 2.17 V
