U111A REAR CAMERA IMAGE SIGNAL CIRCUIT

AV-193

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace harness or connectors.

2.

CHECK REAR VIEW CAMERA POWER SUPPLY VOLTAGE

1.

Connect around view monitor control unit and rear view camera connectors.

2.

Turn ignition switch ON.

3.

Check voltage between around view monitor control unit connector M8 and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace around view monitor control unit. Refer to

AV-267, "Removal and Installation"

.

3.

CHECK REAR VIEW CAMERA IMAGE SIGNAL AND IMAGE SIGNAL GROUND CIRCUIT CONTINUITY

1.

Turn ignition switch OFF.

2.

Disconnect around view monitor control unit and rear view camera connectors.

3.

Check continuity between around view monitor control unit connector M8 and rear view camera connector
D80.

4.

Check continuity between around view monitor control unit connector M8 and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness or connectors.

4.

CHECK REAR VIEW CAMERA IMAGE SIGNAL

1.

Connect around view monitor control unit and rear view camera connectors.

2.

Turn ignition switch ON.

3.

Check signal between the terminals of around view monitor control unit connector M8.

Around view monitor control unit

Ground

Continuity

Connector

Terminal

M8

50

No

Around view monitor control unit

Ground

Condition

Voltage

(Approx.)

Connector

Terminal

M8

50

—

CAMERA switch is ON or
selector lever in R (re-
verse).

6.0 V

Around view monitor control unit

Rear view camera

Continuity

Connector

Terminals

Connector

Terminals

M8

53

D80

5

Yes

54

1

Around view monitor control unit

Ground

Continuity

Connector

Terminal

M8

53

No

AV-194

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION]

U111A REAR CAMERA IMAGE SIGNAL CIRCUIT

Is the inspection result normal?

YES

>> Replace around view monitor control unit. Refer to

AV-267, "Removal and Installation"

.

NO

>> Replace rear view camera. Refer to

AV-270, "Removal and Installation"

.

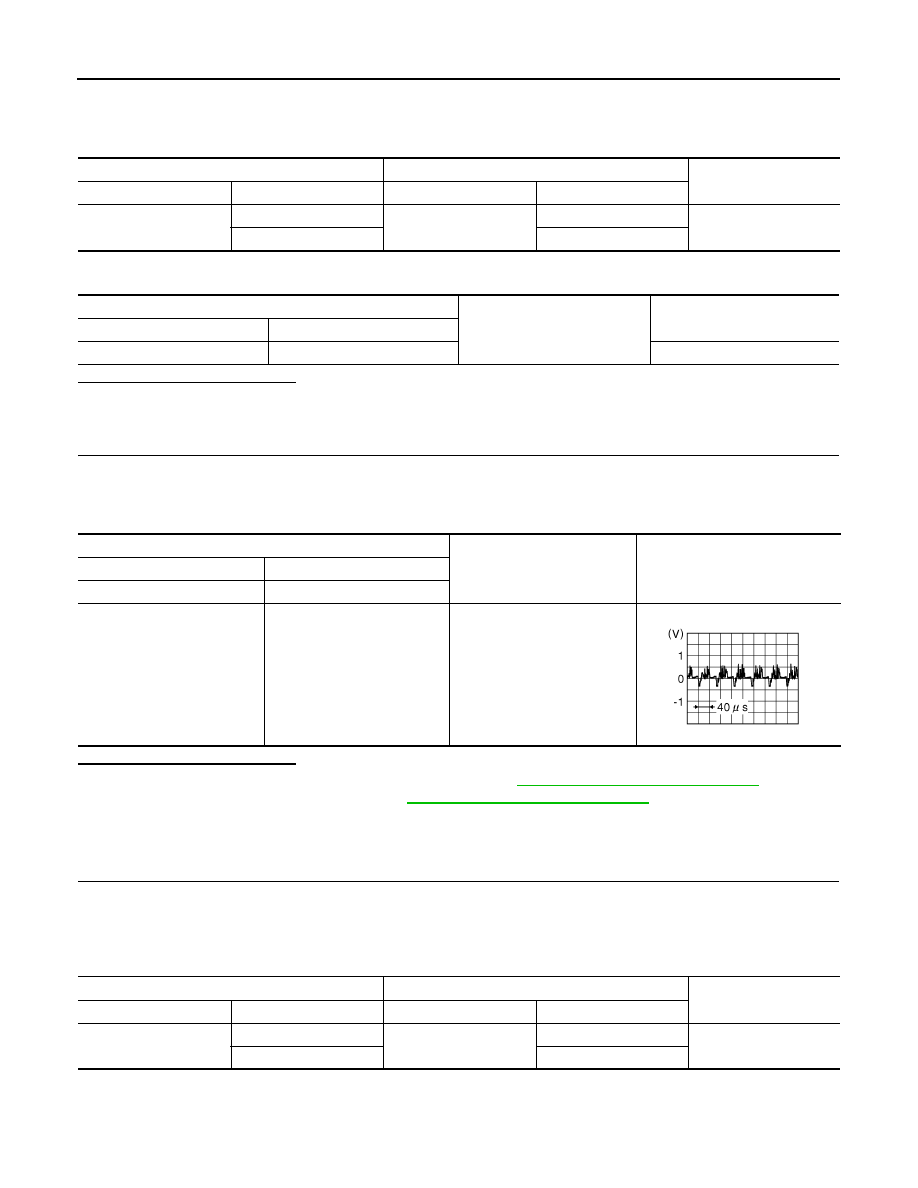

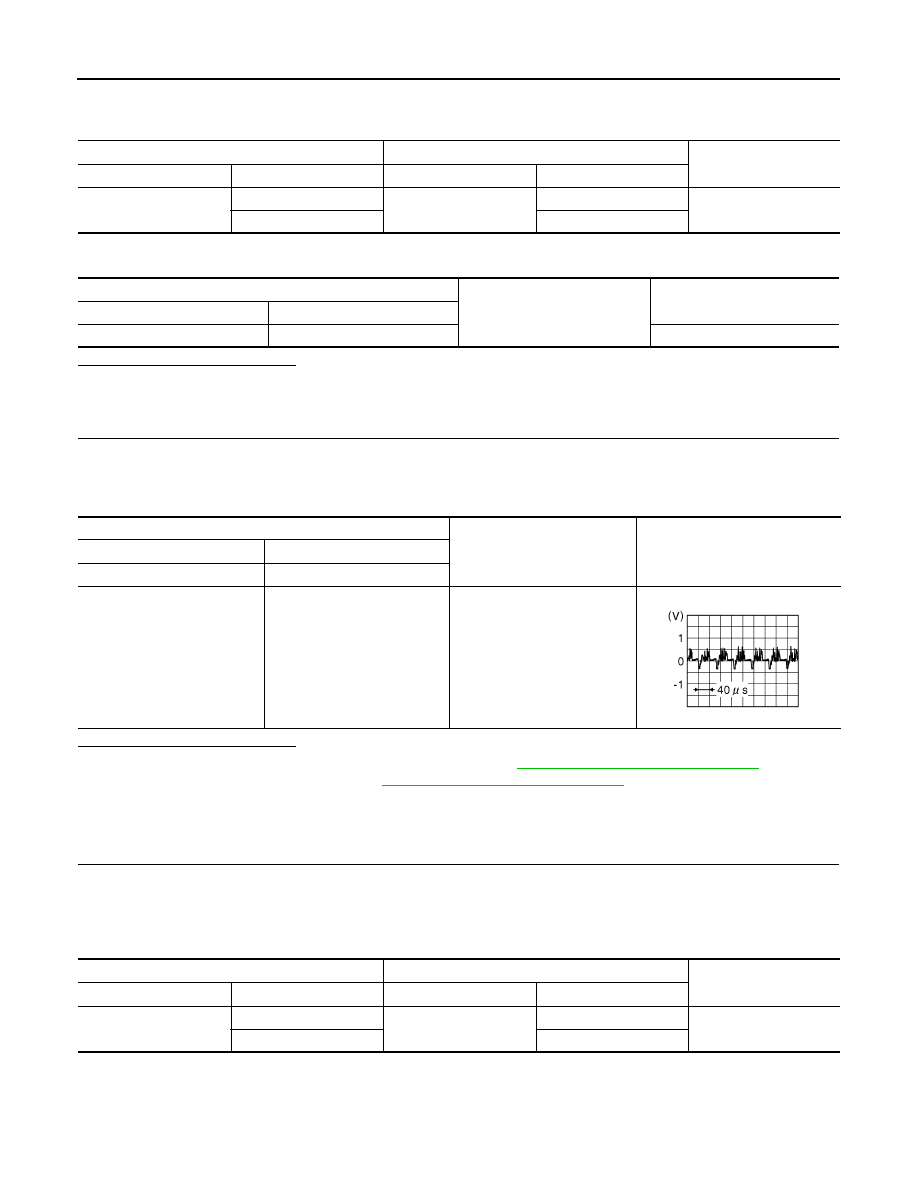

Around view monitor control unit connector M8

Condition

Reference value

(+)

(

−

)

Terminal

Terminal

53

54

CAMERA switch is ON or se-
lector lever in R (reverse).

JSNIA0834GB

AV

U111B SIDE CAMERA RH IMAGE SIGNAL CIRCUIT

AV-195

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

U111B SIDE CAMERA RH IMAGE SIGNAL CIRCUIT

DTC Logic

INFOID:0000000010435692

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000010435693

Regarding Wiring Diagram information, refer to

AV-159, "Wiring Diagram"

.

WITHOUT DRIVER ASSISTANCE SYSTEM

1.

CHECK RH SIDE CAMERA POWER SUPPLY AND GROUND CIRCUIT CONTINUITY

1.

Turn ignition switch OFF.

2.

Disconnect around view monitor control unit and RH side camera connectors.

3.

Check continuity between around view monitor control unit connector M103 and RH side camera connec-
tor D107.

4.

Check continuity between around view monitor control unit connector M95 and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace harness or connectors.

2.

CHECK RH SIDE CAMERA POWER SUPPLY VOLTAGE

1.

Connect around view monitor control unit and RH side camera connectors.

2.

Turn ignition switch ON.

3.

Check voltage between around view monitor control unit connector M95 and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace around view monitor control unit. Refer to

AV-267, "Removal and Installation"

.

3.

CHECK RH SIDE CAMERA IMAGE SIGNAL AND IMAGE SIGNAL GROUND CIRCUIT CONTINUITY

1.

Turn ignition switch OFF.

CONSULT Display

DTC Detection Condition

Possible Cause

Right side display output signal
diagnosis (Harness disconnec-
tion)
[U111B]

Right side camera image signal circuit open or
short.

Check right side camera image signal circuit.

Around view monitor control unit

RH side camera

Continuity

Connector

Terminals

Connector

Terminals

M95

34

D27

7

Yes

33

8

Around view monitor control unit

Ground

Continuity

Connector

Terminal

M95

34

No

Around view monitor control unit

Ground

Condition

Voltage

(Approx.)

Connector

Terminal

M95

34

—

CAMERA switch is ON or
selector lever in R (re-
verse).

6.0 V

AV-196

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION]

U111B SIDE CAMERA RH IMAGE SIGNAL CIRCUIT

2.

Disconnect around view monitor control unit and RH side camera connectors.

3.

Check continuity between around view monitor control unit connector M95 and RH side camera connector
D27.

4.

Check continuity between around view monitor control unit connector M103 and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness or connectors.

4.

CHECK RH SIDE CAMERA IMAGE SIGNAL

1.

Connect around view monitor control unit and RH side camera connectors.

2.

Turn ignition switch ON.

3.

Check signal between the terminals of around view monitor control unit connector M95.

Is the inspection result normal?

YES

>> Replace around view monitor control unit. Refer to

AV-267, "Removal and Installation"

.

NO

>> Replace RH side camera. Refer to

AV-269, "Removal and Installation"

.

WITH DRIVER ASSISTANCE SYSTEM

1.

CHECK RH SIDE CAMERA POWER SUPPLY AND GROUND CIRCUIT CONTINUITY

1.

Turn ignition switch OFF.

2.

Disconnect around view monitor control unit and RH side camera connectors.

3.

Check continuity between around view monitor control unit connector M8 and RH side camera connector
D27.

4.

Check continuity between around view monitor control unit connector M8 and ground.

Around view monitor control unit

RH side camera

Continuity

Connector

Terminals

Connector

Terminals

M95

36

D27

16

Yes

35

15

Around view monitor control unit

Ground

Continuity

Connector

Terminal

M95

36

No

Around view monitor control unit connector M95

Condition

Reference value

(+)

(

−

)

Terminal

Terminal

36

35

CAMERA switch is ON or se-
lector lever in R (reverse).

JSNIA0834GB

Around view monitor control unit

RH side camera

Continuity

Connector

Terminals

Connector

Terminals

M8

62

D27

7

Yes

64

8

AV

U111B SIDE CAMERA RH IMAGE SIGNAL CIRCUIT

AV-197

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace harness or connectors.

2.

CHECK RH SIDE CAMERA POWER SUPPLY VOLTAGE

1.

Connect around view monitor control unit and RH side camera connectors.

2.

Turn ignition switch ON.

3.

Check voltage between around view monitor control unit connector M8 and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace around view monitor control unit. Refer to

AV-267, "Removal and Installation"

.

3.

CHECK RH SIDE CAMERA IMAGE SIGNAL AND IMAGE SIGNAL GROUND CIRCUIT CONTINUITY

1.

Turn ignition switch OFF.

2.

Disconnect around view monitor control unit and RH side camera connectors.

3.

Check continuity between around view monitor control unit connector M8 and RH side camera connector
D27.

4.

Check continuity between around view monitor control unit connector M8 and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness or connectors.

4.

CHECK RH SIDE CAMERA IMAGE SIGNAL

1.

Connect around view monitor control unit and RH side camera connectors.

2.

Turn ignition switch ON.

3.

Check signal between the terminals of around view monitor control unit connector M8.

Around view monitor control unit

Ground

Continuity

Connector

Terminal

M8

62

No

Around view monitor control unit

Ground

Condition

Voltage

(Approx.)

Connector

Terminal

M8

62

—

CAMERA switch is ON or
selector lever in R (re-
verse).

6.0 V

Around view monitor control unit

RH side camera

Continuity

Connector

Terminals

Connector

Terminals

M8

65

D27

16

Yes

66

15

Around view monitor control unit

Ground

Continuity

Connector

Terminal

M8

65

No

AV-198

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION]

U111B SIDE CAMERA RH IMAGE SIGNAL CIRCUIT

Is the inspection result normal?

YES

>> Replace around view monitor control unit. Refer to

AV-267, "Removal and Installation"

.

NO

>> Replace RH side camera. Refer to

AV-269, "Removal and Installation"

.

Around view monitor control unit connector M8

Condition

Reference value

(+)

(

−

)

Terminal

Terminal

65

66

CAMERA switch is ON or se-
lector lever in R (reverse).

JSNIA0834GB

AV

U111C FRONT CAMERA IMAGE SIGNAL CIRCUIT

AV-199

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

U111C FRONT CAMERA IMAGE SIGNAL CIRCUIT

DTC Logic

INFOID:0000000010435694

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000010435695

Regarding Wiring Diagram information, refer to

AV-159, "Wiring Diagram"

.

WITHOUT DRIVER ASSISTANCE SYSTEM

1.

CHECK FRONT CAMERA POWER SUPPLY AND GROUND CIRCUIT CONTINUITY

1.

Turn ignition switch OFF.

2.

Disconnect around view monitor control unit and front camera connectors.

3.

Check continuity between around view monitor control unit connector M95 and front camera connector
E106.

4.

Check continuity between around view monitor control unit connector M95 and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace harness or connectors.

2.

CHECK FRONT CAMERA POWER SUPPLY VOLTAGE

1.

Connect around view monitor control unit and front camera connectors.

2.

Turn ignition switch ON.

3.

Check voltage between around view monitor control unit connector M95 and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace around view monitor control unit. Refer to

AV-267, "Removal and Installation"

.

3.

CHECK FRONT CAMERA IMAGE SIGNAL AND IMAGE SIGNAL GROUND CIRCUIT CONTINUITY

1.

Turn ignition switch OFF.

2.

Disconnect around view monitor control unit and front camera connectors.

CONSULT Display

DTC Detection Condition

Possible Cause

Front display output signal diag-
nosis (Harness disconnection)
[U111C]

Front camera image signal circuit open or short.

Check front camera image signal circuit.

Around view monitor control unit

Front camera

Continuity

Connector

Terminals

Connector

Terminals

M95

38

E106

2

Yes

37

1

Around view monitor control unit

Ground

Continuity

Connector

Terminal

M95

38

No

Around view monitor control unit

Ground

Condition

Voltage

(Approx.)

Connector

Terminal

M95

38

—

CAMERA switch is ON or
selector lever in R (re-
verse).

6.0 V

AV-200

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION]

U111C FRONT CAMERA IMAGE SIGNAL CIRCUIT

3.

Check continuity between around view monitor control unit connector M95 and front camera connector
E106.

4.

Check continuity between around view monitor control unit connector M95 and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness or connectors.

4.

CHECK FRONT CAMERA IMAGE SIGNAL

1.

Connect around view monitor control unit and front camera connectors.

2.

Turn ignition switch ON.

3.

Check signal between the terminals of around view monitor control unit connector M95.

Is the inspection result normal?

YES

>> Replace around view monitor control unit. Refer to

AV-267, "Removal and Installation"

.

NO

>> Replace front camera. Refer to

AV-268, "Removal and Installation"

.

WITH DRIVER ASSISTANCE SYSTEM

1.

CHECK FRONT CAMERA POWER SUPPLY AND GROUND CIRCUIT CONTINUITY

1.

Turn ignition switch OFF.

2.

Disconnect around view monitor control unit and front camera connectors.

3.

Check continuity between around view monitor control unit connector M8 and front camera connector
E106.

4.

Check continuity between around view monitor control unit connector M8 and ground.

Around view monitor control unit

Front camera

Continuity

Connector

Terminals

Connector

Terminals

M95

40

E106

4

Yes

39

5

Around view monitor control unit

Ground

Continuity

Connector

Terminal

M95

40

No

Around view monitor control unit connector M95

Condition

Reference value

(+)

(

−

)

Terminal

Terminal

40

39

CAMERA switch is ON or se-
lector lever in R (reverse).

JSNIA0834GB

Around view monitor control unit

Front camera

Continuity

Connector

Terminals

Connector

Terminals

M8

68

E106

2

Yes

70

1

AV

U111C FRONT CAMERA IMAGE SIGNAL CIRCUIT

AV-201

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace harness or connectors.

2.

CHECK FRONT CAMERA POWER SUPPLY VOLTAGE

1.

Connect around view monitor control unit and front camera connectors.

2.

Turn ignition switch ON.

3.

Check voltage between around view monitor control unit connector M8 and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace around view monitor control unit. Refer to

AV-267, "Removal and Installation"

.

3.

CHECK FRONT CAMERA IMAGE SIGNAL AND IMAGE SIGNAL GROUND CIRCUIT CONTINUITY

1.

Turn ignition switch OFF.

2.

Disconnect around view monitor control unit and front camera connectors.

3.

Check continuity between around view monitor control unit connector M8 and front camera connector
E106.

4.

Check continuity between around view monitor control unit connector M8 and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness or connectors.

4.

CHECK FRONT CAMERA IMAGE SIGNAL

1.

Connect around view monitor control unit and front camera connectors.

2.

Turn ignition switch ON.

3.

Check signal between the terminals of around view monitor control unit connector M8.

Around view monitor control unit

Ground

Continuity

Connector

Terminal

M8

68

No

Around view monitor control unit

Ground

Condition

Voltage

(Approx.)

Connector

Terminal

M8

68

—

CAMERA switch is ON or
selector lever in R (re-
verse).

6.0 V

Around view monitor control unit

Front camera

Continuity

Connector

Terminals

Connector

Terminals

M8

71

E106

4

Yes

72

5

Around view monitor control unit

Ground

Continuity

Connector

Terminal

M8

71

No

AV-202

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION]

U111C FRONT CAMERA IMAGE SIGNAL CIRCUIT

Is the inspection result normal?

YES

>> Replace around view monitor control unit. Refer to

AV-267, "Removal and Installation"

.

NO

>> Replace front camera. Refer to

AV-268, "Removal and Installation"

.

Around view monitor control unit connector M8

Condition

Reference value

(+)

(

−

)

Terminal

Terminal

71

72

CAMERA switch is ON or se-
lector lever in R (reverse).

JSNIA0834GB

AV

U111D SIDE CAMERA LH IMAGE SIGNAL CIRCUIT

AV-203

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

U111D SIDE CAMERA LH IMAGE SIGNAL CIRCUIT

DTC Logic

INFOID:0000000010435696

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000010435697

Regarding Wiring Diagram information, refer to

AV-159, "Wiring Diagram"

.

WITHOUT DRIVER ASSISTANCE SYSTEM

1.

CHECK LH SIDE CAMERA POWER SUPPLY AND GROUND CIRCUIT CONTINUITY

1.

Turn ignition switch OFF.

2.

Disconnect around view monitor control unit and LH side camera connectors.

3.

Check continuity between around view monitor control unit connector M95 and LH side camera connector
D3.

4.

Check continuity between around view monitor control unit connector M95 and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace harness or connectors.

2.

CHECK LH SIDE CAMERA POWER SUPPLY VOLTAGE

1.

Connect around view monitor control unit and LH side camera connectors.

2.

Turn ignition switch ON.

3.

Check voltage between around view monitor control unit connector M95 and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace around view monitor control unit. Refer to

AV-267, "Removal and Installation"

.

3.

CHECK LH SIDE CAMERA IMAGE SIGNAL AND IMAGE SIGNAL GROUND CIRCUIT CONTINUITY

1.

Turn ignition switch OFF.

CONSULT Display

DTC Detection Condition

Possible Cause

Left side display output signal
diagnosis (Harness disconnec-
tion)
[U111D]

Left side camera image signal circuit open or
short.

Check left side camera image signal circuit.

Around view monitor control unit

LH side camera

Continuity

Connector

Terminals

Connector

Terminals

M95

30

D3

7

Yes

29

8

Around view monitor control unit

Ground

Continuity

Connector

Terminal

M95

30

No

Around view monitor control unit

Ground

Condition

Voltage

(Approx.)

Connector

Terminal

M95

30

—

CAMERA switch is ON or
selector lever in R (re-
verse).

6.0 V

AV-204

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION]

U111D SIDE CAMERA LH IMAGE SIGNAL CIRCUIT

2.

Disconnect around view monitor control unit and LH side camera connectors.

3.

Check continuity between around view monitor control unit connector M95 and LH side camera connector
D3.

4.

Check continuity between around view monitor control unit connector M95 and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness or connectors.

4.

CHECK LH SIDE CAMERA IMAGE SIGNAL

1.

Connect around view monitor control unit and LH side camera connectors.

2.

Turn ignition switch ON.

3.

Check signal between the terminals of around view monitor control unit connector M95.

Is the inspection result normal?

YES

>> Replace around view monitor control unit. Refer to

AV-267, "Removal and Installation"

.

NO

>> Replace LH side camera. Refer to

AV-269, "Removal and Installation"

.

WITH DRIVER ASSISTANCE SYSTEM

1.

CHECK LH SIDE CAMERA POWER SUPPLY AND GROUND CIRCUIT CONTINUITY

1.

Turn ignition switch OFF.

2.

Disconnect around view monitor control unit and LH side camera connectors.

3.

Check continuity between around view monitor control unit connector M8 and LH side camera connector
D3.

4.

Check continuity between around view monitor control unit connector M8 and ground.

Around view monitor control unit

LH side camera

Continuity

Connector

Terminals

Connector

Terminals

M95

32

D3

16

Yes

31

15

Around view monitor control unit

Ground

Continuity

Connector

Terminal

M95

32

No

Around view monitor control unit connector M95

Condition

Reference value

(+)

(

−

)

Terminal

Terminal

32

31

CAMERA switch is ON or se-
lector lever in R (reverse).

JSNIA0834GB

Around view monitor control unit

LH side camera

Continuity

Connector

Terminals

Connector

Terminals

M8

56

D3

7

Yes

58

8

AV

U111D SIDE CAMERA LH IMAGE SIGNAL CIRCUIT

AV-205

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace harness or connectors.

2.

CHECK LH SIDE CAMERA POWER SUPPLY VOLTAGE

1.

Connect around view monitor control unit and LH side camera connectors.

2.

Turn ignition switch ON.

3.

Check voltage between around view monitor control unit connector M8 and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace around view monitor control unit. Refer to

AV-267, "Removal and Installation"

.

3.

CHECK LH SIDE CAMERA IMAGE SIGNAL AND IMAGE SIGNAL GROUND CIRCUIT CONTINUITY

1.

Turn ignition switch OFF.

2.

Disconnect around view monitor control unit and LH side camera connectors.

3.

Check continuity between around view monitor control unit connector M8 and LH side camera connector
D3.

4.

Check continuity between around view monitor control unit connector M8 and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness or connectors.

4.

CHECK LH SIDE CAMERA IMAGE SIGNAL

1.

Connect around view monitor control unit and LH side camera connectors.

2.

Turn ignition switch ON.

3.

Check signal between the terminals of around view monitor control unit connector M8.

Around view monitor control unit

Ground

Continuity

Connector

Terminal

M8

56

No

Around view monitor control unit

Ground

Condition

Voltage

(Approx.)

Connector

Terminal

M8

56

—

CAMERA switch is ON or
selector lever in R (re-
verse).

6.0 V

Around view monitor control unit

LH side camera

Continuity

Connector

Terminals

Connector

Terminals

M8

59

D3

16

Yes

60

15

Around view monitor control unit

Ground

Continuity

Connector

Terminal

M8

59

No

AV-206

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION]

U111D SIDE CAMERA LH IMAGE SIGNAL CIRCUIT

Is the inspection result normal?

YES

>> Replace around view monitor control unit. Refer to

AV-267, "Removal and Installation"

.

NO

>> Replace LH side camera. Refer to

AV-269, "Removal and Installation"

.

Around view monitor control unit connector M8

Condition

Reference value

(+)

(

−

)

Terminal

Terminal

59

60

CAMERA switch is ON or se-
lector lever in R (reverse).

JSNIA0834GB

AV

U112F EPS CIRCUIT

AV-207

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

U112F EPS CIRCUIT

DTC Logic

INFOID:0000000010944762

DTC DETECTION LOGIC

POSSIBLE CAUSE

EPS

FAIL-SAFE

Around view monitor with Park Assist is cancel

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

WITH CONSULT

1.

Turn the ignition switch ON

2.

Perform “All DTC Reading” with CONSULT.

3.

Check if the “U112F” is detected as the current malfunction in “Self Diagnostic Result” of “AVM”.

“U112F” detected as the current malfunction?

YES

>> Refer to

AV-207, "Diagnosis Procedure"

.

NO-1

>> To check malfunction symptom before repair: Refer to

GI-41, "Intermittent Incident"

.

NO-2

>> Confirmation after repair: INSPECTION END

Diagnosis Procedure

INFOID:0000000010944763

1.

CHECK SELF-DIAGNOSIS RESULTS

With CONSULT.

Check if the “U1000” is detected other than “U112F” in “Self Diagnostic Result” of “AVM”.
“U1000” detected?

YES

>> Perform the CAN communication system inspection. Repair or replace the malfunctioning parts.

Refer to

AV-189, "AROUND VIEW MONITOR CONTROL UNIT : Diagnosis Procedure"

.

NO

>> GO TO 2.

2.

CHECK SELF-DIAGNOSIS RESULTS

With CONSULT.

Check if any DTC is detected in “Self Diagnostic Result” of “EPS/DAST3”.
Is any DTC detected?

YES

>> Perform diagnosis on the detected DTC and repair or replace the malfunctioning parts. Refer to

STC-19, "DTC Index"

.

NO

>> Replace the around view monitor control unit. Refer to

AV-267, "Removal and Installation"

.

DTC

Trouble diagnosis

(Trouble diagnosis contents)

DTC detecting condition

U112F

EPS CIRC
(EPS circuit)

The around view monitor control unit detects that EPS has a malfunction.

AV-208

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION]

U1217 AV CONTROL UNIT

U1217 AV CONTROL UNIT

DTC Logic

INFOID:0000000010435698

DTC DETECTION LOGIC

CONSULT Display

DTC Detection Condition

Possible Cause

BLUETOOTH MODULE
[U1217]

Connection failure to the internal Blueooth

®

 sub

unit is detected.

Replace AV control unit if malfunction occurs
constantly.
Refer to

AV-259, "Removal and Installation"

.















Content      ..     11      12      13      14     ..
