Qashqai J11. Audio, Visual & Navigation System - part 11

AV

NAVIGATION SYSTEM

AV-161

< WIRING DIAGRAM >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

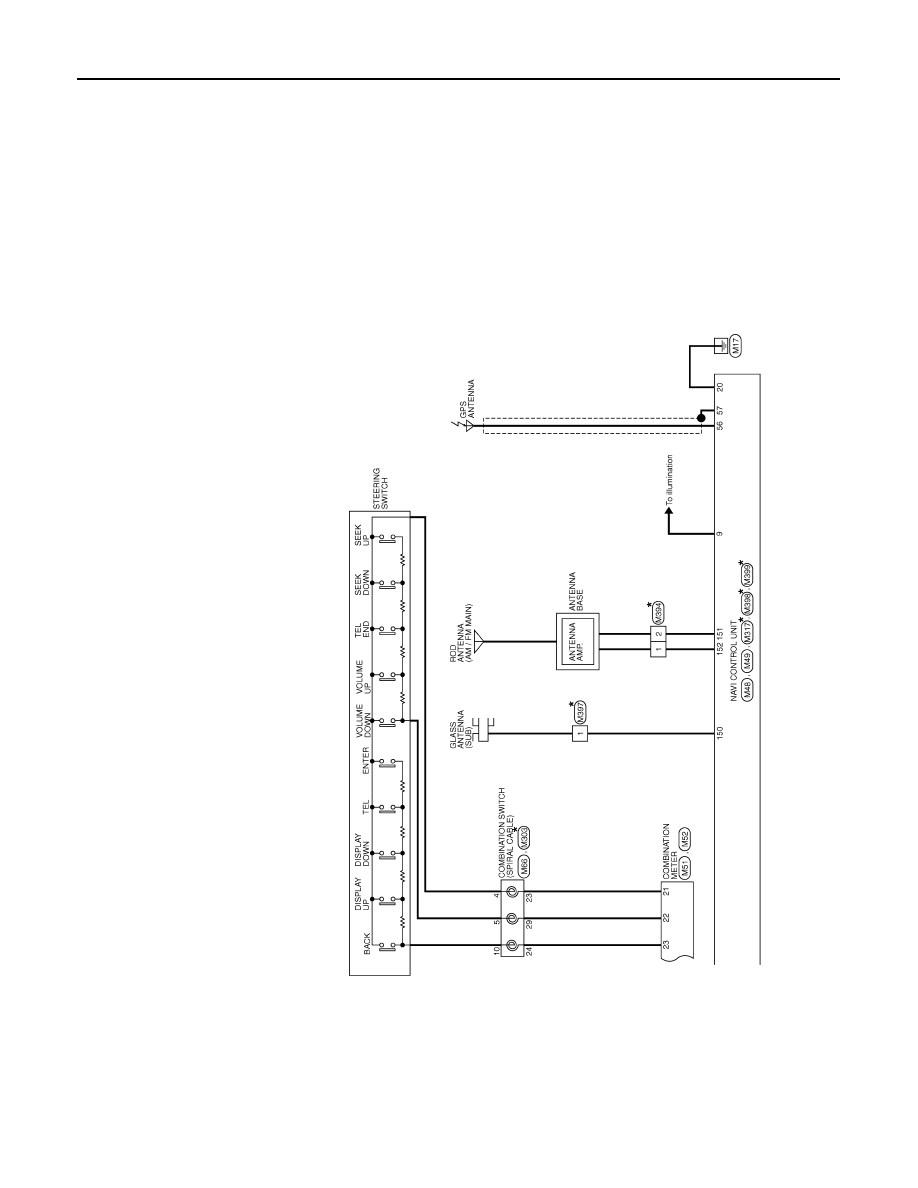

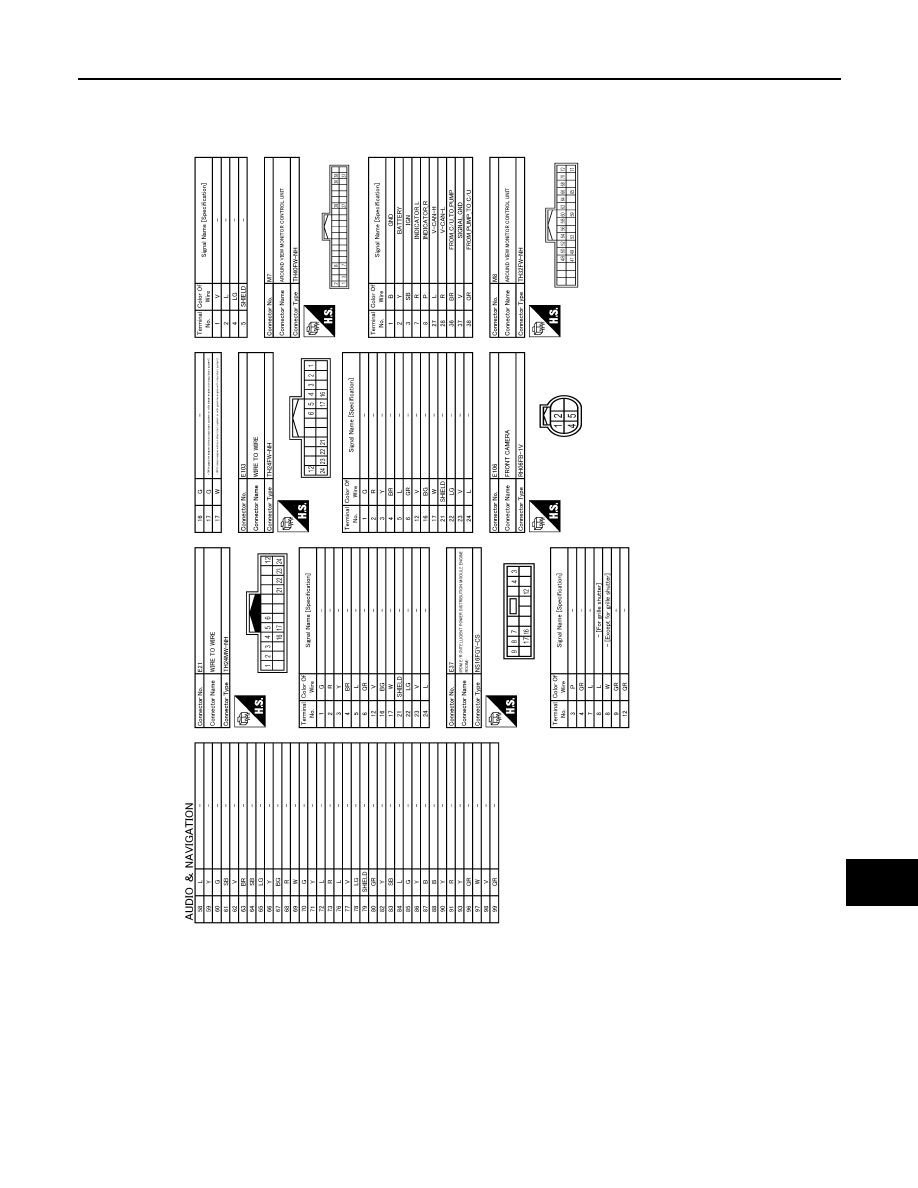

JRNWD1351GB

AV-162

< WIRING DIAGRAM >

[NAVIGATION]

NAVIGATION SYSTEM

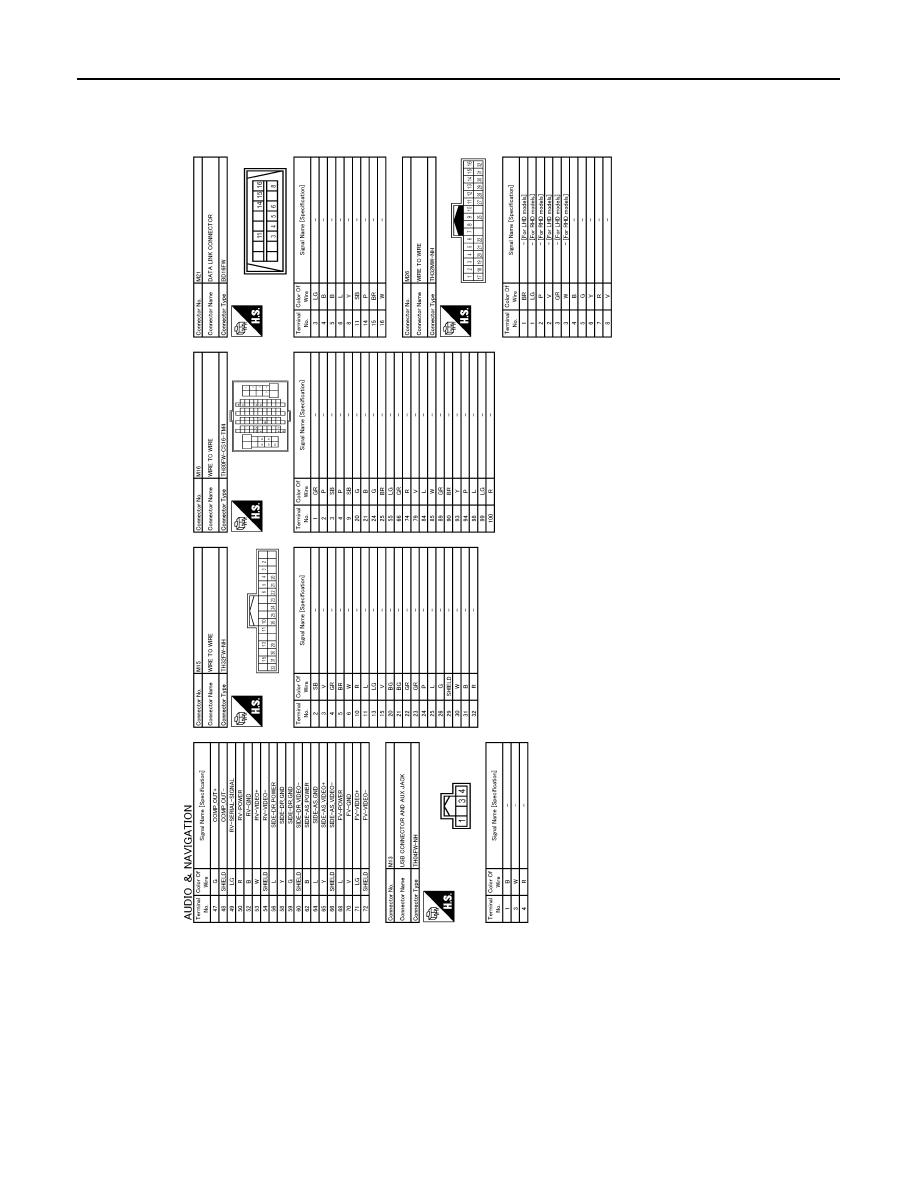

JRNWD1352GB

AV

NAVIGATION SYSTEM

AV-163

< WIRING DIAGRAM >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

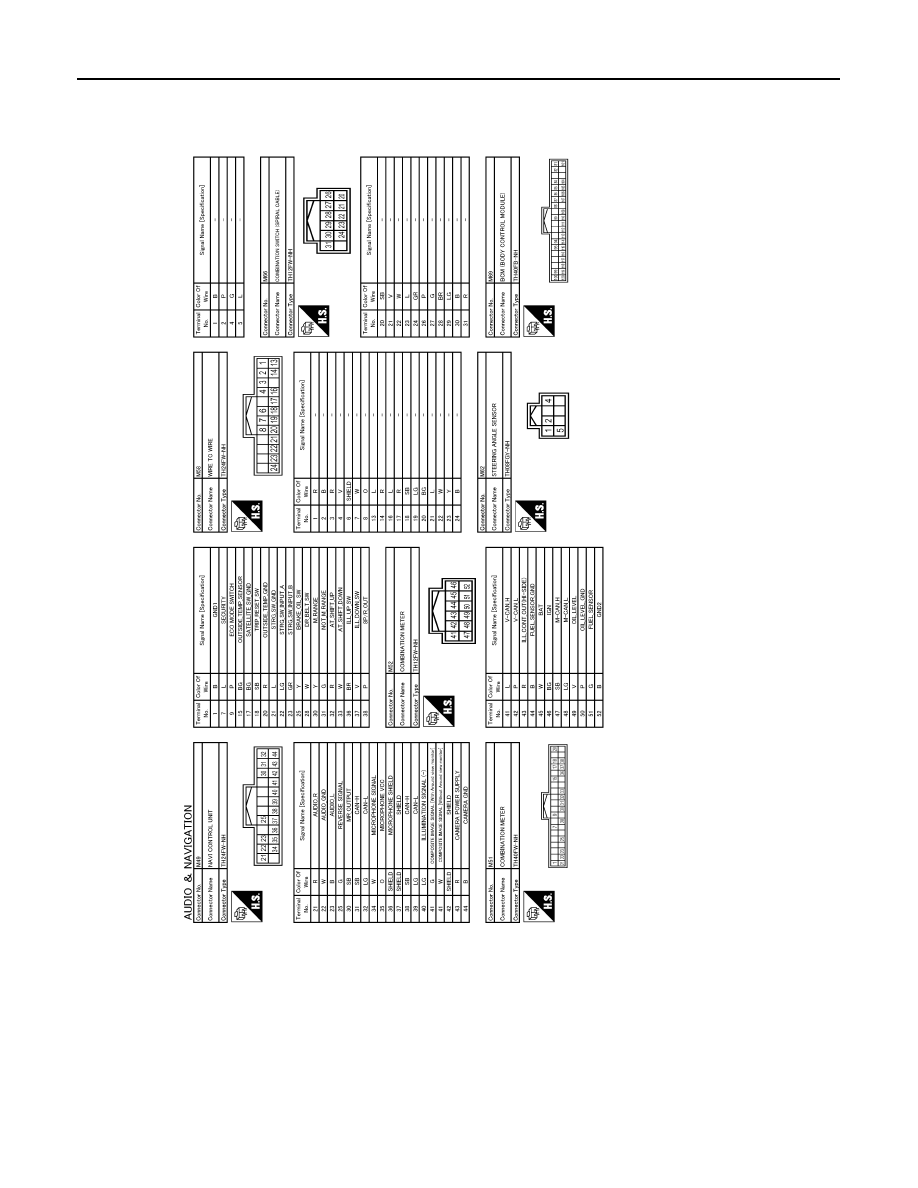

JRNWD1433GB

AV-164

< WIRING DIAGRAM >

[NAVIGATION]

NAVIGATION SYSTEM

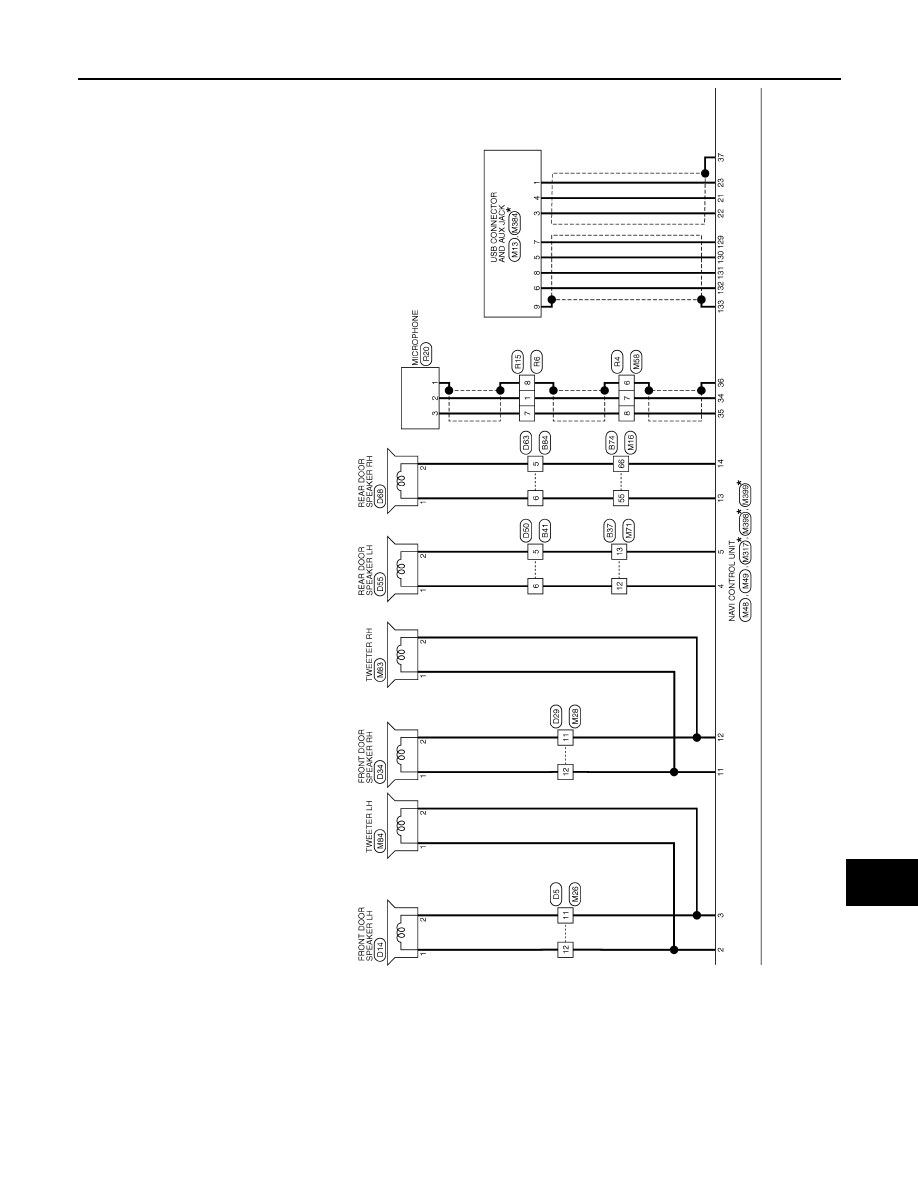

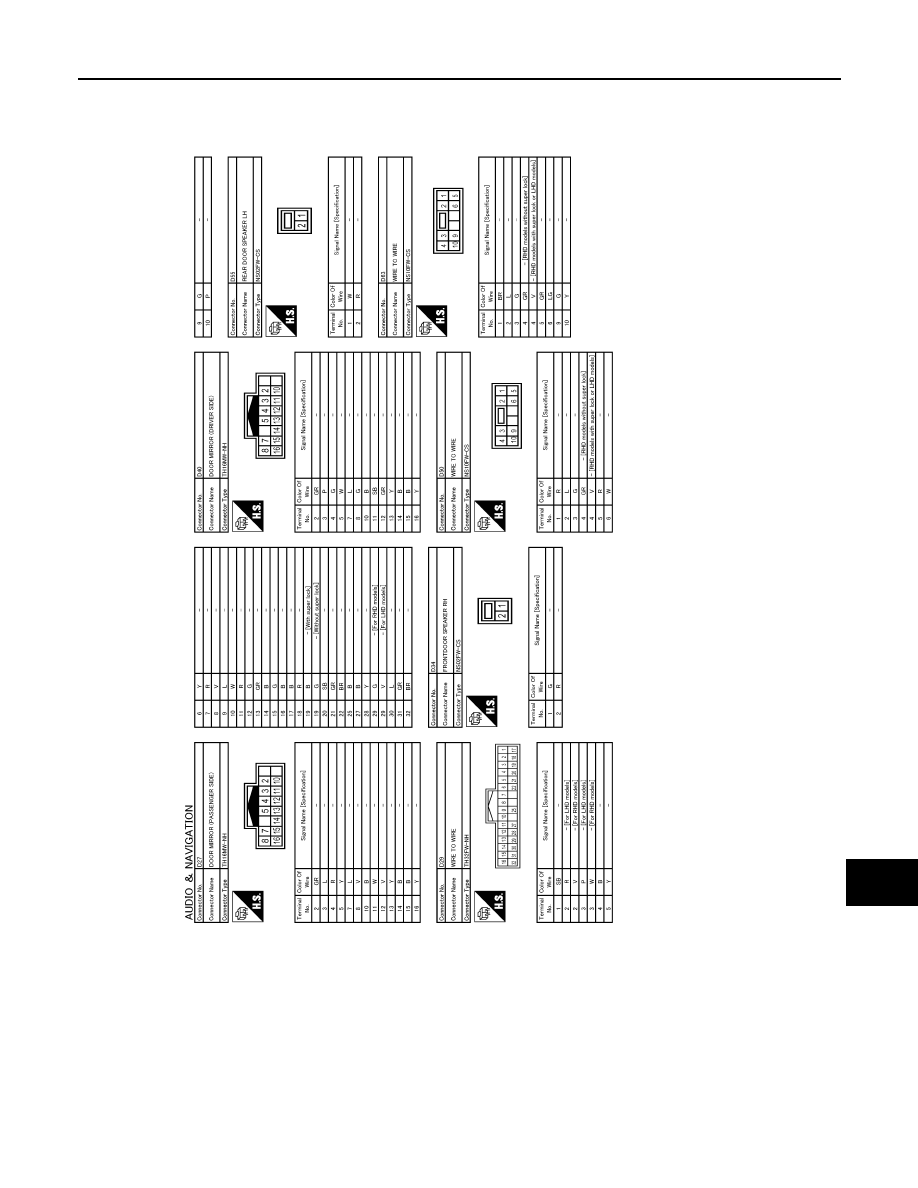

JRNWD1434GB

AV

NAVIGATION SYSTEM

AV-165

< WIRING DIAGRAM >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

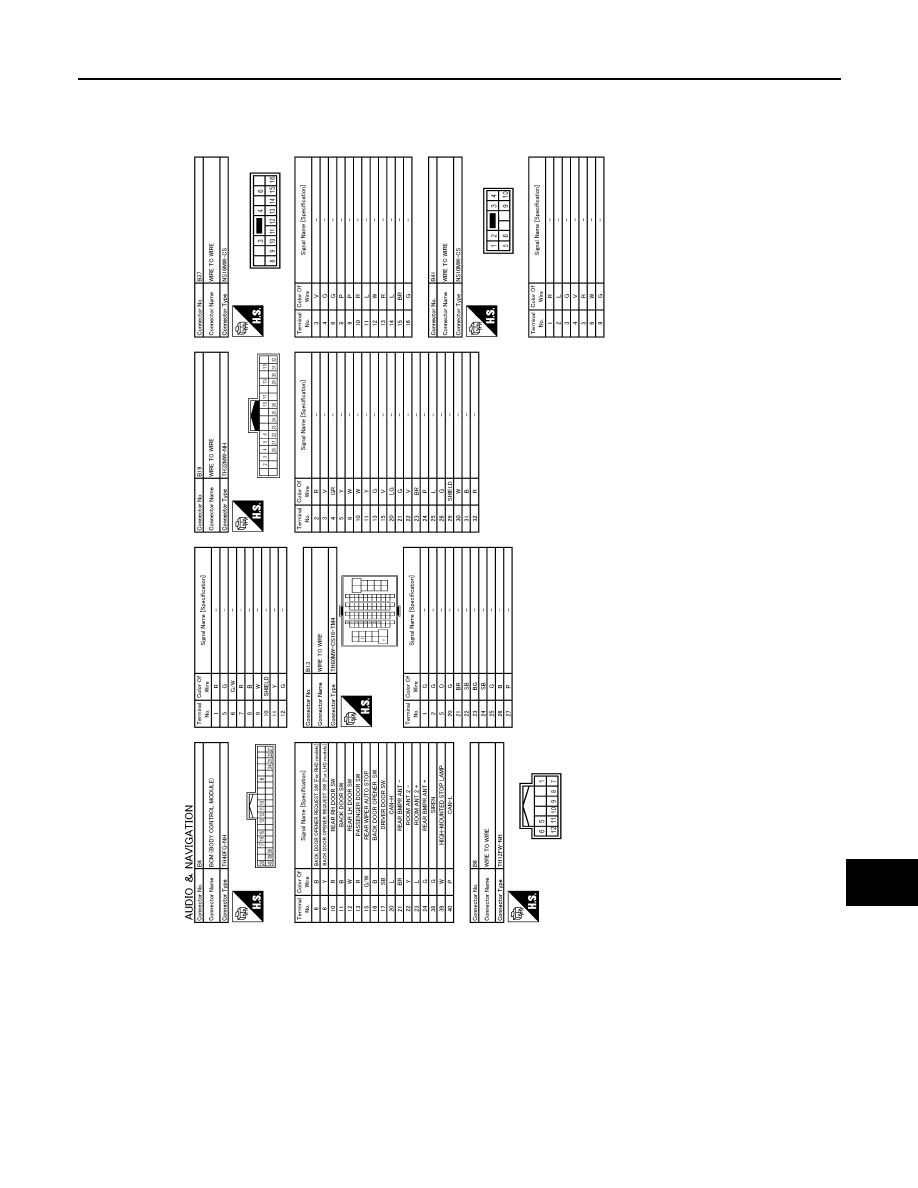

JRNWD1435GB

AV-166

< WIRING DIAGRAM >

[NAVIGATION]

NAVIGATION SYSTEM

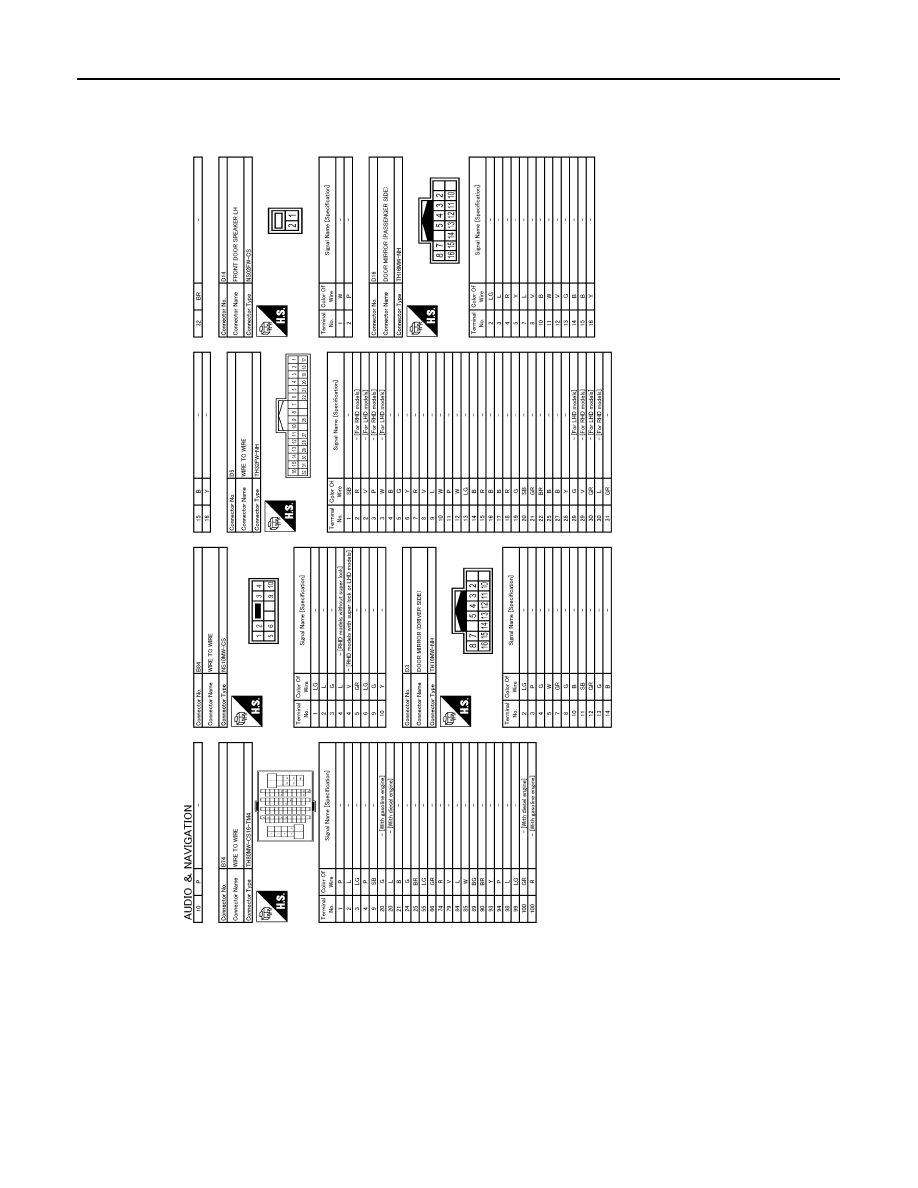

JRNWD1436GB

AV

NAVIGATION SYSTEM

AV-167

< WIRING DIAGRAM >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

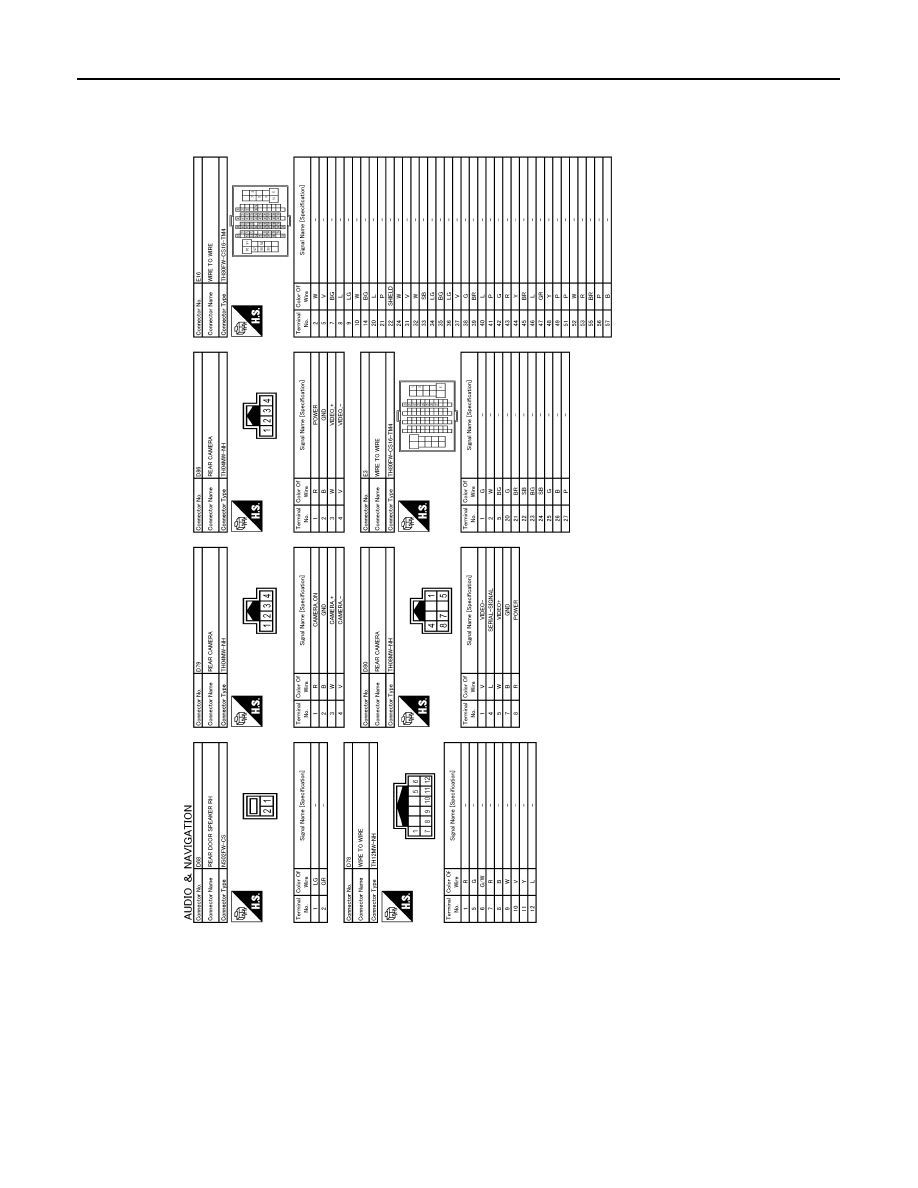

JRNWD1437GB

AV-168

< WIRING DIAGRAM >

[NAVIGATION]

NAVIGATION SYSTEM

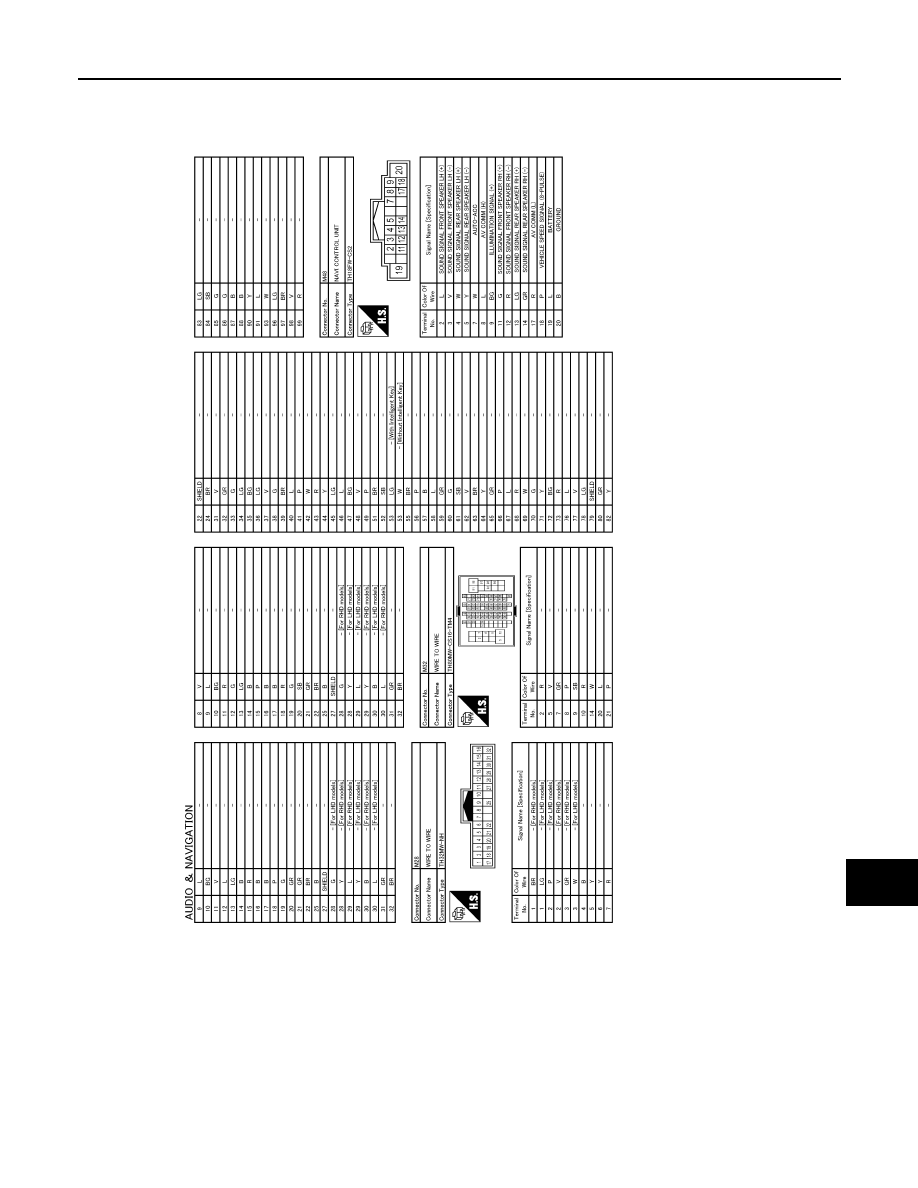

JRNWD1438GB

AV

NAVIGATION SYSTEM

AV-169

< WIRING DIAGRAM >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

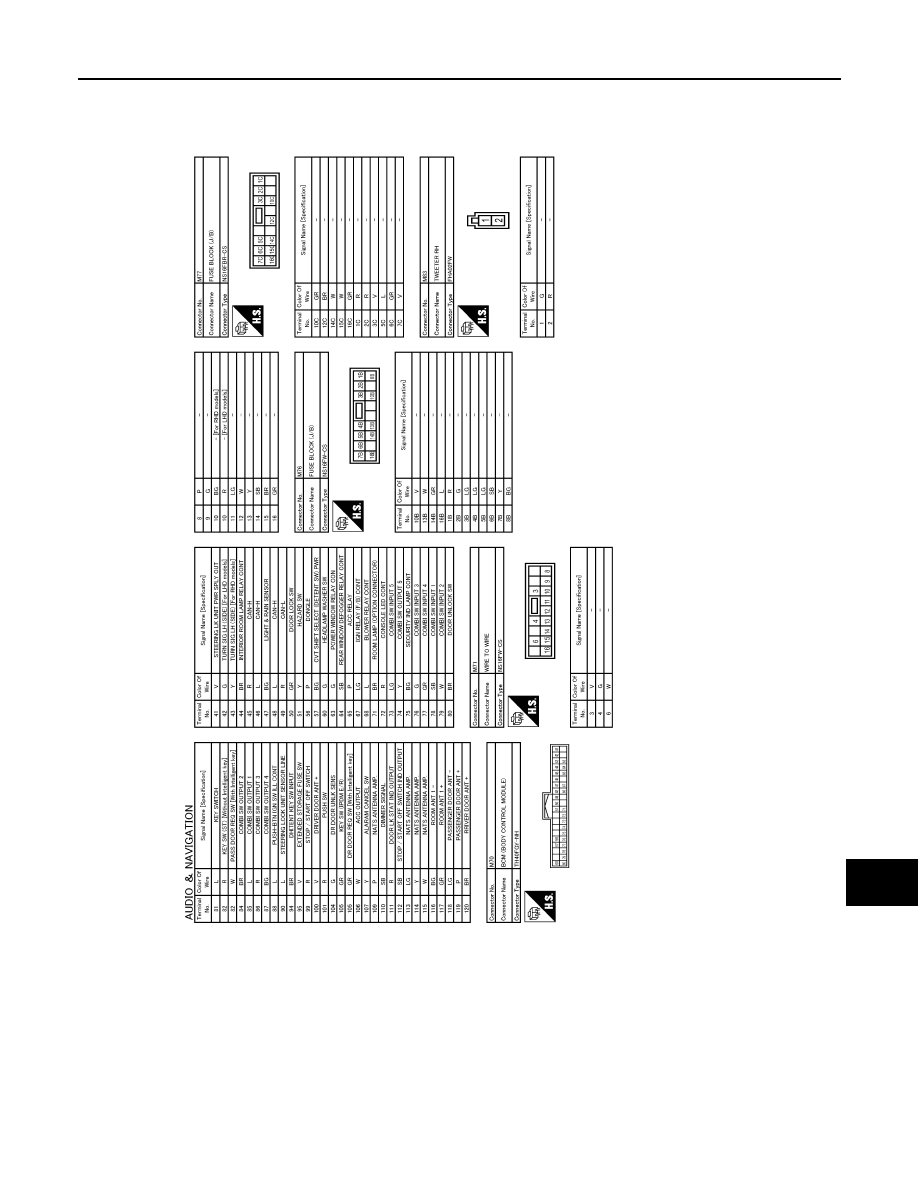

JRNWD1439GB

AV-170

< WIRING DIAGRAM >

[NAVIGATION]

NAVIGATION SYSTEM

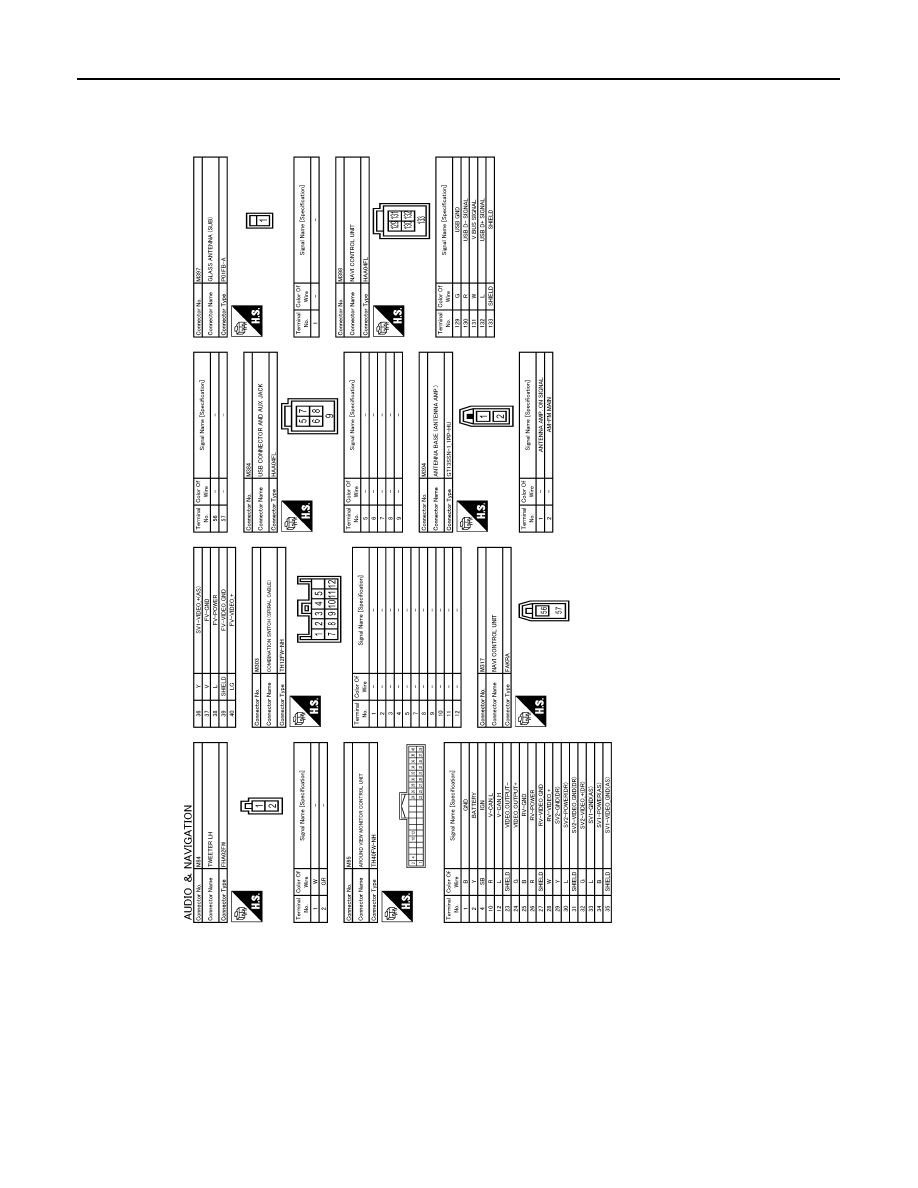

JRNWD1440GB

AV

NAVIGATION SYSTEM

AV-171

< WIRING DIAGRAM >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JRNWD1441GB

AV-172

< WIRING DIAGRAM >

[NAVIGATION]

NAVIGATION SYSTEM

JRNWD1442GB

AV

NAVIGATION SYSTEM

AV-173

< WIRING DIAGRAM >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

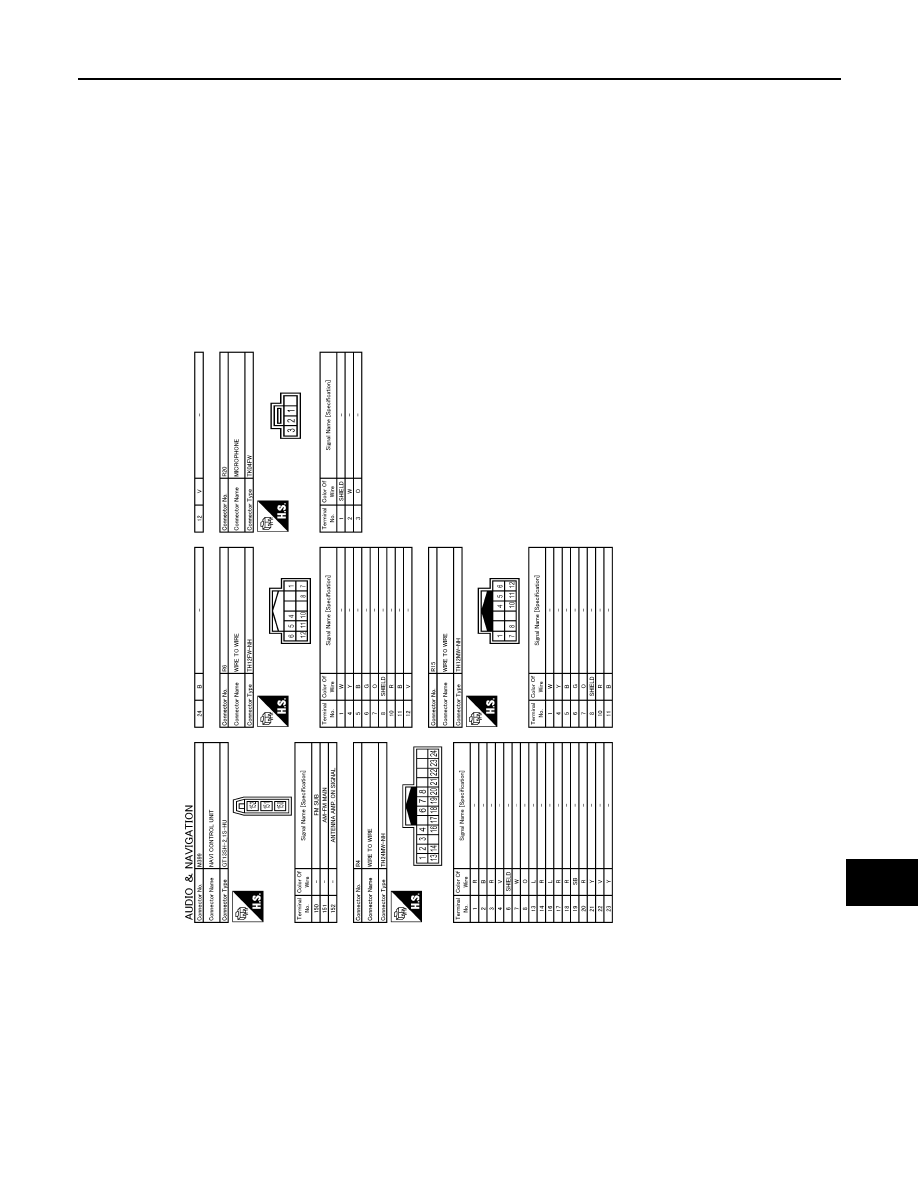

JRNWD1443GB

AV-174

< BASIC INSPECTION >

[NAVIGATION]

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000010435667

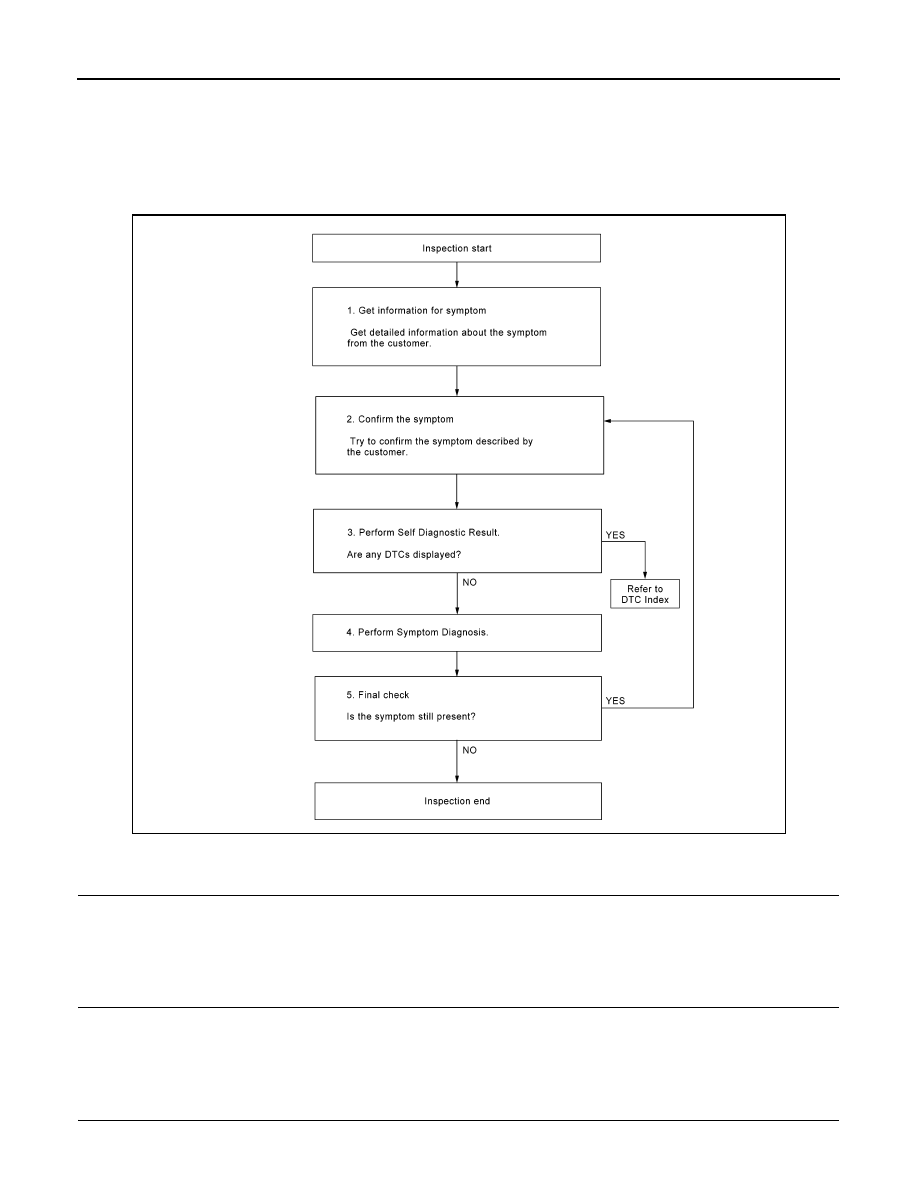

OVERALL SEQUENCE

DETAILED FLOW

1.

GET INFORMATION FOR SYMPTOM

Get detailed information from the customer about the symptom (the condition and the environment when the
incident/malfunction occurred).

>> GO TO 2.

2.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer. Verify relation between the symptom and the condition
when the symptom is detected.

>> GO TO 3.

3.

PERFORM SELF DIAGNOSTIC RESULT

1.

Turn ignition switch ON and wait for 2 seconds or more.

AWNIA2982GB

AV

DIAGNOSIS AND REPAIR WORKFLOW

AV-175

< BASIC INSPECTION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

2.

Depending on system being diagnosed, perform Self Diagnostic Result for:

-

MULTI  AV.

-

AVM.

Are any DTCs displayed?

YES

>> Refer to

AV-151, "DTC Index"

 (MULTI AV) or

AV-154, "WITHOUT DRIVER ASSISTANCE SYS-

TEM : DTC Index"

 (AVM).

NO

>> GO TO 4.

4.

PERFORM SYMPTOM DIAGNOSIS

Refer to

AV-245, "Symptom Table"

.

>> GO TO 5.

5.

FINAL CHECK

Refer to symptom described by the customer in step 1.

Is the symptom still present?

YES

>> GO TO 2.

NO

>> Inspection End.

AV-176

< BASIC INSPECTION >

[NAVIGATION]

INSPECTION AND ADJUSTMENT

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REPLACING AV CONTROL UNIT

ADDITIONAL SERVICE WHEN REPLACING AV CONTROL UNIT : Description

INFOID:0000000010435668

BEFORE REPLACEMENT

When replacing AV control unit, save or print current vehicle specification with CONSULT configuration before
replacement.
NOTE:
If “Before Replace ECU” cannot be used, use the “After Replace ECU” or “Manual Configuration” after replac-
ing AV control unit.

AFTER REPLACEMENT

CAUTION:

When replacing AV control unit, you must perform “After Replace ECU” with CONSULT.
• Complete the procedure of “After Replace ECU” in order.
• If you set incorrect “After Replace ECU”, incidents might occur.
• Configuration is different for each vehicle model. Confirm configuration of each vehicle model.

ADDITIONAL SERVICE WHEN REPLACING AV CONTROL UNIT : Work Procedure

INFOID:0000000010435669

1.

SAVING VEHICLE SPECIFICATION

-CONSULT

Enter “Re/Programming, Configuration” and perform “Before Replace ECU” to save or print current vehicle
specification.
NOTE:
If “Before Replace ECU” cannot be used, use the “After Replace ECU” or “Manual Configuration” after replac-
ing AV control unit.

>> GO TO 2.

2.

REPLACE AV CONTROL UNIT

Replace AV control unit. Refer to

AV-259, "Removal and Installation"

.

>> GO TO 3.

3.

WRITING VEHICLE SPECIFICATION

CONSULT

1.

Enter "Re/Programming, Configuration".

2.

If “Before Replace ECU” operation was performed, automatically an "Operation Log Selection" screen will
be displayed. Select the applicable file from the "Saved Data List" and press “Confirm” to write vehicle
specification. Refer to

AV-178, "CONFIGURATION (AV CONTROL UNIT) : Work Procedure"

.

3.

If “Before Replace ECU” operation was not performed, select "After Replace ECU" or "Manual Configura-
tion" to write vehicle specification. Refer to

AV-178, "CONFIGURATION (AV CONTROL UNIT) : Work Pro-

cedure"

.

>> GO TO 4.

4.

OPERATION CHECK

Check that the operation of the AV control unit and camera images (fixed guide lines) are normal.

>> Work End.

ADDITIONAL SERVICE WHEN REPLACING AROUND VIEW MONITOR CON-
TROL UNIT
