Qashqai J11. Audio, Visual & Navigation System - part 9





AV

COMPONENT PARTS

AV-129

< SYSTEM DESCRIPTION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

*:

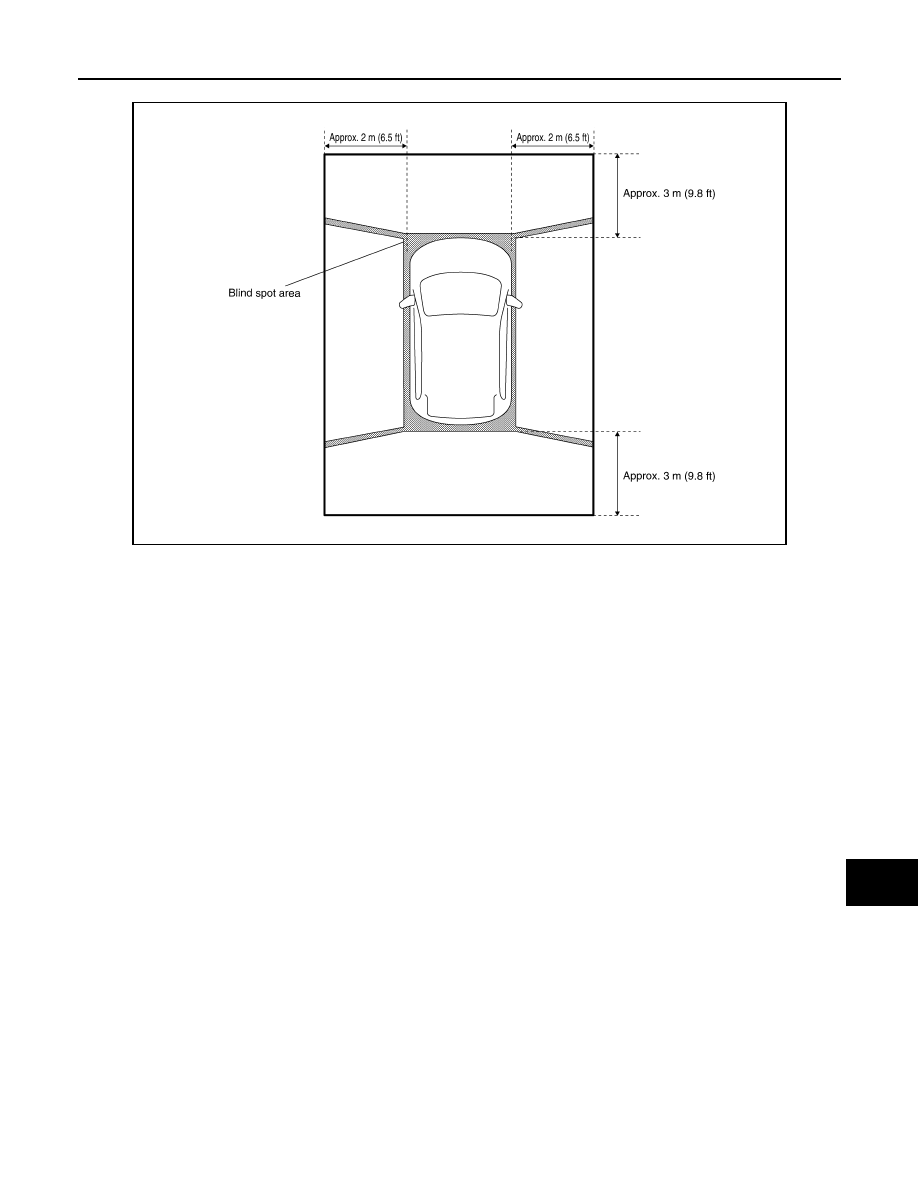

Around View Monitor is a parking aid/convenience feature. Around View Monitor cannot completely eliminate

blind spots. Around View Monitor may not detect every object and does not warn of moving objects. Always
check surroundings before moving vehicle. Around View Monitor is not a substitute for proper backing proce-
dures. Always turn to check what is behind you before backing up.

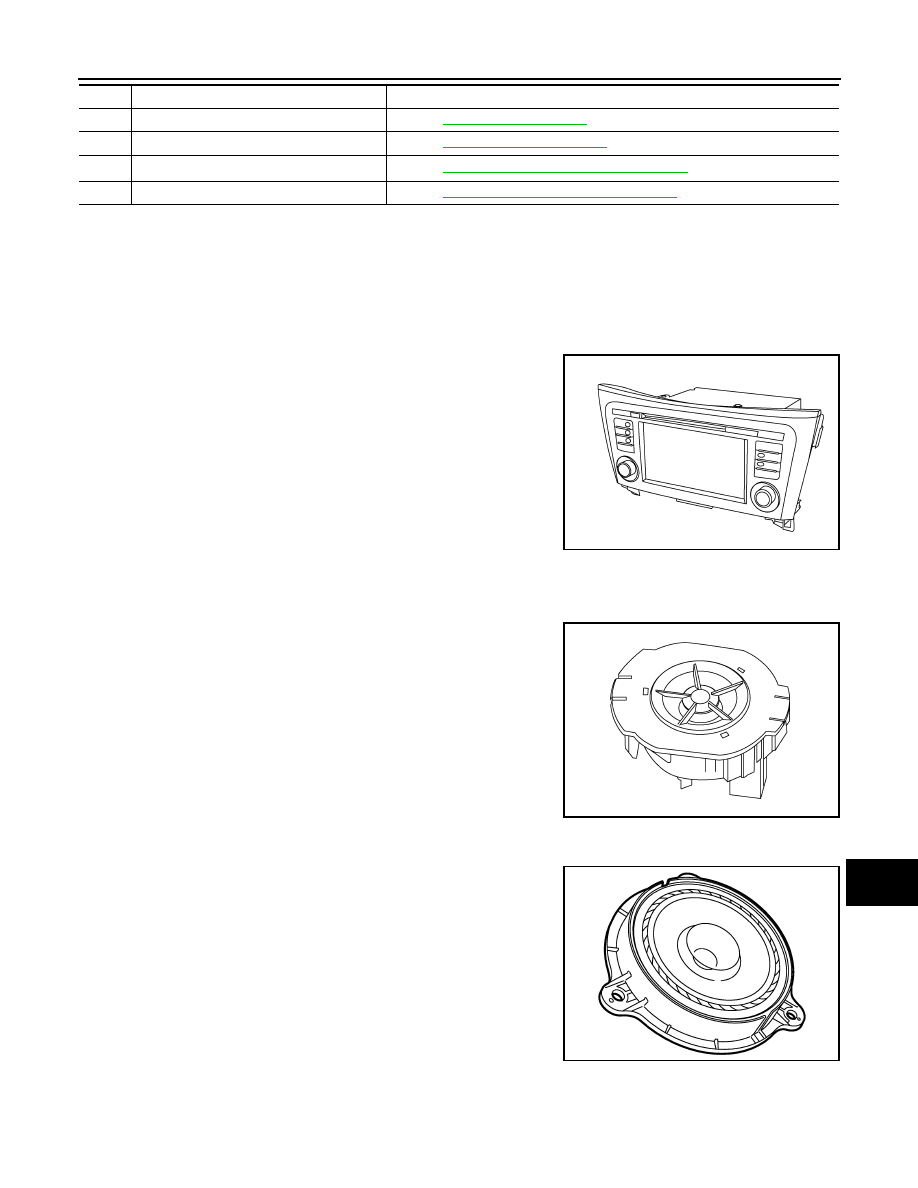

AV Control Unit

INFOID:0000000010435641

Description

• A 7-inch WVGA display, an AM/FM electronic tuner radio, CD

drive, audio amplifier are integrated into the AV control unit.

• The 7-inch display is a high resolution monitor that includes touch

panel functions.

• Music files stored in iPod

®*

/USB memory can be played using the

separate USB interface.

• Music files stored in an external audio device can be played using

the separate AUX in jack.

*

: iPod

®

 is a registered trademark of Apple, Inc. All rights reserved.

Speakers

INFOID:0000000010435642

FRONT TWEETER

• 2.5 cm (1 in) tweeters are installed in the top front corners of the

instrument panel.

• Sound signals are input from the AV control unit to output high

range sounds.

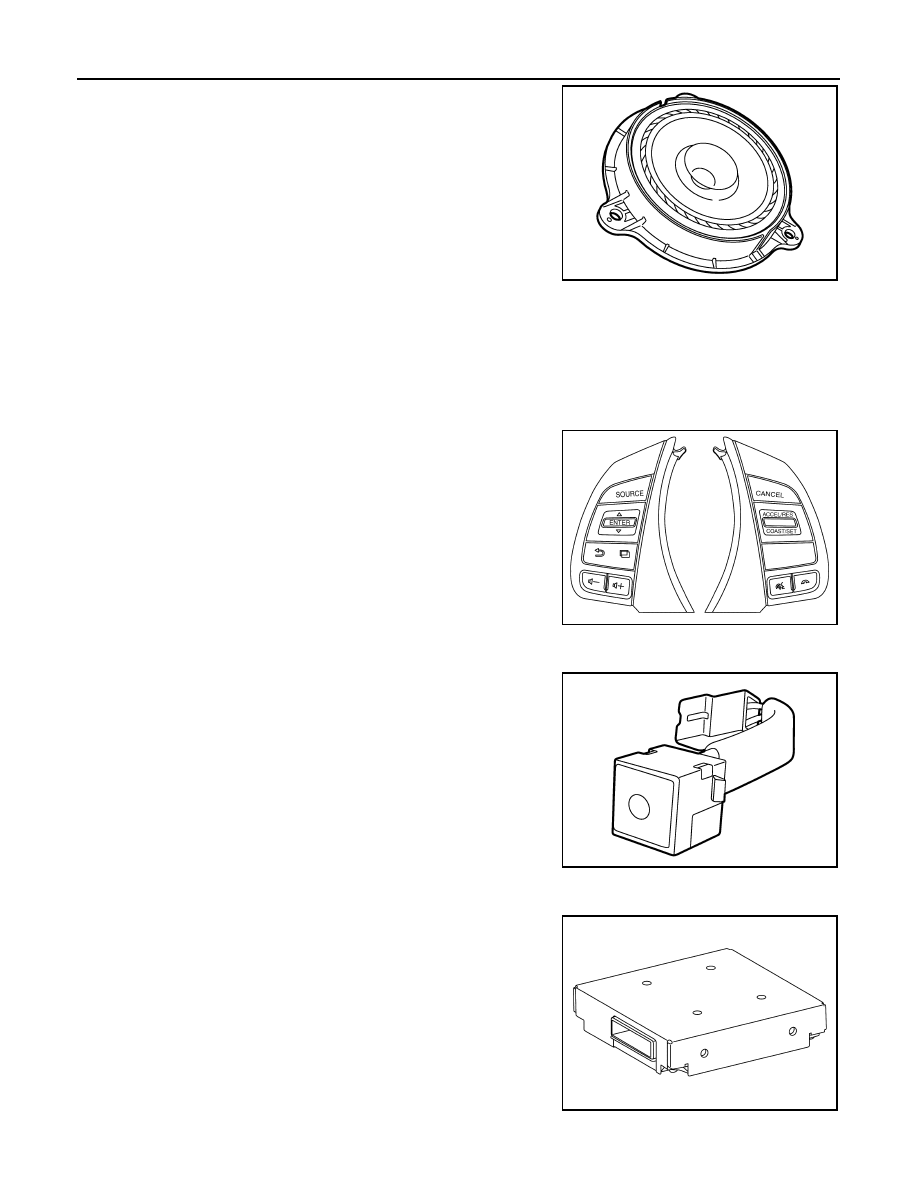

FRONT DOOR SPEAKER

• 16.5 cm (6.5 in) speakers are installed in the bottom of the front doors.
• Sound signals are input from the AV control unit to output high, mid

and low range sounds.

REAR DOOR SPEAKER

• 16.5 cm (6.5 in) speakers are installed in the bottom of the rear doors.

15.

AV control unit

Refer to

AV-129, "AV Control Unit"

.

16.

Rear view camera

Refer to

AV-131, "Rear View Camera"

.

17.

Around View

®*

 Monitor control unit

Refer to

AV-130, "Around View Monitor Control Unit"

.

18.

USB interface and AUX in jack

Refer to

AV-130, "USB Interface and AUX In Jack"

.

No.

Component

Function

ALNIA1590ZZ

ALNIA1593ZZ

JPNIA1454ZZ

AV-130

< SYSTEM DESCRIPTION >

[NAVIGATION]

COMPONENT PARTS

• Sound signals are input from the AV control unit to output high, mid

and low range sounds.

USB Interface and AUX In Jack

INFOID:0000000010435643

• USB Interface and AUX in jack is installed in the console.
• iPod

®

 and USB memory can be connected to the AV control unit through the USB interface.

• An external audio device can be connected to the AV control unit through the AUX in jack.

Steering Switches

INFOID:0000000010435644

• Steering switches are installed in the steering wheel.
• Operations for audio and hands-free phone are possible.
• Switches are connected to the combination meter.
• Combination meter is connected to the AV control unit via AV com-

munication.

Microphone

INFOID:0000000010435645

• The microphone is installed in the roof in the map lamp assembly.
• Power is supplied from the AV control unit.

Around View Monitor Control Unit

INFOID:0000000010435646

• The around view monitor control unit is installed behind the glove

box.

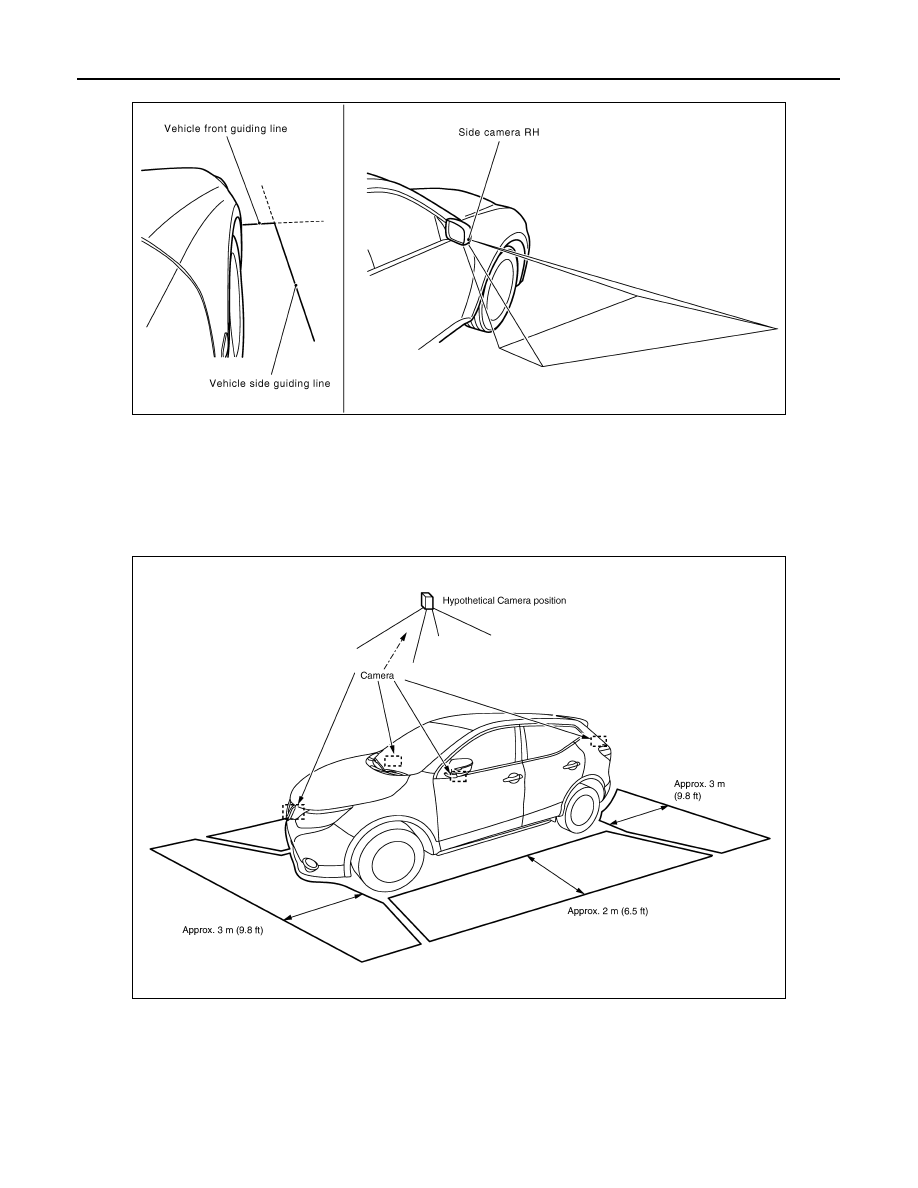

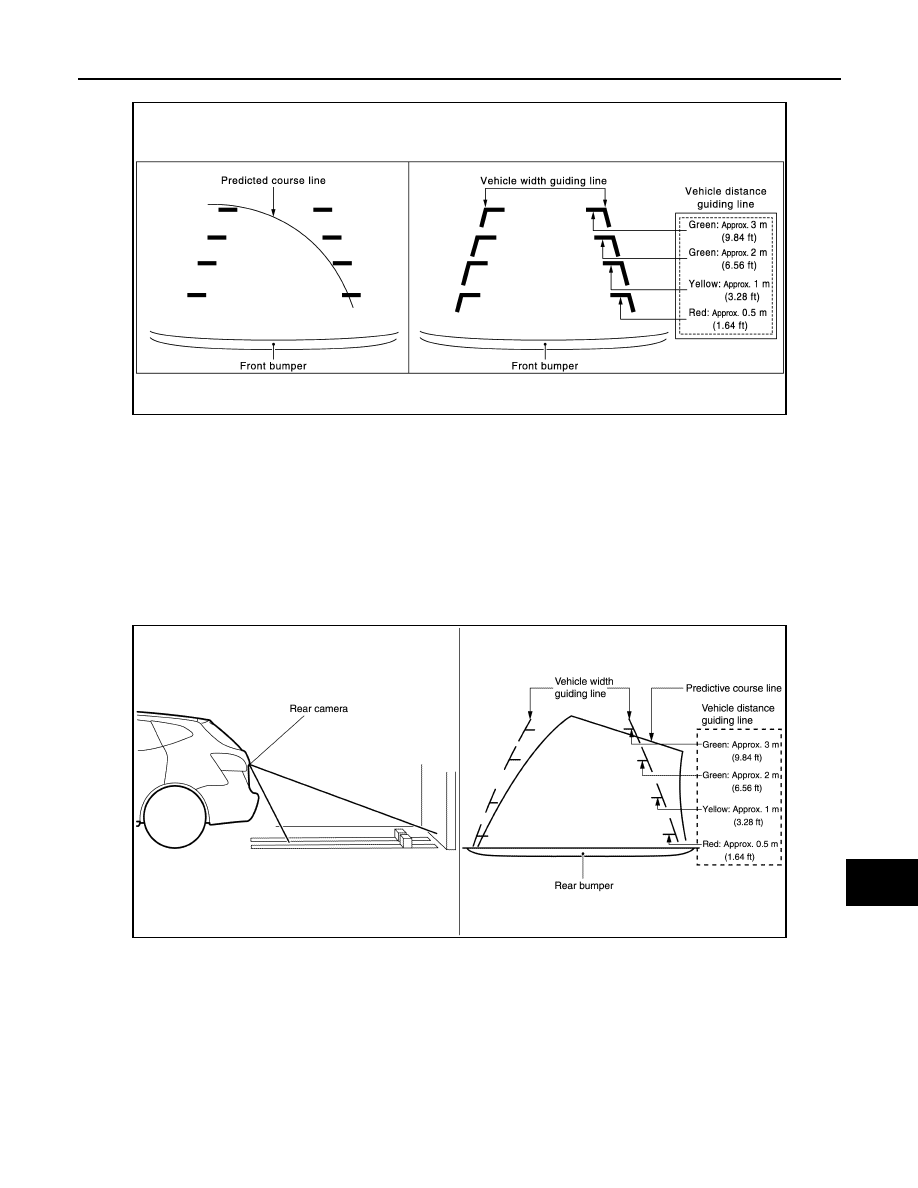

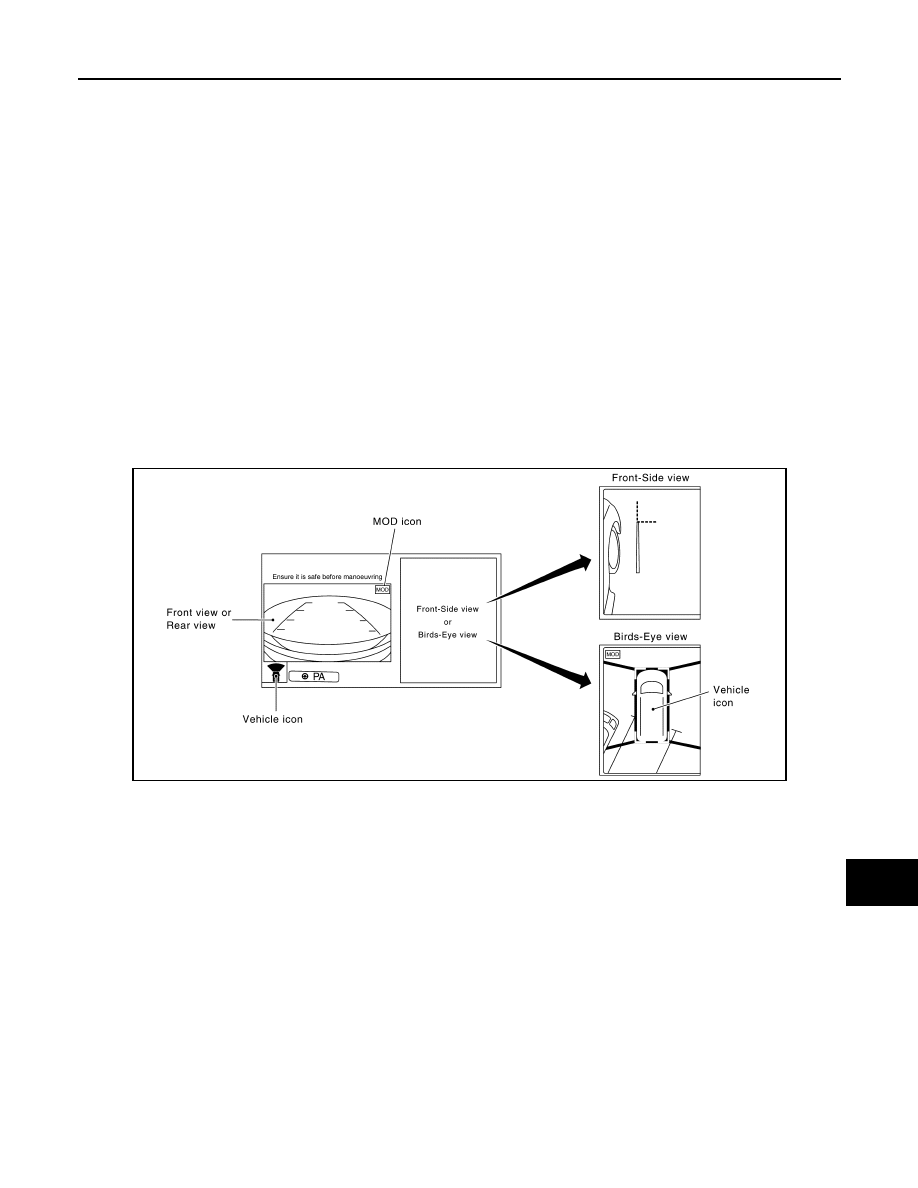

• Vehicle width guide lines, predicted course line, vehicle front guid-

ing line and vehicle side line, and vehicle icon are displayed and
combined with camera images.

JPNIA1454ZZ

JSNIA7235ZZ

JPNIA1448ZZ

JSNIA5395ZZ

AV

COMPONENT PARTS

AV-131

< SYSTEM DESCRIPTION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

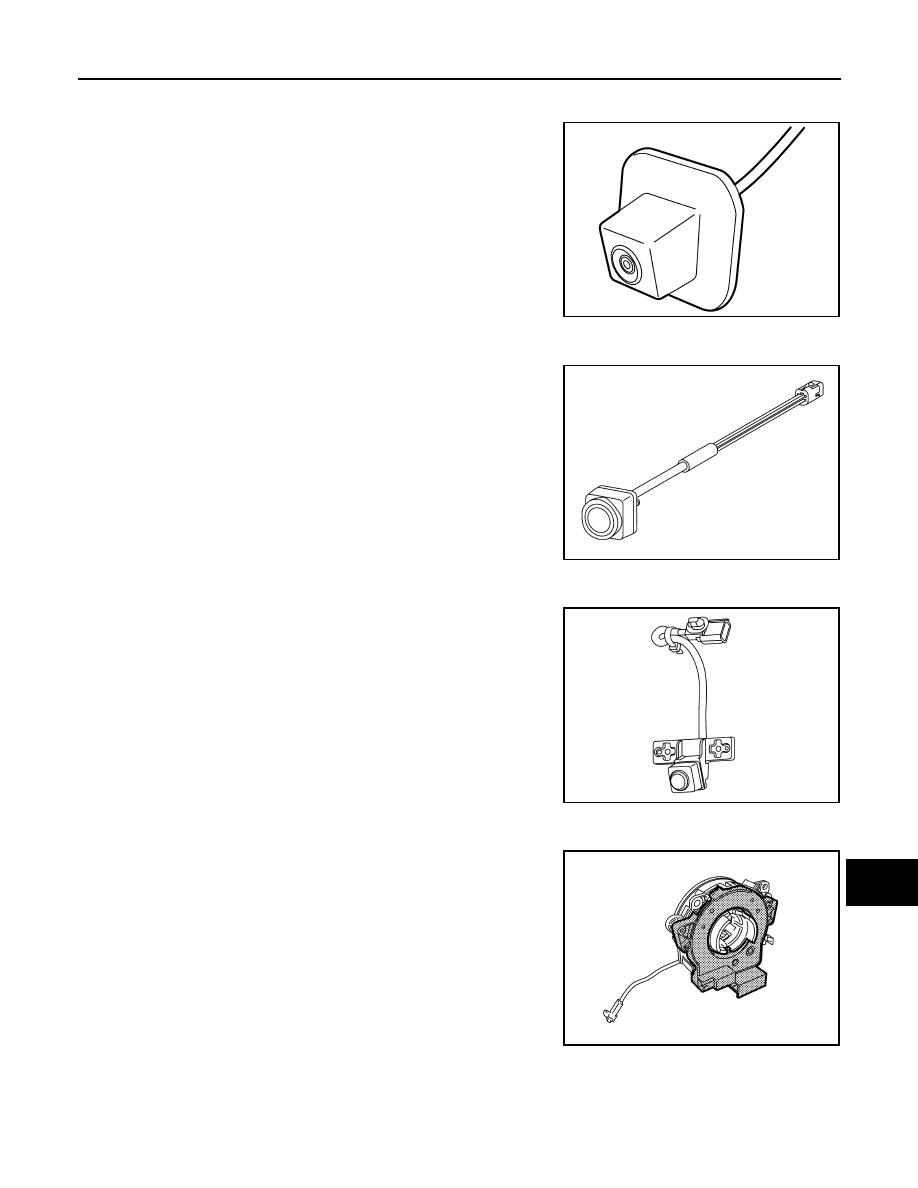

Rear View Camera

INFOID:0000000010435647

• The rear view camera is installed in the back door finisher.
• Power is supplied from the around view monitor control unit.

Side Cameras

INFOID:0000000010435648

• The side cameras are installed in the door mirrors.
• Power is supplied from the around view monitor control unit.

Front Camera

INFOID:0000000010435649

• The front camera is installed in the front grille.
• Power is supplied from the around view monitor control unit.

Steering Angle Sensor

INFOID:0000000010435650

• Steering sensor is installed to the spiral cable.
• Steering angle sends the steering signal necessary for predictive

course line via CAN communication.

Rod Antenna, Antenna Amp., Satellite Antenna and Antenna Feeder

INFOID:0000000010435651

RADIO ANTENNA AND SATELLITE ANTENNA

JPNIA1452ZZ

JSNIA5397ZZ

JSNIA5398ZZ

JSNIA1571ZZ

AV-132

< SYSTEM DESCRIPTION >

[NAVIGATION]

COMPONENT PARTS

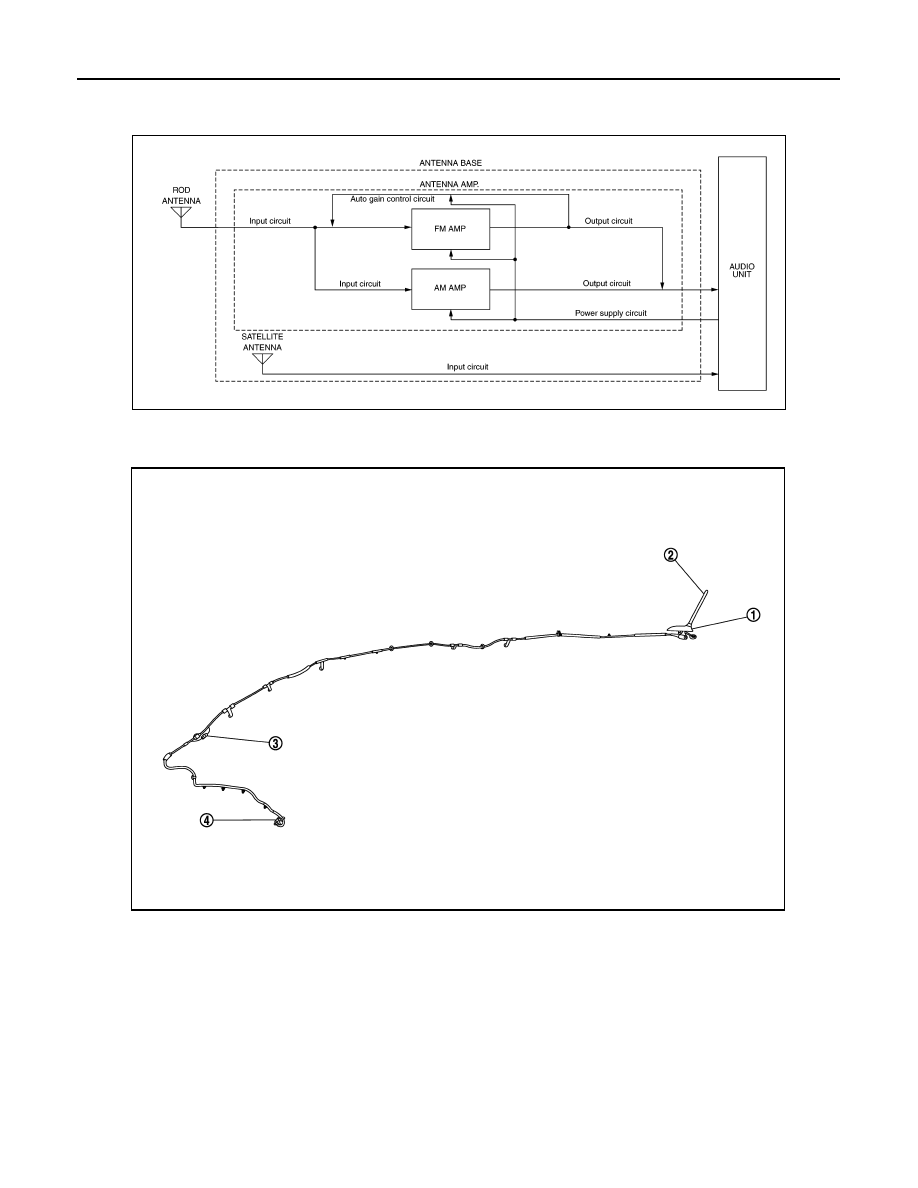

AM/FM radio rod antenna and antenna base are located on the rear of the roof. The antenna amp. and satel-
lite antenna are built into the antenna base.

ANTENNA FEEDER LAYOUT

AWNIA3133GB

1.

Antenna base (antenna amp. and
satellite antenna)

2.

Rod Antenna

3.

M394

4.

M399

E1NIA0073ZZ

AV

COMPONENT PARTS

AV-133

< SYSTEM DESCRIPTION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

GPS Antenna

INFOID:0000000010435652

• GPS antenna is installed in the instrument panel, behind the com-

bination meter.

• Power is supplied from the AV control unit.

SD Card

INFOID:0000000010435653

• Map data is memorized in the SD card.
• Map data is sent to the AV control unit from the SD slot.

JSNIA3303ZZ

AV-134

< SYSTEM DESCRIPTION >

[NAVIGATION]

SYSTEM

SYSTEM

System Description

INFOID:0000000010435654

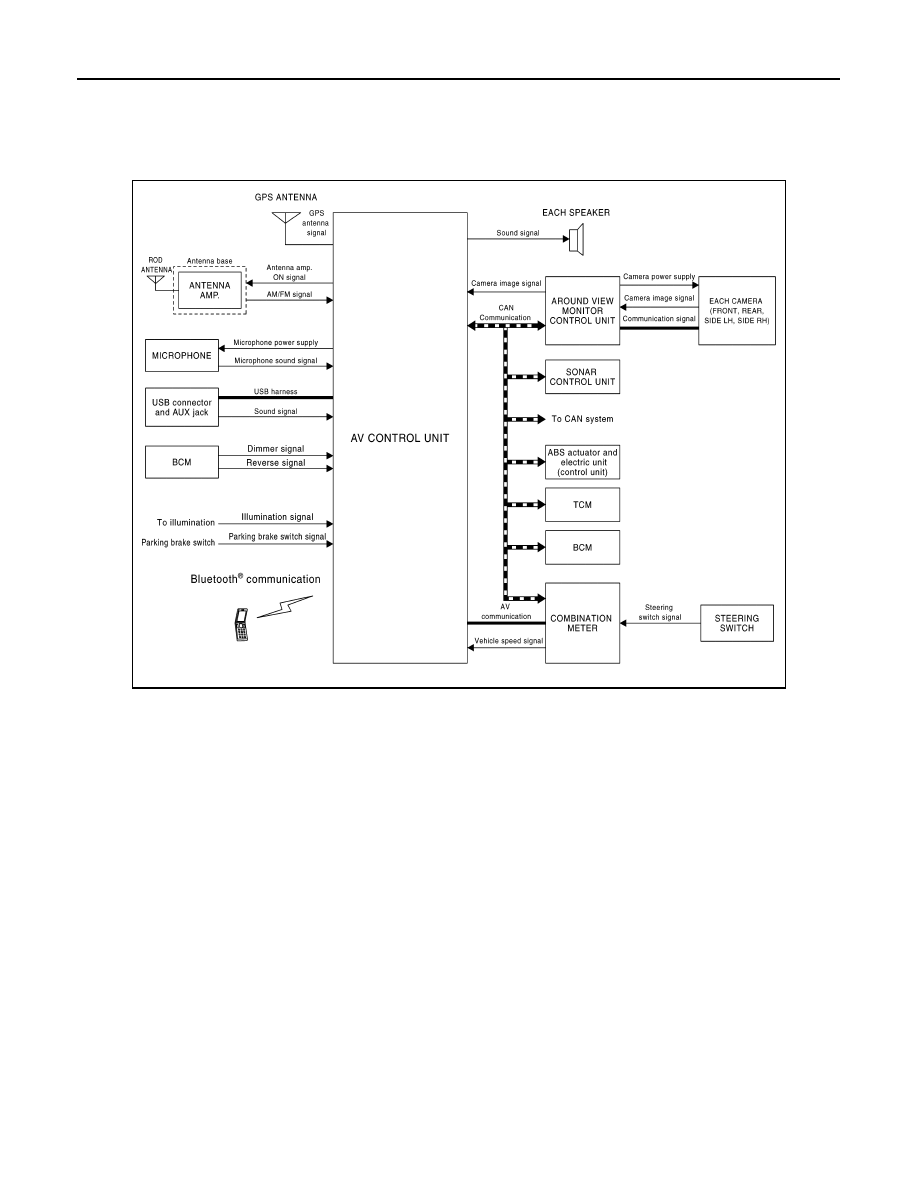

SYSTEM DIAGRAM

AUDIO SYSTEM

The audio system consists of the following component:
• AV control unit
• Front tweeters
• Front door speakers
• Rear door speakers
• USB interface
• AUX in jack
• Steering switches
• Antenna base (rod antenna, antenna amp.)
When the audio system is on, AM/FM signals received by the rod antenna are amplified by the antenna amp.
and sent to the AV control unit. The AV control unit then sends audio signals to the front tweeters, front door
speakers and rear door speakers.
Refer to Owner's Manual for audio system operating instructions.

NAVIGATION SYSTEM

Description

• The navigation system can be operated by control panel of the AV control unit and display (touch panel) of

the AV control unit.

• Guide sound during the operation of the navigation system is output from AV control unit to front tweeters.
• AV control unit calculates the vehicle location based on the signals from GYRO (angle speed sensor), vehi-

cle sensor, and GPS satellite, as well as the map data from map SD-card. The vehicle location is displayed
on the AV control unit.

POSITION DETECTION PRINCIPLE

JSNIA7237GB

AV

SYSTEM

AV-135

< SYSTEM DESCRIPTION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

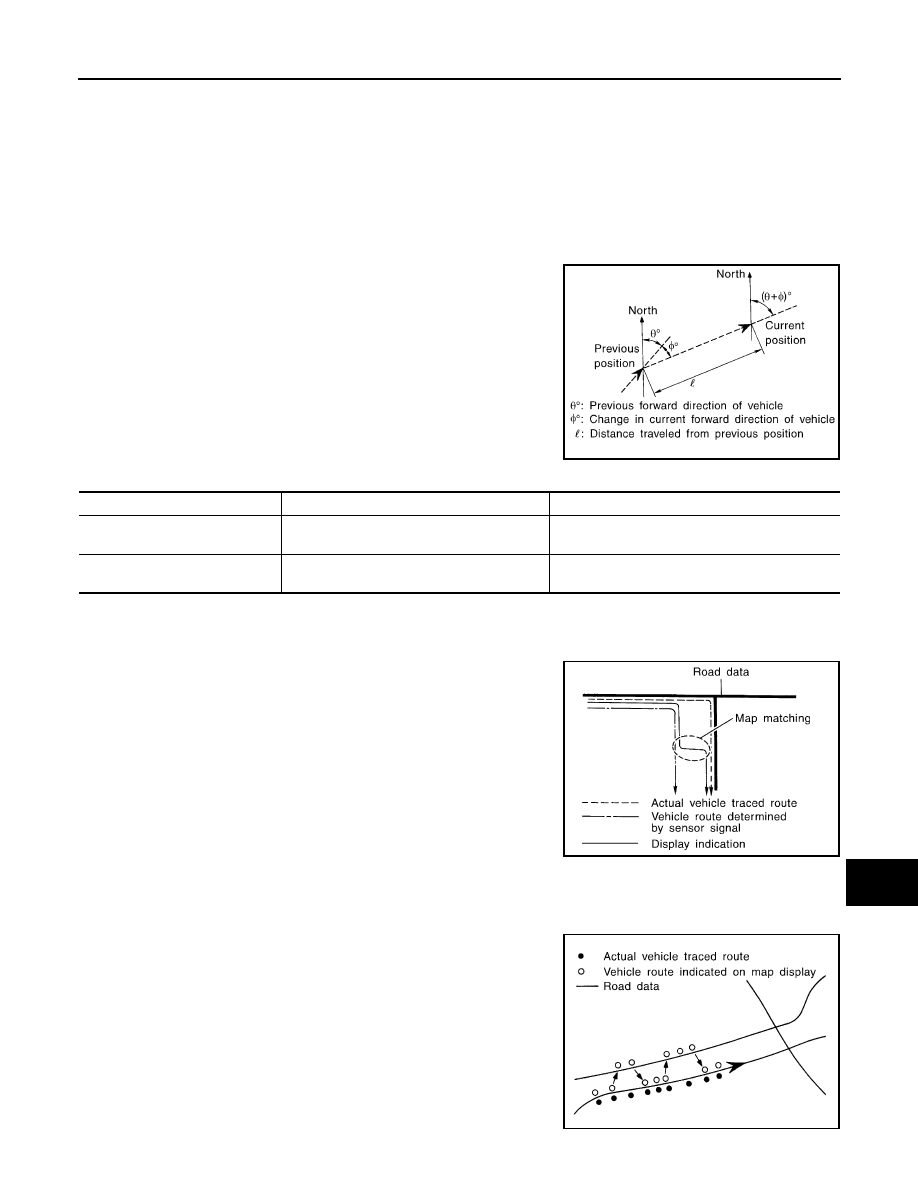

The navigation system periodically calculates the vehicle's current position according to the following three
signals:
• Travel distance of the vehicle as determined by the vehicle speed sensor
• Turning angle of the vehicle as determined by the gyroscope (angular velocity sensor)
• Direction of vehicle travel as determined by the GPS antenna (GPS information)
The current position of the vehicle is then identified by comparing the calculated vehicle position with map data
read from the map SD-card (map-matching), and indicated on the screen as a vehicle mark. More accurate
data is judged and used by comparing vehicle position detection results found by the GPS with the result by
map-matching.

The current vehicle position will be calculated by detecting the dis-
tance the vehicle moved from the previous calculation point and its
direction.
• Travel distance

Travel distance calculations are based on the vehicle speed sen-
sor input signal. Therefore, the calculation may become incorrect
as the tires wear down. To prevent this, an automatic distance cor-
rection function has been adopted.

• Travel direction

Change in the travel direction of the vehicle is calculated by a gyro-
scope (angular velocity sensor) and a GPS antenna (GPS informa-
tion). They have both advantages and disadvantages.

More accurate traveling direction is detected because priorities are set for the signals from these two
devices according to the situation.

MAP-MATCHING

Map-matching compares a current location detected by the method
in the “Location Detection Principle” with a road map data from map
SD-card.
NOTE:
The road map data is based on data stored in the map SD-card.

The vehicle position may not be corrected under the following circumstances and after driving for a certain
time when GPS information is difficult to receive. In this case, the vehicle mark on the display must be cor-
rected manually.
• In map-matching, alternative routes to reach the destination will be

shown and prioritized, after the road on which the vehicle is cur-
rently driven has been judged and the vehicle mark has been repo-
sitioned.
Alternative routes will be shown in different order of priority, and
the incorrect road can be avoided if there is an error in distance
and/or direction.
Routes are of the same priority if two roads are running in parallel.
Therefore, the vehicle mark may appear on either of them alter-
nately, depending on maneuvering of the steering wheel and con-
figuration of the road.

SEL684V

Type

Advantage

Disadvantage

Gyroscope
(angular velocity sensor)

Can detect the vehicle's turning angle quite
accurately.

Direction errors may accumulate when vehicle is
driven for long distances without stopping.

GPS antenna
(GPS information)

Can detect the vehicle's travel direction
(North/South/East/West).

Correct direction cannot be detected when vehicle
speed is low.

SEL685V

SEL686V

AV-136

< SYSTEM DESCRIPTION >

[NAVIGATION]

SYSTEM

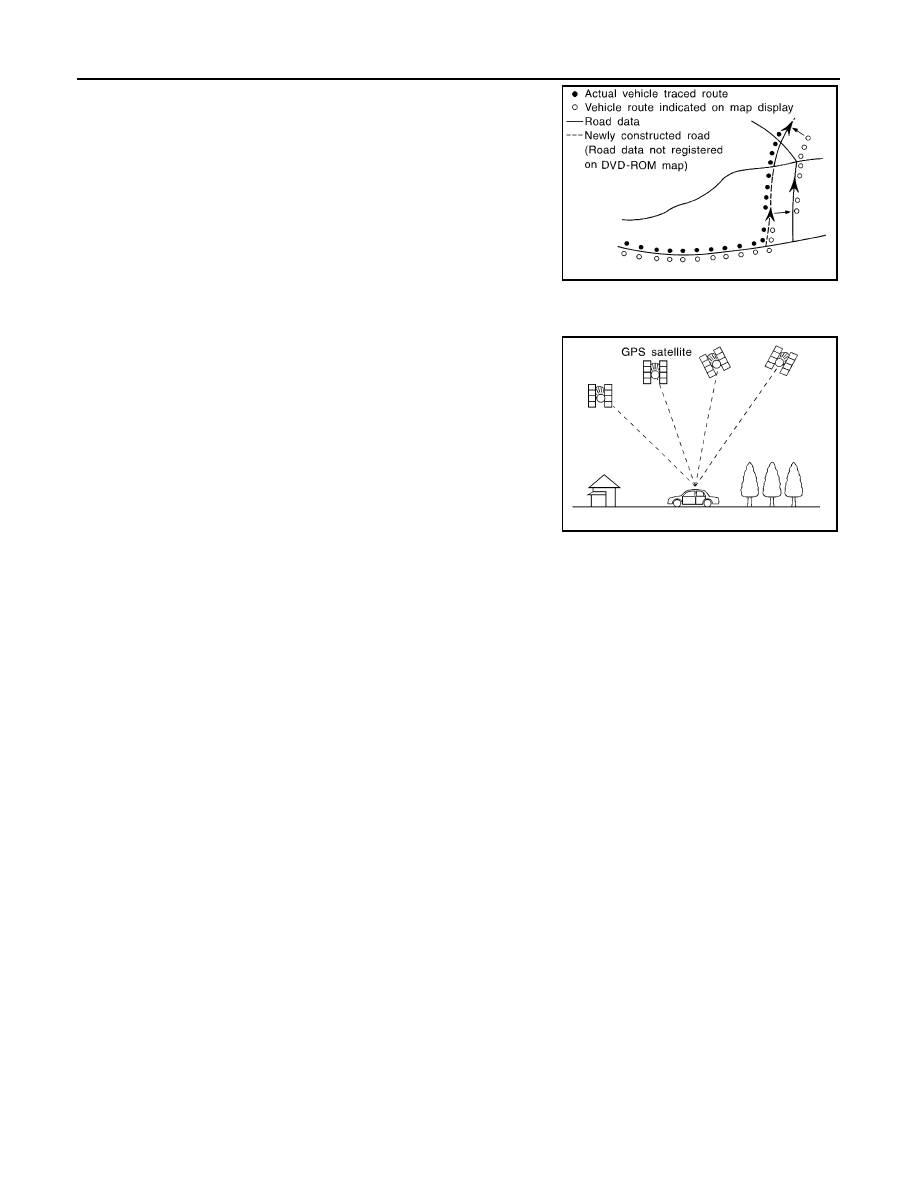

• Map-matching does not function correctly when a road on which

the vehicle is driving is new and not recorded in the map SD-card,
or when road pattern stored in the map data and the actual road
pattern are different due to repair.
The map-matching function may find another road and position the
vehicle mark on it when driving on a road not present in the map.
Then, the vehicle mark may change to it when the correct road is
detected.

• Effective range for comparing the vehicle position and travel direc-

tion calculated by the distance and direction with the road data
read from the map SD-card is limited. Therefore, correction by
map-matching is not possible when there is an excessive gap
between current vehicle position and the position on the map.

GPS (Global Positioning System)

The system utilizes GPS satellites (NAVSTAR), transmitting out
radio waves while flying on an orbit around the earth at an altitude of
approximately 21,000 km (13,049 mile).
The receiver calculates the travel position in three dimensions (lati-
tude/longitude/altitude) according to the time lag of the radio waves
that four or more GPS satellites transmit (three-dimensional position-
ing). The GPS receiver calculates the travel position in two dimen-
sions (latitude/longitude) with the previous altitude data if the GPS
receiver receives only three radio waves (two-dimensional position-
ing). GPS position correction is not performed while stopping the
vehicle.

Accuracy of the GPS will deteriorate under the following conditions:
• In two-dimensional positioning, GPS accuracy will deteriorate when altitude of the vehicle position changes.
• The position of GPS satellite affects GPS detection precision. The position detection may not be precisely

performed.

• The position detection is not performed if GPS receiver does not receive radio waves from GPS satellites.

(Inside a tunnel, parking in a building, under an elevated highway etc.) GPS receiver may not receive radio
waves from GPS satellites if any object is placed on the GPS antenna.

NOTE:
• The detection result has an error of approximately 10 m (32.81 ft) even with a high-precision three dimen-

sional positioning.

• There may be cases when the accuracy is lowered and radio waves are stopped intentionally because the

GPS satellite signal is controlled by the US trace control center.

USB INTERFACE

• iPod

®

 or music files in USB memory can be played.

• Sound signals are transmitted from USB interface to the AV control unit and output to each speaker.
• iPod

®

 is recharged when connected to USB interface.

AUX IN JACK

• Sound can be output from an external device by connecting a device to the AUX in jack.
• AUX sound signals are transmitted to each speaker via AV control unit.

SPEED SENSITIVE VOLUME SYSTEM

• Volume level of this system goes up and down automatically in proportion to the vehicle speed.
• The control level can be selected by the customer.

HANDS-FREE PHONE SYSTEM

• Bluetooth

®

 control is built into AV control unit.

• The connection between cellular phone and AV control unit is performed with Bluetooth

®

 communication.

• The voice guidance signal is input from the AV control unit and output to the front speakers when operating

the cellular phone.

When A Call Is Originated

• Spoken voice sound output from the microphone (microphone signal) is input to AV control unit.

SKIA0613E

SEL526V

AV

SYSTEM

AV-137

< SYSTEM DESCRIPTION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

• AV control unit outputs to cellular phone with Bluetooth

®

 communication as a TEL voice signal.

• Voice sound is then heard at the other party.

When Receiving A Call

• Voice sound is input to own cellular phone from the other party.
• TEL voice signal is input to AV control unit by establishing Bluetooth

®

 communication from cellular phone,

and the signal is output to front speakers.

AROUND VIEW MONITOR FUNCTION

• This system is equipped with wide-angle cameras on the front, rear and right and left door mirrors.
• Images from front view, rear view, front-side view (RH side), and birds-eye view are displayed to monitor the

vehicle surroundings.

• Around view monitor control unit expands the image received from each camera to create each view.
• In front view and rear view, the vehicle width, distance lines and predictive course lines are displayed.
• In front-side view, the vehicle distance guiding line and vehicle width guiding line are displayed.
• Birds-eye view converts the images from the cameras into an overhead view and displays the status of the

vehicle on the display. The vehicle icon that is displayed in the birds-eye view is depicted by the around view
monitor control unit.

Display

The around view monitor combines and displays travel direction view (front or rear), front-side view and birds-
eye view.

Operation

• The around view monitor operates by pressing the CAMERA switch on the AV control unit or by shifting the

selector lever to the R (reverse) position.

• When the selector lever is in any position other than R (reverse) and the CAMERA switch is pressed, the

screen displays front travel direction view and birds-eye view. Pressing the CAMERA switch again changes
birds-eye view to front-side view

• When the selector lever is placed in R (reverse), the screen displays rear travel direction view and birds-eye

view. Pressing the CAMERA switch changes birds-eye view to front-side view

• In birds-eye view, the blind spot area is displayed in black to show the border of the camera images. In addi-

tion, red fixed lines are displayed in the 4 corners of the vehicle icon. After pressing the CAMERA switch for
the first time or placing the selector lever in R (reverse) for the first time, the blind spot area is highlighted in
yellow for 3 seconds and the red fixed lines blink five times.

• With the selector lever in any position other than R (reverse), the around view monitor screen display is can-

celled 3 minutes after pressing the CAMERA switch. The screen returns to the AV control unit display.

• With the selector lever in R (reverse) position, the around view monitor screen display remains on con-

stantly. To return to the AV control unit display, place the selector lever is in any position other than R
(reverse).

• If camera image calibration is incomplete, the applicable camera position is indicated as an error on the

birds-eye view display.
NOTE:

JSNIA7214GB

AV-138

< SYSTEM DESCRIPTION >

[NAVIGATION]

SYSTEM

Calibration is necessary when replacing each camera or when replacing around view monitor control unit.

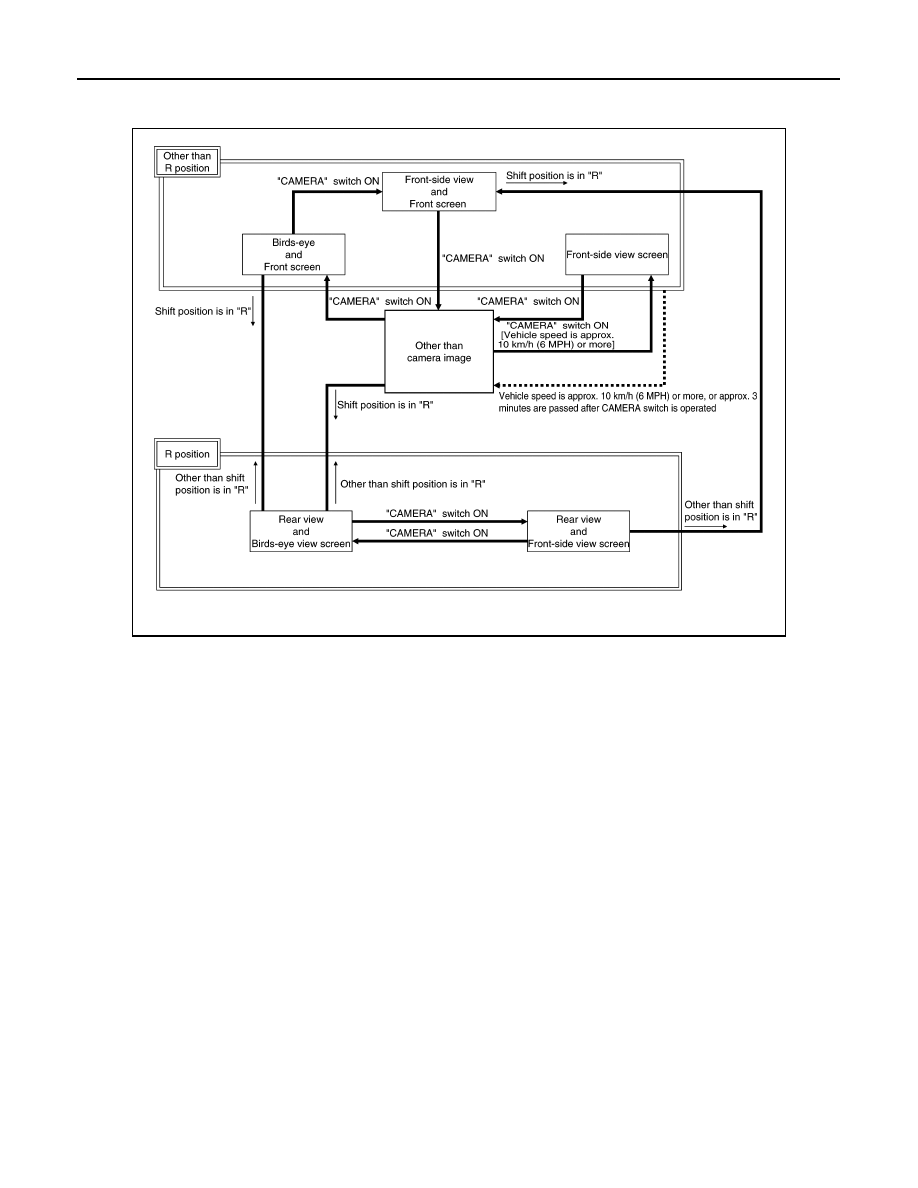

Around view monitor screen transition

Front View

• The front view image improves the visibility of obstacles in front of the vehicle and assists driving by display-

ing images from birds-eye view and front-side view.

• The front view image displays the vehicle width guiding line and vehicle distance guiding line, in addition to

the predictive course line according to the steering angle.

• If the steering angle is within approximately 90 degrees, the predictive course lines on the left/right side are

displayed. If the steering angle exceeds approximately 90 degrees, only the predictive course line on the
outside is displayed (opposite side of steering direction).

• The around view monitor control unit receives the steering angle signal from steering angle sensor via CAN

communication, and controls the direction and distance of the predictive course line.

• ON/OFF setting of predictive course line can be performed using CONSULT.

JSNIA7215GB

AV

SYSTEM

AV-139

< SYSTEM DESCRIPTION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Front view guiding lines

Rear View

• The rear view image improves the visibility of obstacles in the rear of the vehicle and assists backing and

parking by displaying images from birds-eye view and front side view.

• The rear view image displays the vehicle width guiding line and vehicle distance guiding line, in addition to

the predictive course line according to the steering angle.
NOTE:
The predictive course line is not displayed at the steering neutral position.

• The around view monitor control unit receives the steering angle signal from steering angle sensor via CAN

communication, and controls the direction and distance of the predictive course line.

• ON/OFF setting of predictive course line can be performed using CONSULT.

Rear view guiding lines

Front-Side View

• The front-side view image improves the visibility of obstacles in the front RH side of the vehicle and assists

backing and parking.

• The front-side view image displays the vehicle distance guiding line and vehicle width guiding line.

JSNIA0770GB

JSNIA4567GB

AV-140

< SYSTEM DESCRIPTION >

[NAVIGATION]

SYSTEM

Front-side view area and guiding line

Birds-Eye View

• The birds-eye view image improves the visibility of obstacles all around the vehicle and assists backing and

parking.

• The images from the four cameras are converted into an overhead view, and the surroundings of the vehicle

are displayed.

• The blind spot area is displayed on the image to specify the boundary of the four cameras.

Birds-Eye view display image

JSNIA0771GB

E1NIA0076GB

AV

SYSTEM

AV-141

< SYSTEM DESCRIPTION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Birds-Eye view display area

AWNIA3142GB

AV-142

< SYSTEM DESCRIPTION >

[NAVIGATION]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

Description

INFOID:0000000010435655

The AV control unit on board diagnosis performs the functions listed in the table below:

Perform CONSULT diagnosis if the AV control unit on board diagnosis does not start or the screen does not
display anything.

On Board Diagnosis Function

INFOID:0000000010435656

METHOD OF STARTING

1.

Turn the ignition ON.

Mode

Item

Content

Version

Version data of the AV control unit is dis-
played.

User Configuration

Touch Display Calibration

Allows correction of the position detec-
tion accuracy of the touch panel.

Radio

FM monitor

Monitors the dynamic values of the cur-
rent tuner

AM monitor

SXM monitor

Version data is displayed.

System State

Running System Status

• SD card slot Access
• Power Supply
• Speed Signal
• Direction Signal
• Illumination Signal
• GPS Antenna
• GPS Tracking
• Satellites Visible
• Satellites Tracked
• Microphone Current
• Steering wheel key
• Radio Antenna
• SXM Antenna
• USB Device

• iPod

®

 firmware version

• BT  Status

The current system status is displayed.

Speaker Test 4kHz

This activates a sequence of test tone
outputs to the audio circuits one after the
other for 1 second.

Speaker Test 100Hz

Display-Test

This provides a test sequence where
test displays (plain colored display: e.g.
white, black, red, blue, green) are shown
one after the other.
The respective color is shown for an in-
dicated period of time (parameter). After
the display test, the design of the display
previously available is stored. While the
screen shows a plain colored display, a
pixel malfunction may be detected.

Self Test

• SD Card Access
• BT Module Access
• Radio Antenna
• GPS Antenna
• SXM Antenna

A system self test is executed and the
results are stored into the error memory.

AV

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-143

< SYSTEM DESCRIPTION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

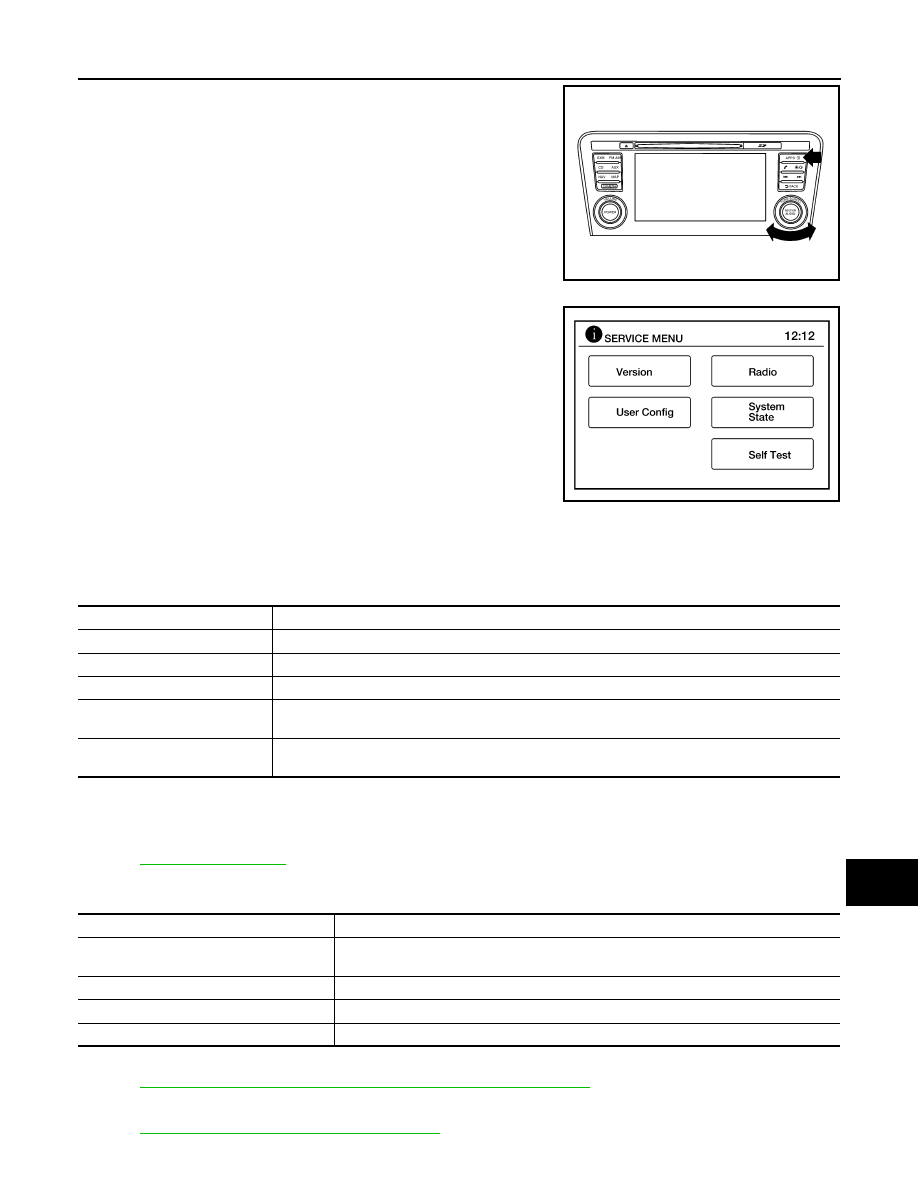

2.

While pressing the APPS button, turn the TUNE-SCROLL dial
counterclockwise 3 or more clicks, then clockwise 3 or more
clicks, then counterclockwise 3 or more clicks. Shifting from cur-
rent screen to previous screen is performed by pressing BACK
button.

3.

The trouble diagnosis initial screen is displayed, and Version,
User Config, Radio, System State or Self Test can be selected.

CONSULT Function

INFOID:0000000010435657

CONSULT FUNCTIONS

CONSULT performs the following functions via communication with the AV control unit.

ECU IDENTIFICATION

The part number of AV control unit is displayed.

SELF DIAGNOSTIC RESULT

Refer to

AV-151, "DTC Index"

.

DATA MONITOR

CONFIGURATION

Refer to

AV-178, "CONFIGURATION (AV CONTROL UNIT) : Description"

.

CAN DIAG SUPPORT MNTR

Refer to

LAN-21, "CAN Diagnostic Support Monitor"

.

ALNIA1591ZZ

ALNIA1378ZZ

Direct Diagnostic Mode

Description

Ecu Identification

The AV control unit part number is displayed.

Self Diagnostic Result

The AV control unit self diagnostic results are displayed.

Data Monitor

The AV control unit input/output data is displayed in real time.

Configuration

• The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing AV control unit.

CAN Diag Support Mntr

• The result of transmit/receive diagnosis of AV communication is displayed.
• The result of transmit/receive diagnosis of CAN communication is displayed.

Monitor Item [Unit]

Description

VHCL SPD SIG [On/Off]

Indicates vehicle speed signal received from combination meter on CAN communication
line.

ILLUM SIG [On/Off]

Indicates condition of illumination signal for the AV control unit.

IGN SIG [On/Off]

Indicates condition of ignition signal.

REV SIG [On/Off]

Indicates condition of reverse signal received from BCM.

AV-144

< SYSTEM DESCRIPTION >

[NAVIGATION]

DIAGNOSIS SYSTEM (AROUND VIEW MONITOR CONTROL UNIT)

DIAGNOSIS SYSTEM (AROUND VIEW MONITOR CONTROL UNIT)

WITHOUT DRIVER ASSISTANCE SYSTEM

WITHOUT DRIVER ASSISTANCE SYSTEM : CONSULT Function

INFOID:0000000010435658

CONSULT FUNCTIONS

CONSULT performs the following functions via communication with the around view monitor control unit.

ECU IDENTIFICATION

The part number of around view monitor control unit is displayed.

SELF DIAGNOSTIC RESULT

Refer to

AV-154, "WITHOUT DRIVER ASSISTANCE SYSTEM : DTC Index"

.

DATA MONITOR

WORK SUPPORT

Direct Diagnostic Mode

Description

Ecu Identification

The around view monitor control unit part number is displayed.

Self Diagnostic Result

The around view monitor control unit self diagnostic results are displayed.

Data Monitor

The around view monitor control unit input/output data is displayed in real time.

Work support

The settings for around view monitor control unit functions can be changed.

Configuration

• The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing around view monitor control unit.

CAN Diag Support Mntr

The result of transmit/receive diagnosis of CAN communication is displayed.

Monitor Item

Description

ST ANGLE SENSOR SIGNAL [On/Off]

Indicates condition of steering angle sensor signal.

REVERSE SIGNAL [On/Off]

Indicates selector lever position.

VEHICLE SPEED SIGNAL [mph/km/h]

Indicates condition of vehicle speed signal.

CAMERA SWITCH SIGNAL [On/Off]

Indicates condition of camera switch signal.

CAMERA OFF SIGNAL [On/Off]

Indicates condition of camera OFF signal.

ST ANGLE SENSOR TYPE [Absolute]

Indicates steering angle sensor type.

ST GEAR RATIO TYPE [Type O]

Indicates steering gear ratio type.

STEERING POSITION [LHD/RHD]

Indicates LH or RH drive type.

SHIFT LEVER POSITION

Indicates Shift Lever Position.

WHEEL SPEED

• Recieve the Wheel Speed signal

 ON.

• Not recieve the Wheel Speed signal

 OFF

REAR CAMERA IMAGE SIGNAL [OK/
NG]

Indicates condition of camera image signal.

F-CAMERA IMAGE SIGNAL [OK/NG]

Indicates condition of camera image signal.

DR-SIDE CAMERA IMAGE SIG [OK/
NG]

Indicates condition of camera image signal.

PA-SIDE CAMERA IMAGE SIG [OK/
NG]

Indicates condition of camera image signal.

Support Item

Setting

Description

NON-VIEWABLE AREA REMINDER

ON

ON/OFF setting of non-viewable area can be performed.

OFF

PREDICTIVE COURSE LINE
DISPLAY

ON

ON/OFF setting of predictive course line display can be performed.

OFF















Content      ..     7      8      9      10     ..
