DIAGNOSIS SYSTEM (AUDIO UNIT)

AV-17

< SYSTEM DESCRIPTION >

[AUDIO SYSTEM]

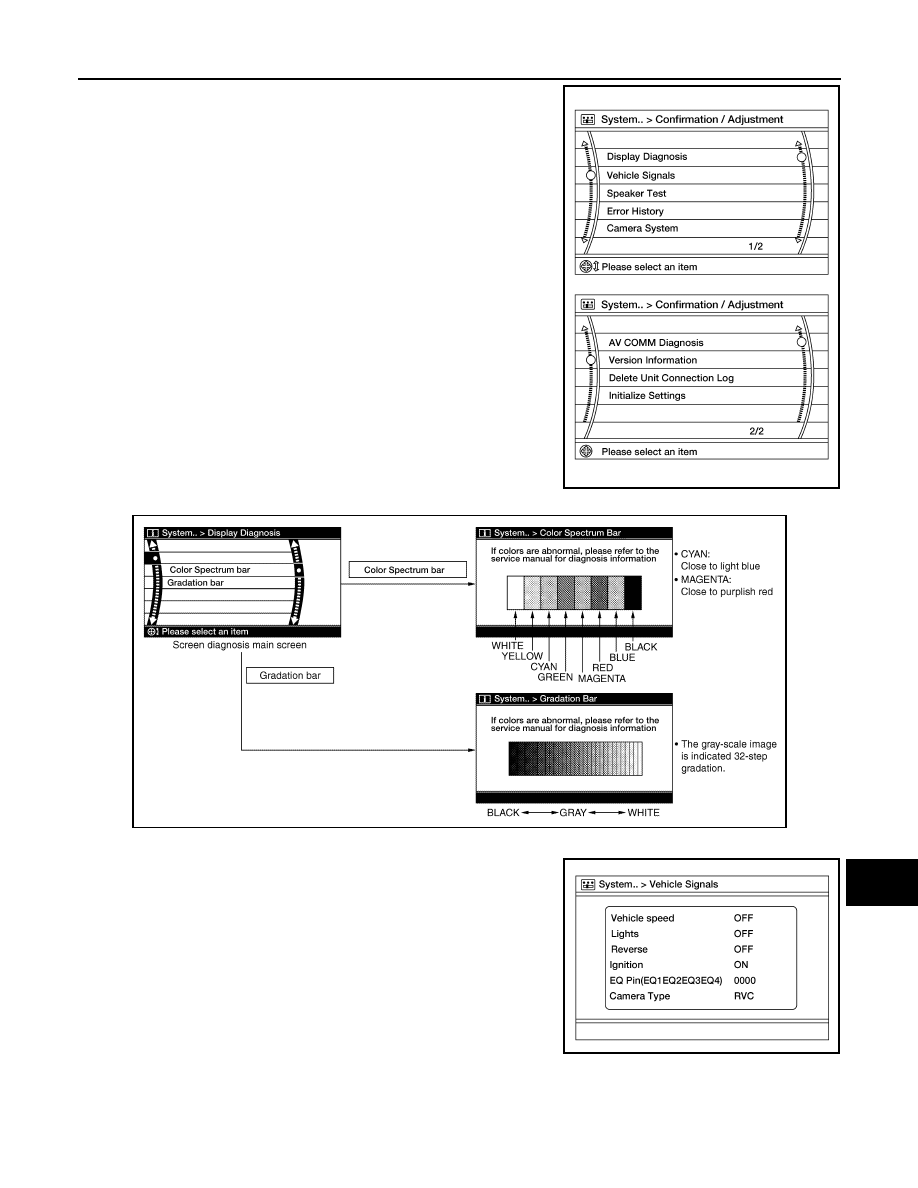

Select each switch on the Confirmation/Adjustment screen to
display the relevant trouble diagnosis screen. Press the BACK
switch to return to the initial Confirmation/Adjustment screen.

Display Diagnosis

Vehicle Signals

A comparison check can be made of each actual vehicle signal and
the signals recognized by the system.

Speaker Test

AWNIA3343ZZ

AWNIA2632GB

AWNIA3344ZZ

AV-18

< SYSTEM DESCRIPTION >

[AUDIO SYSTEM]

DIAGNOSIS SYSTEM (AUDIO UNIT)

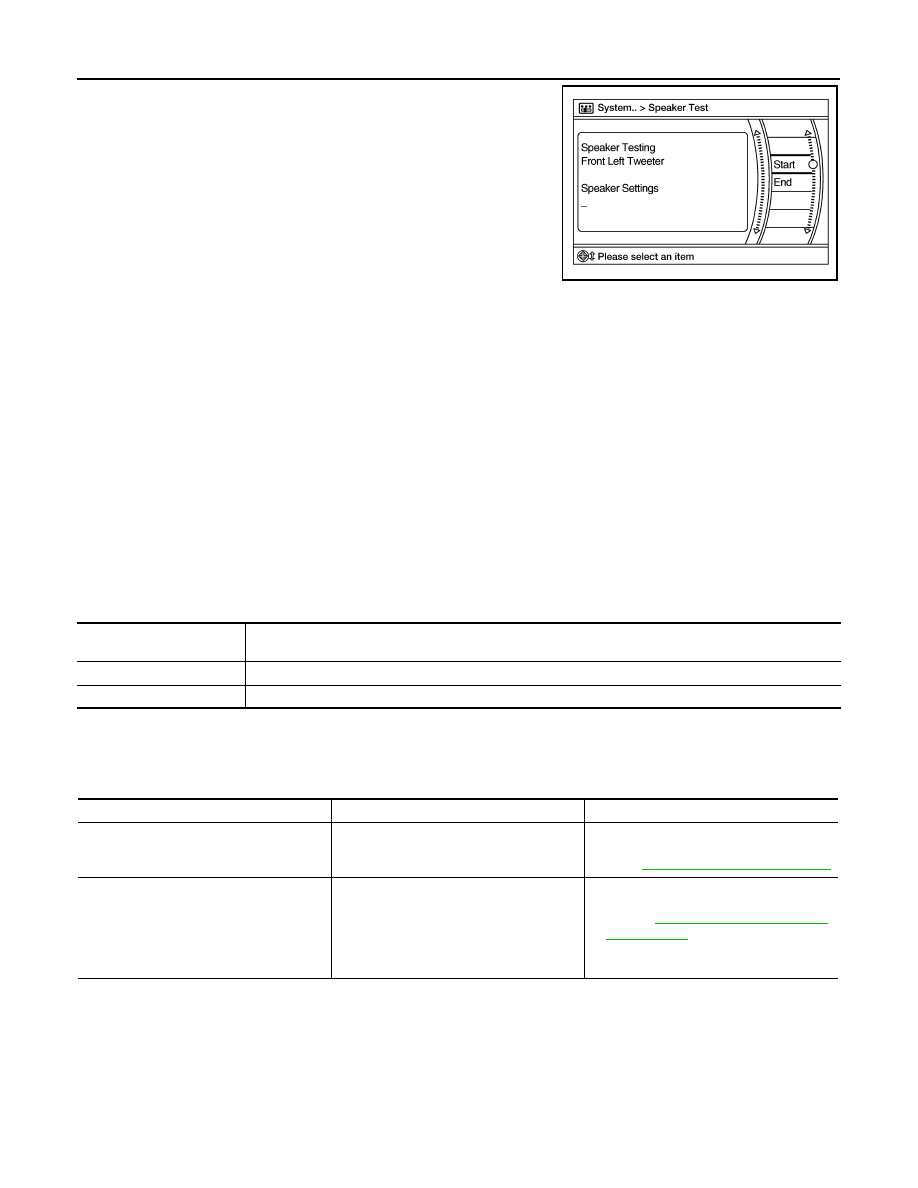

Select Speaker Test to display the Speaker Diagnosis screen. Press
Start to generate a test tone in a speaker. Press Start again to gener-
ate a test tone in the next speaker. Press End to stop the test tones.

Error History

The self diagnosis results are judged depending on whether any error occurs from when Self Diagnosis is
selected until the self diagnosis results are displayed.
However, the diagnosis results are judged normal if an error has occurred before the ignition switch is turned
ON and then no error has occurred until the self diagnosis start. Check the Error Record to detect any error
that may have occurred before the self diagnosis start because of this situation.
The frequency of occurrence is displayed in a count up manner. The actual count up method differs depending
on the error item.

Count up method A

• The counter is set to 40 if an error occurs. 1 is subtracted from the counter if the condition is normal at a next

ignition ON cycle.

• The counter lower limit is 1. The counter can be reset (no error record display) with the Delete log switch.

Count up method B

• The counter increases by 1 if an error occurs when ignition switch is ON. The counter will not decrease even

if the condition is normal at the next ignition ON cycle.

• The counter upper limit is 50. Any counts exceeding 50 are ignored. The counter can be reset (no error

record display) with the Delete log switch.

Error item
Some error items may be displayed simultaneously according to the cause. If some error items are displayed
simultaneously, the detection of the cause can be performed by the combination of display items

AV COMM Diagnosis

AWNIA2634GB

Display type of occurrence

frequency

Error history display item

Count up method A

AV communication line, control unit (AV)

Count up method B

Other than the above

Error item

Description

Possible cause

CONTROL UNIT (AV)

AV communication circuit initial diagnosis
malfunction is detected.

Replace the audio unit if the malfunction
occurs constantly.
Refer to

AV-53, "Removal and Installation"

AV COMM CIRCUIT

When one of the following is detected:
• malfunction is detected in combination

meter power supply and ground circuits.

• malfunction is detected in AV communi-

cation circuits between audio unit and
combination meter.

• Combination meter power supply or

ground circuits.
Refer to

AV-37, "AUDIO UNIT : Diagno-

sis Procedure"

• AV communication circuits between au-

dio unit and combination meter.

DIAGNOSIS SYSTEM (AUDIO UNIT)

AV-19

< SYSTEM DESCRIPTION >

[AUDIO SYSTEM]

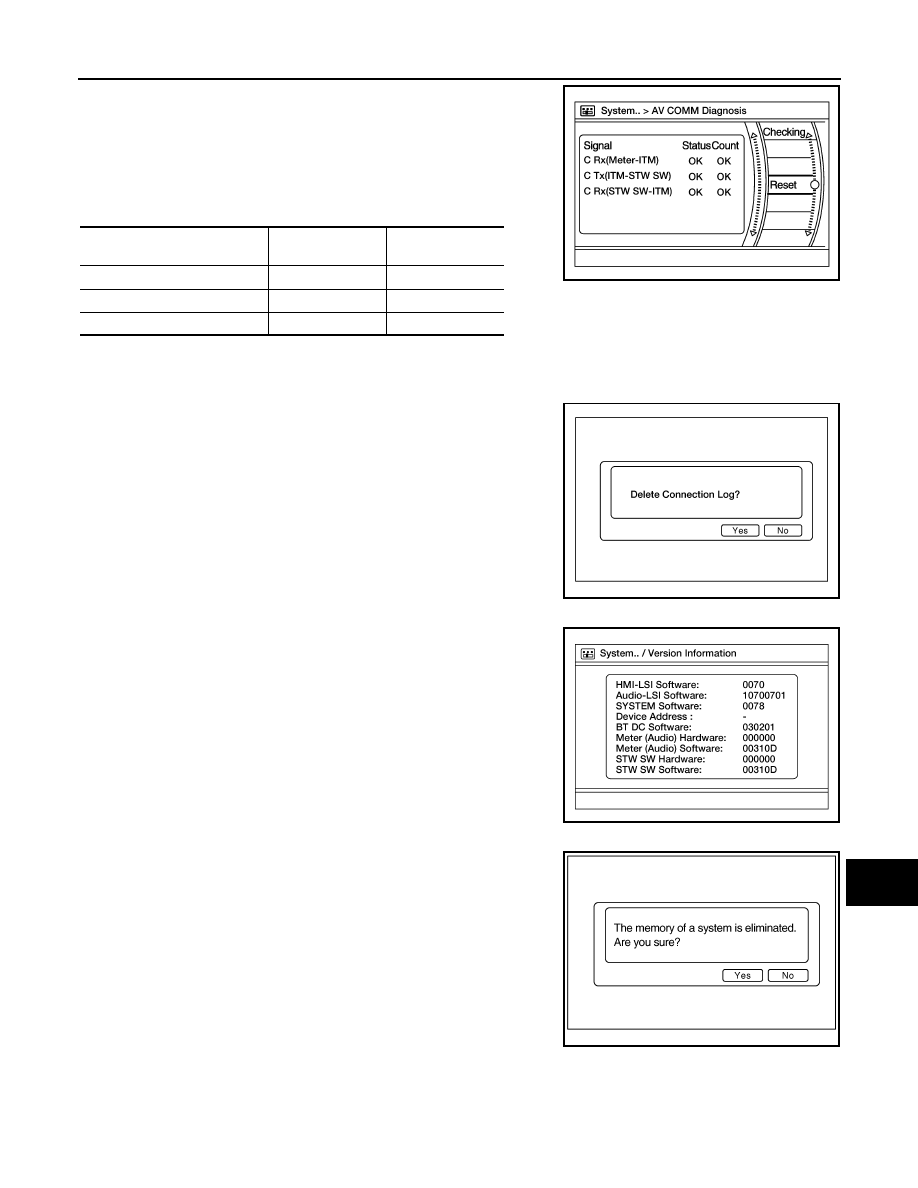

• Displays the communication status between audio unit (master

unit) and each unit.

• The error counter displays OK if any malfunction was not detected

in the past and displays 0 if a malfunction is detected. It increases
by 1 if the condition is normal at the next ignition switch ON cycle.
The upper limit of the counter is 39.

• The error counter is erased if Reset is pressed.

NOTE:
“???” indicates UNKWN.

Delete Unit Connection Log

Deletes any unit connection records and error records from the
audio unit memory (clears the records of the unit that has been
removed).

Version Information

Displays audio unit software and hardware version numbers.

Initialize Settings

Deletes data stored from the audio unit.

Items

Status

(Current)

Counter

(Past)

C Rx(Meter-ITM)

OK / ???

OK / 0 – 39

C Tx(ITM-TW SW)

OK / ???

OK / 0 – 39

C Rx(STW SW-ITM)

OK / ???

OK / 0 – 39

AWNIA2636GB

AWNIA2637GB

AWNIA3346ZZ

JSNIA0155GB

AV-20

< ECU DIAGNOSIS INFORMATION >

[AUDIO SYSTEM]

AUDIO UNIT

ECU DIAGNOSIS INFORMATION

AUDIO UNIT

Reference Value

INFOID:0000000010505193

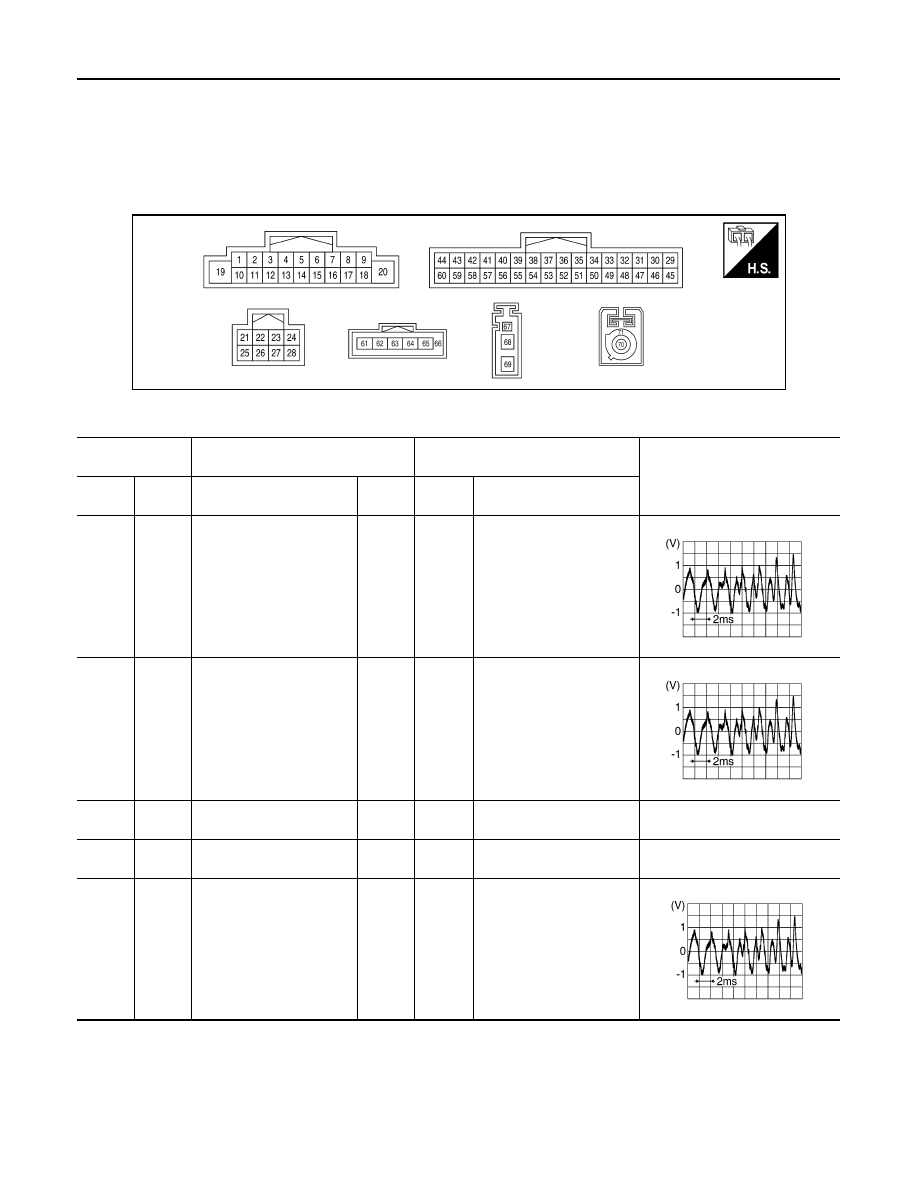

TERMINAL LAYOUT

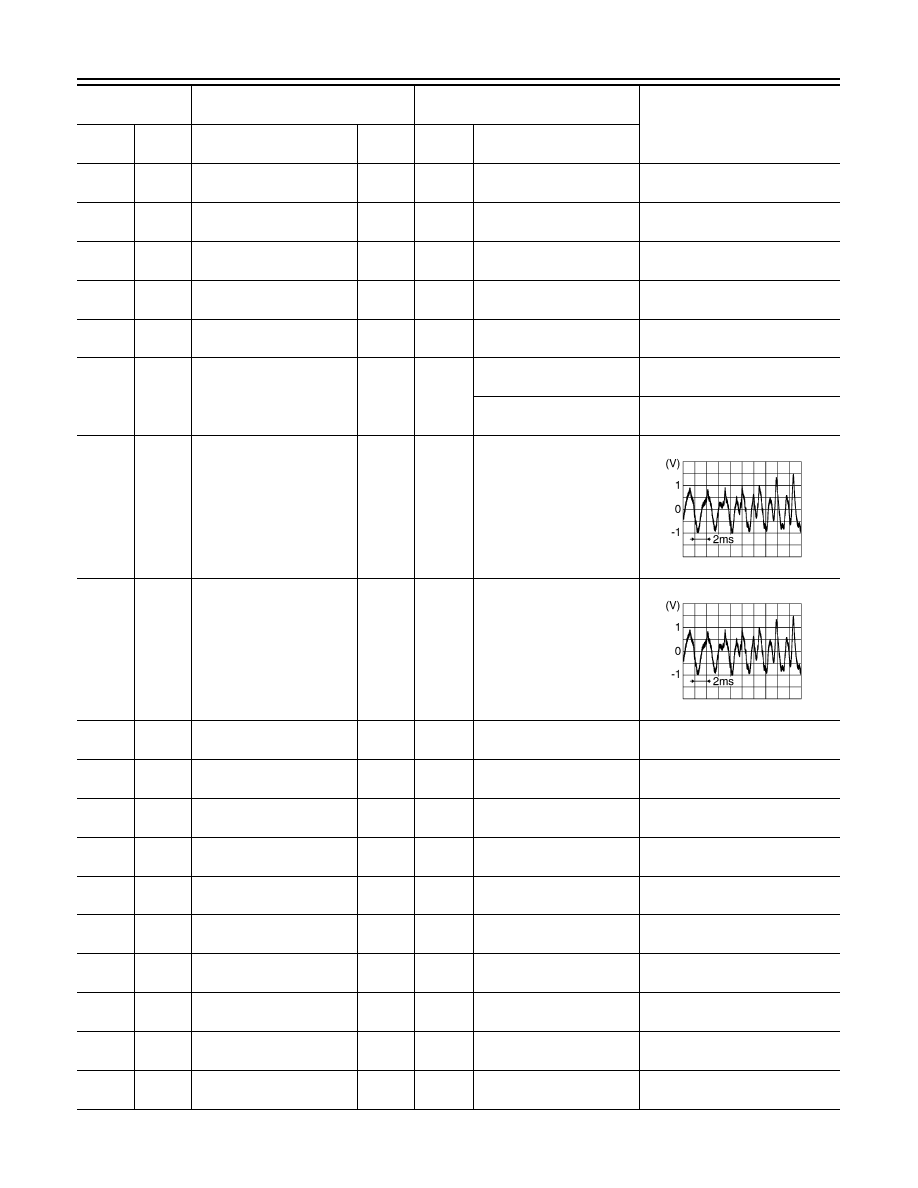

PHYSICAL VALUES

AWNIA3347ZZ

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

–

Signal name

Input/

Output

Ignition

switch

Operation

(L)

(V)

Sound signal front door
speaker and front tweeter
LH

Output

Sound output

(W)

(Y)

Sound signal rear door
speaker LH

Output

Sound output

(LG)

Ground

Ignition power supply

Input

—

Battery voltage

(BR)

(R)

Illumination control signal

Input

Headlamps ON

Battery voltage

(G)

(R)

Sound signal front door
speaker and front tweeter
RH

Output

Sound output

SKIB3609E

AUDIO UNIT

AV-21

< ECU DIAGNOSIS INFORMATION >

[AUDIO SYSTEM]

(LG)

(GR)

Sound signal rear door
speaker RH

Output

Sound output

(P)

Ground

Dongle / AUDIO LINK

—

(P)

Ground

Vehicle speed signal

Input

When vehicle speed is ap-
prox. 40 km/h (25 MPH)

(L)

Ground

Battery power supply

Input

OFF

—

Battery voltage

(B)

Ground

—

0 V

(W)

Ground

ACC power supply

Input

—

Battery voltage

(SB)

—

CAN H

—

(LG)

—

CAN L

—

(B)

Ground

Camera ground

—

0 V

(R)

Ground

Camera power supply

Output

Camera image displayed

6.0 V

Except for above

0 V

(R)

(GR)

Camera image signal

Input

Camera image displayed

(W)

Ground

Camera detection

—

0 V

(W)

(Shield)

Microphone signal

Input

While speaking into micro-
phone.

(BG)

—

MIC VCC

Input

—

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

–

Signal name

Input/

Output

Ignition

switch

Operation

SKIB3609E

JSNIA0012GB

SKIB2251J

SKIB3609E

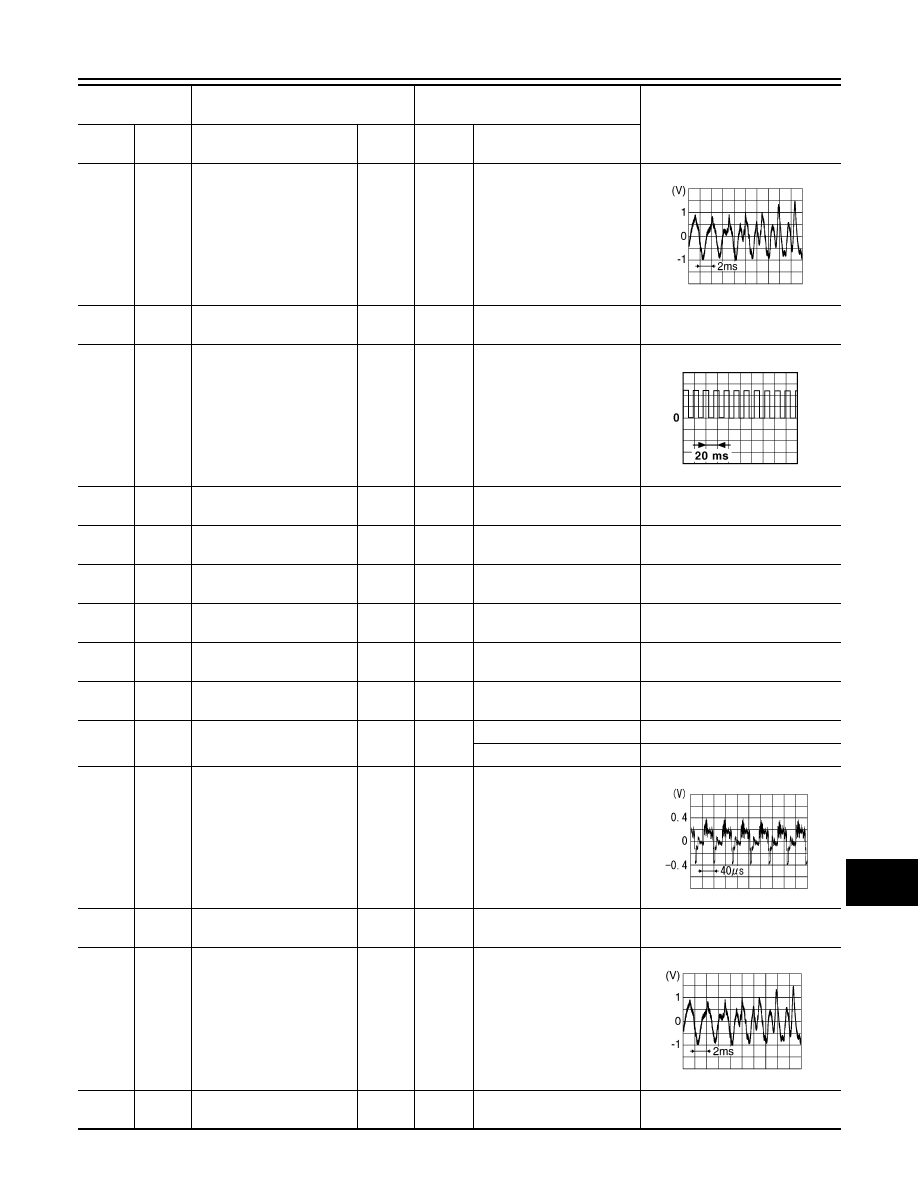

AV-22

< ECU DIAGNOSIS INFORMATION >

[AUDIO SYSTEM]

AUDIO UNIT

(LG)

—

AV communication (L)

Input/

Output

—

(SB)

—

AV communication (H)

Input/

Output

—

(LG)

—

AV communication (L)

Input/

Output

—

(SB)

—

AV communication (H)

Input/

Output

—

(B)

—

EQ1

—

(G)

Ground

Reverse signal

Input

Selector lever in R (re-
verse)

Battery voltage

Selector lever in any posi-
tion other than R (reverse)

0 V

(B)

Ground

AUX jack audio signal LH

Input

Received audio signal
(AUX input)

(R)

Ground

AUX jack audio signal RH

Input

Received audio signal
(AUX input)

(W)

Ground

AUX ground

—

(Shield)

—

AUX signal shield

—

129

(G)

—

USB ground

—

130

(R)

—

USB D

−

signal

—

131
(W)

—

V BUS signal

—

133

(Shield)

—

USB shield

—

132

(L)

—

USB D+ signal

—

150

—

Ground

FN sub signal

Input

Audio unit ON, XM select-
ed.

5.0 V

152

—

Ground

Antenna amp. ON signal

Output

Audio unit ON, FM-AM se-
lected.

Battery voltage

151

—

Ground

AM/FM antenna signal

Input

Audio unit ON, FM-AM se-
lected.

5.0 V

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

–

Signal name

Input/

Output

Ignition

switch

Operation

SKIB3609E

AUDIO SYSTEM

AV-23

< WIRING DIAGRAM >

[AUDIO SYSTEM]

WIRING DIAGRAM

AUDIO SYSTEM

Wiring Diagram

INFOID:0000000010502032

JRNWD1346GB

AV-24

< WIRING DIAGRAM >

[AUDIO SYSTEM]

AUDIO SYSTEM

JRNWD1347GB

AUDIO SYSTEM

AV-25

< WIRING DIAGRAM >

[AUDIO SYSTEM]

JRNWD1348GB

AV-26

< WIRING DIAGRAM >

[AUDIO SYSTEM]

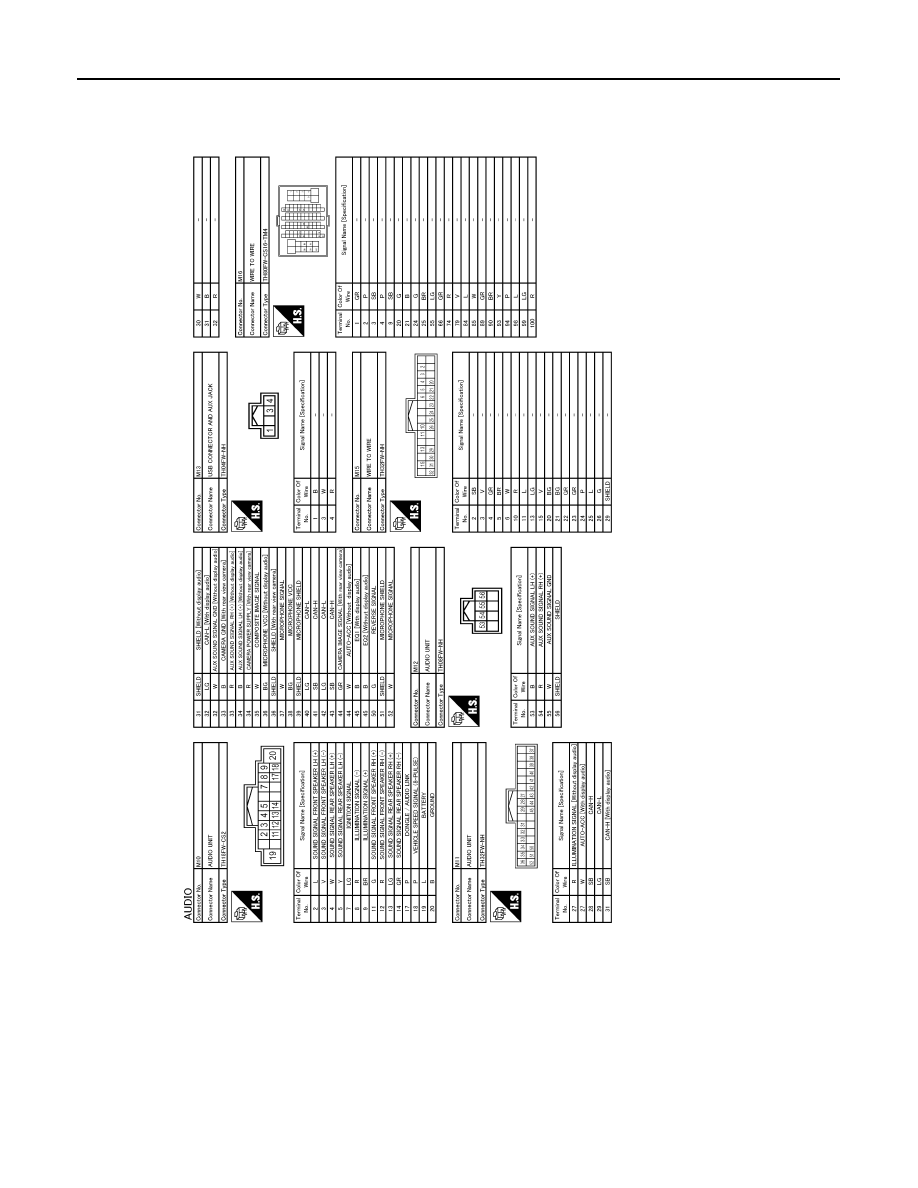

AUDIO SYSTEM

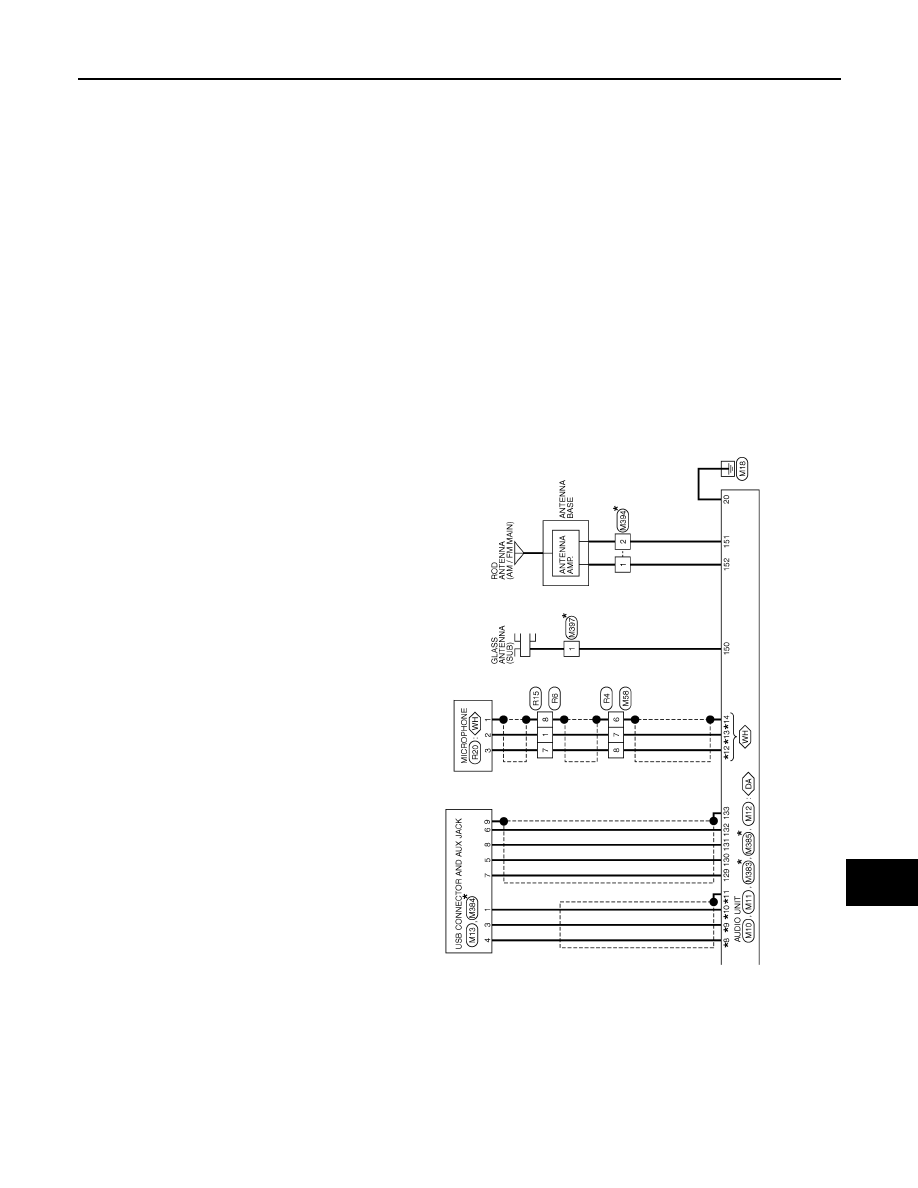

JRNWD1424GB

AUDIO SYSTEM

AV-27

< WIRING DIAGRAM >

[AUDIO SYSTEM]

JRNWD1425GB

AV-28

< WIRING DIAGRAM >

[AUDIO SYSTEM]

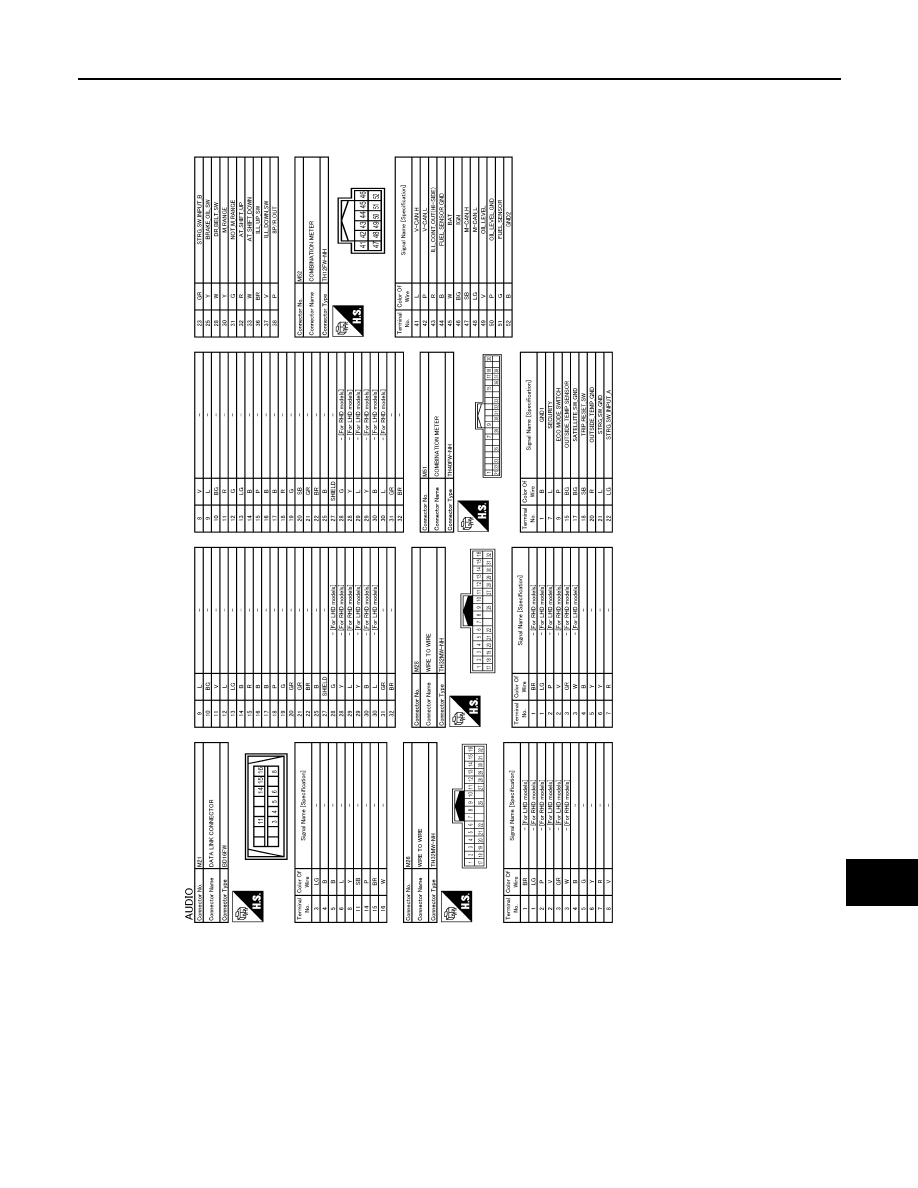

AUDIO SYSTEM

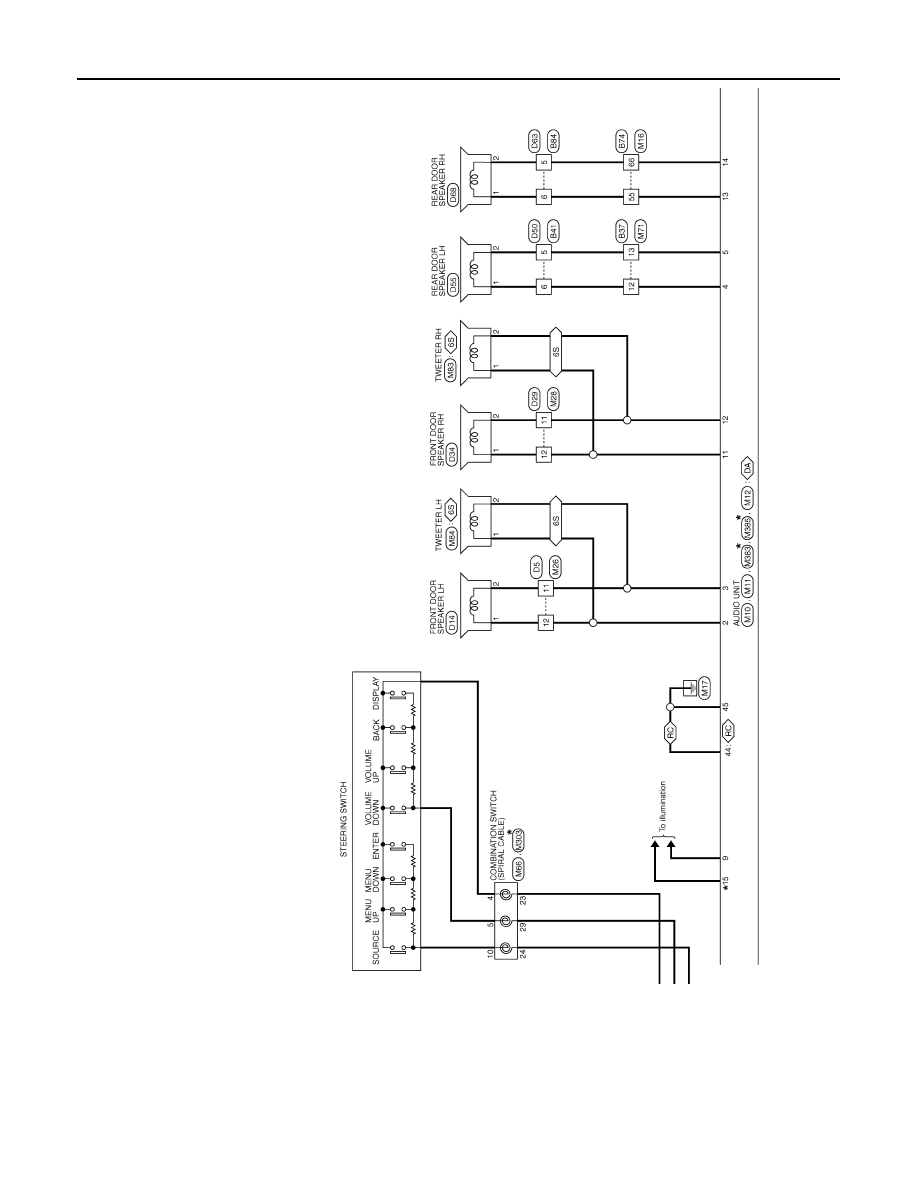

JRNWD1426GB

AUDIO SYSTEM

AV-29

< WIRING DIAGRAM >

[AUDIO SYSTEM]

JRNWD1427GB

AV-30

< WIRING DIAGRAM >

[AUDIO SYSTEM]

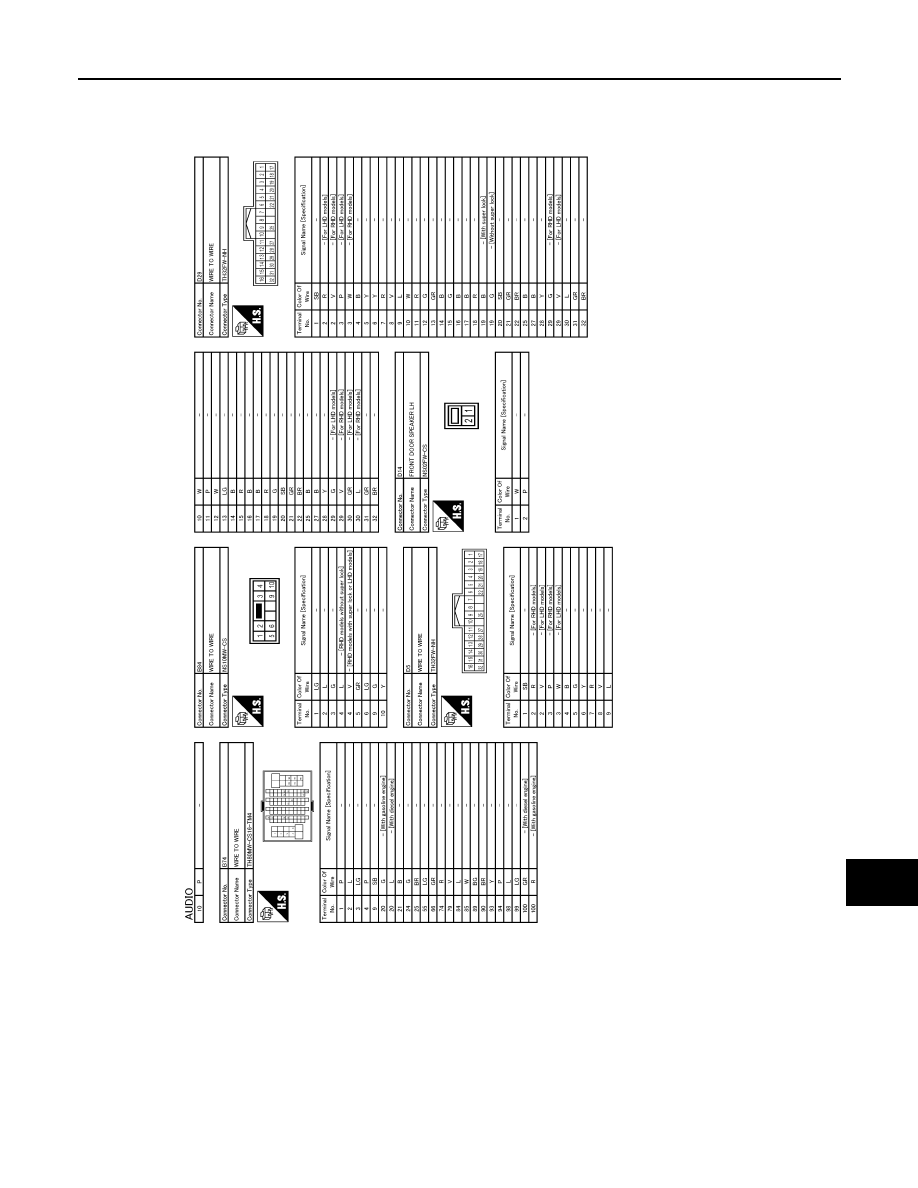

AUDIO SYSTEM

JRNWD1428GB

AUDIO SYSTEM

AV-31

< WIRING DIAGRAM >

[AUDIO SYSTEM]

JRNWD1429GB

AV-32

< WIRING DIAGRAM >

[AUDIO SYSTEM]

AUDIO SYSTEM

JRNWD1430GB
